ViTiny UM20A-CSZ064 User manual

Version 1.0
UM20A-CSZ064
User’s Guide

1
Contents
1. Product Introduction ...........................2
1.1 Packing Contents .........................2
1.2 Assemble microscope with stand 2
1.3 IR Remote controller....................4
1.4 Microscope menu functions........9
1.5 Microscope introduction:..........23
1.6 Microscope Focus......................26
1.7 Microscope accessory................28
2. Printed Notice....................................29
2.1 Maintenance..............................29
2.2 Product Specification.................30
2.3 Safety Instructions.....................31

2
1. Product Introduction
1.1 Packing Contents
The box contains microscope and accessories.
Item
Q’ty
Item
Q’ty
DiGi Microscope
1
HDMI Cable
1
1x CSZ064 Lens
1
USB-C 3.0 Cable
1
LED Ring Light GN03
1
IR Remote Control
1
Power adaptor
1
Calibrator
1
S114 Stand
(Instruction guide included)
1
User’s Guide
1
White Balance Card
1
Software download:
http://www.vitiny.com/vitiny_en/ap_program.html
1.2 Assemble microscope with stand
1.2.1 Fix microscope
Each CSZ064 lens has reach its parfocal distance when
goods ship out; simply screw the CSZ064 lens under the
microscope camera ○
aand tighten up with stand,refer to
1.5.3 section for assembling.

3
1.2.2 Start to use microscope
Connect the HDMI cable○
band adaptor○ cto HDMI monitor
and power. See below:
○
b
○
c
○
a
CSZ064

4
1.2.3 Power On/Off
Press Power to turn on microscope. Choose HDMI
mode or Auto on HDMI monitor to output image. *Long
press means press and hold the button for 2 seconds*
1.3 IR Remote controller
The microscope operation and functions is controlled by the IR
remote controller.
(1) Power ：Turn on/off.
(2) HDMI ：When in HDMI mode, the HDMI cable must
connect with the screen and microscope.
(3) PC CAM ：When in PC CAM mode, the USB cable must
connect to a PC and microscope. Please disable software
before switching to HDMI mode or powering off.

5
(4) Snapshot ：When preview on
PCCam mode, press snapshot to
take picture.
(5) LED Adjustment: No Function.
(6) Motor Reset (Recalibrates
entire operation)：Returns to
the lens position. If a loss of
electricity occurred during
operation, please reset the
operation.
(7) Manual focus
(7-1) Zoom in ：Zooms in;
speed increases when
held.
(7-2) Zoom out ：Zooms out; speed increases when held.
(7-3) Step zoom in ：zoom in by steps.
(7-4) Step zoom out ：zoom out by steps.
(8) Autofocus: Does not suggest to use this function in CSZ064
model. Whenever active the AF function, sensor position will
change. This might cause the sensor position not at the end so
image will not clear in every stage when manual adjust. If this
situation occurs, please refer to Section 1.6 Microscope Focus.

6
Press one time to search focus in current area, long press for 2
seconds to search focus in whole area.
(8-1) Single Autofocus : Focuses one time.
(8-2) Continuous Autofocus :Re-focuses when image blurred.
(9) Exposure Value: 20 levels of exposure value are selectable, from -
10~Auto~+9.
(9-1) Increase ：Use to increase exposure when the image
is too dark.
(9-2) Decrease ：Use to decrease exposure when the
image is too bright.
(10) Menu on Screen ：Open/close menu for setting. Refer to
Section 1.4.
(11) Up ：Choose the previous item, if Crosshair is ON, select
other color.
(12) Down ：Choose the next item, if Crosshair is ON, select other
color.
(13) Left ：Choose the next value, if Crosshair is ON, select Line
Size.
(14) Right ：Choose the last value. When MENU function is not
turn on, press to change Crosshair in Full screen size, normal
size or turn off.
(15) Video Ratio ：No Function.

7
(16) Status Bar ：Status bar show [FL] ○
dfor free lens. The
area○e tells the operation status and only show 3 seconds.
(16-1) Area○e：
(16-2-1) OZ：Optical Zoom. Ex: OZ：500.
500 means sensor position.
(16-2-2) SZ：Step Zoom. Ex :SZ : 500. Same format as OZ.
(16-2-3) AFS：Single Autofocus. Ex: AFS►A500, “A”means
search focus in “current area”, 500 means sensor
position. AFS►W500, “W”means search focus in
○
d
○
e

8
“whole area”.
(16-2-4) AFC：Continuous autofocus, “A”and “W”are same
function as AFS.
(16-2-5) EV：Exposure Value. Ex: EV：+5, means EV is +5,
EV：-5 means EV is -5.
(16-2-6) MR：Motor Reset.
(16-2-7) SHA：Sharpness. Ex: SHA►SET(5), means
sharpness is 5. SHA►SET(10) means the maximum 10.
(16-2-8) FRZ：Image Freeze. Ex: FRZ►ON, means freeze
image, FRZ►OFF means unfreeze image.
(16-2-9) WB：White Balance Calibration. Ex: WB►SET
means calibrate white balance.
(16-2-10) NONE：No Function.
(17) Auto White Balance Calibration : To calibrate the white
balance, place the white balance card (included in box) under
the lens, focus until clear, and choose On. Because the white
balance is sometimes influenced by external light sources, it is
recommended to calibrate the white balance if the color seems
off or incorrect.

9
(18) Image Freeze : ON/Off to freeze or unfreeze the image.
(19) Sharpness : On/Off to set sharpness at Minimum and
Maximum level.

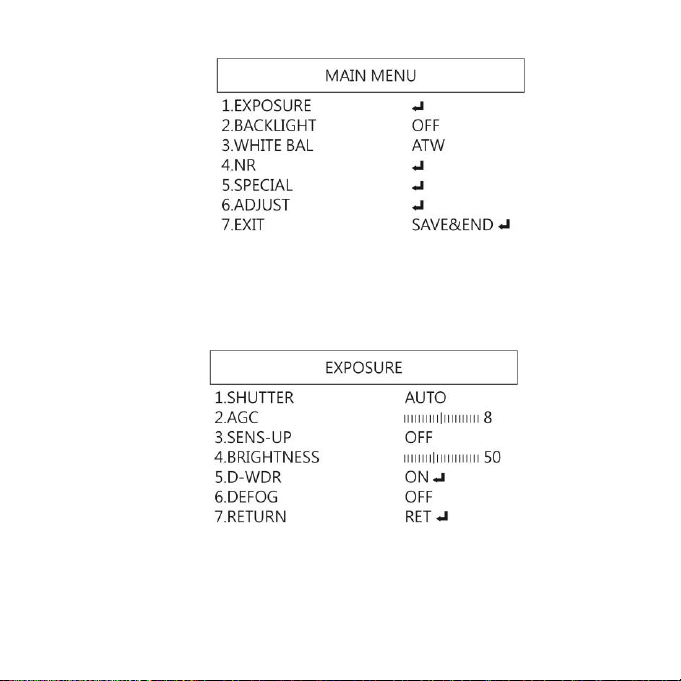

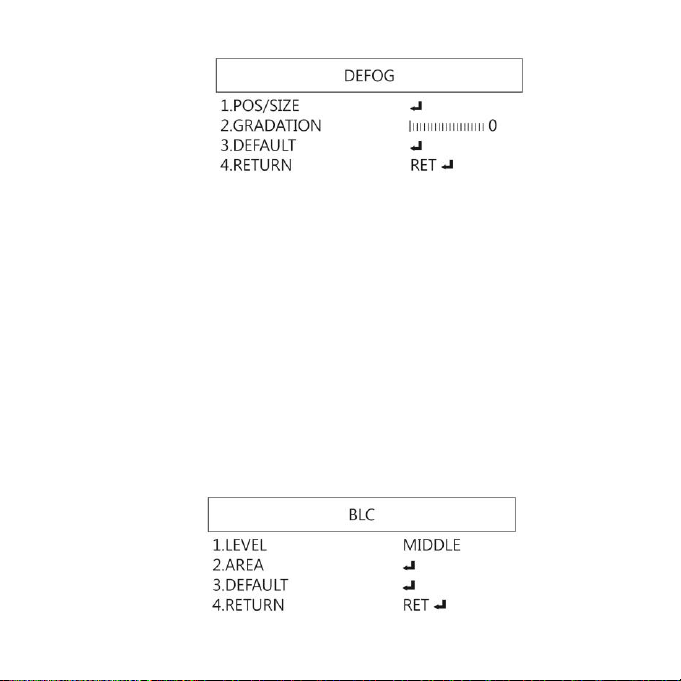

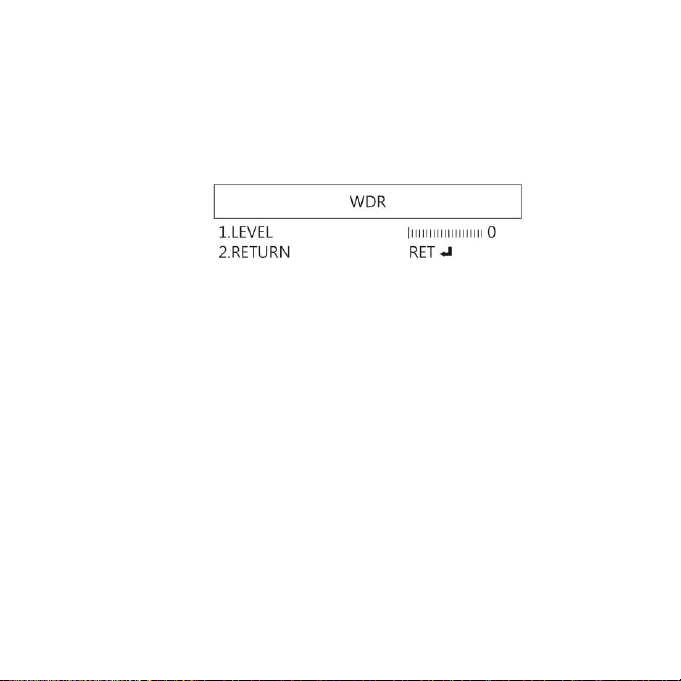

1.4 Microscope menu functions
Press button to enter MENU, press Up and Down to
choose item, Left and Right to turn on/off or adjust parameter.
Enter means more functions, press Menu to enter next
function or confirm. means no more settings. Return to
return last page, or press Left or Right to choose “End” to
return preview window.
