VIVI H6 User manual

American
VIVI
E-bike User’s Manual
CAUTION: READ THIS MANUAL BEFORE USING YOUR EQUIPMENT

CONTANTS
Safety instruction------------------------------------------------------------------Page 1
Technical configuration parameters------------------------------------------------------Page 1
Meter operation-------------------------------------------------------------------Page 2-3
Battery:Further information and maintenance-----------------------------------Page 4
About Charging---------------------------------------------------------------------------Page 4
Installation Instruction----------------------------------------------------------Page5-10

1
1. Safety Instruction__________________
1.Thank you for purchasing the VIVI E-BIKE. The E-BIKE features the most
recent innovation in technology.
2.For safety reasons, please read the user’s manual carefully before using th
e e-bike. Improper operation will reduce its driving performance, and more im
portantly, cause danger to your safety and health.
3.For using and maintenance of the e-bike, please refer to the E-BIKE user’s
manual which is an indispensable part of the operation of e-bike user.
4.Do not disassemble or disassemble any of the about e-bike components at
any time.
5.Please check all parts are tighten and locked before riding.
6.Please make sure that the battery charger and charging plug are always
dry.
7.The charger can only be cleaned with dry cloth. Never use a damp cloth,oil
or any other liquid for cleaning.

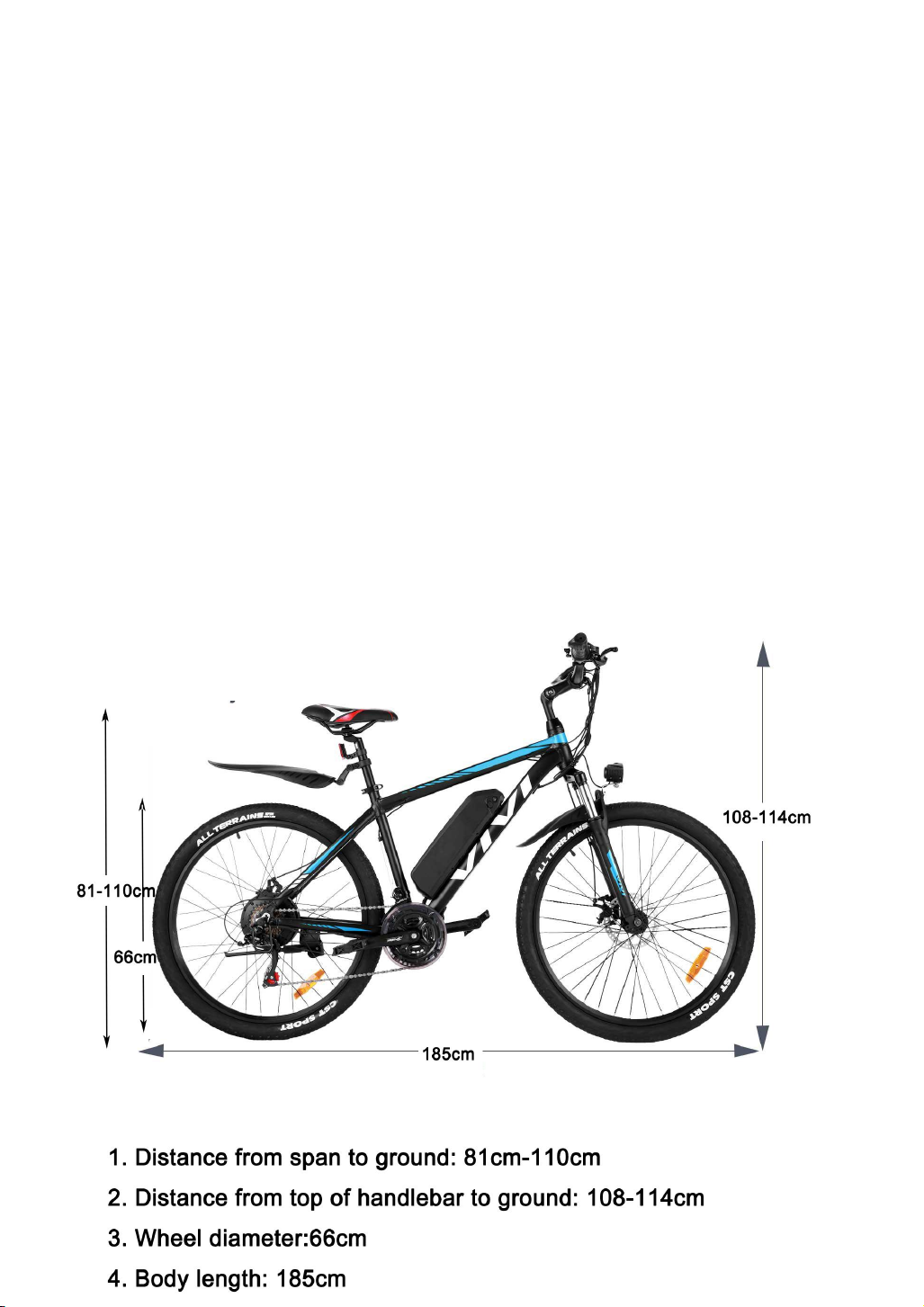

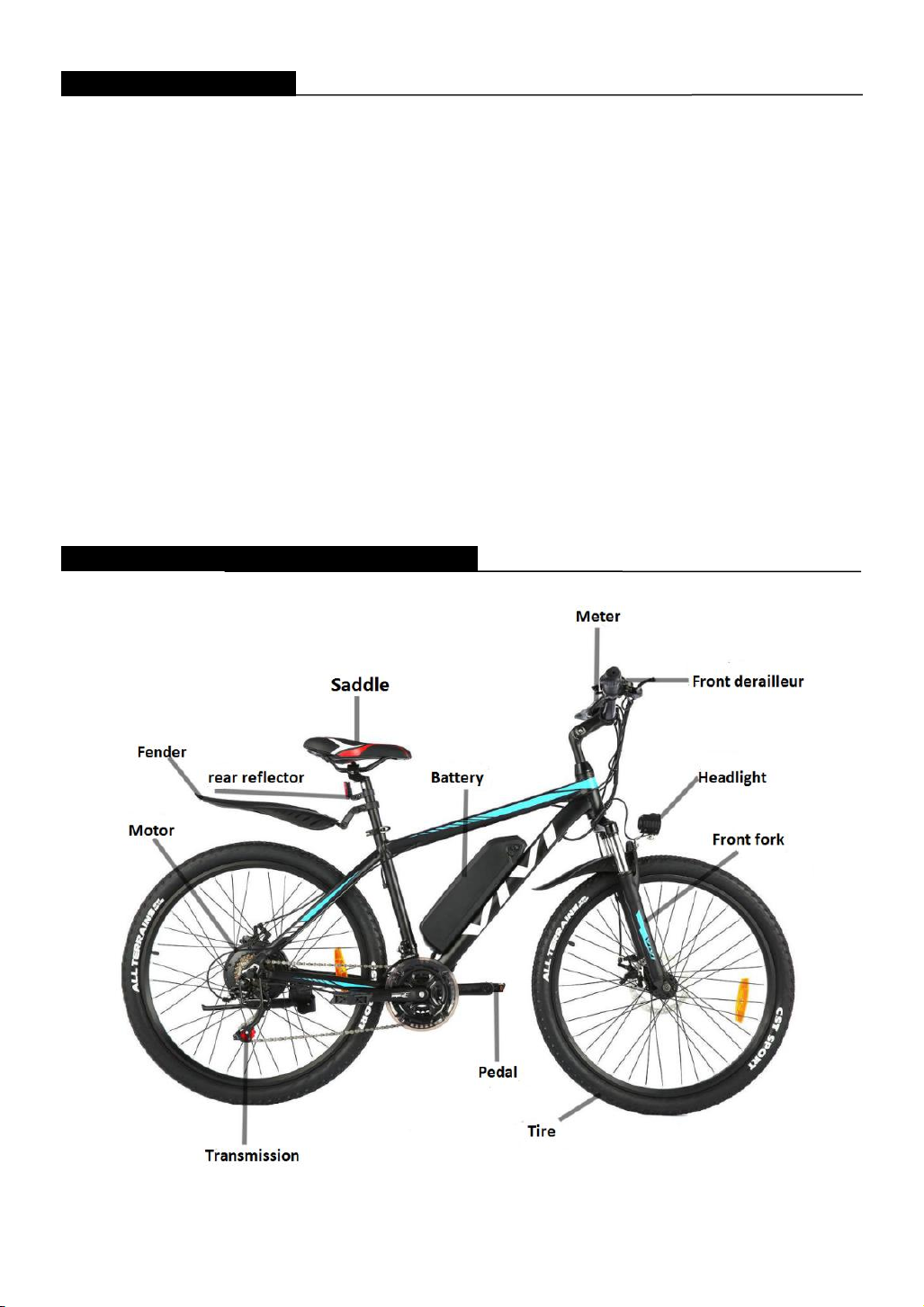

2. Technical configuration parameters

2
3. Meter operation

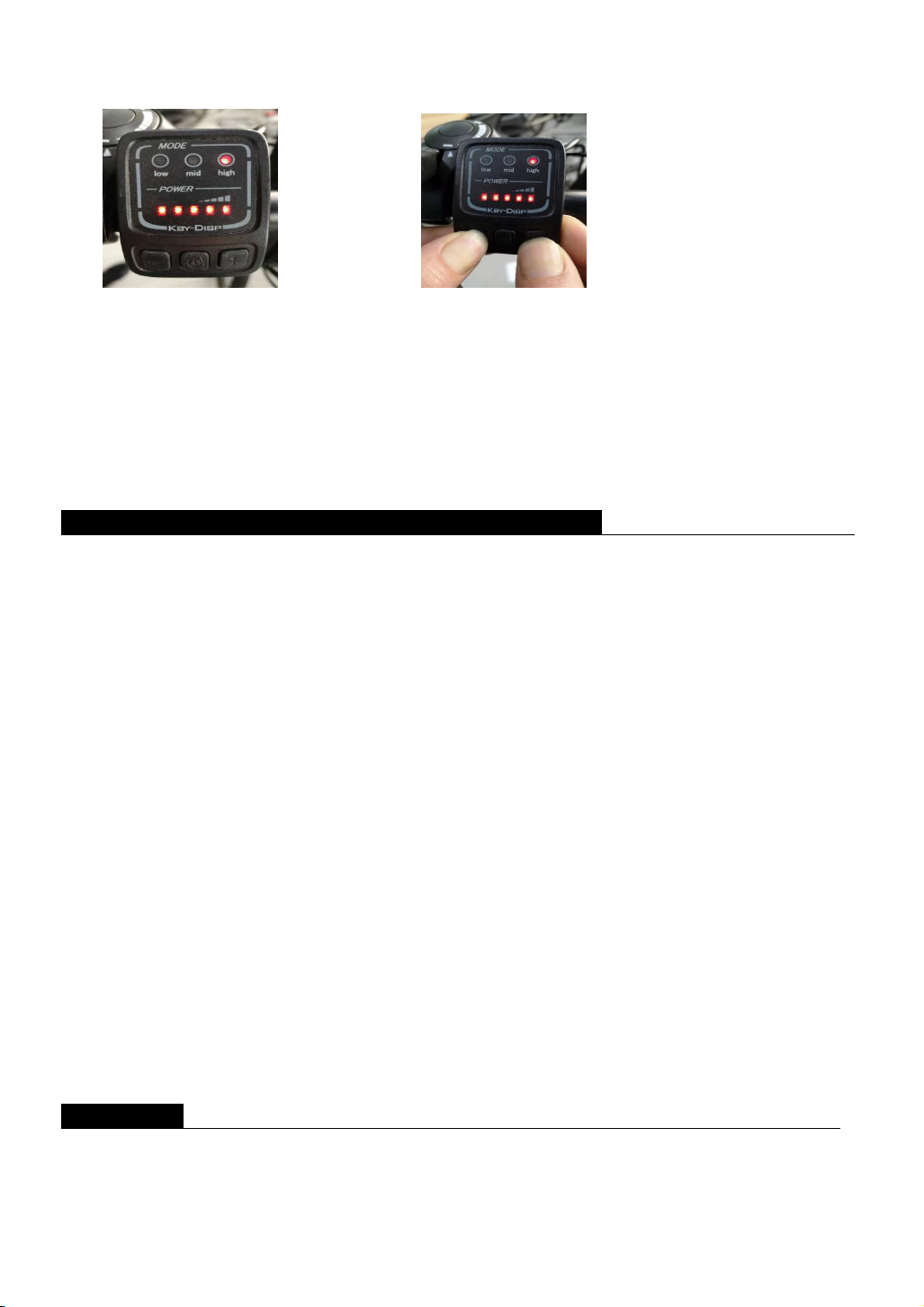

3.1 Meter instruction

3
Press the "+"
button for 2
seconds
during
power-on
state, the
system
defaults to
turning on the
front light.
When the
front light is
on, press the
"+" button for
2 seconds, the
system
defaults to
turn off the
front light.

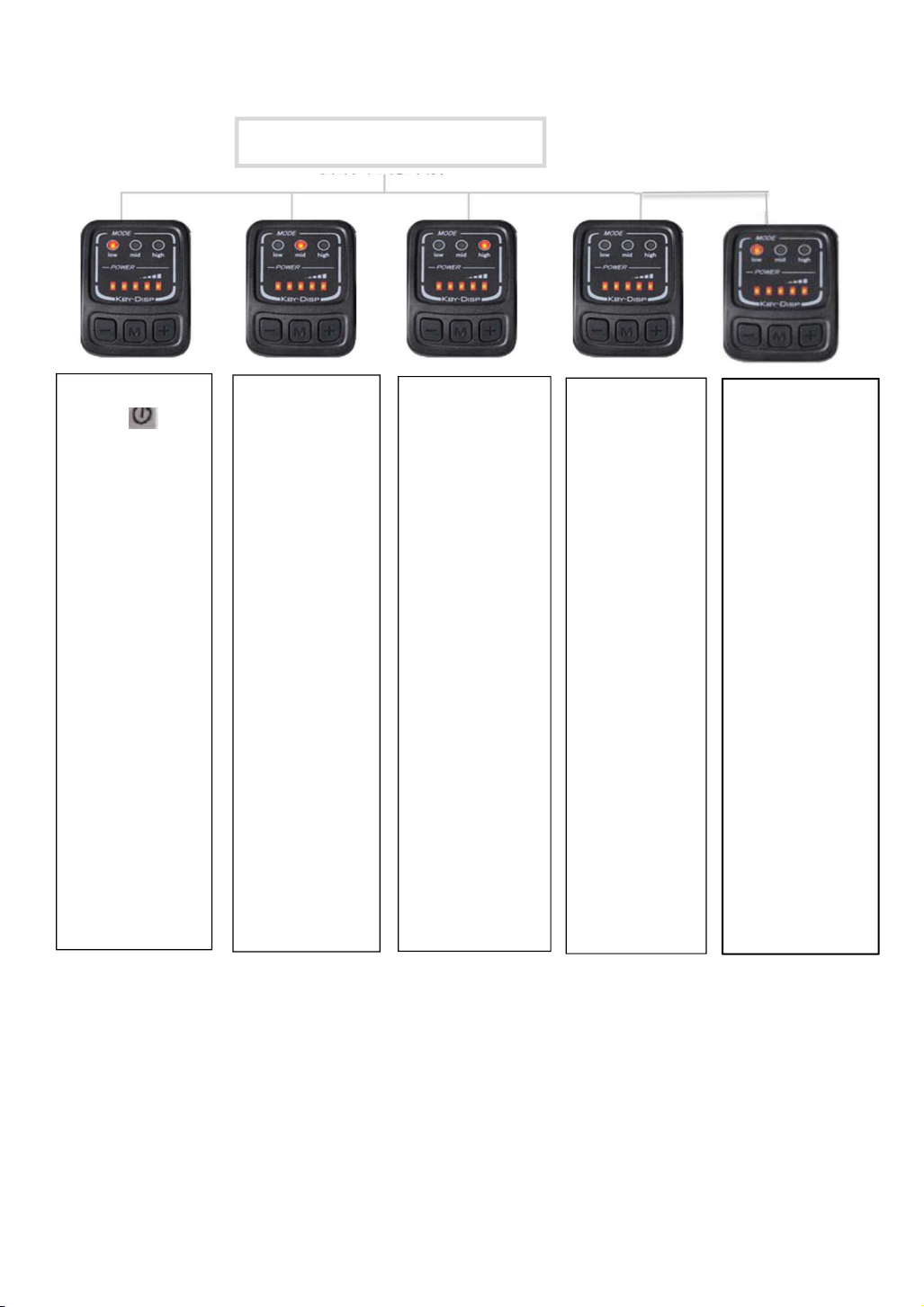

3.2 Meter operation
3.3 Meter Solution Instruction:
1. Turn on the machine first and adjust the gear to high-speed gear;
2. Press the "+""-" buttons at the same time. Long press for 3 seconds to 5
seconds, this is the speed limit will be lifted;
3. If you want to restore the factory configuration after the speed limit is lifted,
Operating instructions
Hold the
button for
2s to switch
on/off the
E-Bike system.
The default
value is “low”
pedal assist
level. Full
Electric
Function (Pure
electric mode)
Press “+” to
crease into
pedal assist
level “Mid”.
Full Electric
Function
(Pure electric
mode)
Press “+”
again to move
into pedal
assist level
“High”. “High”
is the
maximum
power of PAS.
Full Electric
Function
(Pure electric
mode)
Foot riding
(without
pedal
assistant
and electric）

4
repeat the above 1.2. operation.
3.4 Operation Cautions
Be careful of the safety use. Don’t attempt to release the connector when
charging the battery.
● Avoid the risk of collision.
● Don’t modify system parameters to avoid parameters disorder.
● Make the display repaired when error code appears.
4. Battery: further information and maintenance
1. How far full charge battery can go? This will depends on the loading weight,
road condition and battery capacity. The average vehicle speed can continue
to travel for a long distance when its under the same condition.
2. It is important to place the fully charged battery on a flat surface in a dry
place when storing the battery for a longer time period, (e.g. during winter
time).
3. Attention: The battery should be re-charged once every 2-3 month when
it is not used.
4.Warning:
4.1.Please keep the battery out of reach of children.
4.2.Never try to open the battery.
4.3. Stop using a damaged battery if the battery is damaged because it has
been dropped somewhere or because of a biking accident. The battery might
contains risk of electrolytes leakage. Beware of chemical burns!
4.4 Do not touch the battery without a cloth or gloves and make sure no acid
touches your eyes.
5.Charging

5
1. When charging the e-bike battery, simply place the bike within reach of the
power supply, connect the charge’s plug to the charging base on the battery,
and then plug in the charger’s power plug to charge.
2. The battery can be installed on the bike for charging, or can be removed
and placed in a convenient place for charging.
3. The red light indicates it is in charging, green light indicates the battery is
fully charged (please put off the plug from the wall). The charging time
depends on the battery capacity, the general charging time is 4-6 hours.
4. Warning: It is forbidden to charge for more than 10 hours, please keep
away from high temperature environment and store in a shade.
6 . Installation Instruction
1. Open the carton, take out the e-bike, and cut the wrapping rope with tools.
2. Handlebar installation:
2.1 Insert the seat tube vertically and align it with the frame head tube. The
depth must exceed the minimum insertion depth marked on the seat tube.
2.2 Align the standpipe so that the handlebar and the frame are at 90
degrees, and then use an M6 hexagon wrench to tighten the mounting screws
on the standpipe.
2.3 Adjust the correct position of the handlebar, and then use tools to lock
the handlebar cover.
2.1 2.2 2.3
3. Headlight installation
3.1 Loosen the headlight screw from the front fork; install the headlight in
the front fork screw hole, and tighten the screw with an Allen tool.

6
4.Front wheel installation：
4.1 Cut the wrapping rope, remove the front wheel, remove the front fork
protection lever and the front wheel protection cover.
4.2 Make sure that the front wheel is in line with the rear wheel, then start
installation. First pull the wheel upwards, put the disc brake pad into the front
brake caliper, and then use 15 wrench to tighter the front hub fixing screw.
4.3 Adjust the adjusting screw of the disc brake to make the disc brake rotor
without obvious friction
5.Pedal installation：
Check two pedals. The one imprinted “L” should be installed on the left
(without chain ring), and another one imprinted “ R” should be installed on the
right (with chain ring), rotate clockwise, and then use a 15 wrench tighten the
pedal spindle.

7
6.Saddle installation
6.1 Open the package and take out the saddle and seat post, then install the
rear reflector on the seat post
6.2 Insert the seat post into the frame.
6.3 Adjust the seat post to the height that best suits your riding position, and
tighten the quick release. （please make sure the quick release is locked
firmly）
7.Adjust the brakes, meters, and transmission system. tighten all of
them with tools.
8. Battery installation:
8.1 Take the battery out of the packing box first.
8.2 Install the battery on the battery rack in the Bike.

8
8.3 Find the battery power switch (black color), press it up, the power is
turned on, and the battery installation is completed.
9.Tire inflation instruction:
9.1 After the bicycle is assembled, please check whether the air pressure of
the front and rear tires is within the normal value.
9.2 When refilling tires, you must refer to the inflation reference range on the
side of the tire for refilling, generally between 35PSI---65PSI
(280Kpa--450Kpa).

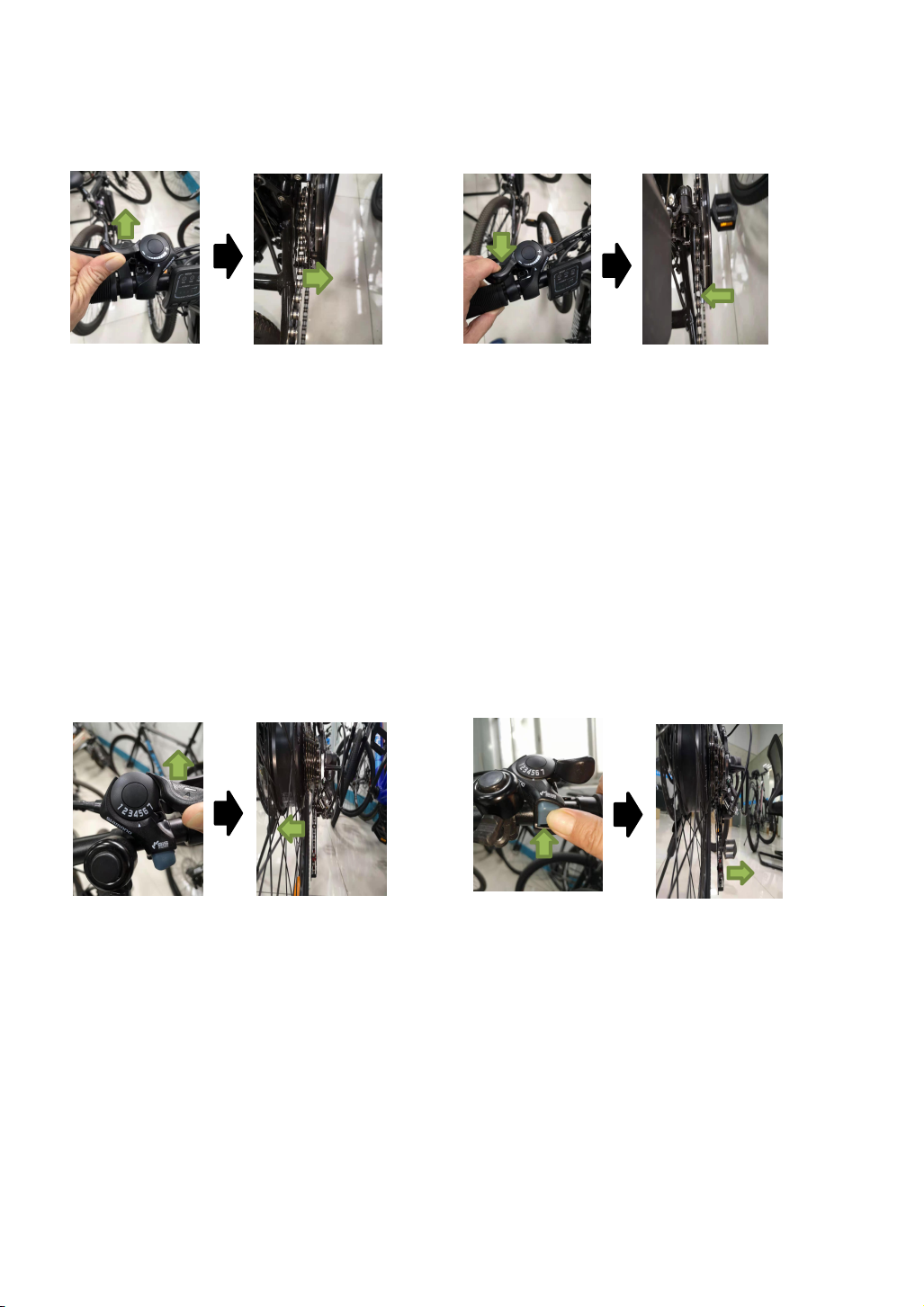

10.Instructions for using Front derailleur:
10.1 When you shift forward the left derailleur handle, the front derailleur will
move outward, at the same time, move the chain from the small part of the
chain ring to the large part. These steps will increase the riding speed while
riding, also will increase the pedaling strength of riding. When shift backward
the derailleur handle bar, the front derailleur moves from outside to inside, at
the same time, move the chain from the large part of the chain ring to the
small part. These steps will reduce the riding speed while riding, also will

9
reduce the pedaling strength of riding. So as to realize the different speed of
the front derailleur.
10.2 When you shift forward the right derailleur handle, the back derailleur
will move inside, at the same time, move the chain from the small part of the
rear flywheel to the large part. These steps will reduce the riding speed while
riding, also will reduce the pedaling strength of riding. When the handle bar at
the maximum position(as shown in picture 3 below), press the accelerator
button on the right derailleur handle, the back derailleur will move outward, at
the same time, move the chain from the large part of the rear flywheel to the
small part. These steps will increase the riding speed while riding, also will
increase the pedaling strength of riding.So as to realize the different speed of
the back derailleur.

10
More VIVI electric bike’s installation and repair instructions
Any question about the item, please contact.
Detail Packing List
Description
Quantity
E-Bike
1
Tools (13-15 spanner, 9-11 spanner, 8-10
spanner,14-17 spanner, eleven-shaped
screwdriver, M6, M5, M4, M3 Allen
wrench)
1
Manual
1
Key
2
Charger
1
rear reflector
1
Pedal
1
Saddle
1
Seat tube
1
Battery
1
Fenders
1

English
VIVI
E-bike User’s Manual
CAUTION: READ THIS MANUAL BEFORE USING YOUR EQUIPMENT

2
CONTANTS
Safety instruction------------------------------------------------------------------Page 1
Technical configuration parameters------------------------------------------------------Page 1
Meter operation-------------------------------------------------------------------Page 2-3
Battery:Further information and maintenance-----------------------------------Page 4
About Charging---------------------------------------------------------------------------Page 4
Installation Instruction----------------------------------------------------------Page5-10

1
1. Safety Instruction__________________
1.Thank you for purchasing the VIVI E-BIKE. The E-BIKE features the most
recent innovation in technology.
2.For safety reasons, please read the user’s manual carefully before using th
e e-bike. Improper operation will reduce its driving performance, and more im
portantly, cause danger to your safety and health.
3.For using and maintenance of the e-bike, please refer to the E-BIKE user’s
manual which is an indispensable part of the operation of e-bike user.
4.Do not disassemble or disassemble any of the about e-bike components at
any time.
5.Please check all parts are tighten and locked before riding.
6.Please make sure that the battery charger and charging plug are always
dry.
7.The charger can only be cleaned with dry cloth. Never use a damp cloth,oil
or any other liquid for cleaning.
2. Technical configuration parameters

2
3. Meter operation
3.1 Meter instruction

3
Press the "+"
button for 2
seconds
during
power-on
state, the
system
defaults to
turning on the
front light.
When the
front light is
on, press the
"+" button for
2 seconds, the
system
defaults to
turn off the
front light.
3.2 Meter operation
3.3 Meter Solution Instruction:
1. Turn on the machine first and adjust the gear to high-speed gear;
2. Press the "+""-" buttons at the same time. Long press for 3 seconds to 5
seconds, this is the speed limit will be lifted;
3. If you want to restore the factory configuration after the speed limit is lifted,
repeat the above 1.2. operation.
Operating instructions
Hold the
button for
2s to switch
on/off the
E-Bike system.
The default
value is “low”
pedal assist
level. Full
Electric
Function (Pure
electric mode)
Press “+” to
crease into
pedal assist
level “Mid”.
Full Electric
Function
(Pure electric
mode)
Press “+”
again to move
into pedal
assist level
“High”. “High”
is the
maximum
power of PAS.
Full Electric
Function
(Pure electric
mode)
Foot riding
(without
pedal
assistant
and electric）

4
3.4 Operation Cautions
Be careful of the safety use. Don’t attempt to release the connector when
charging the battery.
● Avoid the risk of collision.
● Don’t modify system parameters to avoid parameters disorder.
● Make the display repaired when error code appears.
4. Battery: further information and maintenance
1. How far full charge battery can go? This will depends on the loading weight,
road condition and battery capacity. The average vehicle speed can continue
to travel for a long distance when its under the same condition.
2. It is important to place the fully charged battery on a flat surface in a dry
place when storing the battery for a longer time period, (e.g. during winter
time).
3. Attention: The battery should be re-charged once every 2-3 month when
it is not used.
4.Warning:
4.1.Please keep the battery out of reach of children.
4.2.Never try to open the battery.
4.3. Stop using a damaged battery if the battery is damaged because it has
been dropped somewhere or because of a biking accident. The battery might
contains risk of electrolytes leakage. Beware of chemical burns!
4.4 Do not touch the battery without a cloth or gloves and make sure no acid
touches your eyes.
5.Charging

5
1. When charging the e-bike battery, simply place the bike within reach of the
power supply, connect the charge’s plug to the charging base on the battery,
and then plug in the charger’s power plug to charge.
2. The battery can be installed on the bike for charging, or can be removed
and placed in a convenient place for charging.
3. The red light indicates it is in charging, green light indicates the battery is
fully charged (please put off the plug from the wall). The charging time
depends on the battery capacity, the general charging time is 4-6 hours.
4. Warning: It is forbidden to charge for more than 10 hours, please keep
away from high temperature environment and store in a shade.
6 . Installation Instruction
1. Open the carton, take out the e-bike, and cut the wrapping rope with tools.
2. Handlebar installation:
2.1 Insert the seat tube vertically and align it with the frame head tube. The
depth must exceed the minimum insertion depth marked on the seat tube.
2.2 Align the standpipe so that the handlebar and the frame are at 90
degrees, and then use an M6 hexagon wrench to tighten the mounting screws
on the standpipe.
2.3 Adjust the correct position of the handlebar, and then use tools to lock
the handlebar cover.
2.1 2.2 2.3
3. Headlight installation
3.1 Loosen the headlight screw from the front fork; install the headlight in
the front fork screw hole, and tighten the screw with an Allen tool.

6
4.Front wheel installation：
4.1 Cut the wrapping rope, remove the front wheel, remove the front fork
protection lever and the front wheel protection cover.
4.2 Make sure that the front wheel is in line with the rear wheel, then start
installation. First pull the wheel upwards, put the disc brake pad into the front
brake caliper, and then use 15 wrench to tighter the front hub fixing screw.
4.3 Adjust the adjusting screw of the disc brake to make the disc brake rotor
without obvious friction
5.Pedal installation：
Check two pedals. The one imprinted “L” should be installed on the left
(without chain ring), and another one imprinted “ R” should be installed on the
right (with chain ring), rotate clockwise, and then use a 15 wrench tighten the
pedal spindle.
