Vivo MOUNT-KB01 User manual

Silver Under Desk Keyboard Tray
Scan the QR code with your mobile device or follow the link
for helpful videos and specications related to this product.
Instruction Manual
https://vivo-us.com/products/mount-kb01
SKU: MOUNT-KB01
[email protected]om www.vivo-us.com 309-278-5303
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

2
ASSEMBLY STEPS
STEP 1

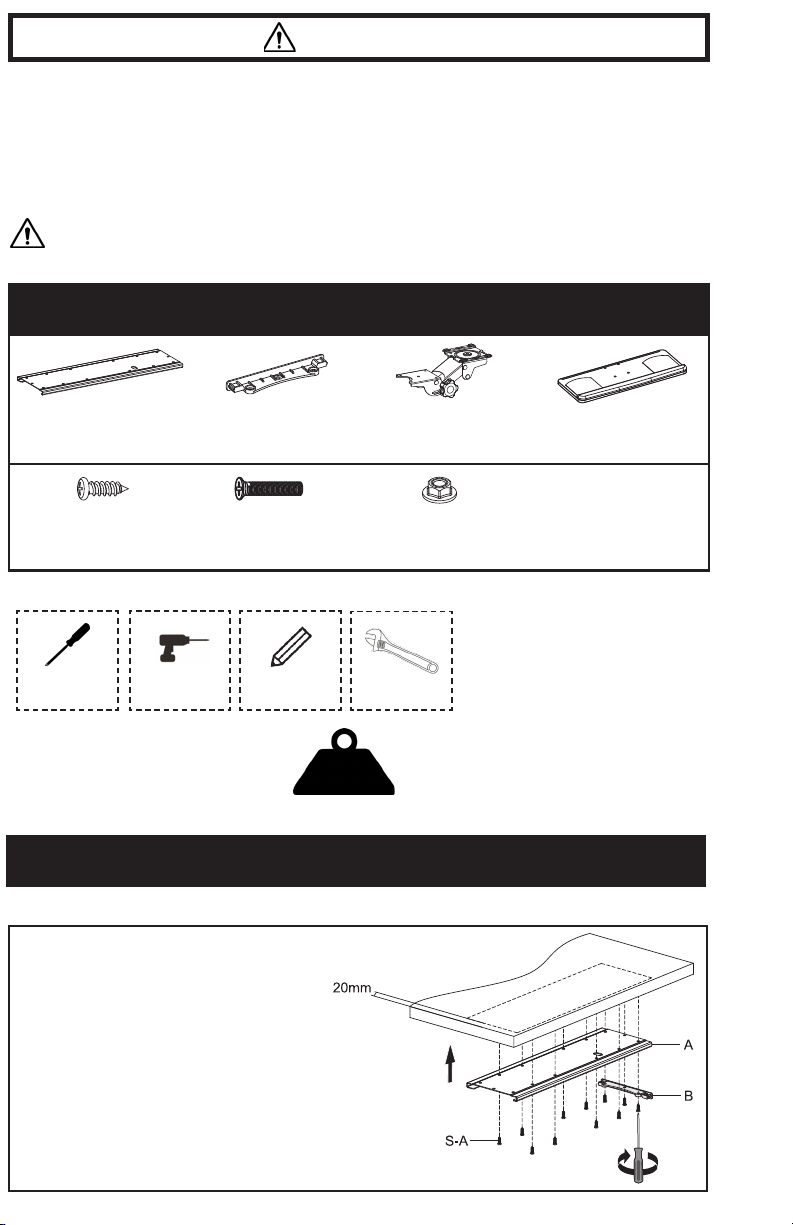

Position Track (A) underneath the desk, at
least 20 mm (0.8”) from the edge of the desk,
and mark hole locations with a pencil. Drill
pilot holes using a 3/32” drill bit.
Using ST4.2x16 Screws (S-A), attach Track
(A) underneath the desk (Leave front three
mounting holes unused at this time.) Mount
Track Guard (B) to the rear holes using
ST4.2x16 Screws (S-A).
PACKAGE CONTENTS
TOOLS NEEDED
WARNING!
Phillips
Screwdriver
A (x1)
Track
B (x2)
Track Gaurd
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualied technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specied in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
Drill
4.4lbs
(2kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
C (x1)
Arm
D (x1)
Tray
S-A (x14)
ST4.2x16 Screw
S-B (x4)
M5x20 Bolt
S-C (x4)
M5 Nut
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
Pencil Wrench

3
STEP 2
Slide Arm (C) into Track (A). If Arm (C) doesn’t slide
smoothly, grease the plastic sliders.
With Arm (C) pulled out, attach Tray (D) to Arm (C) using M5x20 Bolts (S-B) and M5 Nuts (S-C). Tighten
using a Phillips screwdriver and wrench.
STEP 4
Adjust the height of Tray (D) by loosening the knob on Arm (C) until in desired position, then
retighten the knob.
STEP 5
STEP 3
With the Arm (C) pushed to the back, secure Track
Guard (B) to the front of Track (A) using ST4.2x16
Screws (S-A).
A
A
C
D
C
