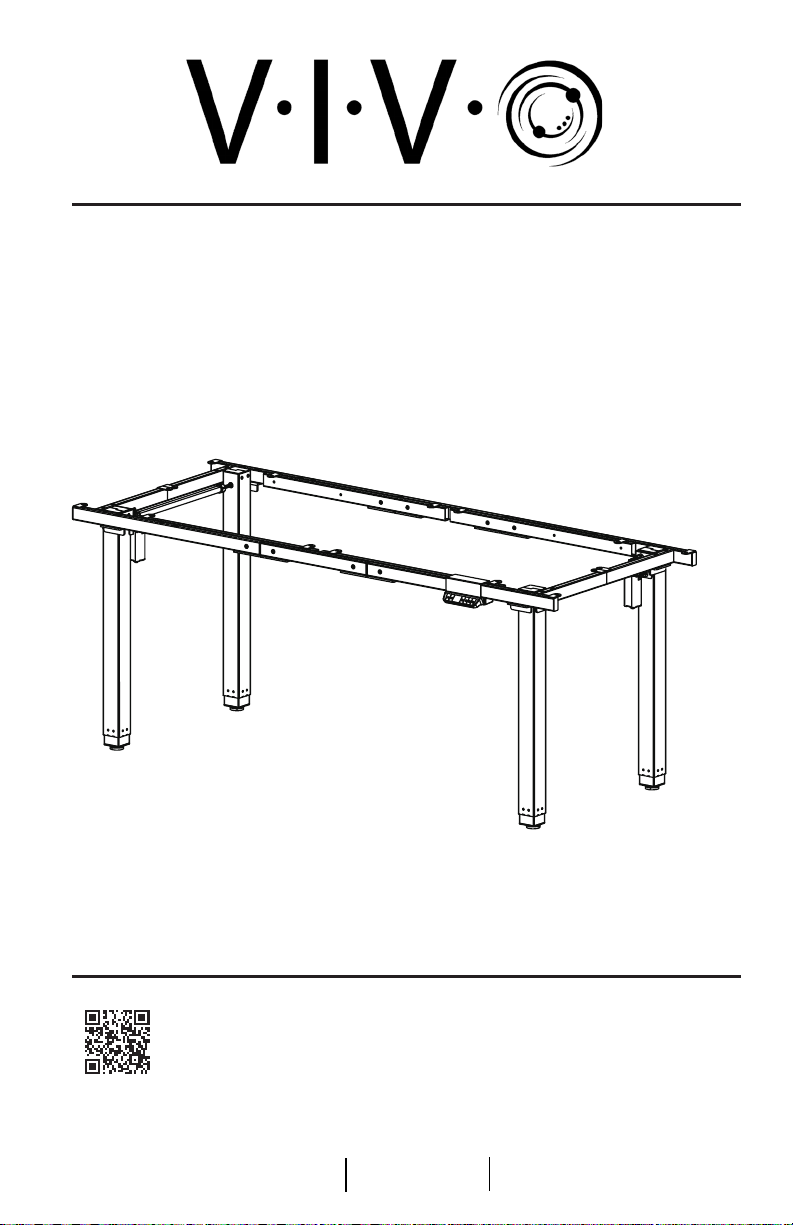

Vivo DESK-E-400B User manual

Black Electric 4-Leg Dual Motor Desk Frame
Follow along step-by-step with our video walk through by scanning
the QR code with your mobile device or by following the product
link: vivo-us.com/products/desk-e-400b
Instruction Manual
SKU: DESK-E-400B
ASSEMBLY VIDEO AVAILABLE:
[email protected]om www.vivo-us.com 309-278-5303

2
Contact Us First!
PERSONABLE CUSTOMER SUPPORT
Our friendly product support team is here to help!
DO NOT RETURN ITEM
We’re Here for You!
Missing a Part?
Our customer-minded support team is here for YOU,
Monday-Friday 7am-7pm CST.
We oer immediate assistance with rapid response times
from customer service agents and product techncians to
help you every step of the way!
Monday-Friday
Chat Us:
www.vivo-us.com
Give us a Call:
309-278-5303
Email Us:
[email protected]om
If any parts are received damaged / defective OR you are
missing a part, please reach out to us within 30 days of
product delivery to have it replaced at no cost.
We are happy to replace parts to ensure you have a fully
functioning product
7AM - 7PM

3
If you do not understand these directions, or if you have any doubts
about the safety of the installation, please call a qualied technician.
Check carefully to make sure there are no missing or defective parts.
Improper installation may cause damage or serious injury. Do not
use this product for any purpose that is not explicitly specied in this
manual. Do not exceed weight capacity. We cannot be liable for damage or injury
caused by improper mounting, incorrect assembly or inappropriate use.
PRE-ASSEMBLY | BEFORE YOU BEGIN
Product Warranty
Returns | Product Didn’t Work Out?
For the most up to date details on your product’s warranty, please visit
the product’s listing on our website or reach out to customer support.
vivo-us.com/products/desk-e-400b
We oer a hassle-free 30 day return on all products. Contact customer
support at 309-278-5303 or [email protected]om. Please note: For items
ordered in error or no longer needed, the return shipping charges will
be at the buyer’s expense.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS
REQUIRED.
!
Contact Us First!
352lbs
(160kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
ELECTRICAL SAFETY INSTRUCTIONS
THIS PRODUCT IS POWERED BY ELECTRICITY. IN ORDER TO AVOID BURNS, FIRE AND ELECTRIC
SHOCK, PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY.
• DO NOT CLEAN PRODUCT WHILE POWER IS CONNECTED.
• DO NOT DISASSEMBLE OR REPLACE COMPONENTS WHILE POWER IS CONNECTED.
• NEVER OPERATE THE SYSTEM WITH A DAMAGED CORD OR PLUG. PLEASE CONTACT YOUR
SELLER TO REPLACE DAMAGED PARTS.
• NEVER OPERATE SYSTEM IN DAMP ENVIRONMENTS OR IF ANY ELECTRICAL COMPONENTS
HAVE MADE CONTACT WITH LIQUIDS.
• ALTERATIONS OF THE GIVEN POWER UNIT ARE NOT ALLOWED.
• OUTDOOR USE IS PROHIBITED.

4
Phillips Screwdriver

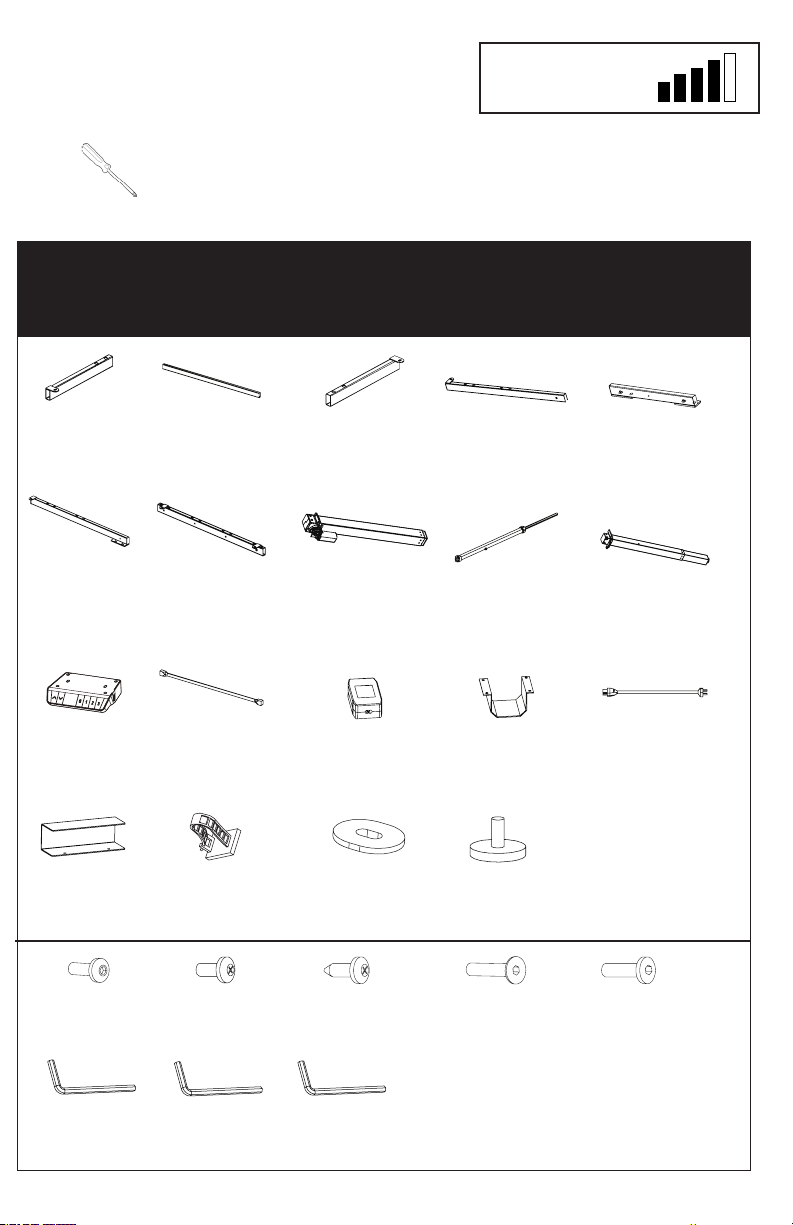

PACKAGE CONTENTS
NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED
Please consult the parts list below and ensure you have everything you need to assemble
your product. If parts are missing or damaged, please contact us.
PRE-ASSEMBLY | BEFORE YOU BEGIN
|
DIFFICULTY LEVEL:
TOOLS NEEDED:
A (x2)
Short Le
Crossbar
C (x2)
Short Right
Crossbar
B (x2)
Inner
Crossbar
D (x2)
Long Right
Crossbar
E (x2)
Short Middle
Crossbars
F (x2)
Long Le
Crossbars
J (x2)
Leg
K (x1)
Control
Panel
L (x2)
Extension
Cable
P (x1)
Control Panel
Spacer
M (x1)
Power
Adapter
N (x1)
Adapter
Bracket
O (x1)
Power Cable
G (x4)
Long Middle
Crossbars
H (x2)
Motorized
Leg
I (x2)
Sync Rod
Q (x5)
Cable Clips
R (x18)
Rubber Pads S (x4)
Foot
S-A (x10)
M6x12mm
Screws
S-B (x4)
M4x15mm
Screws
S-C (x22)
M5x16mm
Screws
S-D (x34)
M8x47mm
Screws
S-E (x10)
M8x35mm
Screws
T-A (x1)
2mm Allen
Wrench
T-B (x1)
4mm Allen
Wrench
T-C (x1)
5mm Allen
Wrench

5

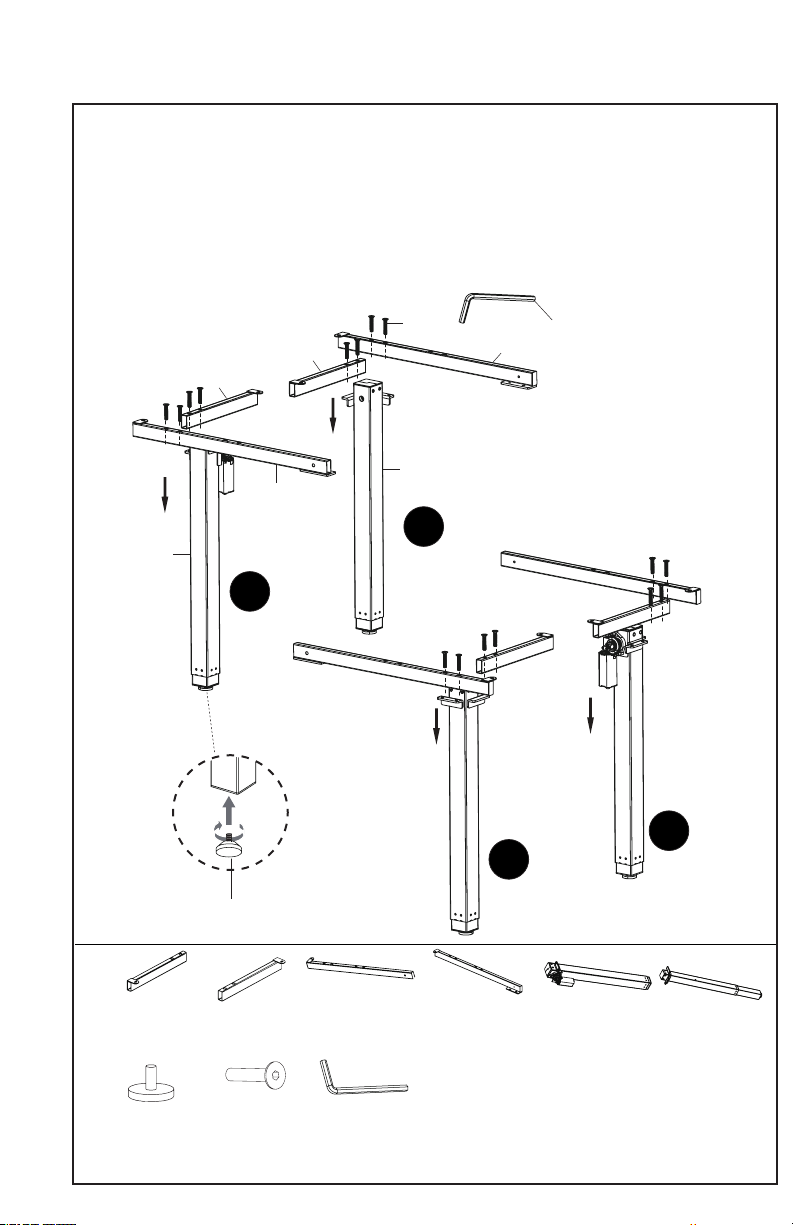

STEP 1: Forming Leg Assemblies
Form two sets of the the following groups using M8x47mm Screws (S-D) and 5mm Allen Wrench
(T-C):
1. Long Le Crossbar (F) and Short Le Crossbar (A) to Leg (J)
2. Long Right Crossbar (D) and Short Right Crossbar (C) to Motorized Leg (H)
Install Foot (S) on Leg (J) and Motorized Leg (H).
NOTE: Use inner hole set on Le and Right Long Crossbars (D,F) if you want the desktop surface to
overhang more from the legs. This is required if using larger desktops.
ASSEMBLY STEPS
A
Short Le
Crossbar
C
Short Right
Crossbar
D
Long Right
Crossbar
F
Long Le
Crossbars
J
Leg
H
Motorized
Leg
S-D
M8x47mm
Screws
T-C
5mm Allen
Wrench
C
J
H
S
D
AF
T-C
S-D
1
1
2
2
S
Foot

6

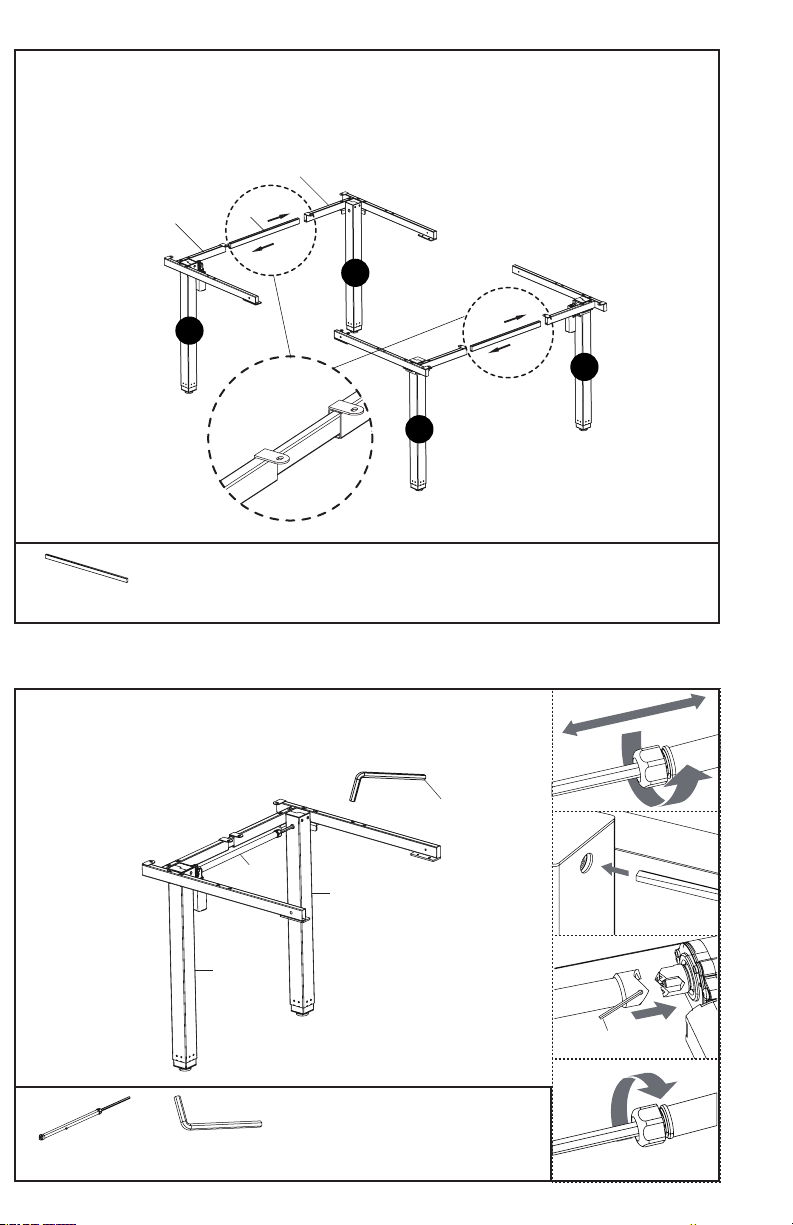

STEP 2: Combining Leg Assemblies
1
2
1
2
CB
A
Join groups 1 and 2 together by sliding Inner Crossbar (B) into Short Right and Short Le Crossbars
(A,C) as shown.
NOTE: The inner crossbars will remain loose until the frame is attached to the desktop
B
Inner Crossbar
STEP 3: Installing Sync Rod
G
Loosen the nut on Sync Rod (I) and insert the hex rod end into Leg (J). While
holding the hex end, pull the larger rod out until the connector engages with
Motorized Leg (H). Tighten the set screw on Sync Rod (I) using 2mm Allen
Wrench (T-A), then tighten the nut.
I
H
T-A
J
I
Sync Rod
T-A
2mm Allen Wrench
T-A
1
3
2
4

7

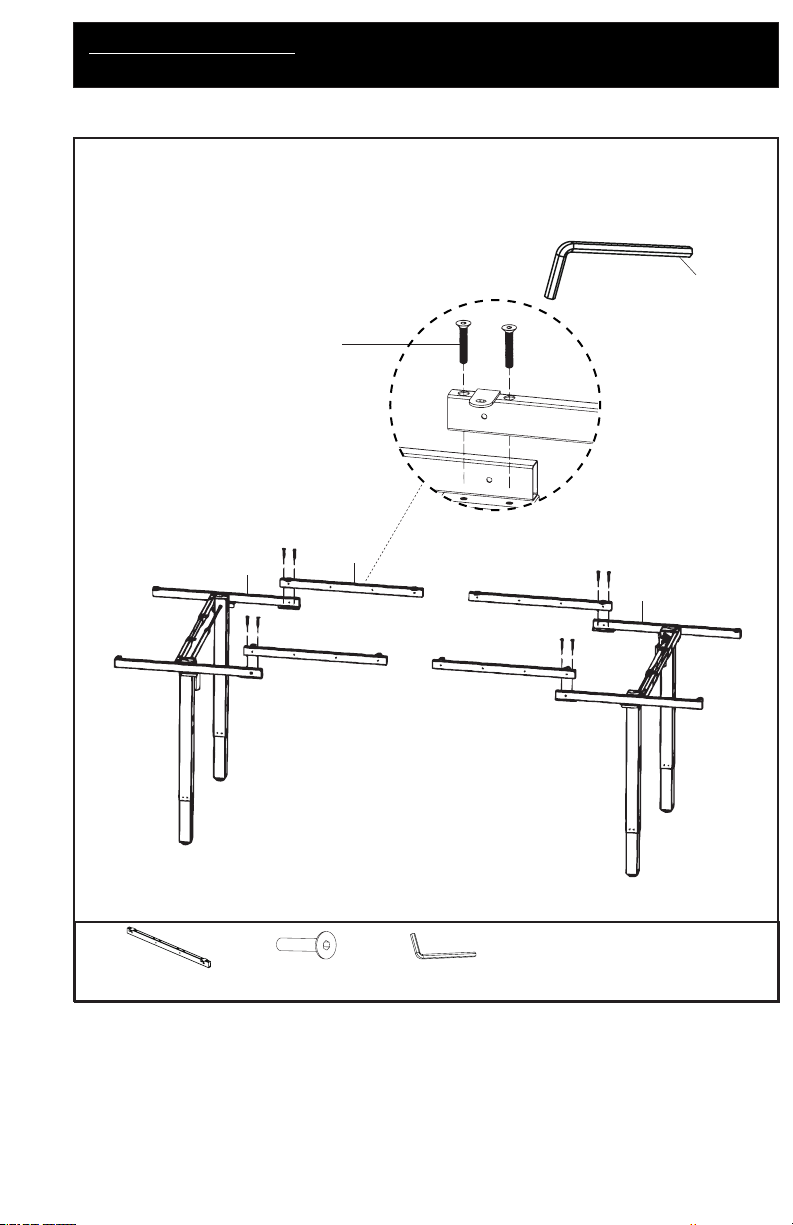

STEP 4.1: Install Middle Crossbars
ASSEMBLY OPTION A:
Large Frame Assembly | Desktops 96” x 30” to 130” x 60”
Attach Long Middle Crossbars (G) to Le and Right Long Crossbars (D,F) using M8x47mm Screws (S-D)
and a 5mm Allen Wrench (T-C).
NOTE: This is showing the largest frame size (for a 130” x 60” desktop). To shorten frame, assemble
crossbars using inner holes sets. Hole sets are spaced 8” (20cm) apart.
G
D
S-D
F
G
Long Middle Crossbars S-D
M8x47mm Screws
T-C
5mm Allen Wrench
T-C

8
E
Short Middle Crossbars
STEP 4.3: Secure Crossbars
Fully secure Long Middle Crossbars (G) using M8x35mm Screws (S-E) and 5mm Allen Wrench (T-C).
G
S-E
M8x35mm Screws
T-C
5mm Allen Wrench
Proceed to Step 5 on Page 11

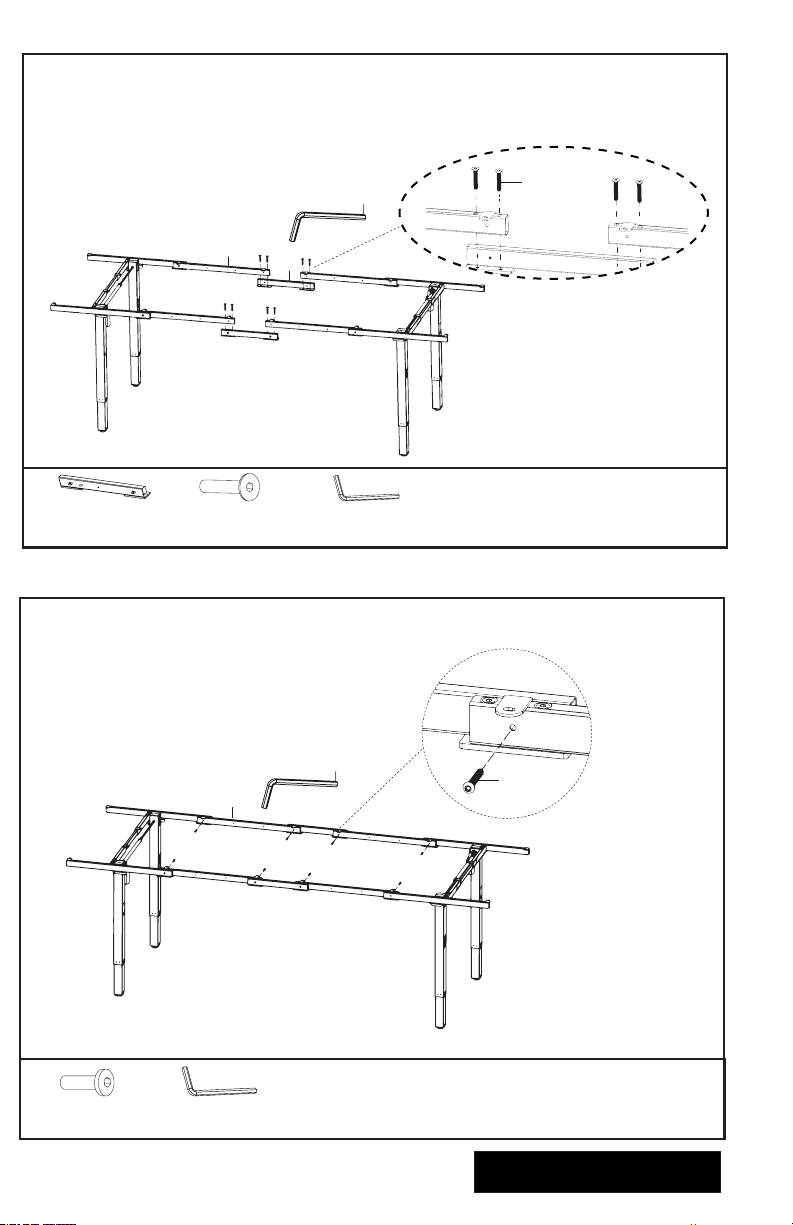

STEP 4.2: Combine Assemblies
Combine assemblies together by attaching Short Middle Crossbars (E) to Long Middle Crossbars (G)
using M8x47mm Screws (S-D) and a 5mm Allen Wrench (T-C).
NOTE: This is showing the largest frame size. To shorten frame, assemble crossbars using inner holes
sets. Hole sets are spaced 8” (20cm) apart.
E
S-D
G
S-D
M8x47mm Screws
T-C
5mm Allen Wrench
S-E
T-C
T-C

9

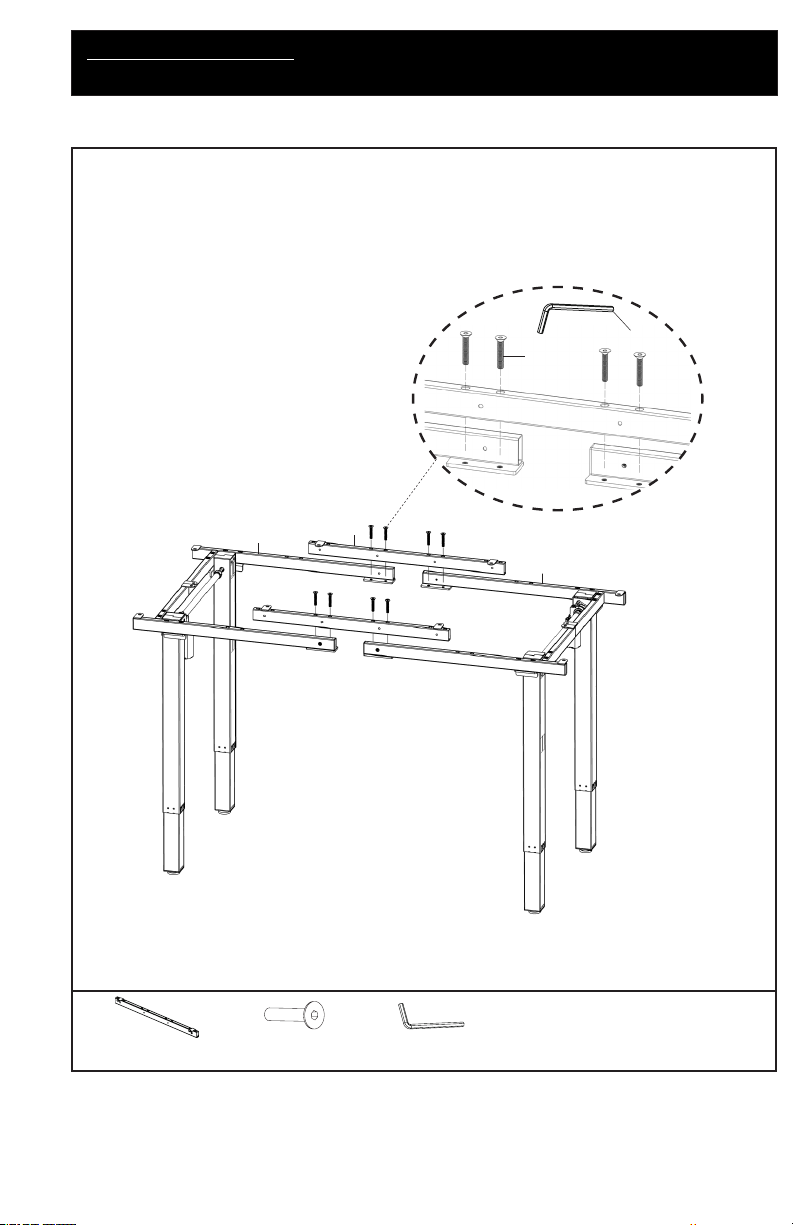

STEP 4.1: Install Long Middle Crossbars
Combine assemblies together by attaching Long Middle Crossbars (G) to Le and Right Long Crossbars
(D,F) using M8x47mm Screws (S-D) and a 5mm Allen Wrench (T-C).
NOTE: This is showing the smallest frame size (for a 60” x 30” desktop). To lengthen frame, assemble
crossbars using outer holes sets. Hole sets are spaced 8” (20cm) apart.
G
S-D
D
F
G
Long Middle Crossbars S-D
M8x47mm Screws
T-C
5mm Allen Wrench
ASSEMBLY OPTION B:
Small Frame Assembly | Desktops 60” x 30” to 95” x 60”
T-C

10

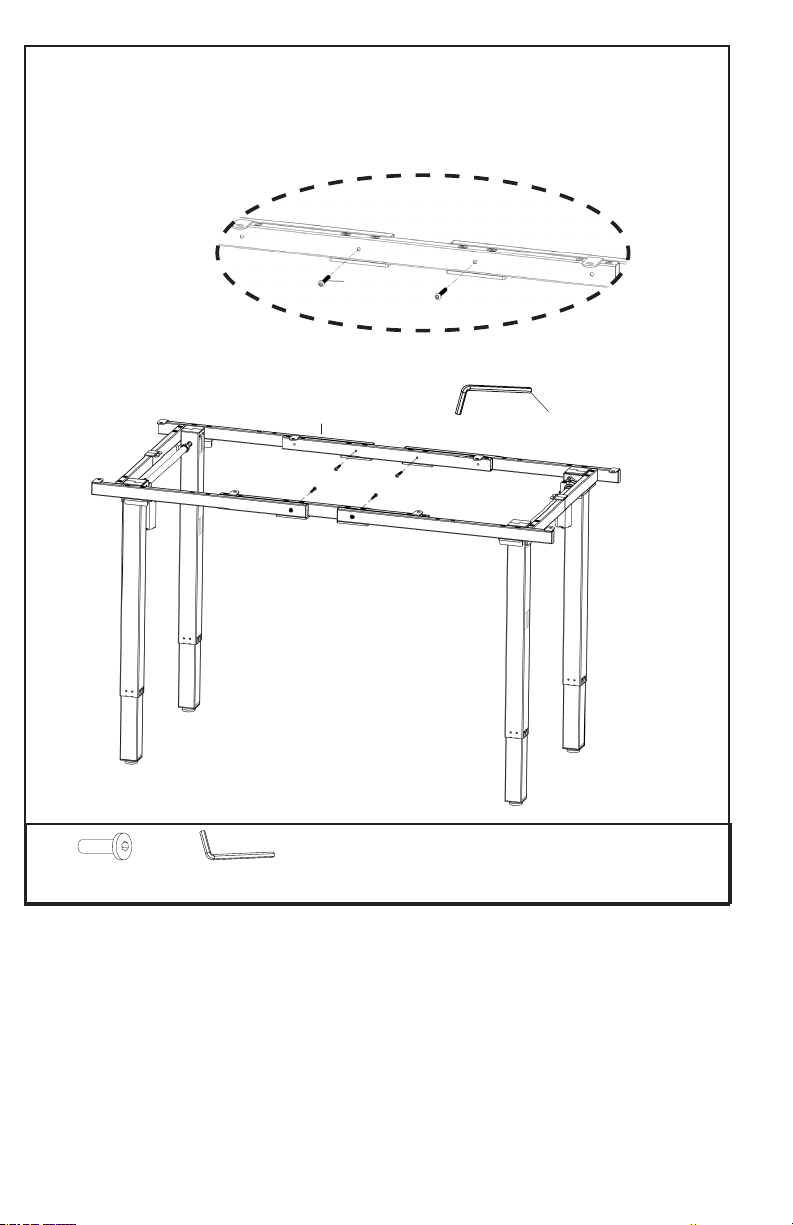

STEP 4.2: Secure Crossbars
Fully secure Long Middle Crossbars (G) using M8x35mm Screws (S-E) and 5mm Allen Wrench (T-C).
G
S-E
S-E
M8x35mm Screws
T-C
5mm Allen Wrench
Proceed to Step 5 on Page 11
T-C
