ENHANCED COVERING SYSTEM
The Graphics and Detailing are inside the POLYCOTE ECS/

Parts needed

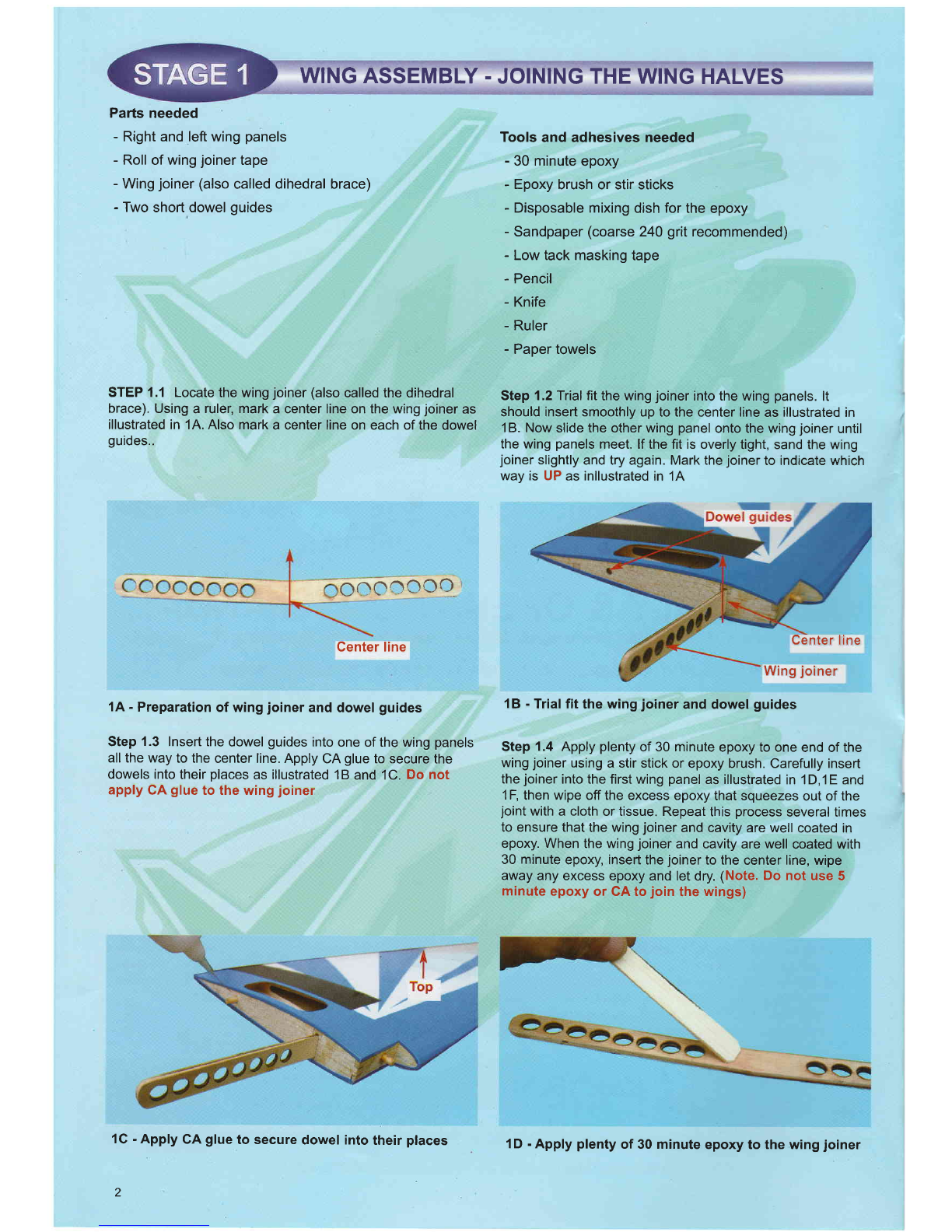

WING ASSEMBLY. JOINING THE WING HALVES
- Right and left wing panels
- Roll of wing joiner tape
- Wing joiner (also called dihedral brace)
- Two short dowel guides
STEP 1.1 Locate the wing joiner (also called the dihedral
brace). Using a ruler, mark a center line on the wing joiner as
illustrated in 1A. Also mark a center line on each of the dowel
guides..
onooccc
1A - Preparation of wing joiner and dowel guides
Step 1.3 Insert the dowel guides into one of the wing panels
all the way to the center line. Apply CA glue to secure the
dowels into their places as illustrated 1B and 1C. Do not
apply CA glue to the wing joiner
1G - Apply CA glue to secure dowel into their places
2
Tools and adhesives needed
- 30 minute epoxy
- Epoxy brush or stir sticks
- Disposable mixing dish for the epoxy
- Sandpaper (coarse 240 grit recommended)
- Low tack masking tape
- Pencil
- Knife
- Ruler
- Paper towels
Step 1 .2Trial fit the wing joiner into the wing panels. lt
should insert smoothly up to the center line as illustrated in
1B. Now slide the other wing panel onto the wing joiner until
the wing panels meet. lf the fit is overly tight, sand the wing
joiner slightly and try again. Mark the joiner to indicate which
way is UP as inllustrated in 1A
1B - Trial fit the wing joiner and dowel guides
Step 1.4 Apply plenty of 30 minute epoxy to one end of the
wing joiner using a stir stick or epoxy brush. Carefully insert
the joiner into the first wing panel as illustrated in 1D,1E and
1F, then wipe off the excess epoxy that squeezes out of the
joint with a cloth or tissue. Repeat this process several times
to ensure that the wing joiner and cavity are well coated in
epoxy. When the wing joiner and cavity are well coated with
30 minute epoxy, insert the joiner to the center line, wipe
away any excess epoxy and let dry. (Note. Do not use 5
minute epoxy or GA to join the wings)
Center line Center line
Wing joiner
1D - Apply plenty of 30 minute epoxy to the wing joiner

Genter line pointing up
1E- Carefully insert the joiner all the way to the
line
WING ASSEMBLY
WING ASSEMBLY.
Step 2.1 When the epoxy has cured in stage 1, trial fit
the second wing panel onto the wing joiner first to ensure
that the two panels fit without an excessive gap
Step 2.2 Now apply plenty of epoxy to the wing joiner and
wing roots ribs of both wing pannels.See 2A Use only 30
minute epoxy to ensure a strong bond and give youself plen
ty of working time
2A- Apply plenty of 30 minute epoxy 28 - Align the wing panels and slowly
to all'surfaces close the gap until the wing roots are
firmly in contact with each other.
WING HALVES (Gont.)
Step 2.3 As described in Step 1.4, repeatedly apply 30
minute epoxy to the wing joiner and insert into the wing
joiner cavity
Step 2.4 When the epoxy has been plentifully applied,
align and mate the wing halves. See 28. Ensure the wing
roots are firmly in contact with each other. Clean off any
excess epoxy seeping from the joint before it cures.
Step 2.5 Use low tack masking tape to hold the wing pan-
els together until the epoxy cures. See 2C
2G- Use low tack masking tape to
hold tightly together
JOINING THE WING HALVES (Cont.)
Step 3.1 When the epoxy has cured completely (allow several hours at least), the tape can be carefully removed from
the wing panels. Peel the tape back on itself.... do not pull upright away from the wing. To seal and finish the joint in the
wings, a roll of wing joiner tape has been supplied. Starting on the bottom side of the wing, stick the tape centrally over
the joint ensuring that it is pressed down firmly as you work around the wing. Wrap the tape all the way around the wing
in one piece, starting and finishing at the wiring harness cavities at the top of tfle wing
3A - Straddle the wing joint tape over
the wing joint starting here on the
bottom of the wing.
38 - Gontinue around the wing.
Ensure the tape straddles the joint. 3G- Continue over the top of the wing
and trim off the excess tape
1F-Wipe off the excess epoxy then allow to cure

INSTALLING THE AILERON SERVOS INTO THE WING
To install the aileron servos into the wing you will need the
following items
- Servos
- Servo mounting screws and grommets as supplied with
the servos
- Servo control arms as supplied with the radio
- Two aileron control rod assemblies supplied with the kit.
- Low tack masking tape
- 2 aileron control horn assemblies
Step 4.1frial fit the aileron seryo into the servo mounting
cavity. You may have to modify the cavity slightly to fit the
SCTVO
Step 4.2 Consult your radio manual to fit the grommets
and ferrules correctly. Secure the servo into place with the
SCTEWS.
4A- Prepare the servo by fitting the rubber grommets &
ferrules supplied with your radio
Aileron servo location
Fournier RF-4D Spirit version Aileron
48 - The aileron servo location (left and right are in the
bottom of the wing
INSTALLING THE AILERON CONTROL SYSTEM
Step 5.1 Consult your radio instruction manual and center the aileron servo by plugging it into the aileron channel in
the receiver. Turn on the transmitter then the receiver. Center the aileron trim lever on the transmitter. Remove the servo
arm mounting screw and the servo arm
Step 5,2 Mount the servo arm back on the servo. Position the arm parallel with the back edge of the wing. Screw the
arm into place with the servo arm mounting screw supplied with the servo. Locate the two aileron control rod in the
hardware bag. Ensure the clevises are screwed well onto the threaded portion of the rod. Rotate and tug aggressive-
ly on the clevises and ensure that they are not loose on the rods. Tape the ailerons into their neutral position so that
they are even with the tralling edge of the wing and not pointing up or down
Step 5.3 Ensure that the aileron control horns are screwed onto the threaded aileron control horn bolts and that both
control horns are in approximately the same their respective bolts
Step 5.4 Connect the aileron servo rods to the aileron control horns. Connect the control rod to the servo output arm
using a clevis.
5A- Aileron control rod assembly
4
Aileron control horn
\. \.
\1 \
58- Aileron control horn and servo
installed
\
5C- Aileron control rod installed

Step 5.5 Connect the other end of the control rod to the control horn using the second clevis
Step 5.6 Remove the masking tape holding the aileron.
Step 5.7 In the case of computer radios couple the servos together electronically by connecting them to the approriate
receiver channels. In the case of analog radios couple the servos together using a Y harness.
Step 5.8 Turn on your radio and activate the ailerons, using the aileron stick and ensure a smooth full motion can be
achieved.
Step 5.9 With the wing top side up and viewed from the back, ensure that moving the transmitter aileron stick to the lefi
raises the left aileron and lowers the right aileron. Movement of the stick to the left will roll the aircraft to the left.
(Counterclockwise roll of the wing when viewed from the back).
Step 5.10 With the wing top side up and viewed from the back, ensure that moving the transmitter aileron stick to the right
raises the right aileron and lowers the Ieft aileron. Movement of the stick to the right will roll the aircraft to the right.

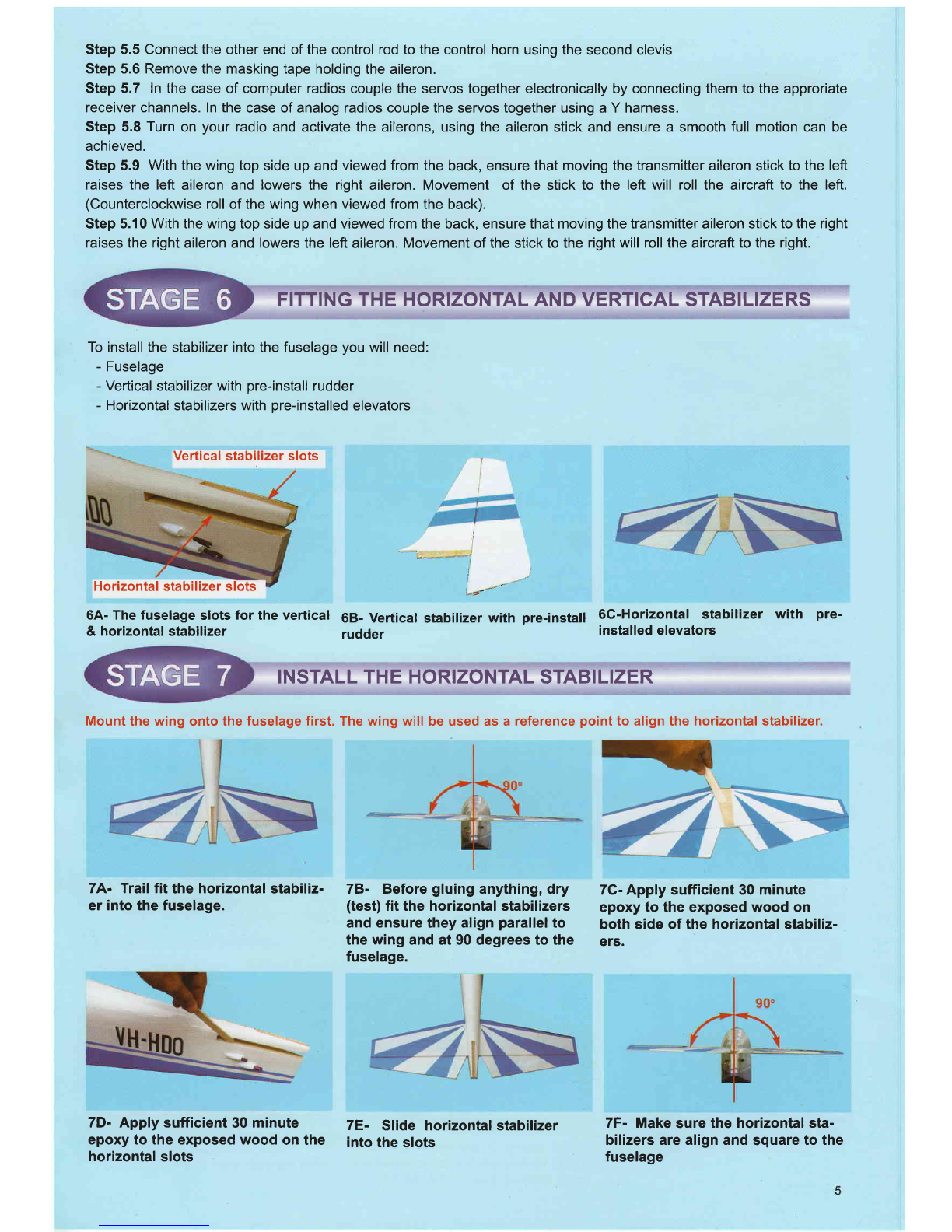

FITTING THE HORIZONTAL AND VERTICAL STABILIZERS
To install the stabilizer into the fuselage you will need:
- Fuselage
- Vertical stabilizer with pre-install rudder
- Horizontal stabilizers with pre-installed elevators
Vertical stabilizer slots
6A- The fuselage slots for the veftical
& horizontal stabilizer
!
ia.="'"
68- Vertical stabilizer with pre-install
rudder 6G-Horizontal stabilizer with pre-
installed elevators
INSTALL THE HORIZONTAL STABILIZER
Mount the wing onto the fuselage first. The wing will be used as a reference point to align the horizontal stabilizer.
7A- Trail fit the horizontal stabiliz-
er into the fuselage. 7B' Before gluing anything, dry
(test) fit the horizontal stabilizers
and ensure they align parallel to
the wing and at 90 degrees to the
fuselage.
7G- Apply sufficient 30 minute
epoxy to the exposed wood on
both side of the horizontal stabiliz-
ers.
7D- Apply sufficient 30 minute
epoxy to the exposed wood on
horizontal slots
7E- Slide horizontal stabilizer
into the slots 7F- Make sure the horizontal sta-
bilizers are align and square to the
fuselage
Horizontal stabilizer slots
the

INSTALLING THE VERTICAL STABILIZER
8A- Trial fit vertical stabilizer into the
slot in the of the fuselage. 88- confirm the vertical stabilizer is at
90 degiees with respect to the hori-
zontal stabilizer
8C- Apply sufficient 30 minute epoxy
to the exposed wood in the vertical
stabilizer
8F- Before the epoxy cures, confirm
the both vertical stabilizer is at 90
degrees with respect to the horizontal
stabilizer
8D- Apply sufficient 30 minute epoxy 8E- Insert the top vertical siabilizer to
to the vertical slot the top vertical slot, clean of the
excess epoxy
INSTALL THE LANDING GEAR
The Fournier RF-4D has a main gear located at the fuselageclose to the leading edge two console gear located at the wing and
the tail steering wheell
- 1 main landing gear(with pre-cut main gear bearing and four 3 x 15mm bolts and nuts )
- 2 Pre-bent console wing gear
- 8 sheet metal screws (2 x l0 mm)
- 4 Plastic landing gear straps
- 1 tail wheel assemblv
Bottom view
Ew-- - \
Main landing gea
9A- Components of one main landing
gear 98- Fit main landing
location 9C- Using 4 (3 x 15 mm) to mount
main landing gear to the fuselage
10C- same as the left wing mount the
wing console gear to the right wing
into its
iii
{,C Ji
rr
10A- Wing console gear sets
6
INSTALL THE NOSE GEAR
108- Using 2 plastic strap and 4
metal screws 2 x 10mm to mount the
wing console gear to the left wing
slots
\-r-\\

ffi-saDo
10D- Wing console gear mount to the wing

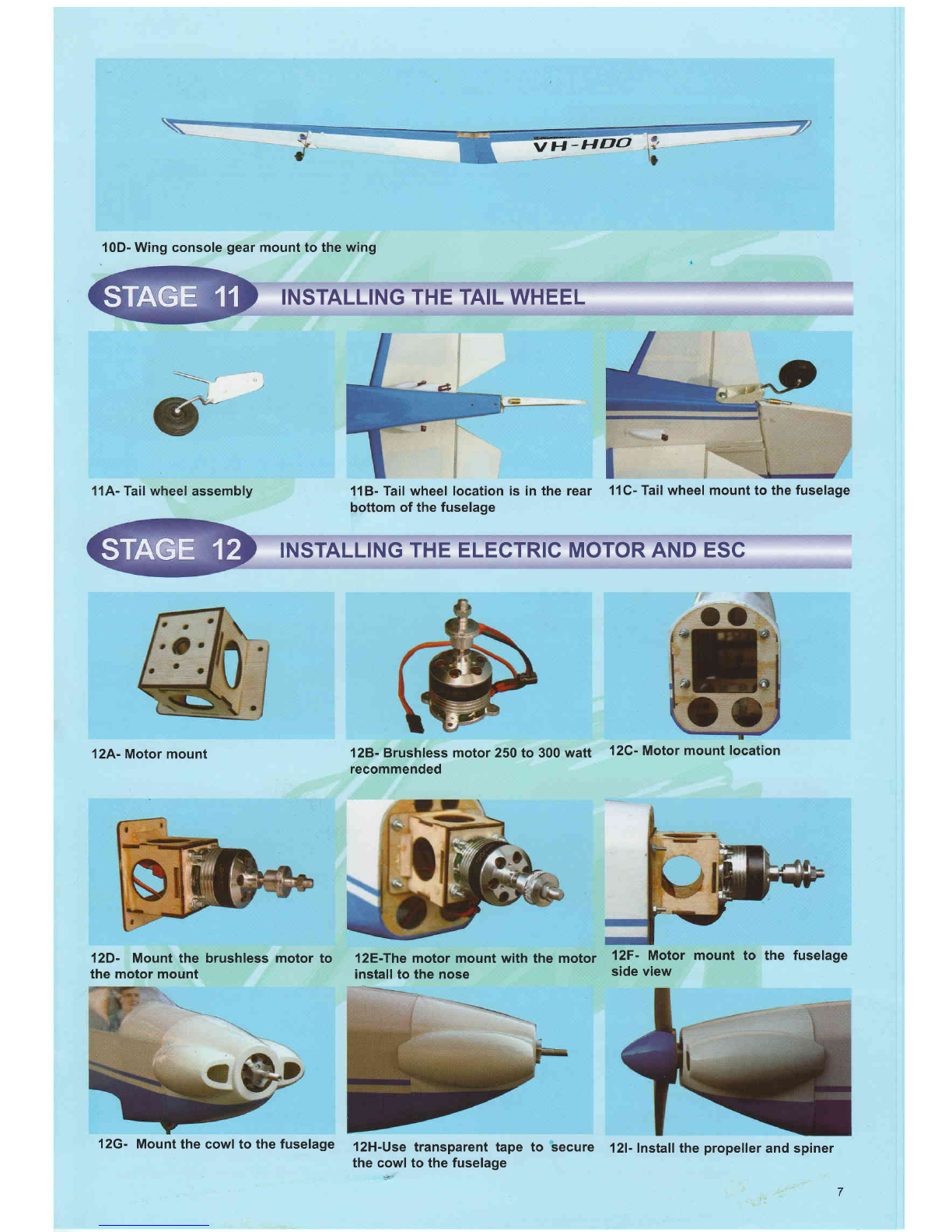

INSTALLING THE TAIL WHEEL
11B- Tail wheel location is in the rear 11G- Tail wheel mount to the fuselage
bottom of the fuselage
INSTALLING THE ELECTRIC MOTOR AND ESC
128- Brushless motor 250 to 300 watt
recommended 12C- Motor mount location
12A- Motor mount
12D- Mount the brushless motor to
the motor mount 12E-The motor mount with the motor
install to the nose ',2F- Motor mount
side view to the fuselage
12H-Use transparent tape to secure 121- Install the propeller and spiner
the cowl to the fuselage
12G- Mount the cowl to the fuselage

50 AMP FUSE
Typical wiring diagram of the brushless motor systems forFournier RF-4D model RECEIVER
FITTING THE ELEVATOR AND RUDDER CONTROL HORNS
Elevator control horn
138- Connect the elevator control rods to the eleva-
tor control horns
Rudder control horn
13G- Rudder control horn location 13D- Connect rudder control rod to the rudder control
horn

INSTALL THE RUDDER AND ELEVATOR SERVOS
14A- Elevator and rudder servos location
ADJUST CONTROL
Adjust the deflection of the control surfaces to match the
specifications on page 8. You can reduce the amount of
throw by doing either or both of the following:
- From the servo end, move the clevis to a hole in the servo
arm that is closer to the servo output shaft.
Elevator control rod
14B- Elevator servo connected to the elevator control
rod,rudder servo connected to the rudder and gear steer-
ing control rod
SURFACE THROW LIMITS
- From the control horn end, move the control rod/clevis fur-
ther out on the horn (away from the control surface).
Always confirm that the clevis is firmly attached after mak-
ing any adjustment.
FINAL RC SET.UP
Before starting the final set-up of the model, switch on the radio and ensure that all trims are in their neutral positions.
Check that the ailerons, elevator and rudder are centered. lf any adjustments are needed, do these by uncoupling the reF
evant clevis and turning it clockwise to shorten the linkage or counter - clockwise to lengthen it. Only when each control
surface has been centered mechanically in this way should you begin adjusting the surface movement (or throw)
Now confirm that the control surfaces are moving in the correct direction. Use the servo reversing switches on your trans-
mitter to reverse the direction of a servo if necessary The most popular transmitter mode (with the throttle on the left, with
ailerons and elevator on the right) is shown here.
INSTALLING THE RECEIVER BATTERY
Step 17.1 Consult your radio manual for instructions about
hooking up your receiver battery, receiver and swich har-
NESS
Step 17.2Wrap the battery pack securely in foam suitable
for RC equiment and wrap the foam insulated pack in a
plastic bag or cling wrap.
INSTALLING THE RECEIVER
Step 18.1 Consult your radio manual for instructions about
hooking up your receiver.
Step 18.2 Plan where you are going to put the receiver with
consideration for routing the antenna safely.
Step 18.3 Wrap the receiver securely in foam suitable for
RC equipment and wrap the foam insulated receiver in a
Step 17.3 Thread the battery pack connector fonruard in
preparation for connecting to your swich harness
Step 17.4 Connect the battery pack connector to your
switch harness according to your radio manual
plastic bag or cling wrap.
Step 18.4 Generally in the absence of specific instructions
from the radio manufacturer, it is recommended that the
receiver should be placed where it is least likely to have
impact during a crash, Keep the battery pack and other
heavy loose items ahead of the receiver. I
Rudder servo location
Efevator t"6location
Rudder control rod

GONFIRM RADIO
Step 19.1 Consult your radio manual for instructions about
testing and operating your radio system.
Step 19.2 Pay particular attention to charging your batter-
ies and range testing your system before and after each
BALANCING THE AIRGRAFT
Step 20.1 The CG for your Fournier RF-4D is located at
2.114 in to 3.114 in (70mm -80mm) back from the leading
edge of the wing when the wing has been attached to the
fuselage as per illustration 30A.
Step 20.2 For the initial flight, the CG should be located at
2.114 (70mm) back from the leading edge of the wing when
the wing has been attached to the fuselage.
Step 20.3 The CG is measured with the engine,radio gear
and all other components installed
Step 20.4 Set up the CG as it will be when you fly it,
Step 20.5 lt is very important to have the CG correct. Flying
your model with the CG too far back will likely lead to loss
of control and a crash. lf you discover that after you have
CONFIRM MECHANICAL INTEGRITY
OPERATION
flight.
Step 19.3 Check that all
before and after each flight.controls are working correctly
assembled your model and installed your radio, motor and
battery that the CG of your model is incorrect you must
bring the CG to the correct location by doing the following
BEFORE FLYING :
- Move the battery pack fore or aft
- Move other components fore or aft
- Change engine to a lighter or heavier model
- Add weight to the nose or tail. lf adding it to the nose,try
to make it useful by going to a heavier duty engine or
adding a spinner with a heavy metal backing plate. As a last
resort, add stick on "dead",weight where appropriate
Step 21.1 Once you have con-
firmed that the CG is correct, you
should do a thorough review of the
entire model before your first flight.
Check everything twice! Every hook
up, every coupling, everything! Do it
twice!!
Step 21.2 Betore your first flight,
have an experienced flyer review
your work. Do not fly your model
until it has been checked out by a
third party who knows how to fly
and how to set up a model aircraft.
Do not fly alone. Seek experienced
help.
Step 21.3 Once you have completed
your first flight, get in the habit of
checking your model over before and
after each flight! Don't fly if you find
something that is not right!
CONTROL SURFACE THROW SPECIFICATIONS:
The throws are measured at the widest part of the control
surface. Adjust the position of the pushrods at the control
and/or servo horns to control the amount of throw. You may
21A- - CG location
also use ATV's if your radio has them but the mechanical
linkages should still be set so that the ATV's are near 100o/o
for best servo resolution.
10

Low rate
ELEVATOR
AILERON
RUDDER
318" (1Omm)
318" (1Omm)
3/8" (1Omm)
3/8" (1Omm)
3/8 " (10 mm)
318 " (10 mm)
High rate
213" (15 mm) up
213" (15 mm) down
112" (12 mm) up
112" (12 mm) down
213" (15 mm) right
213" (15 mm) left
up
down
up
down
right
left
1/4" (6mm) '114" (6mm)
'113" (8 mm)
'114" (6mm)
1/3" (8 mm) Rudder
1/3" (8 mm)
5/8" (15 mm)
'l13" (8mm)
5/8" (15 mm)
tF 4ry F414 W lpV.f 1!1.
!
::'\ T.
1/3" (8mm)
1i3" (8mm) Aileron
22A- Battery locations
0
:frTtx):f IDltliI[ AIIBOIT ITilIAIBAILII lX) lflli-r l]lD
OTHER VMAR ARF MODELS
FOR INFORMATION ABOUT THESE & OTHER
VMAR PRODUCTS PLEASE VISIT US AT...
www.richmondrc.com
11
BATTERY LOCATION
22A- Battery in its locations 22A- Battery hatch installed
