VOGELS MA 2030 Series User manual

MA 2030 Series
MA 2040 Series
Full Installation Guide
Everything you need to get your TV safely on the wall, in no time
Before you start
…we just wanted to say thanks for choosing Vogel’s. Smart choice.
And you’re already making another smart choice – reading the manual! Keep reading to learn all
about safe, efficient installation, and how to use your new mount.
Stay safe
Warning
Always read these safety instructions carefully before installing and using this product.
Following these instructions is strictly required. Incorrect mounting and/or installation could
put you, your TV, and your family at substantial risk.
MA 2030/2040 Series - English 1

Don’t dare risk it… Read all
lVogel’s recommends that the mounting and/or installation of this product should be carried
out by a suitably qualified expert.
lVogel’s cannot be held responsible for any injury and/or damage caused by incorrect
installation.
lPlease consult the manual for your TV and ensure that the weight and size of the TV is within
the maximum weight and size limits specified for this product, and that the TV mounting bolts
used are of a suitable length and diameter. Note that not all the TV mounting accessories
provided are required for the installation of any one TV.
lThe wall mounting accessories provided are exclusively intended for installation on walls
made of solid brick, solid concrete or solid wood columns.
lAny material covering the wall must not exceed 3 mm/ 0.12 inch.
lFor mounting on walls made of other materials, such as hollow bricks, wood panels or
plasterboard, please consult your installer and/or specialist supplier.
lClean the product with a dry, lint-free cloth. Do not use detergents or other solvents to clean
the product.
lOnly qualified, certified personnel may repair the product. Use only original spare parts. The
use of other parts will result in voiding the warranty, and could lead to injuries.
lAlterations to the product and technical modifications are not permitted. This will void the
warranty, and could lead to injuries.
lAlways store the product in a dry and safe place with a temperature between -10°C to +50°C.
lHandle and transport the product with care.
lRepack the product when transporting or not using it for a longer period of time.
lLifting your TV is a two-person job. Don’t be bold!

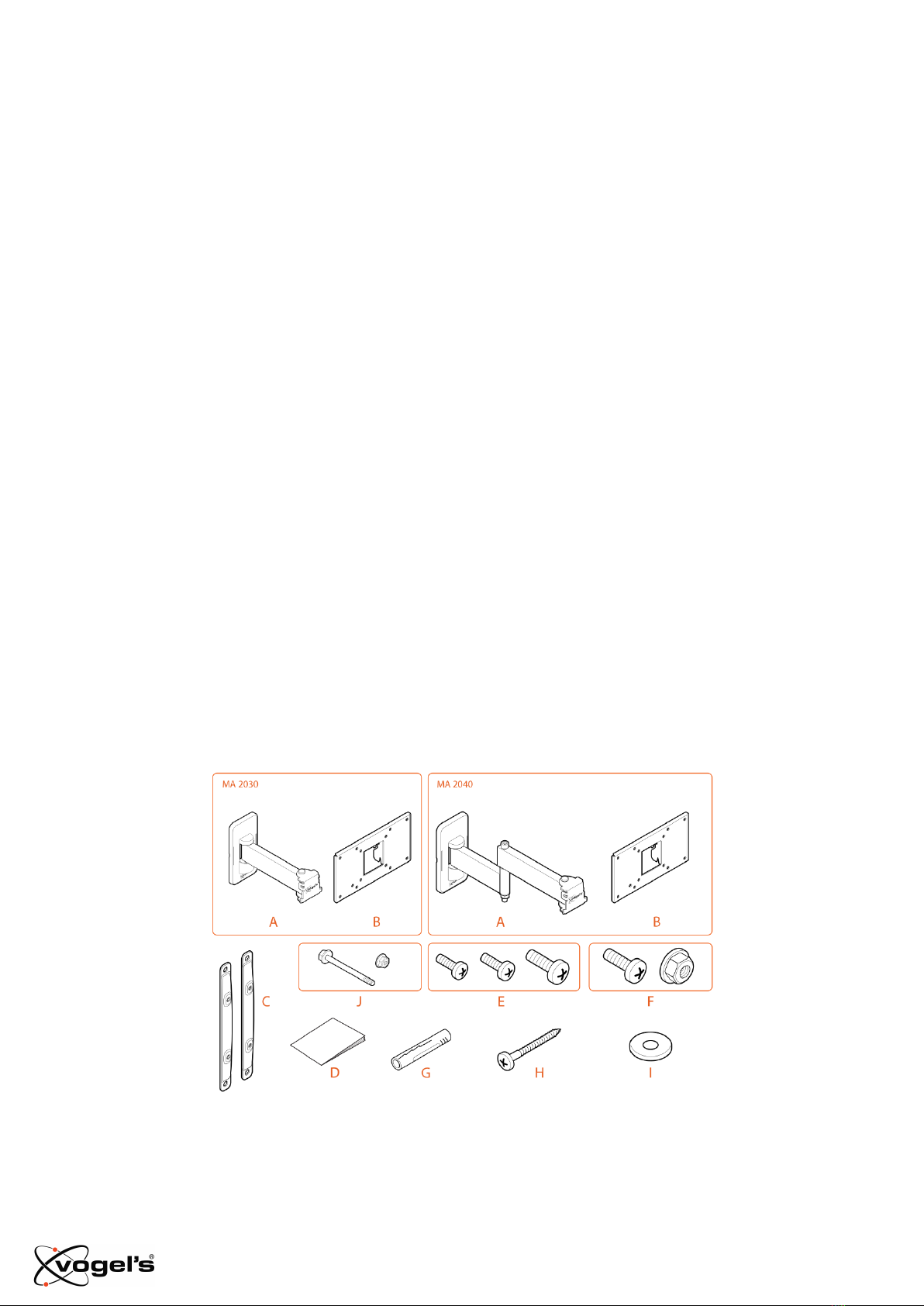

What’s in your box?
MA 2030/2040 Series - English 2

lSomething missing? Make sure your packaging has everything in place:
A. Wall mount
B. Interface plate
C. Strips
D. Instructions
E. Bolts for fastening strips on TV
lM4 bolts
lM6 bolts
lM8 bolts
F. Interface nuts and bolts
G. M6 nuts and bolts
H. Washers
I. Fischer© Plugs (fischer© DuoPower)
J. Wall screws

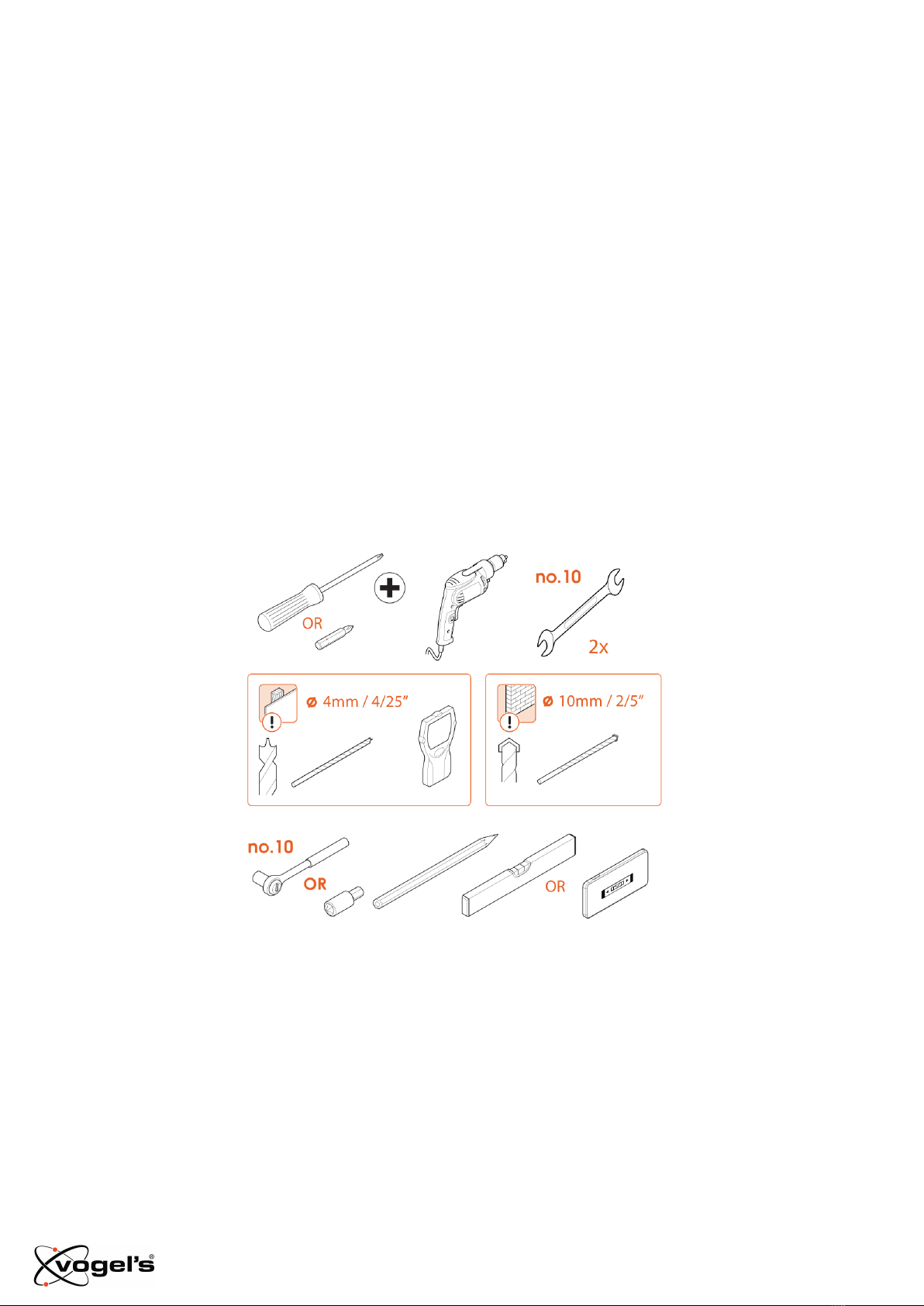

Got your tools ready?
lDon’t start without all the necessary tools:
lCrosshead screwdriver or crosshead attachment for electric screwdriver
lDrilling machine with screwdriver function
lNo.10 wrench
lFor walls with wooden studs: 4mm or 4/25” wood drill
lFor walls with wooden studs: Stud finder
lFor concrete/brick walls: 10mm or 2/5” concrete / brick drill
MA 2030/2040 Series - English 3

lNo. 10 socket wrench or socket attachment
lPencil
lSpirit level or spirit level app
Take care of your safety
lWho cares about looking cool? Always wear personal protective equipment:
lEye protection
lEar protection
lSafety shoes
Ready… set… get installing!

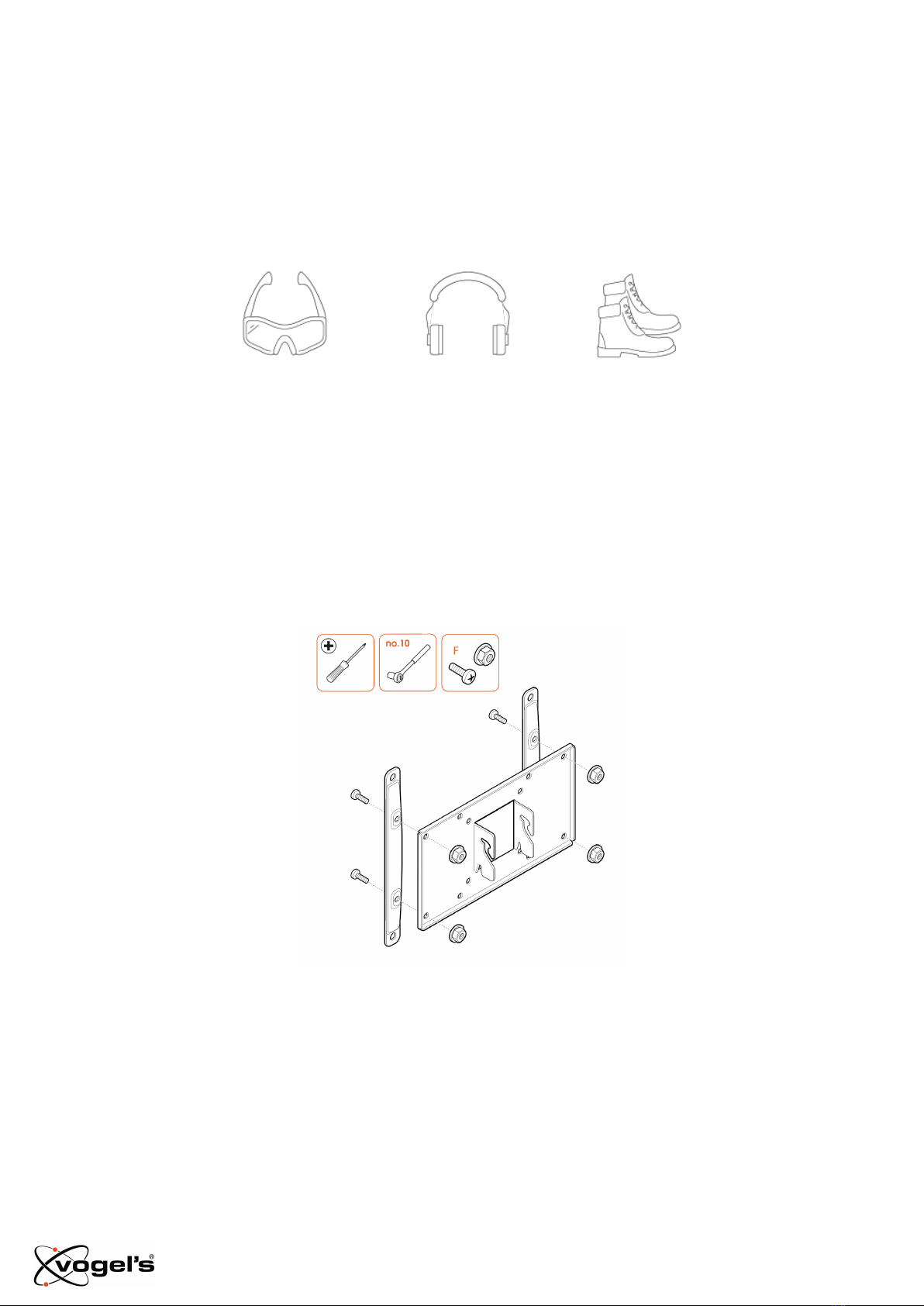

Step 1: Attach the strips and interface plate to the TV
1. Attach the strips Ⓒ to the interface plate Ⓑ using the M6 nuts and bolts Ⓕ.
2. Carefully put the TV on a clean surface without obstacles.
MA 2030/2040 Series - English 4

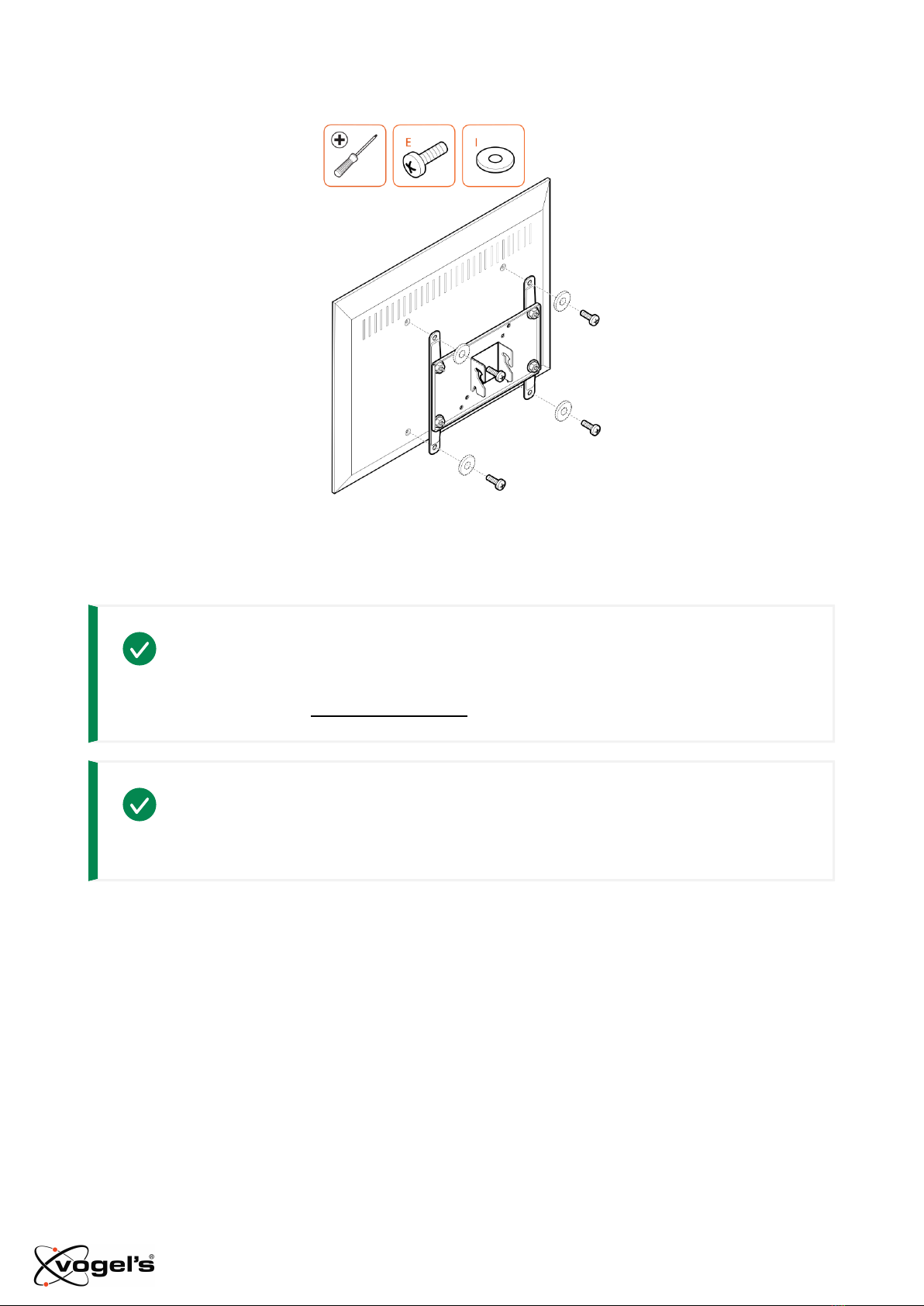

3. Screw the strips Ⓒ on to the TV with the washers Ⓘ and one set of the bolts for fastening strips
on TV Ⓔ.
Are you missing any bolts? Or need different ones? The friendly team at Vogel’s Consumer
Care are waiting to help: vogels.com/contact
Refer to the user manual of your TV for the correct mounting material.
MA 2030/2040 Series - English 5

Step 2: Attach the wall mount to the wall
How well do you know your walls? What they’re made of matters more than you think…

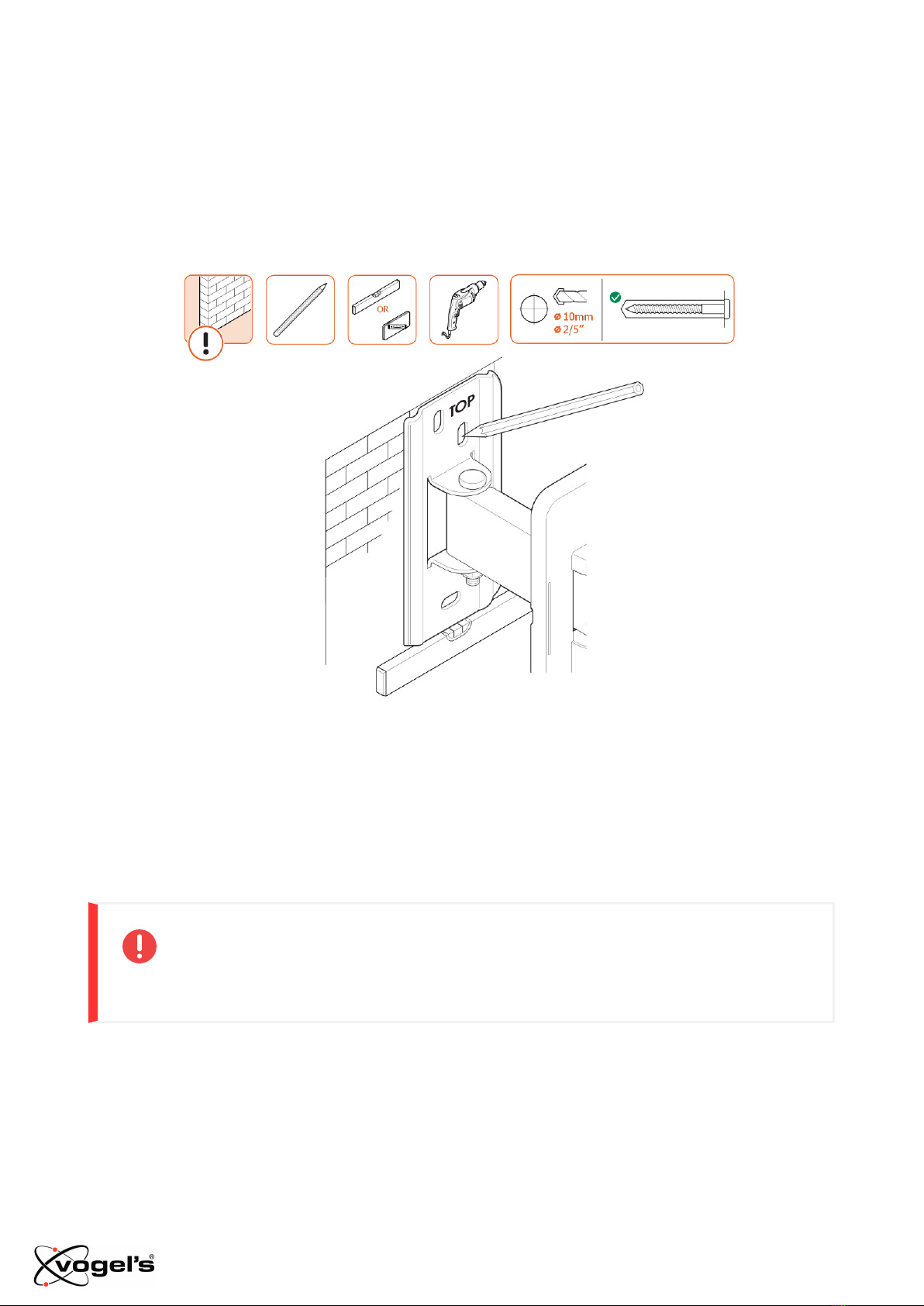

Concrete / Brick wall
1. Decide how high you want the wall mount Ⓐ to be. Aim for the TV to be at eye level when
seated.
2. Hold the wall mount Ⓐ against the wall and mark the location of the 3 holes.
Use a spirit level to level the wall mount.
3. Mark the drill at the length of the screw Ⓗ.
4. Drill until the thread of the screws Ⓗ completely fits in the holes.
Do not use the wall mount as a drill guide.
MA 2030/2040 Series - English 6

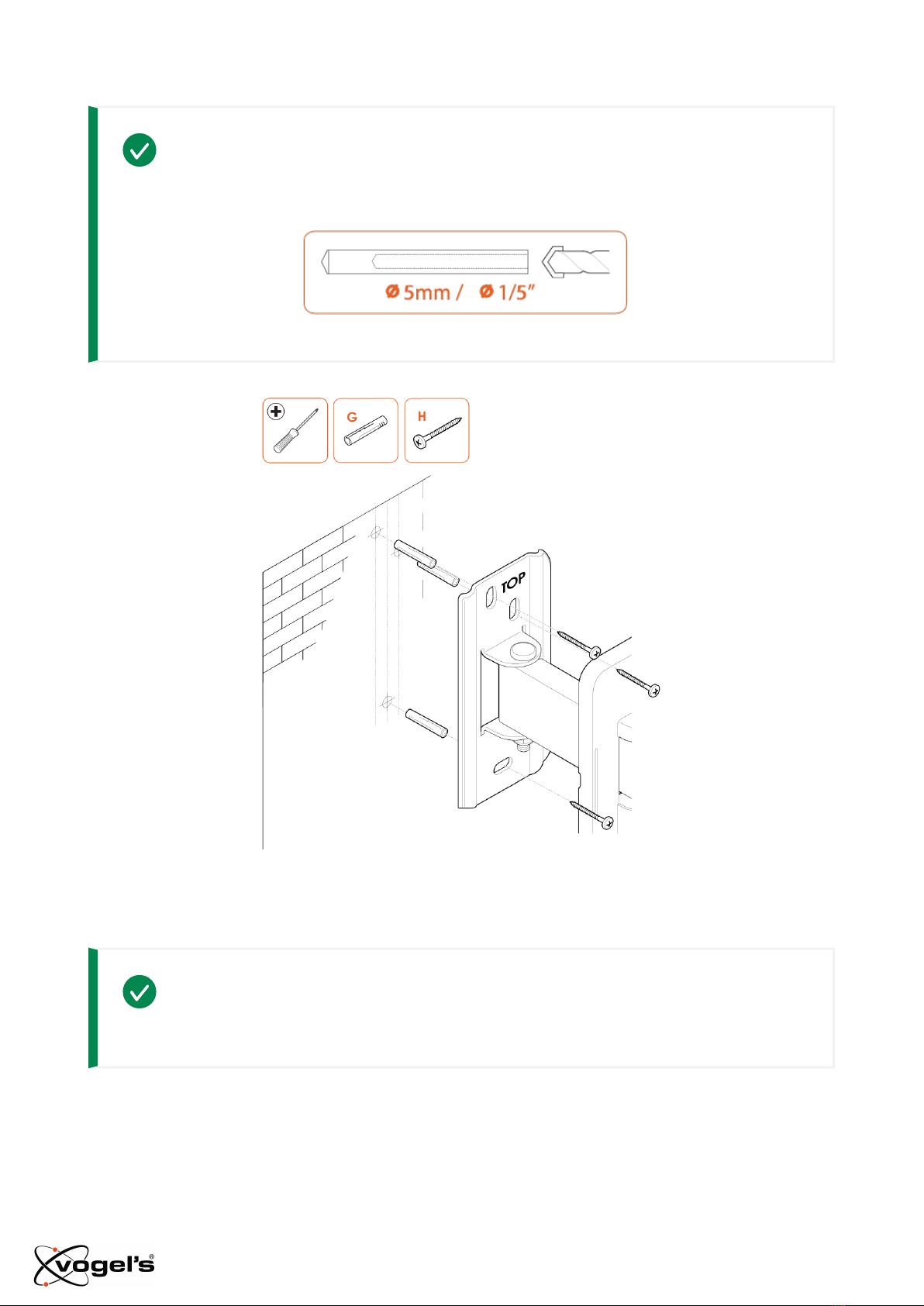

Up for some smooth sailing? Pre-drill the holes with a 5mm concrete/brick drill.
5. Attach the wall mount Ⓐ to the wall with the screws Ⓗ and plugs Ⓖ.
Lubricate the bolts for easy screwing in.
MA 2030/2040 Series - English 7

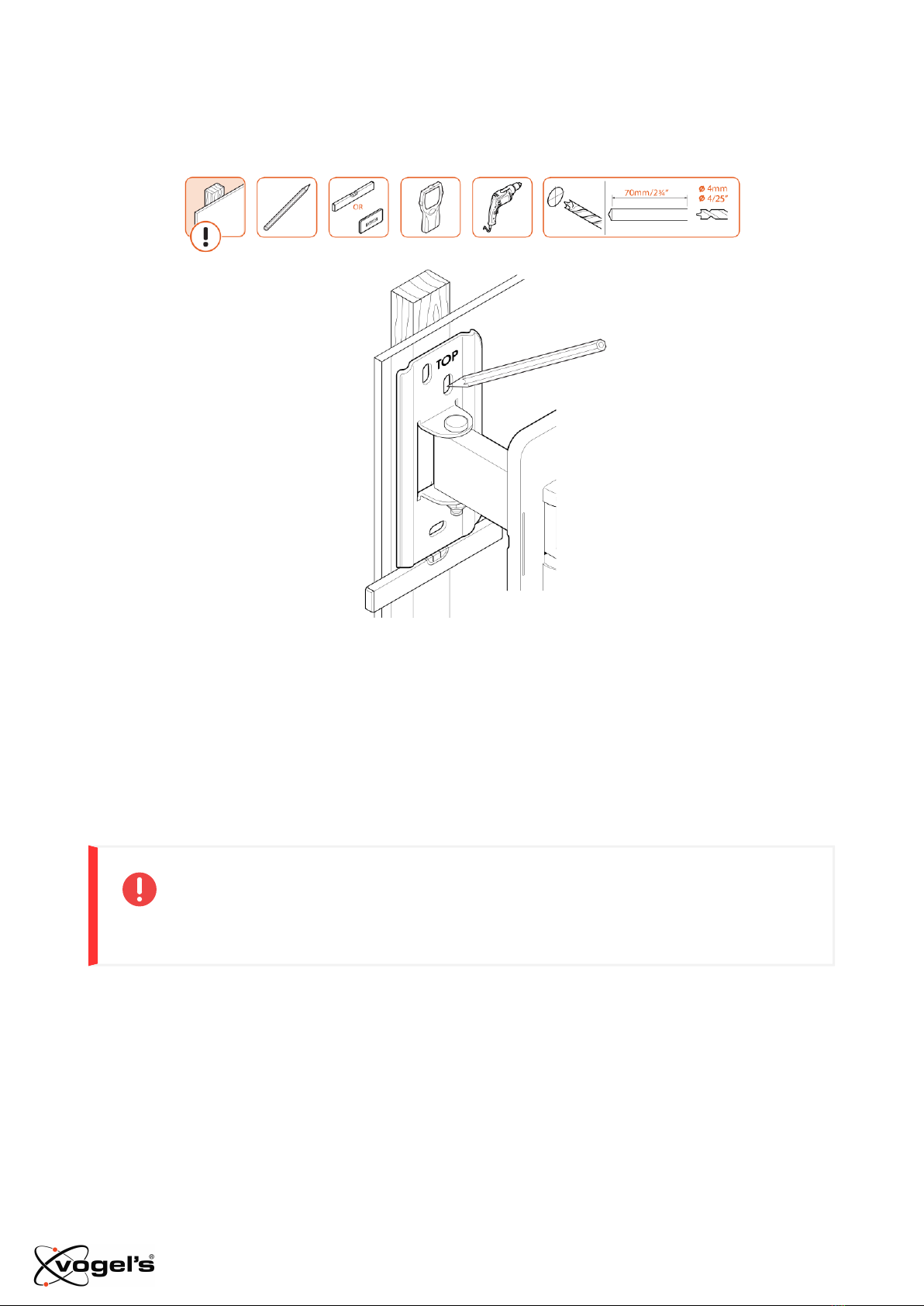

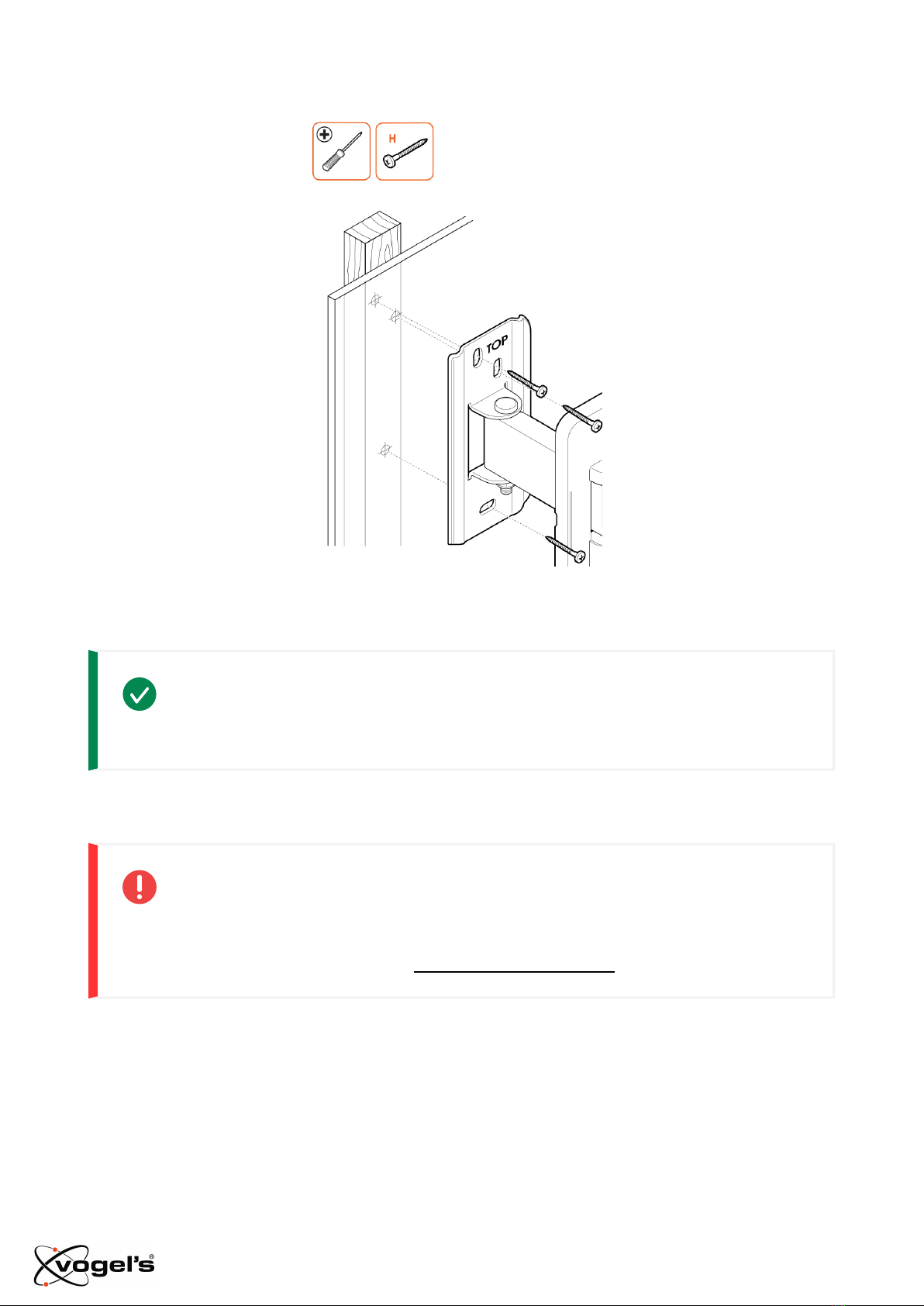

Wooden wall with studs
1. Don’t just guess! Always use a stud finder to determine the position of studs.
2. Decide how high you want the wall mount Ⓐ to be. Aim for the TV to be at eye level when
seated.
3. Hold the wall mount Ⓐ against the wall and mark the location of the 3 holes.
Use a spirit level to level the wall mount.
4. Mark the drill at the right length.
5. Now for the fun part… drilling the holes.
Do not use the wall mount as a drill guide.
MA 2030/2040 Series - English 8

6. Attach the wall mount Ⓐ to the wall with the screws Ⓗ.
Lubricate the bolts for easy screwing in.
Other wall type / I don’t know my wall type
If your wall is a little special – for example, hollow bricks, metal stud walls, wood panels or
plasterboard – or you simply aren’t sure, don’t worry! Just ask your installer, specialist supplier
or the Vogel’s Consumer Care team at www.vogels.com/contact.
MA 2030/2040 Series - English 9

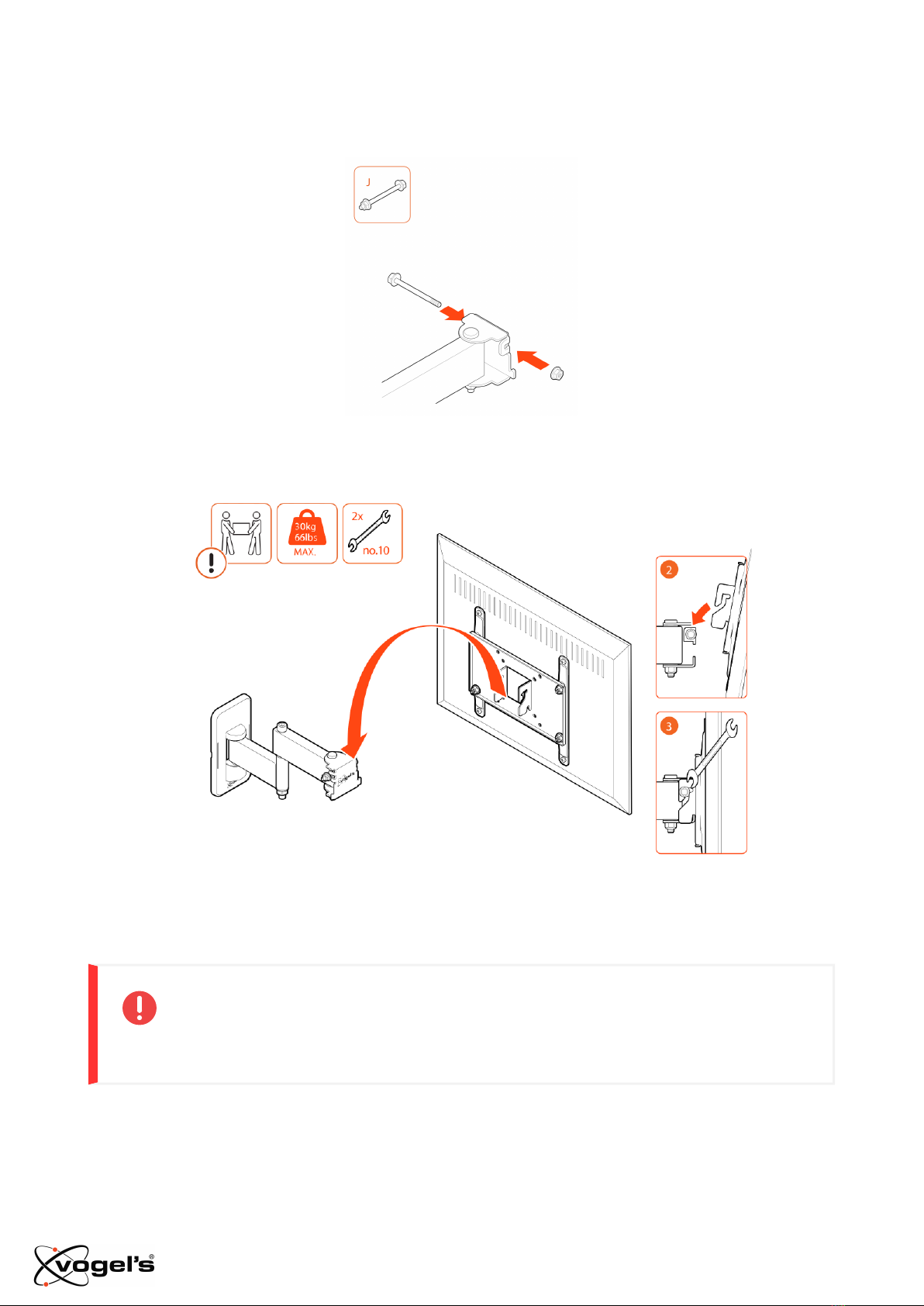

Step 3: Attach the TV to the wall mount

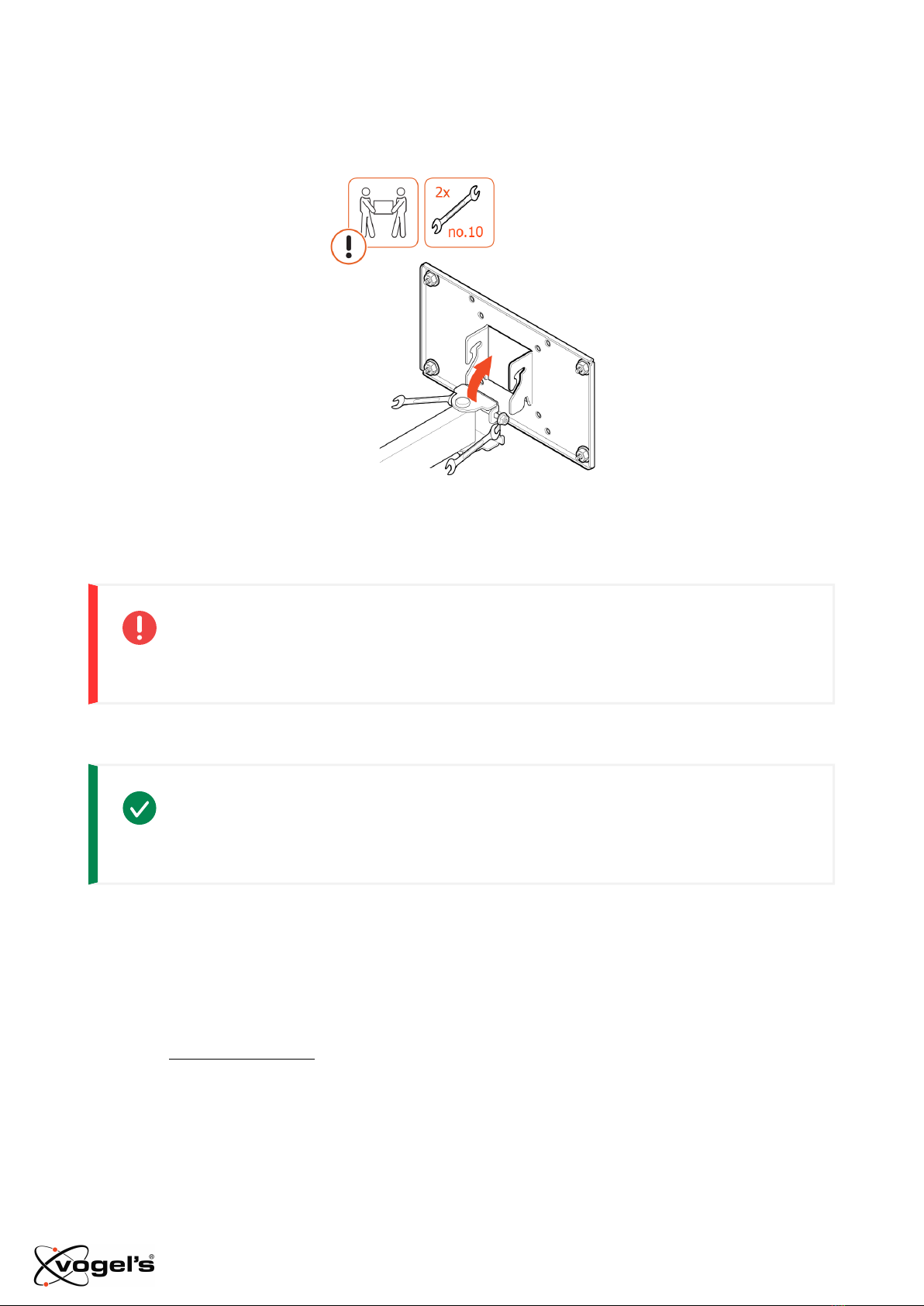

1. Loosely attach the interface bolt and nut Ⓙ to the hole in the head of the wall mount Ⓐ.
2. Carefully lift and attach the TV to the wall mount Ⓐ.
3. Fasten the interface bolt and nut Ⓙ using two wrenches or similar tools.
Lifting your TV is a two-person job. Don’t be bold!
Job done now! Enjoy watching your TV!
MA 2030/2040 Series - English 10

Handy features

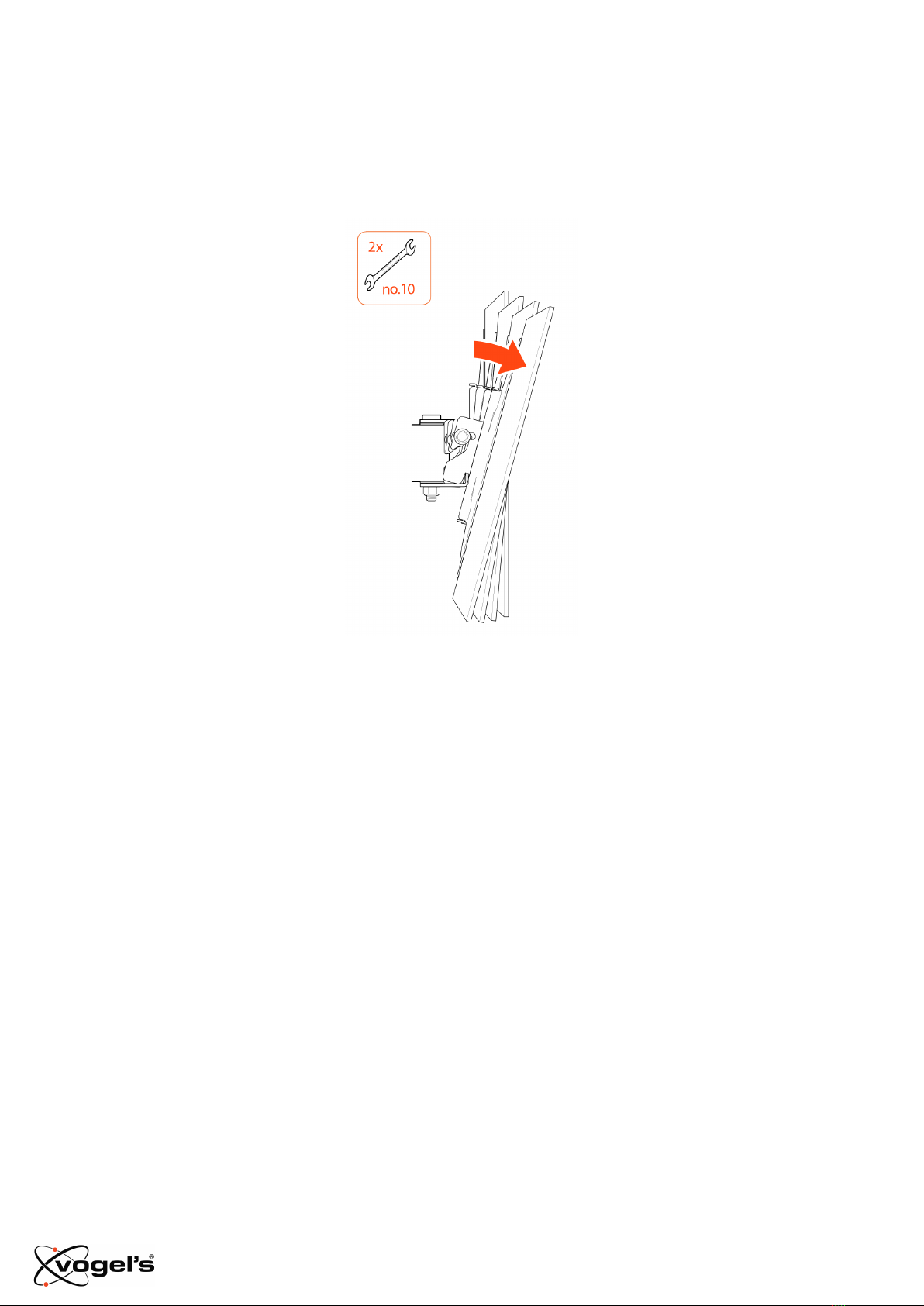

Tilt
1. Loosen the interface bolt and nut Ⓙ.
2. Try which tilt position creates the perfect viewing angle for you. Make sure the screen is in line
with your eye level when seated for some well-deserved TV time.
3. Tighten the interface bolt and nut Ⓙ when satisfied.
MA 2030/2040 Series - English 11

Removing your TV
1. Unplug the cables from your TV.
2. Loosen the interface bolt and nut Ⓙ.
Do not pull out the interface bolt, it is holding up the TV.
3. Lift your TV off of the interface plate Ⓑ, and put it down somewhere safe.
Again, lifting your TV is a two-person job. Always get help.
Tell us how you feel!
Your opinion matters more than you might think. It helps us make better products, and helps other
customers make informed choices.
Share your feedback, and sign up to win Vogel’s products!
Simply visit vogels.com/review for sharing or the Terms and Conditions.
MA 2030/2040 Series - English 12

Confused? Unsure? Going crazy?
There’s plenty of help waiting for you, online:
[email protected]
www.vogels.com/contact
facebook.com/
VogelsForSure/
instagram.com/
vogels_official/
www.youtube.com/
c/VogelsForSure
Simple troubleshooting
Found a problem you can’t fix? Don’t panic… try these!
‘I don’t have
the right bolts
for my TV!’
The world of TV technology is always
changing – it can be hard to keep
up sometimes. So, it might be the
case that the correct bolt size is not
included… you’re just too
advanced!
Just ask Vogel’s Consumer Care to
request a service kit, and we’ll send
everything you need. Click here to
contact Vogel's Consumer Care.
‘My wall bolts
have snapped!’
You might not be drilling deep
enough… or your drill could be too
blunt, so that the hole is too narrow
and the screw gets stuck.
Use another hole in the wall plate to
fix the wall mount to the wall. Make
sure you use a sharp drill of the
correct size. Use the size of the screw
as indication of the depth to be
drilled.
MA 2030/2040 Series - English 13

FAQs
‘Where can I request the correct
bolts for my TV (a service kit)?’
Whatever you need, simply contact your local Vogel's
dealer or Vogel's. Click here to contact Vogel's
Consumer Care.
‘Where can I find installation
videos?’
The installation video can be found at the product page
of your product on our website. It can also be found on
our YouTube channel:
www.youtube.com/c/VogelsForSure
‘How high do I need to hang my
TV?’
The center of your TV should ideally be positioned at eye
level, while seated. The result is dependent on the
location of the holes on the back of your TV. After
attaching the strips to the TV, determine the distance
between the center of the TV and the center of the
wallplate. This helps you determine where to drill your first
hole.
‘How high do I need to hang my TV
in case of a tilt mount?’
When a wall mount with tilt function is used, your TV can
be mounted above eye level.
‘Which bolts or screws do I need to
use?’
Vogel's offers a complete assembly kit with all mounting
materials included in the box, for both your TV and wall.
Do you miss the correct bolts for your TV? Please contact
your local Vogel's dealer. Click here to contact Vogel's
Consumer Care.
‘What is VESA?’ VESA is a standard pattern of mounting location holes on
the back of a TV which allows many standard TV mounts
to be easily fitted to your TV.
Go green!
We care about the planet. If you’re getting rid of the packaging or the TV mount itself, please visit
your local recycling facility, or contact your municipal office. Recycling matters!
MA 2030/2040 Series - English 14

Guarantee
Thanks again for choosing Vogel’s! That is why Vogel’s gives you a 2-year guarantee for defects in
materials and manufacturing.
1. Vogel’s guarantees that if during the guarantee period of a product, faults arise due to
defects in manufacturing and/or materials, it will, at its discretion, repair or if necessary
replace the product, free of charge. A guarantee for normal wear and tear is hereby
expressly excluded.
2. If the guarantee is invoked, the product should be sent to Vogel’s, together with the original
purchase document (invoice, sales slip or cash receipt). The purchase document should
clearly show the name of the supplier and the date of purchase.
3. Vogel’s guarantee shall lapse in the following cases:
lIf the product has not been drilled, installed and used in accordance with the Instructions
for Use;
lIf the product has been altered or repaired by someone other than Vogel’s;
lIf a fault arises due to external causes (outside the product) such as for example lightning,
water nuisance, fire, scuffing, exposure to extreme temperatures, weather conditions,
solvents or acids, wrong use or negligence;
lIf the product is used for different equipment than is mentioned on or in the packing.
Vogel’s Products BV - Hondsruglaan 93 - 5628 DB Eindhoven - The Netherlands
Vogel’s Products BV 2022 © All rights reserved.
MA 2030/2040 Series - English 15
