Vogelzang International VG820E User manual

VGZ-010 / 082205.0 VG820E HEARTWOOD™/Page 1
READ ALL INSTRUCTIONS CAREFULLY
BEFORE STARTING THE INSTALLATION
OR OPERATING THE STOVE. FAILURE TO
FOLLOW INSTRUCTIONS MAYRESULT IN
PROPERTYDAMAGE, BODILYINJURY,OR
EVEN DEATH.
DO NOT USE THIS STOVE IN A
MOBILE HOME, MANUFACTURED HOME,
TRAILER OR TENT – NO EXCEPTIONS!
This stove meets
U.S. Test Standard:
UL 1482-1996
SAFETY INSTRUCTIONS
SAFETY NOTICE: IF THIS STOVE IS NOT PROPERLY INSTALLED, A HOUSE/BUILDING FIRE MAY
RESULT. FOR YOUR SAFETY, CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT PER-
MITS, RESTRICTIONS, AND INSTALLATION REQUIREMENTS FOR YOUR AREA.
READ ALL INSTRUCTIONS CAREFULLY.
1. The installation of this stove must comply
withyourlocal building code rulings.Please
observe the clearances to combustibles (see
reference figures 3 – 5).
2. Verify that the stove is properly installed
before firing the stove for the first time.Af-
ter reading these instructions, if you have
any doubt about your ability to complete
your installation properly, you must obtain
the services of a professional licensed in-
staller familiar with all aspects of safe
and correct installation. DO NOT use
temporary or makeshift compromises
during installation.
3. DO NOT store wood, flammable liquids or
other combustible materials too close to the
unit. Refer to certification label on back of
unit and reference figures 3 – 5 in this
manual.
4. Donotinstallthisstoveina mobile home,
manufactured home, trailer or tent
(NO EXCEPTIONS! per HUD Federal
Standard: 24 CFR Ch.XX).
5. If any parts are missing or defective, please
notifythedealer or manufacturer immediately.
DO NOT OPERATE A STOVE THAT IS
MISSING ANY PARTS!.
6. Do not tamper with combustion air control
beyond normal adjustment capacities.
7. Always connect this stove to a chimney and
venttothe outside. Neverventto another room
or inside a building. DO NOT CONNECT
THIS UNIT TO A CHIMNEY FLUE SERV-
ING ANOTHER APPLIANCE.
8. DO NOT CONNECT a wood burning stove
to an aluminum Type B gas vent. This is not
safe. Use approved masonry or a UL 103 HT
Listed Residential Type and Building Heat-
ing Appliance Chimney. Use a 6” diameter
chimney or larger, that is high enough to give
a good draft. (See specifics in installation in-
structions).
Vogelzang International Corporation
400 West 17th Street
Holland, Michigan 49423
www.vogelzang.com
Phone: [phone] Fax: [phone]
HEARTWOOD
™
WOODSTOVE
Model VG820E Owners Manual
(save this manual for future reference)
continued on next page

Page 2 / VG820E HEARTWOOD™VGZ-010 / 082205.0
9. Besurethatyour chimney is safelyconstructed
andingood repair.Have thechimneyinspected
by the fire department or a qualified inspector.
Your insurance company should be able to rec-
ommend a qualified inspector.
10. Creosote or soot may build up in the chimney
connector and chimney and cause a house/
building fire. Inspect the chimney connector
and chimney twice monthly during the heat-
ing season and clean if necessary. (See Chim-
ney Maintenance, page 12).
11. In the event of a chimney fire, turn the air con-
trol to closed position, leave the building and
CALL THE FIRE DEPARTMENT IMME-
DIATELY! Have a clearly understood plan on
how to handle a chimney fire by contacting
your local fire authority for information on
proper procedures in the event of a chimney
fire.
12. To prevent injury, do not allow anyone to use
this stove who is unfamiliar with the correct
operation of the stove.
13. Do not operate stove while under the
influence of drugs or alcohol.
14. Ashes should not be allowed to accumulate
higher than the ash pan. Dispose of ashes in a
metal container with a tight fitting lid. Keep
the closed container on a noncombustible floor
or on the ground, well away from all combus-
tible materials. Keep the ashes in the closed
container until all cinders have thoroughly
cooled. The ashes may be buried in the ground
or picked up by a refuse collector.
15. The special paints used on your stove may
give off some smoke and an odor while
they are curing during the first 12 to 15 fires.
Additional smoke and odor may be emitted
from the light oils used in construction of the
fire box. This should disappear after a short
period of time and not occur again. Persons
with lung conditions or owners of susceptible
domestic pets (such as birds) should take
prudent precautions. Open windows and doors
as needed to clear smoke and/or odor. Paint
discoloration will occur if the stove is
overfired.
16. This stove has a painted surface which
is durable but it will not stand rough handling
or abuse. When installing your stove, use care
in handling. Clean with soap and warm water
when stove is NOT hot. Do not use any acids
or scouring soap, as these solvents wear and
dull the finish.
17. While stove is in operation, all persons,
especially young children should be alerted to
the hazards from high surface temperatures.
Keep away from a hot stove to avoid burns or
clothing ignition.
18. If small children will be in the same room as
the stove during operation, provide a sturdy
barrier to keep them at a save distance
from the stove. NEVER LEAVE SMALL
CHILDREN UNSUPERVISED when they
are in the same room as the stove.
19. Keep stove area clear and free from all
combustible materials, gasoline, and other
flammable vapors and liquids.
20. To prevent burns, always wear protective
clothing, leather hearth gloves and eye
protection, while tending the fire.
21. While in operation, keep the feed door, ash
door, and cabinet door closed and secured at
all times except while tending the fire.
22. Do not overfire the stove. Overfiring will
occur if the feed door or ash door is left open
during operation. Such actions can result in
very dangerous operating conditions.
23. All power cords and electrical appliances
and/or assemblies must be kept outside of the
clearance dimensions shown in this manual for
combustible materials.
24. For further information on using your stove
safely, obtain a copy of the National Fire
Protection Association (NFPA) publication,
“Using Coal and Wood Stoves Safely” NFPA
No. HS-10-1978. The address of the NFPA is
Batterymarch Park, Quincy, MA 02269.
NOTE:APROFESSIONAL, LICENSED HEATING
AND COOLING CONTRACTOR SHOULD
BE CONSULTED IF YOU HAVE QUESTIONS
REGARDING THE INSTALLATION OF THIS
SOLID FUEL BURNING APPLIANCE.
SAFETY INSTRUCTIONS continued…

VGZ-010 / 082205.0 VG820E HEARTWOOD™/Page 3
TOOLS
Pencil
6 foot Folding Rule or Tape Measure
Tin Snips
Drill: Hand or Electric
1/8” dia. Drill Bit (sheet metal screws)
1/4” dia. Drill Bit (damper installation)
Screwdriver (blade & Phillips types)
6mm Nut Driver or Ratchet with 6mm Socket
Safety Glasses
Gloves
1. Uncrate the stove and remove cardboard pack-
ing and protective poly bag. (Save cardboard
for further assembly.)
2. Remove legs, upper and lower heat shields,
damper, and hardware pack from inside fire-
box.
3. Place flattened carton behind stove and care-
fully turn stove onto its back.
ASSEMBLY INSTRUCTIONS

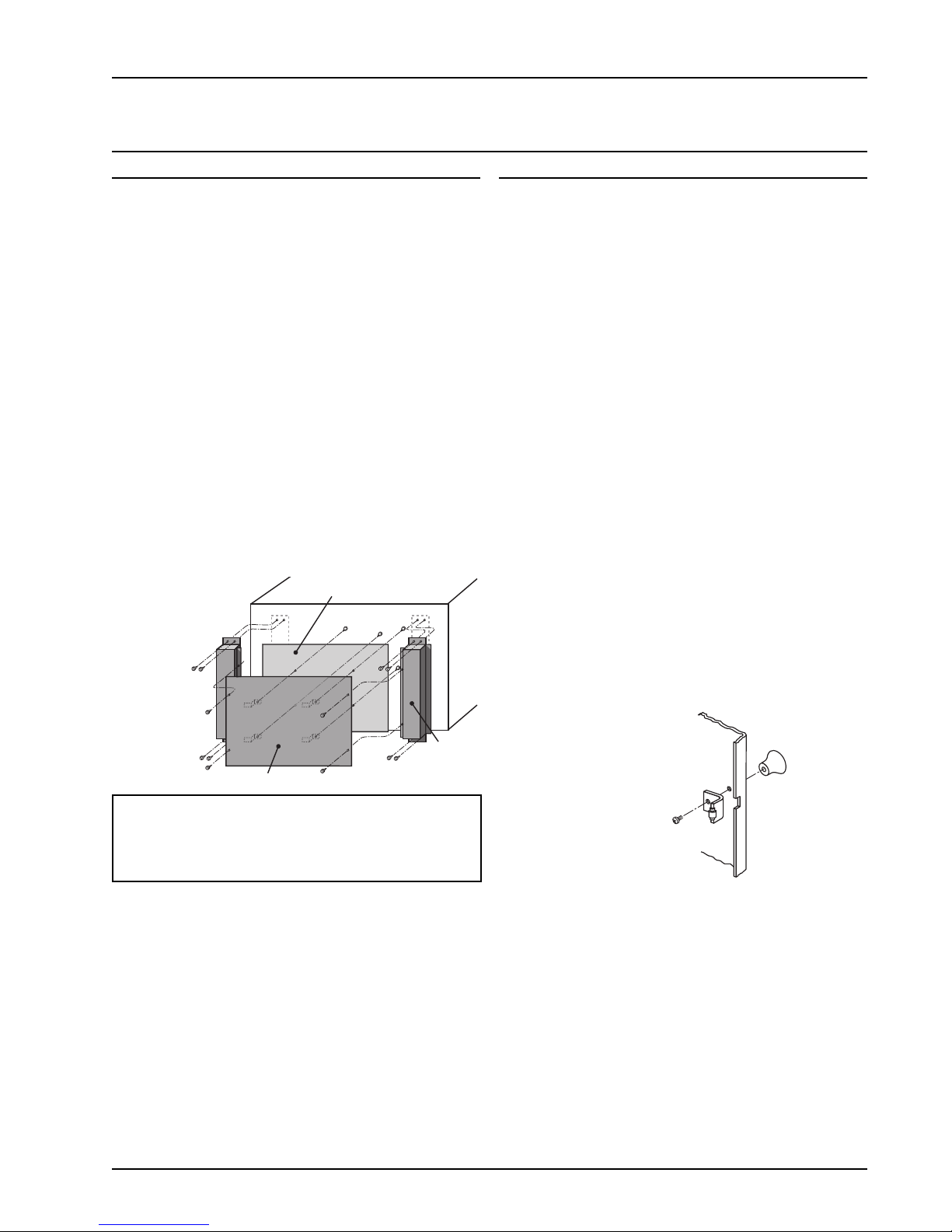

Fig. 1 Leg
& Heat Shield
Assembly
Upper Heat Shield
Lower Heat Shield
Leg
Assembly
TOOLS AND MATERIALS REQUIRED FOR INSTALLATION
MATERIALS
(NOTE: The following items are NOT included with your stove)
Chimney Connection: 6” black steel (24 ga. min.) straight stove
pipe or elbow (as required)
1/2” Sheet Metal Screws
Chimney: Existing 6” Lined Masonry Chimney or 6” Inside Dia.
listed Type 103 HT chimney.
Flooring Protection: 42” x 60” as specified (see page 3)
Furnace Cement (manufacturer recommends Rutland Code 78
or equivalent)
NOTICE: Vogelzang International Corp. grants no warranty, stated or implied, for the installation or maintenance
of your wood stove and assumes no responsibility of any incidental or consequential damages.
4. Join the upper and lower heat shields with four
(4) self-tapping screws (fig. 1).
Fig. 2 Cabinet
Door Knob Assembly
5. Placebothlegs upside down andattachthe heat
shieldassembly(from step 4) betweenthelegs.
Aligntheholes in theheatshield assembly with
those in the mounting flange of the leg assem-
blies and secure with four (4) self-tapping
screws.
6. Attach leg/heat shield assembly to the base of
the stove using eight (8) self-tapping screws
(fig. 1).
7. Carefully lift stove to upright position.
8. Locate the door knob and machine screw in
the hardware pack. Open the cabinet door by
reaching under the cabinet frame
and pulling the door open.
9. Install the door knob onto the outside of the
door. Install the machine screw through the
latch bracket, door, and into the knob. Tighten
securely (fig. 2).
WARNING: METAL PANELS FASTENED BE-
TWEEN LEGS ACT AS HEAT DEFLECTORS.
THESE PANELS MUST BE IN PLACE FOR SAFE
OPERATION.

Page 4 / VG820E HEARTWOOD™VGZ-010 / 082205.0
CAUTION: KEEP FURNISHINGS AND OTHER
COMBUSTIBLE MATERIALS AWAY FROM THE
STOVE.
LOCATING STOVE
1. The stove must be placed on solid concrete,
solid masonry, or when installed on a combus-
tible floor, on a listed floor protector, such as
Hy-C or Imperial Model UL 4260BK or
equivalent. (NOTE: to calculate R-values of
equivalent alternative materials, see page 17.)
The base must extend at least 16” beyond the
side with the access door, 8” to the sides of
fuel opening, and mustextend under the stove
pipe if it is elbowed towards a wall. (See fig-
ures 3 & 4 and consult local building codes
and fire protection ordinances).
CAUTION: (FIRE HAZARD) CARPETING AND
OTHERCOMBUSTIBLE MATERIALSHALLNOT
COVER THE FLOOR PROTECTOR. THESE
MATERIALS MUST REMAIN OUTSIDE OF
COMBUSTIBLE CLEARANCES, SEE FIG. 3 – 5.
2. The stove must have its own flue. DO NOT
CONNECT THIS UNIT TO A CHIMNEY
FLUE SERVING OTHER APPLIANCES.

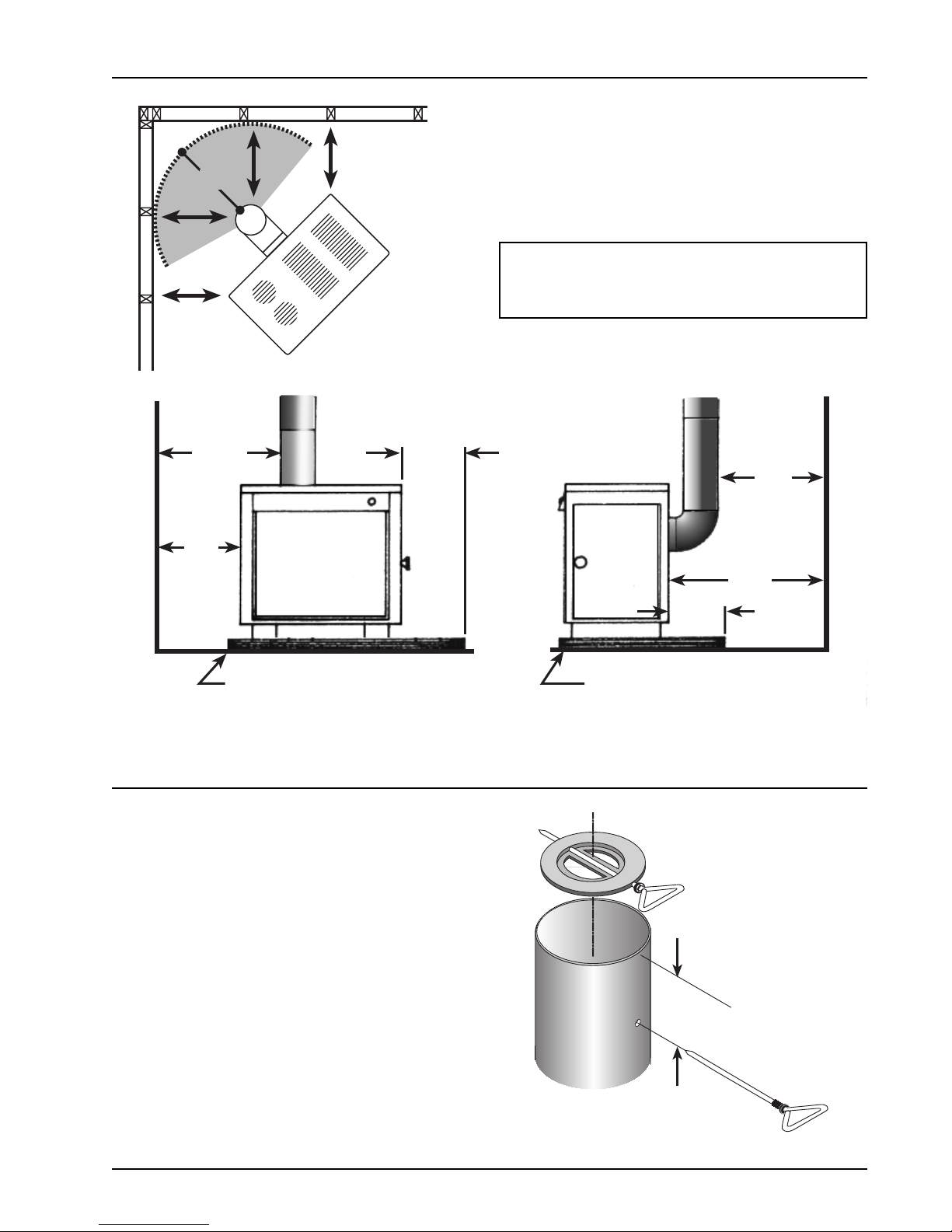

3. After observing the clearances to combustible
materials (figures 3 – 5), locate your floor
protector accordingly (figure 3) and carefully
place the stove in your selected location.
Install stove pipe, elbows, and thimble as
required,utilizingeither a recently cleanedand
inspected 6” masonry chimney or a 6” i.d.
listed chimney.
4. Use 6” round black stove pipe, not
galvanized stove pipe. Secure pipe sections
with three (3) sheet metal screws in each stove

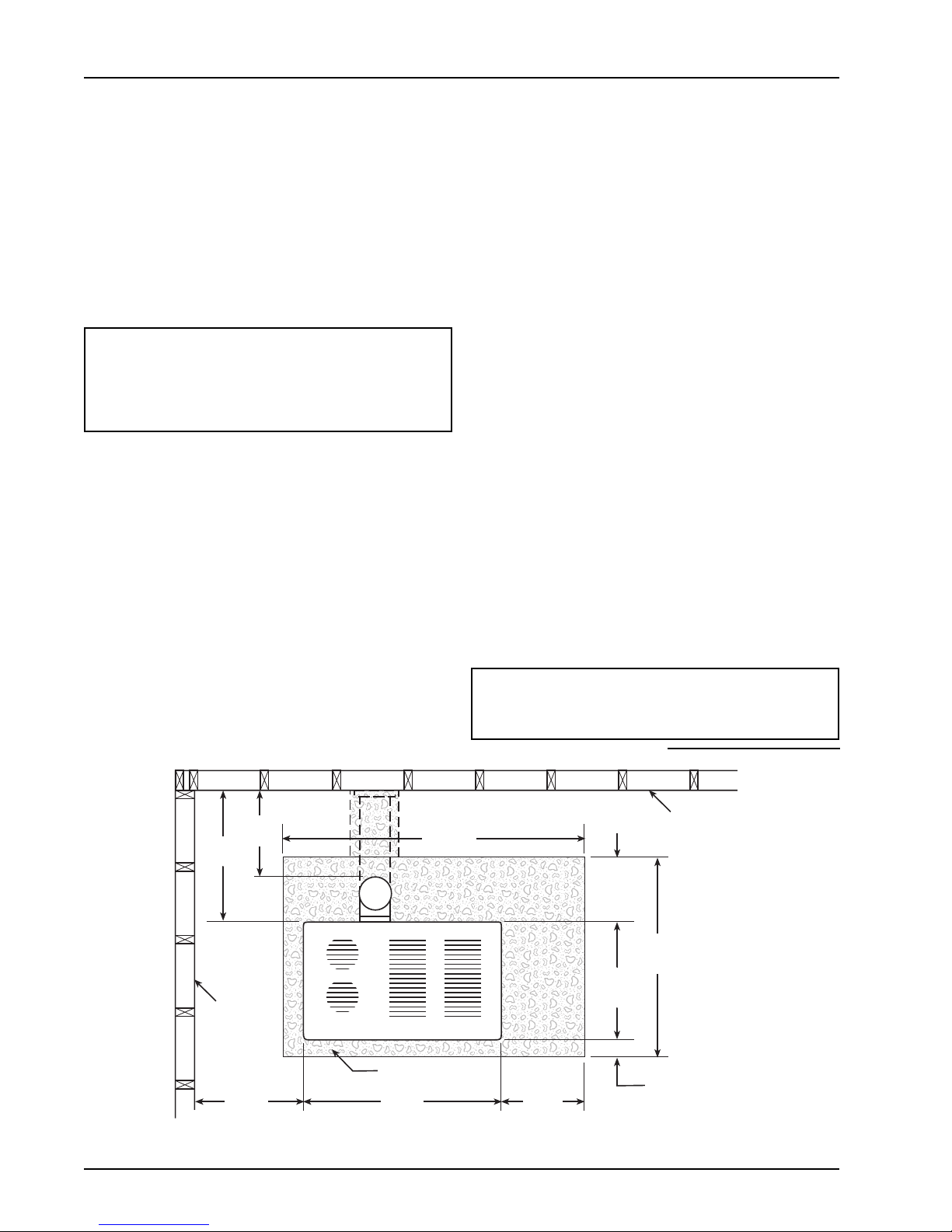

Fig. 3 – TOP VIEW Minimum Clearance Dimensions from Combustible Surfaces
TOPVIEW
FLOOR PROTECTOR
DASHED LINE SHOWS STRAIGHT
OUT CHIMNEY CONNECTOR
AND ADDITIONAL FLOOR
PROTECTOR REQUIRED
NON COMBUSTIBLE CONSTRUCTION IN
ACCORDANCEWITH NFPA 211 BACKWALL
SIDEWALL
15"
19"
42"
8"
16"32"20"
60"
18"
34"
pipe and/or elbow joint to firmly hold the pipe
sectionstogether. DONOTCONNECTTHIS
STOVETOANYAIRDISTRIBUTIONOR
DUCT SYSTEM.
5. Recheck clearances from the stove,
connector stove pipe, and corner clearances
using the illustrations in figures 3 – 5 and
your local building codes or fire protection
ordinances.
NOTE: Drywall faced with brick or stone must
be considered a combustible surface.
6. DO NOT INSTALL THIS STOVE IN
A MOBILE HOME, MANUFACTURED HOME,
TRAILER OR TENT – NO EXCEPTIONS!
(HUD Federal Standard: 24 CFR Ch.XX)
7. The clearances provided are minimum
dimensions determined by Warnock-Hersey,
the manufacturer’s testing laboratory. Installa-
tion of this stove must comply with the latest
edition of NFPA 211 for reduced clearances
and/or your local building code rulings.
Use whichever minimum dimensions are
LARGEST.
Failure to follow these minimum clearance
requirements may result in an unsafe
installation and could cause a fire.
8. This stove meets U.S. Test Standard:
UL 1482-1996.
continued on next page

VGZ-010 / 082205.0 VG820E HEARTWOOD™/Page 5
LOCATING STOVE continued…
FLOOR PROTECTOR FLOOR PROTECTOR
BACKWALL
SIDEWALL
20"
26" 16" 18"
15"
34"
Fig. 5a – Front View Fig. 5b – Side View
NOTE: BEFORE FIRING WOODSTOVE SLIDE
FIREBRICKS TOWARDS THE REAR SO NO
GAPS REMAIN BETWEEN BRICKS.
Fig. 4 – Top View
Minimum Corner Clearances
from Combustible Surfaces
Minimum Clearance Dimensions from Combustible Surfaces
D-6 DRAFT DAMPER
A Draft Damper included with the stove must
be installed in the first straight section of pipe ex-
iting the stove before the stove pipe is connected
and the wood stove is used.
1. Drill two 1/4” holes centered on either side of
the pipe section 6” from the top end of the pipe
(figure 6).
2. Remove the handle from the damper then slide
the damper into the pipe.
3. Align the damper with the holes drilled in step
1 and insert the handle through the holes and
the damper.
NOTE: This damper is necessary for the
proper operation of the stove and to meet
EPA emissions requirements for heating
appliances. It MUST be installed before use.
(NO EXCEPTIONS)
6"/15.25 cm
Fig. 6 – Draft Damper Installation
DRAFT DAMPER
(must be installed
before use — NO
EXCEPTIONS)
24"
24"
CORNER CLEARANCES
18"

Page 6 / VG820E HEARTWOOD™VGZ-010 / 082205.0
CONNECTOR PIPE INSTALLATION
1. The crimped end of the stovepipe fits inside
the stove flue collar. Install additional pipe and
elbow with the crimped end towards the stove.
This will allow any condensation in the flue to
run back into the firebox.
2. Horizontal pipe runs must slope upwards
towards the chimney at least 1/4” per foot of
horizontal run.
3. You must have at least 18 inches of clearance
between any horizontal piping and the ceiling.
4. The pipe cannot extend into the chimney flue
(figure 7).
5. Securepipe/elbowsectionswith three (3) sheet
metal screws at each joint to make the piping
rigid.
6. It is recommended that no more than two (2)
90°bends be used in the stovepipe installation.
The use of more than two 90°bends may de-
crease the amount of draw and possibly cause
smoke spillage. Where possible, use only
corrugated (nonadjustable) elbows. These
provide a better seal.
7. The connector pipe must not pass through an
attic or roof space, closet, or any concealed
space, or floor, ceiling, wall or combustible
construction. (See Chimney Connector Sys-
tems & Clearances, page 17). A UL 103 HT
Listed chimney must be used from the first
penetration of ceiling or wall to the chimney
cap. Never use single wall connector pipe as
a chimney - a house fire could result.

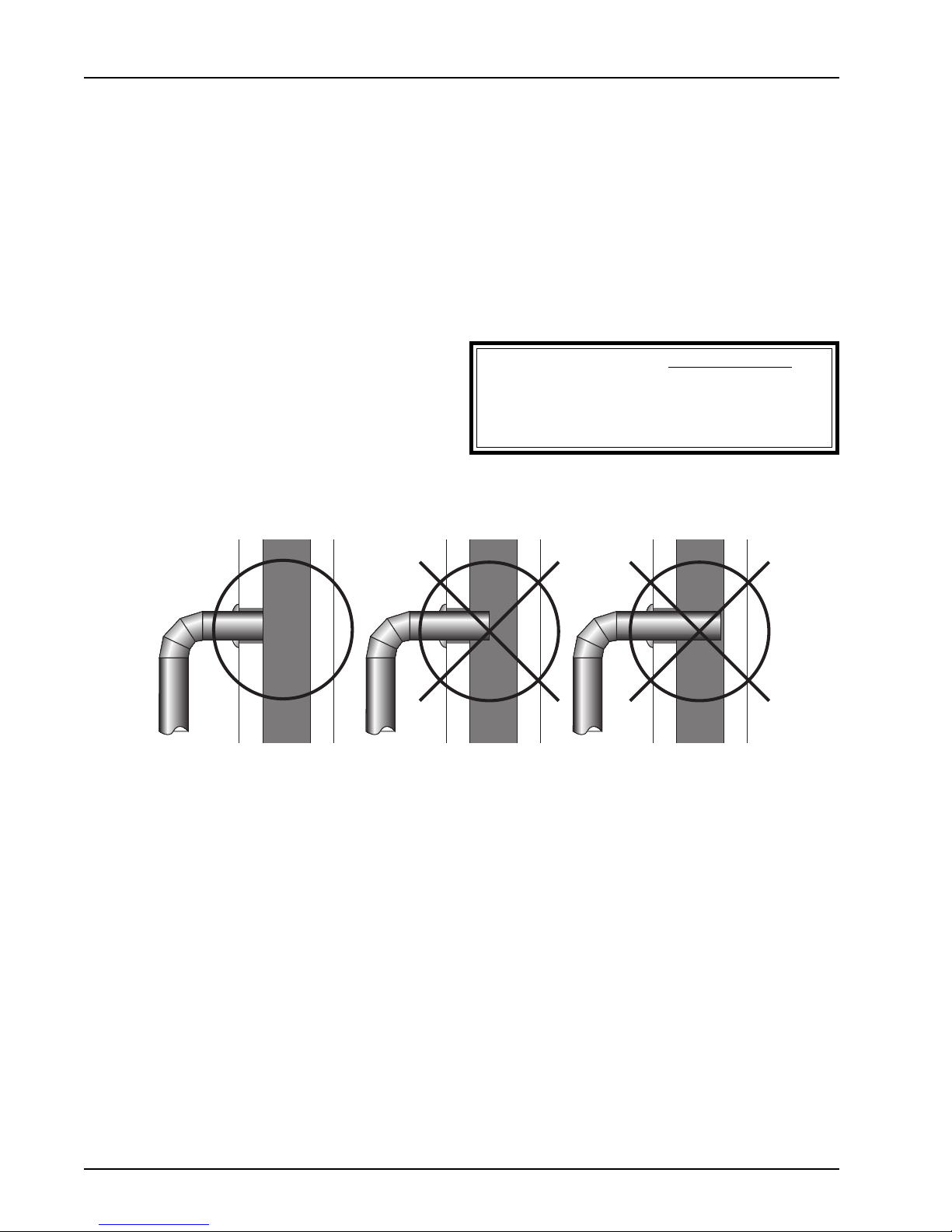

Fig. 7 – Stovepipe/Flue Connections
NOTE: STOVE PIPE IS NOT INCLUDED . TO
PURCHASE, VISIT YOUR LOCAL HARDWARE,
HOME OR BUILDING CENTER. SEE
“LOCATING STOVE” PAGE 4 FORADDITIONAL
SPECIFICATIONS.
CORRECT WRONG WRONG

VGZ-010 / 082205.0 VG820E HEARTWOOD™/Page 7
CHIMNEY CONNECTIONS
The stove must be connected to either a ma-
sonry or manufactured metal chimney built and
tested to the specifications listed on the previous
pages.
Chimneys perform two functions:
1). As a means of exhausting smoke and flue
gases which are the result of fuel combustion.
2). The chimney provides “draft” which allows
oxygen to be continuously introduced into the
appliance, so that proper combustion is possible.
This stove relies on natural draft to operate.
NOTICE: Always provide a source of fresh
air into the room where the stove is located. Fail-
ure to do so may result in air starvation of other
fuel burning appliances and the possible devel-
opment of hazardous conditions, fire or death.
Your stove itself does not create draft. Draft is
provided by the chimney. To achieve proper draft
yourchimneymust meet the threeminimumheight
requirements detailed in figures 9–11.Aminimum
of0.05w.c.(measured inwatercolumn) is required
for proper drafting to prevent back puffing, smoke
spillage, and to maximize performance. (Gauges
tomeasuredraft are readilyavailable at stovestores
and are economical to rent or purchase.)
Factors such as wind, barometric pressure,
trees, terrain and chimney temperature can have
an adverse effect on the draft. The manufacturer
cannotbeheld responsibleforexternal factorslead-
ing to less than optimal drafting.
Should you have a problem with inadequate
draft, you should contact a licensed heating and
cooling contractor for assistance in solving the
problem.
IMPORTANT Installation Points
1. Sizechimneyflue tostovecollar.Thisstove
requires a 6” diameter flue.
2. Never connect this unit to a chimney serv-
ing another appliance.
3. The chimney must meet all minimum
height requirements.
4. Never use a chimney to ventilate a cellar
or basement.
5. Contact your local building authority
for approved methods of installation and any
necessary permits and/or inspections.
MASONRY CHIMNEY
Before using an existing masonry chimney,
clean the chimney, inspect the flue liner and make
any repairs needed to be sure it is safe to use. Make
repairs before attaching the stove. The connector
stove pipe and fittings you will need to connect
directly to a masonry chimney are shown in
figure 8.
Fig. 9 - Chimney Construction Through Attic Space
If the connector stove pipe must go through a
combustible wall before entering the masonry
chimney, consult a qualified mason or chimney
dealer.The installation mustconform tolocalbuild-
ing and fire codes and latest edition of NFPA 211.
If there is a cleanout opening in the base of the
chimney, close it tightly.
CHIMNEY
FLUE
5/8"TILE
CHIMNEY
LINER
MASONRY
CHIMNEY
THIMBLE
COLLAR
6˝ ROUND
24 ga. BLACK
CONNECTOR
STOVEPIPE
8˝ MIN.
LINER
BELOW
ENTRY
HOLE

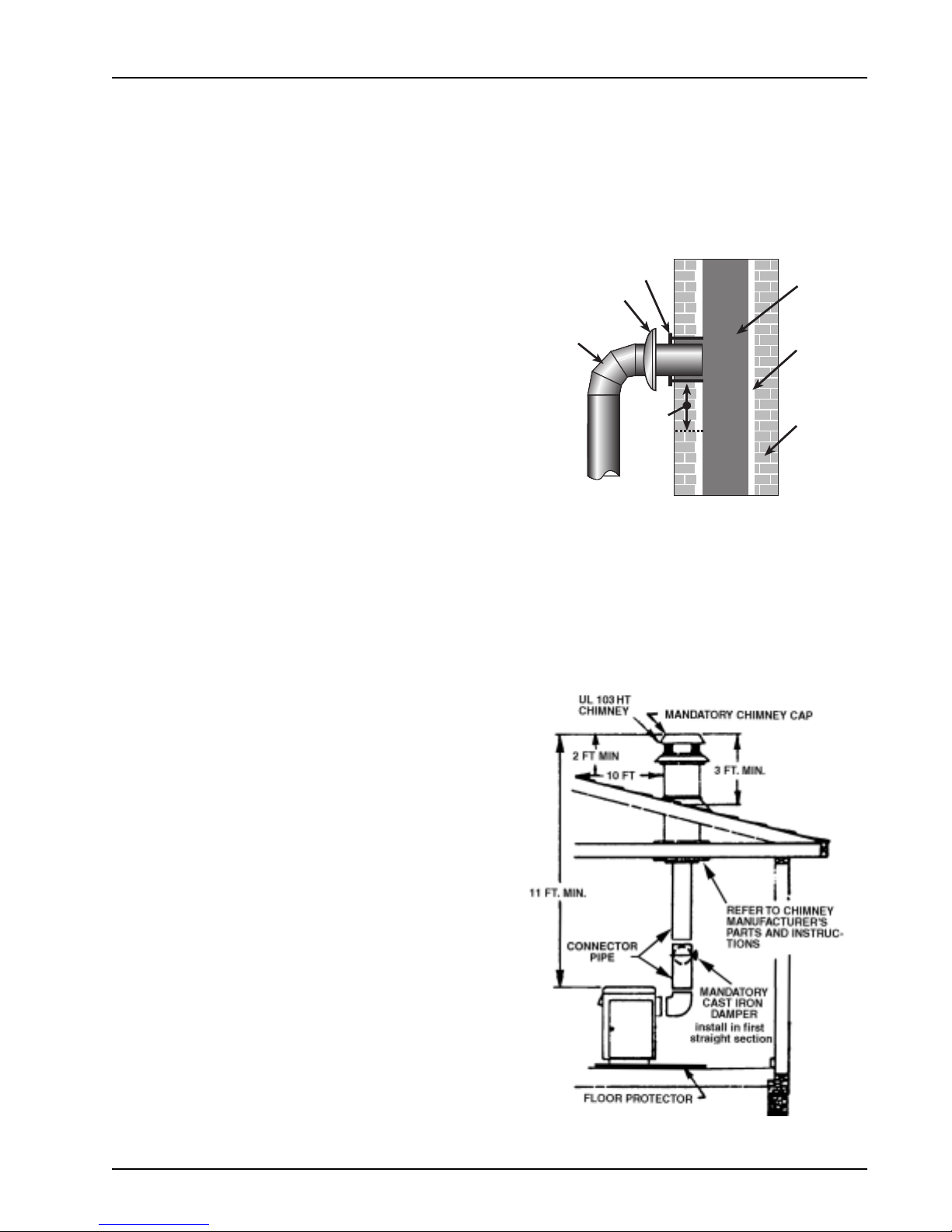

Fig. 8 - Masonry Chimney Connection

Page 8 / VG820E HEARTWOOD™VGZ-010 / 082205.0

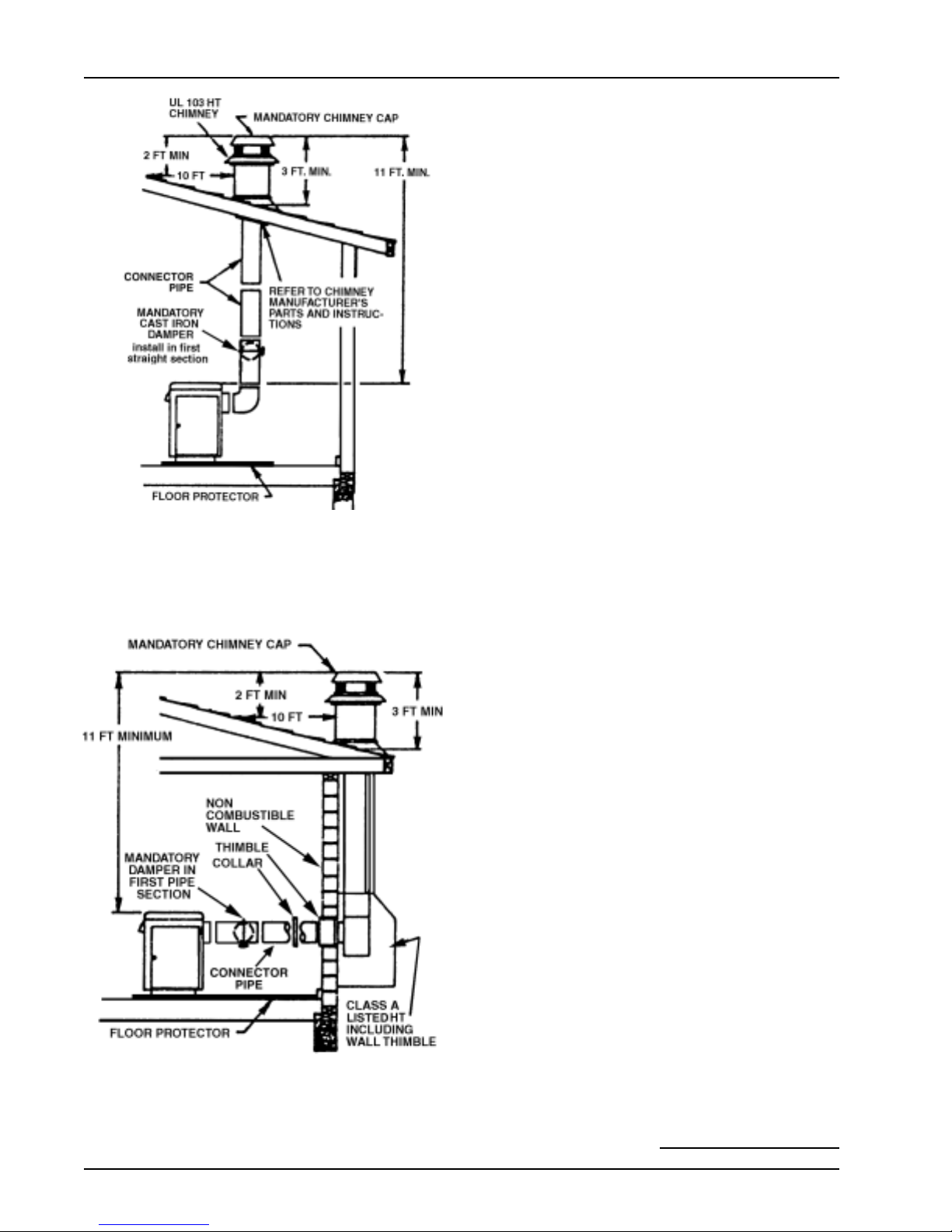

Fig. 10 - Chimney Construction Through Roof
Fig. 11 - Chimney Connection to Firebox
Through Masonry Wall
CHIMNEY CONNECTIONS continued …
MANUFACTURED CHIMNEY
REFER TO CHIMNEY AND CHIMNEY
CONNECTOR MAKER’S INSTRUCTIONS
FOR INSTALLATION AND USE.
Use only 6” diameter listed chimney UL 103
HT. Chimney made to this listing is High Tem-
perature rated to 2100 degrees Fahrenheit. Use
chimney from only one manufacturer. Never mix
brands. Carefully follow the chimney
manufacturer’sstated requirementsandclearances.
Use the chimney manufacturer’s attic guards, roof
supports, flashing and fire stops when passing
through a ceiling. Use a listed thimble when pass-
ing through a combustible wall. Do not use make-
shift compromises during installation. Never use
a single-wall connection pipe as a chimney!
When using a pre-existing chimney, have it’s
condition and installation inspected before using.
Make sure that the chimney meets all of the UL
rating requirements listed above. Be aware that not
all manufactured chimney is of the UL 103 HT
type.
NOTE: It is recommended that you contact a
licensed heating and cooling contractor (consult
your local yellow pages) for chimney installation.
Manufactured chimney with the proper re-
quired UL listing is available from most home cen-
ters, hardware stores, and HVAC supply stores.
If you have access to the internet, you may
wish to view chimney manufacturers’ informa-
tion on-line. See, www.duravent.com,
www.selkirkinc.com, or www.mtlfab.com.
VENTING TO EXISTING FIREPLACE
In some instances, people desire to convert an
existing fireplace for stove use. Usually, safe con-
nection to an existing masonry chimney requires
moreworkthan using aprefabricatedchimney.The
existing fireplace must be closed and sealed at the
damper with high-temperature caulk, ceramic
wool,orfurnace cement. Prior toinstallation,clean
and inspect the existing flue and smoke shelf. In-
stallation should be designed so the system can be
dismantled for periodic cleaning and inspection.
Before conversion, make sure the existing chim-
neyisstructurallysound, the chimney incorporates
a flue liner and make sure it is in good condition.
Continued on nwxt page

VGZ-010 / 082205.0 VG820E HEARTWOOD™/Page 9
CHIMNEY CONNECTIONS continued …
(A flue liner consists of clay tile that protects the
brickworkofa chimney. Ifachimney doesnothave
a liner, or it is damaged, have it relined by a pro-
fessional. DO NOT USE a chimney that is un-
lined or damaged!) If you have any question re-
garding the condition of the chimney, consult a
qualified licensed contractor, qualified engineer,
competent mason, certified Chimney Sweep, or a
knowledgable inspector. Consult your insurance
company if you cannot find a qualified expert.
CAUTION:Not allfireplacesare suitable
for conversion to a wood stove. Check
with a qualified expert.
Many prefabricated fireplaces are of the “zero-
clearance fireplace” category. These consist of
multilayeredmetalconstruction.They are designed
with enough insulation and/or air cooling on the
base, back and sides so they can be safely installed
indirectcontactwith combustible floors andwalls.
Although many prefabricated fireplaces carry en-
dorsements from nationally recognized organiza-
tionsforuse as fireplaces,theyhave not beentested
for connection to wood stove heaters. Connecting
a stove to such a device will void the
manufacturer’s warranty.
Steel-lined fireplaces are constructed with
1/4” firebox liner, an air chamber in connection
with 8” of masonry. These can be safely used with
wood burning stoves. They contain all the essen-

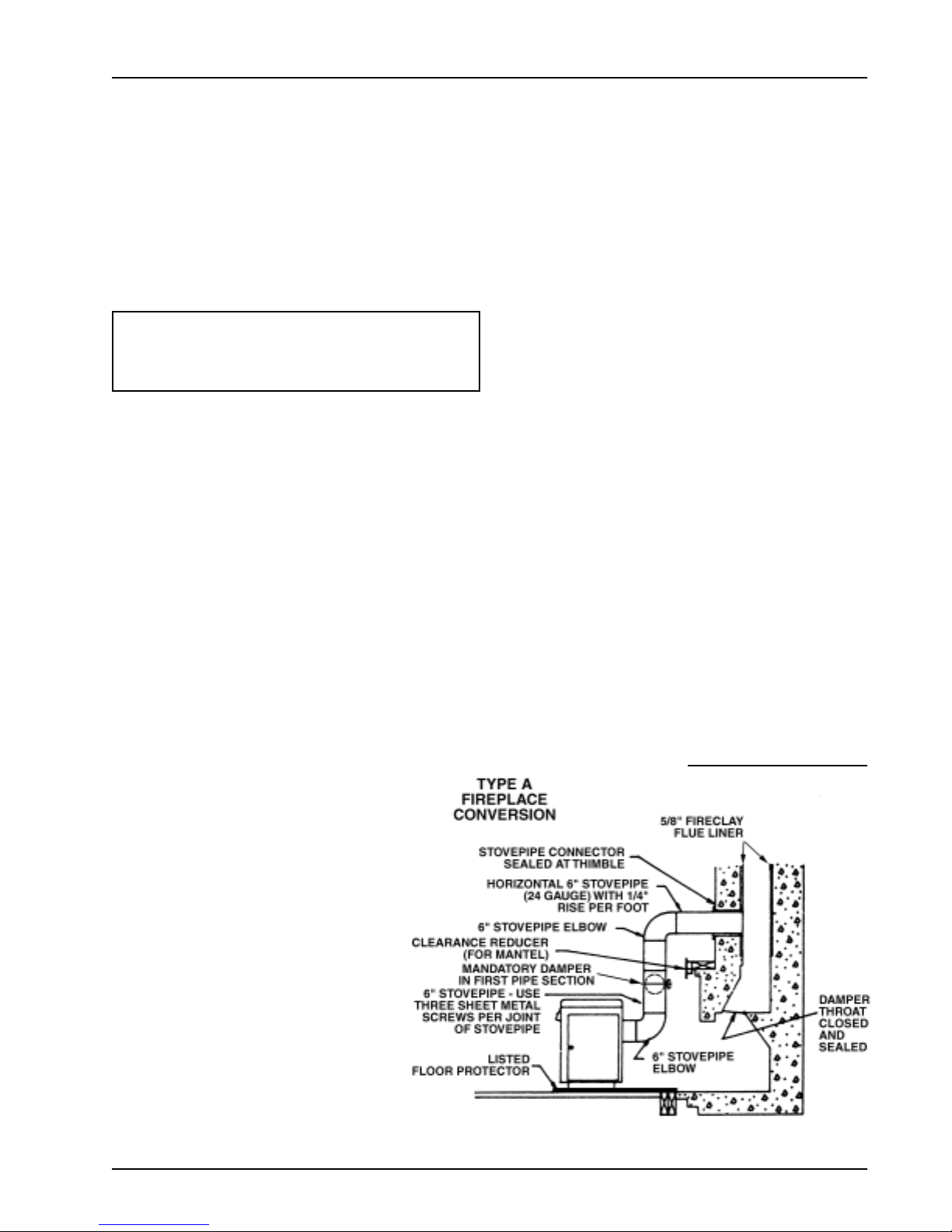

FIG. 12 - Fireplace Conversion
FIREPLACE INSTALLATION
Directly connecting the stovepipe into the ex-
isting masonry chimney (figure 12 “Type A” fire-
place conversion) of the fireplace is the only ap-
proved method of installation. This is a compli-
cated and involved process and to insure safety
should only by done by a qualified installer.
1. An entry hole must be cut through the masonry
and tile liner with minimal damage to the liner.
At least 8” of liner must remain below the en-
tryposition.Whenlocating the stoveandstove-
pipe,allminimum clearances mustbeobserved
from combustible surfaces including mantels,
combustible trimwork, ceilings and walls. Po-
sitioning the center of the stove pipe entry into
the chimney 24” below the ceiling should in-
sure proper clearance for a 6” stovepipe.
2. Installametal orfire clay (5/8”minimum thick-
ness) thimble. Make sure the thimble is flush
with the inner surface of the chimney liner and
does not protrude into the flue (see figure 7 on
page 6).
3. Secure the thimble with refractory mortar. The
thimble should be surrounded by 8” of solid
unit masonry brickwork or 24” of stone.
4. Install the stovepipe into the thimble as far as
possible without extending past the flue lining
(see figures 7 & 8 on pages 6 & 7).
5. A small airspace (about 1/2”) should remain
between the stovepipe and thimble to allow for
expansion of the pipe. Seal this airspace with
high-temperature caulking or ceramic wool.
tial components of a fireplace, firebox,
damper, throat, smoke shelf, and smoke
chamber. Many look identical to ma-
sonry fireplaces and should be checked
carefully before connecting a stove to
them.
Venting a stove directly into a fire-
placedoesnot meet code andshouldnot
be attempted. (This constitutes connec-
tiontoanother appliance-the fireplace.)
Combustion products will be deposited
and build up in the firebox or fireplace.
The stove warranty will be void with
such an installation. Do not create a
hazard in your home by connecting in
this manner.
Continued on nwxt page

Page 10 / VG820E HEARTWOOD™VGZ-010 / 082205.0
OPERATING INSTRUCTIONS
WARNING: EXPLOSION HAZARD
•NEVER USE CHEMICALS, GASOLINE,
GASOLINE-TYPELANTERN FUEL, KEROSENE,
CHARCOAL LIGHTER FLUID, OR SIMILAR
FLAMMABLE LIQUIDS TO START OR
“FRESHEN-UP” A FIRE IN THE STOVE.
•KEEP ALL FLAMMABLE LIQUIDS,
ESPECIALLY GASOLINE, OUT OF THE
VICINITY OF THE HEATER — WHETHER IN USE
OR IN STORAGE.
This stove is designed to burn
WOOD FUEL ONLY.
Hardwood, 20” to 24” should be split and air
dried (seasoned), for 6 months to obtain maximum
burning efficiency.Wood should be stored in a dry,
well ventilated area.
NOTICE: USE SOLID WOOD MATERIALS ONLY.
DO NOT BURN GARBAGE OR FLAMMABLE
FLUIDS. DO NOT USE COAL AS COAL OR
CHARCOAL WILL DESTROY THE GRATES
AND/OR FIREBOX.
NOTE: Spin draft is factory set to meet EPA
regulations and is not adjustable. Draft
induction is controlled by thermostat setting
(see page 11).
LIGHTING
1. Set the thermostat on “HIGH” and open pipe
draft damper to provide maximum draft.
2. Using the separable handle, open the feed door
and place paper and kindling on the grate for
starting the fire.
3. Light fire, close feed door and secure tightly.
CAUTION: HOUSE FIRE HAZARDS
•DO NOT STORE WOOD ON FLOOR
PROTECTOR, UNDERNEATH STOVEPIPE OR
ANYWHERE WITHIN MINIMUM CLEARANCES
FROM COMBUSTIBLE SURFACES SPECIFIED
FOR THIS STOVE. (36”)
•OVERFIRING MAY CAUSE A HOUSE FIRE.
YOUARE OVERFIRING IFAUNIT OR CHIMNEY
CONNECTOR GLOWS RED.
•BUILD FIRES ONLY ON INTEGRAL GRATE
INCLUDED WITH THE STOVE.
OPERATING SAFETY PRECAUTIONS
1. NEVER OVERFIRE THIS STOVE BYBUILD-
ING EXCESSIVELY HOT FIRES AS A HOUSE/
BUILDING FIRE MAY RESULT. YOUARE OVER-
FIRING THE STOVE IF UNIT OR STOVEPIPE
BEGINS TO GLOW OR TURN RED.
2. NEVER BUILD EXTREMELY LARGE FIRES
IN THIS TYPE OF STOVE AS DAMAGE TO THE
STOVE OR SMOKE LEAKAGE MAY RESULT.
3. UNIT IS HOT WHILE IN OPERATION. KEEP
CHILDREN, CLOTHING, AND FURNITURE
AWAY. CONTACT MAY CAUSE SKINBURNS.DO
NOT TOUCH THE STOVEAFTER FIRING UNTIL
IT HAS COOLED.
4. PROVIDE AIR INTO THE ROOM FOR
PROPER COMBUSTION.
5. INSPECT STOVEPIPE EVERY 60 DAYS.
REPLACE IMMEDIATELY IF STOVEPIPE IS
RUSTING OR LEAKING SMOKE INTO THE
ROOM.
CHIMNEY C0NNECTIONS continued …
6. Secure and seal the damper in the closed posi-
tion using high-temp caulking, ceramic wool,
or furnace cement. Also check to see if the
chimney has a cleanout. If it does, make sure it
is closed and sealed as well. A leaky cleanout
will greatly reduce draft efficiency.
If you have any questions regarding venting
your stove, contact the manufacturer or contact
the National Fire Protection Association (NFPA)
and request a copy of the latest editions of NFPA
Standard 211 and NFPA Standard 908. Their
address is:
Battery March Park, Quincy, MA 02269.
Continued on next page

VGZ-010 / 082205.0 VG820E HEARTWOOD™/Page 11
OPERATING INSTRUCTIONS continued …
THERMOSTAT
The thermostat controls the rate of burn by opening or closing a draft damper on the lower front of
the firebox. The thermostat control was calibrated at the factory and is not adjustable. The thermostat
is mounted behind the front control panel and the damper is mounted to the lower front of the firebox.
The cabinet lid may be opened (when stove has cooled) for access to these components.
CAUTION: DO NOT OPEN OR CLOSE TOP
WHEN HEATER IS HOT!
1. To open, when stove has cooled grasp the
cabinet top at front (figure 13A) and lift all the
way up.
2. Gently lower the top until the top support
rod latches to hold the top in the up position
(figure 13B).
3. To close, lift the top until the support rod
is unlatched.
4. Pull the support rod forward as you lower
the cabinet top.
If the room temperature is not satisfactory, check
the following items.
To decrease the amount of heat at “LOW”
setting:
1. Check feed and ash doors to be sure that
they are closed and secured tightly.
2. Check the connector pipe to see that it is
sealed in the flue collar and at all joints.
3. Make sure the flue draft damper is fully
closed.

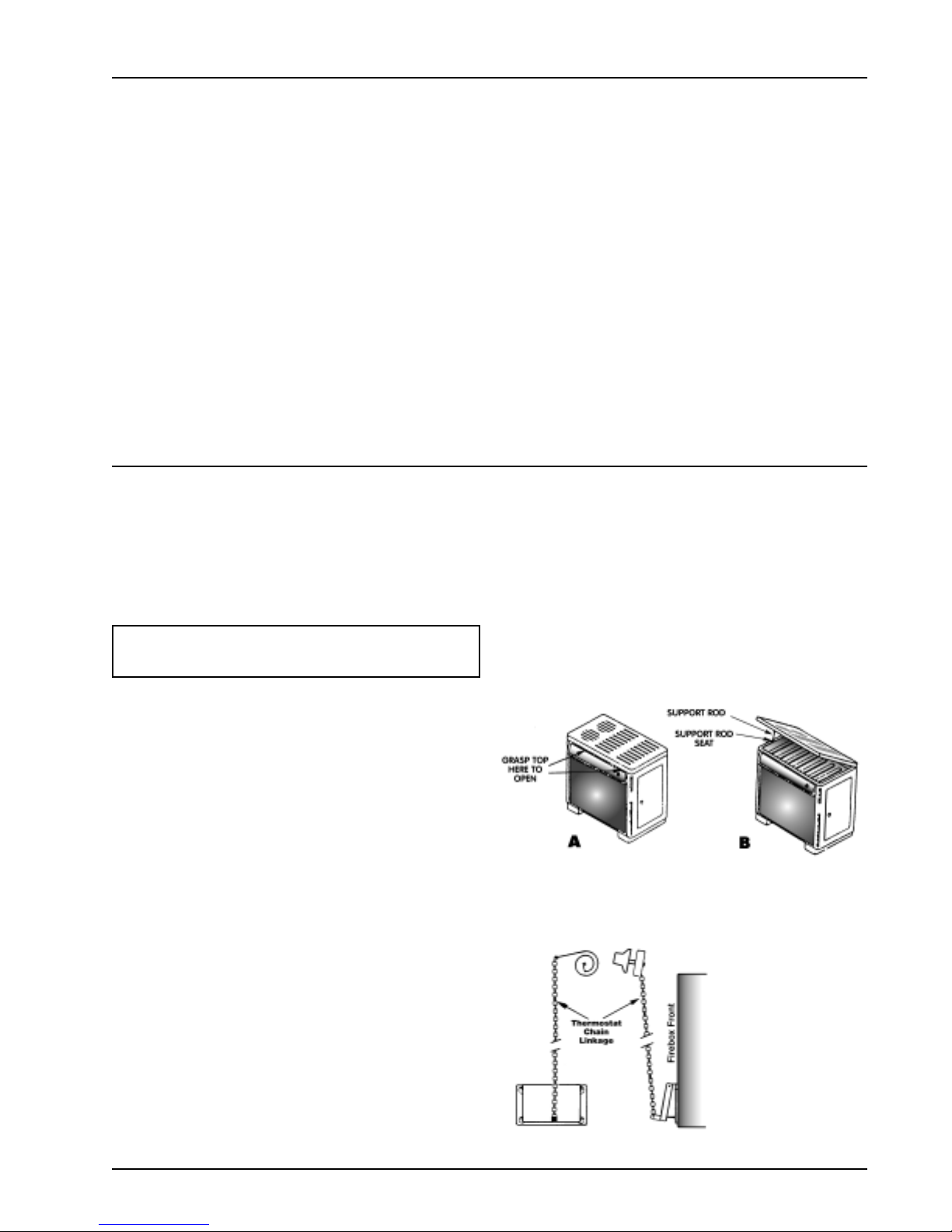

Fig. 13
Thermostat Access
Fig. 14
Thermostat / Damper
4. Add fuel after fire is burning briskly. Use care
not to smother the kindling fire when adding
wood.
5. Setthethermostat to maintain desiredtempera-
ture. “MEDIUM” setting is normally satisfac-
tory. Set higher or lower for your personal
comfort level.
ADDING FUEL
When possible, add small amounts of fuel each
hour or so instead of piling large quantities of fuel
every 4 to 5 hours. This will give a more complete
combustion process and less buildup of tars, soot,
or creosote will occur in the chimney.
1. Set thermostat to “HIGH” and open pipe draft
damper before opening the feed door.
2. Empty ash pan regularly. Do not allow ashes
to pile up higher than the sides of the ash pan.
If ashes build up to the grate, it can warp and
burnout will occur. If allowed to overfill, ashes
may spill when removing the pan.
3. Properly dispose of hot ashes (see Safety
Instructions, item #14 on page 2).
Minimum Fire
The rate of burning at the “LOW” thermostat
setting can be further controlled by adjusting the
flue draft damper.
1. Fully close the thermostat and draft damper to
make the fuel burn longer.
2. To increase rate of burn turn up the thermostat
or open the draft damper. This will help reduce
the formation of creosote or soot (see notes on
Chimney Maintenance, page 12.)
CAUTION: DO NOT OPEN TOP
WHEN HEATER IS HOT!

Page 12 / VG820E HEARTWOOD™VGZ-010 / 082205.0
SERVICE HINTS
DRAFT is a function of the chimney, not the
stove — do not expect the stove to draw. Smoke
spillage into the house or excess buildup of con-
densation or creosote in the chimney are warnings
that the chimney is NOT functioning properly.
Correct the problem before using the stove. Fol-
lowingaresome possible causesforimproper draft.
1. The connector stovepipe may be pushed
into the chimney too far, stopping the draft.
2. If the chimney is operating too cool, water
will condense in the chimney and run back into the
stove. Creosote formation will be rapid and may
block the chimney. Operate the stove at a fire level
high enough to keep the chimney warm prevent-
ing this condensation.
3. If the fire burns well but sometimes cre-
ates excessive smoke or burns slowly, it may be
caused by the chimney top being lower than an-
other part of the house or a nearby tree. The wind
blowing over a house or tree, falls on top of the
chimney like water over a dam, beating down the
smoke. The top of the chimney should be at least
three (3) feet above the roof and be at least two (2)
feet higher than any point of the roof within ten
(10) feet (see figures 9–11).
NOTE:A DRAFT READING OF 0.05 TO 0.06 W.C.
(WATER COLUMN) IS SUGGESTED FOR
PROPER BURNING OF THIS STOVE.
CHIMNEY MAINTENANCE
CREOSOTE – Formation and Removal
When wood is burned slowly, it produces tar
and other organic vapors which combine with ex-
pelled moisture to form creosote. The creosote
vaporscondensein the relativelycoolchimney flue
of a slow-burning fire. As a result, creosote resi-
due accumulates on the flue lining. If ignited, this
creosote creates an extremely hot fire which may
ignite surrounding materials resulting in a build-
ing fire.
The chimney connector and chimney should
be inspected at least twice a month during the
heating season to determine if a creosote buildup
has occurred.
If creosote has accumulated, it should be re-
moved. Failure to remove creosote may result in
ignitionandmay cause a house/buildingfire.Creo-
sote may be removed using a chimney brush or
other commonly available materials from your lo-
cal hardware retailer.
Chimney fires burn very hot. If the unit or
chimney connector should glow red, reduce the
fire by closing the inlet air control and immedi-
ately call the fire department.
CAUTION: ACHIMNEY FIRE MAY CAUSE IGNI-
TION OF WALL STUDS OR RAFTERS WHICH
WERE ASSUMED TO BE A SAFE DISTANCE
FROM THE CHIMNEY. IF ACHIMNEY FIRE HAS
OCCURRED, HAVE YOUR CHIMNEY IN-
SPECTED BY A QUALIFIED EXPERT BEFORE
USING AGAIN.
Afirein the firebox maybe smothered by pour-
ing a large quantity of coarse salt, baking soda, or
cool ashes on top of the fire.

VGZ-010 / 082205.0 VG820E HEARTWOOD™/Page 13

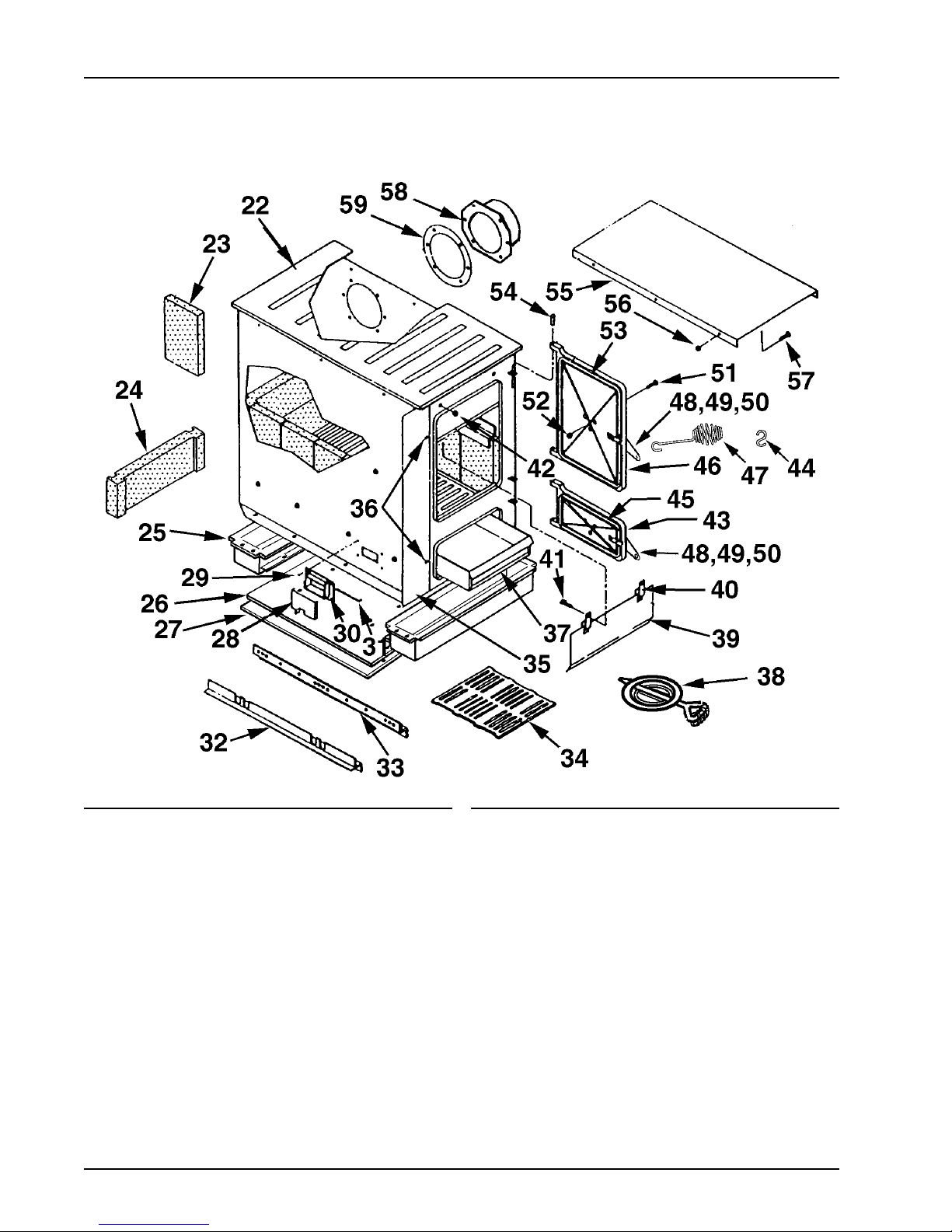

ORDERING PARTS - VG820E HEARTWOOD STOVE
When ordering missing or replacement parts, always give the Model Number of the stove, Part
Number, and Part Description. Use the illustrations and part lists provided on the following pages to
identify parts.
Part No. Description Qty. Part No. Description Qty.
12 Hinge, Door .............................................. 4
13 Back Brace ............................................... 2
14 Thermostat Assembly ............................... 1
15 Chain Linkage, Thermostat ...................... 1
16 Top Shield, Thermostat............................. 1
17 Screw, No.10 Torx .................................... 2
18 Knob, Thermostat ..................................... 1
19
20 Support, Hinge ......................................... 1
21 Clip, Hinge ................................................ 1
1Cabinet Top .............................................. 1
2Cabinet, Back ........................................... 1
3Cabinet, Left Side ..................................... 1
4Cabinet, Front Assembly .......................... 1
5Cabinet, Door Frame ................................ 1
6Cabinet, Door ........................................... 1
7Knob, Cabinet Door .................................. 1
8Screw, 8-32x1/4” Machine........................ 1
9Latch, Spring ............................................ 1
10 Nut, 10-24................................................. 8
11 Screw, 10-24x1/2” Flat Hd........................ 8

Page 14 / VG820E HEARTWOOD™VGZ-010 / 082205.0
ORDERING PARTS - VG820E HEARTWOOD STOVE
When ordering missing or replacement parts, always give the Model Number of the stove, Part
Number, and Part Description. Use the illustrations and part lists provided on the following pages to
identify parts.
Part No. Description Qty.
22 Firebox Assembly ..................................... 1
23 Firebrick................................................... 10
24 Liner, Front & Rear ................................... 3
25 Leg............................................................ 2
26 Heat Shield, Upper ................................... 1
27 Heat Shield, Lower ................................... 1
28 Draft Control ............................................. 1
29 Clip, Spring ............................................... 1
30 Frame, Draft Damper................................ 1
31 Pin, Draft Damper..................................... 1
32 Support, Grate & Liner ............................. 2
33 Retainer, Top Brick ................................... 2
34 Fire Grate ................................................. 2
35 Shield, Front ............................................. 1
36 No. 10x1/2” Torque H.D............................ 2
37 Ash Pan Assembly ................................... 1
38 Damper Assembly (flue mount) ................ 1
39 Smoke Curtain.......................................... 1
40 Bracket, Smoke Curtain ........................... 1
Part No. Description Qty.
41 Screw, 1/4-20x3/4” Flat Hd....................... 1
42 Nut, 1/4-20................................................ 1
43 Door, Ash.................................................. 1
44 S-Hook (to hang separable handle) ......... 1
45 Gasket, 29” Ash Door ............................... 1
46 Door Assembly, Feed ............................... 1
47 Handle, Separable (Spring) ...................... 1
48 Handle ...................................................... 2
49 Latch, Door ............................................... 2
50 Spacer ...................................................... 2
51 Screw, 1/4-20x3/4” Mach.......................... 1
52 Pin, Keeper............................................... 1
53 Gasket, 45” Feed Door ............................. 1
54 Pin, Door Hinge ........................................ 4
55 Liner, Top .................................................. 1
56 Nut, 1/4-20 Kep ........................................ 6
57 Screw, 1/4-20x3/4” Flat Hd....................... 6
58 Flue Collar ................................................ 1
59 Gasket ...................................................... 1

VGZ-010 / 082205.0 VG820E HEARTWOOD™/Page 15
FLOOR PROTECTOR MATERIAL CALCULATIONS
This stove has been tested for and must be installed on a floor protector with the proper Thermal
Resistance or R-value as stated in the installation instructions on page 3, “Locating Stove” step 1, of
this manual. If the floor protector materials listed in the instructions are not available, materials with an
equivalent R-value may be substituted.
Alternate materials may be rated with C-factor (Thermal Conductance) or k-factor (Thermal Con-
ductivity) ratings which must be converted to R-value to determine if the alternate material meets the
tested requirements. The following instructions provide the proper information and formulas for con-
version to R-value.
To determine if alternate materials are acceptable follow this sequence.
1. Convert material specifications to R-value:
a. R-value given — no conversion necessary
b. k-factor is given with a required thickness (T) in inches:
R = 1/k x T
c. C-factor is given: R = 1/C
2. Determine the R-value of proposed alternate floor protector:
a. Use formulas in step 1 above to calculate R-value of proposed material(s).
b. For multiple layers, add R-values of each layer to determine overall R-value.
3. If the overall R-value of the floor protector system is equal to or greater than the floor protector
specifications given, the alternate is acceptable.
Definitions:
Thermal conductance (C) = BTU =W
(hr)(ft2)(°F) (m2)(°K)
Thermal conductivity (k) = (Btu)(inch) =W=Btu
(hr)(ft2)(°F) (m)(°K) (hr)(ft)(°F)
Thermal resistance (R) = (ft2)(hr)(°F) =(m2)(°K)
Btu W
Example:
The specs of floor protector material should be 3/4-inch thick material with a k-factor of 0.84.
The proposed alternative material is 4” brick with a C-factor of 1.25 over 1/8-inch mineral board
with a k-factor of 0.29.
Step 1: Convert specs to R-value.
R = 1/k x T = 1/0.84 x 0.75 = 0.893 System must have a R-value of 0.893 = Rspecs
Step 2: Calculate R-value of individual components
4” Brick with C-factor = 1.25. R = 1/C = 1/1.25 = 0.80 = Rbrick
1/8-inch (0.125”) mineral board with k-factor = 0.29. R = 1/0.29 x 0.125 = 0.431 = Rmin.brd.
Step 3: Add R-values of components to get total R-value of system
Rbrick + Rmin.brd = 0.80 + 0.431 = 1.231 = Rsystem
Step 4: Compare Rsystem to Rspecs
Rsystem = 1.231 is larger than Rspecs of 0.893. System R-value exceeds the required
specifications and therefore is an acceptable alternative.

Page 16 / VG820E HEARTWOOD™VGZ-010 / 082205.0

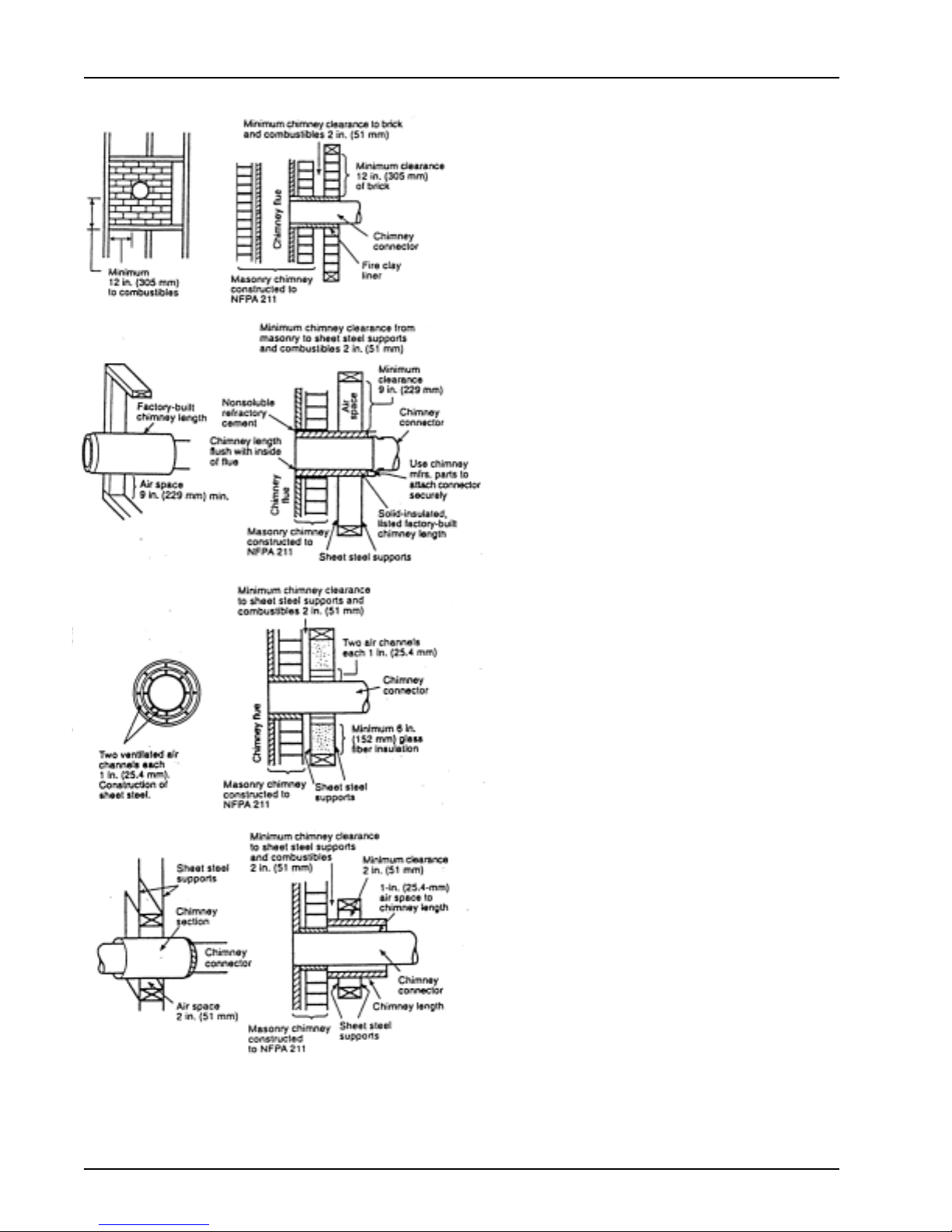

A. Brick Masonry
Minimum 3.5-inch thick brick masonry all framed into
combustible wall with a minimum of 2-inch brick sepa-
ration from clay liner to combustibles. The fireclay liner
shall run from outer surface of brick wall to, but not
beyond, the inner surface of chimney flue liner and shall
be firmly cemented in place.
B. Insulated Sleeve
Solid-insulated, listed factory-built chimney length of
the same inside diameter as the chimney connector and
having 1-inch or more of insulation with a minimum
9-inch air space between the outer wall of the chimney
length and combustibles.
C. Ventilated Thimble
Sheet steel chimney connector, minimum 24 gauge in
thickness, with a ventilated thimble, minimum 24 gauge
in thickness, having two 1-inch air channels, separated
from combustibles by a minimum of 6-inch of glass
fiber insulation. Opening shall be covered, and thimble
supported with a sheet steel support, minimum 24 gauge
in thickness.
D. Chimney Section Pass-through
Solid insulated, listed factory-built chimney length with
an inside diameter 2-inch larger than the chimney con-
nector and having 1-inch or more of insulation, serving
as a pass-through for a single wall sheet steel chimney
connector of minimum 24 gauge thickness, with a mini-
mum 2-inch air space between the outer wall of chim-
neysectionandcombustibles.Minimumlengthof chim-
ney section shall be 12-inch chimney section spaced
1-inch away from connector using sheet steel support
plates on both ends of chimney section. Opening shall
becovered,andchimneysection supported on both sides
with sheet steel support securely fastened to wall
surfacesofminimum24gauge thickness. Fasteners used
to secure chimney section shall not penetrate
chimney flue liner.
CHIMNEY CONNECTOR SYSTEMS & CLEARANCES

VGZ-010 / 082205.0 VG820E HEARTWOOD™/Page 17
Vogelzang International Corporation
400 West 17th Street
Holland, Michigan 49423
www.vogelzang.com
Phone: [phone] Fax: [phone]
MADE IN CHINA
COMPANY TESTIMONY:
“FOR GOD SO LOVED THE WORLD THAT HE GAVE HIS ONLY BEGOTTEN SON, THAT WHOEVER
BELIEVES IN HIM SHALL NOT PERISH BUT HAVE ETERNAL LIFE”
JOHN 3:16
This Vogelzang heating appliance is safe when installed properly and will provide you with years
of service. However, always exercise good judgement when you are using this stove. You are dealing
with FIRE! Fire is inherently dangerous and must be treated with respect. Stay warm and in good
health! Respectfully yours,
SteveVogelzang
Proprietor
DO NOT USE THIS STOVE IN A
MOBILE HOME, MANUFACTURED HOME,
TRAILER OR TENT — NO EXCEPTIONS!

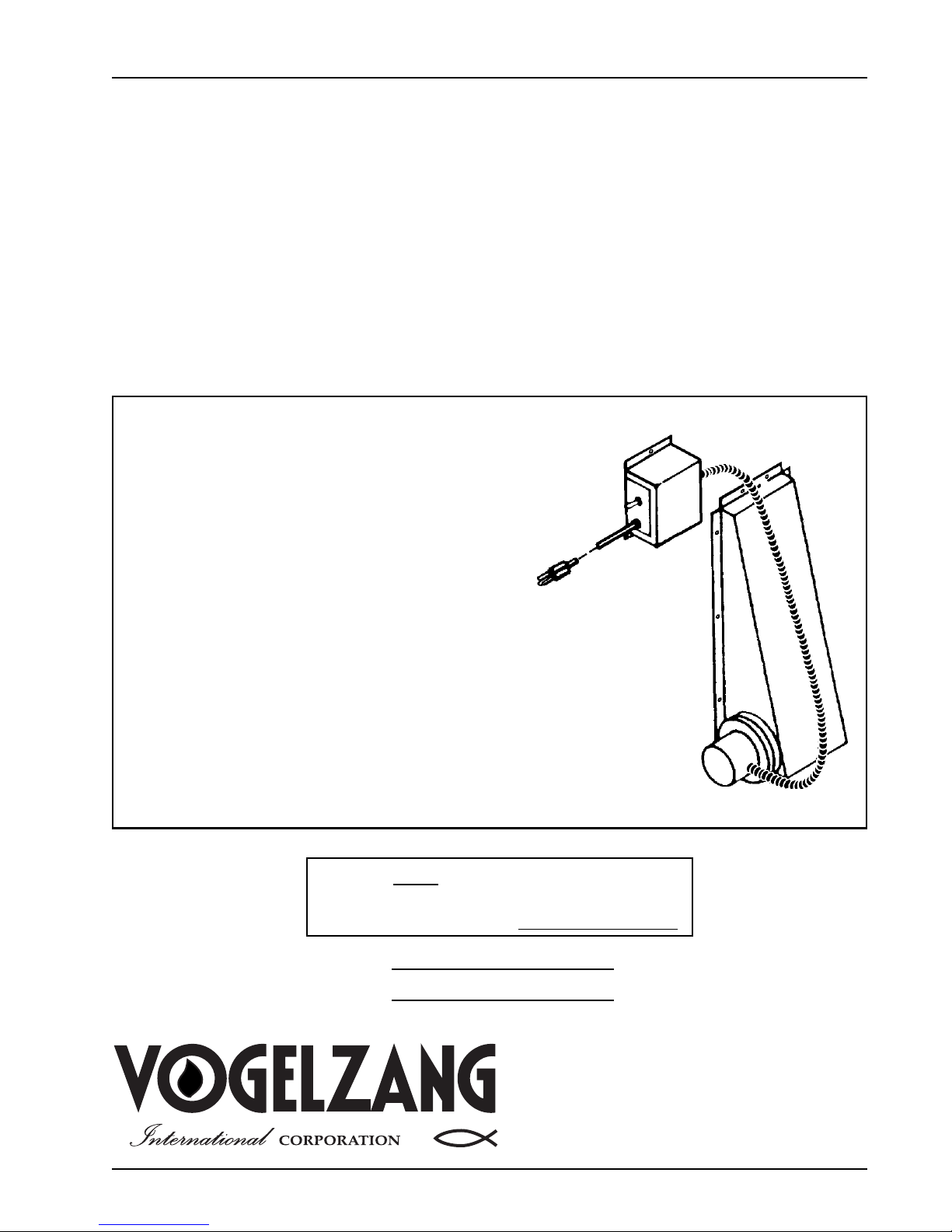

Optional F-1 Blower for
Vogelzang Heat Circulator Stove Models
VG820E and VG810CL
For more even heat distribution, the
Vogelzang Heat Circulator blower draws
heat from around the firebox and blows
it under the stove unit into the room.
Attacheseasilyto existing panelsonVogelzang
stovemodelsVG820EandVG810CL. Switch/ther-
mostat unit may be mounted in different positions
for various comfort levels.
Prewired, after mounting simply plug into
standard 110 volt house wiring. Three-position
switch allows manual or thermostatic control.
