Vollrath Stoelting M202B User manual

Model M202B
OPERATORS MANUAL
Manual No. 513666 Rev.6
A VOLLRATH® DIVISION

A VOLLRATH® DIVISION
This manual provides basic information about the machine. Instructions and suggestions are
given covering its operation and care. This manual follows the guidance set forth in the follow-
ing industry standards: ANSI Z535.6, ASTM F760-93, ASTM F1827-13, FDA Food Code.
The illustrations and specifications in this manual are not binding in detail. We reserve the right
to make changes to the machine without notice, and without incurring any obligation to modify
or provide new parts for machines built prior to date of change.
DO NOT ATTEMPT to operate the machine until instructions and safety precautions in this
manual are read completely and are thoroughly understood. If problems develop or questions
arise in connection with installation, operation, or servicing of the machine, contact Stoelting
White Glove Service.
For warranty information, visit stoeltingfoodservice.com
stoeltingfoodservice.com
Stoelting Foodservice Equipment
502 Highway 67
Kiel, WI 53042-1600
U.S.A.
White Glove Service Network
Phone: [phone]
© 2021 Stoelting

A Few Words About Safety
Safety Information
Read and understand the entire manual before
operating or maintaining Stoelting equipment.
This manual provides the operator with information
for the safe operation and maintenance of Stoelting
equipment. As with any machine, there are hazards
associated with their operation. For this reason safety
is emphasized throughout the manual. To highlight
specific safety information, the following safety
definitions are provided to assist the reader.
The purpose of safety symbols is to attract your
attention to possible dangers. The safety symbols,
and their explanations, deserve your careful attention
and understanding. The safety warnings do not by
themselves eliminate any danger. The instructions
or warnings they give are not substitutes for proper
accident prevention measures.
If you need to replace a part, use genuine Stoelting
parts with the correct part number or an equivalent
part. We strongly recommend that you do not use
replacement parts of inferior quality.
Safety Alert Symbol:
This symbol Indicates danger, warning or caution.
Attention is required in order to avoid serious personal
injury. The message that follows the symbol contains
important information about safety.
Signal Word:
Signal words are distinctive words used throughout
this manual that alert the reader to the existence and
relative degree of a hazard.
WARNING
The signal word “WARNING” indicates a potentially
hazardous situation, which, if not avoided, may result in
death or serious injury.
CAUTION
The signal word “CAUTION” indicates a potentially
hazardous situation, which, if not avoided, may result in
minor or moderate injury.
NOTICE
The signal word “NOTICE” indicates information relating
to equipment/property damage. The information is not
hazard-related.
NOTE
The signal word “NOTE” indicates additional information
relating to the subject, usually a hint or tip, that is
not hazard-related and does not involve equipment/
property damage.

Section Description Page
Table of Contents
Section 1 - Description and Specifications 1
1.1 Description.......................................................................................................................1
1.2 Specifications..................................................................................................................2
1.3 Remote Condensing Units Specifications...............................................................2
Section 2 - Description and Specifications 3
2.1 Safety Precautions.........................................................................................................3
2.2 Receiving the Custard Machine .................................................................................3
2.3 Machine Installation.......................................................................................................3
Section 3 - Initial Set-Up And Operation 9
3.1 Operator’s Safety Precautions ..................................................................................9
3.2 Operating Controls And Indicators ..........................................................................9
3.3 Sanitizing..........................................................................................................................11
3.4 Freeze Down And Operation......................................................................................11
3.5 Hold Cycle .......................................................................................................................12
3.6 Production From Hold ..................................................................................................13
3.7 Italian Ice Freeze Down And Operation...................................................................13
3.8 Removing Mix From Machine .....................................................................................14
3.9 Cleaning The Machine..................................................................................................14
3.10 Disassembly Of Machine Parts...................................................................................15
3.11 Cleaning The Machine Parts.......................................................................................15
3.12 Assembly Of Machine...................................................................................................16
3.13 Routine Cleaning............................................................................................................17
3.14 Preventative Maintenance...........................................................................................17
3.15 Extended Storage ..........................................................................................................17
Section 4 - Troubleshooting 17
4.1 Error Codes .....................................................................................................................17
4.2 Troubleshooting Error Codes .....................................................................................17
4.3 Troubleshooting Tables................................................................................................19
Section 5 - Replacement Parts 21
5.1 Decals And Lubrication ................................................................................................21
5.2 Auger Shaft And Faceplate Parts ..............................................................................22
5.3 Hopper Parts ...................................................................................................................23

Owner’s Manual #513666 1 M202B Model Machines
27 5/8"
63 1/8"
32 7/8"
41 5/8"
Air Out
5 1/4"
6 3/4"
Water Inlet
Water Outlet
1.1 DESCRIPTION
The M202 is continuous flow custard machine. It is
equipped with fully automatic controls to provide a uniform
product and feature Quick-Freeze technology. This manual
is designed to assist qualified service personnel and op-
erators in the installation, operation and maintenance of
the M202 frozen custard machine.
NOTE
Product breakdown could happen quicker if product
is stored in the freezing cylinders for more than one
hour. After a batch is made, close the flow control
and empty the contents of the freezing cylinder.
Section 1 - Description and Specifications

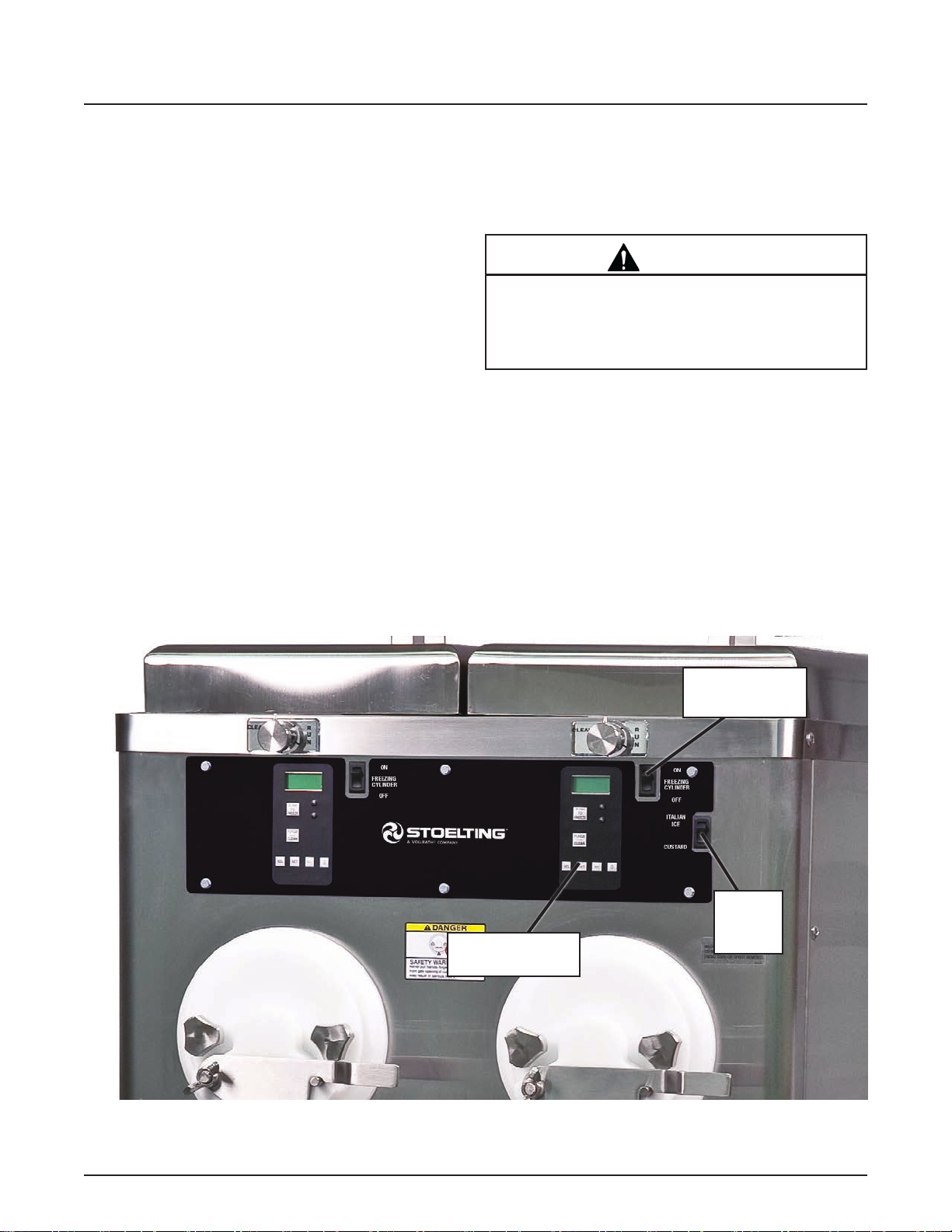

Figure 1-1 Model M202
Figure 1-2 Model M202 Dimensions

Owner’s Manual #513666 2 M202B Model Machines
1.2 SPECIFICATIONS
M202B A/C M202B A/C Remote M202B W/C
Dimensions Machine with crate Machine with crate Machine with crate
width 27-1/2’’(69,9 cm) 48’’(121,9 cm) 27-1/2’’(69,9 cm) 42-1/2’’(108,0 cm) 27-1/2’’(69,9 cm) 42-1/2’’(108,0 cm)
height 59’’(149,9 cm) 69-1/4’’(175,9 cm) 57-1/2’’(146,1 cm) 67’’(170,2 cm) 57-1/2’’(146,1 cm) 67’’(170,2 cm)
depth 40-3/8’’(102,6 cm) 60’’(152,4 cm) 32’’(81,3 cm) 48’’(121,9 cm) 32’’(81,3 cm) 48’’(121,9 cm)
Weight 845 lbs
(383,2 kg)
1232 lbs
(558,8 kg)
645 lbs
(292,5 kg)
675 lbs
(306,1 kg)
845 lbs
(383,2 kg)
1232 lbs
(558,8 kg)
Electrical 1 PH 3 PH 1 PH 3 PH 1 PH 3 PH
circuit ampacity
(per barrel) 20A 15A 15A 15A 20A 15A
overcurrent protection
device (per barrel) 25A 15A 15A 15A 25A 15A
Compressor 6,690 Btu/hr
Drive Motor Two - 2 hp
Cooling
Self contained air cooled units require
6” (15,2 cm) air space on sides and 24”
(60,9 cm) at the back.
Air cooled units require one remote
condensing unit (with compressor)
per barrel. Condensing units for 60Hz
machines ship from the factory with
20 lbs of refrigerant for up to a 50’ line
set. Add 1 lb of refrigerant for every
10’ increase to the line set. Line set
max 100’. (Condensing units for 50Hz
machines do not ship charged and
require 20 lbs of refrigerant)
Water cooled units are self contained
and require a Standard Hose Adapter
water fitting and a 1/2” OD drain fitting
for each barrel.
Hopper Volume Two - 5.4 gallon (20,57 liters)
Capped Refrigeration Lines Piercing Union Refrigeration Lines
285110 (1 PH) & 285111 (3 PH) 285114 (1 PH) & 285115 (3 PH)
Dimensions Condenser Condenser
width 39-1/8’’ (99,4 cm) 39-1/8’’ (99,4 cm)
height 19-3/4’’ (50,2 cm) 19-3/4’’ (50,2 cm)
depth 28-1/4’’ (71,7 cm) 28-1/4’’ (71,7 cm)
Weight 1 PH: 223 lbs (101,2 kg) / 3 PH: 228 lbs (103,4 kg) 1 PH: 223 lbs (101,2 kg) / 3 PH: 228 lbs (103,4 kg)
Electrical 1 Phase, 208-230 VAC, 60Hz 3 Phase, 208-230 VAC, 60Hz 1 Phase, 208-230 VAC, 60Hz 3 Phase, 208-230 VAC, 60Hz
circuit ampacity 15A minimum 15A minimum 15A minimum 15A minimum
overcurrent protection
device 20A maximum 15A maximum 20A maximum 15A maximum
Refrigerant R-448A R-448A
Charge 20 lbs. (Charged at Factory) 20 lbs. (Charged at Factory)
Refrigerated Line
Sizes
Liquid Line - 3/8”
Suction Line - 7/8”
Liquid Line - 3/8”
Suction Line - 7/8”
1.3 REMOTE CONDENSING UNITS SPECIFICATIONS
Model numbers ending with “SP0R” or “SSIR” have piercing unions on the refrigeration lines. The line set and remote
condensing unit need piercing unions to connect to the machine.
All other models are capped and require the refrigeration lines to be routed on site. The remote condensing units
are also capped.
One remote condensing unit per barrel.

Owner’s Manual #513666 3 M202B Model Machines
2.3 MACHINE INSTALLATION
The following instructions are intended for a qualified
electrician/refrigeration specialist. Do not attempt these
procedures unless you are qualified.
A. RUNNING LINE SETS
CAUTION
Installation MUST be completed by a qualified
electrician/refrigeration specialist
Incorrect installation may cause personal injury,
severe damage to the machine and voids
factory warranty.
NOTE
If the machine is water-cooled, proceed to “B. Run-
ning Electrical Connections”.
Line sets are not supplied with the machine.
The lines sets can be installed prior to receiving the
custard machine.
1. A remote air-cooled machine requires a remote
condensing unit and line set for each freezing
cylinder. The line sets must be 3/8” for the liquid line
and 7/8” for the suction line. When running the line
sets, each 10’ of vertical rise, install a p-trap in the
suction line. For every horizontal line set run, pitch
the suction line towards the compressor to assist
with oil returning back to the compressor.
2. After the line set is installed, perform a thorough leak
test. Malfunctions of the equipment due to leaks in
the line set are not covered by the Stoelting warranty.
3. Makesure thesuction line isinsulated witha minimum
of 3/8” wall thickness or the wall thickness required
by local code. In humid areas, use thicker insulation.
In areas that are exposed to extreme temperatures,
insulate the liquid line to prevent excessive sub
cooling or heating of the liquid refrigerant. Fasten
all lines securely along ceilings, walls and roofs.
Avoid creating any type of kink in the lines. The
Stoelting warranty does not cover malfunctions or
capacity issues with equipment caused by kinks in
the line sets.
2.1 SAFETY PRECAUTIONS
Do not attempt to operate the machine until the safety
precautions and operating instructions in this manual are
read completely and are thoroughly understood.
Take notice of all warning labels on the machine. The la-
bels have been put there to help maintain a safe working
environment. The labels have been designed to withstand
washing and cleaning. All labels must remain legible for
the life of the machine. Labels should be checked periodi-
cally to be sure they can be recognized as warning labels.
If danger, warning or caution labels are needed, indicate
the part number, type of label, location of label, and quantity
required along with your address and mail to:
STOELTING
ATTENTION: Customer Service
502 Hwy. 67
Kiel, Wisconsin 53042
2.2 RECEIVING THE CUSTARD MACHINE
1. Upon arrival, check the entire machine for any
damage that may have occurred during transit.
With the method of packaging used, the machine
should arrive in excellent condition. The carrier
is responsible for all damage in transit, whether
visible or concealed. Do not pay the freight bill until
the machine has been checked for damage. Have
the carrier note any visible damage on the freight
bill. If concealed damage or a shortage is found
later, advise the carrier within 10 days and request
inspection. The customer must place a claim for
damages and/or shortages in shipment with the
carrier. Stoelting cannot make any claims against
the carrier.
2. Remove the top of the crate using a hammer or
pry bar.
3. Remove the eight lag bolts from the machine using
a 1/2” ratchet. Remove the front and rear crate walls.
4. Remove the four lag bolts located inside the left and
right crate walls using 1/2” ratchet. Remove the left
and right crate walls.
5. Remove the plastic wrapping on the machine.
Remove the lower front and back panel on the
machine.
6. Remove the four lag bolts located inside machine on
the frame with a 9/16” ratchet. Remove the two lag
bolts that hold the skid together with a 9/16” socket.
7. Put front and back panels on the machine.
Section 2 - Description and Specifications

Owner’s Manual #513666 4 M202B Model Machines
4. Use good piping practices when installing line sets.
When running line sets through a wall or roof, mark
the lines to eliminate confusion as to which line set
is running to which cylinder.
Example: Mark the liquid and suction lines with the
respective cylinder number. Facing the front of the
machine, cylinders are numbered left to right.
5. For line sets without piercing unions:
a. Seal the ends during installation to prevent
exposure to the atmosphere and foreign objects
b. Blow the lines out with dry nitrogen to remove
any debris that might be in the line sets.
c. When brazing the joints, purge dry nitrogen
through the lines to minimize oxidation of copper
inside of the lines. The Stoelting warranty does
not cover problems with the refrigeration system
that are caused by oxidized material in the lines.
B. RUNNING ELECTRICAL CONNECTIONS
1. The machine requires a separate electrical
connection for each freezing cylinder. Refer to the
nameplate on the machine for proper electrical
supply. Each freezing cylinder has its own electrical
system and condenser so if one cylinder fails, the
other cylinder is still operational.
NOTE
An air-cooled machine needs two circuits for each
freezing cylinder, one for the remote condensing
unit and one for the freezing cylinder.
A water-cooled machine needs one circuit for each
freezing cylinder.
2. The electrical boxes are located behind the lower
front panel. Labels indicate which cylinder each
electrical box powers. No pigtails are supplied with
the machine or condensing unit.
3. If the condensing unit is on the roof or ground,
a quick disconnect box needs to be installed to
provide power.
4. Do not turn on the power to the machine or the
condensing unit until the refrigeration lines have
been connected (the machine must have power
for refrigerant charging). Label the circuit breakers
with information regarding which cylinder and
condensing unit the breaker is designated for to
prevent confusion if power ever needs to be shut o.
5. When connecting power to the machine, run the line
under the machine and through the bottom of the
electrical box. Remove the electrical box cover by
loosening the four screws. The screws do not have
to be removed. Connect the power to the terminal
strip. The terminal strip is labeled L1, L2, L3, and
GND. After connections are made, place the cover
on the electrical box, but do not tighten the cover (for
single-phase machines the cover can be tightened).
The electrical box may need to be accessed when
checking for proper rotation of the motor.
C. PLUMBING CONNECTIONS
1. Water-cooled machines require 1/2” N.P.T. water
and drain fittings. The connections are located at
the back of the machine. Remove the rear panel to
access the connections. Run the plumbing under
the machine frame. Water-cooled machines use
approximately 3 gallons of 75°F water per minute
when the compressor is operating (per freezing
cylinder). The machine does not use any water
when not in use.
2. The machine is equipped with a dipping trough
and faucet that require a cold water inlet line and a
drain line. The water inlet has 1/2” NPT close nipple
fitting. Install a shuto valve in the water inlet line.
The drain connection is 1-1/2”. Run a drain line from
the trough to a drain on the floor. Leave enough
slack in the drain line so that the lower front panel
can be easily removed for service.
3. If the machine is equipped with the hopper faucet
option, run the hopper faucet tubing to the dipping
trough inlet and install a T. This supplies water
needed for the hopper faucet and the water valve
for the dipping trough.
NOTE
The trough and faucet require a cold water line. Do
not use a heated water source.

Owner’s Manual #513666 5 M202B Model Machines
D. RECEIVING AND INSTALLING REMOTE CONDENSING
UNITS
NOTE
The remote condensing units may be sent prior to
delivery of the freezer.
The freezer requires one remote condensing unit
per cylinder.
Remote condensers for 60Hz units are shipped
from the factory charged with 20 lbs of refrigerant.
Remote condensers for 50Hz units are shipped
without refrigerant and require 20 lbs of refrigerant.
1. Upon arrival, check the entire remote condenser
units for any damage that may have occurred
during transit. With the method of packaging used,
the remote condensers should arrive in excellent
condition. The carrier is responsible for all damage
in transit, whether visible or concealed. Do not pay
the freight bill until the remote condenser units have
been checked for damage. Have the carrier note
any visible damage on the freight bill. If concealed
damage or a shortage is found later, advise the carrier
within 10 days and request inspection. The customer
must place a claim for damages and/or shortages
in shipment with the carrier. Stoelting cannot make
any claims against the carrier.
2. Remove cardboard covering o the condensing
units.
3. Place the condensing units in their predetermined
location, either on the roof or on the ground. A
crane or forklift is needed if the units are placed on
a roof. The condensing units weigh approximately
200 lbs. each.
4. Using ratchet with a 1/2” socket, remove the two lag
bolts that secure the condensing unit to the pallet.
5. Place the condensing units on 4” x 4” treated
wood or similar material so that the units are not
sitting directly on the ground or the roof. Secure
the condensing units to the 4” x 4” using lag bolts.
Adhere toall local, state, andfederal codesgoverning
this type of installation. Some areas have specific
“hurricane-proof” requirements for roof installations.
Allow at least 3 feet of clearance on the air intake
and discharge sides of the condensers. Do not set
the condensers so that one is blowing air directly
into the other condensing unit. The ideal set up is to
have all the condensing units set in a row (Fig. 2-1).
6. Connect the refrigeration lines to the condensing
unit:
For condensing units without piercing unions
a. Braze the suction line and liquid line from the line
sets to the condensing unit. When brazing, wrap
the shut o valve with a cold wet rag and make
sure that the valve is fully open. If the valve is not
wrapped, damage may result. When installing the
suction line, angle it towards the condensing unit
so that oil can flow back towards the compressor.
b. Use good piping practices. Keep pipes as clean as
possible. Do not let any debris or copper shavings
get inside system otherwise the refrigeration
valves may not work properly.
For condensing units with piercing unions
a. Thread the line set fittings onto the condensing
unit by hand.
b. Tighten the fittings with a wrench until the
coupling bodies “bottom out”.
c. Use a torque wrench to tighten the fittings to
46±1 ft-lbs.
NOTE
The piercing unions are a one-time connection. Do
not loosen the fittings after installing or refrigeration
charge will be lost.
Figure 2-1 Remote Condenser Installation
(Top View)

Owner’s Manual #513666 6 M202B Model Machines
E. SETTING IN PLACE AND MAKING MACHINE
CONNECTIONS
1. Roll the machine into the desired location. Leave
adequate space around the machine for the removal
of service panels. Remove the left, right, back and
lower front service panels.
NOTE
After the refrigeration lines are connected, air-
cooled machines cannot be moved.
2. Use a pallet jack or floor jack to lift the front of the
machine, remove the two shipping casters with a
pair of channel locks, and install the stainless steel
legs. Make sure the legs are adjusted all the way
in, and screw two of the legs into the frame. Secure
them tightly using channel locks. Repeat with the
back of the machine.
NOTE
If the machine is water-cooled, casters are standard
with machine.
3. Accurate leveling is necessary to ensure proper
operation. Place a bubble level on top of the
machine at each corner to check for level condition.
If adjustment is necessary, level the machine by
turning the bottom part of each leg or caster in or out.
4. To finish installing a water-cooled machine, proceed
to “F. Running product and setting pressures for the
custard machine”.
5. Connect the refrigeration lines from the line sets to
the machine.
For machines without piercing unions:
a. Access the machine from the left or right service
panel. Therefrigeration system hasa charge ofdry
nitrogen. Use caution when connecting the lines.
b. Connect the suction line first then connect the
liquid line. Run the refrigeration lines under the
machine. There is approximately 6” of clearance
between machine and the floor. The stainless
steel legs are adjustable and can raise the
machine up to 7” o the floor if necessary.
c. Wrap the suction solenoid in a cold wet rag when
soldering toprevent damage tothe solenoid. Also,
be aware of the electrical conduit inside custard
machine while soldering the refrigeration lines.
d. A liquid line dryer is supplied with the machine
and should be the last connection made in the
system. Use good piping techniques to keep the
system clean. Do not leave the lines open and
exposed for a long period.
For machines with piercing unions:
a. Thread the line set fittings onto the machine by
hand.
b. Tighten the fittings with a wrench until the
coupling bodies “bottom out”.
c. Use a torque wrench to tighten the fittings to
46±1 ft-lbs.
NOTE
The piercing unions are a one-time connection. Do
not loosen the fittings after installing or refrigeration
charge will be lost.
6. After finishing the refrigeration connections, connect
power to the machine. Refer to “B. Running Electrical
Lines” for the proper procedures. Check the rotation
of the auger shaft. When looking at the machine from
the front, the shaft needs to turn counterclockwise.
If the shaft is turning the wrong direction, shut o
power to the cylinder and switch the L1 and L3 wires.
Check rotation again to verify the shaft is rotating
counterclockwise. Once verified, tighten the screws
on the electrical box cover.
7. If the machine is single phase and the auger shaft
rotation is clockwise, then complete one of the
following procedures. Check rotation after each
procedure.
a. Change the T1 and T3 output leads going to the
motor from the drive.
b. Change the leads inside the motor electrical box.
8. Condensing units for 60Hz machines ship from the
factory with 20 lbs of refrigerant for up to a 50’ line
set. Add 1 lb of refrigerant for every 10’ increase to
the line set. Line set max 100’. Use good refrigeration
practices to add additional charge to the system if
needed. Make sure the suction solenoid is energized
and that the shut o valves are open.
NOTE
Condensing units for 50Hz machines do not ship
with refrigerant and require a full charge of R-448A
during installation

Owner’s Manual #513666 7 M202B Model Machines
F. RUNNING PRODUCT AND SETTING PRESSURES FOR
THE CUSTARD MACHINE
NOTE
Complete the Custard Machine Start-Up and Train-
ing Checklist located with the spare parts kit or in
the back of this manual and send it to Stoelting.
1. Remove all spare parts from the hopper before
running product. Unwrap the parts and check for
damage. Refer to the list in the back of this manual
to make sure no parts are missing. The cylinders
need to be under a load to set the pressures.

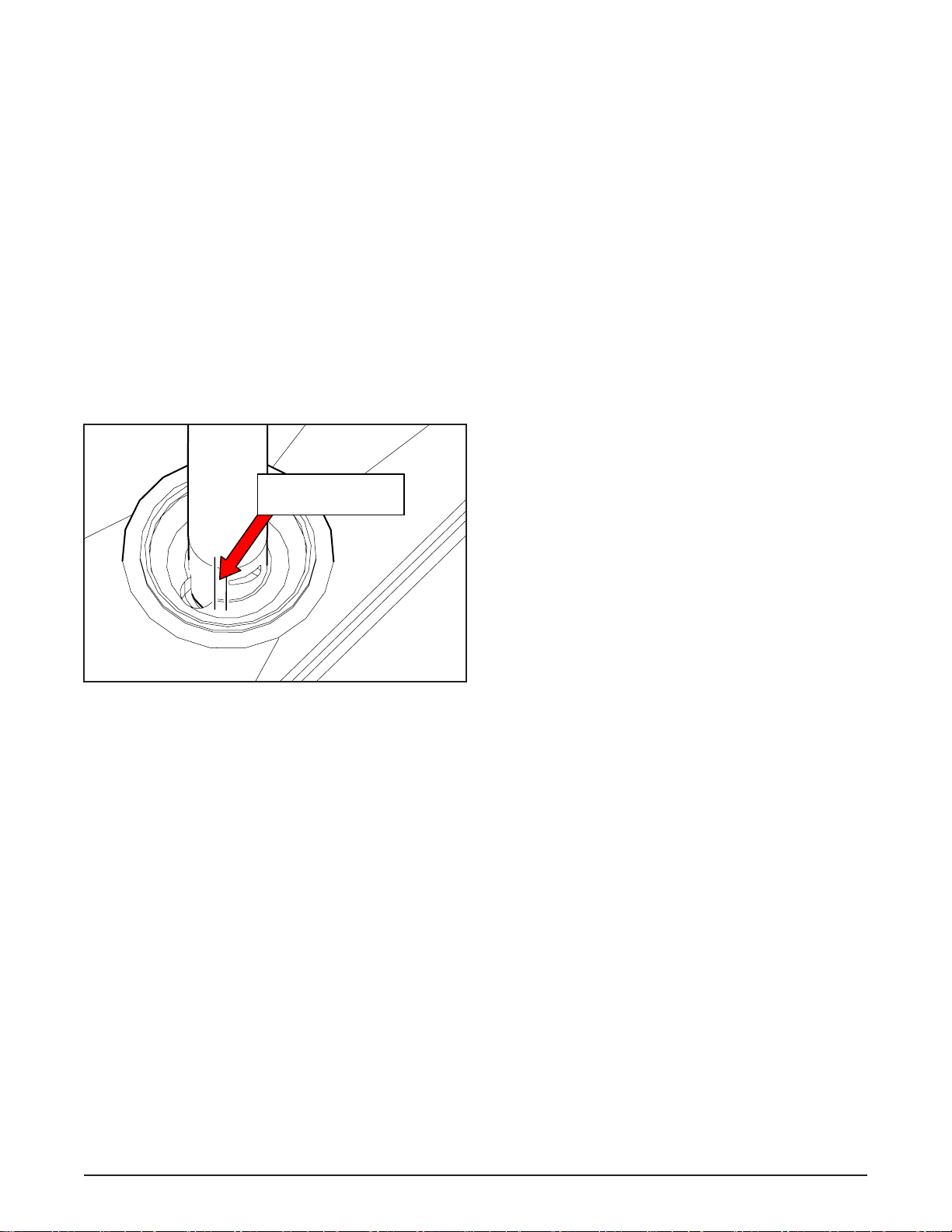

2. Install the flow valve and rotate it so the cutout
is about 3/32” from the cutout in the hopper (see
below). Fully close the flow control knob. Install the
flow rod. If the flow rod cannot be installed without
moving the flow valve, loosen the locknut on the
rod and adjust it. Make sure both rod ends lay flat,
then tighten the locknut.
Approximate width
of nickel (ideally 3/32")
Approximate width
of nickel (ideally 3/32")
3. Disassemble, clean and sanitize each freezing
cylinder. Refer to the Section 3 for proper instructions.
4. After assembling and sanitizing the machine, add
custard mix to the hopper. Follow the instructions in
the Section 3 to start freezing the custard (run one
cylinder at a time to set the pressures). Connect
gauges to the suction line and the discharge line.
When product starts coming out of the faceplate,
locate the low pressure gauge on the front of the
machine and set the AXV to 30 psi. Remove the
white plastic cap from the AXV and turn the valve
counterclockwise to decrease the pressure or
clockwise to increase the pressure. Turn the valve
1/4 turn at a time and wait at least 1 minute before
making another adjustment. Connect a gauge to the
suction line at the compressor and make sure the
pressure is 25 psi. Adjust the crankcase pressure
regulator (CPR) if the pressure is not correct. Remove
threaded brass cap on the front of the CPR and
adjust the valve with a 5/16” Allen wrench. Connect
a gauge to the suction line at the hopper and adjust
the hopper AXV to 55 psi.
5. Check the faceplate to see if the custard is at the
desired texture and temperature. The standard
normal serving temperatureof frozen custardcoming
out of the machine is 18°-21°F.
6. Set the pressures for the remaining cylinders.
NOTE
If the machine is water-cooled, the discharge pres-
sure was already set at the factory. Run custard
mix through the machine to double-check and
fine-tune the discharge pressure for the particular
mix being used.
The remote condenser unit has a head pressure
control set for 245 psi.
Custard mixes that use an extract flavoring run dif-
ferently. Try dierent pressure settings by adjusting
the AXV. Adjust the pressure setting between 28-32
psi (the machine does not operate correctly if the
AXV is set lower than 28 psi).
7. If the machine is equipped with the lemon ice option,
set the lemon ice AXV. The lemon ice option is
designated for one cylinder (right cylinder). With
the system still running product, turn the lemon ice
switch on. The AXV is located behind the cylinder
in front of the machine. Set the lemon ice AXV for
38-42 psi.
8. When testing is done, disassemble and clean the
custard machine. Refer Section 3 for details.

Owner’s Manual #513666 8 M202B Model Machines

Owner’s Manual #513666 9 M202B Model Machines
Section 3 - Initial Set-Up And Operation
3.1 OPERATOR’S SAFETY PRECAUTIONS
SAFE OPERATION IS NO ACCIDENT; observe these rules:
A. Know the machine. Read and understand the
Operating Instructions.
B. Notice all warning labels on the machine.
C. Wear proper clothing. Avoid loose fitting garments,
and remove watches, rings or jewelry that could
cause a serious accident.
D. Maintain a clean work area. Avoid accidents by
cleaning up the area and keeping it clean.
E. Stay alert at all times. Know which switch, push
button or control you are about to use and what
eect it is going to have.
F. Disconnect electrical cord for maintenance. Never
attempt to repair or perform maintenance on the
machine until the main electrical power has been
disconnected.
G. Do not operate under unsafe operating conditions.
Never operate the machine if unusual or excessive
noise or vibration occurs.
3.2 OPERATING CONTROLS AND INDICATORS
Before operating the machine, it is required that the op-
erator know the function of each operating control. Refer
to Figure 3-1 for the location of the operating controls on
the machine.
WARNING
Moving machinery can grab, mangle and dismember.
Place the Freezing Cylinder O/On switch in the
OFF position before disassembling for cleaning or
servicing.
A. Freezing Cylinder O/On
The Freezing Cylinder OFF/ON switch is a two-
position rocker switch that supplies power to the
freezing cylinder control circuit. When the switch
is in the OFF position, the freezing cylinder’s
refrigeration system and auger do not operate.
When the switch is in the ON position, the freezing
cylinder is operational.
Figure 3-1 Machine Controls
IntelliTec Control
(See Figure 3-2)
Product
Selector
Switch
Freezing
Cylinder O/On

Owner’s Manual #513666 10 M202B Model Machines
B. Product Selector Switch
The product selector switch changes the
refrigeration profile of the right freezing cylinder
to allow two dierent products to be made. Before
the machine is in ready mode, this switch can be
moved to the desired profile.
C. PUSH TO FREEZE Button
The PUSH TO FREEZE button initiates the run
mode. To start the machine, place the Freezing
Cylinder OFF-ON switch in the ON position then
press the PUSH TO FREEZE button.
D. LEDs
The membrane switch features two lights; a green
LED and an amber LED. The green LED flashes
when the freezing cylinder is near ready mode
and stays lit during ready mode. The amber LED
is lit during standby, purge and clean modes.
NOTE
If the machine enters an error condition, alternating
green and amber lights flash. The LCD displays an
error. Turn the Freezing Cylinder OFF-ON switch
to the OFF position, correct the problem (Refer to
Troubleshooting in Section 4) and turn the machine
back on.
E. PURGE/CLEAN Button
PURGE Mode - When the PURGE/CLEAN button
is pressed, the auger rotates. A PURGE message
displays on the screen along with a 5-minute
timer. Hopper refrigeration continues to run. When
the timer gets to 0:00 and no other buttons are
pressed, the machine enters standby mode.
CLEAN Mode - During PURGE mode, if the
PURGE/CLEAN button is pressed, the CLEAN
mode begins. The auger continues to rotate and
hopper refrigeration stops.
F. Mix Low Light Indicator
The MIX LOWmessage appears on theLCD display
to alert the operator of a low mix condition. The
message displays whenthere is approximately one
gallon of mix left in the hopper. When the MIX LOW
message is displayed, refill hopper immediately.
NOTE
Failure to refill hopper immediately may result in
operational problems.
G. Menu Navigation Buttons
The Menu Navigation Buttons are primarily used
for machine calibration.
Selection Button (SEL) The SEL button is not
functional in the normal operation mode. This
button is only used by service technicians for
machine calibration.
Set Button (SET) The SET button is not functional
in the normal operation mode. This button is
only used by service technicians for machine
calibration.
Left Arrow Button () Pressing any button on the
control panel automatically illuminates the display.
The backlight turns o several seconds after use.
To keep the display constantly lit, press and hold
the left () button for five seconds. The backlight
function can be reset to normal operation in the
same manner.
Up Arrow Button () The button is not
functional in the normal operation mode. This
button is only used by service technicians for
machine calibration.
H. Front Door Safety Switch
The front door safety switch prevents the auger
from turning when the front door is removed. The
switch is open when the door is not in place and
closed when the door is properly installed.
Figure 3-2 IntelliTec Control
Push to Freeze
Green LED
Amber LED
SEL Button
SET Button
Purge/Clean
Button
Up Arrow Button
Left Arrow Button

Owner’s Manual #513666 11 M202B Model Machines
3.3 SANITIZING
Sanitizing must be done after the machine is cleaned and
just before the hopper is filled with mix. Sanitizing the night
before is not eective. However, you should always clean
the machine and parts after each use.
NOTE
The United States Department of Agriculture and
the Food and Drug Administration require that all
cleaning and sanitizing solutions used with food
processing equipment be certified for this use.
When sanitizing the machine, refer to local sanitary regula-
tions for applicable codes and recommended sanitizing
products and procedures. The frequency of sanitizing must
comply with local health regulations.
Mix Stera Sheen sanitizer according to manufacturer’s in-
structions to provide a 100 parts per million (ppm) strength
solution. Mix sanitizer in quantities of no less than 2 gallons
(7.5 liters) of 90° to 110°F (32° to 43°C) water. Allow sani-
tizer to contact the surfaces to be sanitized for 5 minutes.
Any sanitizer must be used only in accordance with the
manufacturer’s instructions.
A. Prepare Stera-Sheen Green Label Sanitizer
or equivalent according to manufacturer’s
instructions to provide a 100ppm strength solution.
Mix the sanitizer in quantities of no less than 2
gallons of 90° to 110°F (32° to 43°C) water. Any
sanitizer must be used only in accordance with
the manufacturer’s instructions.
B. Place the tapered end of the flow valve into the
hopper drain hole with the arm pointing towards
the left. Connect the flow control rod to the flow
valve and the flow valve arm (Fig. 3-3).
C. Make sure the flow control valve is shut by turning
the control knob counterclockwise to the OFF
position.
D. Place a bucket under the slide.
E. Pour the sanitizer into the hopper.
NOTE
A small amount of sanitizer may drain into the
bucket with the flow control shut and may seep out
of the rear seal.
F. Clean sides of hopper, flow valve and underside of
hopper cover using a sanitized soft bristle brush
dipped in the sanitizing solution.
G. Place the FREEZING CYLINDER OFF-ON switch
in the ON position.
H. Turn the flow control knob clockwise to the
second band and wait 2 seconds.
I. Press the PURGE/CLEAN button twice. The display
reads CLEAN and a 10-minute timer starts.
J. Slightly open the frontgate. Ensuresanitizer comes
in contact with all surfaces (5 minutes).
K. Turn the flow control knob fully open (clockwise)
to drain the sanitizer from the freezing cylinder.
L. When the sanitizer has drained from the hopper,
place the FREEZING CYLINDER switch and flow
control knob OFF.
3.4 FREEZE DOWN AND OPERATION
This section covers the recommended operating proce-
dures to be followed for the safe operation of the machine.
The flow control settings may be dierent depending on
the mix. Adjust as necessary.
NOTE
The following instructions are for making custard.
If making Italian ice, go to Section 3.7.
A. Sanitize just prior to use.
NOTE
Make sure the flow control assembly is in place
before adding mix and that the flow control knob
is set to the OFF position.
B. Fill the hopper with pre-chilled (40°F or 4°C) mix.
C. Place the FREEZING CYLINDER switch in the ON
position. The display reads STANDBY MODE.
D. Press the PURGE/CLEAN button.The display reads
PURGE.
Figure 3-4 Flow Control Knob - Second Band
Figure 3-3 Flow Control Assembly

Owner’s Manual #513666 12 M202B Model Machines
E. Turn the flow control knob to the second band
for approximately 3 seconds then turn the knob
to “OFF”.
F. Open the front gate to allow custard mix and
sanitizer to exit the front gate and discard the
product.
G. Press the PURGE/CLEAN button twice to stop the
auger and close the front gate.
H. Press the PUSH TO FREEZE button. The display
reads CUSTARD and a bar on the second line
starts to fill.
I. When the display reads CUSTARD READY, the
freezing cylinder is at the correct temperature
(Fig. 3-6).
J. Open the front gate.
K. Turn the flow control knob to the first band. After
a few minutes, a ribbon of product starts to form.
L. Adjust the flow control knob until the product
flow fills the faceplate outlet and is at the desired
texture (Fig. 3-8). The flow control knob setting is
dierent for each type of product.
NOTE
Adjustments take up to 1 minute before a noticeable
dierence is seen in the product.
NOTE
A high-pitched noise from the freezing cylinder is an
indication that there is not enough mix entering the
barrel. Slowly turn the flow control knob clockwise
to increase the flow. It can take up to 1 minute for
the adjustment to stop the noise.
3.5 HOLD CYCLE
A. Turn flow control knob to the OFF position.
B. Press the PURGE/CLEAN button.The display reads
PURGE
C. Use the pin cleaning tool to clear the product from
the pins on the faceplate. Only use pin cleaning
tool part 2206335 in machines with the front
extended wing blade. Do not use part 2202377
with front extended wing blades as damage to
the machine and tool can occur.
NOTE
Restricted custard over beats, which aects taste
and texture.
WARNING
Hazardous Moving Parts
Never put hands, fingers or any object into the front
gate during operation of the custard machine.
Figure 3-8 Proper Flow
Figure 3-6 Custard Mode
Figure 3-5 Flow Control Knob - Second Band
Figure 3-7 Flow Control Knob - First Band

Owner’s Manual #513666 13 M202B Model Machines
3.7 ITALIAN ICE FREEZE DOWN AND
OPERATION
A. Sanitize just prior to use.
NOTE
Make sure the flow control assembly is in place
before adding Italian ice and that the flow control
knob is set to the OFF position.
B. Fill the hopper with pre-chilled (40°F or 4°C) Italian
ice.
C. Place the FREEZING CYLINDER switch in the ON
position. The display reads STANDBY MODE.
D. Press the PURGE/CLEAN button.The display reads
PURGE.
E. Turn the flow control knob to the first band for
approximately 3 seconds then turn the knob to
“OFF”.
F. Open the front gate to allow Italian Ice and sanitizer
to exit the front gate and discard the product.
G. Press the PURGE/CLEAN button twice to stop the
auger and close the front gate.
H. Press the PUSH TO FREEZE button. The display
reads ITALIAN ICE and a bar on the second line
starts to fill. If the display reads CUSTARD, move
the product selector switch on the front of the
machine to ITALIAN ICE.
I. When the display reads ITALIAN ICE READY, the
freezing cylinder is at the correct temperature.
J. Open the front gate.
D. After the timer expires and all usable product is
removed, close the gate.
E. Remove the slides.
F. Clean excess product from the faceplate.
3.6 PRODUCTION FROM HOLD
A. Press the PUSH TO FREEZE button.
B. Open the front gate. Collect any liquid mix that
comes out of the freezing cylinder in a sanitized
container and treat it as rerun.
C. When the display reads CUSTARD READY, the
freezing cylinder is at the correct temperature
and the auger starts automatically.
D. Turn the flow control knob clockwise to the second
band. A small amount of mix will drain from the
machine.
E. Gradually adjust the flow control knob to gain the
desired custard texture.
F. Install the custard slide.
NOTE
A growling or chattering noise during production
indicates that not enough mix is entering the barrel.
Slightly increase the flow. There are several minutes
of lag time between increasing flow and eliminating
the growling or chattering.
Figure 3-10 Flow Control Knob - Second Band
Figure 3-9 Remove Slide
Figure 3-11 Flow Control Knob - First Band
Figure 3-12 Flow Control Knob - Second Band

Owner’s Manual #513666 14 M202B Model Machines
K. Turn the flow control knob to the second band.
L. When product starts to collect at the front door,
increase the flow control knob to the second band.
Use the pin cleaning tool to remove product from
the pins until the Italian Ice fills the entire width of
the opening.
NOTE
Use the pin cleaning tool anytime the Italian Ice
becomes restricted during production. Only use pin
cleaning tool part 2206335 in machines with the
front extended wing blade. Do not use part 2202377
with front extended wing blades as damage to the
machine and tool can occur.
M. Gradually adjust the flow control knob in small
increments until Italian Ice flow is consistent.
HOLD CYCLE  ITALIAN ICE
A. Turn flow control knob to the OFF position.
B. Press the PURGE/CLEAN button.The display reads
PURGE
C. Use the pin cleaning tool to clear the product from
the pins on the faceplate.
WARNING
Hazardous Moving Parts
Never put hands, fingers or any object into the front
gate during operation of the custard machine.
D. After the timer expires and all usable product is
removed, close the gate.
E. Remove the slide.
F. Clean excess product from the front plate.
PRODUCTION FROM HOLD  ITALIAN ICE
A. Press the PUSH TO FREEZE button.
B. Install the slide and open the front gate.
C. When the display reads ITALIAN ICE READY, the
freezing cylinder is at the correct temperature and
the auger starts automatically.
D. Turn the flow control knob to the first band and
adjust it to the second band when product starts
to collect at the pins. Use the pin cleaning tool
to remove product from the pins until Italian Ice
comes out the entire width of the opening.
3.8 REMOVING MIX FROM MACHINE
To remove the mix from the machine, refer to the follow-
ing steps. Make sure the gate on the faceplate is open.
NOTE
The following instructions are for both custard and
Italian ice.
A. Press the PURGE/CLEAN button.The display reads
PURGE.
B. Press the PURGE/CLEAN button again. The display
reads CLEAN and a 10-minute timer starts.
C. Once the timer has expired, allow the barrel to
rest for at least 5 minutes before removing the
custard.
D. If there is mix in the hopper, place a sanitized
container at the opening of the front plate.
E. Open the flow control valve fully by turning the
flow control knob clockwise to the CLEAN position.
F. After the hopper and freezing cylinder have
drained, place the FREEZING CYLINDER switch
in the OFF position.
G. Close the front gate.
H. Cover, label, date and place the sanitized container
in the walk-in cooler.
3.9 CLEANING THE MACHINE
NOTE
The frequency of cleaning the machine and machine
parts must comply with local health regulations.
After the mix has been removed from the machine, the
machine must be cleaned. To clean the machine, refer to
the following steps:
A. Place a container under the slide of the faceplate.
Fill the hopper with 2 to 4 gallons of tap water (Not
to exceed 100°F).
B. Replace the front gate with the splash guard and
turn the flow control knob to the second band.
C. Press the PURGE/CLEAN button twice. The display
reads CLEAN.
D. Allow the water to drain.
F. When the water has drained, press the PURGE/
CLEAN button again to stop the CLEAN cycle.
G. Prepare Stera-Sheen Green Label Sanitizer
or equivalent according to manufacturer’s
instructions to provide a 100ppm strength solution
(follow the instructions on the package). Any
sanitizer must be used only in accordance with
the manufacturer’s instructions
H. Place a bucket under the slide.
