Volvo 31346142 User manual

Instruction No
Version
Part. No.
31414315
1.0
31346142, 31414394
Digital radio, DAB
IMG- 394951
Instruction No
Version
Part. No.
31414315
1.0
31346142, 31414394
Digital radio, DAB
IMG- 394951
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Digital radio, DAB - 31414315 - V1.0
Page 1 / 12

Equipment
IMG- 242205
IMG- 345497
IMG- 239664
IMG- 394782
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Digital radio, DAB - 31414315 - V1.0
Page 2 / 12

Information
1
Read through all of the instructions before starting installation.
Notifications and warning texts are for your safety and to
minimise the risk of something breaking during installation.
Ensure that all tools stated in the instructions are available before
starting installation.
Certain steps in the instructions are only presented in the form of
images. Explanatory text is also given for more complicated
steps.
In the event of any problems with the instructions or the
accessory, contact your local Volvo dealer.

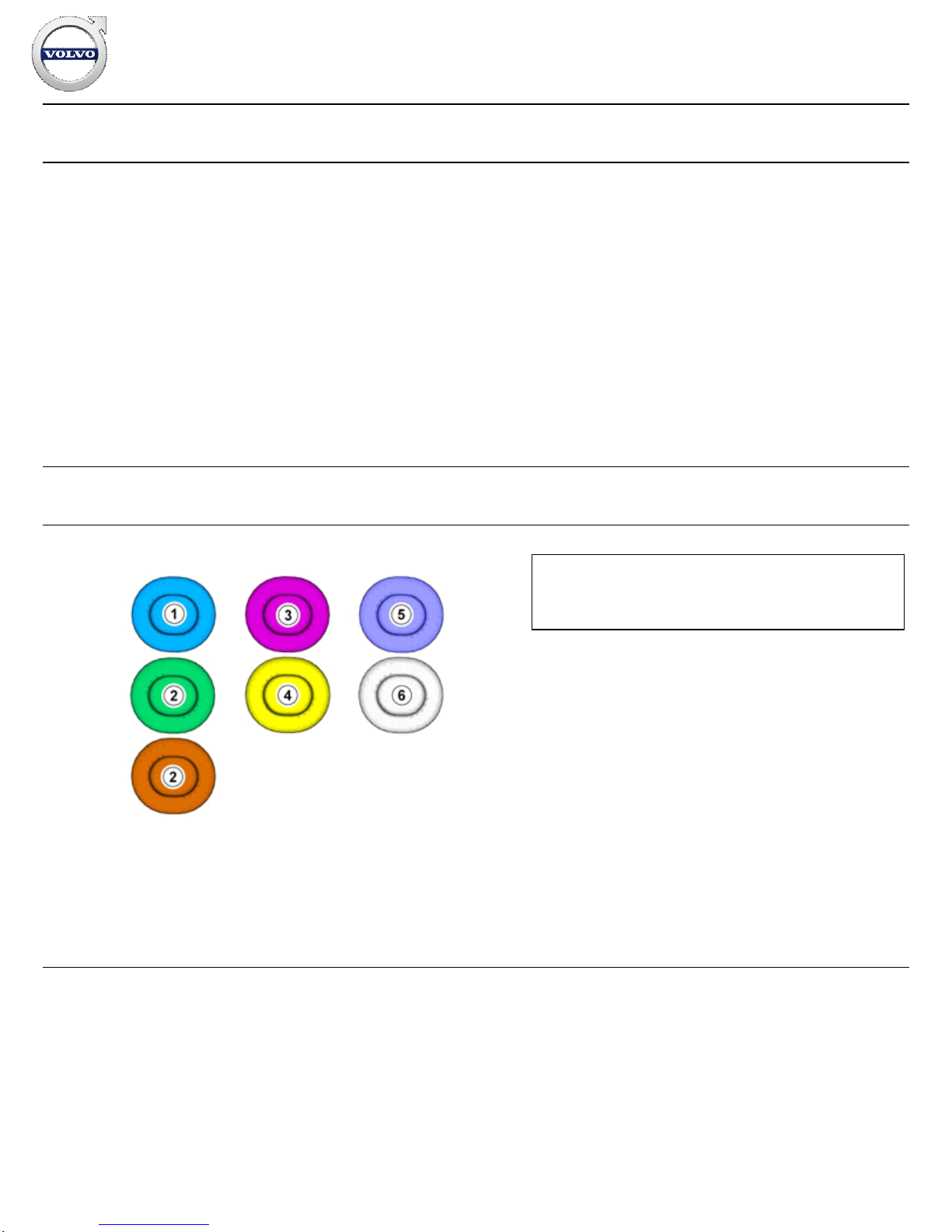

Color symbols
2
IMG- 363036
1. Used for focused component, the component with which you
will do something.
2. Used as extra colors when you need to show or differentiate
additional parts.
3. Used for attachments that are to be removed/installed. May be
screws, clips, connectors, etc.
4. Used when the component is not fully removed from the
vehicle but only hung to the side.
5. Used for standard tools and special tools.
6. Used as background color for vehicle components.
Note!
This colour chart displays (in colour print and electronic
version) the importance of the different colours used in the
images of the method steps.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Digital radio, DAB - 31414315 - V1.0
Page 3 / 12

3
IMG- 332193
Set the ignition key to position 0.
Removal
All vehicles
4
IMG- 394276
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Digital radio, DAB - 31414315 - V1.0
Page 4 / 12

5
IMG- 346921
Remove the marked part.
6
IMG- 346811
Remove the marked part.
Vehicles with subwoofer speaker
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Digital radio, DAB - 31414315 - V1.0
Page 5 / 12

7
IMG- 395146
Disconnect the connector.
8
IMG- 395147
Remove the nuts.
Remove the screws.
9
IMG- 395149
Remove the marked part.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Digital radio, DAB - 31414315 - V1.0
Page 6 / 12

Accessory installation
All vehicles
10
IMG- 394788
11
IMG- 394790
Install component that comes with the accessory kit.
Install the screws.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Digital radio, DAB - 31414315 - V1.0
Page 7 / 12

12
IMG- 342320
13
IMG- 342321
Install the screw.
14
IMG- 394806
Install component that comes with the accessory kit.
Connect the connector.
Install the clips as illustrated.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Digital radio, DAB - 31414315 - V1.0
Page 8 / 12

15
IMG- 395171
Locate the existing connectors in the vehicle's cable harness.
Connect the connectors.
Installation
Vehicles with subwoofer speaker
16
IMG- 395152
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Digital radio, DAB - 31414315 - V1.0
Page 9 / 12

17
IMG- 395153
Install the screws.
Tightening torque: M6 , 10 Nm
Install the nuts
18
IMG- 395154
Connect the connector.
All vehicles
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation
Digital radio, DAB - 31414315 - V1.0
Page 10 / 12

19
IMG- 394982
20
IMG- 394981
21
IMG- 242268
Download software (application) for the accessory's function
according to the service information in VIDA. See VIDA or the
accessories catalogue for software part number.
Order and download software according to: 31408647
