Vornado 293HD User manual

READ AND SAVE THESE INSTRUCTIONS
Whole Room Air Circulator Owner’s Guide
heavy-duty shop fan
model 293HD

It is said that trust isn’t given, but earned. For decades Vornado has been
earning the trust of our customers by offering them only the best. Vornado
provides the highest level of performance, coupled with the highest level of
support available. Complete satisfaction with no exceptions – this is Vornado’s
promise to you. If you are not satisfied for any reason, please contact us.
Knowledgeable representatives are available at 1-800-234-0604 from 8:00 AM
to 5:00 PM CSto 5:00 PM CST. A wealth of additional support is also available
online at www.vornado.com
Questions or comments?
www.vornado.com
[e-mail]
1-800-234-0604
Trust.
Designed, assembled and supported
in Andover, Kansas.

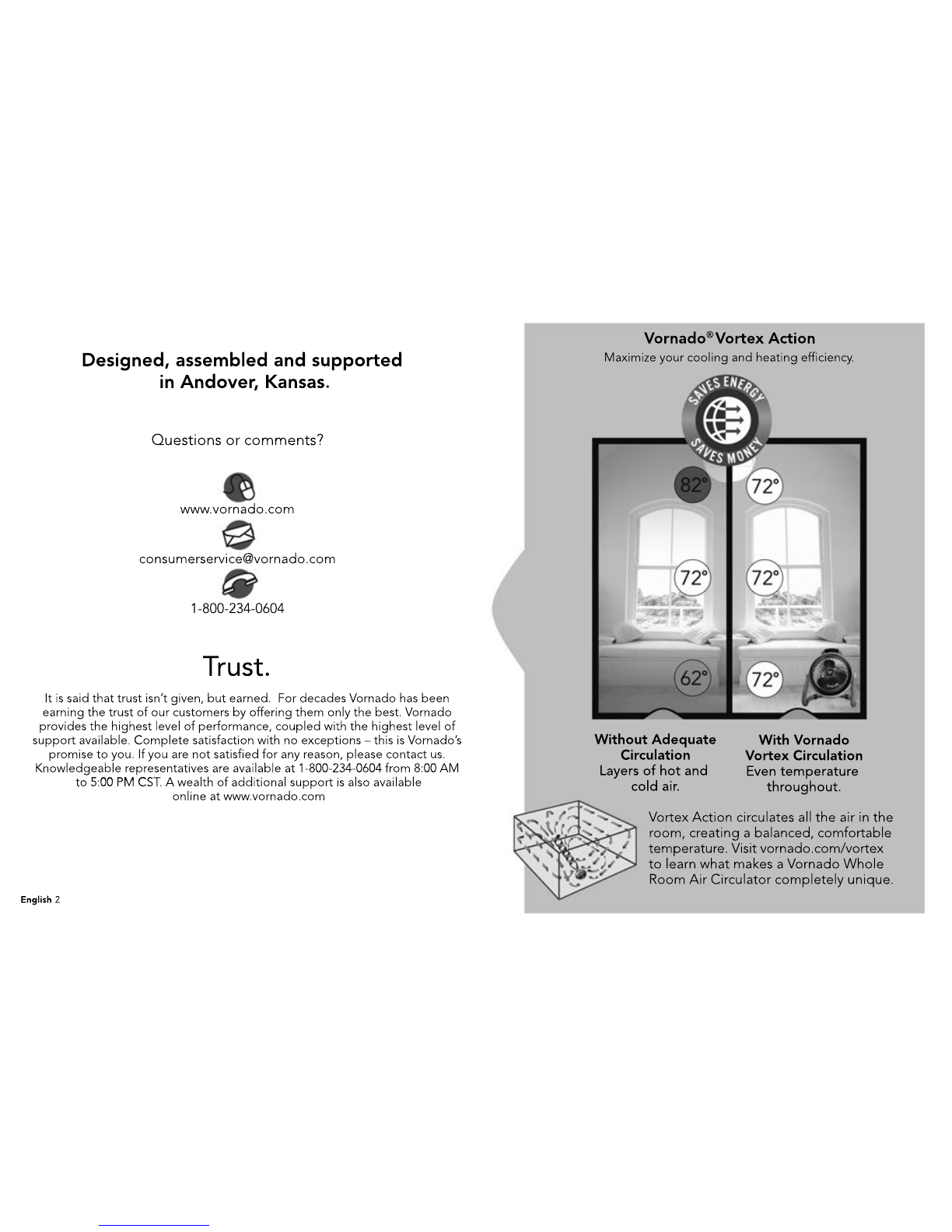

Vornado Vortex Action
English 2
Maximize your cooling and heating efficiency.
With Vornado
Vortex Circulation
Even temperature
throughout.
®
Vortex Action circulates all the air in the
room, creating a balanced, comfortable
temperature. Visit vornado.com/vortex
to learn what makes a Vornado Whole
Room Air Circulator completely unique.
Without Adequate
Circulation
Layers of hot and
cold air.

WARNING – To reduce the risk of fire or electrical shock, do not use this
product with any solid state speed control device. To reduce the risk of fire
or electric shock and injury to persons, do not use in a window.
This product employs overload protection (fuse). A blown fuse indicates an
overload or short-circuit situation. If the fuse blows, unplug the product from
the outlet. Replace the fuse as per the user servicing instructions (follow the outlet. Replace the fuse as per the user servicing instructions (follow
product marking for proper fuse rating) and check the product. If the
replacement fuse blows, a short-circuit may be present and the product
should be discarded or returned to an authorized service facility for
examination and/or repair.
Do unplug your circulator before cleaning.
DoDo clean your Vornado Air Circulator regularly.
Refer to the CLEANING instructions provided. Never clean the air circulator
in any manner other than as instructed in this manual.
Do Not use gasoline, thinners, solvents, ammonias or other chemicals for cleaning.
Do Not immerse this product in water or allow water to drip into the motor
housing.
Do Not use near furnaces, fireplaces, stoves or other high-temperature
heat sources.heat sources.
Do Not position this product too close to draperies because they may be
drawn into the rear grill, cutting off airflow.
Do Not use this product outdoors.
Do Not use this product on wet surfaces.
Do Not use this product in a bathtub or shower.
Do Not operate any fan with a damaged cord or plug. Discard fan or return
to an authorized service facility for examination and/or repair.
to an authorized service facility for examination and/or repair.
Do Not carry this product by the cord, or use the cord as a handle.
Do Not attempt to repair or replace parts.
Do Not run cord under carpeting. Do not cover cord with throw rugs, runners,
or similar coverings. Do not route cord under furniture or appliances. Arrange
cord away from traffic area and where it will not be tripped over.
Do use common sense when using this product and/or any electrical
appliance.appliance.

English 4
3 speed control to meet any circulation need. To turn on
unit - rotate knob one position clockwise. Turn the knob
clockwise to decrease airflow. Turn counterclockwise to
increase airflow.
Provides movement of air at any angle – up stairs, down a
hallway, room to room and everywhere in between.
Removable grill ensures the 293HD is easy to clean, evenRemovable grill ensures the 293HD is easy to clean, even
after use in dirty, dusty environments.
Comfort-grip handle for grab and go portability.
Extra-long 10’ grounded cord with convenient
storage capability.
Benefit
Features & Benefits
Removable Grill
Durable Handle
10’ Power Cord
Adjustable
Airflow
3 Speeds
Installing Protective Feet
Use the feet to protect floors when using your air circulator on uncarpeted
surfaces such as hardwood, vinyl, or tile. The feet are simple to install and will
help maintain the whisper-quiet operation.
Cushion Clip Feet
The cushion clip feet are packaged separately in the box.
To install, clip all feet onto the base and space evenly.
Base Assembly Instructions
1.
2.
Loosen the pivot knob by turning counter-clockwise.
Remove the pivot knob and slip the legs of the base
onto the bolts, in between the washer and the knob.
Re-install the pivot knobs onto the pivot bolts and
tighten by turning clockwise.

Summer
Use your Air Circulator with your home’s air conditioning system to create brisk,
comforting air movement. This breeze will eliminate stagnant air and remove
body heat to make you feel cooler.
With Vornado Air Circulators, you can save money on energy bills by raising your
thermostat several degrees and still maintaining the same comfort level.
Spring & Fall
Your Air Circulator can make the indoors as fresh and pleasant as the outdoors.
Place the Air Circulator near an open window, sliding door or French door to
take full advantage of mild temperatures and seasonal breezes.
Winter
Position your Air Circulator in a place with unobstructed upward air movement.
Run it only as fast as necessary to lower the heated air from the ceiling – but not
fast enough to create a draft. Or, use your Air Circulator with other available heat
sources (furnace vents, wood stoves or baseboard heaters) to circulate their
warmth, taking full advantage of all available heat in the room. Do not point the
Air Circulator at open flames.Air Circulator at open flames.
Even room
temperature
Use with central
or window
air conditioning
Push cool air
up stairs
Replace cold floor
air with warm
ceiling air
Increase the
efficiency of
heating sources
Circulate fresh
outdoor air
When To Use – Saves Energy Year-Round
1. Position your Air Circulator so the beam of air has an unobstructed path from one
side of the room to the other.
2. Set speed to medium and allow a few minutes for an airflow pattern to be
established. (Different airflow patterns can be established by changing the location,
angle and speed of the Air Circulator.)
3. Adjust the speed accordingly until a desired comfort level is achieved. You will
quickly determine the precise amount of circulation required to maintain your
personal comfort in a given room for the prevailing temperature and humidity
conditions. Once you discover the added comfort of air circulation, you will use
your Vornado Air Circulator season after season.

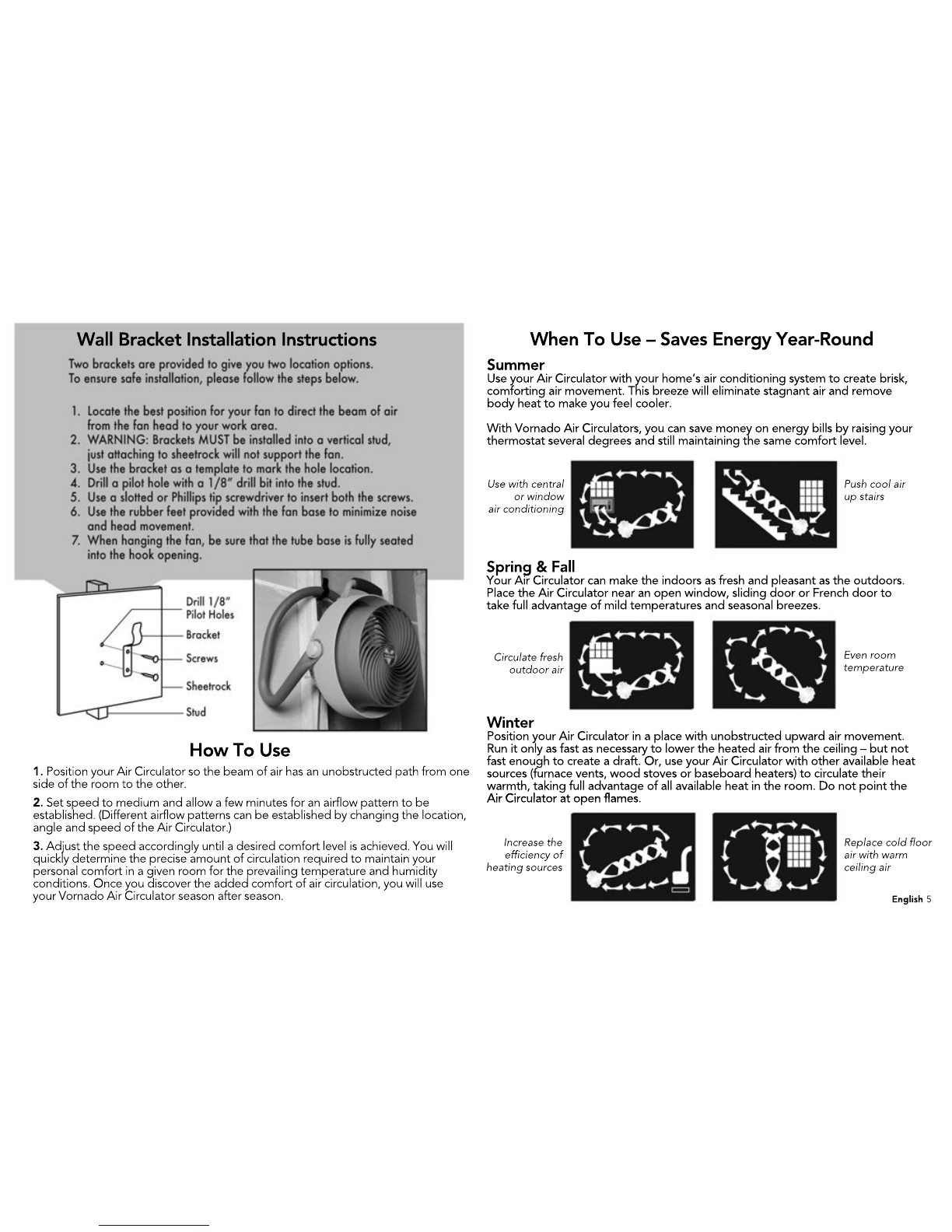

Wall Bracket Installation Instructions
How To Use
English 5

English 6
Where To Use - Continued

English 7

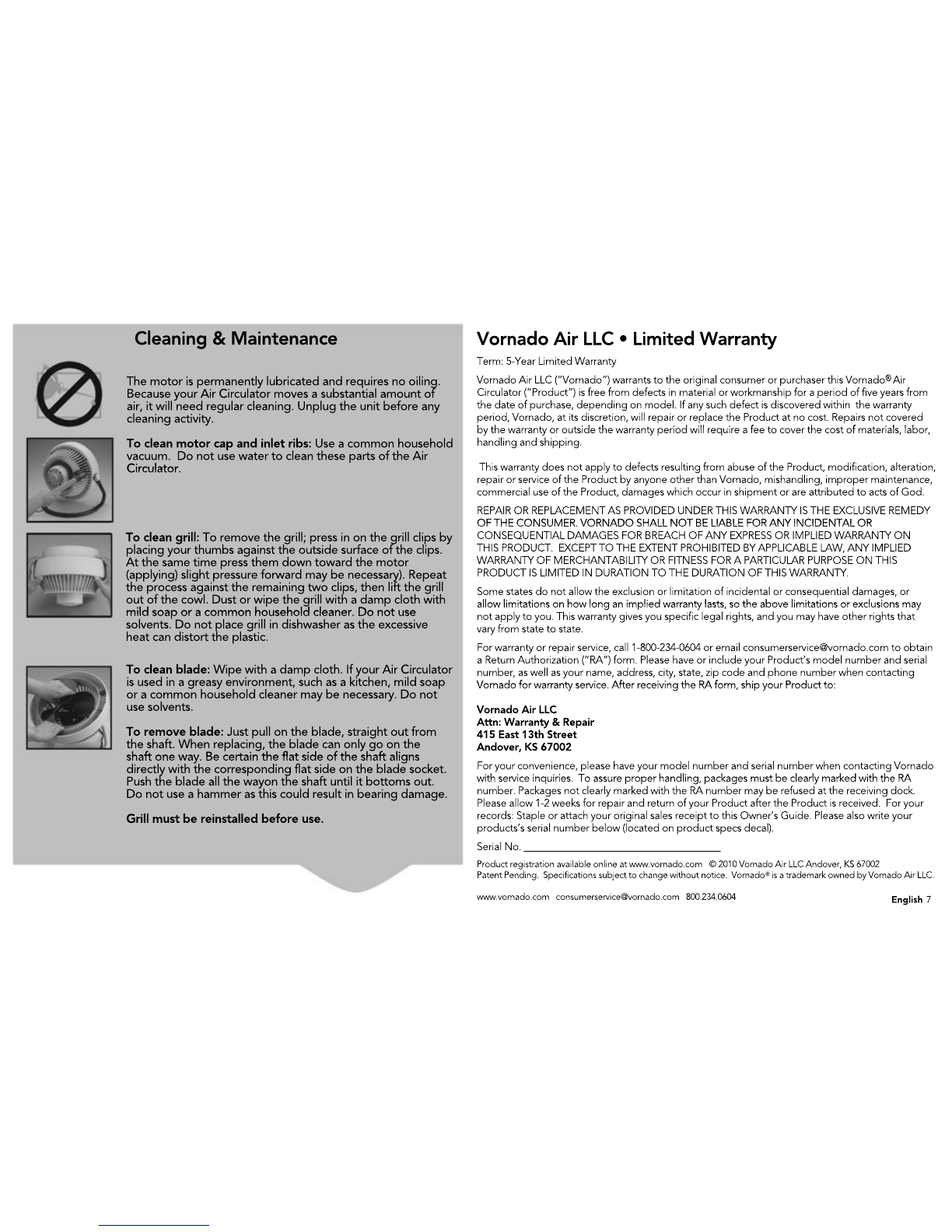

Cleaning & Maintenance
The motor is permanently lubricated and requires no oiling.
Because your Air Circulator moves a substantial amount of
air, it will need regular cleaning. Unplug the unit before any
cleaning activity.
To clean motor cap and inlet ribs: Use a common household
vacuum. Do not use water to clean these parts of the Air
Circulator.Circulator.
To clean grill: To remove the grill; press in on the grill clips by
placing your thumbs against the outside surface of the clips.
At the same time press them down toward the motor
(applying) slight pressure forward may be necessary). Repeat
the process against the remaining two clips, then lift the grill
out of the cowl. Dust or wipe the grill with a damp cloth with
mild soap or a common household cleaner. Do not use mild soap or a common household cleaner. Do not use
solvents. Do not place grill in dishwasher as the excessive
heat can distort the plastic.
To clean blade: Wipe with a damp cloth. If your Air Circulator
is used in a greasy environment, such as a kitchen, mild soap
or a common household cleaner may be necessary. Do not
use solvents.
To remove blade: Just pull on the blade, straight out from
the shaft. When replacing, the blade can only go on the
shaft one way. Be certain the flat side of the shaft alignsshaft one way. Be certain the flat side of the shaft aligns
directly with the corresponding flat side on the blade socket.
Push the blade all the wayon the shaft until it bottoms out.
Do not use a hammer as this could result in bearing damage.
Grill must be reinstalled before use.
Term: 5-Year Limited Warranty
Vornado Air LLC (“Vornado”) warrants to the original consumer or purchaser this Vornado Air
Circulator (“Product”) is free from defects in material or workmanship for a period of five years from
the date of purchase, depending on model. If any such defect is discovered within the warranty
period, Vornado, at its discretion, will repair or replace the Product at no cost. Repairs not covered
by the warranty or outside the warranty period will require a fee to cover the cost of materials, labor,
by the warranty or outside the warranty period will require a fee to cover the cost of materials, labor,
handling and shipping.
This warranty does not apply to defects resulting from abuse of the Product, modification, alteration,
repair or service of the Product by anyone other than Vornado, mishandling, improper maintenance,
commercial use of the Product, damages which occur in shipment or are attributed to acts of God.
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY
OF THE CONSUMER. VORNADO SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR
OF THE CONSUMER. VORNADO SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON
THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS
PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or
allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may
allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may
not apply to you. This warranty gives you specific legal rights, and you may have other rights that
vary from state to state.
For warranty or repair service, call 1-800-234-0604 or email [e-mail] to obtain
a Return Authorization (“RA”) form. Please have or include your Product’s model number and serial
number, as well as your name, address, city, state, zip code and phone number when contacting
Vornado for warranty service. After receiving the RA form, ship your Product to:
Vornado for warranty service. After receiving the RA form, ship your Product to:
Vornado Air LLC
Attn: Warranty & Repair
415 East 13th Street
Andover, KS 67002
For your convenience, please have your model number and serial number when contacting Vornado
with service inquiries. To assure proper handling, packages must be clearly marked with the RA
with service inquiries. To assure proper handling, packages must be clearly marked with the RA
number. Packages not clearly marked with the RA number may be refused at the receiving dock.
Please allow 1-2 weeks for repair and return of your Product after the Product is received. For your
records: Staple or attach your original sales receipt to this Owner’s Guide. Please also write your
products’s serial number below (located on product specs decal).
Serial No. ______________________________________
Product registration available online at www.vornado.com © 2010 Vornado Air LLC Andover, KS 67002
Patent Pending. Specifications subject to change without notice. Vornado is a trademark owned by Vornado Air LLC.
www.vornado.com [e-mail] 800.234.0604
Vornado Air LLC • Limited Warranty
®

CL3-0137 RA
CL7-0137 RA, V01
Speak your mind www.vornado.com/reviews
Vornado Air, LLC
415 East 13th Street, Andover, Kansas 67002
800.234.0604 www.vornado.com
