Vornado Duo User manual

model
DUO
vornado.com
TOWER CIRCULATOR
OWNER’S GUIDE
READ AND SAVE
THESE INSTRUCTIONS

2English
vornado.com
800-234-0604
[e-mail]
We expect this
product to be
perfect.
If it is not, we
will make it
right.

3
English
Important Safety Instructions ............................................................. 4
Features .............................................................................................. 7
Controls............................................................................................... 7
How To Use ......................................................................................... 8
Operating Tips .................................................................................... 9
Cleaning .............................................................................................. 9
Troubleshooting ............................................................................... 10
Warranty............................................................................................ 11
CONTENTS

4English
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
This owner’s guide and any additional inserts are considered part of
the product. They contain important information about safety, use
and disposal. Before using the product, please familiarize yourself
with all operating and safety instructions. Please keep all documents
for future reference and pass these documents on, together with
the product, to any future owner. See www.vornado.com/circulators-
manuals to view, download and print the most current version of
these instructions.
INTENDED USE: This product is intended to circulate the air in
indoor living spaces only in the United States and Canada. This
product is not intended for commercial or industrial use. The
manufacturer assumes no responsibility for damage or injury due to
unauthorized use or product modication. Failure to follow these
directions will void the product warranty.
WARNING: Risk to Children and Impaired Persons
Supervision is required during the installation, operation, cleaning
and maintenance of this product by children 12 years of age and
younger and anyone with reduced physical, sensory or mental
capabilities. Children should be supervised to ensure that they do not
play with the appliance, its parts and packaging material.
INSTALLATION WARNING—To reduce risk of re, electrical
shock and injury to persons, observe the following:
- Place this product away from curtains, draperies, tablecloths and
other fabrics, since they may be drawn into the product, damage
the motor and/or cause a re.
- No part of this product (the appliance, power cord, plug,
packaging, etc.) should be placed near furnaces, replaces, stoves
or other high temperature heat sources. Do not use this product in
a window, on an uneven or unstable surface, or near water.
- The appliance, power supply, power cord and plug cannot come
into contact with water. Do not use this product on wet surfaces.
Do not use this product in a bathtub or shower or position product
where it may fall into a bathtub, laundry, swimming pool or other
water container. Do not use this product outdoors or expose it to
weather or elements.
- Do not run cord under carpeting. Do not cover cord with throw
rugs, runners, or similar coverings. Do not route cord under
furniture or appliances. Arrange cord away from trafc area and
where it will not be tripped over. The cord should not hang over
edges of counters or be placed where it can be crimped or closed
in doors. Place appliance near an easily accessible outlet so the
product can be unplugged quickly during an emergency.
SAFE USE WARNING—To reduce risk of re, electrical shock and
injury to persons, observe the following:
- WARNING: To reduce likelihood of circuit overload, re and
electric shock, do not operate with a solid state speed device, such
as a dimmer control switch.
- Do not operate any fan with a damaged cord or plug. Discard fan or
return to an authorized service facility for examination and/or repair.
- Do not operate unit if the unit has been dropped or damaged. Do
not use this product if it has a damaged power cord or plug. To
avoid risk of electrical shock, do not attempt to repair or replace
parts. Only original replacement parts may be used. If the power
cord is damaged, it must be replaced by the manufacturer, its
service agent, or similarly qualied persons in order to avoid a

5
English
hazard. Contact Vornado Consumer Service at 1-800-234-0604
(phone) or [email protected] (email) for further
instructions about replacement and repair.
- Before plugging power cord into electrical outlet, be sure that
all electrical information on the rating label, including voltage, is
compatible with your outlet’s power supply.
- Do not sit or stand on product.
- Never use the cord as a handle or otherwise yank, strain or stretch
the power cord.
- While the product is plugged in, do not insert or allow foreign
objects to enter any input or output opening as this may cause risk
of electric shock or re, or damage the product.
- A loose t between wall outlet (receptacle) and plug may cause
overheating and distortion of the plug. Discontinue use of the
product in this outlet. Contact a qualied electrician to replace
loose or worn outlets.
- This appliance has a polarized plug (one blade is wider than the
other.) To reduce the risk of electric shock, this plug is intended to
t in a polarized outlet only one way. If the plug does not t fully in
the outlet, reverse the plug. If it still does not t, contact a qualied
electrician. Do not attempt to defeat this safety feature.
- Before moving, repositioning, servicing, cleaning and when not in
use, use the product controls to turn off the power and then unplug.
To disconnect from outlet, grasp and pull only the plug. Also, power
off and unplug if the product will be left unattended for an extended
period of time or during electrical storms.
SERVICING WARNING—To reduce risk of re, electrical shock
and injury to persons, observe the following:
- Clean your product regularly, only as is instructed in this manual.
Prior to cleaning, turn off the power on your product and unplug. Do
not use gasoline, thinners, solvents, ammonias or other chemicals
for cleaning. Refer to the CLEANING instructions provided.
- Do not open appliance housing while product is plugged in. To
avoid risk of shock, all service and/or repairs must be done by a
Vornado Authorized Service Center.
- This product employs overload protection (fuse). A blown fuse
indicates an overload or short-circuit situation. If the fuse blows,
unplug the product from the outlet. Replace the fuse as per the user
servicing instructions (follow product marking for proper fuse rating)
and check the product. If the replacement fuse blows, a short-circuit
may be present and the product should be discarded or returned to
an authorized service facility for examination and/or repair.
User Servicing Instructions
1. Using the product controls, turn off the appliance.
2. Grasp the plug (not the cord) and disconnect from the outlet.
3. Risk of Fire. Replace fuse only with 2.5 Amp, 125 Volt fuse as
approved by Vornado Consumer Service. For an authorized
replacement fuse, please contact Vornado Consumer Service.
4. Once the replacement is received, use a small at-head
screwdriver to slide open the fuse cover (located on the plug)
(See next page, Fig. A).
5. Remove fuse by using the screwdriver to gently lift each end of
the fuse (See next page, Fig. B).
6. Install the replacement fuse by using the screwdriver to gently
push each metal end of the fuse into the receptacle one at a
time. Do not push on the center of the fuse—it is fragile and
may break.
7. Slide the fuse cover closed using the screwdriver. When
closed, the cover should t completely in the plug. No part of
the cover should stick out (See next page, Fig. C).

6English
8. Plug your appliance into the outlet and turn the power on.
9. If the replacement fuse blows, a short-circuit may be present
and the product should be discarded or returned to an
authorized service facility for examination and/or repair.
Risk of re. Do not replace attachment plug. Contains a safety device
(fuse, AFCI, LCDI) that should not be removed. Discard product if the
attachment plug is damaged.
SAVE THESE INSTRUCTIONS
Fig. A Fig. B Fig. C

7
English
Dual Versatility
BENEFIT
One button design allows for simple speed
selection.
Easily adjust the airow direction in either the
Tower or Low-Prole Position for even more
versatility.
Wide cooling zone for constant airow.
Whisper quiet operation.
POWER
The unit functions On by pressing the Power button. LED Lights on
the unit’s control panel indicate the power is On and will default to
the Turbo Speed (IIII) setting.
FAN SPEED (IIII, III, II, I)
The fan speed can be adjusted by pressing the Power/Speed button.
Press the button to cycle between the unit’s speed settings, Turbo
(IIII), High (III), Medium (II) and Low (I). Lights on the unit’s control
panel indicate the selected speed setting.
POWER/
SPEED
BUTTON
SPEED
INDICATOR
LED LIGHTS
4 Speeds
Wide Cooling
Quiet Operation
FEATURES CONTROLS
FEATURE

8English

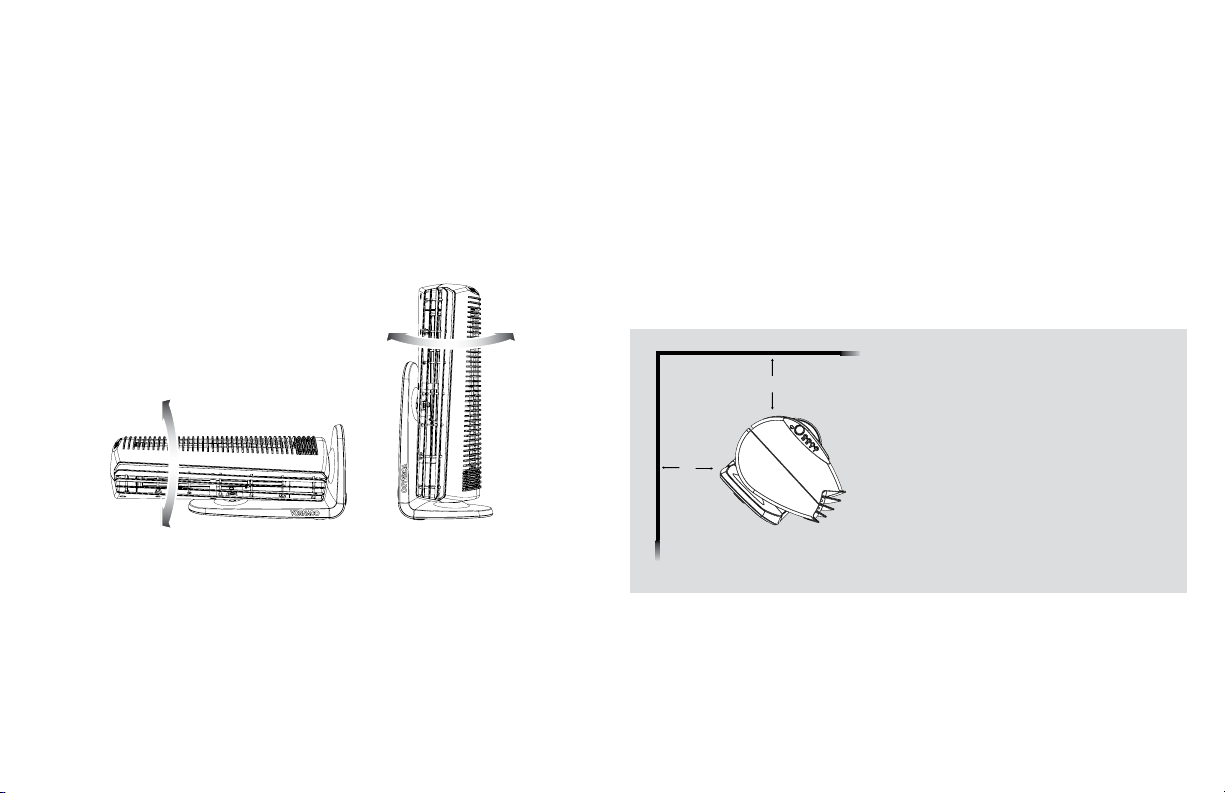

POSITIONING YOUR CIRCULATOR
1. Duo may be positioned vertically or horizontally. Position your Duo
Tower Circulator so the airstream has an unobstructed path for
small room circulation. Or position Duo to blow directly at you for
direct cooling. The airow direction may be adjusted by twisting
the head for improved position location.
ADJUSTING YOUR SPEED
1. Set to a medium speed and allow a few minutes for an airow
pattern to be established. (Different airow patterns can
be established by changing the location, and speed of the
Tower Circulator.)
PLACEMENT NEAR A WALL
OR CORNER
Please position at least 6” away
from walls or other large surfaces.
Doing so will ensure your Tower
Circulator has adequate room
to intake air, providing optimum
performance. (See Figure A)
6”
6”
Figure A
2. Adjust the speed accordingly until a desired comfort level is
achieved. You will quickly determine the precise amount of
circulation required to maintain your personal comfort in a given
room for the prevailing temperature and humidity conditions. Once
you discover the added comfort of air circulation, you will use your
Duo Tower Circulator season after season.
HOW TO USE

9
English
HOW TO CLEAN
Your DUO Tower Circulator has no user serviceable parts. Do
not disassemble the unit. This will void your warranty. If service
is required, return your circulator to Vornado (see WARRANTY
for instructions).
The motor is permanently lubricated and requires no oiling.
Because your Tower Circulator moves a substantial amount of air, it
will need regular cleaning. To clean follow these simple instructions:
1. Unplug the unit.
Note: Do not use gasoline, thinners, solvents or other
chemicals for cleaning.
2. Use the brush attachment on your household vacuum
cleaner to vacuum any accumulated dust off the Front
Angled Outlet Grille and Side Inlet Grille. Wipe down
the entire surface with a soft cloth.
GETTING THE MOST FROM YOUR CIRCULATOR
Thank you for your purchase. It’s important for you to know that this
product functions very differently than typical tower fans you may
have used in the past. Here are a few things to keep in mind:
EXPECT POWERFUL CIRCULATION
Your Duo Tower Circulator is designed to move considerably more
air than a traditional tower fan. Consider the following as you adjust
product settings.
Ultra-high volume airow. Increased sound
levels may be perceptible due to airow volume
and velocity.
High volume airow. Rapidly moves air across
the room for efcient cooling. Increased sound
levels may be perceptible due to airow volume
and velocity.
Superior circulation power compared to
traditional tower fans on their high setting. May
be preferred for day-to-day use.
Near-silent operation while offering
steady circulation.
Turbo Setting
High Setting
Medium Setting
Low Setting
OPERATING TIPS CLEANING

10 English
TROUBLESHOOTING
POSSIBLE CAUSE AND SOLUTIONPROBLEM
Unit is not plugged in. Plug Power Cord into electrical outlet.
Ensure unit fan speed setting is selected.
Plug fuse has blown. Replace fuse (See USER SERVICING INSTRUCTIONS on page 5).
Unit is damaged or in need of repair. Cease usage and unplug. Contact Consumer Service for assistance.
The outlet is worn or damaged. Try another outlet or contact a qualied electrician.
Unit set to a low speed setting. Adjust to a higher speed setting.
Airow is blocked. Remove obstruction.
Adjust direction of airow towards the user.
Under certain conditions, it is possible for a reset GFCI (Ground Fault Circuit Interrupter) outlet to trip
when the user is changing speeds on a Vornado circulator. In this event, change to an outlet that is not
connected to a GFCI device. It could also indicate a weak or defective GFCI outlet. Contact a qualied
electrician to check the GFCI outlet.
The unit fails to power on.
Airow is weak or slow.
GFCI has tripped.

11
English
Vornado Air LLC (“Vornado”) warrants to the original consumer or purchaser this
Vornado®Tower Circulator (“Product”) is free from defects in material or workmanship for
a period of ve (5) years from the date of purchase. If any such defect is discovered within
the warranty period, Vornado, at its discretion, will repair or replace the Product at no cost.
For warranty or repair service:
Call 1-800-234-0604 or email [email protected] to obtain a Return Authorization (“RA”)
form. Please have or include your Product’s model number and serial number, as well as
your name, address, city, state, zip code and phone number when contacting Vornado for
warranty service.
After receiving the RA form, ship your Product to:
Vornado Air LLC Attn: Warranty & Repair 415 East 13th Street Andover, KS 67002. For your
convenience, please have your model number and serial number when contacting
Vornado with service inquiries. To assure proper handling, packages must be clearly
marked with the RA number. Packages not clearly marked with the RA number may be
refused at the receiving dock. Please allow 1-2 weeks for repair and return of your Product
after the Product is received.
Repairs not covered by the warranty or outside the warranty period will require a fee to
cover the cost of materials, labor, handling and shipping. This warranty does not apply
to defects resulting from abuse of the Product, modication, alteration, repair or service
of the Product by anyone other than Vornado, mishandling, improper maintenance,
commercial use of the Product, damages which occur in shipment or are attributed to
acts of God. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE
EXCLUSIVE REMEDY OF THE CONSUMER. VORNADO SHALL NOT BE LIABLE FOR
ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS
OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED
BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE
DURATION OF THIS WARRANTY. Some states do not allow the exclusion or limitation of
incidental or consequential damages, or allow limitations on how long an implied warranty
lasts, so the above limitations or exclusions may not apply to you. This warranty gives you
specic legal rights, and you may have other rights that vary from state to state.
All company names and product names are trademarks of their respective owners. ©
All rights reserved. All technical information, data, and instructions for the installation,
connection, and operation contained in these instructions for use correspond to the latest
available information at time of printing. The contents of this manual may differ slightly
from the actual product. Observe any additional supplements.
The manufacturer assumes no responsibility for damage caused by failure to follow these
instructions or improper product use. Any such actions will invalidate the product warranty.
Any unauthorized product modication, repair by unauthorized repair center, or use of
non-approved replacement parts is not recommended and any consequences will not be
covered by support services or product warranties.
WARRANTY
We expect this product to be perfect. If you’re not satised with this product, let us know.
We’re Here To Help
800.234.0604
vornado.com
[email protected]
© 2021 Vornado Air LLC Andover, KS 67002 U.S. Patent Pending. Specifications subject to change
without notice. Vornado® is a trademark owned by Vornado Air LLC.
Designed, engineered and supported in Andover, KS

CL3-0348 R-, V05
Vornado Air, LLC
415 East 13th Street, Andover, Kansas 67002
800.234.0604 | vornado.com
