MINI COLD AIR GUNS
Models 680, 680-1, 682 and 682-1
(Includes all BSP versions of models listed above)
FILTER AND REPLACEMENT PART ITEM NUMBERS
Vortec Model 5 micron Air Filter Oil Removal Filter Single Outlet Flex
Nozzle
Dual Outlet Flex
Nozzle
Magnetic Mounting
Base
Replacement
Generator Kits
680 701S-24A 701S-48 680-30 - 620-26 106GK-8H
680-1 701S-24A 701S-48 680-30 - - 106GK-8H
682 701S-24A 701S-48 - 682-30 620-26 106GK-8H
682-2 701S-24A 701S-48 - 682-30 - 106GK-8H
TABLE 1: FILTER RECOMMENDATIONS
TABLE 2: DETERMINING COMPRESSED AIR LINE SIZE
1. Calculate total product compressed air consumption (SCFM, SLPM).
2. Determine length of compressed air line required for connection to main supply.
3. Locate pipe length in left column and read to the right to nd the compressed air requirements.
4. Locate pipe size at top of column.
MAXIMUM AIRFLOW (SCFM) THROUGH PIPE AT 5 PSIG PRESSURE DROP (100 PSIG AND 70OF)
Pipe Length
(Feet)
Pipe Size (Nominal) - Schedule 40
1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2
10 29 65 120 254 480 978 1483 2863 4536
20 21 46 85 180 340 692 1049 2024 3208
30 17 37 70 147 277 565 856 1653 2619
40 15 32 60 127 240 489 792 1431 2268
50 13 29 54 114 215 437 663 1280 2029
60 12 26 49 104 196 399 606 1169 1852
70 11 25 46 96 181 370 561 1082 1715
80 10 23 43 90 170 346 524 1012 1604
90 10 22 40 85 160 326 494 954 1512
100 9 21 38 80 152 309 469 905 1435
MAXIMUM AIRFLOW (SLPM) THROUGH PIPE AT 0.3 BAR PRESSURE DROP (6.9 BAR AND 21OC)
Pipe Length
(Meters)
Pipe Size (Nominal) - Schedule 40
1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2
3 821 1840 3396 7188 13584 27677 42117 81023 128369
6 594 1302 2406 5094 9622 19584 29687 57279 90786
9 481 1047 1981 4160 7839 15990 24225 46780 74188
12 425 906 1698 3594 6792 13839 20999 40497 64184
15 368 821 1528 3226 6085 12367 18763 36224 57421
18 340 736 1387 2943 5547 11292 17150 33083 52412
21 311 708 1302 2717 5122 10471 15877 30621 48535
24 283 651 1217 2547 4811 9792 14829 28640 45393
27 269 623 113 2 2406 4528 9226 13980 26998 42790
31 255 594 1075 2264 4302 8745 13273 25612 40611
Rubber hose maximum airow rating: 1/2” I.D. rubber hose = 3/8” pipe; 3/4” I.D. rubber hose = 1/2” pipe
Note: Generator kits consist of ve 8 SCFM generators and ve 8H bushings

INTRODUCTION
A Mini Cold Air Gun is a device that converts ltered, 100
psig (6.9 Bar) compressed air into a cold airstream.
The Mini Cold Air Gun consumes 8 SCFM (227 SLPM) of
compressed air and is perfect for a wide range of industrial
spot cooling and dry machining applications.
COMPRESSED AIR SUPPLY
The compressed air supply must be ltered to remove
water and dirt using a 5 micron or smaller lter. Failure
to use a lter may cause clogging (and freezing) of the
compressed air paths inside the Vortec product. Filter
recommendations are given in Table 1.
Filter elements must be changed on a regular basis.
Frequency of change is determined by the condition of
the compressed air supply. Filters should be installed in
the compressed air supply line as close as possible to the
Vortec product.
The appropriate size of compressed air supply line should
be selected to ensure optimal performance of the Vortec
product. Please refer to Table 2 to determine what supply
line size is recommended for your application. Contact
Vortec at 1-800-441-7475 for further assistance.
If water vapor is present in the compressed air supply, a
compressed air dryer may be necessary to prevent ice
formation on the inside of the Vortec product.
INSTALLATION
A Mini Cold Air Gun can be installed by directly plumbing to
the appropriately-sized hard piped compressed air source
that does not exceed 150 psig (10.3 Bar).
OPERATION
Mini Cold Air Guns are designed to create the maximum
amount of refrigeration when operated at 100 psig (6.9
Bar) to 150 psig (10.3 Bar) compressed air inlet pressure.
They will operate at lower pressures, but the amount of
refrigeration will be reduced as well as the compressed
air consumption. At compressed air conditions of 100 psig
(6.9 Bar) pressure and 70°F (21°C) air temperature, the
Mini Cold Air Guns will produce 350 btuh (102 watts) of
cooling by creating a total ow of 4 SCFM (113 SLPM) of
cold air at 10°F (-12°C). Do not restrict the ow of cold air
out of the exible nozzle(s).
MAINTENANCE
The Mini Cold Air Gun has no moving parts (other than the
adjustment knob), and requires only ltered compressed
air for proper operation. The Mini Cold Air Gun can be
disassembled for cleaning, if necessary, as shown above.
If the Gun has been disassembled for cleaning, the Cold
Cap must be reassembled tightly to ensure that the
Generator seats tightly against the body assembly. A loose
Cold Cap will reduce cooling capacity.
TROUBLESHOOTING
Insufficient airow may be caused by the following:
1. Undersized compressed air line size.
2. Compressed air pressure too low.
3. Partial or complete blockage of internal compressed air
path, due to dirt. See Maintenance section for cleaning
instructions; and Compressed Air Supply section for
lter recommendations.
4. Insufficient compressed air volume.
5. Loose cold cap. This may occur if not tightened properly
after disassembled for cleaning.
If trouble persists, please contact Vortec at 1-800-441-
7475.
LIMITED WARRANTY
Vortec compressed air products manufactured by ITW Air
Management will be replaced or repaired if found to be
defective due to manufacture defect within ten years from
the date of invoice.
Refer to our website www.vortec.com for full warranty
details and limitations. ITW Air Management makes no
specic warranty merchantability or warrant of tness to a
particular purpose.
1. Do not operate the Mini Cold Air Gun at air pressures
above 150 psig (10.3 Bar).
2. Do not operate the Mini Cold Air Gun at line
temperatures above 110
o
F (43
o
C).
3. Avoid direct contact with compressed air.
4. Do not direct compressed air at any person.
5. When using compressed air, wear safety glasses
with side shields.

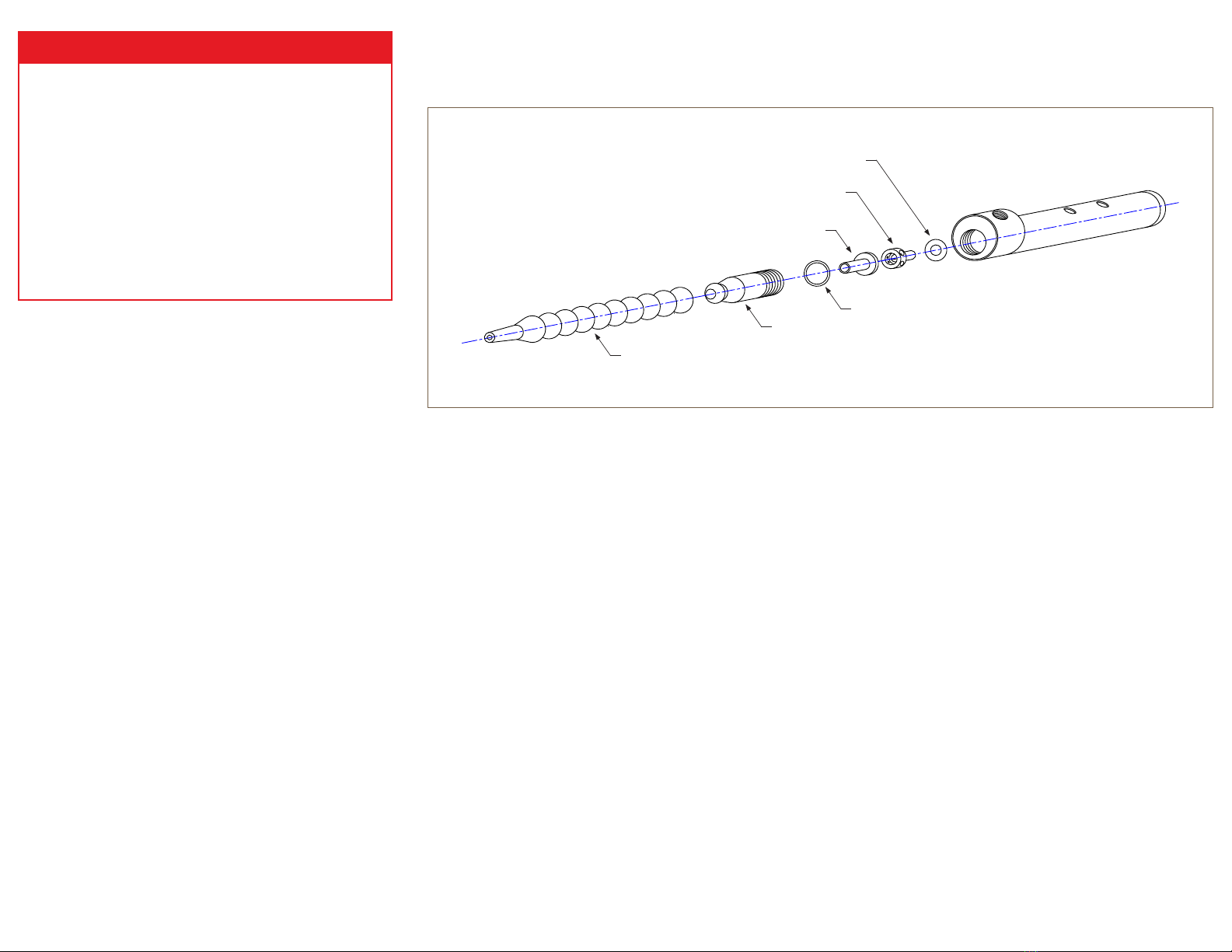

MINI COLD AIR GUN ASSEMBLY
(Drawing shown below is not to scale)
Model 680-1
GENERAL SAFETY CONSIDERATIONS
WARNING: COMPRESSED AIR COULD CAUSE
DEATH, BLINDNESS OR INJURY
Flexible Nozzle Assembly (#680 - 30 shown)
Cold End Fitting
-010 size O-ring
8H Bushing (see Table 1)
8 cfm Generator (see Table 1)
Sealing Washer
