Vortec 29625 Use and care manual

OperatiOn & Safety
inStructiOnS
10125 Carver Road, Cincinnati, OH 45242
Phone: [phone] • Fax: [phone]
Toll Free: 800-441-7475
www.itw-air.com • techsuppor[email protected]
Please read all instructions BEFORE
attempting to use this product
IMPORTANT
LIT0360
OperatiOn & Safety
inStructiOnS
10125 Carver Road, Cincinnati, OH 45242
Phone: [phone] • Fax: [phone]
Toll Free: 800-441-7475
www.itw-air.com • techsuppor[email protected]
Please read all instructions BEFORE
attempting to use this product
IMPORTANT
DuaL actiOn
perSOnaL air cOnDitiOner
DiffuSe air VeSt
Models 29625, 29635
fiLter anD repLacement part item numberS
Vortec Model 5 micron Air Filter Oil Removal Filter Replacement Item
29625 701S-24A 701S-48 208GK-25H
29635 701S-36A 701S-48 208GK-35H
Models 855, 857, 859
tabLe 1: fiLter recOmmenDatiOnS
tabLe 2: Determining cOmpreSSeD air Line Size
1. Calculate total product compressed air consumption (SCFM, SLPM).
2. Determine length of compressed air line required for connection to main supply.
3. Locate pipe length in left column and read to the right to nd the compressed air requirements.
4. Locate pipe size at top of column.
maximum airfLOw (Scfm) thrOugh pipe at 5 pSig preSSure DrOp (100 pSig anD 70Of)
Pipe Length
(Feet)
Pipe Size (Nominal) - Schedule 40
1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2
10 29 65 120 254 480 978 1483 2863 4536
20 21 46 85 180 340 692 1049 2024 3208
30 17 37 70 147 277 565 856 1653 2619
40 15 32 60 127 240 489 792 1431 2268
50 13 29 54 114 215 437 663 1280 2029
60 12 26 49 104 196 399 606 1169 1852
70 11 25 46 96 181 370 561 1082 1715
80 10 23 43 90 170 346 524 1012 1604
90 10 22 40 85 160 326 494 954 1512
100 9 21 38 80 152 309 469 905 1435
maximum airfLOw (SLpm) thrOugh pipe at 0.3 bar preSSure DrOp (6.9 bar anD 21Oc)
Pipe Length
(Meters)
Pipe Size (Nominal) - Schedule 40
1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2
3 821 1840 3396 7188 13584 27677 42117 81023 128369
6 594 1302 2406 5094 9622 19584 29687 57279 90786
9 481 1047 1981 4160 7839 15990 24225 46780 74188
12 425 906 1698 3594 6792 13839 20999 40497 64184
15 368 821 1528 3226 6085 12367 18763 36224 57421
18 340 736 1387 2943 5547 11292 17150 33083 52412
21 311 708 1302 2717 5122 10471 15877 30621 48535
24 283 651 1217 2547 4811 9792 14829 28640 45393
27 269 623 113 2 2406 4528 9226 13980 26998 42790
31 255 594 1075 2264 4302 8745 13273 25612 40611
Rubber hose maximum airow rating: 1/2” I.D. rubber hose = 3/8” pipe; 3/4” I.D. rubber hose = 1/2” pipe

OperatiOn
Dual Action PAC:
The Vortec Dual-Action PAC utilizes a standard 1/4” Industrial
Interchange quick connect tting to allow for easy attachment to existing
ltered compressed air lines.
The Dual Action PAC can be used to provide a chilled air supply or a
heated air supply to the user. Hot air exits from one end of the Dual
Action PAC and cold air exits from the opposite end.These connections
are ¾” male garden hose threads. The temperatures of the air streams
can be adjusted slightly by changing the compressed air pressure to
the Dual Action PAC.
The Dual Action PAC can supply chilled or heated air to one of Vortec’s
Diffuse Air Vests (Models 855, 857 or 859, purchased separately) or
to a hood or helmet. The belt is attached to the Dual Action PAC for
horizontal orientation but can be easily repositioned to allow for vertical
orientation when used with a hood or helmet if desired.
maintenance
The Dual Action PAC may be disassembled for cleaning.When replacing
the cold cap on the Dual Action PAC it is important to torque the cold
cap to 100 inch pounds. For best results, use only clean ltered air.
1. Do not operate a Dual Action Personal Air Conditioner at air
pressures above 150 psig (10.3 bar).
2. Do not operate a Dual Action Personal Air Conditioner at line
temperatures above 110oF (43oC).
3. Avoid direct contact with compressed air.
4. Do not direct compressed air at any person.
5. When using compressed air, wear safety glasses with side
shields.
DuaL actiOn perSOnaL air cOnDitiOner
anD VeSt aSSembLy
LimiteD warranty
Vortec compressed air products manufactured by ITW Air Management
will be replaced or repaired if found to be defective due to manufacture
defect within ten years from the date of invoice. Diffuse Air Vests are
not covered by this warranty if the vest has been removed from the
packaging and placed into service.
Refer to our website www.vortec.com for full warranty details
and limitations. ITW Air Management makes no specic warranty
merchantability or warrant of tness to a particular purpose.
Insufficient airow may be caused by the following:
1. Undersized compressed air supply size.
2. Compressed air pressure too low.
3. Insufficient compressed air volume (SCFM, SLPM).
4. Partial or complete blockage of internal compressed air path, due to
dirt.
5. Loose cold cap (if disassembled for cleaning).
If trouble persists, please contact Vortec at 1-800-441-7475.
trOubLeShOOting
The compressed air supply must be ltered (5 micron maximum) to
remove water and dirt. If oil is present in the compressed air supply,
remove the oil using a .01 micron (maximum) coalescing lter. Filter
recommendations are given in Table 1. Model 29625 consumes 25
scfm (708 slpm) of air at 100 psig (6.9 bar) and Model 29635 consumes
35 scfm (991 slpm) of air at 100 psig (6.9 bar).
Filter elements must be changed on a regular basis. Frequency of
change is determined by the condition of the compressed air supply.
Filters should be installed in the compressed air supply line as close as
possible to the Vortec product.
The appropriate size of compressed air supply line should be selected
to ensure optimal performance of the Vortec product. Please refer to
Table 2 to determine what supply line size is recommended for your
application. Contact Vortec at 1-800-441-7475 for further assistance.
cOmpreSSeD air SuppLy
intrODuctiOn
The Vortec Dual Action Personal Air Conditioner (Dual Action PAC) and
Diffuse Air Vest are designed to be used together to provide worker
comfort in extreme temperatures. The vortex tube technology utilized in
the Dual Action Personal Air Conditioner uses ltered, compressed air
to concentrate chilled or heated air on the worker’s torso through the
Diffuse Air Vest. With no moving parts, and under reasonable care, the
Dual Action PAC and Diffuse Air Vest will provide years of trouble-free
operation.

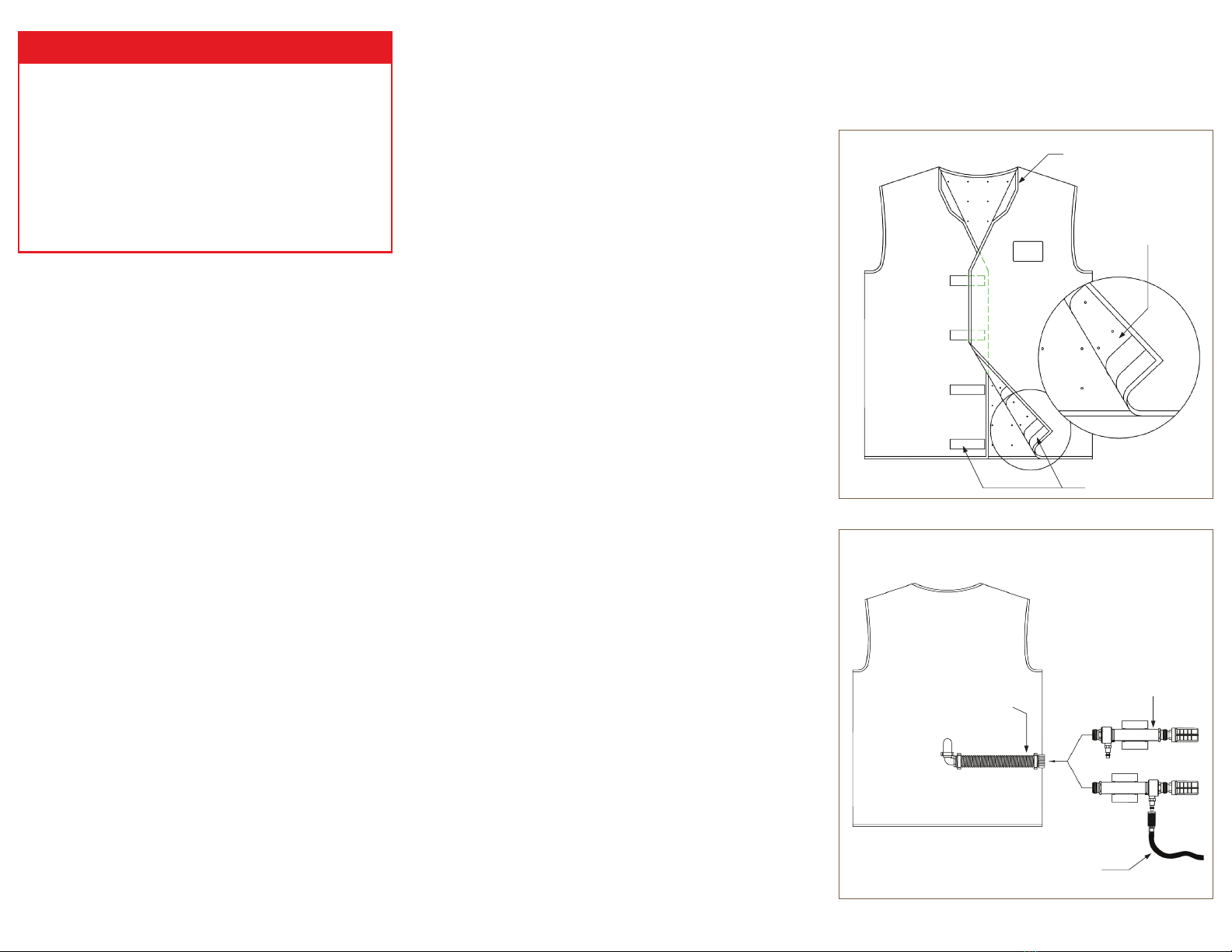

(Drawings shown below are not to scale)
View A - Vest front
Vented Neck Flaps
generaL Safety cOnSiDeratiOnS
warning: cOmpreSSeD air cOuLD cauSe Death,
bLinDneSS Or injury
When using the cold air output from the Dual Action PAC, screw the
black exhaust muffler onto the hot end of the unit. When using the hot
air output, move the black exhaust muffler to the cold end. (Refer to the
labeling on the unit.) Connect the non-muffled end to the vest or hood/
helmet via the ¾” male garden hose thread connection. The body of the
Dual-Action PAC can be rotated 180 degrees to allow the compressed
air inlet quick connect tting to point in the most convenient direction
(pointing down if the air supply hose is laying on the oor or pointing
upward if the air supply hose is suspended from the ceiling).
Diffuse Air Vest:
Upon receipt, inspect the vest and contact your Vortec representative
immediately if you suspect damage of any kind to the vest. Once
the vest is placed into service, it may not be returned under any
circumstances. Put the vest on and secure at the front using the Velcro
closure fasteners. Be sure to leave enough room to comfortably move
in the vest. Securely attach the exible hose on the back of the vest to
the Dual Action PAC. Adjust the belt supplied with the Dual Action PAC
to t securely around the outside of the vest, and still allow comfortable
movement to the wearer.
The ensure efficient operation, keep the Velcro neck aps closed
if using Model 29625. If using Model 29635, the neck aps may be
opened to provide cooling to the head and neck of the wearer.
The Dual Action PAC and Diffuse Air Vest may be used under welding
leathers, coveralls and other protective garments, but the warm or
cold air exhausted from the Dual Air PAC must be vented outside the
garment.
View B - Vest back
Perforated inner lining
Velcro closure fastening
Diffuse Air Vests and
compressssed air lters
are sold separately.
Compressed air hoses are
not provided by Vortec.
Dual Action Personal Air
Conditioner (belt not shown)
Filtered, compressed air supply
Flexible hose
(cold or warm air supply to vest)
Shown in
Cold Mode
Shown in
Warm Mode
