VOTEM VP-700 User manual

2.09
2022.01.04

User Manual VP-700
2
Characteristics and Principles of VP-700
Thank you for purchasing the VP-700 (Multi Parameter Patient Monitor)
VP-700 provides a variety of information about the patient by numeric values and
waveforms.
VP-700 has features as follows
※Basic functions of Patient measuring
- ECG lead (I, II, III, aVR, aVL, aVF, V) select and Respiration measurement
- Arrhythmia measurement, ST Level analysis and Pacemaker Detect function
- SpO2 and Pulse Rate measurement
- NIBP measurements
- Body Temperature (1 Temp)
※Optional functions of Patient measuring
- End-tidal partial pressure respiration (EtCO2)
- 2 IBP measurements
- Body Temperature (2 Temp)
- F3000 Temperature (Oral(Blue) or Rectal(Red))
※Etc.
- Trend Data Saving for 7 days
- 20 Event Data Saving
- Built-in 3 channel Printer. (Option)
- Touch Screen (Option)
- Trend Data-saving using SD card (Option)
If you buy SD card package supported by VOTEM, you can upgrade it easily
and you can get more services.

User Manual VP-700
3
Contents
◆Preface --------------------------------------------
4
◆ECG Measurement --------------------------
47
◆Warranty ------------------------------------------
5
◆ECG OUT (Optional) -------------------------
52
◆Before reading this manual ------------------
6
◆ST Analysis -------------------------------------
53
◆Safety precaution -------------------------------
7
◆Arrhythmia Analysis --------------------------
54
◆Electrical safety precautions -----------------
9
◆Pacemaker Detection -----------------------
56

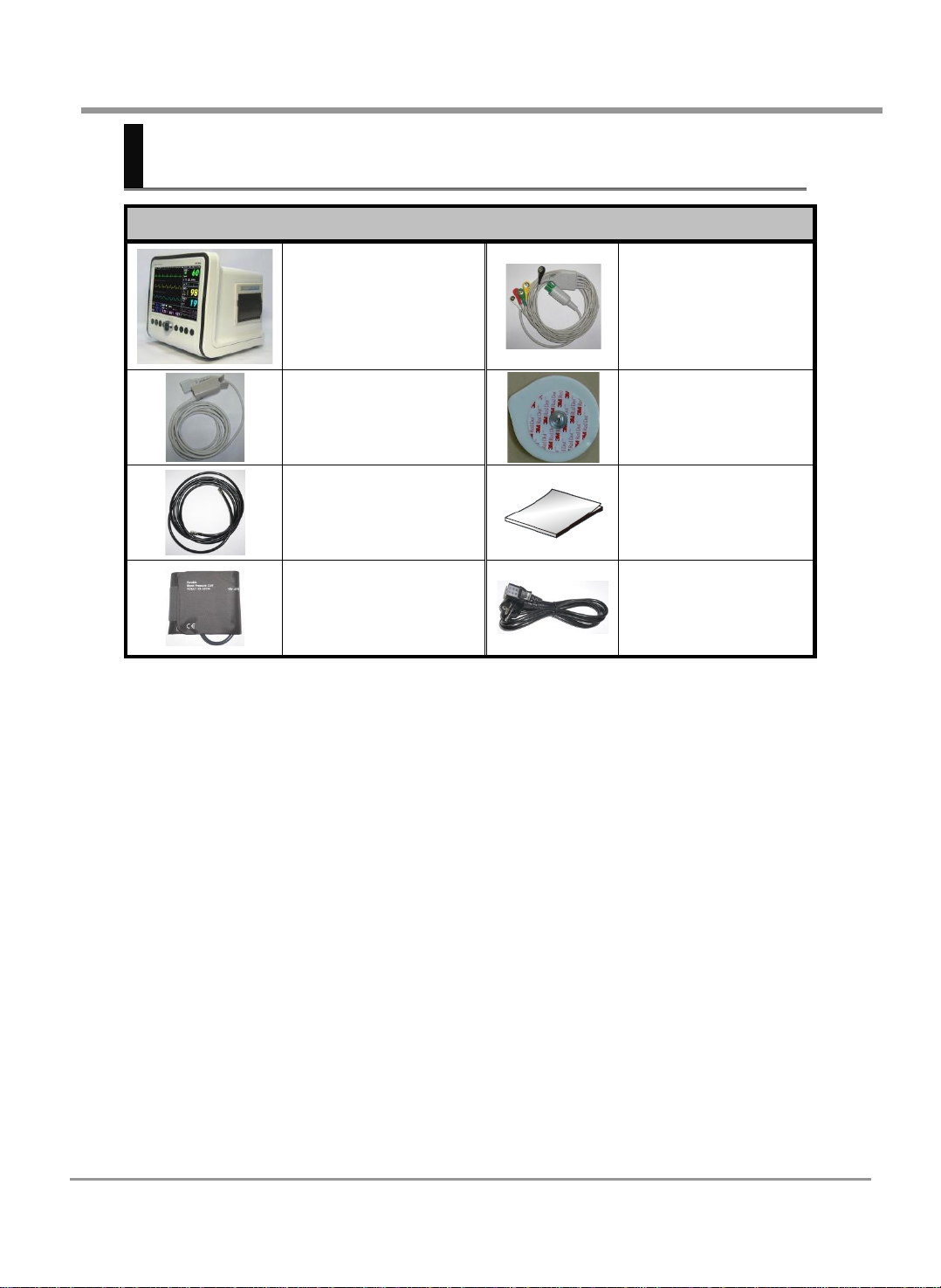

◆Composition of VP-700 -----------------------
12
◆Respiration Measurement ------------------
57
◆How to set VP-700 ----------------------------
13
◆HRV Measurement ---------------------------
59
◆Components of VP-700 -----------------------
14
◆NIBP Display-----------------------------------
61

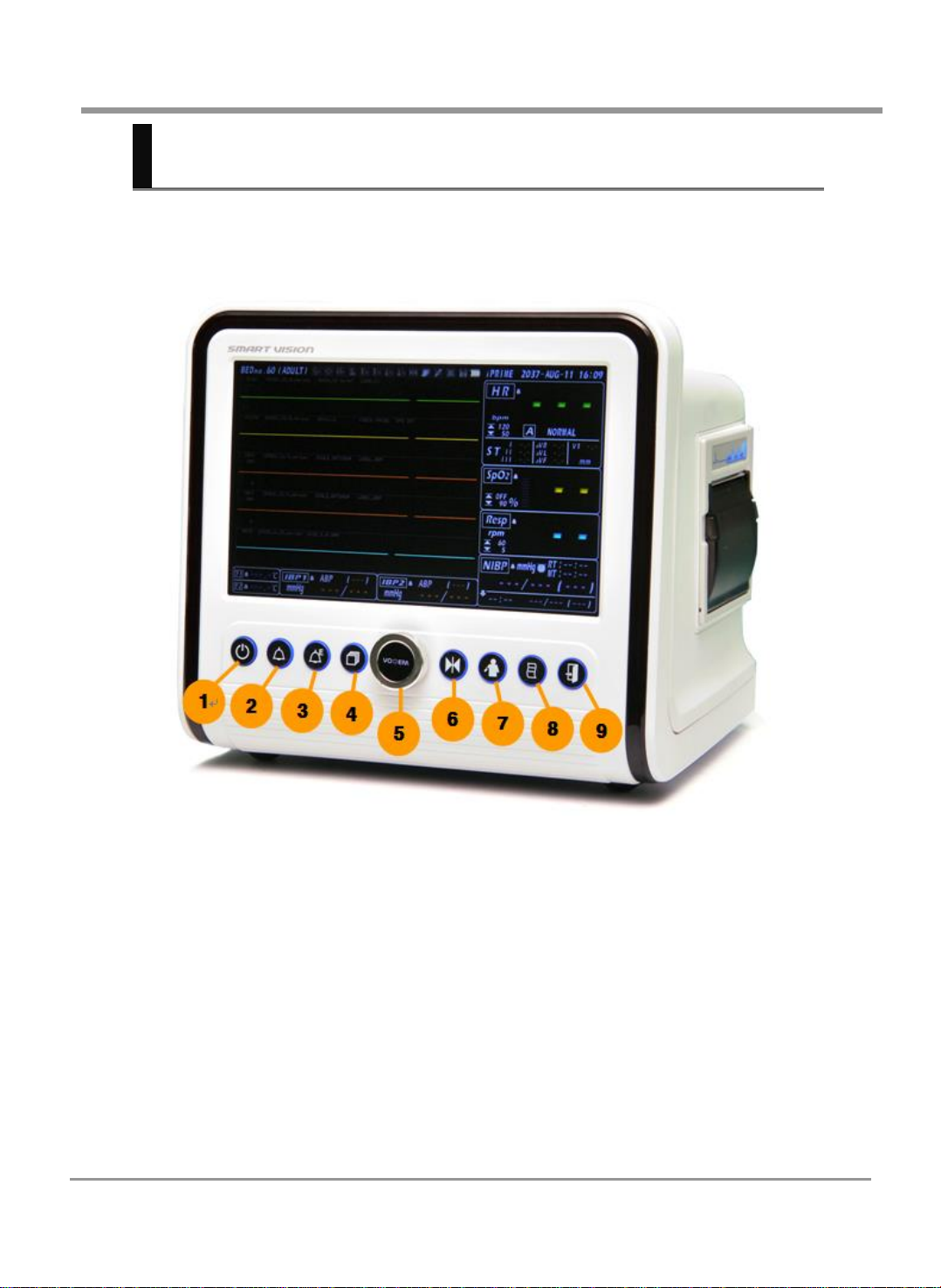

➢Front & Operation panel -------------------
14
◆NIBP manual measurement ---------------
62

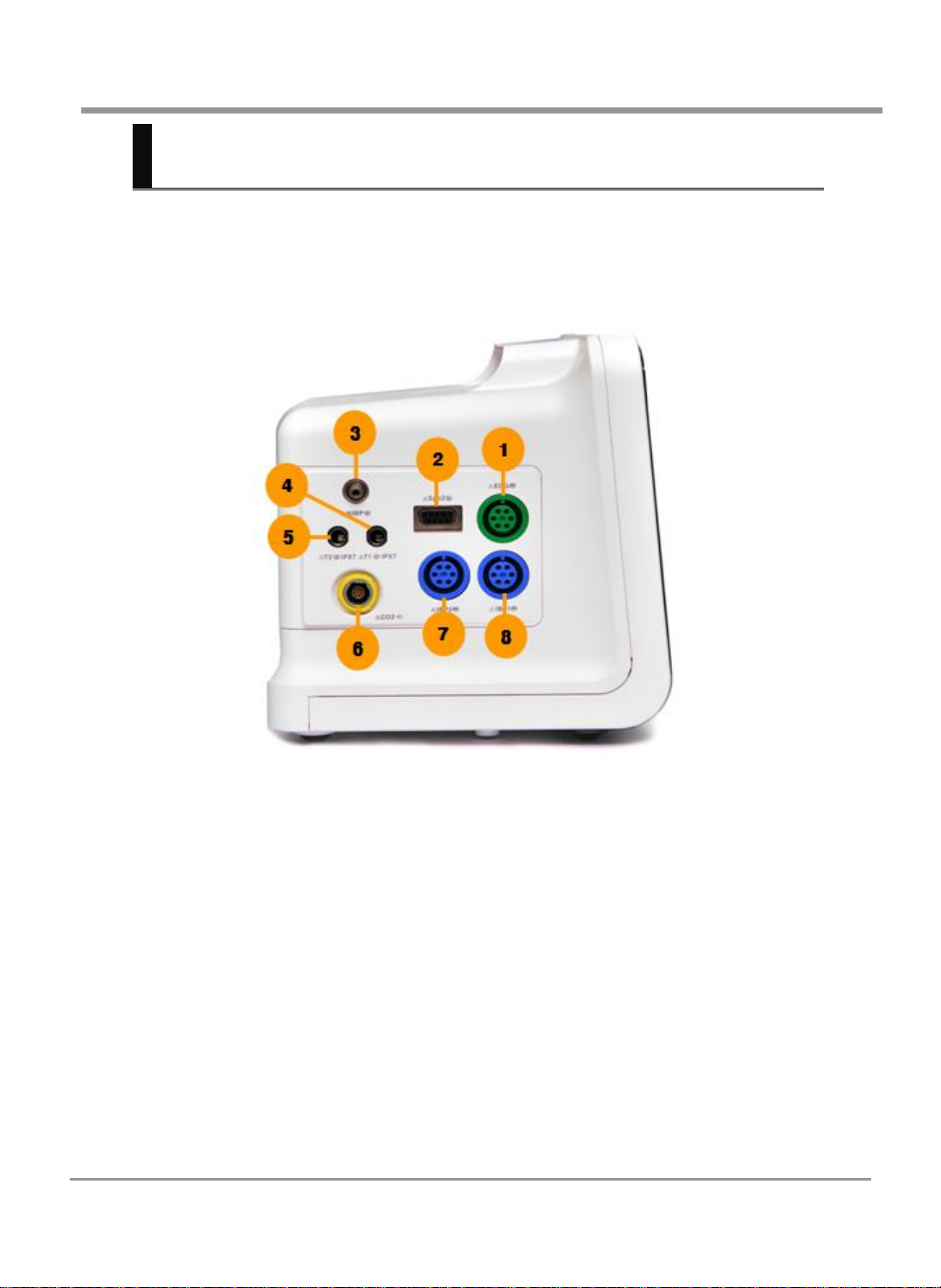

➢Right side -------------------------------------
15
◆NIBP auto measurement -------------------
63
➢Left side ---------------------------------------
16
◆NIBP Error Message -------------------------
65

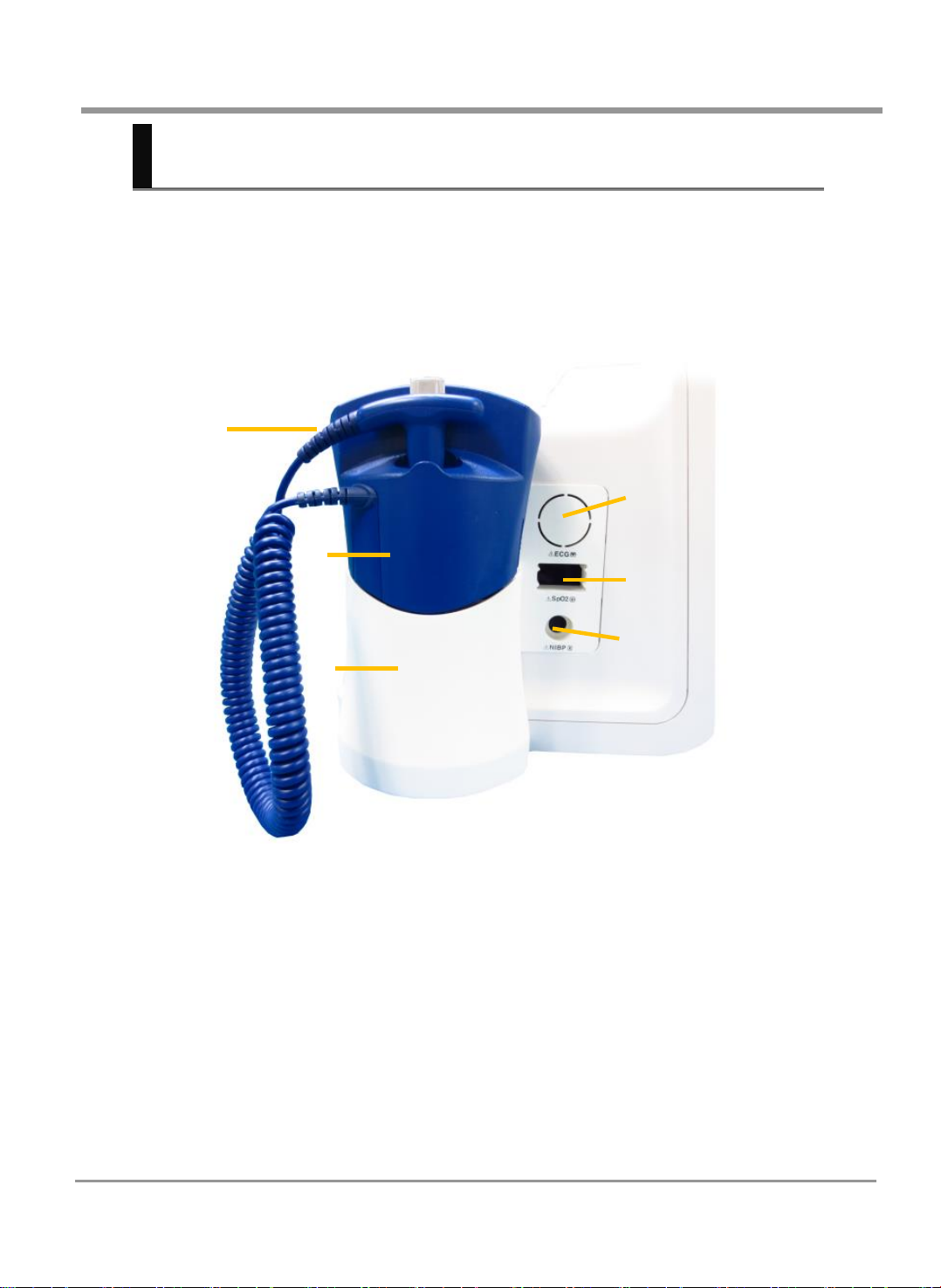

➢Left side (F3000 Temp–optional) --------
17
◆Change of NIBP Unit ------------------------
66

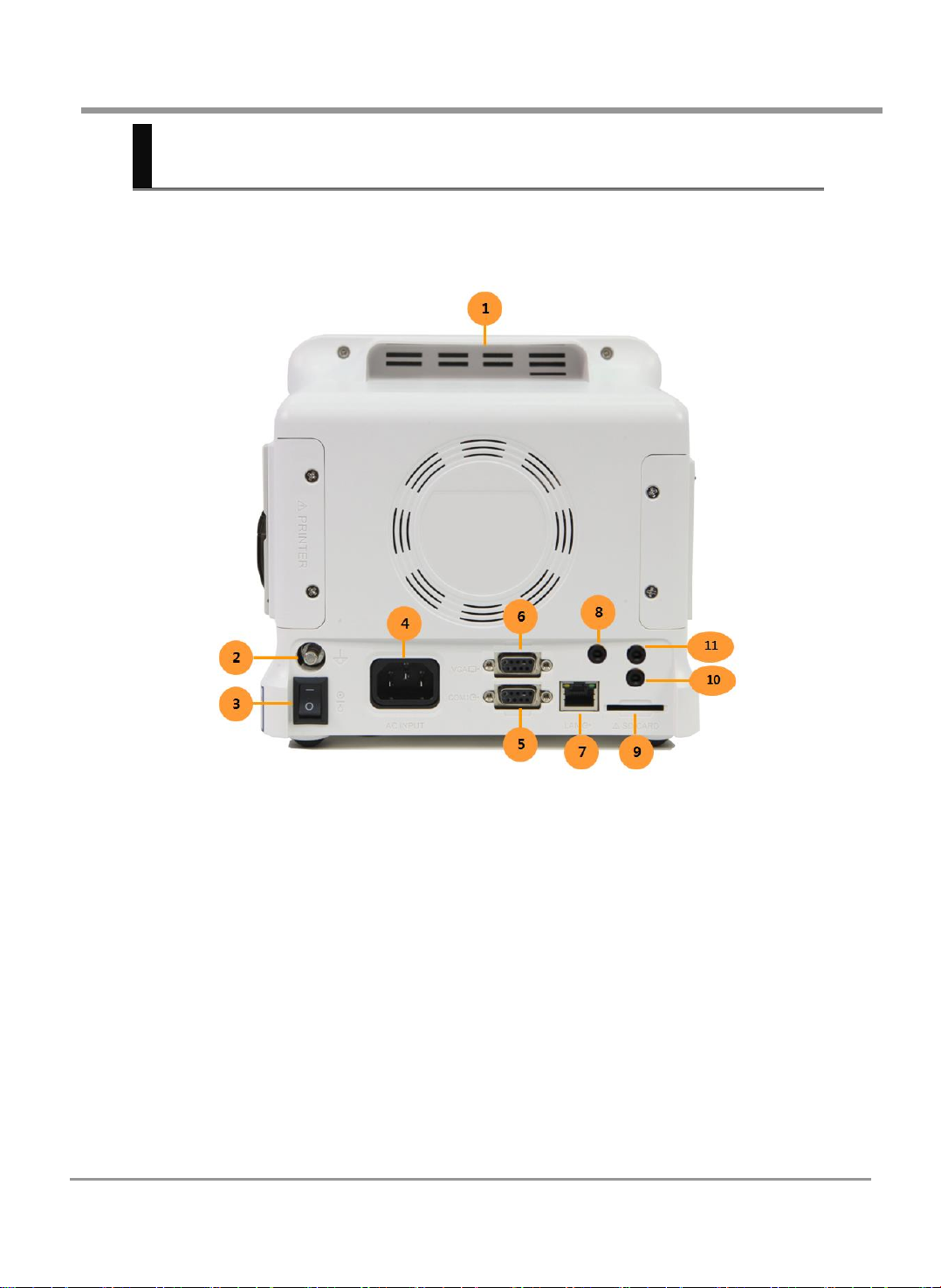

➢Back side --------------------------------------
18
◆VENOUS STAT -------------------------------
67

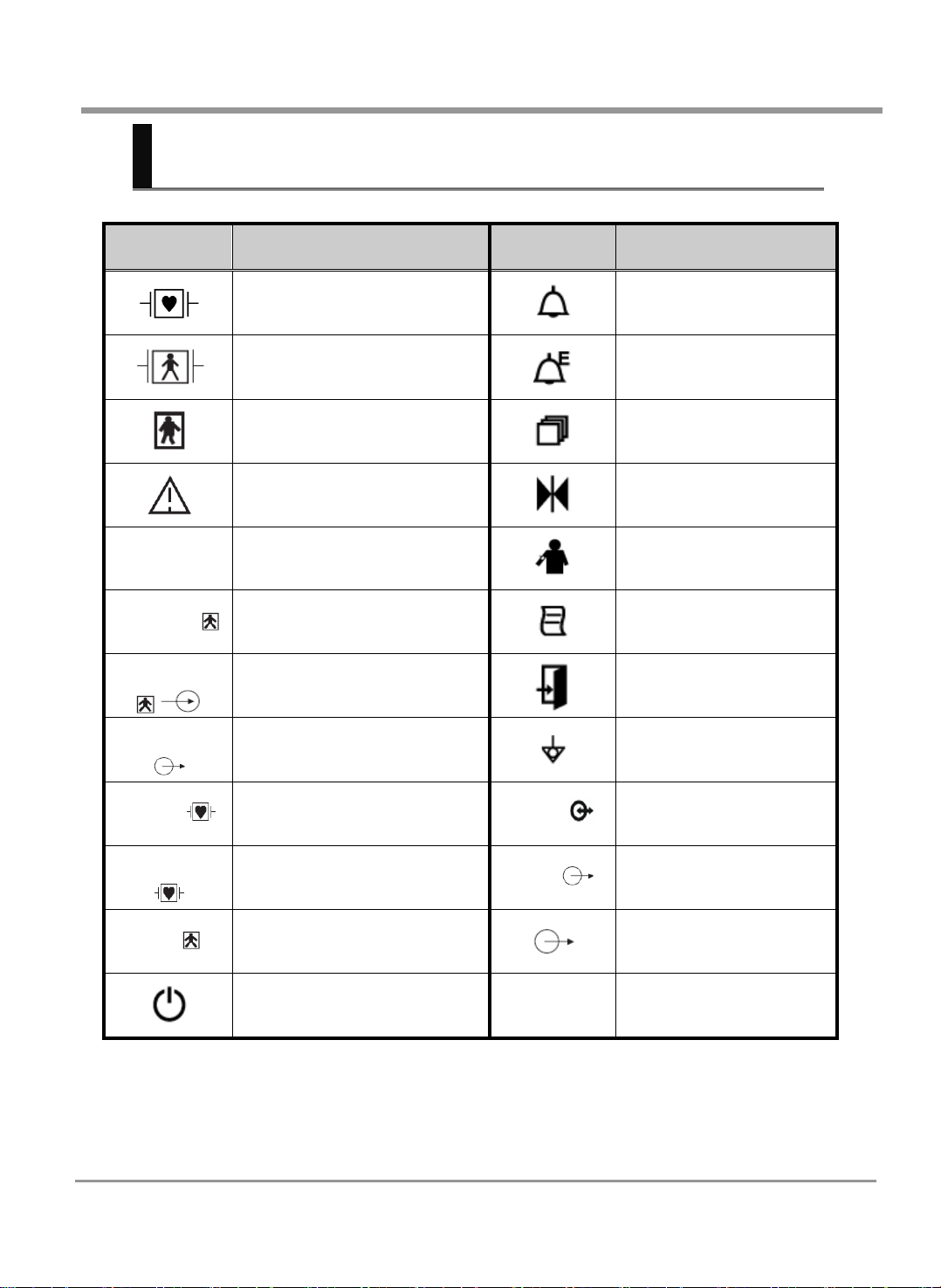

◆Description of product symbols --------------
19
◆NIBP Trend Screen --------------------------
68

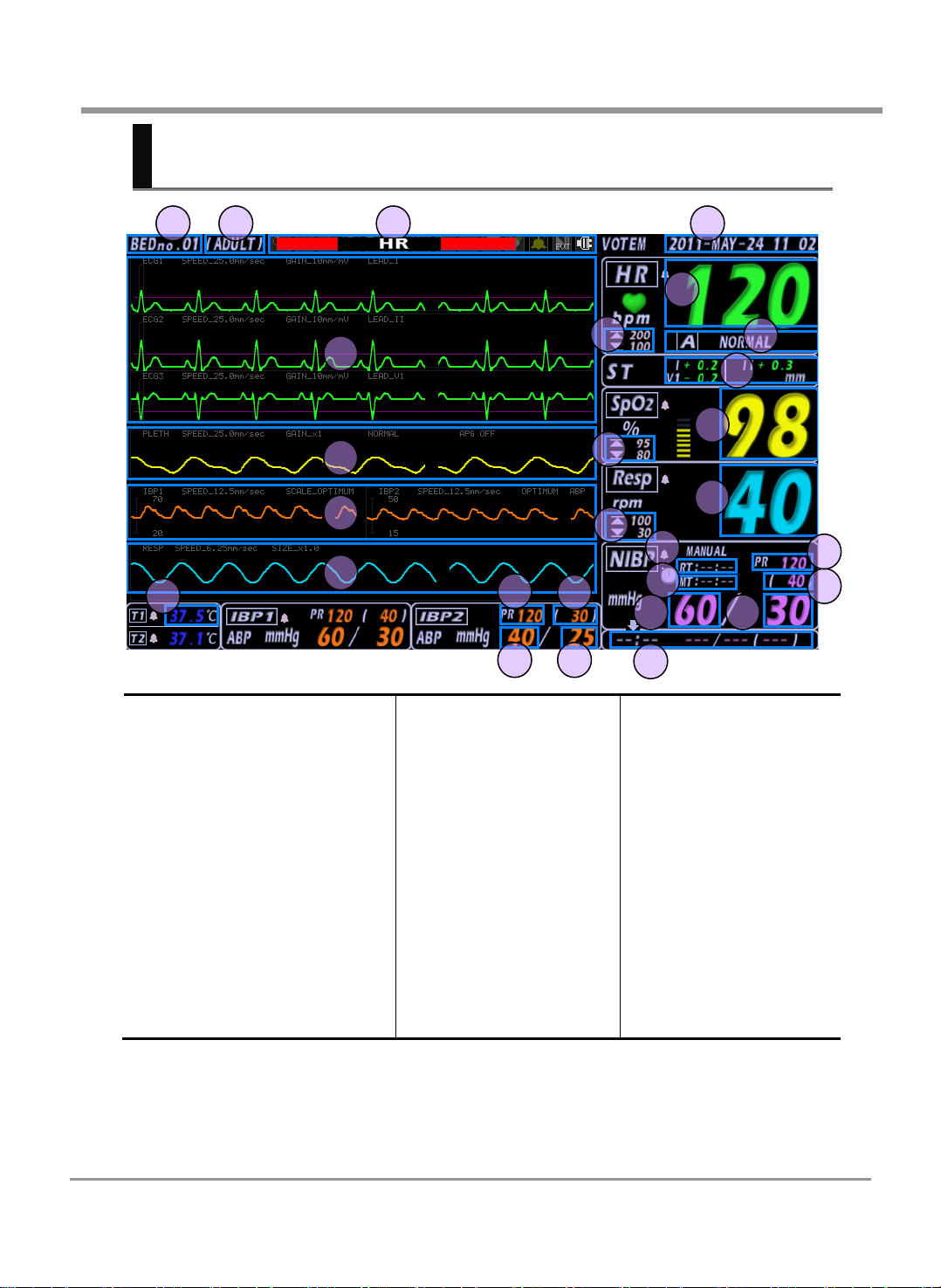

◆Explanation of screen -------------------------
23
◆SpO2 measurement -------------------------
69
◆How to use VP-700 ----------------------------
24
◆APG Measurement ---------------------------
72
◆Alarms ---------------------------------------------
25
◆Temperature measurement ----------------
74
◆Alarm setting-------------------------------------
27
◆F 3000 Temperature measurement ------
75
◆Alarm range --------------------------------------
28
◆IBP measurement ----------------------------
83
◆Trend display ------------------------------------
30
◆IBP OUT (Optional) --------------------------
89
◆Trend data check -------------------------------
31
◆EtCO2 measurement (Optional) ----------
90
◆Trend data save & load -----------------------
33
◆Auxiliary power unit (Optional) ------------
95
◆EVENT Display----------------------------------
34
◆Before Requesting After-Sales Service -
96
◆EVENT Data Check----------------------------
35
◆Product Specifications ------------------------
99
◆SETUP setting ----------------------------------
37
◆Safety --------------------------------------------
106
◆Default set ----------------------------------------
39
◆ Network Appendix -----------------------------
112
◆Printer setting(Optional) ----------------------
42
◆ CART, Wall Mount Appendix----------------
113
◆COLOR Setting ---------------------------------
44

User Manual VP-700
4
Preface
Thank you for purchasing the VP-700.
⚫To ensure safety operating and long-term performance stability, it is essential
that you fully understand the functions, operating and maintenance.
Read operating manual carefully before using.
⚫Please keep this manual in a place where it is easy to find and check its
function.
⚫Remove packaging and protective film before use.
This device is intended for use under the direct supervision of a licensed health
care practitioner. The intended use of this device is to measure
ECG(electrocardiographic), Respiration, SpO2(pulse oximeter), Invasive Blood
Pressure,Non-InvasiveBloodPressureandTemperaturefor determining patient’s
abnormalities. To ensure patient safety, use only parts and accessories that fit
manufacturers’ requirements recommend by VOTEM.
Parts used which are not authorized by the manufacturer may cause damage to
the product, Warranty may not be covered.
You may contact us at our telephone number of sales, services, and supplies.
Sales Office Tel: [phone]
E-mail: [e-mail]
* Please give us the Model name, Serial Number, Purchasing date and when trouble
occurred and service needed.
How to reach us

User Manual VP-700
5
Warranty …
⚫VOTEM warrants to the purchaser that VP-700 will be free from defects in material
and/or workmanship for one year from the date of delivery but In case of
consumable items (ex: LCD, battery, printer, NIBP valve etc.) and accessories will
be free from defects in material and /or workmanship for 6 months from the date
of purchasing or the date of first operation. (This warranty is not including
disposable item)
⚫This warranty applies only to failures from operating the equipment under
conditions for which it was designed. Warranted equipment is to be used only for
the intended and labeled indications presented in the literature accompanying the
equipment.
⚫This warranty does not cover loss or damage resulting from external causes, such
as, but not limited to, fire, flood, windstorm, hail, lightning, earthquake, theft,
misuse, or abuse. Damage caused by equipment relocation is not covered.
⚫Product has been damaged as a result of an accident, misuse, abuse, dropping,
abnormal operating conditions, or attempts to modify or alter any part or assembly.
⚫Cosmetic defects or deterioration will not be refinished or replaced. The costs of
training materials or supplies are not covered.
⚫VOTEM will not be responsible for any loss, damage, or injury resulting from delay
in rendering service under this warranty.

User Manual VP-700
6
Before reading this Manual
Some symbols are used in this manual to help users or patients use this
product safely and appropriately and to prevent any risk to patients or
damage to materials. Please read and understand all warnings and
precautions.
Symbols for safety
WARNING
“WARNING” is used to indicate the presence of a hazard which can
cause severe personal injury, death or substantial property damage if
the warning is ignored.
CAUTION
“CAUTION” is used to indicate the presence of a hazard which will or
can cause minor personal injury damage if the caution is ignored.
Check point before using the function
NOTE
“NOTE” is used to notify the user of installation, operation, or
maintenance information which is important but not hazard related.

User Manual VP-700
7

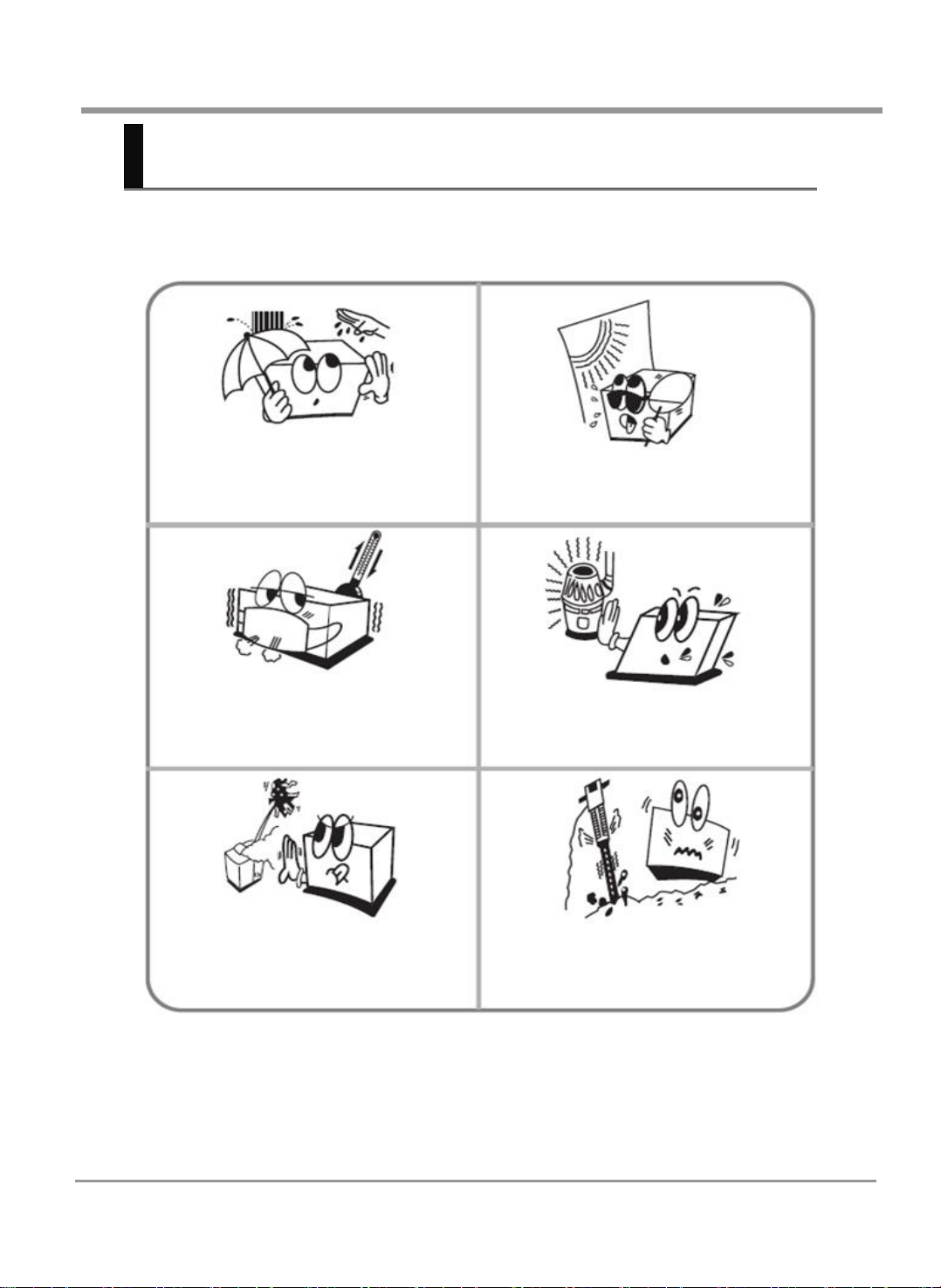

Safety Precaution
⚫Do not operate or store the equipment under the following environments.
Avoid placing in an area exposed to
moisture. Do not touch the equipment with
wet- hand.
Avoid exposure to direct sunlight
Avoid placing in an area where there is a
high variation of temperature. Operating
temperature ranges from 10C to 35C.
Operating humidity ranges from 30% to
85%.
Avoid in the vicinity of Electric heater
Avoid placing in an area where there is an
excessive humidity rise or ventilation
problem.
Avoid placing in an area where there is an
excessive shock or vibration.

User Manual VP-700
8
※Standard Operation and storage Condition is as below
Condition
Temperature
Pressure
Humidity
Operation
Condition
10℃ ~ 35℃
(50 ~ 95℉)
700~1060 hPa
30 ~ 85%
Storage
Condition
-10℃ ~ 50℃
(14 ~ 122℉)
700~1060 hPa
20 ~ 95%
Avoid placing in an area where chemicals
are stored or where there is in danger of
gas leakage.
Avoid dust and especially metal material
into the equipment
Do not disjoint or disassemble the
equipment. Votem takes no responsibility
of it
Power off when the equipment is not fully
installed. Otherwise, equipment could be
damaged.
Pull out the power cord with holding
the plug, not the cord.

User Manual VP-700
9
Electrical safety precautions
Please check followings before using the
system
W
A
R
N
I
N
G
◆VP-700 is intended only to measure and assess patient state. It must be
used in conjunction with Clinical signs and symptoms when diagnosis is
made.
◆Only qualified personnel should use the Patient monitor. Please read the
user’s manual before use. Check carefully all the directions for use of any
accessories and factions. The user must check the safety of environment
when using it.
◆Use of this product is prohibited during MRI photographing. A fire may
breakout from the induced current, and the accuracy of the product and the
MRI may be influenced by cross interference.
◆When the product has been moved, make sure to turn it off and arrange the
accessories in order. Injured cords or cables may cause fire or electric
shock.
◆The computerized ECG analysis should be judged by qualified medical
professionals, and t should not be the sole basis in determining necessity of
treatment for the patient.
◆VP-700 can be used alongside with defibrillator while the accuracy of the
product may be fallen in a short time
◆Leakage, heating, firing or disruption of the battery may cause fire or injury.
➢Do not use batteries beyond those specified in this manual.
➢Do not short-circuit the battery and does not heat, integrate, or dispose
of it in a fire.
◆To ensure patient is electrically isolated, connect only to other equipment
that provides patient electrical isolation.
◆It should be checked regularly to ensure its accurate operating.
◆When using electrosurgical units (ESU), patient leads should be placed in a
position that is equal distance from the Electrosurgery electrotome and the
grounding plate to avoid burns to the patient. Never entangle the ESU cable
and the ECG cable together.
( high-frequency surgical )
◆Never spray disinfectant directly onto the product. It can be cause of
products failure or safety hazard.

User Manual VP-700
10
Electrical safety precautions
Please check followings before using the
system
C
A
U
T
I
O
N
◆To prevent electric noise during use, the product should be installed apart
from dynamo, X-ray equipment, broadcast equipment or portable cables. An
inaccurate result may occur when these equipment are placed near the
product.
◆The analysis of arterial blood pressure measurement should be judged by
qualified medical professionals
◆Arterial blood pressure may be influenced by the patient’s posture, physical
condition and other factors such as a patient’s movement.
◆Premature neonates and patients with chronic pulmonary disease should be
checked for oxygenation levels before starting treatment.
◆SpO2 Sensor-attached sites should be checked at least every 4 hours
(every 2 hours for reusable finger sensors on adults) and every 2 hours for
neonates. If the sensor attachment status is not checked periodically, it may
lead to skin injury by extended contact, necrosis from the pressure, and an
error in SpO2 values. Nail polish or calluses may obstruct measurement.
Special care is required for patients with poor blood flow. Patients with weak
blood flow should be checked every 2 hours.
◆When the product is not used for a long time, separate the battery from the
product.
◆When the product has been moved, make sure to turn it off and arrange
the accessories in order. Injured cords or cables may cause fire or electric
shock.
◆In case where a pacemaker sustains the patient, healthcare professional
must supervise the entire application.

User Manual VP-700
11
Electrical safety precautions
Please check followings before using the
system
N
O
T
E
◆VP-700 is “Class IIb” equipment.
◆It is type “CF grade” for ECG, Resp, IBP and “BF grade” for EtCO2, SpO2,
NIBP and Temp.
◆The noise level is“ B” Class according to the IEC/EN 60601-1 (Safety of
Electric Medical Product), and the noise redemption is “B” Level according
to the IEC/EN 60601-1-2 (Electromagnetic Compatibility Requirements)
◆Protection grade against water is“ IPX 2”.
1) Degree of protection into Applied part ( IBP1, IBP2, TEMP1,
TEMP2, ) : IPX 7
Degree of protection into applied part ( SpO2): IPX 1
Applied part ( NIBP, EtCO2, ECG ) do not have protection against
ingress of water.

User Manual VP-700
12
Composition of VP-700
Kindly check all the items inside the
package before installation.
Standard Accessories
Main 1 set
ECG Cable
5 lead type (1EA)
SpO2 Finger Probe
(1EA)
3M Electrode
(5 PCS/1set)
NIBP Hose (1EA)
Quick Manual
Cuff for adult (1EA)
Power Cord (1EA)
◼Optional Accessories
-ECG Cable 3 lead type
-SpO2 Extension Cable
-Press Measuring Kit
-Printer Module
-Roll Paper(18M)
-3M Electrode (50 PCS/1SET)
-Battery
-TROLLEY (=CART)
-Wall Mount
-Disposable SpO2 Sensor
-CUFF for Child and Neonate
-Temperature Sensor
-Ground Cable
-EtCO2 Kit set
(EtCO2 when operating)

User Manual VP-700
13
How to set VP-700
◆Precautions for Settings
Pay attention when setting VP-700 for the following points
➢Use VP-700 under conditions of 10℃∼35℃of circumstantial
temperature and 30％∼85％humidity.
➢Check the connection status of the power cord.
➢Do not connect multiple cords to the power supply.
➢Place the main body on a flat area.
➢If noise occurs, ground the equipment further.
➢Do no use any electric cords generating connecting noise.
➢Take care since the product can be broken by mechanical shock.
➢Get rid of dust or inflammable material near the product when setting it up.
◆Check points Before Use
Check the following points before measuring the patient’s condition.
- Make sure there is no mechanical risk.
- Check the lead, power plug, and accessories connected on the outside.
◆Maintenance and Cleaning After Use
➢Keep the product clean by cleaning it using a soft cloth at least once a month. Do
not use thinner, ethylene, oxidant or lacquer since these may damage the product.
➢Keep the accessories clean of dust or foreign materials. For cleaning, use a soft
cloth and clinical alcohol.
➢Do not soak the accessories in liquid or detergents. Keep the product and
accessories out of any liquid.

User Manual VP-700
14
Components of VP-700
◆Front & Operation Panel
(1) Power Button
(6) FREEZE Button
(2) ALARM ON/OFF Button
(7) NIBP START/STOP Button
(3) EVENT SAVE Button
(8) PRINT Button
(4) SCREEN Button
(9) EXIT Button
(5) MENU Button

User Manual VP-700
15
Components of VP-700

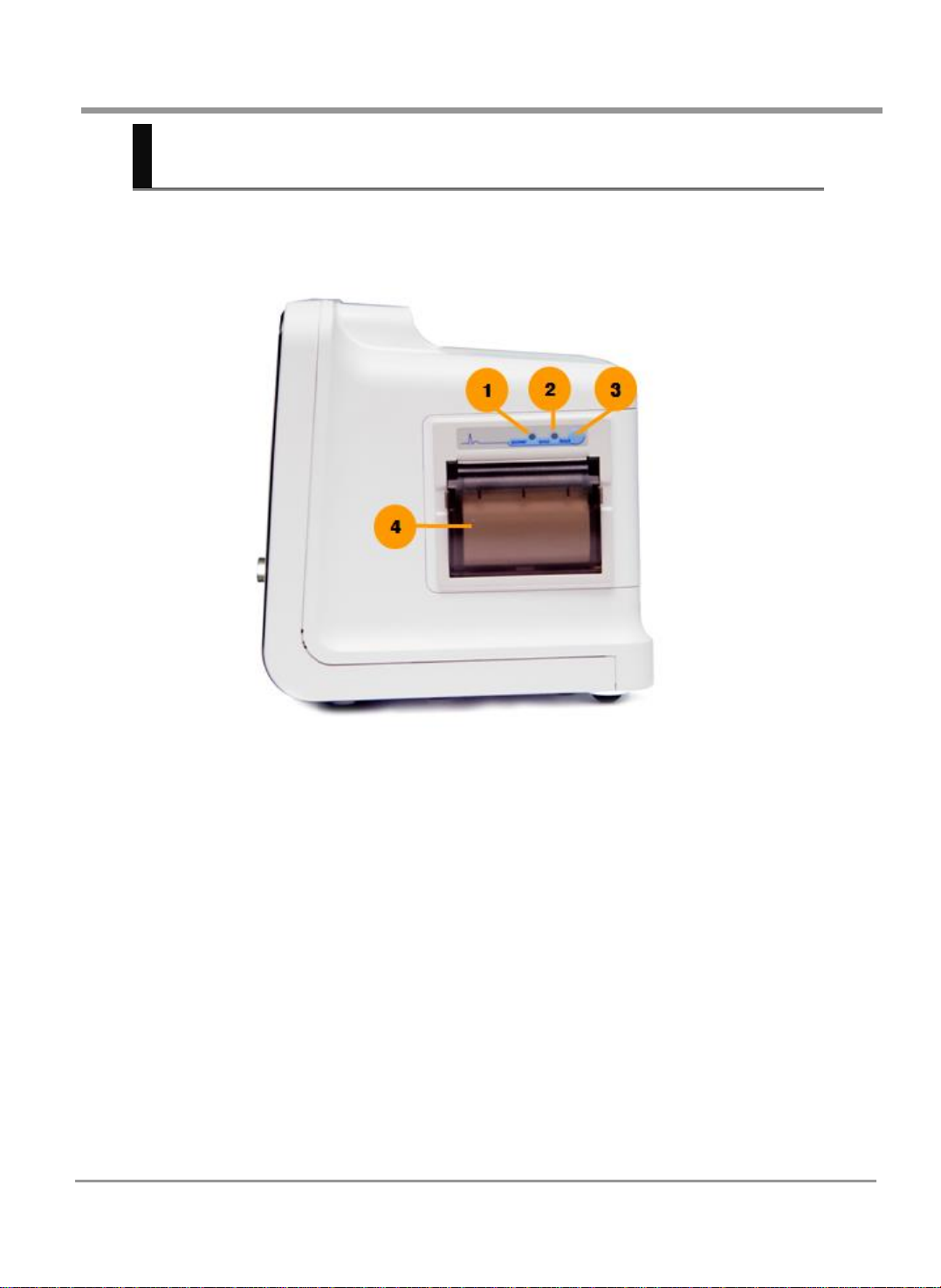

◆Right Side (Printer Option)
(1) PRINT POWER LED
(3) PRINT FEED BUTTON
(2) PRINT ERROR LED
(4) PRINT DOOR

User Manual VP-700
16
Components of VP-700
◆Left Side
(1) ECG/RESP Connection Terminal
(5) TEMP 2 Connection Terminal (Optional)
(2) SpO2 Connection Terminal
(6) CO2 Connection Terminal (Optional)
(3) NIBP Connection Terminal
(7) IBP1 Connection Terminal (Optional)
(4) TEMP 1 Connection Terminal
(8) IBP2 Connection Terminal (Optional)

User Manual VP-700
17
Components of VP-700
◆Left Side (F3000 Temperature – Optional)
(1) Temp Probe sensor
(4) ECG/Resp Connection Terminal (Option)
(2) Probe Chamber
(5) SpO2 Terminal
(3) F3000 Side Cover
(6) NIBP Connection Terminal
●
1
●
2
●
3
●
4
●
5
●
6

User Manual VP-700
18
Components of VP-700
◆Back Side
(1)
Handle
(7)
LAN Port
(2)
Ground Pole
(8)
DC 12V Input (Option)
(3)
MAIN Power Switch
(9)
SD Card Slot
(4)
AC Power Input Port
(10)
ECG Out Port (Option)
(5)
RS232 Port
(11)
IBP Out Port (Option)
(6)
VGA Out put

User Manual VP-700
19
Description of Product Symbols
Symbol
Description
Symbol
Description
Type CF Product,
Defibrillation protected
Alarm On/Off
Type BF Product,
Defibrillation protected
Alarm Event
Type BF Product
Screen Change(Screen)
Attention, Warning consult
Accompanying documents
Stop Waveforms (Freeze)
IPX 7
Liquid Protection Grade
Non Invasive Blood Pressure
Manual Measurement(NIBP)
TEMP 1~2
Temperature
Start Printing (Printer)
CO2 Input
Gas Input
Initial Screen (Exit)
CO2 Exhaust
Gas output
Ground
IBP 1~2
Invasive Blood Pressure
COM1
Use for Program Upgrade
ECG/RESP
Electrocardiograph / Respiration
LAN
Use for Central Monitoring
NIBP
Non Invasive Blood Pressure
ECG Out
Power Switch
-
-

User Manual VP-700
20
Explanation of screen
You can check setting information on the
LCD screen.
1
: Bed Number
11
: Respiration Alarm Limits
21
: IBP Mean
2
: Default set
12
: Respiration Measurement
22
: IBP Systolic
3
: Alarm and Function Icon
13
:NIBP Auto Interval
23
: IBP Diastolic
4
: Date & Time
14
: NIBP Measurement end
time
24
: Temp Measurement
5
:Heart Rate Measurement
15
: NIBP Systolic
25
: RESP Wave
6
: Heart Rate Alarm Limits
16
: NIBP Diastolic
26
: IBP Wave
7
: Arrhythmia,
Pacemaker Detect
17
: NIBP Mean
27
: SpO2 Wave
8
: ST Segments Detect
18
: NIBP PR Measurement
28
: ECG Wave
9
: SpO2 Alarm Limits
19
: NIBP before
Measurement
10
: SpO2 Measurement
20
: IBP PR Measurement
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
