VOX NT15C1 Parts List = SAFETY CRITICAL COMPONENT.

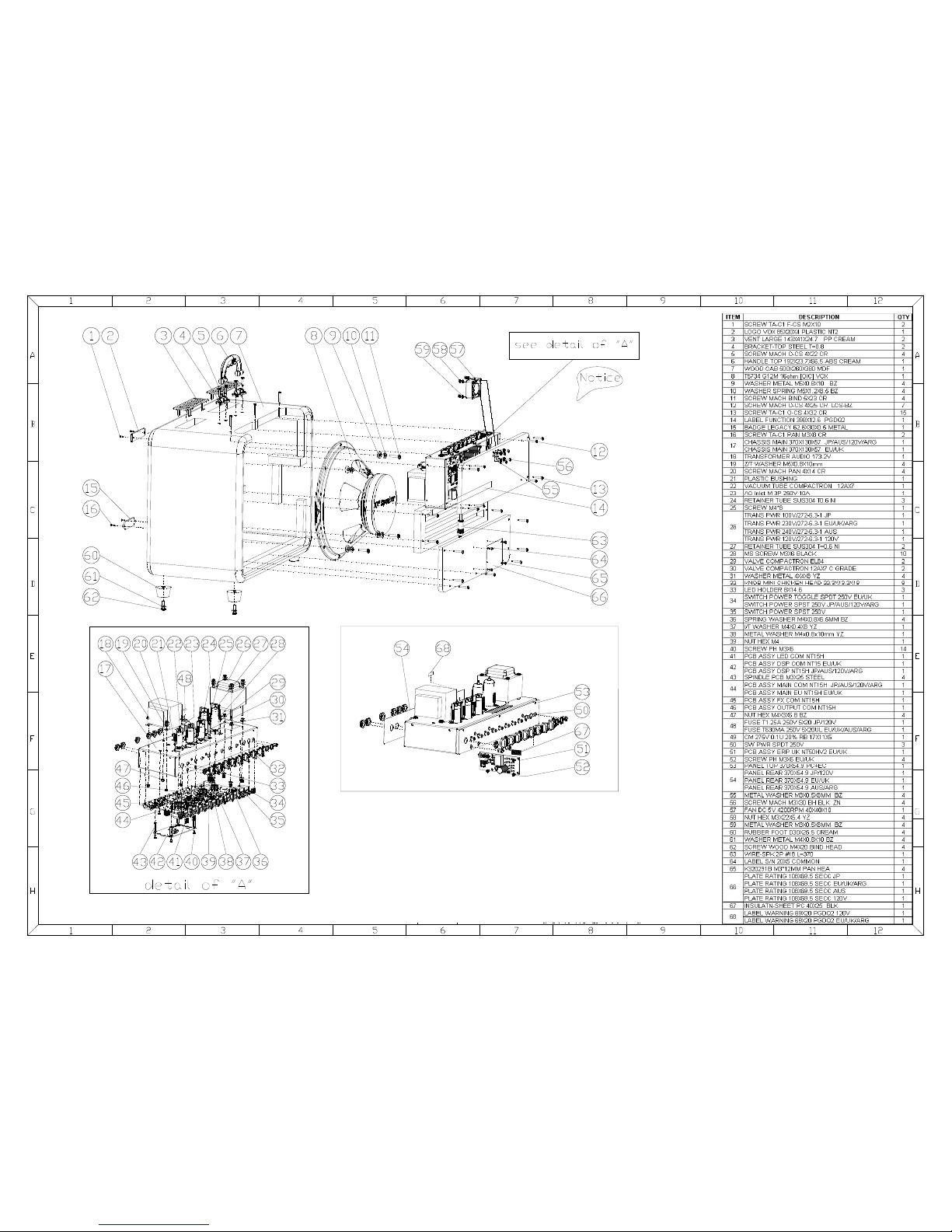

*:common parts as NT15H-G2 Assem=Assembly view item number
Code Category Part Name Description Remark QTY
530000003187 CIRCUIT ASS'Y BOARD PCB ASSY DSP COM NT15 Assem42 1
530000002892 REGULATOR IC LM1117S-5.0 (HTC KOREA) U1 1
530000002714 IC NJM2115M ASIC U2 1
530000002893 REGULATOR IC IC REGULATOR UR3325 U3 1
500324018021 A/D AK5358AET-E2 U4 1
500320012334 DSP MB87R1420PMC-G-BNDE1 U5 1
530000002714 ASIC NJM2115M U8 1
500324018020 D/A AK4384ET-E2 U9 1
530000002890 CRYSTAL CRYSTAL 22.5792MHZ+/-50 X1 1
530000003188 CIRCUIT ASS'Y BOARD PCB ASSY ERP EU UK NT15H Assem51 230V only 1
530000002089 DIODE DIODE IN4007-F AT D1,D3 2
530000003178 RESISTOR RWR 5W 47K 5% SQZ RL R21 1
530000003177 RELAY RELAY 12V 0.033A SPST RE K1 1
530000003180 PHOTO COUPLER PHOTOCOUPLER EL817 S1 1
530000003185 SLIDE SW SWITCH SLIDE SPDT 30VDC SW2 1
530000003226 PCB ASSY MAIN COM NT15C
530000003227 PCB ASSY MAIN EU UK NT15
530000002089 DIODE DIODE IN4007-F AT D1 1
530000002090 DIODE DIODE BRIDGE 50V 4A D11 1
530000002089 DIODE DIODE IN4007-F AT D2 1
530000002089 DIODE DIODE IN4007-F AT D3, D4, D5, D6 4
530000003228 DIODE DZ 1.3W 5.1V 10% AT D50 1
530000003181 DIODE DZ 1.3W 15V 10% AT D7, D8 2
530000002620 RELAY RELAY 12V 1A DPDT BP-12 K1 1
530000002621 RELAY RELAY 1POLE DC5V 2A SPDT K2, K5 2
530000002619 RELAY RELAY 5VDC 1A DPDT BP-5 K3, K4 2
530000002897 RESISTOR RMOF 1/4W 0L47R 5% AT F1 1
530000002633 RESISTOR RWR 5W 1K 5% SQZ RL R78 1
530000003179 RESISTOR RWR 5W 120R 5% SQZ RL R79 1
530000002614 IC TRIAC MAC97A6G 400V Q3 1
530000002891 REGULATOR IC UC NJM7808FA-#ZZZB U1 1
530000002902 FUSE FUSE T315MA 250V F2 1
530000002094 FUSE FUSE T6.3A 250V F3 1
530000002066 FUSE HOLDER FUSE HOLDER FUSE HOLDER 1
530000003183 FET JFET P-CH 15V J175 70MA Q4 1
530000002905 SW PWR SPDT VS011-2-00A-M Assem50 SW1, SW2, SW3 3
530000002922 TUBE SOCKET DIN SOCKET F 9PIN 500V V1H, V2H, V3H,
V4H 4
530000002059 TUBE SOCKET SOCKET VALVE 9P 500V V5H 1
530000002630 ROTARY VR VR ROTARY A200KX2 20% V VR1 1
530000001876 VR VR ROTARY B10KX1 20% V VR2 1
530000002627 ROTARY VR VR ROTARY B20KX1 20% V VR3 1
530000002629 ROTARY VR VR ROTARY 5A1MX1 30% V VR4 1
530000002628 ROTARY VR VR ROTARY B250KX1 20% V VR5 1
530000002631 ROTARY VR VR ROTARY A1MX1 30% V VR6, VR7, VR8 3
530000003190 CIRCUIT ASS'Y BOARD PCB ASSY FX COM NT15H Assem45 1
530000002637 ZENER DIODE DZ 1/2W 15V 5% TEMIC AT D16, D17 2
530000003172 PHONE JACK JACK SOCKET (STEREO) J11 1
530000002888 PHONE JACK JACK SOCKET(MONO) J12, J13 2
530000001912 OPAMP TL072CP DUAL FET OP U2, U3 2
530000003191 CIRCUIT ASS'Y BOARD PCB ASSY LED COM NT15H Assem41 1
530000001932 LED LED CY 5.0X8.6X25 RD LED2 1
530000002615 LED LED SC 5X8.6X23 GN/YL LED3 1
530000001932 LED LED CY 5.0X8.6X25 RD LED4 1
530000003193 CIRCUIT ASS'Y BOARD PCB ASSY OUTPUT COM Assem46 1
530000002888 PHONE JACK JACK SOCKET(MONO) J10, J7, J9 3
530000002611 AC INLET AC INLET M 3P 250V 10A(NT50H) Assem23 1
530000001920 FUSE T1.25A 250V Assem48(5X20)
530000001921 FUSE T630MA 250V Assem48(5X20UL/)
530000003186 DC FAN FAN DC 5V 4200RPM Assem57 1
530000003167 OUTPUT TRANS TRANSFORMER AUDIO 173.2V Assem18 OPTX 1
CIRCUIT ASS'Y BOARD
FUSE
1
F5 1
