Item # __________________________
C.S.I. Section 11420
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. [phone]
502-778-2791 QUOTE & ORDER FAX: [phone]
A2780
ISO9001
Vulcan-Hart Co.
MODEL: GCO22D Double Deck Gas Half Size Convection Oven
STANDARD FEATURES
■Stainless steel front, sides, top and rear enclosure panel.
■Stainless steel doors with double pane window.
■Cool to the touch oven door handles.
■Stainless steel oven door gaskets.
■50,000 total BTU/hr. input (25,000 BTU/hr. per section).
■Electronic spark ignition system.
■Solid state temperature controls adjust from 200° to 500°F.
■60 minute electric timers with time expired buzzer.
■1/2H.P. single speed fan motor per deck.
■Oven cool switch for rapid cool down when door is open.
■Oven interior liners are porcelain on steel.
■Nine position rack guides with five nickel plated racks
per section.
■163/4" adjustable stainless steel legs.
■Manual shut-off valve and gas pressure regulator. 3/4" gas
connection required.
■Requires 120/60/1 power supply. 16 amps total draw.
Furnished with cord and plug.
■One year limited parts and labor warranty.
OPTIONS AT EXTRA COST
163/4" adjustable stainless steel legs with casters.
Additional oven racks.
Rack hanger(s).
Second year extended limited parts and labor warranty.
F-32207 (03-08)
MODEL GCO22D
DOUBLE DECK GAS HALF SIZE
CONVECTION OVEN
SPECIFICATIONS:
Double deck half size gas convection oven, Model No.
GCO22D, manufactured by Vulcan-Hart. Each porcelain
enamel on steel oven interior measures 151/4"w x 21"d x 20"h.
Furnished with nine position nickel plated rack guides and five
nickel plated racks measuring 143/8" x 207/8" per section. Each
oven heated by 25,000 BTU/hr. gas burner. 50,000 BTU/hr.
total input. Stainless steel front, sides, top and rear enclosure
panel. Insulation applied to the top, rear, both sides, bottom
and door. Stainless steel doors with double pane window.
Solid state temperature controls adjustable from 200° to
500°F. 60 minute electrical timers with continuous sounding
buzzer. Single speed 1/2H.P. permanently lubricated oven
blower motors. Requires 120/60/1 power supply. 16 amps
total draw. Each oven furnished with cord and plug.
Exterior dimensions: 30"w x 281/4"d x 683/8"h on 163/4" legs.
CSA design certified for use in the U.S. and Canada.
NSF listed.
Specify type of gas and finish when ordering. Specify
altitude if above 2,000 ft.

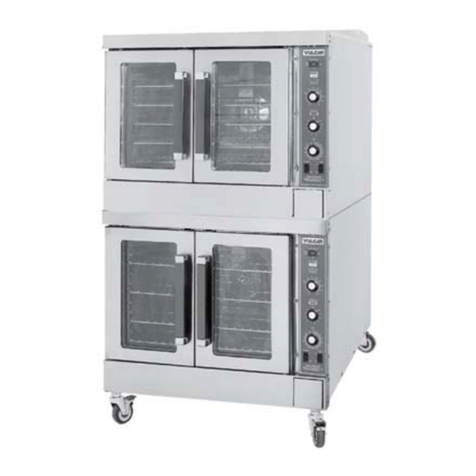

GCO22D
shown on optional casters

Printed On Recycled Paper
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. [phone]
502-778-2791 QUOTE & ORDER FAX: [phone]
NOTE: In line with its policy to continually improve its products, Vulcan-Hart Company reserves the right to change materials and
specifications without notice.
MODEL GCO22D
DOUBLE DECK GAS HALF SIZE
CONVECTION OVEN
F-32207 (03-08)
IMPORTANT
1. A gas pressure regulator sized for this unit is included. Natural gas 3.5" W.C., propane gas 10.0" W.C.
2. These units are manufactured for installation in accordance with ANSZ223.1 (latest edition), National Fuel Gas Code. Copies
may be obtained from American Gas Association Inc., Accredited Standards Committee Z223, 400 N. Capitol St. NW,
Washington, DC 20001 or the Secretary Standards Council, NFPA, 1 Batterymarch Park, Quincy, MA 02169-7471.
3. This appliance must be installed with a 3" clearance at both sides and the rear adjacent to combustible or noncombustible
construction.
4. This appliance must be installed on legs or a leg stand.
5. This appliance is manufactured for commercial installation only and is not intended for home use.
