I. S-SERIES PRIVATE INTRODUCTION
he RICON S-Series Private Use wheelchair lift provides wheelchair access to vans and buses. The patented
movement provides smooth, safe entry and exit and lifts up to 800 pounds. It is to be operated by a trained at-
tendant. The lift contains a powerful electro-hydraulic pump that includes a built-in manual backup pump. If the
lift loses electrical power, it can be raised or lowered manually.
By using the lift control switches, the lift is unfolded out from the vehicle (deployed). The user boards the large non-skid
platform and the operator uses the control switches to gently lower the platform to the ground. After the user departs,
the platform is raised and folded into the vehicle (stowed). The lift is also available with a platform that splits and folds
when stowed, providing easy vehicle access through the lift.
This manual contains installation instructions; maintenance and repair instructions; troubleshooting guide; parts and di-
agram lists. It is important to user safety that the lift operator be completely familiar with the operating instructions.
Once the lift is installed, it is very important that the lift be properly maintained by following the Ricon recommended
cleaning, lubrication, and inspection instructions.
A. RICON PRODUCT SUPPORT
If you have questions about this manual, or additional copies are needed, please contact Ricon Product Support at one
of the following locations:
Ricon Corp
1135 Aviation Place
San Fernando, CA 91340 ..................................... [phone]
World Wide Website ...................................www.riconcorp.com
T

S-SERIES PRIVATE USE SERVICE MANUAL
INTRODUCTION
SEPTEMBER 2020
1 - 2
32DSST06.B
B. RIOCN FIVE-YEAR LIMITED WARRANTY
RICON S-SERIES PRIVATE
FIVE-YEAR LIMITED WARRANTY
Ricon Corporation (Ricon) warrants to the original purchaser of this product that Ricon will repair or replace,
at its option, any part that fails due to defective material or workmanship as follows:
• Repair or replace parts for a period of one year from the date of purchase.
• Labor costs for specified parts replaced under this warranty for a period of one year from the date of pur-
chase. A Ricon rate schedule determines the parts covered and labor allowed.
• Repair or replace lift power train parts for a period of five years from the date of purchase. A list of parts
covered can be obtained from Ricon Product Support.
If you need to return a product: Return this product to Ricon. Please give as much advance notice as possi-
ble, and allow a reasonable amount of time for repairs.
This warranty does not cover: Malfunction or damage to product parts caused by accident, misuse, lack of
proper maintenance, neglect, improper adjustment, modification, alteration, the mechanical condition of the ve-
hicle, road hazards, overloading, failure to follow operating instructions, or acts of nature (i.e., weather, light-
ning, flood).
Note: Ricon recommends that this product be inspected by a Ricon authorized service technician at least
once every six months, or sooner if necessary. Required maintenance should be performed at that time.
WARNING
THIS PRODUCT HAS BEEN DESIGNED AND MANUFACTURED TO EXACT SPECIFICA
TIONS.
MODIFICATION OF THIS PRODUCT IN ANY RESPECT CAN BE DANGEROUS.
This warranty is void if:
• The product has been installed or maintained by someone other than a Ricon authorized service technician.
• The product has been modified or altered in any respect from its original design without written authoriza-
tion by Ricon.
Ricon disclaims liability for any personal injury or property damage that results from operation of a Ricon
product that has been modified from the original Ricon design. No person or company is authorized to
change the design of this Ricon product without written authorization by Ricon.
Ricon's obligation under this warranty is exclusively limited to the repair or exchange of parts that fail within
the applicable warranty period.
Ricon assumes no responsibility for expenses or damages, including incidental or consequential damages.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply.
Important: The warranty registration card must be completed and returned to Ricon within 20 days after in-
stallation of this Ricon product for the warranty to be valid. The warranty is not transferable.
The warranty gives specific legal rights, and there may be other rights that vary from state to state.

S-SERIES PRIVATE USE SERVICE MANUAL
INTRODUCTION
SEPTEMBER 2020
1 - 3
32DSST06.B
C. SHIPMENT INFORMATION
•
When the product is received, unpack the product and check for freight damage. Claims for any damage should be
made to the carrier immediately.
•
Be sure the installation kit contains all items listed on the kit packing list. Please report any missing items immedi-
ately to Ricon Product Support. The warranty and owner registration cards must be completed and returned to
Ricon within 20 days for the warranty to be valid.
NOTE: The Sales or Service personnel must review the Warranty and the Operator Manual with the user to be certain
that they understand how to safely operate the product. Instruct the user to follow the operating instructions
without exception.
D. GENERAL SAFETY PRECAUTIONS
The following general safety precautions must be followed during installation, operation, and maintenance:
•
Under no circumstances should installation, maintenance, repair, and adjustments be attempted without the imme-
diate presence of a person capable of rendering aid.
•
An injury, no matter how slight, should always be attended. Always administer first aid or seek medical attention
immediately.
•
Protective eyeshields and appropriate clothing should be worn at all times.
•
To avoid injury, always exercise caution when operating and be certain that hands, feet, legs, and clothing are not
in the path of product movement.
•
Batteries contain acid that can burn. If acid comes in contact with skin, flush affected area with water and wash with
soap immediately.
•
Always work in a properly ventilated area. Do not smoke or use an open flame near a battery.
•
Do not lay anything metallic on top of a battery.
•
Check under vehicle before drilling to avoid drilling into frame, subframe members, wiring, hydraulic lines, fuel lines,
fuel tank, etc.
•
Read and thoroughly understand the operating instructions before attempting to operate.
•
Inspect the product before each use. If an unsafe condition is noted, such as unusual noises or movements, do not
use lift until the problem is corrected.
•
Never load or stand on the platform until installation is complete. Upon completion of installation, test load the lift to
100% of its rated load capacity.
•
Stand clear of doors and platform and keep others clear during operation.
•
The product requires regular periodic maintenance. Inspections are recommended at the intervals prescribed in
chapter three. The product must be maintained at the highest level of performance.

S-SERIES PRIVATE USE SERVICE MANUAL
INTRODUCTION
SEPTEMBER 2020
1 - 4
32DSST06.B
E. MAJOR LIFT COMPONENTS
The references used throughout this manual are illustrated in Figure 1-1 and defined in the Table 1-1. Refer to Chap-
ter IV “Parts Diagrams and Lists” for more details.
5
13
42
1
3
21
22
6
9
10
7
11
14
12
15
16
19
17
18
23
20
24
ON
POWER
OFF
8
FIGURE 1-1: PRIVATE USE WHEELCHAIR LIFT

S-SERIES PRIVATE USE SERVICE MANUAL
INTRODUCTION
SEPTEMBER 2020
1 - 5
32DSST06.B
TABLE 1-1: S-SERIES PRIVATE USE LIFT COMPONENT TERMS
REF
NAME
DESCRIPTION
1, 2,
3, 4
Left, right,
front, rear Position references when lift is viewed from outside of vehicle.
5 Bridgeplate load
sensor
Senses if weight is present on the lowered bridgeplate.
6 Hydraulic cylinder
(left and right) Telescoping single-acting cylinders convert
hydraulic pressure into platform lifting and folding force.
7
Hydraulic power unit Contains hydraulic pump driven by electric motor that produces pressure
to raise and fold platform, and a pressure release valve to unfold and lower
it.
8 Audible alarm (inside housing for hydraulic unit) Announces when something has
passed over threshold. Activated by threshold beam.
9 Cycle counter Visible at rear of housing, it records number of times platform has moved
from floor to ground and back to floor.
10 Visual alarm Flashing light makes it known when something has passed over threshold.
Activated by threshold beams.
11 Manual backup pump
handle
Used to operate manual back up-pump (located on hydraulic power unit
cover).
12 Stow-Lock catch
Engages latch located on bottom of bridgeplate when platform is fully
stowed.
13 Baseplate
assembly
Bolts to vehicle floor; provides secure foundation for lift.
14 Threshold beams Light-beams detect presence of objects in threshold area.
15 Serial number Location of serial number decal.
16 Top and bottom arms
(left and right) Upper and lower links connecting vertical arm to base as-
sembly.
17 Vertical arm (left and right) Connects platform to top and bottom arms.
18
Bridgeplate
(inboard rollstop)
Plate bridges gap between platform and baseplate when platform is at
floor level. Acts as barrier to prevent wheelchair from rolling off of the plat-
form during "Up" and "Down" platform motions.
19 Handrail (left and right) Provides a handhold for standing passenger.
20
Occupant restraint
belt
Electrically interlocked safety belt that is intended to prevent acceleration
of wheelchair from platform. Lift will not operate unless belt is properly
connected.
21 Front rollstop
Front barrier prevents the wheelchair from inadvertently rolling off of the
platform during lift operation.
22 Platform
Component of lift where the wheelchair and occupant are situated during
"Up" and "Down" lift motions.
23 Platform light (left and right) Directs light onto platform surface.
24 Control pendant Hand-held device controls platform motions.
END OF TABLE

S-SERIES PRIVATE USE SERVICE MANUAL
INTRODUCTION
SEPTEMBER 2020
1 - 6
32DSST06.B
This page intentionally left blank.

2 - 1
32DSST06.B _______________________________________________
S-SERIES PRIVATE USE SERVICE MANUAL
SEPTEMBER 2020
INSTALLATION
II. INSTALLATION
his chapter contains instructions for installing the Ricon S-Series Private Use wheelchair lift into most vans and
buses, although custom installations are also possible in other types of vehicles. Due to the wide range of appli-
cations for lift, specific information for every possible application is not available. The following general proce-
dures will apply to most installations. Contact Ricon Product Support for instruction concerning installations not cov-
ered. To install lift, refer to following sections and perform procedures carefully and in the order that they are presented.
Be certain that installation instructions are followed exactly and do not eliminate any steps or modify product.
NOTE: Please review carefully the installation instructions (32ii375e) that are supplied with this lift before beginning the
following procedures. Where these procedures conflict, the installation instructions take precedence.
A. GENERAL MECHANICAL INSTALLATION
1. LIFT LOCATION
The installation surface must be flat and level. It is recommended that lift be installed on a ½", minimum, high-
grade plywood sub-floor. However, this additional installation height may not be acceptable in cases where over-
head clearance is limited.
NOTE: Check for proper travel clearance through doorway.
a. With doors fully open, place/position lift in vehicle doorway as close as possible to door, with lift's baseplate
assembly parallel to side of vehicle.
b. Allow a distance of 3/4", if possible, between door and the part of lift closest to it. Adjust lift left and right-
side locations to accommodate subframe members.
c. Verify proper clearance of door frame, passenger seats, and outer edge of vehicle floor and possible inter-
ference with wires, fluid lines, subframe members, etc.
2. LIFT INSTALLATION GUIDELINES
The lift mounting is a very important step. Improper mounting or fastening of baseplate can adversely affect lift per-
formance. Although fastening details may vary from one vehicle to the next, these general principles apply:
♦Be certain that all mounting bolts are properly installed and tightened. Bolts used to fasten baseplate assembly
to vehicle floor must have a minimum strength rating of SAE Grade 5 and be torqued to 28 ft lbs, dry. Recog-
nize that the most important bolts are those along the rear of lift, since these bolts retain the majority of the
load.
♦Refer to Figures 2-1 and 2-5. Improper torquing sequence of baseplate bolts may result in a warped or bowed
baseplate, which can cause platform to move erratically.
RSM0004800
CORRECT BOWED UP
TIGHTEN HERE
LOOSE N HERE TIGHTEN HERE
LOOSE N HERE
BOWED DOWN
FIGURE 2-1: EXAMPLES OF BASEPLATE WARPAGE
T

2 - 2
32DSST06.B
S-SERIES PRIVATE USE SERVICE MANUAL
INSTALLATION
SEPTEMBER 2020

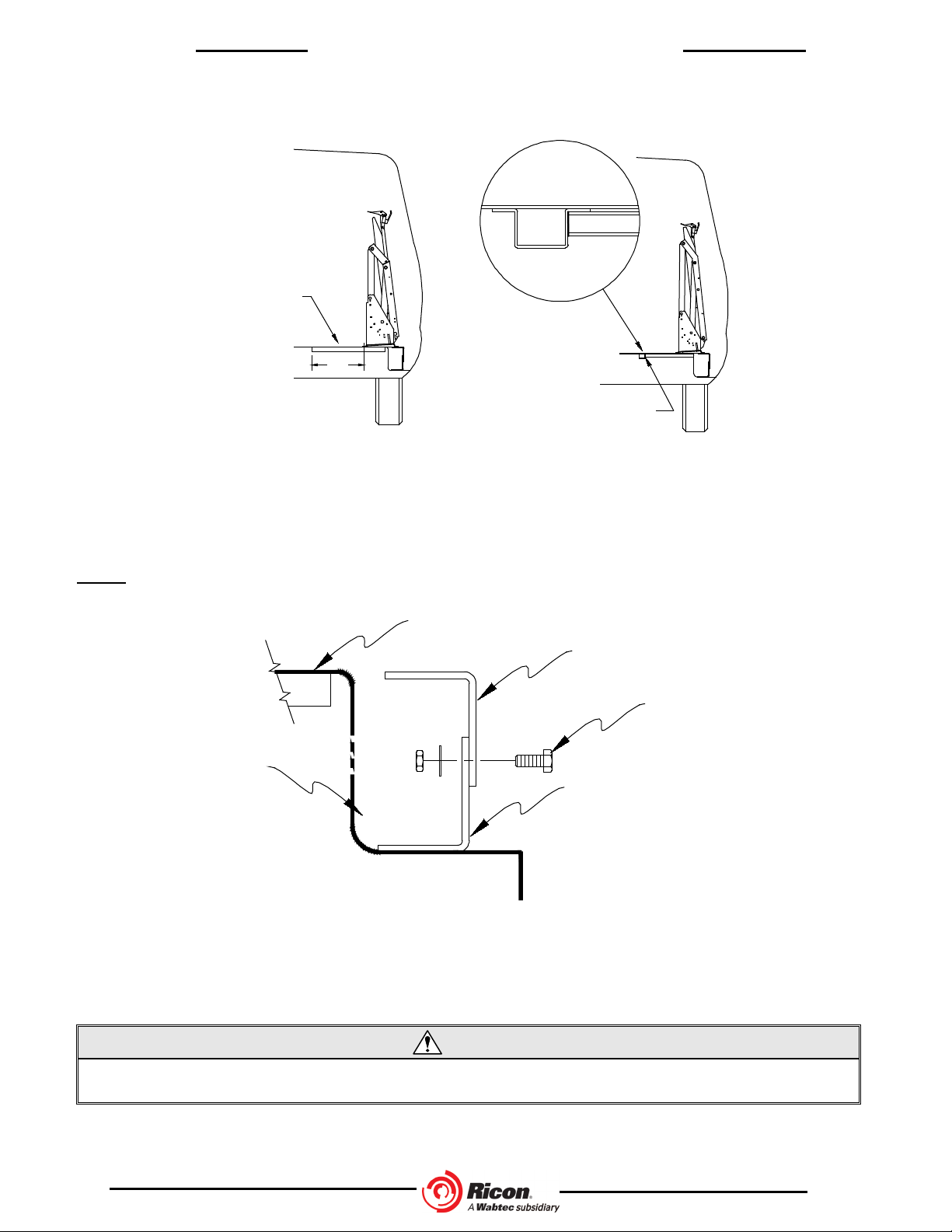

♦Refer to Figure 2-2. On Ford van installations, clamping bars are used to help evenly distribute floor loading
and should only be cut if needed to clear a subframe member. A subframe member must be used to support
clamping bar.
RSM0004000
SUBFRAME MEMBER
CLAMPING BAR
MINIMUM UNSUPPO RTED
CLAMPING BAR LENGTH
12”
CLAMPING BAR SUPPO RTED BY
SUBFRAME WHERE POSSIBLE
VEHICLE FLOOR
FIGURE 2-2: FORD VAN CLAMPING BAR ARRANGEMENT
3. LIFT INSTALLATION INTO VANS
This is a general procedure for installing Ricon lifts into Ford, Dodge, and Chevrolet full size vans.
a. Refer to Figure 2-3. Use four 1" x 3/8" bolts, 3/8" washers, 3/8" lock washers, and 3/8" hex nuts to assem-
ble two bracket assembly kits.
NOTE: The top bracket must overlap bottom bracket, and both slots must face outward.
RSM0004100
BOTTOM BRACKET
TWO PER BRACKETASSEMBLY
TOP BRACKET
(LEVELWITH VEHICLE FLOOR)
VEHICLE FLOOR LEVEL
VEHICLE STEPWELL
FIGURE 2-3: STEPWELL BRACKET
b. Position brackets on stepwell and adjust height of both bracket assemblies so that top bracket is level with
vehicle floor. Tighten bracket assembly bolts.
c. Verify that lift is fully folded (stowed) with handrails folded tight against vertical arms. If necessary, use
manual pump.
WARNING
LIFT WEIGHT IS APPROXIMATELY 350 - 375 LBS. USE EXTREME CARE WHEN POSITIONING BECAUSE
STEPWELL BRACKETS MAY TIP. THIS PROCEDURE MUST NOT BE ATTEMPTED BY ONE PERSON.

2 - 3
32DSST06.B _______________________________________________
S-SERIES PRIVATE USE SERVICE MANUAL
SEPTEMBER 2020
INSTALLATION
d. Refer to Figure 2-4. With doors fully open, position lift in vehicle doorway so that back of lift is supported
by vehicle floor, and front of lift is supported by both bracket assemblies.
RSM0004200
BRACKETASSEMBLY
LIFTFRONT
VEHICLE FLOOR
LIFTREAR
FIGURE 2-4: BRACKET ASSEMBLY
e. Fasten Baseplate to Floor:
NOTE: If Ricon power door operators are used, install them first. They may influence location of lift.
Φ
Be certain baseplate is flush against vehicle floor. The baseplate may be slightly offset in door opening to
provide proper clearance for passenger seats.
Φ
Before drilling, verify that lift position does not interfere with closing of vehicle doors or operation of passen-
ger seats.
Φ
If this lift is being installed in a Dodge van with sliding doors, omit the bolts in baseplate holes 7 and 8.
f. Mark and Drill Holes:
CAUTION
Before drilling holes, verify that underlying wires and tubing will not be damaged.
1) Refer to Figure 2-5. Mark and drill five 25/64" baseplate mounting holes (1, 2, 3, 4, and 5) through ve-
hicle floor. (On Dodge and GM vans, you must drill through vehicle floor and subframe).
2) Place five 8" x 3/8" carriage bolts (use 4" x 3/8" bolts on Ford vans) into holes to secure position.
RSM0004300
FIGURE 2-5: VAN BASEPLATE HOLES
3) Refer to Figure 2-6 on the following page. Match and align top holes of stepwell brackets 6, 7, 8, and
9, with baseplate holes 6, 7, 8, and 9. Mark lower stepwell bracket holes 10, 11, 12, and 13 onto vehi-
cle step.
4) Remove five carriage bolts installed in step 2). Carefully push lift into vehicle interior.
5) Drill 1/4" dia holes through marked locations 10, 11, 12, and 13.

2 - 4
32DSST06.B
S-SERIES PRIVATE USE SERVICE MANUAL
INSTALLATION
SEPTEMBER 2020
RSM0004400
VEHICLE FRONT
VEHICLE REAR
FIGURE 2-6: STEPWELL BRACKET HOLE LOCATIONS
g. Fasten Bracket Assemblies and Lift:
1) Use 1-1/2" x 5/16" sheet metal screws with 5/16" lock washers to secure lower brackets to vehicle step
holes 10 through 13.
NOTE: If the screw in position 13 interferes with proper door operation, do not install.
2) Reposition lift and verify that surface beneath lift is free of obstacles.
3) Insert five 8" x 3/8" carriage bolts through mounting holes at rear of baseplate assembly, and insert four
1-1/2" x 3/8" carriage bolts through baseplate and bracket assemblies. Place 3/8" washers, lock wash-
ers, and nuts under bracket assemblies, and finger tighten nuts.
NOTE: On Dodge and GM vans, place five 4" x 4" plates, 3/8" washers, lock washers and hex nuts on 8" x 3/8"
carriage bolts under van and finger tighten. On Ford models, reinforce vehicle floor with clamping bars.
They are installed in positions 1, 2, 3, 4, and 5 and run across width of baseplate towards center of van.
4) Before tightening carriage bolts, verify that lift is level with vehicle floor. Adjust bracket assembly bolts if
necessary.
5) Tilting lift towards inside of van may hinder its initial unfolding. Install lift with its baseplate assembly as
level as possible. Tightening carriage bolts requires special care to keep baseplate assembly from
warping when secured to vehicle floor. If baseplate assembly warps, the vertical arms will not be paral-
lel. Make corrections by shimming at appropriate locations. To help prevent warping, tighten the eight
carriage bolts (six on Dodge van with sliding door) to 28 ft. lbs. in the appropriate sequence:
DODGE WITH SWING DOORS, ALL FORD AND GM VANS .......... 3, 1, 2, 4, 5, 6, 7, 8, 9
DODGE WITH SLIDING DOORS ...............................................................3, 1, 2, 4, 5, 6, 9
NOTE: Vertical arms must be parallel for proper operation. Adjust bolts as required. Best results are obtained
when lift is mounted on plywood. Shims, although best avoided, may be used if required.
6) Make certain that holes 14 and 15 on the front of each bracket assembly are drilled through, and 5/16"
bolts are inserted to lock position of bracket assemblies.

2 - 5
32DSST06.B _______________________________________________
S-SERIES PRIVATE USE SERVICE MANUAL
SEPTEMBER 2020
INSTALLATION
4. LIFT INSTALLATION INTO BUSES
Refer to Figure 2-7. Clamping bars are used on most bus installations to help distribute floor loading, and should
only be cut if needed to clear a subframe member. A subframe member should be used to support clamping bar.
RSM0004500
12”
VEHICLE FLOOR
SUBFRAME MEMBER
CLAMPING BAR
MINIMUM UNSUPPO RTED
CLAMPING BAR LENGTH
CLAMPING BAR SUPPO RTED BY
SUBFRAME WHERE POSSIBLE
FIGURE 2-7: BUS CLAMPING BAR ARRANGEMENT
WARNING
LIFT WEIGHT IS APPROXIMATELY 350-375 LBS. TAKE EXTREME CARE WHEN POSITIONING BECAUSE
STEPWELL BRACKETS MAY TIP. THIS PROCEDURE SHOULD NOT BE ATTEMPTED BY ONE PERSON.
a. With doors fully open, position lift in vehicle doorway as close as possible to inside surface of door. Lift
baseplate must be parallel to side of vehicle.
b. Refer to Figure 2-8. Mark and drill ten 25/64" baseplate mounting holes (1 thru 10) through vehicle floor.
CAUTION
Before drilling holes, verify that underlying wires and tubing will not be damaged.
c. Fasten Lift:
1) Insert ten 4" x 3/8" carriage bolts through baseplate and vehicle floor.
2) Refer to Figure 2-7. Install four clamping bars to bolts underneath vehicle floor across baseplate, i.e.,
from 1 to 6, 2 to 7, etc, and secure lift to vehicle floor with 3/8" washers, lock washers and hex-nuts.
3) Tightening carriage bolts requires special care to keep baseplate assembly from warping when secured
to vehicle floor. If baseplate assembly warps, vertical arms will not be parallel. Make corrections by
shimming at appropriate locations. To help prevent warping, tighten the eight carriage bolts to 28 ft.
lbs. in the following sequence:
3, 8, 1, 2, 4, 5, 6, 7, 9, 10
NOTE: Vertical arms must be parallel for proper operation. Adjust bolts as required. Best results are obtained
when lift is mounted on plywood. Shims, although best avoided, may be used if required.
12 4 5
67910
3
8
FIGURE 2-8: BUS BASEPLATE HOLES

2 - 6
32DSST06.B
S-SERIES PRIVATE USE SERVICE MANUAL
INSTALLATION
SEPTEMBER 2020
B. ELECTRICAL INSTALLATION
CAUTION
•Do not route a wire if it is connected to the battery.
•Route wires clear of moving parts, brake lines, and the exhaust system. Secure to the vehicle.
•When routing an electrical wire through vehicle floor or walls, use a grommet to protect wires from chafing.
•Check underside of vehicle before drilling to avoid damage to fuel lines, vent lines, brake lines, or wiring.
RSM0043800
4 AWG POWER CABLE:
SHORT CABLE NOT TO EXCEED 12”,
CONNECTED BETWEEN B ATTERY (OR
MAIN POWER SOURCE) AND MAIN
CIRCUITBREAKER
90 AMPMAIN
CIRCUITBREAKER
BUS BAR
8AMPCIRCUIT
BREAKER
GROUND
18 AWG WIRE
(BLUE)
10 AWG WIRE
(RED)
SPOOL VALVE
(DECELERATION)
LH PUMP
TERMINAL
BRACKET
4 AWG POWER CABLE:
LONG CABLE CONNECTED
BETWEEN MAIN CIRCUI T
BREAKER AND POSITIVE
CONNECTION BLOCK
POSITIVE CONNECTION
BLOCK
(CUTAWAY SHOWN FOR
CLARITY)
12V PUMP
HARNESS
HYDRAULIC POPPET
VALVE (DOWN)
PRESSURE SWITCH
MAIN POWER HARNESS
CONNECTED TO
SOLENOID
SIDE PUMP
SOLENOID
BUS BAR
8AMPCIRCUIT
BREAKER
TOP PUMPSOLENOID
4 AWG GROUND CABLE
FROM BATTERY TERMINAL
A
MOTOR TERMINALBOOT
FACTORY INSTALLED ON PUMP
A
B
MOTOR TERMINALBOOT
KIT P/N 37152 SHIPPED WITH PUM PHANDLE
ATTACH TOTERMINA L
B
FIGURE 2-9: ELECTRICAL INSTALLATION DIAGRAM
CAUTION
KIT P/N 37152 (SHIPPED WITH PUMP HANDLE) MUST BE INSTALLED ONTO RING TERMINAL
BEFORE ATTACHING POWER CABLE TO A BATTERY OR POWER SOURCE.

2 - 7
32DSST06.B _______________________________________________
S-SERIES PRIVATE USE SERVICE MANUAL
SEPTEMBER 2020
INSTALLATION
1. INSTALL MAIN CIRCUIT BREAKER
a. Disconnect battery.
b. Mount main circuit breaker inside engine compartment within 12 inches of battery to minimize length of un-
protected cable. Avoid installing near a heat source.
2. ROUTE AND CONNECT MAIN POWER CABLE
CAUTION
Check under-side of vehicle before drilling to avoid damage to fuel lines, vent lines, brake lines, or wiring.
NOTE: For applications where power cable is to pass through sheet metal, drill a 3/4" hole and use wire clamp pro-
vided. For applications where cable is to pass through plywood, drill a 1" hole and use black plastic grom-
met provided.
a. Refer to Figures 2-9 and 2-10. Drill a hole through vehicle floor near positive connection block so power
cable can reach stud of positive connection block. Drill hole where the installed pump cover will cover it.
A
B
0.75” DIAMETER FOR FLOOR ME TAL
1.00” DIAMETER FOR OTHER
MATERIAL
30” PLATFORM WIDTH = 3.375”
32” PLATFORM WIDTH = 4.375”
A
RSM0043900
HYDRAULIC PUMP
BASEPLATE
B
1.25”
FIGURE 2-10: POWER CABLE ACCESS HOLE
b. Refer to Figure 2-9. Install supplied heavy ring terminals to each end of the short (12" long) 4 AWG power
cable. Install one ring terminal, only, to one end of long power cable. Use an appropriate crimp tool (such
as Ricon hammer tool, part of kit P/N 01243).
c. Connect end of long 4 AWG power cable (with ring terminal) to 90A main circuit breaker, then route power
cable underneath vehicle floor and up through hole in floor.
d. Refer to Figure 2-9. Detach Kit P/N 37152 (Shipped with pump handle) then install onto ring terminal con-
nector before installing ring terminal onto positive connection block.
e. Tie power cable to vehicle chassis, and to pump assembly harness using cable ties. Avoid pinch points,
exhaust system, moving parts, and brake lines. Verify that power cable is secure.
CAUTION
Be sure that there is no interference with any parts that
could damage power cable or other wires in any way.

2 - 8
32DSST06.B
S-SERIES PRIVATE USE SERVICE MANUAL
INSTALLATION
SEPTEMBER 2020
f. Refer to Figure 2-11. Cut any excess wire from long cable, install remaining heavy ring terminal to unter-
minated end of long cable, and connect it to live side of solenoid. Verify that red wire from main circuit
breaker (if applicable) is connected to positive solenoid pole.
RSM0044000
POSITIVE CONNECTION
BLOCK TERMINAL
GROMMET4 AWG POWER CABLE
INSTALLBOOT(KIT37152)
FIGURE 2-11: CABLE ROUTING
g. Connect 12" cable, with ring terminals, from positive battery terminal to main circuit breaker terminal.
3. CONNECT CONTROL PENDANT
a. Refer to Figure 2-12. Connect hand-held control pendant to six-pin connector at left side of baseplate and
secure cable with supplied cable clamp.
PENDANT INTERFACE
INTERLOCK INTERFACE
STRAIN RELIEF
CABLE CLAMP
BRACKET
FIGURE 2-12: STRAIN RELIEF KIT
b. Install wall portion of dovetail clip (pendant storage) in an appropriate and safe location near lift.
CAUTION
Be sure that harness does not interfere with any moving
parts, or binds against any parts, or is pinched in any way.

2 - 9
32DSST06.B _______________________________________________
S-SERIES PRIVATE USE SERVICE MANUAL
SEPTEMBER 2020
INSTALLATION
4. GROUND (COMMON) CONNECTIONS
a. 12VDC Systems
12VDC powered lifts are chassis grounded and do not require a separate ground cable connection to battery.
However, if the common side of the lift electrical system is connected to chassis with a cable, the cable must be
attached in a manner that provides a reliable electrical connection. If ground cable is attached to an existing
ground circuit, the circuit must be capable of conducting an additional 90 amps.
b. 24VDC Systems
1) Ricon recommends that a dedicated ground cable be used in 24VDC installations. A 4GA cable, or
heavier, must be used.
2) Refer to Figure 2-13. The ground cable is connected from the negative stud (-) on pump motor to the
negative battery terminal.
24V TOP SOLENOID
4GA POWER CABLE
FROM
CIRCUIT BREAKER
24V SIDE SOLENOID
4GA GROUND CABLE
TO
BATTERY TERMINAL GROUND
CONNECTION
GROUND
CONNECTION
SEE
NOTE
SEE
NOTE
NOTE: CONNECT THESE TERMINALS TO
PIN 3 (WHITE) OF PUMP CONNECTOR.
FIGURE 2-13: 24VDC DUAL SOLENOID WIRING
