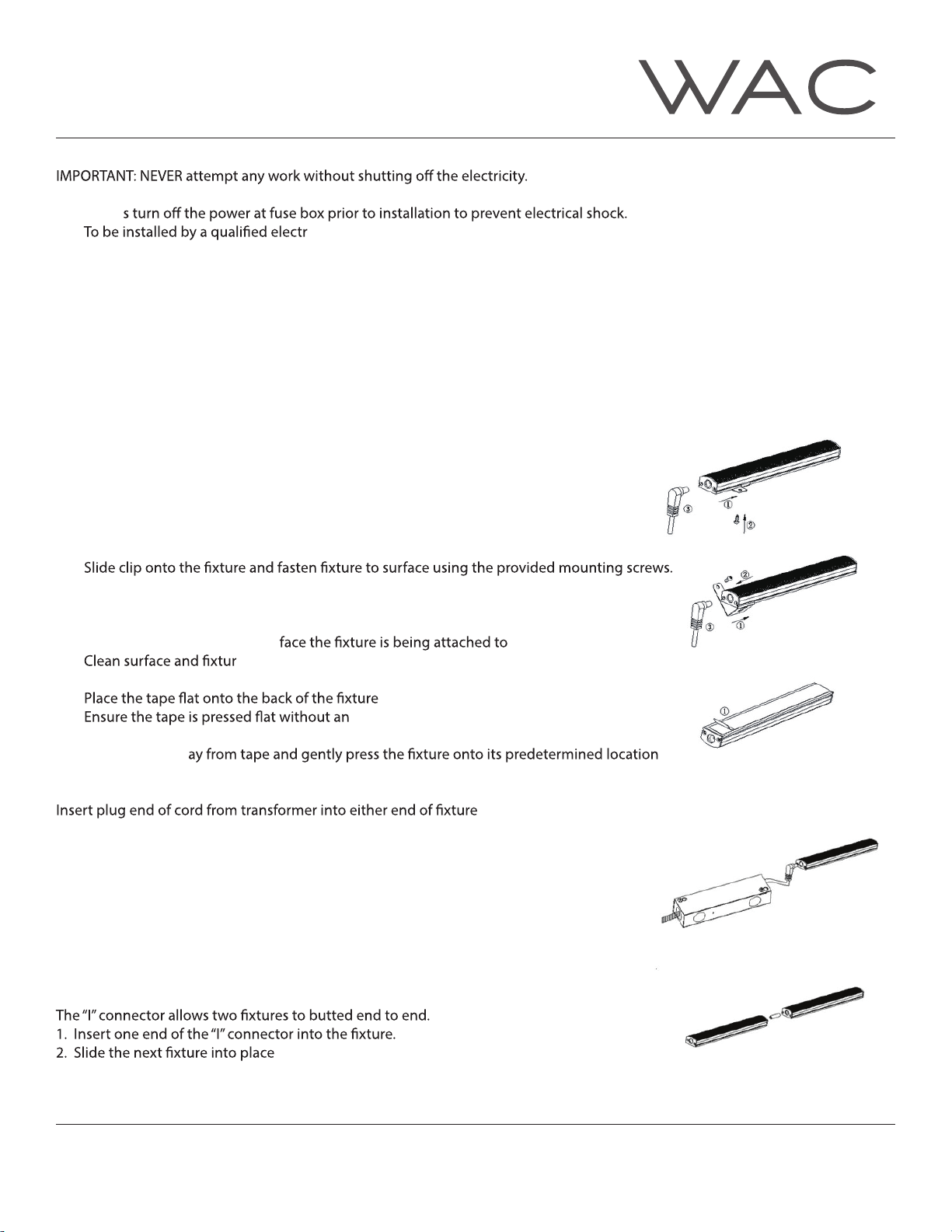

INSTALLATION INSTRUCTION
Straight Edge® LED Strip Light for Task and Cove
LS-LED
SAFETY INSTRUCTION
• Read all instructions before installing.
• Alway
• ician.
• System is intended for installation in accordance with National Electric Code and local regulations.
• Consult with local inspector to assure compliance.
• Keep away from combustible materials such as plastic or paper products.
• Do not operate with missing or damaged parts.
PRODUCT INCLUDES
•(1) Led Light Strip
•(2) Flat Mounting Clips SL-C1
•(2) Fixed Angle Mounting clips SL-C2
•(1) “I” Connector
•(2) Mounting screws
INSTALLATION AND WIRING
MOUNTING CLIPS
Flat (SL-C1), Fixed Angle (SL-C2), and Adjustable Angle (SL-C3-SN) (Sold Separately)
1. Choose the proper mounting clip needed for install
2.
TAPE
Double Sided (TAPE-36) and Magnetic (MAG-TAPE-36) (Sold Separately)
1. Chose Tape Depending on Sur
2. e of all oils, grease, dust, etc… to ensure proper bonding
3. Cut tape to a size appropriate for its use
4.
5. y wrinkles.
Wrinkles in the tape will result in an uneven installation.
6. Peel backing aw
CONNECT POWER
Transformers needed (sold separately):
60W plug in (120V) EN-2460-P-AR-S
96W plug in (120V) EN-24100-P-AR-S
60W remote (120V) EN-2460-RB2-S
96W remote (120V) EN-24100-RB2-S
96W remote (277V) EN-24100-277-R (Requires a SL-EXT-144
extension cable. order separately)
CONNECTING MULTIPLE FIXTURES
End to End Connection (I-connector included):

WAC Lighting
www.waclighting.com
Phone [phone] • Fax [phone]
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone [phone] • Fax [phone]
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761
Phone [phone] • Fax [phone]
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUNE, 2022 2
A surface mount jumper wire allows multiple units to be linked through surface wiring (see diagram below).
If your jumper wire needs to be extended use our “IF” cable (SL-IF) to connect them together to lengthen.
SL-IC-06 6 inch
SL-IC-12 12 inch
SL-IC-24 24 inch
SL-IC-36 36 inch
SL-Y Y connector
SL-X X connector
SL-IF IF cable connector
WIRING BO
For low voltage wiring use only 12V/24V 4A
12AWG to 20AWG
Model: TB-S
Model: MTB-08 8 output
Please follow guidelines below for the number of units that can be wired in series
EN-2460-P-AR-S
(60W)
EN-24100-P-AR-S
(96W)
EN-2460-RB2-S
(60W)
EN-24100-RB2-S
(96W)
LS-LED08 20pcs 36pcs 20pcs 36pcs
LS-LED14 12pcs 20pcs 12pcs 20pcs
LS-LED20 8pcs 13pcs 8pcs 13pcs
LS-LED26 6pcs 10pcs 6pcs 10pcs
LS-LED32 5pcs 8pcs 5pcs 8pcs
