Wachs SDB-103 User manual

SDB-103 Small Diameter Beveler
and FF 206 Flange Facer
User’s Manual
Copyright © 2009 E.H. Wachs. All rights reserved.
This manual may not be reproduced in whole or in part
without the written consent of E.H. Wachs.
E.H. Wachs
600 Knightsbridge Parkway
Lincolnshire, IL 60069
www.ehwachs.com
E.H. Wachs Part No. 16-MAN-01
Rev. 4-1109, November 2009
Revision History:
Original April 1996

SDB-103 Small Diameter Beveler and FF 206 Flange Facer
Part No. 16-MAN-01, Rev. 4-1109 E.H. Wachs

Table of Contents
E.H. Wachs Part No. 16-MAN-01, Rev. 4-1109 i
Table of Contents
Chapter 1: About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Purpose of This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
How to Use The Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Symbols and Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Manual Updates and Revision Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Chapter 2: Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Operator Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Protective Equipment Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Chapter 3: Introduction to the Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
SDB 103 Small Diameter Beveler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Optional Mandrels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
FF 206 Flange Facer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Performance Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Operating Envelope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Chapter 4: Assembly, Disassembly, and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Storage Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Chapter 5: Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Pre-Operation Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Setting Up the SDB 103 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Installing the Standard Mandrel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Installing the Extension Legs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Installing the Small I.D. Conversion Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Installing the Independent Fitting Mandrel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Mounting the SDB 103 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Standard and Small I.D. Mandrels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Independent Fitting Mandrel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Installing and Centering on Elbows and Bends . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Installing Tooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Cutting the O.D. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Cutting the I.D. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Tips for a Good Finish . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
FF 206 Flange Facing Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Removing the Mandrel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Installing the Trip Collar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

SDB-103 Small Diameter Beveler and FF 206 Flange Facer
ii Part No. 16-MAN-01, Rev. 4-1109 E.H. Wachs
FF 206 Independent Fitting Mandrel Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Squaring the FF 206 on Squared Flange . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Squaring the FF 206 on Unsquare Flange . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Mounting the FF 206 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
FF 206 Flange Facing Operating Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Single-Point Beveling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Chapter 6: Routine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Break-In Period . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Periodic Inspection Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Chapter 7: Service and Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
SDB 103 Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Replacing the Front Bushing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
FF 206 Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Castle Nut Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Replacing the Feed Screw or Male Tool Slide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Feed Tension Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Chapter 8: Parts Lists and Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Chapter 9: Accessories and Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Tooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Chapter 10: Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Ordering Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Repair Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Return Goods Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Chapter 1, About This Manual
E.H. Wachs Part No. 16-MAN-01, Rev. 4-1109 1
Chapter 1
About This Manual
PURPOSE OF THIS MANUAL
This manual explains how to operate and maintain the
SDB-103 small diameter beveler (SDB) and FF 206 flange
facer. It includes instructions for set-up, operation, and
maintenance. It also contains parts lists, diagrams, and ser-
vice information to help you order replacement parts and
perform user-serviceable repairs.
Before operating the machine, read through this manual and
become familiar with all instructions.
HOW TO USE THE MANUAL
Throughoutthismanual,refer
to this column for warnings,
cautions, and notices with
supplementary information.
This manual is organized to help you quickly find the infor-
mation you need. Each chapter describes a specific topic on
using or maintaining your equipment.
Each page is designed with two columns. Thislarge column
on the inside of the page contains instructions and illustra-
tions. Use these instructions to operate and maintain the
equipment.
The narrower column on the outside contains additional
information such as warnings, special notes, and defini-
tions. Refer to it for safety notes and other information.
In This Chapter
PURPOSE OF THIS MANUAL
HOW TO USE THE MANUAL
SYMBOLS AND WARNINGS
MANUAL UPDATES AND
REVISION TRACKING

SDB-103 Small Diameter Beveler and FF 206 Flange Facer
2 Part No. 16-MAN-01, Rev. 4-1109 E.H. Wachs
SYMBOLS AND WARNINGS
The following symbols are used throughout this manual to
indicate special notes and warnings. They appear in the out-
side column of the page, next to the section they refer to.
Make sure you understand what each symbol means, and
follow all instructions for cautions and warnings.
A WARNING alert with the
safety alert symbol indicates
a potentially hazardous situa-
tion that could result in seri-
ous injury or death.
A CAUTION alert with the
safety alert symbol indicates
a potentially hazardous situa-
tion that could result in
minor or moderate injury.
A CAUTION alert with the
damage alert symbol indi-
cates a situation that will
result in damage to the
equipment.
An IMPORTANT alert with
the damage alert symbol indi-
cates a situation that may
result in damage to the
equipment.
WARNING
This is the safety alert symbol. It is used
to alert you to potential personal injury
hazards. Obey all safety messages that
follow this symbol to avoid possible
injury or death.
CAUTION
CAUTION
This is the equipment damage alert
symbol. It is used to alert you to poten-
tial equipment damage situations.
Obey all messages that follow this sym-
bol to avoid damaging the equipment or
workpiece on which it is operating.
IMPORTANT

Chapter 1, About This Manual: Manual Updates and Revision Tracking
E.H. Wachs Part No. 16-MAN-01, Rev. 4-1109 3
A NOTE provides supple-
mentary information or oper-
ating tips.
MANUAL UPDATES AND REVISION TRACKING
Current versions of E.H.
Wachs manuals are also
available in PDF format. You
can request an electronic
copy of this manual by email-
ing customer service at
[email protected].
Occasionally, we will update manuals with improved opera-
tion or maintenance procedures, or with corrections if nec-
essary. When a manual is revised, we will update the
revision history on the title page.
You may have factory service or upgrades performed on the
equipment. If this service changes any technical data or
operation and maintenance procedures, we will include a
revised manual when we return the equipment to you.
NOTE
NOTE
This symbol indicates a user note. Notes
provide additional information to supple-
ment the instructions, or tips for easier
operation.

EU DECLARATION OF CONFORMITY
WITH
COUNCIL DIRECTIVE 98/37/EC
Date Of Issue: April 13, 2005
Directive: Machinery Directive on machinery safety, 98/37/EC
Conforming Machinery: Pipe Beveling & Cut-Off Machines
Model#:16, 56, 66, 70, 71, 72-000-XX
Serial #:
Manufacturer: E. H. Wachs Company
600 Knightsbridge Parkway
Lincolnshire, IL
60069 USA
Authorized
Representative: Patrick Fuss
Director of International Sales and Service
Wachs Limited
3 Millbuck Way
Springvale Industrial Estate
Sandbach, Chesire CW11 3JA
United Kingdom
Harmonized Standards
Referenced or Applied: BS EN 292-1:1991, BS EN 292-2:1991, BS EN 294:1992,
BS EN 349:1998, BS EN 418:1992, BS EN 60204-1:1998
BS EN 982:1996, BS EN 983:1996
Specifications with which
Conformity is Declared: Essential Health and Safety Requirements of Annex 1 of
the Machinery Directive
We hereby certify that the machinery described above conforms with the essential
health and safety requirements of Council Directive 98/37/EC on the approximation of
the laws of the Member States relating to the safety of machinery.
Signed:
Signatory: Pete Mullally
Quality Manager
E. H. Wachs Company







6/13/07

Chapter 2, Safety
E.H. Wachs Part No. 16-MAN-01, Rev. 4-1109 5
Chapter 2
Safety
E.H. Wachs takes great pride in designing and manufactur-
ing safe, high-quality products. We make user safety a top
priority in the design of all our products.
Read this chapter carefully before operating the SDB 103/
FF 206. It contains important safety instructions and rec-
ommendations.
OPERATOR SAFETY
Follow these guidelines for safe operation of the equip-
ment.
Look for this sym-
bol throughout the
manual.Itindicates
a personal injury
hazard.
•READ THE OPERATING MANUAL. Make sure
you understand all setup and operating instructions
before you begin.
•INSPECT MACHINE AND ACCESSORIES.
Before starting the machine, look for loose bolts or
nuts, leaking lubricant, rusted components, and any
other physical conditions that may affect operation.
Properly maintaining the machine can greatly decrease
the chances for injury.
•ALWAYS READ PLACARDS AND LABELS. Make
sure all placards, labels, and stickers are clearly legible
and in good condition. You can purchase replacement
labels from E.H. Wachs.
•KEEP CLEAR OF MOVING PARTS. Keep hands,
arms, and fingers clear of all rotating or moving parts.
In This Chapter
OPERATOR SAFETY
SAFETY LABELS

SDB-103 Small Diameter Beveler and FF 206 Flange Facer
6 Part No. 16-MAN-01, Rev. 4-1109 E.H. Wachs
Always turn machine off before doing any adjustments
or service.
•SECURE LOOSE CLOTHING AND JEWELRY.
Secure or remove loose-fitting clothing and jewelry, and
securely bind long hair, to prevent them from getting
caught in moving parts of the machine.
•KEEP WORK AREA CLEAR. Keep all clutter and
nonessential materials out of the work area. Only people
directly involved with the work being performed should
have access to the area.
Safety Symbols
This icon is displayed with any safety alert that indicates a
personal injury hazard.
WARNING
This safety alert indicates a potentially hazardous situation
that, if not avoided, could result in death or serious injury.
CAUTION
This safety alert, with the personal injury hazard symbol,
indicates a potentially hazardous situation that, if not
avoided, could result in minor or moderate injury.

Chapter 2, Safety: Safety Labels
E.H. Wachs Part No. 16-MAN-01, Rev. 4-1109 7
Protective Equipment Requirements
For additional information on eye and face protection, refer
to Federal OSHA regulations, 29 Code of Federal Regula-
tions, Section 1910.133., Eye and Face Protection and
American National Standards Institute, ANSI Z87.1, Occu-
pational and Educational Eye and Face Protection. Z87.1 is
available from the American National Standards Institute,
Inc., 1430 Broadway, New York, NY 10018.
Hearing protectors are required in high noise areas, 85 dBA
or greater. The operation of other tools and equipment in the
area, reflective surfaces, process noises, and resonant struc-
tures can increase the noise level in the area. For additional
information on hearing protection, refer to Federal OSHA
regulations, 29 Code of Federal Regulations, Section
1910.95, Occupational Noise Exposure and ANSI S12.6
Hearing Protectors.
SAFETY LABELS
The following safety labels are on the SDB 103. If the stick-
ers are damaged or missing, replace them immediately. See
Chapter 10 for ordering information.
Always wear impact resistant eye pro-
tection while operating or working near
this equipment.
WARNING
CAUTION
Personal hearing protection is recom-
mended when operating or working near
this tool.

SDB-103 Small Diameter Beveler and FF 206 Flange Facer
8 Part No. 16-MAN-01, Rev. 4-1109 E.H. Wachs
Figure 2-1. The Caution sticker is on the SDB 103 air
motor. Wear ear and eye protection while operating
the machine. (Part number 90-401-03.)
Figure 2-2. The Warning sticker is on the SDB 103.
Do not put your hands near the rotating head while
the machine is running. (Part number 66-147-00.)

Chapter 3, Introduction to the Equipment
E.H. Wachs Part No. 16-MAN-01, Rev. 4-1109 9
Chapter 3
Introduction to the
Equipment
SDB 103 SMALL DIAMETER BEVELER
The SDB 103 is a portable pipe prepping machine that can
face, bevel, compound bevel, J-prep, and counterbore open
ended pipe and tubing. The handheld SDB 103 mounts on
the pipe inside diameter (I.D.) using a self-centering man-
drel clamp system. It will prep open-ended pipe and tubing
from 1.16” to 4.18” I.D. (29.5-106.2 mm), and up to 4.5”
(114.3 mm) outside diameter (O.D.).
The SDB 103 can be easily installed by one operator in just
a few minutes. Different sized clamp leg sets are provided
to cover the full range of operation. Select and install the
appropriate leg set for the pipe you are machining, install
the tooling, and mount the machine on the pipe using the
simple drawbar mechanism.
An air or electric motor drives the rotating tool head. The
operator feeds the tooling into the pipe face using a manual
feed handle. A calibrated feed dial allows precise material
removal. The tool head has three tools slots, allowing mul-
tiple facing, beveling, and counterboring operations to be
performed simultaneously.
The machine includes all accessories and tools necessary
for operation, and is shipped in a durable, waterproof stor-
age case.
In This Chapter
SDB 103 SMALL DIAMETER
BEVELER
FF 206 FLANGE FACER
PERFORMANCE CHARTS
SPECIFICATIONS
OPERATING ENVELOPE

SDB-103 Small Diameter Beveler and FF 206 Flange Facer
10 Part No. 16-MAN-01, Rev. 4-1109 E.H. Wachs

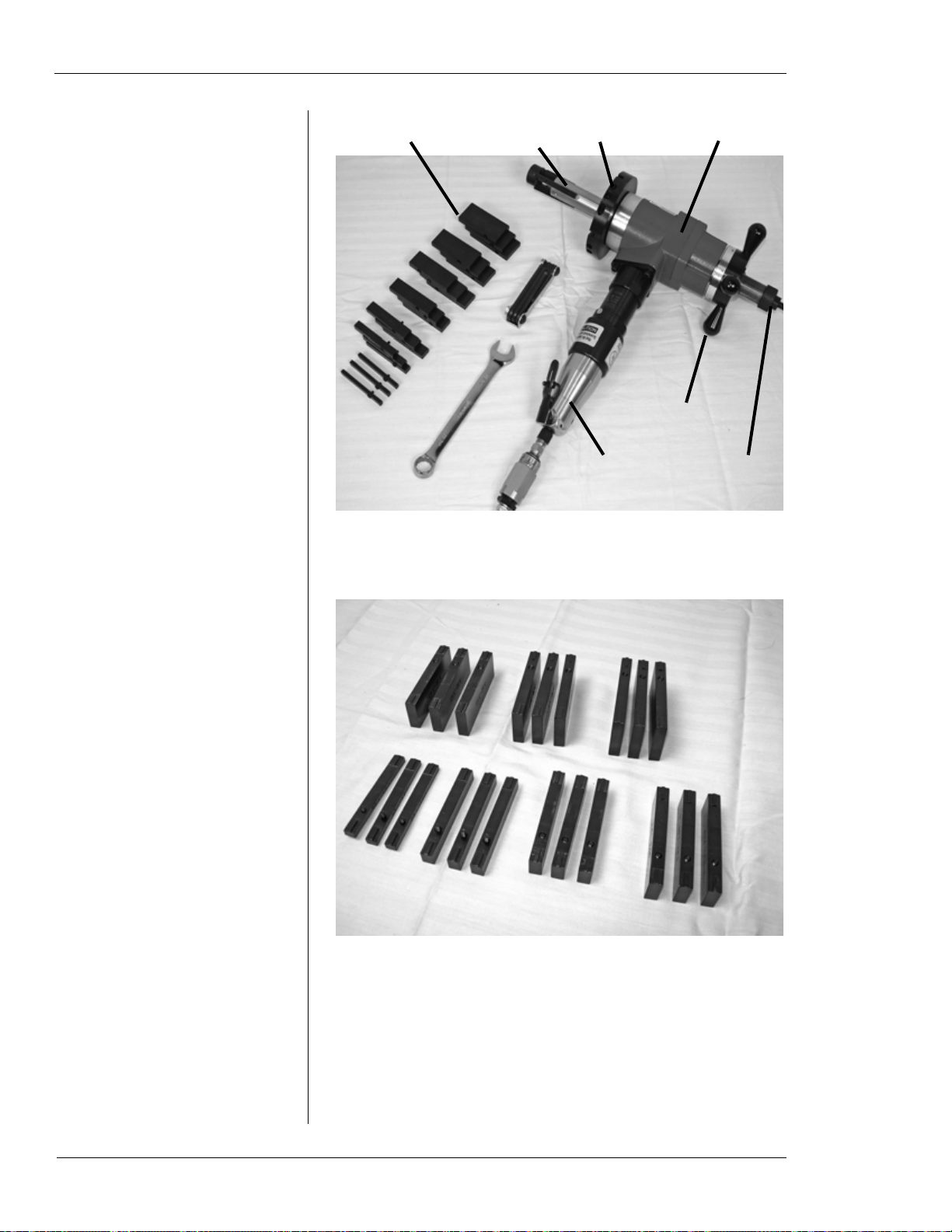

Figure 3-1. The photo shows the SDB 103 compo-
nents and accessories.
Figure 3-2. The standard clamp leg sets (identified by
part number) fit the standard mandrel to a range of
pipe and tube sizes. See the tables in Chapter 5 for the
clamping range for each leg set.
Clamp leg sets Mandrel Tool head Machine body
Drawbar
Feed
handle
Air motor
16-021-07 16-021-06 16-021-05
16-021-04
16-021-0316-021-02
16-021-01

Chapter 3, Introduction to the Equipment: SDB 103 Small Diameter Beveler
E.H. Wachs Part No. 16-MAN-01, Rev. 4-1109 11
Figure 3-3. The SDB standard tooling allows the
operator to face, bevel, J-prep, and counterbore pipe
and tube.
Optional Mandrels
A small-diameter conversion kit (16-401-00) with a
smaller mandrel and tool head is available. The conversion
kit allows you to install the machine on pipe I.D.s from
0.875” to 1.75” (22.2-31.8 mm).
Collet-stylemandrelsarealso
available for pipe or tube. Call
E.H. Wachs customer service
to discuss your application’s
requirements.
The standard and small I.D. mandrels automatically center
the machine on the I.D. and squares it to the centerline of
the pipe. If you need to mount the machine in a pipe that is
on a bend or that has limited I.D. access, an independent
fitting mandrel (16-414-00) with dowel-style clamp legs is
available as an option.
With the independent fitting mandrel, you can adjust the
machine to be squared to the pipe end surface, rather than
the centerline. (This mandrel can also be used to mount the
FF 206.) A squaring plate for aligning the machine during
installation is provided with the mandrel.
Facing tool
26-410-02 10° Deburring tool
26-412-02
37.5° Beveling tool
26-411-01
Counterbore/
facing tool
26-426-00
NOTE

SDB-103 Small Diameter Beveler and FF 206 Flange Facer
12 Part No. 16-MAN-01, Rev. 4-1109 E.H. Wachs
Figure 3-4. The independent fitting mandrel shown in
the photo uses dowel-style clamp legs, shown at right.
Figure 3-5. The squaring plate is used to square the
SDB to the pipe face when using the independent fit-
ting mandrel. It is also used for mounting the FF 206.

Chapter 3, Introduction to the Equipment: FF 206 Flange Facer
E.H. Wachs Part No. 16-MAN-01, Rev. 4-1109 13
FF 206 FLANGE FACER
The standard FF 206 system
does not contain all compo-
nents necessary to use it as
an SDB 103. A conversion kit
(16-420-00) is available to
convert the FF 206 to the
SDB 103.
With the FF 206 conversion kit, the SDB 103 can be quickly
converted to a flange facing machine. The FF 206 will fin-
ish raised and flat flange faces from 2.0” (50.8 mm) I.D. up
to 6.0” (152 mm) O.D. The FF 206 can be purchased as a
fully integrated machine, or as a kit to upgrade the SDB
103.

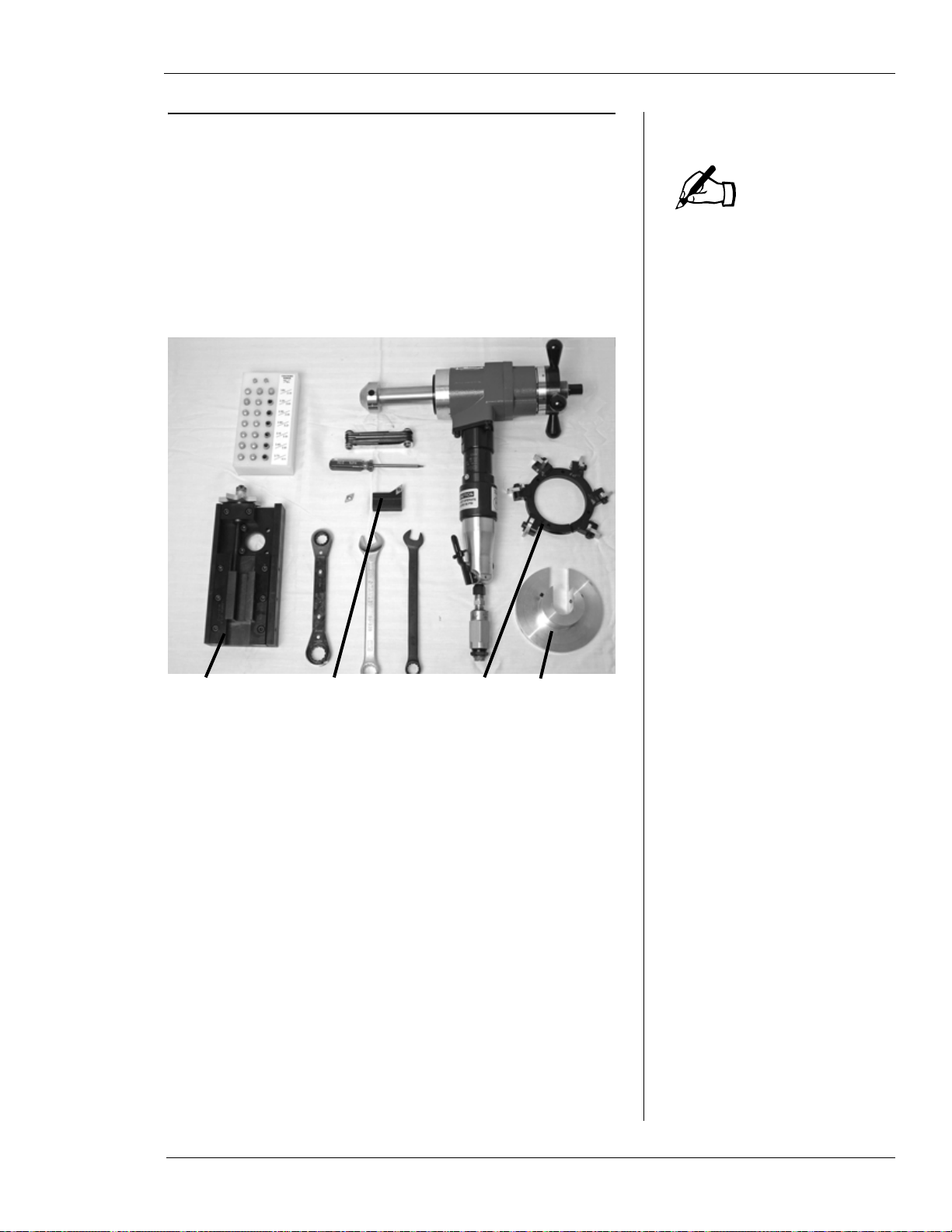

Figure 3-6. The photo shows the components of the
FF 206, including the SDB 103 machine.
The FF 206 uses a radial-feed tool slide to advance the cut-
ting tool across the flange face. A starwheel on the slide is
advanced by striking mechanical trips as the machine
rotates. The starwheel turns a feed screw that drives the
slide in the feed direction.
Various finishes can be cut with the FF 206 by varying the
number of engaged trips on the trip ring. Finish options
include flange face, record groove, or RMS 63 finish.
NOTE
Radial tool slide Trip ring Squaring plate
SDB 103 with independent fitting
mandrel and leg sets
Tool holder

SDB-103 Small Diameter Beveler and FF 206 Flange Facer
14 Part No. 16-MAN-01, Rev. 4-1109 E.H. Wachs
Figure 3-7. The flange facing slide mounts on the
SDB 103 to face flanges.
Figure 3-8. The single-point tool holder with tool
inserts is used for flange facing.
Starwheel
Feed screw
Tool holder
SDB head
mounting
interface
Feed
direction

Chapter 3, Introduction to the Equipment: Performance Charts
E.H. Wachs Part No. 16-MAN-01, Rev. 4-1109 15
PERFORMANCE CHARTS
The following table is the result of extensive testing. Tests
were performed on carbon steel and stainless steel, as well
as exotic materials such as HK40 and incalloys.
= Effective prepping range
(a) = Limited by mandrel I.D.
(b) = Small I.D. conversion kit required
(c) = Carbon steel only
Table 2: FF 206 Flange Surface Trip Chart
Table 1: SDB Application and Performance
Nominal
Pipe
Size ASA Pipe Schedule Carbon and Stainless Steel
5 (b) 10 (b) 40 60 80 120 160
3/4”(a)
1”(a)
1 1/4”
1 1/2”
2”
2 1/2”
3”
3 1/2”
4” (c)
Trips Engaged RMS Finish
163RMS
2 125 RMS
4 250 RMS
6 500 RMS

SDB-103 Small Diameter Beveler and FF 206 Flange Facer
16 Part No. 16-MAN-01, Rev. 4-1109 E.H. Wachs
SPECIFICATIONS
OPERATING ENVELOPE
The following drawings illustrate the overall dimensions
and operating envelopes for the SDB 103 with air and elec-
tric motors, and for the FF 206.
Machine capacity SDB 103: Pipe and tube 0.875” (22.2 mm)
I.D. to 4.5” (114 mm) O.D.
FF 206: Flange O.D. from 2.0” (51 mm) to
6.0” (152 mm).
Machining functions
(SDB 103) Facing, O.D. beveling, compound beveling, J prepping, and I.D. counterboring of open-
end pipe and tube. Use up to four tools
simultaneously.
Machining functions
(FF 206) Single-point finishing of flat and raised flange faces. Surface finishes include 500
RMS (record groove), 250 RMS, 125 RMS,
and 63 RMS.
Mounting mechanism I.D.-mounted mandrel with adjustable
clamping legs and multiple legs sets to
cover full I.D. range. Standard diameter,
small I.D., and independent fitting (short
clearance) mandrels available.
Drive motors Air motor, 110 V or 220 V electric motor
Air requirements 16-000-01: 35 cfm (991 l/min)
Electrical requirements 16-000-02: 110 VAC, 50-60 Hz, 8.0 A
16-000-03: 220 VAC 50-60 Hz, 4.6 A
Controls Manual clamping, manual axial feed, vari-
able speed control (air or electric). FF 206:
mechanical radial feed using starwheel/trip
mechanism.
Feed features 2.5” (63.5 mm) maximum axial feed;
0.0625” (1.59 mm) feed per handle revolu-
tion. Indexed feed dial for precise depth.
Tooling Standard Wachs form tools for facing, bev-
eling, and counterboring. Single-point
holder with inserts for FF 206 flange facing.
High speed steel or carbide. Custom tool-
ing available.
Dimensions and weights See operating envelope drawings in next
section.
