DW Guillotine 208
User’s Manual
Copyright © 2019 E.H. Wachs. All rights reserved.
This manual may not be reproduced in whole or in part
without the written consent of E.H. Wachs.
E.H. Wachs
600 Knightsbridge Parkway
Lincolnshire, IL 60069
www.ehwachs.com
E.H. Wachs Part No. 29-MAN-00
Rev. A, June 2019
Revision History:
Original June 2019

DW Guillotine 208
Part No. 29-MAN-00, Rev. A E.H. Wachs

Table of Contents
E.H. Wachs Part No. 29-MAN-00, Rev. A i
Table of Contents
Chapter 1: About the DW Guillotine 208 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Purpose of This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
How to Use The Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Symbols and Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Manual Updates and Revision Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Equipment Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Hydraulic Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Operating Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Dismantling and Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Hydraulics and Lubricants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Machinery and Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Chapter 2: Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Safe Operating Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Safe Operating Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Safety Alerts in This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Protective Equipment Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Protective Clothing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Eye Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Hearing Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Safe Operation of the DW Guillotine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Intended Uses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Proper Use of the DW Guillotine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Hydraulic Powered Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Loss or Shut-Off of Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Misuse of Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Potential Hazards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Residual Risks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Disconnecting Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Safe Lifting and Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Saw Only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Saw in Storage Cart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Lock-Out/Tag-Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

DW Guillotine 208
ii Part No. 29-MAN-00, Rev. A E.H. Wachs
Chapter 3: Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Storing the Saw in the Cart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Operating Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Arm Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cutting Wire Tension and Feed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Hydraulic Connections and On/Off Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Installing the Cutting Wire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Mounting the Machine on the Pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Making the Cut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Pre-Operation Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Note on Disabling Power and Loss of Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Cutting Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Cleaning and Removing the Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Chapter 4: Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Note on Disabling Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Replacing the Cutting Wire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Chapter 5: Parts List and Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Ordering Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Repair Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Return Goods Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Drawings and Parts Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Chapter 1, About the DW Guillotine 208
E.H. Wachs Part No. 29-MAN-00, Rev. A 1
Chapter 1
About the DW
Guillotine 208
PURPOSE OF THIS MANUAL
This manual explains how to operate and maintain the DW
(diamond wire) Guillotine 208. It includes instructions for
set-up, operation, and maintenance. It also contains parts
lists, diagrams, and service information to help you order
replacement parts and perform user-serviceable repairs.
Before operating the DW 208, you should read through this
manual and become familiar with all instructions.
HOW TO USE THE MANUAL
Throughoutthismanual,refer
to this column for warnings,
cautions, and notices with
supplementary information.
This manual is organized to help you quickly find the infor-
mation you need. Each chapter describes a specific topic on
using or maintaining your equipment.
Each page is designed with two columns. This large column
on the inside of the page contains instructions and illustra-
tions. Use these instructions to operate and maintain the
equipment.
The narrower column on the outside contains additional
information such as warnings, special notes, and defini-
tions. Refer to it for safety notes and other information.
In This Chapter
PURPOSE OF THIS MANUAL
HOW TO USE THE MANUAL
SYMBOLS AND WARNINGS
MANUAL UPDATES AND
REVISION TRACKING
EQUIPMENT DESCRIPTION

DW Guillotine 208
2 Part No. 29-MAN-00, Rev. A E.H. Wachs
SYMBOLS AND WARNINGS
The following symbols are used throughout this manual to
indicate special notes and warnings. They appear in the out-
side column of the page, next to the section they refer to.
Make sure you understand what each symbol means, and
follow all instructions for cautions and warnings.
A WARNING alert with the
safety alert symbol indicates
a potentially hazardous situa-
tion that could result in seri-
ous injury or death.
A CAUTION alert with the
safety alert symbol indicates
a potentially hazardous situa-
tion that could result in
minor or moderate injury.
A CAUTION alert with the
damage alert symbol indi-
cates a situation that will
result in damage to the
equipment.
An IMPORTANT alert with
the damage alert symbol indi-
cates a situation that may
result in damage to the
equipment.
WARNING This is the safety alert symbol. It is used
to alert you to potential personal injury
hazards. Obey all safety messages that
follow this symbol to avoid possible
injury or death.
CAUTION
CAUTION This is the equipment damage alert
symbol. It is used to alert you to poten-
tial equipment damage situations.
Obey all messages that follow this sym-
bol to avoid damaging the equipment or
workpiece on which it is operating.
IMPORTANT

Chapter 1, About the DW Guillotine 208: Manual Updates and Revision Tracking
E.H. Wachs Part No. 29-MAN-00, Rev. A 3
A NOTE provides supple-
mentary information or oper-
ating tips.
MANUAL UPDATES AND REVISION TRACKING
Current versions of E.H.
Wachs Company manuals
are also available in PDF for-
mat. You can request an
electroniccopyof this manual
by emailing customer service
at [email protected].
Occasionally, we will update manuals with improved opera-
tion or maintenance procedures, or with corrections if nec-
essary. When a manual is revised, we will update the
revision history on the title page.
You may have factory service or upgrades performed on the
equipment. If this service changes any technical data or
operation and maintenance procedures, we will include a
revised manual when we return the equipment to you.
EQUIPMENT DESCRIPTION
The DW Guillotine 208 is designed to perform fast, square
cut-offs of pipes 2”-8” (51-203 mm) in diameter. The
machine is compact, light-weight, and easy to set up. It uses
a diamond-studded wire that cuts through all common pipe
materials.
Hydraulic Specifications
A Type II circuit provides 7-9
gpm flow at up to 2000 psi.
Do not exceed these flow
and pressure settings from
the HPU.
The DW 208 operates on a standard Type II hydraulic tool
circuit. Hydraulic operating specifications are the follow-
ing:
• Operating pressure: 1500 psi (104 bar)
• Flow operating range: 7-9 gpm (26-34 l/min); 7.5 gpm
(28 l/min) recommended for maximum cutting wire life
• Pressure relief: 2000 psi (138 bar)
• Maximum oil temperature: 140° F (60° C).
NOTE
NOTE
This symbol indicates a user note. Notes
provide additional information to supple-
ment the instructions, or tips for easier
operation.
NOTE

DW Guillotine 208
4 Part No. 29-MAN-00, Rev. A E.H. Wachs
Operating Features
The following figures illustrate the machine’s features and
components.
Figure 1-1. The photo shows the DW 208 compo-
nents.
Feed handle Wire tension
knob
Front cover latch
Arm cover latches
Lifting
handle
Mounting base

Chapter 1, About the DW Guillotine 208: Equipment Description
E.H. Wachs Part No. 29-MAN-00, Rev. A 5

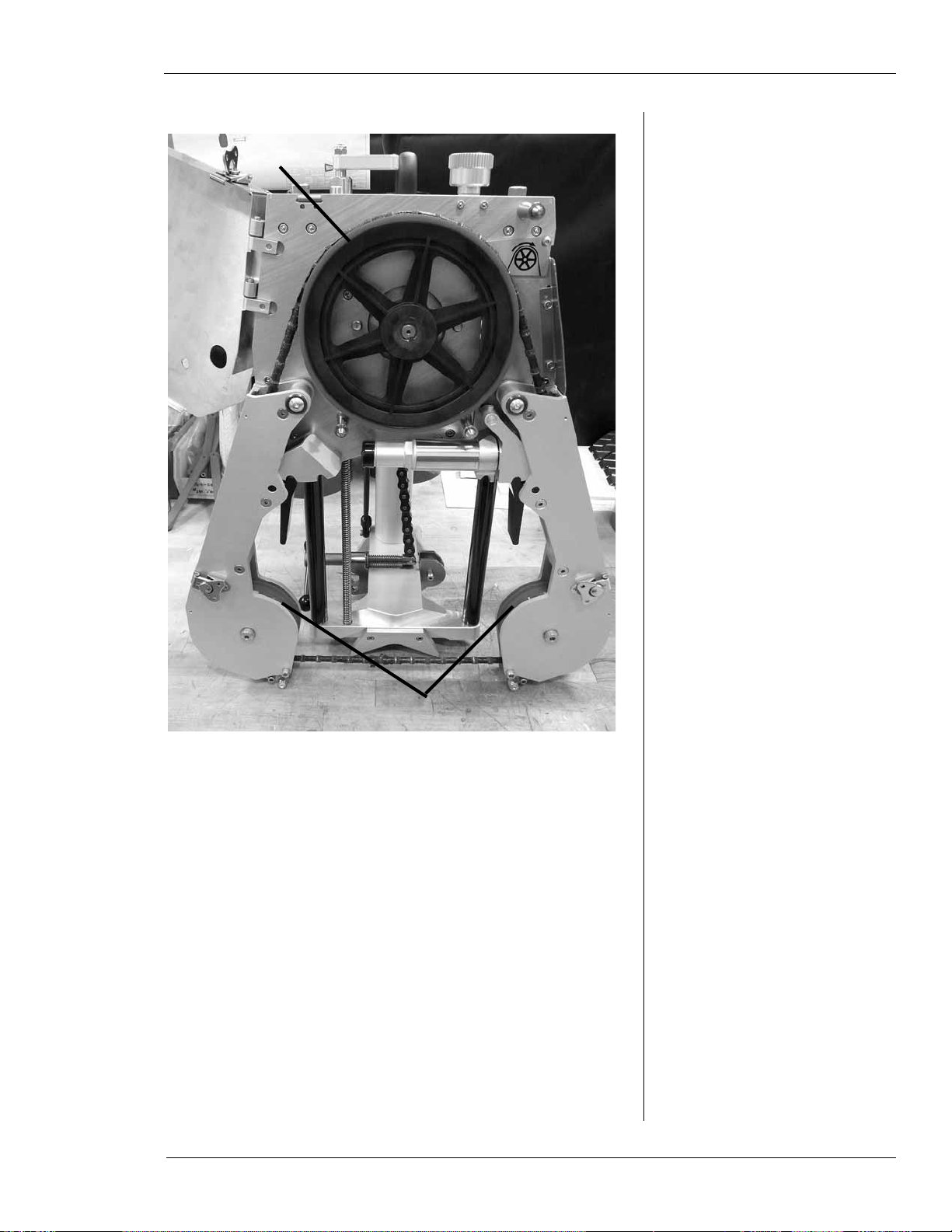

Figure 1-2. The photo shows the cutting wire installed
on the wheels.
Drive
wheel
Idler wheels

DW Guillotine 208
6 Part No. 29-MAN-00, Rev. A E.H. Wachs
Figure 1-3. The direction label under the top cover
shows the wire direction.
Figure 1-4. The photo shows the hydraulic and cool-
ant connectors.
Hydraulic return
(to tank) Hydraulic pressure
(from HPU) Coolant (connect
to coolant tank)

Chapter 1, About the DW Guillotine 208: Equipment Description
E.H. Wachs Part No. 29-MAN-00, Rev. A 7
Figure 1-5. The photo shows the controls on the
machine.
Figure 1-6. Refer to the wire tension gauge to set the
tension and operate the saw.
• Before cutting, turn the tension knob to set the
pointer at the SET position.
• During cutting, operate the feed handle to keep the
pointer at the CUT 1 position.
• For cutting heavy wall pipe, operate the feed handle
to keep the pointer at the CUT 2 position.
Wire tension
instruction label
Saw ON/OFF
knob (in OFF
position)
Wire tension
knob

DW Guillotine 208
8 Part No. 29-MAN-00, Rev. A E.H. Wachs
DISMANTLING AND DISPOSAL
Hydraulics and Lubricants
• Whenever servicing or dismantling the equipment,
always capture hydraulic fluid and lubricants. Recycle
or dispose of fluids as required by local environmental
law.
• Do not dispose of fluids by pouring down the drain.
Machinery and Components
• Recycle or dispose of metal and other equipment com-
ponents as required by local environmental law.

Chapter 2, Safety
E.H. Wachs Part No. 29-MAN-00, Rev. A 9
Chapter 2
Safety
E.H. Wachs takes great pride in designing and manufactur-
ing safe, high-quality products. We make user safety a top
priority in the design of all our products.
Read this chapter carefully before operating the DW Guil-
lotine. It contains important safety instructions and recom-
mendations. Tool operators and maintenance personnel
must always comply with the safety precautions in this
manual, and on the stickers and tags attached to the equip-
ment.
SAFE OPERATING GUIDELINES
Follow these guidelines for safe operation of all E.H.
Wachs equipment.
Look for this sym-
bol throughout the
manual.Itindicates
a personal injury
hazard.
•READ THE OPERATING MANUAL. Make sure you under-
stand all setup and operating instructions before you
begin. Keep this manual with the machine.
•INSPECTMACHINEANDACCESSORIESBEFOREUSE. Before
starting the machine, look for loose bolts or nuts, leak-
ing lubricant, rusted components, worn or damaged fit-
tings, and any other physical conditions that may affect
operation. Properly maintaining the machine can
greatly decrease the chances for injury.
•ALWAYSREADSTICKERSANDLABELS. Make sure all labels
and stickers are in place, clearly legible, and in good
condition. Refer to “Safety Labels” later in this chapter
for label locations on the machine. Replace any dam-
In This Chapter
SAFE OPERATING GUIDELINES
SAFE OPERATION OF THE DW
GUILLOTINE
LOCK-OUT/TAG-OUT
SAFETY LABELS

DW Guillotine 208
10 Part No. 29-MAN-00, Rev. A E.H. Wachs
aged or missing safety labels; see Chapter 5 for ordering
information.
•ESTABLISH A TRAINING PROGRAM. Ensure that all opera-
tors know how to operate the machinery safely. Do not
operate the machinery unless you have been trained, or
are under the supervision of an instructor.
•KEEP CLEAR OF MOVING PARTS. Keep hands, arms, and
fingers clear of all rotating or moving parts.Always turn
the machine off and disconnect the power source before
doing any adjustments or service.
•SECURE LOOSE CLOTHING AND JEWELRY. Secure or
remove loose-fitting clothing and jewelry, and securely
bind long hair, to prevent them from getting caught in
moving parts of the machine.
•FOLLOW SAFE PROCEDURES FOR HANDLING LUBRICANTS.
Refer to the manufacturer’s instructions and the Mate-
rial Safety Data Sheets.
Safe Operating Environment
•Do not use this equipment in a poten-
tially explosive atmosphere. Fire or
explosion could result, with the risk of
serious injury or death.
•Provide adequate lighting to use the
equipment, in accordance with worksite or local regula-
tions.
•KEEP WORK AREA CLEAR. Keep all clutter and nonessen-
tial materials out of the work area. Only people directly
involved with the work being performed should have
access to the area.
• The end user is responsible for providing a safe hydrau-
lic hose management procedure for the worksite. This
should take into account mechanical protection of the
hoses and trip hazards presented by the hoses. It is
strongly recommended that the end user conduct a risk
assessment to identify these risks and specify a suitable
control action for hose management.
• Start in a work area without bystanders. The operator
must be familiar with all prohibited work areas in the
environment, and all worksite safety guidelines and pro-
cedures.

Chapter 2, Safety: Safe Operating Guidelines
E.H. Wachs Part No. 29-MAN-00, Rev. A 11
Safety Alerts in This Manual
The following alerts are used throughout this manual to
indicate operator safety hazards. In all cases, these alerts
include a notice describing the hazard and the means to
avoid or reduce risk. Carefully read all safety alerts.
This icon is displayed with any safety alert that indicates a
personal injury hazard.
WARNING
This safety alert, with the personal injury hazard symbol,
indicates a potentially hazardous situation that, if not
avoided, could result in death or serious injury.
CAUTION
This safety alert, with the personal injury hazard symbol,
indicates a potentially hazardous situation that, if not
avoided, could result in minor or moderate injury.
Protective Equipment Requirements
Protective Clothing
Wear safety shoes when operating or servicing the equip-
ment. Serious injury could result from dropping the
machine or its components.
Gloves should be worn when
cleaning up chips and other
cutting debris. Chips can be
very sharp and can cause
serious cuts. Do not wear
gloves while operating the
DW Guillotine.
Do not wear gloves while operating the DW Guillotine.
Gloves are an entanglement hazard with moving parts.
Eye Protection
The Eye Protection hazard label is affixed to
the machine. Always wear impact-resistant
eye protection while operating or working near
this equipment.
NOTE

DW Guillotine 208
12 Part No. 29-MAN-00, Rev. A E.H. Wachs
Hearing Protection
The Hearing Protection hazard label is affixed
to the machine. The highest continuous noise
levels recorded for this equipment exceed 80
dB(A). Equipment operators/maintainers must
wear hearing protection.
SAFE OPERATION OF THE DW GUILLOTINE
Intended Uses
The DW Guillotine is designed to cut pipes of various mate-
rials using an abrasive diamond wire. The machine mounts
to the workpiece being cut off; the workpiece must be
secure and stable to hold the machine, or be adequately sup-
ported. Do not mount the DW Guillotine on non-cylindrical
workpieces.
Proper Use of the DW Guillotine
• This equipment is to be operated, serviced, and main-
tained only by qualified, trained personnel.
Exceeding the maximum
hydraulic pressure or flow
rate can result in equipment
damage or operator harm.
• Hydraulic pressure to the DW Guillotine must not
exceed 2250 psi (155 bar). It is the operator’s responsi-
bility to install and set a pressure limiting relief valve on
the hydraulic power unit. Normal operating pressure is
2000 psi (137 bar).
• Hydraulic flow to the DW Guillotine must not exceed 9
gpm (34 l/min). Normal operating flow is 7-9 gpm (26-
34 l/min).
• Use the DW Guillotine only on horizontal pipe. The
clamping system is not designed to hold it on a vertical
pipe.
• Make sure the equipment is stable when attached to the
workpiece for the operation. The mounting strap must
be tightened securely—as tight as you can get it. Ensur-
ing stability of the installed tool is the responsibility of
the operator.
• Make sure the workpiece is supported adequately for
installation of the equipment. This includes supporting
any workpiece “fall-off” section when severing the
WARNING

Chapter 2, Safety: Safe Operation of the DW Guillotine
E.H. Wachs Part No. 29-MAN-00, Rev. A 13
workpiece. Ensuring support of the workpiece is the
responsibility of the operator.
• It is recommended that you mount the saw so that the
controls are at an appropriate height and convenient to
operate. The recommended height of the controls is 2-5
ft (0.6-1.5 m).
• Use water or coolant on the cutting wire when operating
the DW Guillotine. Water/coolant is required to cool
and lubricate the wire during cutting, and to reduce air-
borne cutting debris. Excessive high temperatures will
cause premature damage to machine components, and
potential burn hazards.
• Tooling on any cutting equipment—including lathe
tools, saw blades, abrasive wire, etc.—may get very hot.
Do not touch tooling until you have made sure it is cool
enough to handle.
• DO NOT wear gloves when operating the DW Guillo-
tine. Gloves can become entangled in rotating machin-
ery, causing serious injury. (You can wear gloves when
removing or cleaning up chips and cutting debris. Chips
can be very sharp and cause cuts.)
• Before performing any service on the equipment, dis-
connect the power source. Follow all lock-out/tag-out
procedures required at the worksite.
Hydraulic Powered Equipment
• Be sure all hoses are connected for correct flow to and
from the DW Guillotine.
• Hydraulic components such as hoses, motors, and mani-
folds will get hot during operation and may cause burns.
Do not touch hydraulic components, except for operator
controls, during or after operating the machine.
Injection of
hydraulic fluid
through the skin
is a serious
injury that can
result in infection, tissue
damage, and possible loss of
limb. Seek medical treat-
ment immediately. First aid
is not sufficient treatment for
injection injury.
•Hydraulic injection injury—A pinhole in a hydraulic hose
or fitting can eject fluid with enough force to pierce
skin. Check hoses and fittings regularly for leaks; see
the instructions in Chapter 4. Do not use bare hands to
check for leaks while the system is pressurized. If you
suspect a leak, move a piece of paper or cardboard at
least 6 inches (15 cm) over the suspicious area and
watch for fluid spraying on the surface.
WARNING

DW Guillotine 208
14 Part No. 29-MAN-00, Rev. A E.H. Wachs
Loss or Shut-Off of Power Supply
• If the power source to the equipment is lost, immedi-
ately set the ON/OFF lever to the OFF position (hori-
zontal).
• Disconnect power from the equipment and lock out the
power supply immediately to prevent accidental restart-
ing of the machine.
• Follow all lock-out/tag-out procedures required at the
worksite when disconnecting or servicing the equip-
ment.
Misuse of Equipment
• Do not use the machinery for any purpose other than the
procedures described in this manual.
• Do not use the machinery in a potentially explosive
environment.
• Do not use the machinery to cut pipes containing explo-
sive materials.
• Do not operate the machinery without all covers in
place.
• Do not climb or step on the machinery.
• Do not reverse tool direction by changing fluid flow
direction. The DW Guillotine should never be oper-
ated in reverse direction.
• Do not perform any set-up, maintenance, adjustments,
service, or disassembly of the machinery without first
disconnecting the hydraulic hoses and performing the
required lock-out tag-out (LOTO) procedure to isolate
power from the DW Guillotine.
• Always put the ON/OFF handle in the OFF position
when the machine is not operating, to prevent accidental
starting of the machine (for instance, by turning on the
HPU while connected to the DW Guillotine).

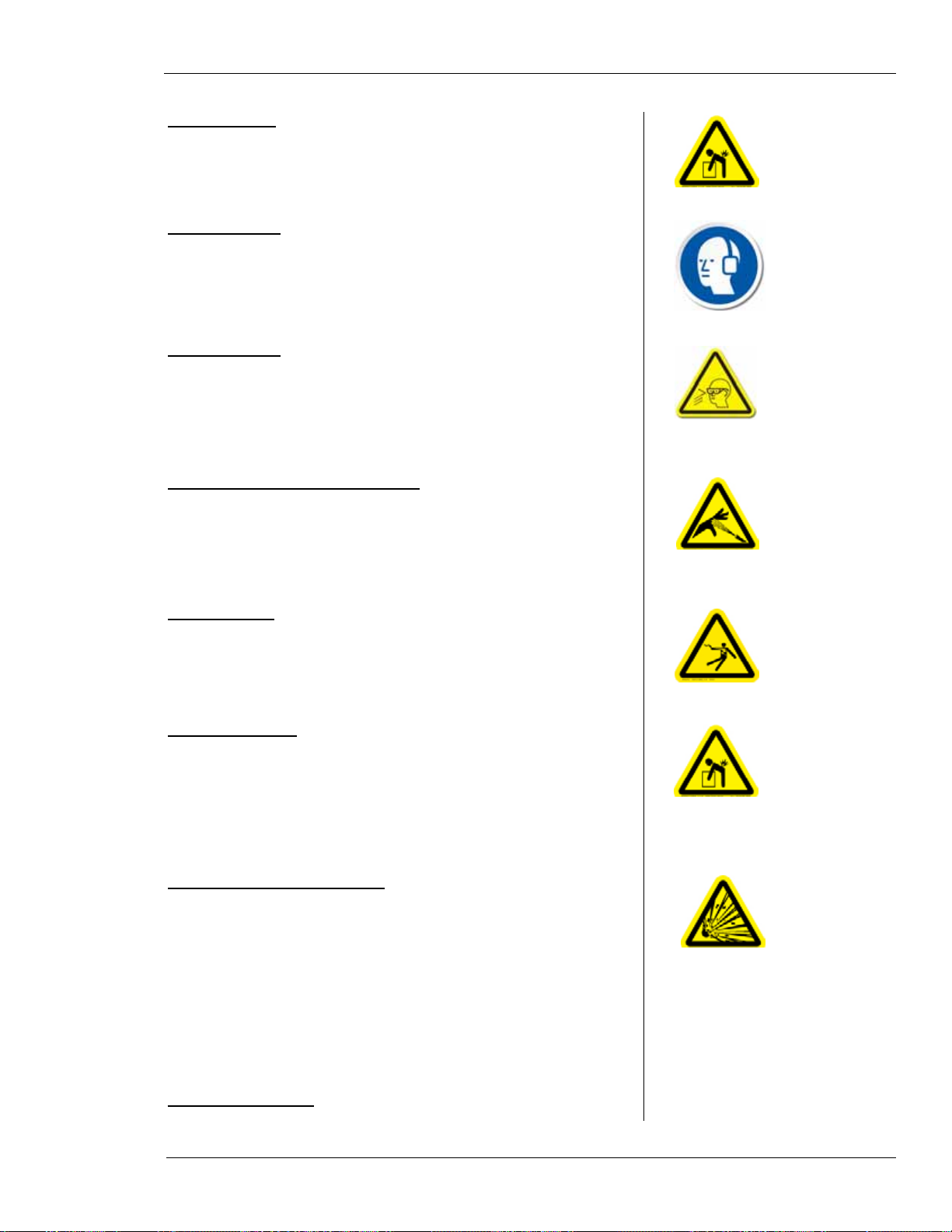

Potential Hazards
Cutting Parts. The DW Guillotine can cut human flesh if
contact is made while the wire is rotating. Keep clear of all
moving parts when operating the machine.

Chapter 2, Safety: Safe Operation of the DW Guillotine
E.H. Wachs Part No. 29-MAN-00, Rev. A 15
Hot Surfaces. Hydraulic components and the cutting wire
become hot during operation. Do not touch any surface
before making sure it is not hot enough to cause burns.
Noise Hazard. The highest continuous noise levels
recorded for this equipment exceed 80 dB(A). Equipment
operators/maintainers must wear hearing protection.
Flying Debris. The DW Guillotine creates airborne dust
and debris during cutting.Always wear impact-resistant eye
protection while operating or working near this equipment.
Use water on the diamond wire during cutting to reduce
heat and suppress airborne debris.
High-Pressure Hydraulic Fluid.A pinhole in a hydraulic
hose or fitting can eject fluid with enough force to pierce
skin. Check hoses and fittings regularly for leaks. Do not
use bare hands to check for leaks while the system is
pressurized.
Outdoor Use. The DW Guillotine is designed for outdoor
use. Do not operate the machine outdoors during or immedi-
ately after (30 minutes) an electrical storm
Lifting Hazard. The DW Guillotine weighs 65 lb (30 kg).
Use of a lifting device is recommended when moving the
machine or mounting it on the workpiece. The DW Guillo-
tine can be lifted by two operators. Make sure that there is
stable footing and adequate clearance to handle the machine
comfortably.
Ignition/Explosion Hazard. The DW Guillotine can pro-
duce heat and sparks during cutting. It is designed to cut
pipes that carry water as a medium; it is not intended for use
with pipes that carry any type of hydrocarbon (petroleum-
based product) or other ATEX-classified materials. To
reduce the risk of fire or explosion, do not use this wire saw
for cutting pipe containing these materials. The user
assumes all risks if this wire saw is misused in this type of
application.
Vibration Hazard. Details if required.....

DW Guillotine 208
16 Part No. 29-MAN-00, Rev. A E.H. Wachs
Residual Risks
• Hot surfaces on hydraulic components after operation.
• Hot surfaces on the cutting wire and the workpiece after
cutting.
• Cut hazards of abrasive cutting wire.
• Noise hazard during operation of the machine.
• Entanglement hazards from moving parts of the
machine.
• Handling of potentially hazardous materials, including
fluids and lubricants used for operation and mainte-
nance of the machine.
• Trip hazards from hydraulic hoses.
• Slip and fall hazards from spilled hydraulic fluid or
lubricants.
Disconnecting Power
Power is disconnected by removing the hydraulic hoses
from the fittings on the DW Guillotine. The wire drive
mechanism will not operate or move when power is discon-
nected.
Disconnecting the hydraulic hoses from the fittings on
the machine is the only way to completely isolate power
from the DW Guillotine.Always disconnect the hoses
when the machine is not in an operating situation.
Figure 2-1. To disconnect power, remove the hydrau-
lic hoses from their fittings.
