Wacom PENPARTNER - USB User manual

Navigation
Contents
Index
USERÕS MANUAL
FOR WINDOWS
ä

Page 2
Contents
Index
WACOM PenPartner
ä User’s Manual for Windows ä , May 21, 1997
WTC V1.0 for PCs
Copyright ã WACOM Company, Limited, 1997
All rights reserved. No part of this manual may be reproduced except for your express personal use. WACOM reserves the
right to revise this publication without obligation to provide notification of such changes. WACOM does its best to provide
current and accurate information in this manual, however WACOM reserves the right to change any specifications and product
configurations at its discretion, without prior notice and without obligation to include such changes in this manual.
TRADEMARKS
WACOM and UltraPen are registered trademarks and PenPartner is a trademark of WACOM Company, Limited. Acrobat
â
Reader Copyright ã 1987-1996 Adobe Systems Incorporated. All rights reserved. Adobe and Acrobat are trademarks of
Adobe Systems Incorporated which may be registered in certain jurisdictions. CompuServe is a registered trademark of
CompuServe, Inc. Microsoft, MS, Windows, Windows 95, Windows NT, and Windows 3.1 are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other countries. Any additional company and product names
mentioned in this documentation may be trademarked and/or registered as trademarks. Mention of third-party products is for
information purposes only and constitutes neither an endorsement nor a recommendation. WACOM assumes no responsibility
with regard to the performance or use of these products.

Page 3
Contents
Index
RADIO AND TELEVISION INTERFERENCE
The equipment described in this manual generates, uses, and can radiate radio-frequency energy. If it is not installed and used
properly—that is, in strict accordance with WACOM instructions—it may cause interference with radio and television reception.
FCC NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital device in accordance with the
specifications in Part 15 of FCC rules. These specifications are designed to provide reasonable protection against such
interference in a residential installation. However, there is no guarantee that interference will not occur in a particular
installation.
You can determine whether your tablet is causing interference by disconnecting it from the computer. If the interference stops,
it was probably caused by the tablet.
If your tablet does cause interference to radio or television reception, try to correct the interference by using one or more of the
following measures:
• Rotate the television or radio antenna until the interference stops.
• Move the tablet farther away from the television or radio.
• Plug the computer into an outlet that is on a different circuit from the television or radio.
If necessary, consult your authorized WACOM dealer or an experienced radio/television technician for additional suggestions.
Changes or modifications to this product not authorized byWACOM could void the FCC Certification and negate your authority
to operate the product.
This product was tested for FCC compliance under conditions that included the use of shielded cables and connectors between
system components. It is important that you use shielded cables and connectors to reduce the possibility of causing
interference to radios, television sets, and other electronic devices.

Page 4
Contents
Index
CE DECLARATION
The PenPartner
ä digitizing tablet, model CT-0405-R, has been tested by the TÜV Rheinland in Japan (an accredited EMC
laboratory) and found to comply to the following harmonized European Norms:
• EN 50 082-1 (electromagnetic immunity)
• EN 55-022 Class B (electromagnetic emissions).
Based on the results of these tests, WACOM declares that the above mentioned devices conform to Article 10.1 of the
European Council Directive 89/336/EEC and indicates this conformity by the CE-sign on each device.
The device must be installed and operated always in strict accordance to the instructions given in this handbook. Any changes
or modifications to this product that were not specifically authorized by WACOM will invalidate this declaration.
BZT NOTICE
The PenPartner
ä digitizing tablet, model CT-0405-R, has been tested for radio emission characteristics and found to comply to
the regulations of BMPT official gazette decree 243/1991. However, you must pay attention to the instructions in this manual
and use the devices only in the prescribed way. The Bundesamt für Zulassungen in derTelekommunikation (BZT) has received
notice of issuing of this equipment and has been granted authorization for inspection of the series. WACOM Co., Ltd, Japan.

Page 5
Contents
Index
NAVIGATING THE MANUAL
Use the navigation controls to move through the manual:
Go to front page.
Go to Table of Contents.
Go to Index.
Go to Navigating the Manual.
Page back, or page forward.
Go to beginning of section.
Go to topic.
Topic section continued.
The Acrobat Reader provides you with additional tools for using and printing the manual. Refer to the
Acrobat Reader Online Guide for more information.
Contents
Index
HEADING TEXT
Text

Page 6
Contents
Index
ABOUT THE MANUAL
This interactive User’s Manual provides quick access to information about PenPartner. Just click on a
navigation button or highlighted word to move through the document.
• The Table of Contents enables you to go directly to a topic by clicking on it.
•Installation shows you how to install the hardware and software.
•Using PenPartner is the learning chapter. If you are not familiar with a pen, this chapter gives you the
basics, including an overview of PenPartner’s many capabilities. There is also information on how to
care for your pen and tablet.
•Customizing PenPartner describes how you can change the UltraPen settings for the way you like to
work.
•HavingTrouble?Want to test your tablet? Need troubleshooting guidelines? Do you have a question for
Technical Support?You will find the answers to most common questions here.
• The Appendices include product specifications, license and warranty information, and a listing of
replacement parts and accessories.
If you are new to electronic documentation, be sure to read Navigating the manual.
You can copy this manual to your hard drive by dragging the PENGUIDE.PDF icon to your desktop or to a
new folder.

Page 7
Contents
Index
Certain kinds of information are not included in this manual.
• Information about your specific computer hardware.
• Information about your operating system.
• Information about application software. To use the pressure-sensitive UltraPen with your favorite
drawing application, refer to instructions in that application’s manuals. You can find a listing of
pressure-sensitive and eraser-aware applications on the WACOM Internet home page at:
http://www.wacom.com/productinfo .
• Information about other WACOM tablets.
Your best source of information for these is the set of manuals and disks that came with your hardware,
operating system, applications, or other WACOM tablets.

TABLE OF CONTENTS
Page 8
Contents
Index
TABLE OF CONTENTS
Trademarks
Radio and television interference
FCC Notice
CE Declaration
BZT Notice
Navigating the manual
About the manual
INSTALLATION
PenPartner box contents
Things to know before installation
Hardware connection
Software installation
Mail in registration
USING PENPARTNER
Appearance and features
PenPartner
Using the UltraPen

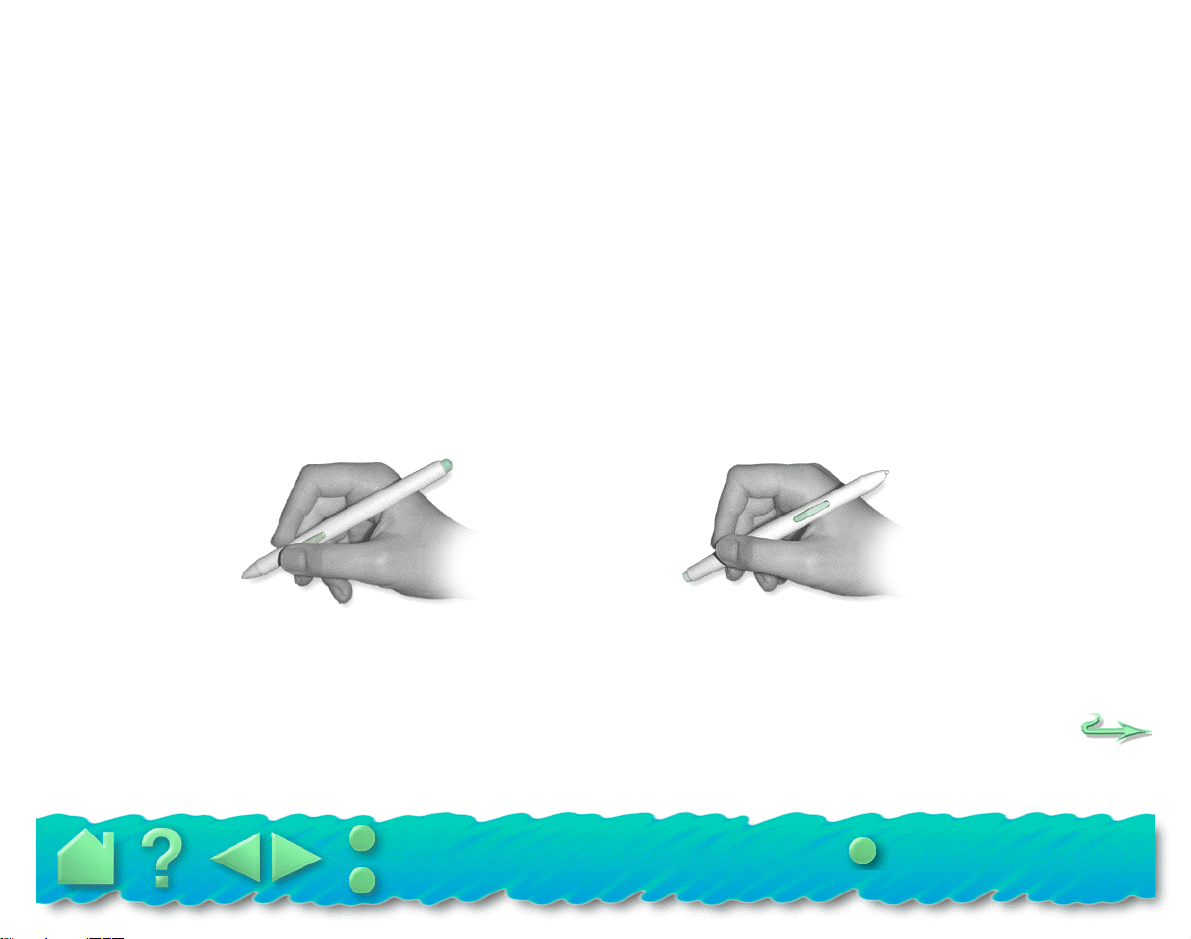

Holding the pen
Pointing
Clicking
Dragging

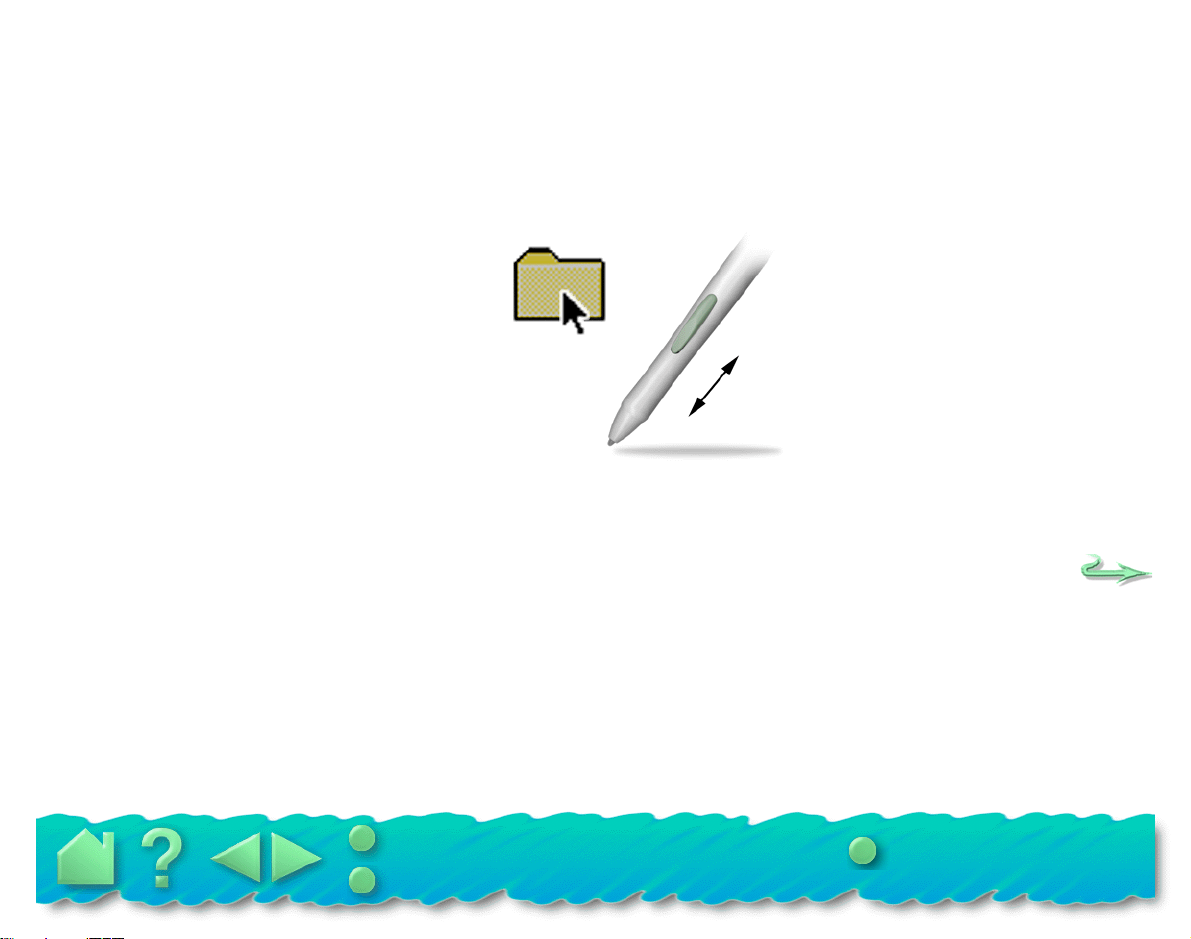

Proximity
Drawing with pressure
Erasing with ease
Caring for PenPartner
Replacing the pen tip
CUSTOMIZING PENPARTNER
Opening the control panel
Customizing the pen
Adjusting tip feel
Make double-clicking easier
Adjusting eraser feel
Choosing pen or mouse like movement
Simulating mouse buttons
Simulating keyboard keys
Returning to default settings
HAVING TROUBLE?
Testing the tablet
Running WTEST
Avoiding serial port conflicts
Using non-standard IRQs
Determining the serial port settings
Troubleshooting
General problems
Windows-specific problems
NT-specific problems
Connecting with WACOM online
Contacting technical support
Linking to the Web page
Pre-contact checklist

TABLE OF CONTENTS
Page 9
Contents
Index
Who to call
USA, Canada, Central and South America
Europe, Middle East and Africa
Japan
Asia Pacific
APPENDICES
Uninstalling the software
Product specifications
PenPartner tablet (Model CT-0405-R)
UltraPen (Model UP-703E)
License and warranties
Software license
Limited warranty
Warranty on sales outside of U.S. and Canada
Parts and accessories
Tablets
Pens
Other parts and accessories
GLOSSARY
INDEX
WACOM International Offices
Acknowledgments

INSTALLATION
Page 10
Contents
Index
INSTALLATION
PenPartner is compatible with all Windows applications that support a mouse. If you have not already
done so, now is a good time to inventory the PenPartner box contents.
Before using PenPartner, you must first turn off your computer and then connect the tablet hardware to it.
You can install PenPartner even if you already have a mouse or trackball; the tablet can be used alone or
with your other pointing devices.
After the hardware is connected, you need to install the software drivers. Your new tablet is compatible
with Windows 3.1, 95, and NT 3.51 or later.
After you install the hardware and software, you can use the pen to move the screen cursor.
PENPARTNER BOX CONTENTS
THINGS TO KNOW BEFORE INSTALLATION
HARDWARE CONNECTION
SOFTWARE INSTALLATION

INSTALLATION
Page 11
Contents
Index
PENPARTNER BOX CONTENTS
You should find the following items in your PenPartner box:
Illustrations not to scale.
PS/2-AT Adaptor
CD-ROM
Tablet (CT-0405-R)
Registration Card
UltraPen (UP-703E)
Spare Nib
Pen Stand

INSTALLATION
Page 12
Contents
Index
THINGS TO KNOW BEFORE INSTALLATION
• To install your WACOM tablet, first connect the hardware and then install the software.
• If your computer does not have an available serial port, you will need to remove an existing serial
device or add an additional serial port.
• Some computers have a built-in modem, and the external serial port may be disabled or configured in
a way that could conflict with the modem. See Avoiding serial port conflicts for more information on
serial port configuration.
• If you are using a DOS shell under Windows 95 or NT, PenPartner will automatically function in the
DOS shell after you install the drivers for Windows 95 or NT. PenPartner will not function in a DOS
shell under Windows 3.1.

INSTALLATION
Page 13
Contents
Index
HARDWARE CONNECTION
Important: Always turn the computer off before you connect or disconnect your tablet. Failure to
do this can cause a power surge and damage the computer.
Or... And...
1. Connect the power cable 2. Connect the serial cable
To AT keyboard
AT keyboard port
For PS/2 mouse or
keyboard
(6-pin mini-DIN) :
Disconnect mouse or
keyboard.
Plug PS/2 tablet
connector into that port.
Attach AT-to-PS/2 adaptor.
Plug mouse or keyboard
(whichever one you
removed) into adaptor.
To PS/2 mouse
or keyboard
PS/2 port
For AT keyboard
(5-pin DIN) :
Disconnect keyboard.
Plug AT-to-PS/2 adaptor
into that port.
Plug PS/2 tablet
connector into adaptor.
Plug keyboard into tablet
connector.
Connect the
serial cable:
Plug 9-pin serial
connector into the
computer serial port.
Note: If the computer
has a 25-pin serial port,
a 9- to 25-pin adaptor
can be purchased from
your computer dealer.
To tablet
9-pin serial port
If you had any trouble, go to
HavingTrouble? Otherwise, move
on to Software installation.

INSTALLATION
Page 14
Contents
Index
SOFTWARE INSTALLATION
The PenPartner CD-ROM contains a Readme file with late-breaking news about PenPartner, this User’s
Manual, and software drivers that enable your computer and tablet to communicate.
1. Make sure the tablet’s power cable and serial cable are connected, then turn on your computer. The
LED on your tablet should light to indicate the tablet is powered up.
2. After Windows has started, insert the PenPartner CD-ROM into your computer.
For Windows 95, if you see the New Hardware Found dialog box, select Driver from disk provided by
hardware manufacturer and press Enter . Type the CD-ROM drive name, for example d:\ .Then
press Enter and follow the screen prompts.
3. If the Plug and Play dialog does not appear for Windows 95 or Windows NT 4.0, click on the Start
button and then click Run... .
Or...
For Windows NT 3.51 or Windows 3.1, from the Program Manager select File and Run... .
Important: If you replaced your mouse with the tablet:
ForWindows 95 or NT 4.0 , press Ctrl-Esc to open the Start menu. Use the arrow keys to select
Run.. ., and then press Enter .
ForWindows 3.1 or NT 3.51 , press Alt-F to open the File menu. Select Run... , and press Enter .
4. In the dialog box, type d:\setup . If your CD-ROM has a different drive letter, type that letter instead of
d: . Click OK and follow the prompts.

INSTALLATION
Page 15
Contents
Index
5. When finished, close all open applications and restart your computer. After restarting Windows you
will be able to use the pen to move the screen cursor.
Important: When starting Windows 95 in safe mode, the driver software for PenPartner will not
load and the tablet will not function.
If you had any trouble with this installation, go to Having Trouble?
MAIL IN REGISTRATION
Please complete and mail in the WACOM Registration Card that came with your tablet.

USING PENPARTNER
Page 16
Contents
Index
USING PENPARTNER
The quickest way to learn about PenPartner is to become familiar with its appearance and features. As
you explore, you will find the UltraPen easy to use for drawing and erasing, or as a mouse substitute.
PenPartner can be used in all applications that support a mouse.
APPEARANCE AND FEATURES
USING THE ULTRAPEN
CARING FOR PENPARTNER

USING PENPARTNER
Page 17
Contents
Index
APPEARANCE AND FEATURES
The PenPartner tablet and UltraPen include a variety of features.
PENPARTNER
Pen Stand
Side Switch
Eraser
UltraPen
Nib (pen tip) Power LED
Tablet Overlay
Active Area
Tablet

USING PENPARTNER
Page 18
Contents
Index
USING THE ULTRAPEN
Think of the tablet’s active area as a mapped representation of your computer screen. Wherever you
place the UltraPen on the tablet’s active area, the screen cursor will jump to the corresponding point on
the screen. For example, when you position your pen tip in the upper right corner of the tablet, the cursor
appears in the upper right corner of your screen. This is called “absolute positioning,” and makes tracing
possible—something you cannot do with a mouse. You can place an image under the tablet overlay and
trace over it with the pen to quickly and easily create graphics on-line.
There are four basic techniques for using the UltraPen: pointing, clicking, double-clicking, and dragging.
With a bit of practice, using the pen will become second nature to you.
HOLDING THE PEN
Hold the UltraPen like you would a pencil. Make sure the side switch is in a convenient location where you
can press it with your thumb or forefinger, but not accidently press it while drawing. You can tilt the pen in
any way that feels most comfortable for drawing.
When the pen is not in use, place it in the pen stand. Leaving the pen on the tablet may affect the screen
cursor when you are working with a mouse.
Position for drawing Position for erasing

USING PENPARTNER
Page 19
Contents
Index
POINTING
The UltraPen controls a pointer (or cursor) on your screen. Screen cursors have different shapes, such as
an arrow or I-beam, depending on the type of application you are running.
Move the screen cursor by lifting the UltraPen and placing it at a new location on the tablet. The cursor
instantly jumps to the new location (absolute positioning). This is better than positioning with a mouse
where you must first find the cursor and then try to move it with a “pick-up and roll” action (relative
positioning).

USING PENPARTNER
Page 20
Contents
Index
CLICKING
Clicking. To click, tap the tablet once with the tip of the UltraPen, or touch the pen to the tablet with
enough pressure to simulate pressing a mouse button.
Double-clicking. To double-click, quickly tap the tablet twice in the same place with the pen tip. This is
like clicking twice with a mouse button. Be sure to hold the UltraPen so that you press downward on the
pen tip.
You typically click to highlight or select something on the screen, and double-click to open it.
Hint:You may find it easier to set
the side switch to double-click
automatically when pressed.
