33
Please read this manual carefully before installing and starting up the
device, and store it in a safe place. If the device is passed on to another
person, this manual must also be handed over with it.
Table of contents
1 Notes on using the manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
2 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
7 Fastening the IU0U automatic charger . . . . . . . . . . . . . . . . . . . . . . 40
8 Connecting the IU0U automatic charger to the exhaust system . . . 41
9 Connecting the IU0U automatic charger . . . . . . . . . . . . . . . . . . . . . 42
10 Using the IU0U automatic charger. . . . . . . . . . . . . . . . . . . . . . . . . . 45
11 Cleaning and servicing the IU0U automatic charger . . . . . . . . . . . . 50
12 Rectifying faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
13 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
14 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
15 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
_PerfectCharge_IU152A-IU254A.book Seite 33 Mittwoch, 26. März 2008 4:48 16

Notes on using the manual PerfectCharge
34
1 Notes on using the manual
dCaution!
Safety instruction: failure to observe this instruction can cause
material damage or personal injury.
aCaution!
Safety instruction: Failure to observe this instruction can cause
material damage and impair the function of the device.
eCaution!
Safety instruction relating to a danger from an electrical current or
voltage. Failure to observe this instruction can cause material
damage or personal injury and impair the function of the device.
INote
Supplementary information for operating the device.
➤Action: This symbol indicates that action is required on your part. The
required action is described step-by-step.
✓This symbol describes the result of an action.
fig. 15, page 3: This refers to an element in an illustration. In this case,
item 5 in figure 1 on page 3.
Please observe the following safety instructions.
_PerfectCharge_IU152A-IU254A.book Seite 34 Mittwoch, 26. März 2008 4:48 16

PerfectCharge General safety instructions
35
2 General safety instructions
The manufacturer will not be held liable for claims for damage resulting from
the following:
zFaulty assembly or connection
zDamage to the appliance resulting from mechanical influences and
excess voltage
zAlterations to the device without express permission from the manu-
facturer
zUse for purposes other than those described in the operating manual
Please observe the following basic safety information when using electrical
devices to protect against:
zElectric shock
zFire hazards
zInjury
2.1 General safety
dzBatteries contain aggressive acids.
Avoid coming into contact with battery fluid.
If your skin does come into contact with battery fluid, wash the
part of your body in question and your clothes thoroughly with
plenty of fresh water.
If you sustain any injuries from acids, contact a doctor immedi-
ately.
zNever attempt to charge a frozen or defective battery.
There is a danger of explosions!
Place the battery in a frost-free area and wait until the battery
has acclimatised to the ambient temperature. Only then can
you start the charging process.
zPersons whose physical sensory or mental capacities prevent
them from using this device safely should not operate it without
the supervision of a responsible adult.
zElectronic devices are not toys
Keep electrical appliances out of reach of children or infirm per-
sons. Do not let them use the appliances without supervision.
_PerfectCharge_IU152A-IU254A.book Seite 35 Mittwoch, 26. März 2008 4:48 16

General safety instructions PerfectCharge
36
azUse the IU0U automatic charger only as intended.
zCharge the battery only in well ventilated rooms.
zAlways disconnect the power supply when working on the de-
vice.
zStore the IU0U automatic charger in a dry and cool place.
zMaintenance and repair work may only be carried out by quali-
fied personnel who are familiar with the risks involved and the
relevant regulations.
2.2 Operating the device safely
ezIf electrical devices are incorrectly installed on boats, corrosion
damage might occur. The IU0U automatic charger should be in-
stalled by a specialist (marine) electrician.
azOnly operate the IU0U automatic charger if you are certain that
the housing and the cables are not damaged.
zDo not operate the IU0U automatic charger in a damp or wet
environment.
zMake sure the device is standing firmly.
The IU0U automatic charger and the batteries to be charged
must be set up in such a way that they cannot tip over or fall
down.
zTake precautions necessary to ensure that the IU0U automatic
charger is out of reach of children.
Dangerous situations may occur which cannot be recognised by
children!
zAlways use sockets which are grounded and secured by resid-
ual current circuit breakers to operate the device.
_PerfectCharge_IU152A-IU254A.book Seite 36 Mittwoch, 26. März 2008 4:48 16

PerfectCharge Scope of delivery
37

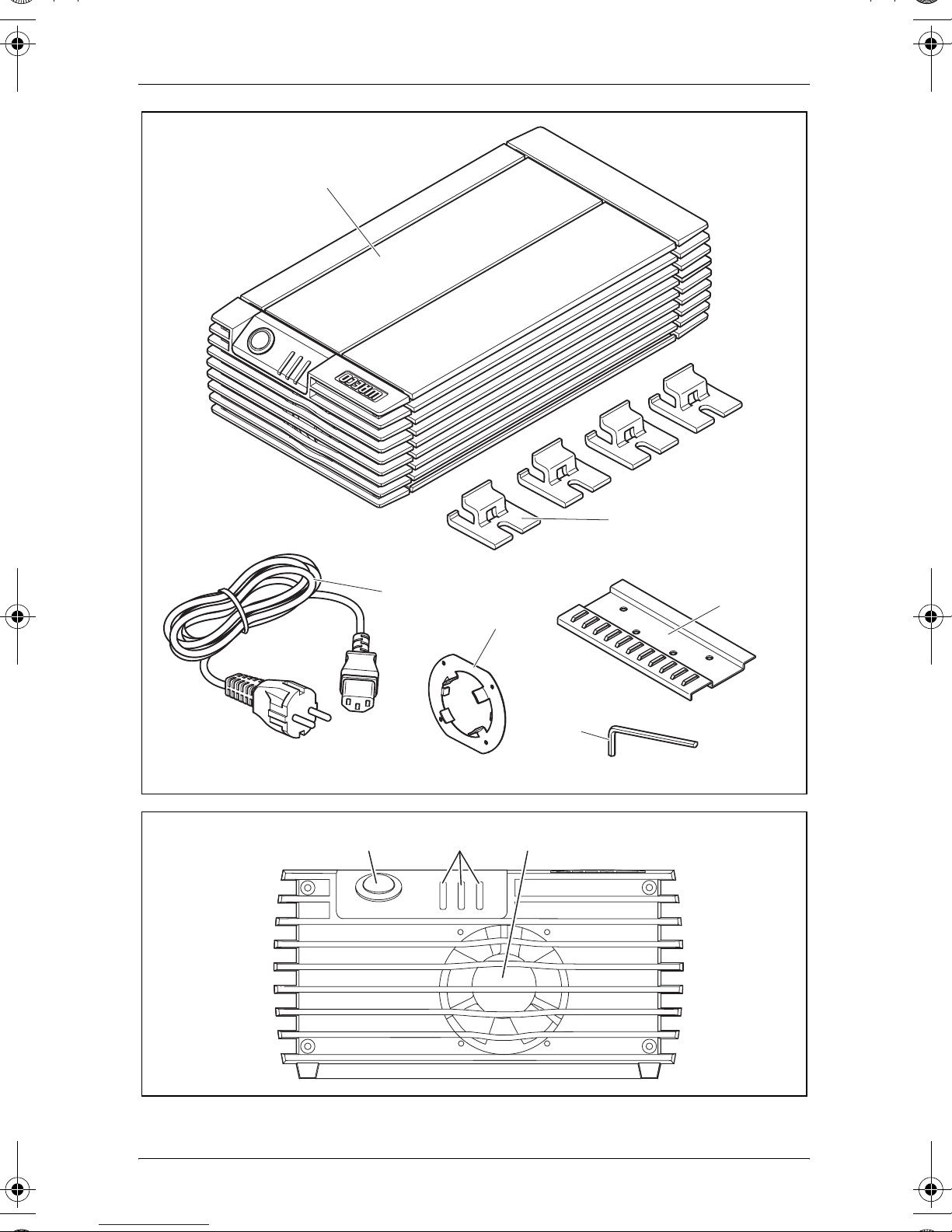

3 Scope of delivery
4 Accessories
5 Intended use
PerfectCharge IU0U automatic chargers can charge or trickle charge batter-
ies or supply batteries, which are used to generate power in vehicles or on
boats.
The IU0U automatic charger can be used to continuously charge supply or
starter batteries. It can charge these batteries or maintain a high charge level:
z12 V batteries: IU152A, IU252A, IU452A
z24 V batteries: IU154A, IU254A
No. in
fig. 1,
page 3
Designation
1 Charger
2Holders (4 pcs)
3 Connection cable
(for 230 VAC-supply)
4Exhaust adapter
5 Mounting bracket
6Hexagon socket wrench
– Fastening screws (12 pcs)
–Operating manual
Designation Item no.
Remote control
Temperature sensor TF-500
_PerfectCharge_IU152A-IU254A.book Seite 37 Mittwoch, 26. März 2008 4:48 16

Technical description PerfectCharge
38
The IU0U automatic charger can be used to charge the following types of bat-
teries:
zLead starter batteries
zGel batteries
zFleece batteries (AGM)
zMaintenance-free lead batteries
with the capacities and voltages specified in the chapter “Technical data” on
page 52.
Ask your battery retailer for details relating to the maximum capacity of lead
gel batteries.
eCaution
Batteries with a cell short circuit may not be charged, as explosive
gases may form due to overheating of the battery.
eCaution
The IU0U automatic charger may never be used to charge other
battery types (e.g. NiCd, NiMH, etc.)!
6 Technical description
6.1 Function
A fuse protects the device from damage if the polarity is reversed. For the
type and rating of the fuse in your device, see chapter “Technical data” on
page 52.
eCaution
The device's fuse may only be replaced by qualified personnel who
are familiar with the risks involved and the relevant regulations.
INote
You can use a temperature sensor (accessory) to protect the bat-
tery from damage from extreme outdoor temperatures. The tem-
perature sensor is attached to the battery and connected to the
IU0U automatic charger. It protects the battery by adjusting the
charging voltage to the temperature of the battery (see chapter
“Charging characteristics” on page 47).
_PerfectCharge_IU152A-IU254A.book Seite 38 Mittwoch, 26. März 2008 4:48 16

PerfectCharge Technical description
39
Three control lamps on the device are for constant monitoring of the IU0U au-
tomatic charger (see chapter “Functional check” on page 49).
6.2 Specifications for the device variants
Various PerfectCharge IU0U automatic charger versions are available.
Your IU0U automatic charger can be used to charge batteries up to a speci-
fied battery capacity (see chapter “Technical data” on page 52):
zIU152A: suitable for charging one supply battery and one starter battery
zIU154A, IU252A: suitable for charging up to two supply batteries and one
starter battery
zIU254A, IU452A: suitable for charging up to three supply batteries.
For the identification of your device, see the item number on the type plate.
6.3 Control elements
Front view (fig. 2, page 3)
No. Description
1 Main switch
0/Off: device is switched off
I/On: device is switched on
II/Sleep Mode: device runs quietly
(sleep mode: half power)
2 Status LEDs: show the current charging status
(see chapter “Charging characteristics” on page 47)
U Phase: the IU0U automatic charger is in the U phase
IU Phase: the IU0U automatic charger is in the U0 phase
I Phase: the IU0U automatic charger is in the I phase
3Fan
_PerfectCharge_IU152A-IU254A.book Seite 39 Mittwoch, 26. März 2008 4:48 16

Fastening the IU0U automatic charger PerfectCharge
40

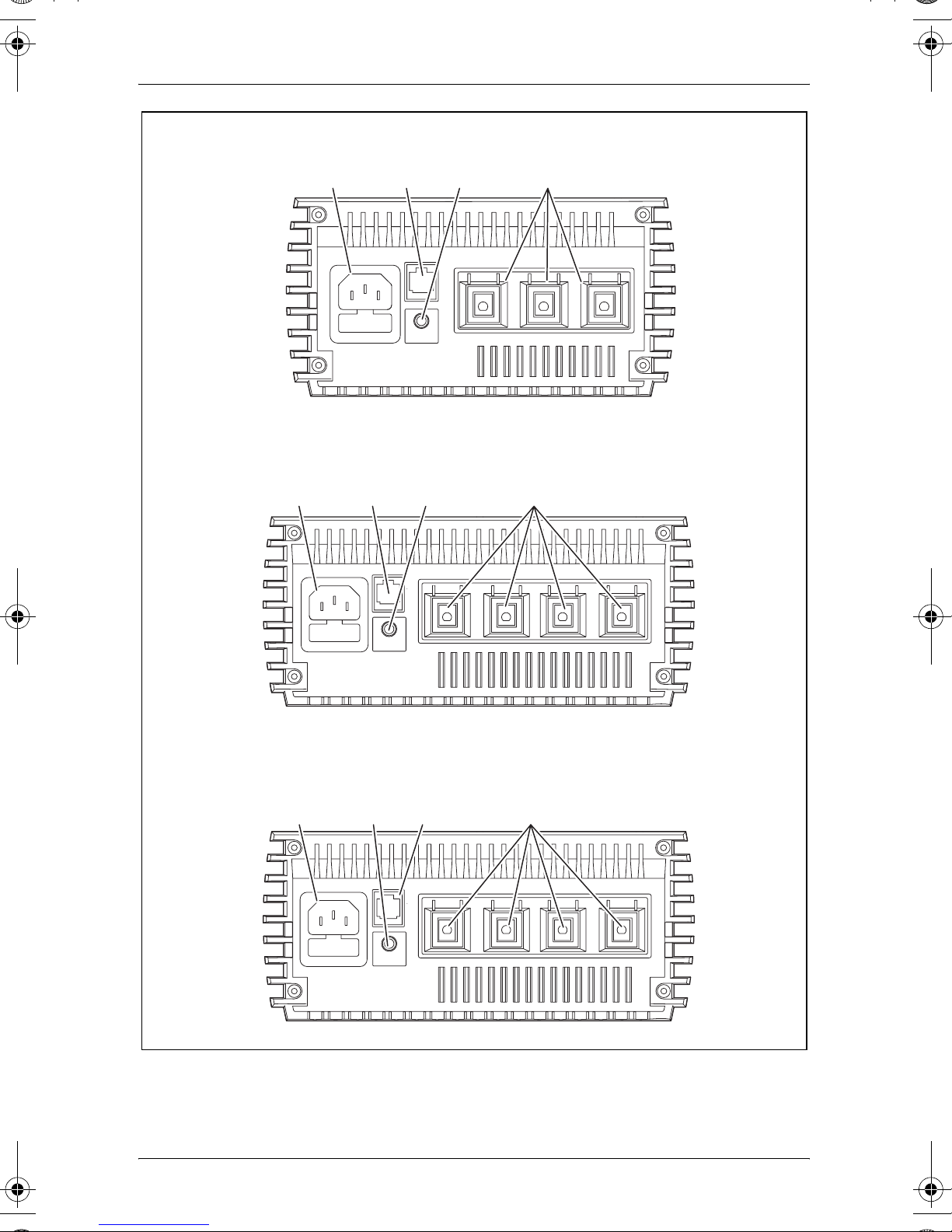

Rear view (fig. 3, page 4)
7 Fastening the IU0U automatic charger
You can fasten the IU0U automatic charger using the four holders supplied.
When selecting the installation location, observe the following instructions:
zYou can mount the IU0U automatic charger either horizontally or vertical-
ly.
zDo not operate the device
– In wet or damp environments
– In dusty environments
– In the vicinity of flammable materials
– In spaces where there is a danger of explosion
zSelect a well-ventilated location for the device.
A ventilation system must exist for installations in small, enclosed
spaces. The free space around the IU0U automatic charger must be at
least 5 cm.
zMake sure that the ventilation slots on the front and back as well as under
the IU0U automatic charger are not covered.
zSelect a mounting surface which is flat and sufficiently firm.
zMake sure you have adequate space for the mounting bracket behind the
device when choosing a mounting location.
aCaution
Before drilling any holes, make sure that no electrical cables or oth-
er parts of the vehicle can be damaged by drilling, sawing and filing.
No. Description
1 230 V power supply connection
2 RC: connection for remote control (accessory)
3 TS: connection for temperature sensor (accessory)
4 Battery connection terminals
BATT 1+, BATT 2+, BATT 3+: positive terminal for supply batteries
BATT –: negative terminal
START BATT + (only IU152A), BATT 1+ (only IU154A, IU252A): posi-
tive terminal of the starter battery
_PerfectCharge_IU152A-IU254A.book Seite 40 Mittwoch, 26. März 2008 4:48 16

PerfectCharge Connecting the IU0U automatic charger to the exhaust system
41
Fastening the IU0U automatic charger to the floor
➤Clip two holders on the left bar and two on the lower right bar (fig. 4,
page 5).
You can move the holders as required.
➤Fasten the IU0U automatic charger by screwing one screw through each
hole in the holders.
➤Lay the mounting bracket (fig. 51, page 5) with the clip over the edge
on the back of the IU0U automatic charger (fig. 52, page 5).
➤Fasten the mounting bracket by screwing one screw into each of the four
holes.
Mounting the IU0U automatic charger on the wall
➤Clip two holders on the left bar and two on the lower right bar (fig. 4,
page 5).
You can move the holders as required.
➤Screw the mounting bracket (fig. 61, page 6) on to the wall by screwing
one screw into each of the four holes.
➤Press the IU0U automatic charger (fig. 62, page 6) on to the mounting
bracket so that the edge on the back of the IU0U automatic charger is
pinched between the wall and the clip on the mounting bracket.
➤Fasten the IU0U automatic charger by screwing one screw through each
hole in the holders.
8 Connecting the IU0U automatic
charger to the exhaust system
You can connect the IU0U automatic charger to an exhaust system. The
warm exhaust is thereby driven out of the internal chamber.
Proceed as follows (fig. 7, page 6):
➤Set the exhaust adapter (2) on the front of the charger (1) over the fan, so
that the screws fit into the holes.
➤Attach the exhaust adapter using the four screws provided.
➤Connect the hose support (3, not included) to the exhaust adapter.
➤Connect the exhaust system hose (4) to the hose support.
_PerfectCharge_IU152A-IU254A.book Seite 41 Mittwoch, 26. März 2008 4:48 16

Connecting the IU0U automatic charger PerfectCharge
42
9 Connecting the IU0U automatic
charger
aCaution
The IU0U automatic charger may only be connected by a qualified
specialist.
The following information is intended for technicians who are famil-
iar with the guidelines and safety precautions to be applied.
Observe the following safety instructions for the electrical connections:
ezCaution, risk of short circuit
Always use sockets which are grounded and secured by resid-
ual current circuit breakers.
zIf you have to feed cables through metal walls or other walls with
sharp edges, use ducts or tubes to prevent damage.
zDo not lay cables which are loose or bent next to electrically
conductive material (metal).
zFasten the cables securely.
zDo not pull on the cables.
zDo not lay the 230 V mains cable and the 12/24 V DC cable in
the same duct.
zLay the cables so that they cannot be tripped over or damaged.

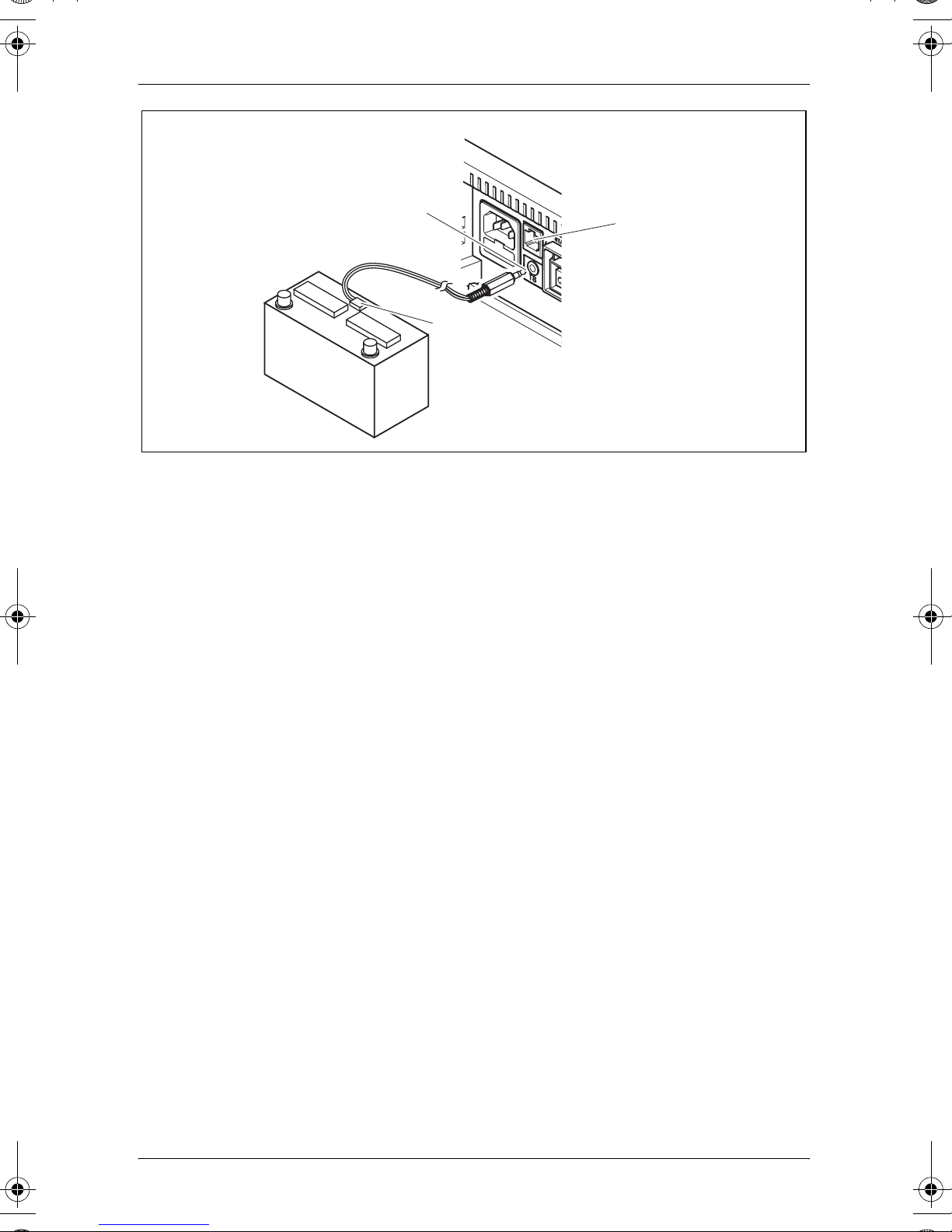

9.1 Connecting the IU0U automatic charger to a battery
(fig. 8, page 7)
dWarning
Avoid coming into contact with the battery fluid.
eCaution
Batteries with a cell short circuit may not be charged, as explosive
gases may form due to overheating of the battery.
_PerfectCharge_IU152A-IU254A.book Seite 42 Mittwoch, 26. März 2008 4:48 16

PerfectCharge Connecting the IU0U automatic charger
43
aNote
Loose connections may cause overheating.
Tighten the screws on the terminals to a torque of 12 – 13 Nm.
INote
IU152A: To connect starter batteries, use the special “START
BATT +” terminal intended for this purpose.
INote
IU154A, IU252A: To connect starter batteries, use the special
“BATT 1+” terminal intended for this purpose.

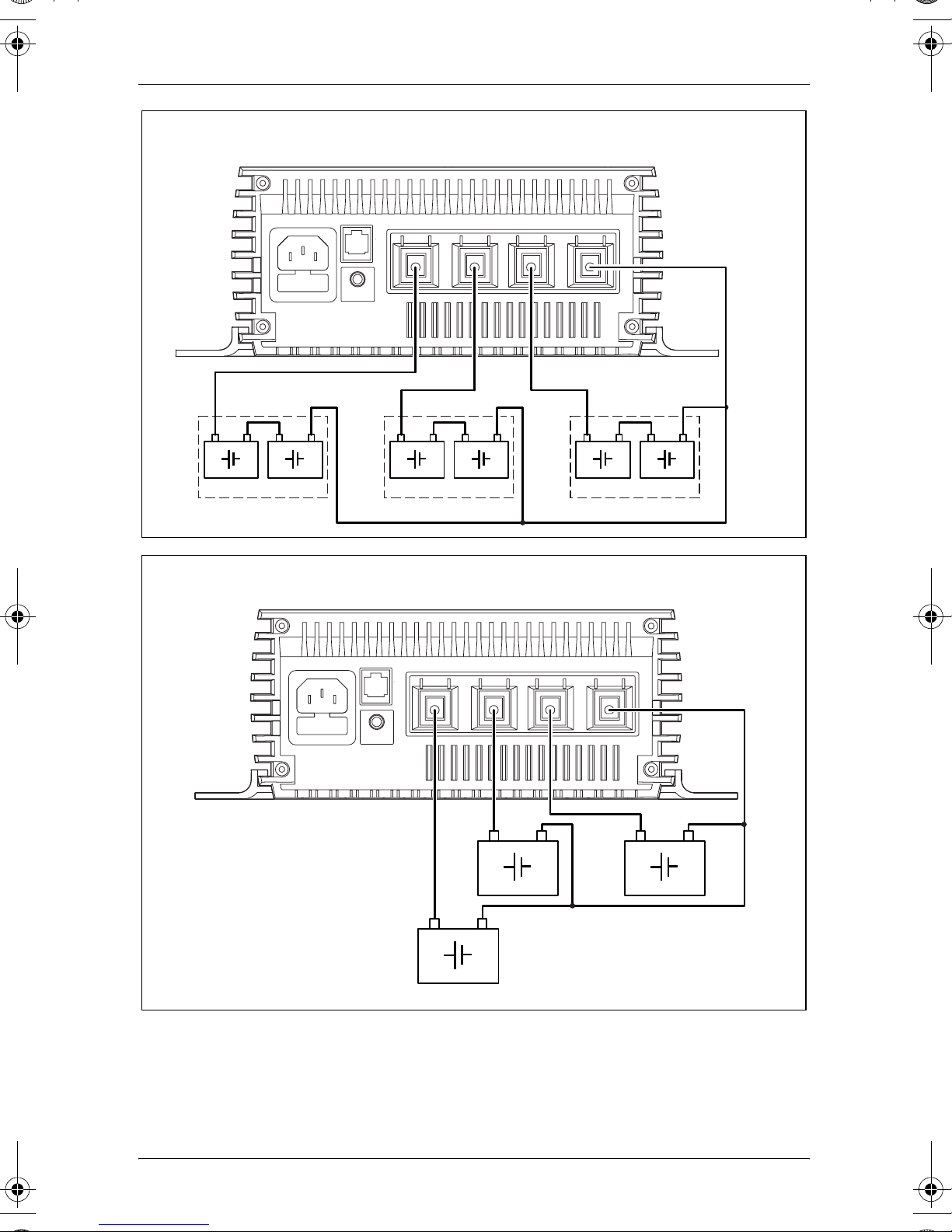

You will find the circuit diagrams with all possible wiring options for the vari-
ous IU0U automatic chargers in fig. 9, page 7 to fig. c, page 9.
Laying the battery cables
➤Lay the positive cable of the batteries to the IU0U automatic charger.
INote
To connect more than one battery, connect the negative terminals
of the batteries to an earth cable and connect the earth cable to the
IU0U automatic charger.
➤Lay the negative cable of the battery or earth cable to the IU0U automatic
charger.
Preparing the IU0U automatic charger
➤Turn the main switch to “0”.
➤Unscrew the four fastening screws (2) from the rear panel using the hex-
agon socket wrench provided.
➤Remove the rear panel (1).
_PerfectCharge_IU152A-IU254A.book Seite 43 Mittwoch, 26. März 2008 4:48 16
