Waggz WZ-231E User manual

01
1.TECHNICAL SPECS
The image shown here is indicative only. If there is inconsistency between the image and the actual product, the actual product shall govern.
WZ-231E / WZ-231E-BLK / WZ-231EL / WZ-231EL-BLK
User Manual
Built to impress and ready to work – equipment by and for pet groomers
Waggz Power-Slide
Electric Tub with Sliding Door
WZ-231E White and Black
Waggz XL Power-Slide
XL Electric Tub with Sliding Door
WZ-231EL White and Black
WZ-231E White and Black
Basin Size 50 x 28.75 in 、127 x 73 cm
Adjustable Height 13 – 37 in 、33 – 94 cm
Height Change Speed 0.7 in/s 、1.8 cm/s
Lift Mechanism Denmark Electric Actuator 6000N
Door Width 16 inches 、40.6 cm
Frame Material Powder-coated stainless steel
Power Rating 110 – 240V 、Max 8A / 190W
Max Weight Capacity 275 lb 、125 kg Product Net Weight 308 lb 、140 kg
(4-person lift)
Door Style Sliding track
WZ-231EL White and Black
Basin Size 60 x 28.75 in 、152.4 x 73 cm
Adjustable Height 13 – 37 in 、33 – 94 cm
Height Change Speed 0.7 in/s 、1.8 cm/s
Lift Mechanism Denmark Electric Actuator 6000N
Door Width 20 inches 、50.8 cm
Frame Material Powder-coated stainless steel
Power Rating 110 – 240V 、Max 8A / 190W
Max Weight Capacity 275 lb 、125 kg Product Net Weight 352 lb 、160 kg
(6-person lift)
Door Style Sliding track

02
2.CONTACT INFORMATION
Thank you for your purchase! This quick-start guide will help you get the most out of your new Waggz grooming tub.
If you have any questions, need replacement parts, or want to purchase additional products, just get in touch!
Visit 910 Canal Pl, City of Industry, CA 91746
Call 626-549-1212
Email [email protected]
Follow @waggzgrooming
3.GENERAL GUIDANCE
UPON ARRIVAL
Please carefully examine your grooming tub and review the packing list. If you notice any missing parts or damaged components,
notify Waggz immediately.
Do not attempt to disassemble the table before contacting Waggz.
CLEANING, CARE, AND MAINTENANCE
Waggz grooming tubs are built to impress and ready to work. Regular cleaning and routine maintenance will keep it that way!
Follow these steps to extend the life of your tub and protect your Waggz 2-year warranty:
WORKING CONDITIONS
Cool-down periods: rest for 18 minutes after 2 minutes of continuous lifting and lowering
Temperature: avoid extreme cold (<40°F) and extreme heat (>104°F)
Humidity: avoid extreme dryness (<20%) and extreme humidity (>90%)
Altitude: avoid extreme altitudes (1.86 miles above sea level)
Air pressure: performs best between 700 and 1060 hPA
DAILY CLEANING
Remove hair and dander from the tub, then wipe clean with a mild detergent. Please avoid using anti-grease detergents and
citrus-based cleansers, which may damage the finish on your tub. Stains should be promptly treated with 1 part ethyl alcohol to 20
parts water, then rinse well. Dry all surfaces between uses.
QUARTERLY INSPECTION
• Complete a visual inspection of all equipment, including controls and hydraulic mechanism
• Check the tightness and state of wear on all screws, bolts, bushings, and pins
• Check for leaks, then wipe off any lubrication residue around gas springs and pistons
• Check the stability and installation of all adjustable components
• Observe the lift mechanism to check for unusual sounds, vibrations, and oscillations
NON-ROUTINE MAINTENANCE
• For safety reasons and to avoid invalidating the warranty, Waggz alone must diagnose and organize action for any faults relating
to the hydraulic pistons and electronic lift system.
• Maintenance technicians must be familiar with the contents of this instruction booklet and may only use original Waggz parts and
components.
• Always complete a full safety inspection of the tub after rough handling, falls, drops, or bumps.
WARNING
• IF YOU EVER HAVE SAFETY CONCERNS ABOUT THE CONDITION OF COMPONENTS, IMMEDIATELY DISABLE THE EQUIPMENT TO
PREVENT USE UNTIL SAFETY RISKS HAVE BEEN REMOVED OR RESOLVED.
• IMMEDIATELY RECORD AND REPORT ANY DEFECTS OR DAMAGES DIRECTLY TO THE MANUFACTURER.

#2
#1
3.PACKING LISTS

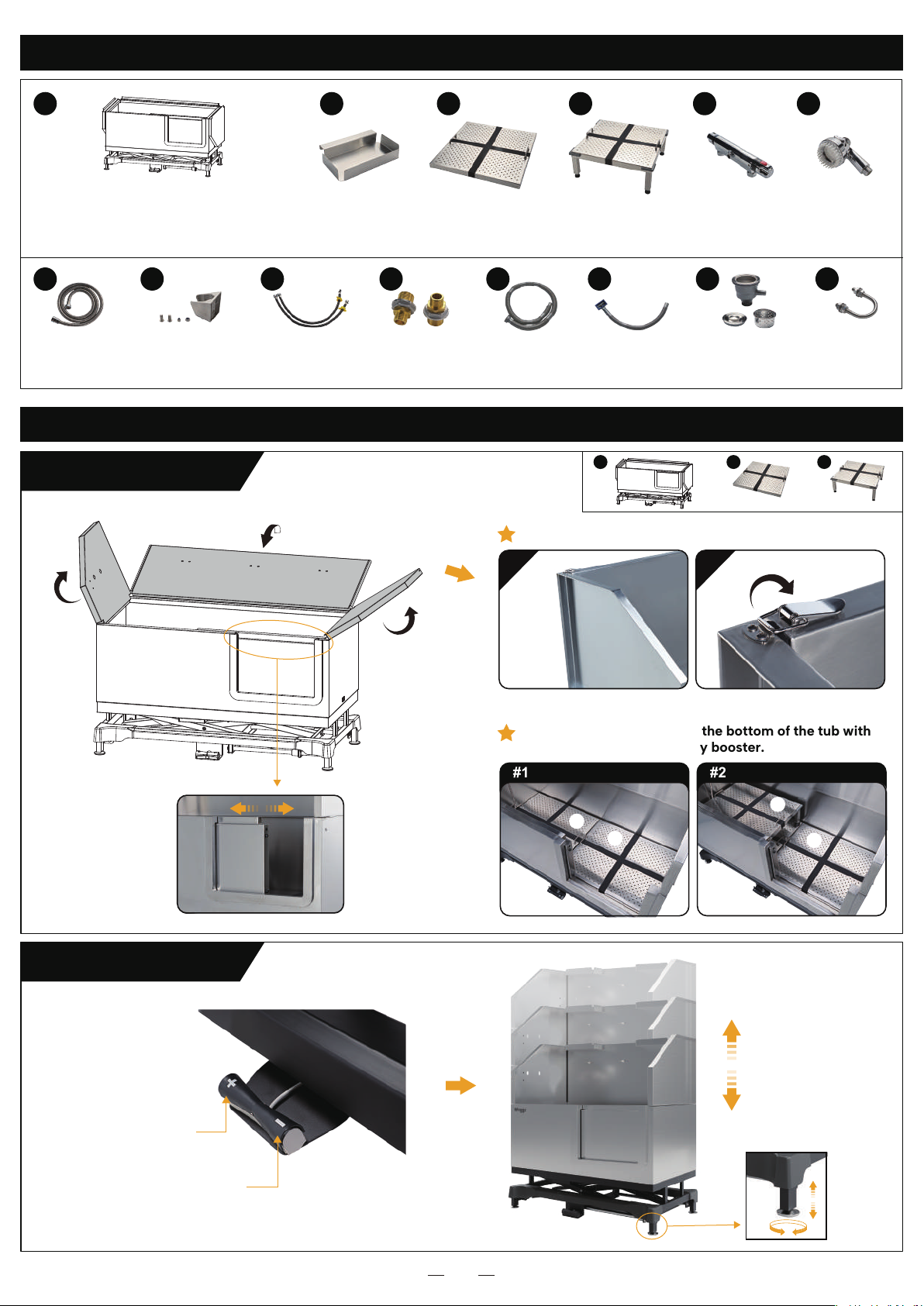

4.ASSEMBLY INSTRUCTIONS
X1
Place floor basin covers in the bottom of the tub with
or without the raised puppy booster.
03
A
X1
D
X2
C
Lift folding splash guards and lock in upright position.
#1 #2
C
C
C
D
Grooming tub with control pedals,
1 class II control box, 1 electric actuator,
3 folding splash guards, and 4 adjustable feet
X1 set
56-inch
shower hose
X1 set
Adjustable
shower head
X1 set
Metal storage
shelves
X2 sets
Left floor
basin cover
X1 set
A B C F
G
Raised
puppy booster
X1 set
D
Thermostati
shower faucet
X1 set
E
Shower head
holder and screws
59-inch
water hoses
X1 set
H
X2 sets
I
4/6 tap
connectors
X2 sets
J
62-inch
drainpipe
X1 set
K
Overflow pipe
X1 set
L
3-part hair
filter and drain
X1 set
M
Grooming
loop hooks
X3 sets
N
STEP 1 : assembly
STEP 2 : elevation
Lift: + pedal
Lower: - pedal

5.OVERALL VIEW DIMENSION
04
50"
(127cm)
16"
(40.6cm)
20.15"
(51.2cm)
20"
(50.8cm)
53.94" -77.95"
(137-198cm)
13.78"-37.8"
(35-96cm)
28.75"
(73cm)
60"
(152.4cm)
20"
(50.8cm)
20.15"
(51.2cm)
20"
(50.8cm)
53.94" -77.95"
(137-198cm)
13.78"-37.8"
(35-96cm)
28.75"
(73cm)
#1
#1 #2
#2
#2
#1
#3 #4
#2
150cm
150cm
#1
1. The standard hot and cold water hoses in this kit are 59
inches long. If your water lines are more than 59 inches away,
we recommend purchasing an extended water pipe adapter.
2. Please match the hot and cold water lines and hoses with
the matching faucet inlets, as marked in the diagram.
3. To prevent damage and ensure proper drainage, the drain
hose much be positioned around the outside of the frame.
Pay attention to drainage pipe position, it could only connect to floor drain hole
going under bottom frame exteriorly. x
=Correct =Wrong
x x x
Hot waterCold water
Notes:
STEP 3 : accessories
X2
B
X1
E
X1
F
X1
G
X1
H
X2
I
X2
J
X1
K
X1
L
X1
M
X3
N
Safety Tips:
• 1. Check space between the splash guards and ceiling before raising the tub to full height.
•2. Look for objects and obstructions under the tub before lowering or adjusting height.
•3. Adjust and stabilize feet for even balance before loading animals into the tub.
** NEVER LEAVE ANIMALS ON UNATTENDED. ALWAYS MONITOR FOR SAFETY **
Power-Slide WZ-231E Power-Slide XL WZ-231EL
