WAGO PERSPECTO VP Visu-Panel 762 User manual

Manual
WAGO-PERSPECTO 762
PERSPECTO VP, Visu-Panel
762-2035, -2057, -2104, -2121, -2150
Version 1.0.0

2 Imprint WAGO-PERSPECTO 762
762-2035, -2057, -2104, -2121, -2150 PERSPECTO VP, Visu-Panel
Imprint
© 2010 by WAGO Kontakttechnik GmbH & Co. KG
All rights reserved.
WAGO Kontakttechnik GmbH & Co. KG
Hansastraße 27
D-32423 Minden
Tel.: [phone] – 0
Fax: [phone] – 1 69
E-mail: [email protected]
Web: http://www.wago.com
Technical Support
Tel.: [phone] – 5 55
Fax: [phone] – 85 55
E-mail: [email protected]
Every conceivable measure has been taken to ensure the accuracy and
completeness of this documentation. However, as errors can never be fully
excluded, we always appreciate any information or suggestions for improving the
documentation.
E-mail: [email protected]
We wish to point out that the software and hardware terms as well as the
trademarks of companies used and/or mentioned in the present manual are
generally protected by trademark or patent.
Manual
Version 1.0.0

WAGO-PERSPECTO 762 Table of Contents 3
762-2035, -2057, -2104, -2121, -2150 PERSPECTO VP, Visu-Panel
Table of Contents
Imprint ................................................................................................................... 2
Table of Contents................................................................................................... 3
1Information about this Documentation ..................................................... 5
1.1 Scope of Validity ........................................................................................... 5
1.2 Copyright ....................................................................................................... 5
1.3 Symbols.......................................................................................................... 6
1.4 Number Notation ........................................................................................... 8
1.5 Font Conventions........................................................................................... 8
2Important Notes ........................................................................................... 9
2.1 Legal Principles ............................................................................................. 9
2.1.1 Subject to Change .......................................................................................... 9
2.1.2 Personnel Qualification.................................................................................. 9
2.1.3 Use of the 762 Series in Compliance with Underlying Provisions.............. 10
2.1.4 Technical Condition of Specified Devices .................................................. 10
2.2 Safety Information ....................................................................................... 11
3Device Description ..................................................................................... 13
3.1 PERSPECTO VP Visu Panel....................................................................... 13

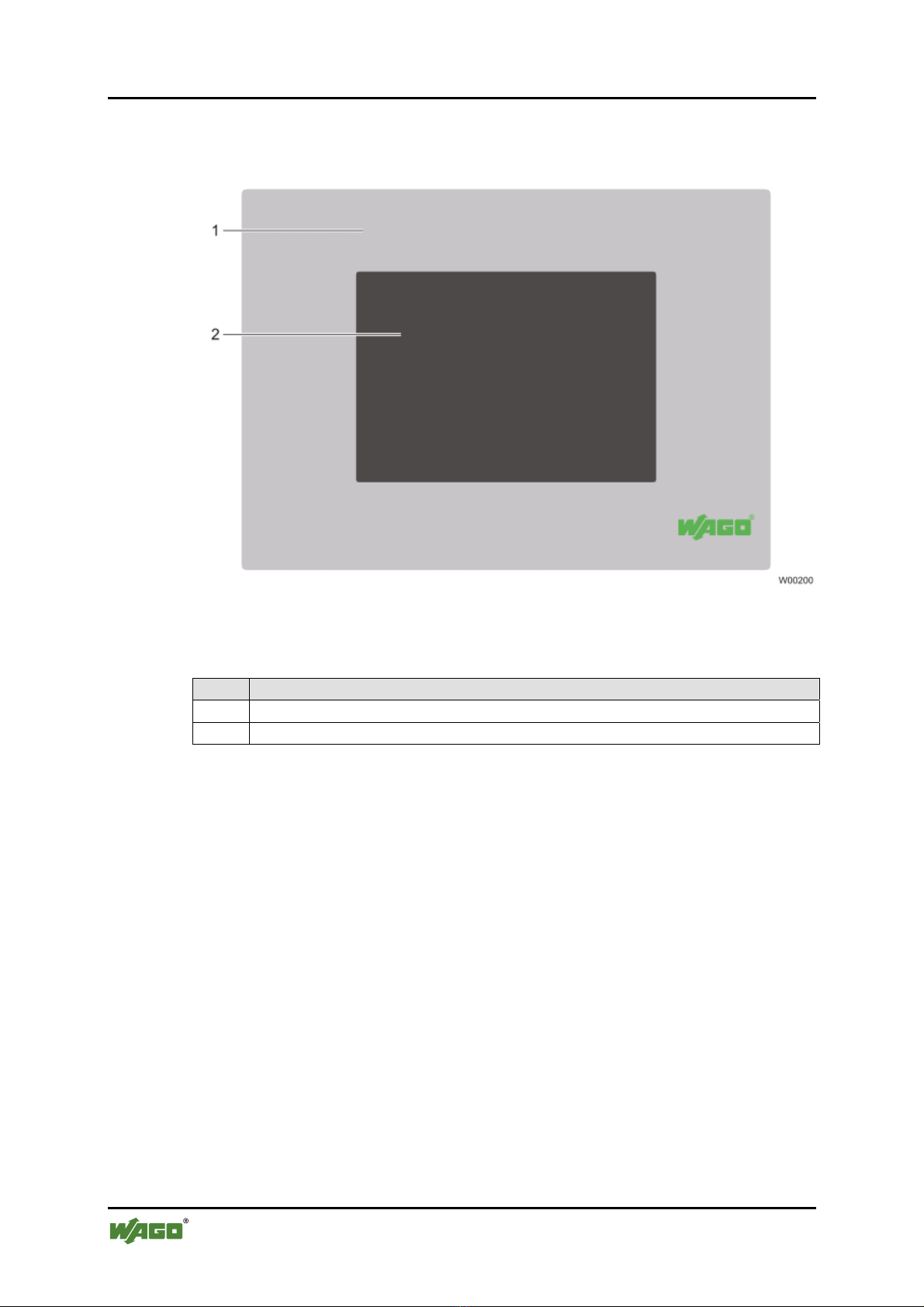

3.2 View............................................................................................................. 14
3.3 Connections.................................................................................................. 15
3.4 Technical data:............................................................................................. 16
4Assembly..................................................................................................... 20
4.1 Connect devices ........................................................................................... 21
4.1.1 X1 – Supply Voltage.................................................................................... 22
4.1.2 X2 - Serial Interface RS-485 / RS232.......................................................... 23
4.1.3 X3 - Serial Interface RS232......................................................................... 24
4.1.4 X4 - CAN 1 Interface................................................................................... 25
4.1.5 X5 - CAN 0 Interface................................................................................... 26
4.1.6 X6 - Ethernet Interface................................................................................. 27
4.1.7 X8 / X9 - USB Interface .............................................................................. 28
4.2 Battery Compartment................................................................................... 29
4.3 Service switch .............................................................................................. 30
5Commissioning ........................................................................................... 31
5.1 Switch on ..................................................................................................... 31
5.2 IP address of the device ............................................................................... 32
5.2.1 General......................................................................................................... 32
5.2.2 Einstellen der IP-Adresse............................................................................. 33
5.2.3 IP Address for Crossover Connection.......................................................... 34
5.3 The WAGO Control Center......................................................................... 35
5.3.1 Starting the WAGO Control Center............................................................. 35
5.3.1.1 The General Tab................................................................................. 36
5.3.1.2 The Autostart Applications Tab ......................................................... 38
5.3.1.3 The Users Tab..................................................................................... 39
5.3.1.4 The FTP Tab....................................................................................... 40
Manual
Version 1.0.0

4 Table of Contents WAGO-PERSPECTO 762
762-2035, -2057, -2104, -2121, -2150 PERSPECTO VP, Visu-Panel
5.3.1.5 The HTTP Tab.................................................................................... 41
5.3.1.6 The RAS Tab...................................................................................... 42
5.3.1.7 The Backup / Restore Tab .................................................................. 43
5.3.1.8 The Advanced Tab ............................................................................. 45
5.4 Saving the Configuration ............................................................................. 45
6Maintenance ............................................................................................... 46
List of Figures...................................................................................................... 47
List of Tables........................................................................................................ 48
Manual
Version 1.0.0

WAGO-PERSPECTO 762 Information about this Documentation 5
762-2035, -2057, -2104, -2121, -2150 PERSPECTO VP, Visu-Panel
1 Information about this Documentation
The PERSPECTO VP, Visu-Panel 762-2035, -2057, -2104, -2121, -2150 shall
only be installed and operated according to the instructions in these operating
instructions and according to the instructions for the fieldbus coupler/controller
used.
Note
Please retain documentation!
This documentation is part of the product. Therefore, retain it during the entire
service life of the device. Transfer the documentation to any subsequent owner or
user of the device. In addition, ensure that any supplement to this documentation
is included if necessary.
1.1 Scope of Validity
This documentation applies to PERSPECTO VP, Visu-Panel 762-2035, -2057, -
2104, -2121, -2150.
1.2 Copyright
This documentation, including all figures and illustrations, is copyright-protected.
Any further use of this documentation by third parties that violate pertinent
copyright provisions is prohibited. Reproduction, translation, electronic and
phototechnical filing/archiving (e.g., photocopying) as well as any amendments
require the written consent of WAGO Kontakttechnik GmbH & Co. KG, Minden,
Germany. Non-observance will involve the right to assert damage claims.
Manual
Version 1.0.0

6 Information about this Documentation WAGO-PERSPECTO 762
762-2035, -2057, -2104, -2121, -2150 PERSPECTO VP, Visu-Panel
1.3 Symbols
DANGER
Personal Injury!
Indicates a high-risk, imminently hazardous situation which, if not avoided, will
result in death or serious injury.
DANGER
Personal Injury Caused by Electric Current!
Indicates a high-risk, imminently hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING
Personal Injury!
Indicates a moderate-risk, potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
Personal Injury!
Indicates a low-risk, potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
NOTICE
Damage to Property!
Indicates a potentially hazardous situation which, if not avoided, may result in
damage to property.
NOTICE
Damage to Property Caused by Electrostatic Discharge (ESD)!
Indicates a potentially hazardous situation which, if not avoided, may result in
damage to property.
Note
Important Note!
Indicates a potential malfunction which, if not avoided, however, will not result in
damage to property.
Manual
Version 1.0.0

WAGO-PERSPECTO 762 Information about this Documentation 7
762-2035, -2057, -2104, -2121, -2150 PERSPECTO VP, Visu-Panel
Information
Additional Information:
Refers to additional information which is not an integral part of this
documentation (e.g., the Internet).
Manual
Version 1.0.0

8 Information about this Documentation WAGO-PERSPECTO 762
762-2035, -2057, -2104, -2121, -2150 PERSPECTO VP, Visu-Panel
1.4 Number Notation
Table 1: Number Notation
Number code Example:
navigation of level
3.
Note
Decimal 100 Normal notation
Binary '100'
'0110.0100'
in Hochkomma,
Nibble durch Punkt getrennt
1.5 Font Conventions
Table 2: Font Conventions
Font type Meaning
italic Names of paths and files are displayed in italics; e.g.:
C:\Programme\WAGO-IO-CHECK
Menu Menu options are displayed in bold; e.g.:
Save
> Ein Größer als Zeichen zwischen zwei Namen bedeutet die Auswahl
eines Menüpunktes aus einem Menü z. B.:
Datei > Neu
Input Designation of input or optional fields are displayed in bold; e.g.:
Start of measurement range
"Value" Input or selective values are displayed in inverted commas; e.g.:
Enter the value “4 mA” under Start of measurement range.
[Button] Button names in dialog boxes are displayed in bold in square
brackets; e.g.:
[Input]
[Key] Names of keys on the keyboard are displayed in bold in square
brackets; e.g.:
[F5]
Manual
Version 1.0.0

WAGO-PERSPECTO 762 Important Notes 9
762-2035, -2057, -2104, -2121, -2150 PERSPECTO VP, Visu-Panel
2 Important Notes
This section includes an overall summary of the most important safety
requirements and notes that are mentioned in each individual sections. To protect
your health and prevent damage to devices as well, it is imperative to read and
carefully follow the safety guidelines.
2.1 Legal Principles
2.1.1 Subject to Change
WAGO Kontakttechnik GmbH & Co. KG reserves the right to make any
alterations or modifications that serve to increase the efficiency of technical
progress. WAGO Kontakttechnik GmbH & Co. KG owns all rights arising from
the granting of patents or from the legal protection of utility patents. Third-party
products are always mentioned without any reference to patent rights. Thus, the
existence of such rights cannot be excluded.
2.1.2 Personnel Qualification
All sequences implemented on Series 762 devices may only be carried out by
electrical specialists with sufficient knowledge in automation. The specialists
must be familiar with the current norms and guidelines for the devices and
automated environments.
All changes to the controller shall always be performed by qualified personnel
with sufficient skills in PLC programming.
Manual
Version 1.0.0

10 Important Notes WAGO-PERSPECTO 762
762-2035, -2057, -2104, -2121, -2150 PERSPECTO VP, Visu-Panel
2.1.3 Use of the 762 Series in Compliance with Underlying
Provisions
762 Series modules are suitable for use in the area of time control and automation.
Their use extends beyond residential and commercial areas, as well as industrial
areas. In all application cases for controlling inductive loads (motors and relays,
etc.), it must be ensured that the occurring voltage peaks do not exceed the
maximum input voltages of the I/O specified in the technical data. External
protective circuits may need to be installed.
This is a class A device. This device can cause radio interference in residential
areas. In this case, the operator may be required to take appropriate measures.
2.1.4 Technical Condition of Specified Devices
For each individual application, the devices are supplied from the factory with a
dedicated hardware and software configuration. Changes in hardware, software
and firmware are permitted exclusively within the framework of the various
alternatives that are documented in the specific manuals. WAGO Kontakttechnik
GmbH & Co. KG will be exempted from any liability in case of changes in
hardware or software as well as to non-compliant usage of components. Please
send your requests for modified and new hardware or software configurations
directly to WAGO Kontakttechnik GmbH & Co. KG.
Manual
Version 1.0.0

WAGO-PERSPECTO 762 Important Notes 11
762-2035, -2057, -2104, -2121, -2150 PERSPECTO VP, Visu-Panel
2.2 Safety Information
For installing and operating purposes of the relevant device to your system, the
following safety precautions shall be observed:
DANGER
Do not work when devices energized!
All power sources to the device shall be switched off prior to performing any
installation, repair or maintenance work.
DANGER
Installation only in appropriate housings, cabinets or in electrical operation
rooms!
The device is an open system. Assemble the device in housings, cabinets or
electrical operation rooms only. Give access to authorized, qualified staff only by
means of specific keys or tools.
DANGER
Adhere to the accident prevention provisions!
For assembly, start-up, maintenance and troubleshooting, adhere to the specific
accident prevention provisions which apply to your system (e.g., BGV A 3,
"Electrical Installations and Equipment").
DANGER
Ensure a standard connection!
To minimize any hazardous situations resulting in personal injury or to avoid
failures in your system, the data and power supply lines shall be installed
according to standards and pay attention to the correct terminal assignment.
Please adhere to the EMC directives applicable to your application.
NOTICE
Replace defective or damaged devices!
Replace defective or damaged devices (e.g., in the event of deformed contacts),
since the functionality of fieldbus station involved can no longer be ensured on a
long-term basis.
Manual
Version 1.0.0

12 Important Notes WAGO-PERSPECTO 762
762-2035, -2057, -2104, -2121, -2150 PERSPECTO VP, Visu-Panel
NOTICE
Protect the devices against materials having seeping and insulating
properties!
The devices are not resistant to materials having seeping and insulating properties
such as: aerosols, silicones and triglycerides (found in some hand creams). If you
are unable to exclude that such materials will appear in the device environment,
then install the devices in an enclosure that is resistant to the abovementioned
materials. Clean tools and materials are imperative for handling devices.
NOTICE
Cleaning only with permitted materials!
Clean soiled contacts using oil-free compressed air or with ethyl alcohol and
leather cloths.
NOTICE
Do not use any contact spray!
Do no use any contact spray the spray may impair contact area functionality in
connection with contamination.
NOTICE
Avoid electrostatic discharge!
The devices are equipped with electronic components that may be destroyed by
electrostatic discharge when touched. Please observe the safety precautions
against electrostatic discharge in accordance with DIN EN 61340-5-1/-3. When
handling the devices, please ensure that environmental factors (personnel, work
space and packaging ) are well grounded.
Manual
Version 1.0.0

WAGO-PERSPECTO 762 Device Description 13
762-2035, -2057, -2104, -2121, -2150 PERSPECTO VP, Visu-Panel
3 Device Description
The 762 Series panels are used to operate and visualize the controllers of the
WAGO-I/O-SYSTEM. The integrated WAGO-AUTOMATION COCKPIT
development environment is used to program the panels and controllers.
3.1 PERSPECTO VP Visu Panel
The Visu Panel contains a HMI runtime for operation and visualization of WAGO
I/O system controllers. A Web server for connection PERSPECTO WP Web
panels is integrated in addition to the HMI runtime.
The WEB visualization of the Web server can also be displayed by other Internet-
enabled terminals such as PCs, PDAs or smartphones.
Manual
Version 1.0.0

14 Device Description WAGO-PERSPECTO 762
762-2035, -2057, -2104, -2121, -2150 PERSPECTO VP, Visu-Panel
3.2 View
Figure 1: Front view of the 5.7" panel
Table 3: Legend for "View" figure
No. Description
1 PERSPECTO control panel
2 Touchscreen display
Manual
Version 1.0.0

WAGO-PERSPECTO 762 Device Description 15
762-2035, -2057, -2104, -2121, -2150 PERSPECTO VP, Visu-Panel
3.3 Connections
Figure 2: Connections on the 5.7" panel
In the following legend, the maximum configuration of the connections is listed.
The connections available on the respective device and their position are shown in
the "Connections" figure. The connection designation is the same for all devices.
Table 4: Legend for "Connections" figure
No. Description
X1 Connection for 24VDC power supply
X2 RS-232 or RS-485 serial interface as D-sub 9 connector
X3 RS-232 serial interface as D-sub 9 connector
X4 CAN-Bus 1 (CANopen) interface as D-sub 9 connector
X5 CAN-Bus 0 (CANopen) interface as RJ45 jack
X6 Ethernet interface as RJ45 jack
X7
X8 USB host interface
X9 USB host interface
X10
X11
X12
X13 Slot for SD memory card
Manual
Version 1.0.0

16 Device Description WAGO-PERSPECTO 762
762-2035, -2057, -2104, -2121, -2150 PERSPECTO VP, Visu-Panel
3.4 Technical data:
Software configuration:
• HMI runtime
• Panel configuration software
Table 5: Technical data
Visu Panel VP 35 QVGA VP 57 QVGA
Display type TFT CSTN
Screen size (diagonal) 8.9 cm (3.5“) 14.5 cm (5.7“)
Display colors 32,768 4096
Graphics resolution 320 x 240 pixels 320 x 240 pixels
Contrast ratio 250:1 35:1
Angle of view horizontal /
vertical
-45° ... 45° / -15° ... 35° -10° ... 30° / -30° ... 30°
Brightness 250 cd/m² 70 cd/m²
MTBF display lighting 50,000 hrs. 50,000 hrs.
Operating system Windows CE 6.0 Windows CE 6.0
Processor 32-bit ARM9 200 MHz 32-bit ARM9 200 MHz
RAM / Flash / SRAM 64 MB / 64 MB / 1 MB 64 MB / 64 MB / 1 MB
Memory expansion MicroSD (max. 2 GB) SD card (max. 2 GB)
Panel Touch, analog, resistive Touch, analog, resistive
Light transmission typ. 80% typ. 75%
Durability 100,000 activations with
touch pen
100,000 activations with
touch pen
Interfaces (USB) 1 x USB2.0 Host (type
A)
2 x USB2.0 Host (type
A)
Interface (Ethernet) 1 x 10/100 Mbit RJ-45 1 x 10/100 Mbit RJ-45
Interface (CAN) 1 x CANopen RJ-45 1 x CANopen RJ-45
Interface (serial) RS-485 integrated in
CAN
1 x RS-232 D-sub 9,
1 x RS-232 + RS-485 D-
sub 9
Continued on next page
Manual
Version 1.0.0

WAGO-PERSPECTO 762 Device Description 17
762-2035, -2057, -2104, -2121, -2150 PERSPECTO VP, Visu-Panel
Continued
Control Panel VP 35 QVGA VP 57 QVGA
Length of the connecting
cables
The connecting cables to the interface shall not
exceed the specified length.
• USB: maximum 3 m
• Serial RS232: maximum 10 m
• Serial RS485 / 422: maximum 30 m
• Power supply: maximum 3 m
Front panel Plastic, polyester film Plastic, polyester film
Housing material Plastic Plastic
Dimensions (W x H x L) 96 x 96 x 29 mm 208 x 150 x 42 mm
Panel cutout (W x H) 91 x 91 mm 198 x 140 mm
Fixing means 2 x clamping elements 4 x clamping elements
Voltage supply 24VDC (18 ... 30 v) 24VDC (18 ... 30 v)
Max. input current (24 V) 250 mA 250 mA
Operating power 8 ... 12 W 8 ... 12 W
Operating temperature 0 °C ... +50°C 0 °C ... +50°C
Storage temperature -10 °C ... +60°C -10 °C ... +60°C
Relative humidity (without
condensation)
10 % ... 85 % 10 % ... 85 %
Weight 170 g 630 g
Degree of protection Front IP65, back IP20 Front IP65, back IP20
Approvals CE, cULus pending CE, cULus pending
EMC Acc. to EN 61000-6-2 /
EN 61000-6-4
Acc. to EN 61000-6-2 /
EN 61000-6-4
Manual
Version 1.0.0

18 Device Description WAGO-PERSPECTO 762
762-2035, -2057, -2104, -2121, -2150 PERSPECTO VP, Visu-Panel
Control Panel VP 104 VGA VP 121 SVGA VP 150 XGA
Display type TFT TFT TFT
Screen size (diagonal) 26.4 cm (10.4“) 30.7 cm (12.1“) 38.1 cm (15“)
Display colors 65,536 colors 65,536 colors 16 million colors
Graphics resolution 640 x 480 pixels 800 x 600 pixels 1024 x 768
pixels
Contrast ratio 500:1 500:1 500:1
Viewing angle
- horizontal / vertical
-65° ... 65° /
-45° ... 65°
-65° ... 65° /
-75° ... 45°
-75° ... 75° /
-60°... 60°
Brightness 430 cd/m² 400 cd/m² 250 cd/m²
MTBF display lighting 50,000 hrs. 50,000 hrs. 50,000 hrs.
Operating system Windows
CE 5.0
Windows
CE 5.0
Windows CE 6.0
Processor 32-bit XScale
520 MHz
32-bit XScale
520 MHz
Intel Atom ®
N270 1.6 GHz
RAM / Flash / SRAM 64 MB / 32 MB
/ 1 MB
64 MB / 32 MB
/ 1 MB
256 MB / 128
MB / -
Memory expansion CF card (max. 2
GB)
CF card (max. 2
GB)
CF card (max. 2
GB)
Panel Touch, analog,
resistive
Touch, analog,
resistive
Touch, analog,
resistive
Light transmission typ. 80% typ. 80% typ. 80%
Durability 10 million
activations with
finger
10 million
activations with
finger
35 million
activations with
finger
Interfaces (USB) 2 x USB2.0
Host (type A)
2 x USB2.0
Host (type A)
4 x USB2.0 Host
(type A)
Interface (Ethernet) 1 x 10/100 Mbit
RJ-45
1 x 10/100 Mbit
RJ-45
1 x 10/100 Mbit
RJ-45
Interface (CAN) 1 x CANopen
RJ-45,
1 x CANopen
D-sub 9
1 x CANopen
RJ-45,
1 x CANopen
D-sub 9
Option (RJ-15 or
D-Sub 9)
Interface (serial) 1 x RS-232 D-
sub 9, 1 x RS-
232 + RS-485 /
-422 D-sub 9
1 x RS-232 D-
sub 9, 1 x RS-
232 + RS-485 /
-422 D-sub 9
1 x RS-232 D-
sub 9, 1 x RS-
232 + RS-485 / -
422 D-sub 9
Continued on next page
Manual
Version 1.0.0

WAGO-PERSPECTO 762 Device Description 19
762-2035, -2057, -2104, -2121, -2150 PERSPECTO VP, Visu-Panel
Continued
Control Panel VP 104 VGA VP 121 SVGA VP 150 XGA
Length of the connecting
cables
The connecting cables to the interface shall not
exceed the specified length.
• USB: maximum 3 m
• Serial RS232: maximum 10 m
• Serial RS485 / 422: maximum 30 m
• Power supply: maximum 3 m
Front panel Anodized
aluminum,
natural,
polyester film
Anodized
aluminum,
natural,
polyester film
Anodized
aluminum,
natural, polyester
film
Housing material Painted sheet
steel
Painted sheet
steel
Painted sheet
steel
Dimensions (W x H x L) 284 x 222 x
46 mm
330 x 268 x
47 mm
398 x 306 x
77 mm
Panel cutout (W x H) 268 x 206 mm 312 x 250 mm 383 x 291 mm
Fixing means 6 x clamping
elements
6 x clamping
elements
6 x clamping
elements
Voltage supply 24VDC (18 ...
30 V)
24VDC (18 ...
30 V)
24VDC (18 ...
30 V)
Max. input current (24 V) 500 mA 500 mA 1300 mA
Operating power 10 ... 18 W 10 ... 18 W 28 ... 35 W
Operating temperature 0 °C ... +50°C 0 °C ... +50°C 0 °C ... +45°C
Storage temperature -10 °C ... +60°C -10 °C ... +60°C -10 °C ... +60°C
Relative humidity (without
condensation)
10 % ... 85 % 10 % ... 85 % 10 % ... 85 %
Weight 2100 g 2600 g 4500 g
Degree of protection Front IP65,
back IP20
Front IP65,
back IP20
Front IP65, back
IP20
Approvals CE, cULus
pending
CE, cULus
pending
CE, cULus
pending
EMC Acc. to
EN 61000-6-2 /
EN 61000-6-4
Acc. to
EN 61000-6-2 /
EN 61000-6-4
Acc. to
EN 61000-6-2 /
EN 61000-6-4
Manual
Version 1.0.0

20 Assembly WAGO-PERSPECTO 762
762-2035, -2057, -2104, -2121, -2150 PERSPECTO VP, Visu-Panel
4 Assembly
The devices are intended for installation in switch cabinets, for example.
Vertical installation of the panels is recommended.
Note
Note about differing mounting position!
The operating temperature ranges specified in the technical data apply to the
recommended mounting position. If the panel is mounted in a position different
than recommended, cooling can be affected. Contact WAGO Service for more
information.
The PERSPECTO Series panels are used in the panel cutout provided and bolted
down with the included clamping elements from behind (note the following
installation diagram).
Figure 3: Installation of the clamping elements
Information on the dimensions of the panel cutout is available in the Technical
Data section.
Manual
Version 1.0.0
