walimex propac p8-820 User manual

Gewerbering 26
86666 Burgheim
Tel. [phone] / 9489 - 0
Fax. [phone] / 9489 - 8333
E-mail: [e-mail]
www.foto-walser.de
Copy of Instruction Manual
Powerblock for Compact Flashes

Content
1. How to understand this instruction manual ....................................................3
1.1.Symbols on the device ................................................................................ 3
1.2.Symbols in this manual ............................................................................... 3
2. Important safety notes..................................................................................... 4
3. Unpack and check Powerblock.........................................................................6
4. Overview of device elements and operating elements ...................................7
5. Quick-start guide.............................................................................................. 7
5.1. Connect Powerblock to the power supply for charging ........................... 7
5.2. Connect flash devices to the Powerblock ................................................. 8
6. Switch Powerblock on and off.......................................................................... 8
7. Transportation and storage of Powerblock ..................................................... 9
8. Solve problems.................................................................................................9
9. Maintenance of Power Station ...................................................................... 10
9.1. Continuous inspection and maintenance of Power Station ...................10
9.2. Cleaning the Power Station..................................................................... 10
10. Accessories and options.................................................................................10
11. Disposal and environmental protection......................................................... 11
12. Technical specifications.................................................................................. 11
We would like to thank you for your confidence and wish you much joy and
success with your Powerblock for Compact Flashes. The little energy giant
ensures that your compact flash does not run out of power at the next event.
The main features of the Powerblock for Compact Flashes are as follows:
reduces the recharge time to approx. 1 second
approx. 250-320 flashes
ideal for wedding and reportage photography
mobility due to compact size and low weight
clear charge and battery status display
incl. belt clip, mains battery charger and 12V car cable
Please read these instructions carefully before using your new
Powerblock for the first time. It includes everything you need to know
in order to avoid physical injuries and damages.
Please pay attention to all safety notes in this instruction manual.
Please keep this manual safe. In case of selling or leaving the
Powerblock to another person, please ensure to hand this manual over
as well.
1. How to understand this instruction manual
1.1. Symbols on the device
This symbol means that your device meets the safety
requirements of all relevant European Directives.
This symbol means that your device must be disposed of at local
disposal areas.
1.2. Symbols in this manual
Symbol
Meaning
Indicates the handling and consequences of safety
notes.
WARNING
Indicates a hazardous situation which, if not avoided,
may result in a serious injury or death.
NOTE:
Indicates potential material damage and other
important information regarding your device.

2. Important safety notes
WARNING
Danger of electric shock, burn hazard
Please note that the device is still connected to the supply voltage when it
is switched off. The device is supplied with residual voltage even after a
complete discharge.
Switch off the device when it is not in use.
Switch off your device before assembly and maintenance and
disconnect from power supply by setting the on/off switch to 0 (OFF)
and by unplugging the power cord.
Discharge your device before maintenance measures.
Protect your device against accidental power-on.
Do not reach into a connection socket or an opening on the device.
WARNING
Danger of electric shock, fire due to short circuit
A short circuit could be caused by defective cables and due to moisture or
wetness. A short circuit can heat up the conductors resulting in the melting
of their insulation or of the conductors themselves. This could lead to fire.
Please use exclusively the original cables, which are provided with the
device. They are tuned for your device and guarantee the necessary
safety for you and your device.
Do not operate the device with wet hands or feet.
Clean the device exclusively as described in this instruction manual.
Ensure that cables and conductors are not damaged. Damage could be
caused due to heat impact, chemical influence or due to mechanical
impacts such as rubbing, bending, tearing, rolling over, or nibbling
animals.
Prevent your device from falling.
In the case of it falling, please have an electrician check the device
before switching it on again.
If your device is damaged or defective or if you notice a burning smell:
Disconnect the power supply immediately by unplugging the power
cord and setting the on/off switch to 0 (OFF). Never operate your device
with a damaged casing or a damaged power cord. Do not open the
device. Never repair the device on your own. Have the device repaired
exclusively by an electrician.
Please follow this instruction manual for maintaining your device.
Please only use spare parts which are conform to the required
specifications. See Technical specifications.
WARNING
Danger of fire by overheating
The device itself and easily inflammable materials in close distance can
catch fire.
Do not leave the device unsupervised while it is being charged.
Remove easily inflammable materials which are in close distance to the
device.
Please only use spare parts which are conform to the required
specifications. See Technical specifications.
WARNING
The walimex pro Powerblock for Compact Flashes is a rechargeable
device. Please follow the safety and disposal notes in the instruction
manual and on the device.
Keep children away from device.
Only use the supplied charger or the power cord for charging the device.
The ideal ambient temperature is between 0°C and 40°C.
The device can get hot. Allow for it to cool down before charging.
Protect against wetness and moisture.
To guarantee an optimal lifetime, charge the device every 3 months
even when it is not being used.
5
4

After the device has completed charging, please unplug charging cable
and power cord from the device.
Dispose of the device at your local disposal area or send it back to the
manufacturer.
Do not leave the device unsupervised while it is being charged.
Do not use the device while it is being charged.
No liability is assumed for physical injury or damage.
3. Unpack and check Powerblock
1. Please unpack the Powerblock carefully.
NOTE: Keep the packaging for future storage and transportation of the
Powerblock.
2. Please check if the scope of delivery is complete:
1 Powerblock
1 power cord with mains battery charger
1 12V car cable
1 instruction manual in German and English
Note: You can order the suitable connecting cable for your compact flash via
our online shop.
3. Please check if the scope of delivery is undamaged.
NOTE: If the scope of delivery is incomplete or damaged, please contact
[email protected] or our service hotline with the telephone number +49 (0)
8432-9489-0.
We reserve the right to make technical and optical modifications in the
course of product improvement.

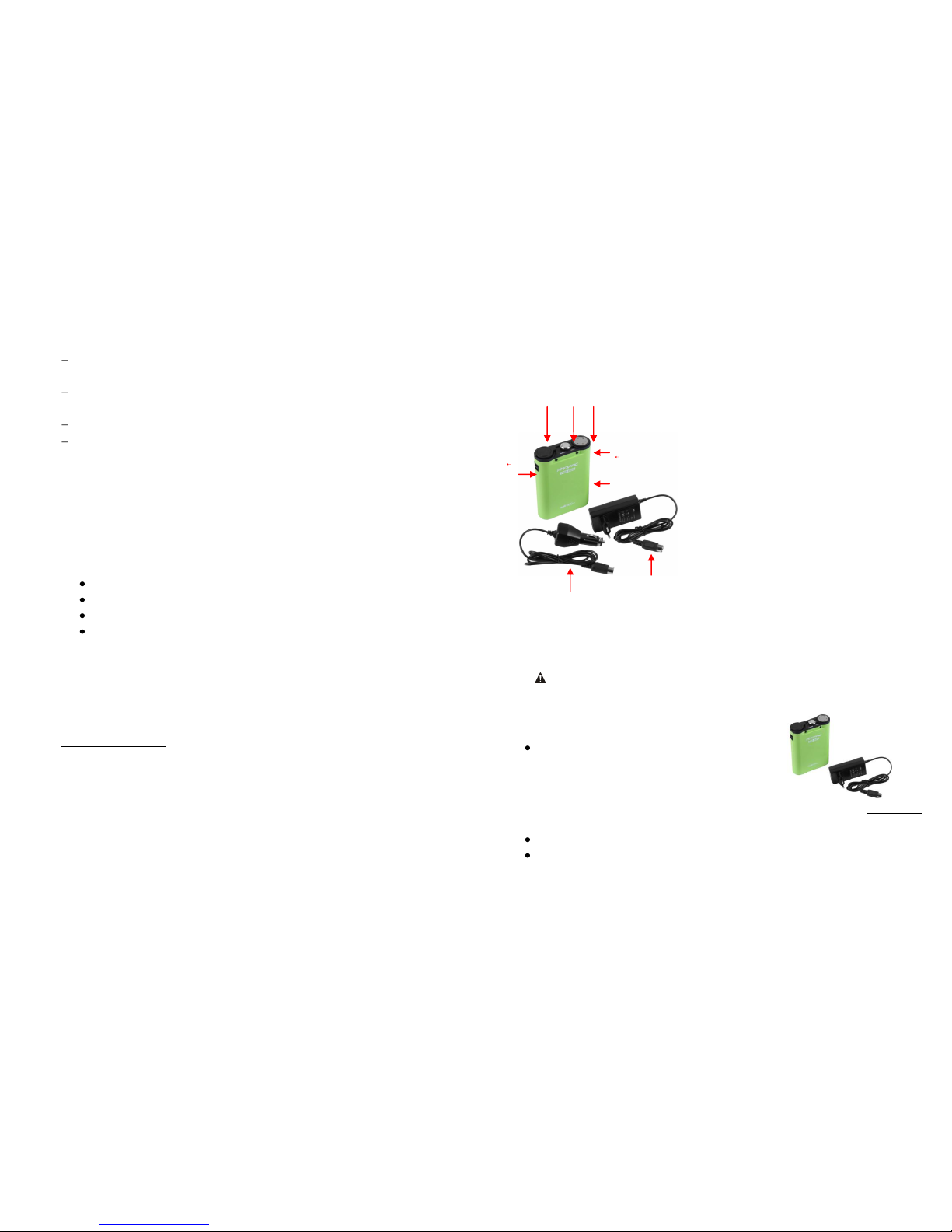

4. Overview of device elements and operating elements
A
Connecting socket charge and
connecting cable
B
On/off switch
C
LED charge and status display
D
Fixture for carrying strap
E
Powerblock
F
12 V car cable
G
Power cord with mains battery charger
5. Prepare Powerblock for operation
5.1. Connect Powerblock to the power supply for charging
WARNING! Please pay attention to the safety notes from pages 4-6
Charging process with the mains battery
charger
Plug the charging cable into the socket on the
Powerblock and connect the mains battery
charger with the power supply.
NOTE: Compare the local power network with the
connected load of the device. If the values differ, please contact info@foto-
walser.de or tel. [phone].
The Powerblock starts charging right away.
LED Charge lights up red. LEDs of the status display flash.
7
B
A
C
E
D
F
G
D
6

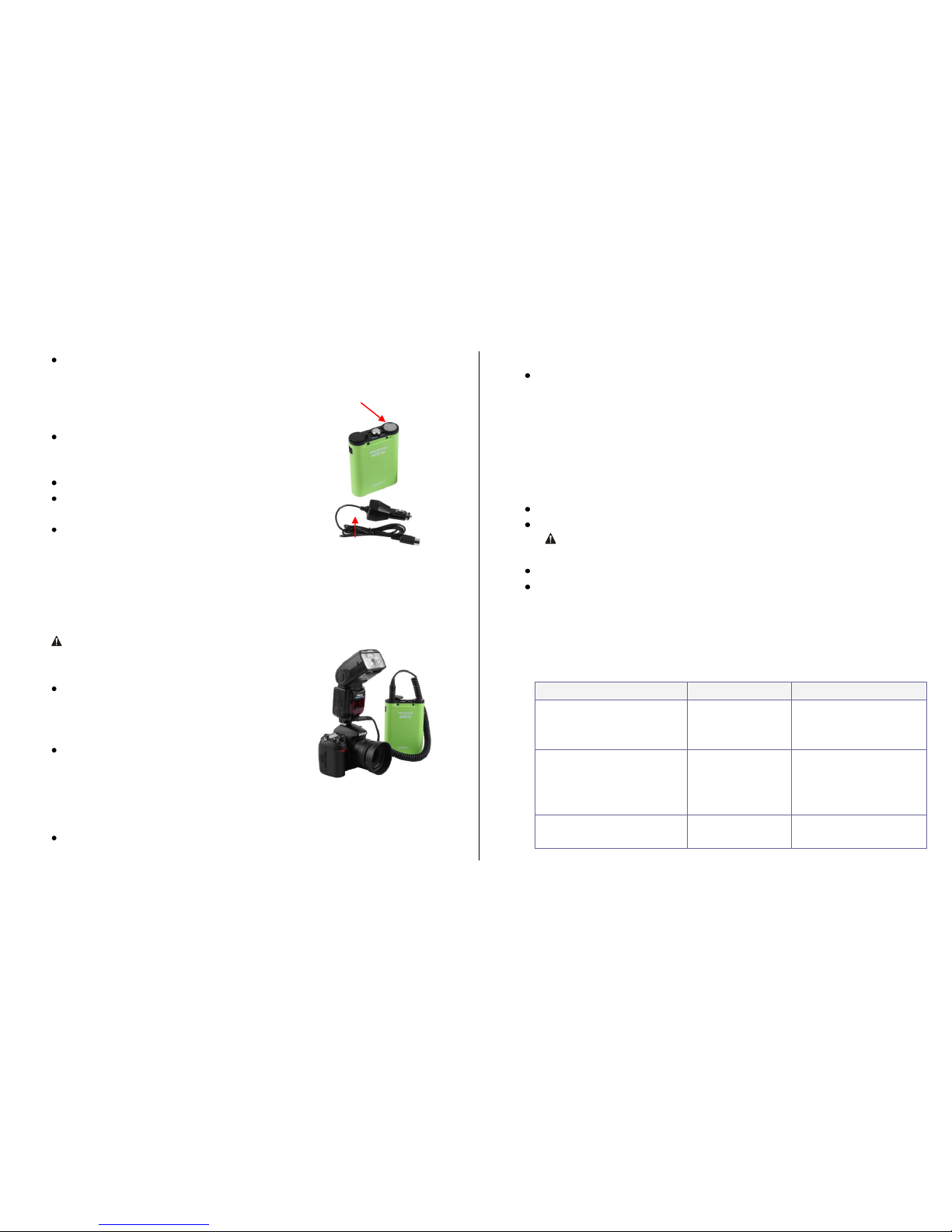

Once the Powerblock is fully charged, the LED charging display lights up
green.
Charging process with the 12V DC car cable
Plug the 12V DC cable into the connecting socket
of the Powerblock, and connect it to the socket in
your car, e.g., the cigarette lighter.
The Powerblock starts charging.
LED Charge lights up red. LEDs of the status
display flash.
Once the Powerblock is fully charged, the LED
charging display lights up green.
5.2. Connect flash device to the Powerblock
WARNING! Please pay attention to the
safety notes from pages 4-6
Plug connecting cable (not included in
delivery) into connecting socket of
Powerblock and connect to your compact
flash.
Switch on Powerblock using the on/off
switch.
6. Switch Powerblock on and off
Switch Powerblock on: press on/off switch.
The status display lights up green. The Powerblock is ready to use.
Switch Powerblock off: press on/off switch.
All displays disappear.
Note: To guarantee functionality appropriate batteries have to be inserted in
your compact flash (see instruction manual of your flash device). Without
batteries it is not possible to trigger a flash.
7. Transportation and storage of Power Station
Switch Powerblock off. See Switch Powerblock on and off.
Allow for Powerblock to cool off completely.
WARNING! Danger of fire due to hot device components. Allow for
device to cool down completely.
If needed, please clean Powerblock. See Cleaning the Powerblock.
Please put Powerblock and all dismantled elements into original packaging
and transport or store according to requirements of the technical
specifications. See Technical specifications.
8. Solve problems
Problem
Possible Cause
Solution
Powerblock is switched on,
but shows no function
Powerblock is not
or not sufficiently
charged
Charge Powerblock
Powerblock is switched on,
but flash is not triggered
No batteries in
your flash device
Insert batteries (see
instruction manual of
your flash device)
Powerblock is switched on,
but shows no function
Powerblock is
defective
Contact Foto Walser
customer service
9
Car cable
8
Powerblock

9. Maintenance of the Powerblock
9.1. Continuous inspection and maintenance of the Powerblock
What you should do
Before
each use
Inspect all cables, sockets and plugs for damage. If damaged:
WARNING! Danger of electric shock and danger of fire due
to short circuit. Have the Powerblock repaired by an
electrician immediately
X
9.2. Cleaning the Powerblock
WARNING
Always disconnect Power Station from power supply when cleaning it.
Device component
Cleaning
Casing
Remove light and persistent stains with
microfiber cloth
10. Accessories and options
You can find extensive accessories for your walimex pro Power Station in our
web shop.
11. Disposal and environmental protection
Please dispose of your device at your local disposal area at no charge.
12. Technical specifications
Powerblock
Dimensions (LxWxH)
approx. 10x3.5x15cm
Output voltage
DC 12V
Charging voltage
100-240V
Battery type
NiMH
Recharge time
approx. 2 Stunden
Flash recharge time
approx. 1 Sekunde
Flashes
approx. 250-320
Capacity
2000mAh
Weight
approx. 500g
11
10
