Walker edison W70c25sd User manual

Handle back plate

Inset dowels (A) into slat (2). Screw cam bolts (C) into top panel (1).

Insert dowels (A) and screw cam bolts (C) into bottom panel (11). Insert dowels (A) into legs (13).

Insert dowels (A) and screw cam bolts (C) into panels (3,4).

Insert dowels (B) into panel (9). Insert dowels (A) into panels (5,6,10). Screw cam bolts (C) into panels (5,6,9).

Attach panel (10) to panel (9) using cam bolts and dowels as guides. Secure panel (10) to panel (9) using cam

locks (D). Tighten cam locks (D) with a screwdriver.

Attach panels (5,6) to panel (9) using cam bolts and dowels as guides.

Secure panel (5) to panel (9) using cam locks (D). Tighten cam locks (D) with a screwdriver.

Secure panel (6) to panel (9) using cam locks (D). Tighten cam locks (D) with a screwdriver.

Attach the assembly from the previous step to bottom panel (11) using cam bolts and dowels as guides.

Secure panel (5) to bottom panel (11) using cam locks (D). Tighten cam locks (D) with a screwdriver.

Secure panels (6,10) to bottom panel (11) using cam locks (D). Tighten cam locks (D) with a screwdriver.

Attach panels (3,4) to bottom panel (11) using cam bolts and dowels as guides.

Secure panels (3,4) to bottom panel (11) using cam locks (D). Tighten cam locks (D) with a screwdriver.

Attach slat (2) to top panel (1) using dowels as guides. Note the direction of slat (2) as shown above.

Attach slat (2) to top panel (1) using screws (H).

Attach the top panel (1) to the assembly from the previous step using cam bolts and dowels as guides.

Secure top panel (1) to panels (3,6) using cam locks (D). Tighten cam locks (D) with a screwdriver.

Secure top panel (1) to panels (4,5) using cam locks (D). Tighten cam locks (D) with a screwdriver.

Attach legs (13) to bottom panels (3,4) using bolts (J), spring washers (K) and washers (L) as guides. Screw

support legs (12) into bottom panel (11).

Attach panels (14,15) to the back of the console using screws (F). Note the direction of panels (14, 15) as

shown above.

Attach panel (16) to the back of the console using screws (F). Note the direction of panel (16) as shown above.

Attach panel (17) to the back of the console using screws (F).

Cover all visible cam locks with stickers (P) as desired.

Insert shelf support pins (E) into panels (3,4,5,6).

Carefully place shelves (7,8) into the console. Note the direction of the shelves as shown in the diagram.

Shelves will rest on the shelf support pins.

Place the handle back plate (N) into handle (M). Attach the handles (M,N) to doors (18,19) using handle

screws (G)

Insert the doors into the console by pulling down the upper door pins and carefully placing the door wheels

over the slide in the bottom panel. Secure the doors into place by pressing the upper door pins into the

groove in the top panel.

Other Walker Edison Indoor Furnishing manuals

Walker Edison

Walker Edison W60UBCT User manual

Walker Edison

Walker Edison LEEB4C User manual

Walker Edison

Walker Edison BU58HPBM User manual

Walker Edison

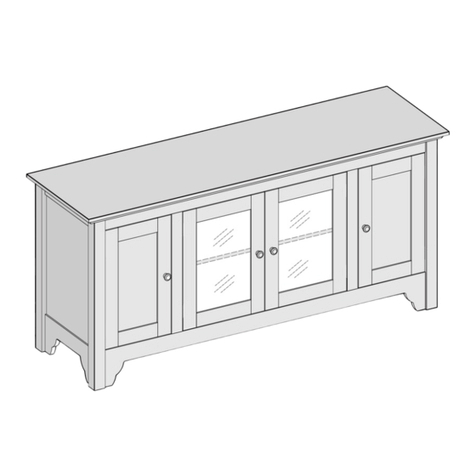

Walker Edison W52C4D0 User manual

Walker Edison

Walker Edison BR4DDR User manual

Walker Edison

Walker Edison AF44MOL2DR User manual

Walker Edison

Walker Edison BS68LUK2D User manual

Walker Edison

Walker Edison LCDK48BR User manual

Walker Edison

Walker Edison BU44ABMD User manual

Walker Edison

Walker Edison W70CSGD User manual

Walker Edison

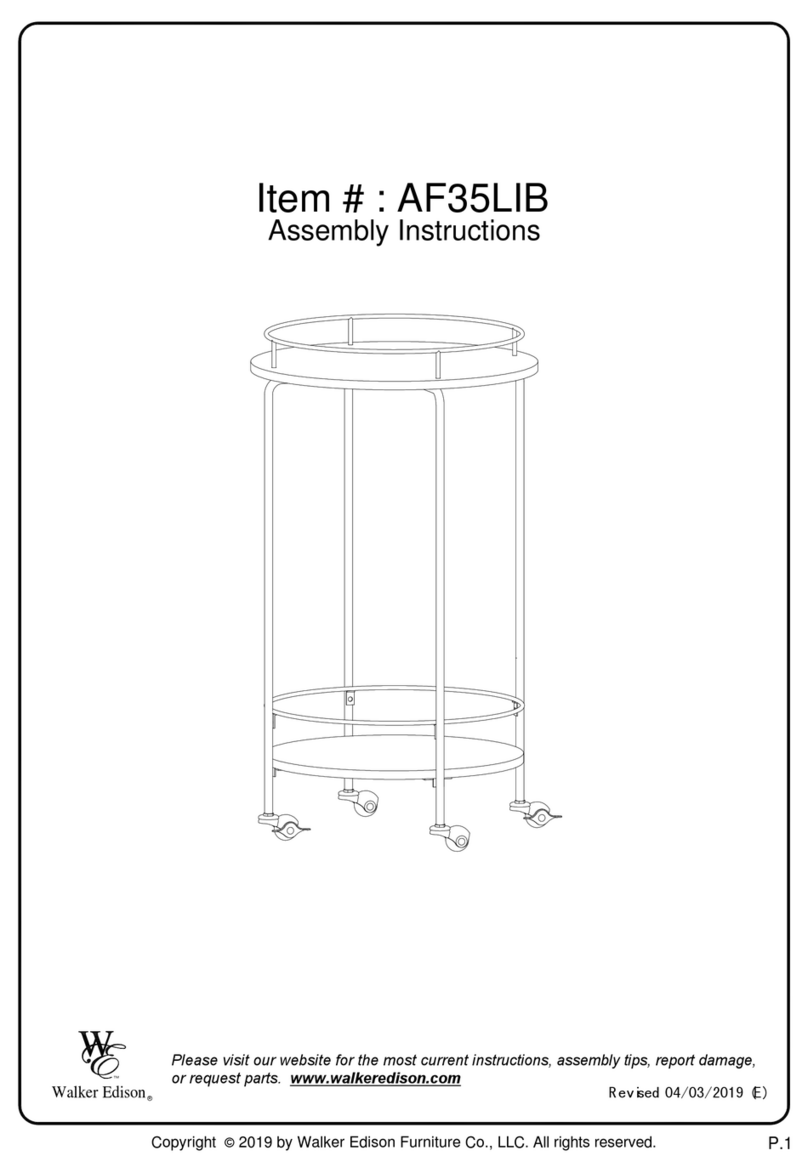

Walker Edison AF35LIB User manual

Walker Edison

Walker Edison D36ARLO User manual

Walker Edison

Walker Edison REEH8GDW User manual

Walker Edison

Walker Edison HT68NATSW User manual

Walker Edison

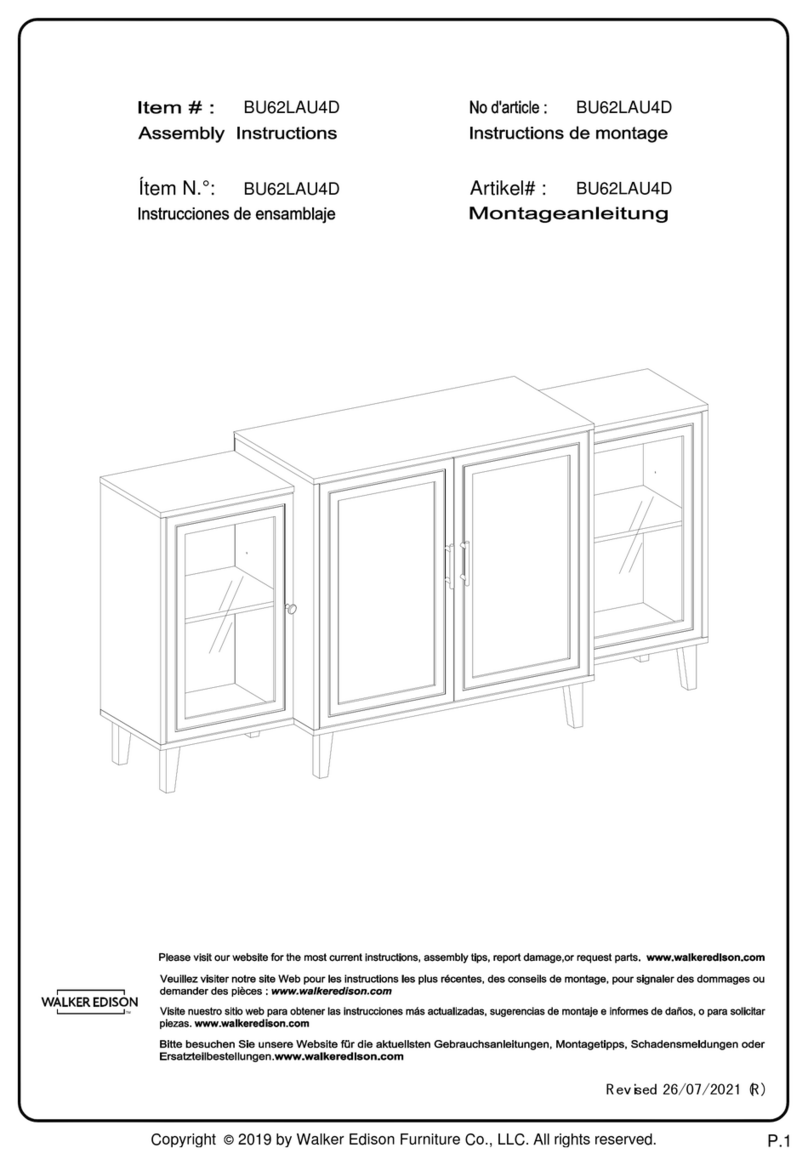

Walker Edison BU62LAU4D User manual

Walker Edison

Walker Edison BR6DRLEEDR User manual

Walker Edison

Walker Edison BS70SPNC User manual

Walker Edison

Walker Edison AF18LAN1DRST User manual

Walker Edison

Walker Edison Mid-Century AH52CMC User manual

Walker Edison

Walker Edison CHKM1F User manual

Walker Edison

Walker Edison PRLD3D User manual

Walker Edison

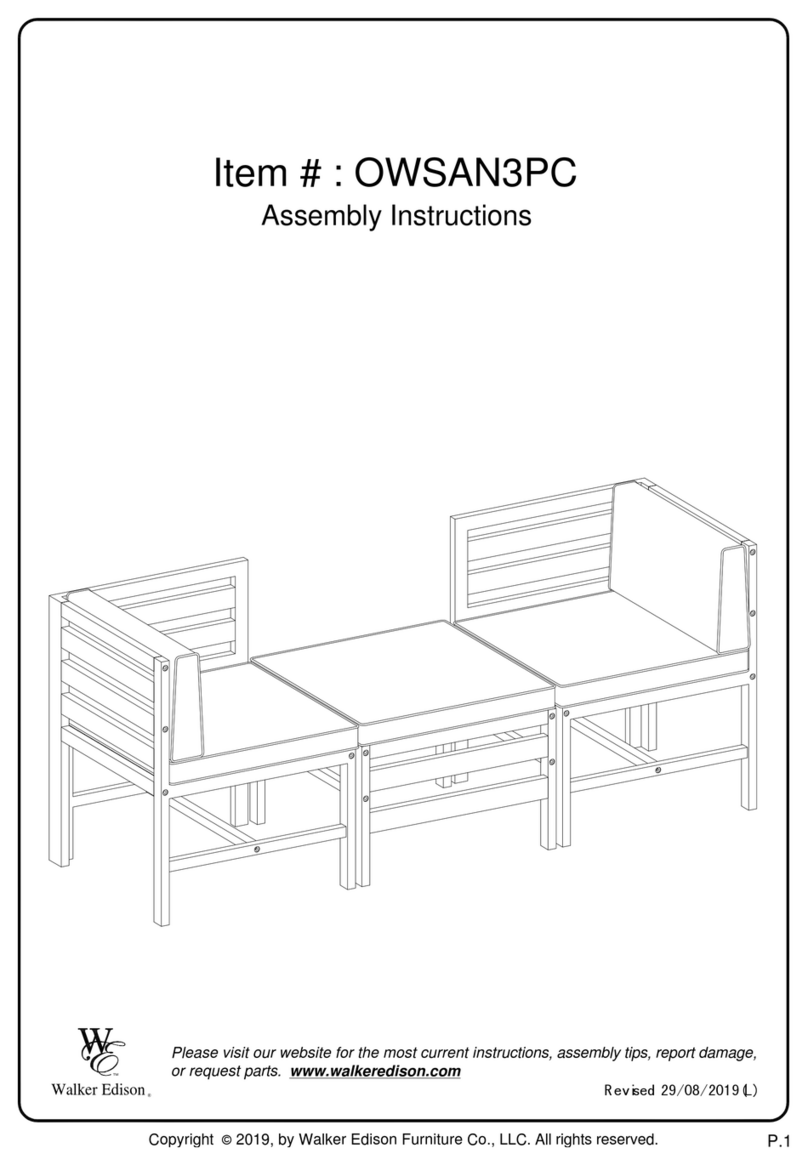

Walker Edison OWSAN3PC User manual
