Walton 04GREEN0806SD-V2 User manual

8
04GREEN0806SD-V2
8X6 GREENHOUSE
2mm Drill bit
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All building’s should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 880514
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
**Protim Aquatan T5 (621)**
Your building has been treated with Aquatan.
Aquatan is a water-based concentrate which is diluted with water, the building as been treated by the correct
application of Aquatan solution and then allowed to dry.
Aquatan is a decorative nish to colour the wood, which is applied industrially to timber fence panels and
garden buildings.
Aquatan undiluted contains: boric acid, sodium hydroxide 32% solution, aqueos mixture of sodium dioctyl
sulphosuccinat and alcohols: 2, 4, 6-trichlorophenol.
Please retain product label and instructions for future reference
General Instructions
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied)
including a Phillips screwdriver, Stanley knife, wood saw, step ladder and drill with 2mm
bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, timber can be aected during various weather conditions.
For the duration of heavy or extended periods of rain, swelling of the wood panels may
occur. Warping of the wood may also occur during excessive dry spells due to an interior
moisture loss. Unfortunately, these processes cannot be avoided but can be helped. It is
suggested that the outdoor building is sprayed with water during extended periods of
warm sunshine and sheltered as much as possible during rain or snow.
Our buildings are pre treated with a water based treatment**; this only helps to protect
the product during transit and for upto 3 months against mould. To validate your
guarantee and ensure longevity of the product, it is ESSENTIAL the building is treated
with a wood preserver within the rst three months of assembly and thereafter in
accordance with the manufactures recommendations. Care must be taken to ensure
the product is placed on a suitable base.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to
diagrams for the base dimensions, The base should be slightly smaller than the external
measurement of the building, i.e. The cladding should overlap the base, creating a run
o for water. It is also recommended that the oor be at least 25mm above the
surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in
the case of childrens products independently tested to EN71 level, we cannot accept
responsibility for your safety whilst erecting or using this product.
Refer to the instructions pages for you specic product code

Step 1
P 2
04GREEN0806SD-V2
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN

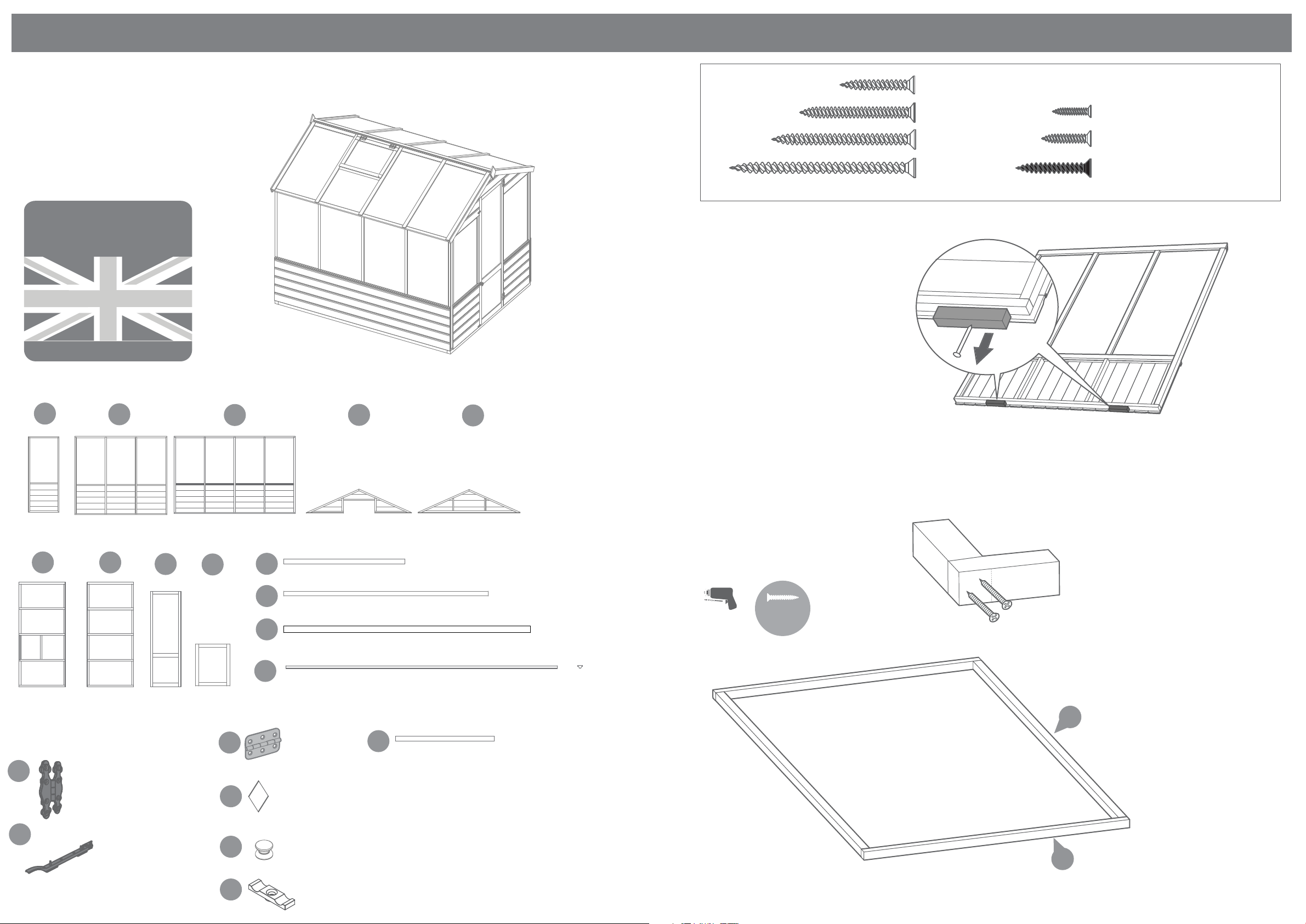

Overall Dimensions:
Length = 2380mm
Width = 1862mm
Height = 2066mm
Base Dimensions:
Length = 2356mm
Width = 1862mm
Building content
Door Side
QTY 2
Window Side Door Gable Top
12345
11
16
15
16
10
18
Remove transportation
blocks from the bottom
of each panel before
beginning assembly. Each
Panel should have two
Pre Assembly
2
Plain Gable Top
8
Door
9
Opening
Window
11
Fascia 1025mm
Base Frame 1862mm
12
Base Frame 2268mm
13
13
Roof Support Bar 2382mm
14
15 Buttery Hinges QTY 2
Window Casement Stay
Butt hinge QTY 2
16
Finial
Qty 2
17
18 35mm
Wooden Knob
8x70mm Screws
Lay the base frame down as shown
in the diagram. Ensure the base is
square and layed on level ground, fix
the base together with 2 x 70mm
screws per corner - pre drill to avoid
splitting the timber.
19 Turn Button
Nail Bag 30mm Screw x 20
20mm Screw x 6
50mm Screw x 62
70mm Screw x 8
40mm Screw x 8
16mm Screws x 6
30mm Black Screw x 18
Lrg Window Side
Roof with
Opening
Window
Roof
Pre drill
hole
70mm
screw
12
2345
8910
11
12
13
14
15
11
12
6 7
9
15
10
11
Door Rail 556mm
20

P 3

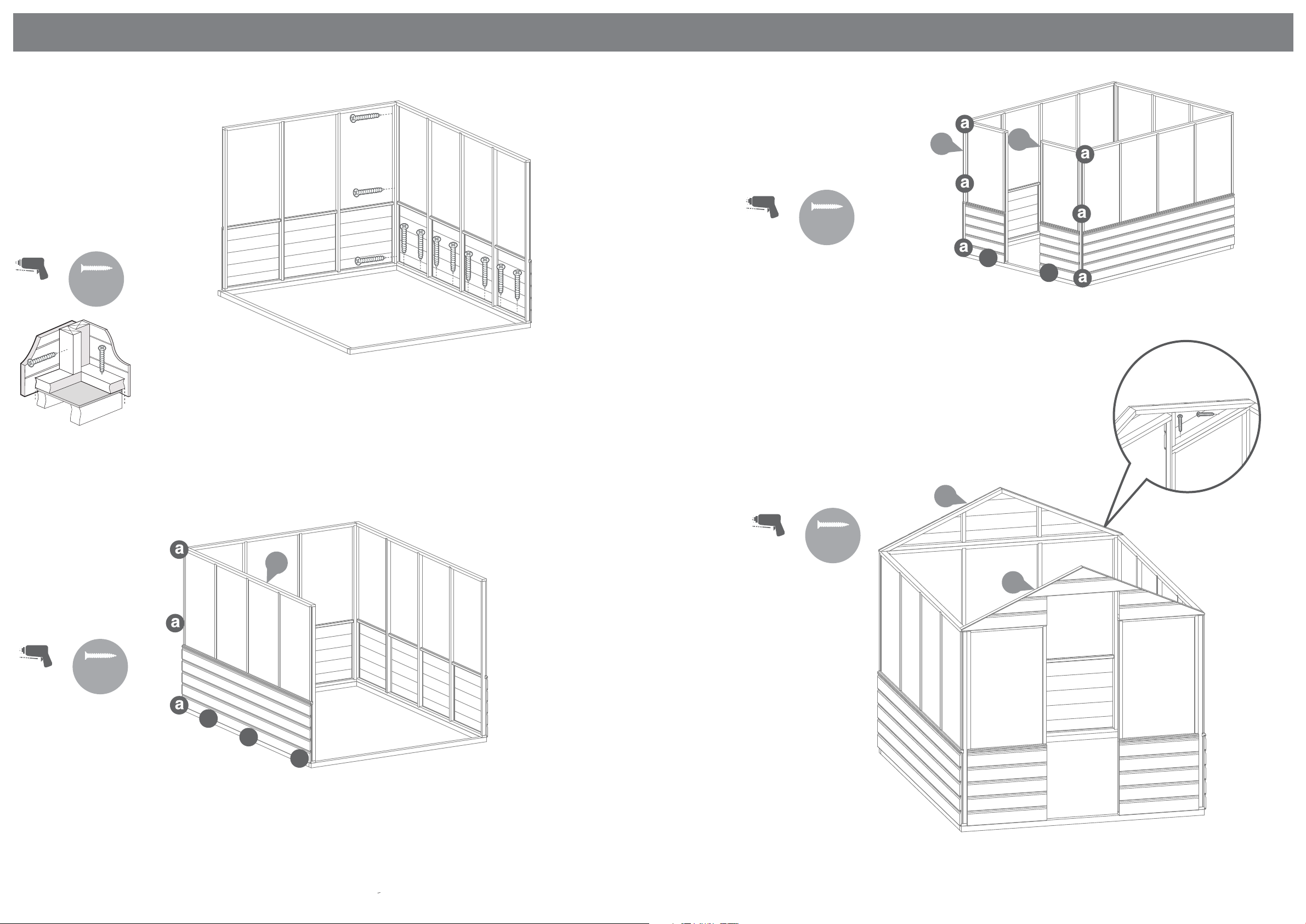

Fix the panels onto the base using
17 x 50mm screws.
Fix the corners with 3x50mm screws
as shown in diagram.
Position the panels so there is equal spacing
between the floor and cladding on all 4 sides
Step 2
11x50mm Screws
50mm
screw
Step 3
Fix the remaining window
panel at the corner using
3 x 50mm screws.
Screw to the base using
8 x 50mm screws.
Step 4
Fix the door sides to the window
panels and to the base using
10x50mm screws.
Pre drill
hole
50mm
screw
17 x 50mm screws
Pre drill
hole
50mm
screw
10x50mm Screws
Pre drill
hole
50mm
screw
Step 5
Fix the gable tops to the panels
using 4x50mm screws per top as
shown in the diagram.
8x50mm Screws
Pre drill
hole
50mm
screw
1
5
4
b
b
b
2
b
b
1

P 4
Step 6
Attach the window to the roof
panel using 3x16mm screws and
3x30mm screws per butt hinge.
6x16mm Screws
6x30mm Screws
Pre drill
hole
16mm
screw
Pre drill
hole
30mm
screw
Fix the casement stay to the
opening window then align
the fixings onto the window
panel frame. Ensure the case-
ment stay fits into fixings when
closed before screwing them
down using 6 x 20mm screws.
6x20mm screws per casement stay
15
6x20mm Screws
Step 7
Place the roof panels on top of
each gable, making sure the
roofs are ush to each gable and
meet at the top of the apex
Secure each roof panel to the
building using 16x50mm screws.
16x50mm Screws
Pre drill
hole
50mm
screw
Step 8
Attach the roof support bar to the
roof panels using 5x40mm screws.
Screw diagonally through the
support into the roof panel as
shown in the diagram.
5x40mm Screws
Pre drill
hole
40mm
screw
*IMPORTANT: Ensure both roof
sections meet at the top of the
apex as shown in the illustration.
30mm
16mm
16
9
6
7
6
13

It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back
Step 9

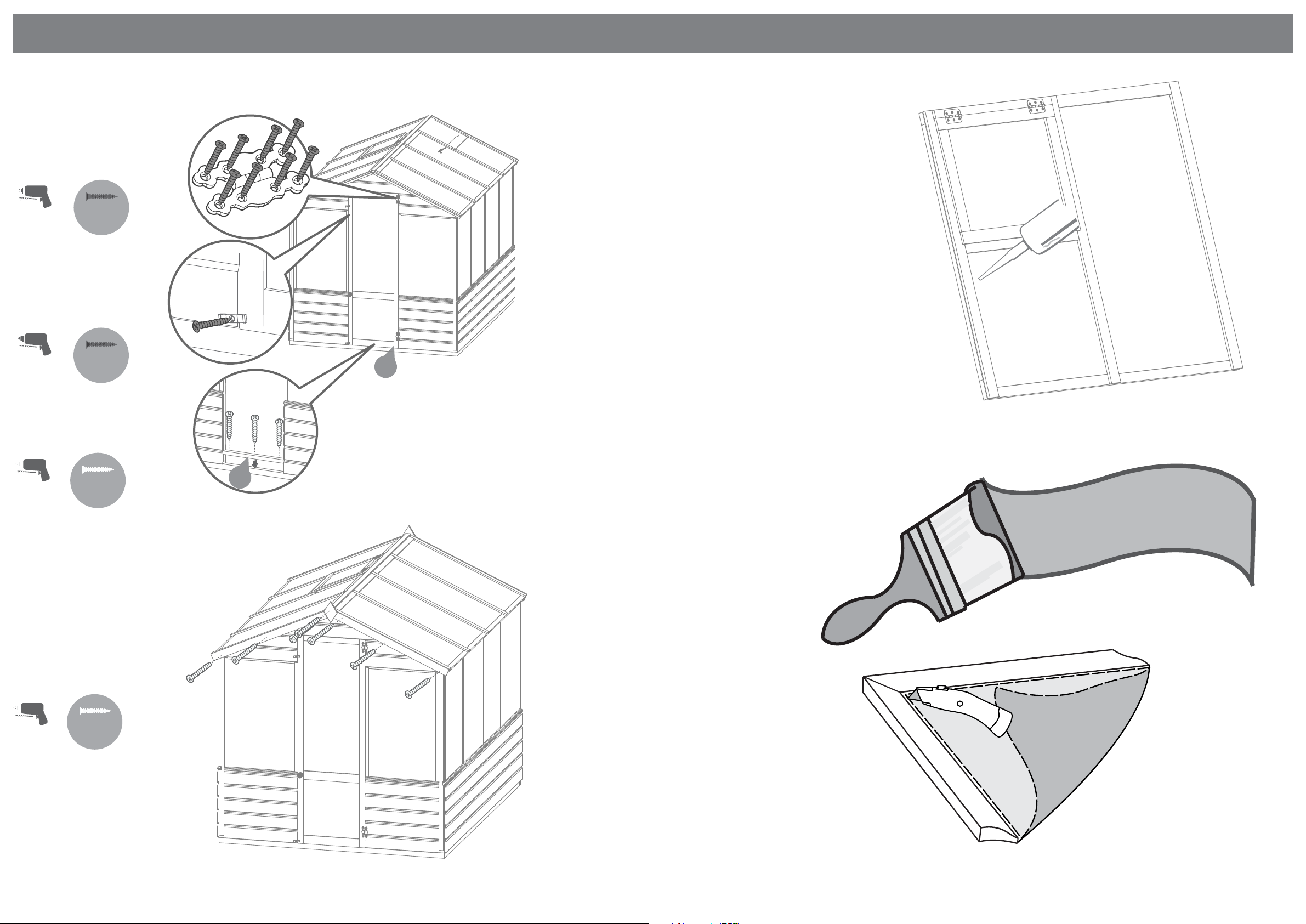

Fix the door to the building using
16x30mm black screws per hinge
as shown in the diagram.
16x30mm Black Screws
Pre drill
hole
Fit the turn buttons to the
building using 2x30mm black
screws.
Step 10
Fit the fascia’s and the nial’s to the
building using 14x30mm screws as
shown in the diagram.
14x30mm Screws
Pre drill
hole
30mm
screw
SILICONE
SEALANT
Step 11
It is advisable to seal around all
window framing with silicone
sealant (not included) to
minimize water ingress.
*Please note: This image is for
illustrative purpose and may dier
from your product (in regards to
the number of windows) however
the principle is the same.
8
30mm
screw
2x30mm Black Screws
Pre drill
hole
30mm
screw
19
Fit the door rail using 3x40mm
screws.
Pre drill
hole
40mm
screw
2x40mm Screws
20
