WAPRO WASTOP FLOOR DRAIN User manual

WASTOP®FLOOR DRAIN
incl. WaStop Inline check valve DN110 / NPS 4”
and flexible coupling
Please note your product serial number:
EN
INSTALLATION INSTRUCTIONS
& PRODUCT GUARANTEE
®

PEACE OF MIND WITH WASTOP® FLOOR DRAIN
THANK YOU FOR PURCHASING A WAPRO PRODUCT. FOR FURTHER PRODUCT
INFORMATION PLEASE REFER TO WAPRO.COM
1
INDEX
SAFETY FIRST ..............................................................................................................................................................................2
SERIAL NUMBER ......................................................................................................................................................................2
FLOOR TYPE ................................................................................................................................................................................2
SECURING AND CONNECTION ....................................................................................................................................3
IMPORTANT ..................................................................................................................................................................................3
TILING ...............................................................................................................................................................................................4
WASTOP INSTALLATION IN THE FLOOR DRAIN ............................................................................................5
GENERAL INFORMATION ABOUT STAINLESS STEEL .................................................................................5
MAINTENANCE ..........................................................................................................................................................................6
WARRANTY ..............................................................................................................................................................................78

2
SERIAL NUMBER
Please note your product serial number and scan QR-code
SAFETY FIRST
Ceramic tile floor K3 and steel-troweled concrete floor
FLOOR TYPE

3
SECURING AND CONNECTION
• Secure the floor drain with legs in the mounting lugs
• Install the floor channel horizontally and ensure that it is firmly mounted so
that it does not shift during casting or due to movements between the floor
drain; adjust horizontally
• Secure the top part of the channel to the correct floor height! It might be
challenging to do after the pour
• Connect the drain pipe
• Vibrate the concrete thoroughly beneath the floor drain, including the edges
IMPORTANT
• Protect the floor channel from concrete spills. Clean immediately in case of
concrete spills
• Protect the floor channel from sparks from the angle grinder and welding

TILING
• Lay the tiles in adhesive mortar with cement slurry or bonding agent
• Ensure that the concrete/adhesive mortar fully fills the space beneath the floor
drains metal parts
• The joint between tiles and floor drain should be made with the same material
as between the tiles and with a high-quality flexible joint
4

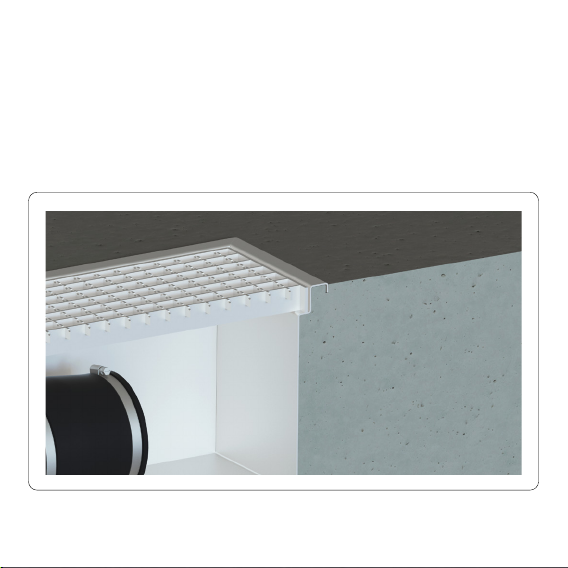

WASTOP INSTALLATION IN THE FLOOR DRAIN
• Attach the flexible coupling on the WaStop
• Insert the WaStop into the pipe until the flexible coupling stops
• Tighten the flexible coupling
GENERAL INFORMATION ABOUT STAINLESS STEEL
The stainless material retains its surface and corrosion resistance only if kept clean.
Use warm water and soap or a mild detergent, followed by rinsing with clean water.
To prevent discoloration:
• Wipe or rinse off acidic substances.
• Do not place iron products in contact with stainless steel.
• Avoid grinding or welding steel and iron products near stainless material.
5

MAINTENANCE
The WaStop Floor drain shall be inspected for damage and wear and also cleared of
debri and sediment at least once a year or as needed to ensure the capacity of the
sand trap.
FLEXIBLE COUPLING
Check the flexible coupling or pipe to make sure they have not loosened during
operation.
MEMBRANE
The membrane should be exercised by hand. Take caution not to damage the
WaStop. Use only stainless steel tools to minimize the risk of contaminating the
stainless steel. If there is any damage to the valve, contact your WaStop supplier with
product serial number, purchase date, photos and information about the installation
conditions.
6
MAINTENANCE
Approx 2x/ year or as requried

CONGRATULATIONS ON YOUR PURCHASE OF THE
UNIQUE WASTOP FLOOR DRAIN
The WaStop Floor drain is designed to ensure that property owners never have to worry about basement
flooding or damage to their belongings during heavy rainfall or melting periods. When back pressure
occurs from the drainage system and water flows back towards the floor drain, the WaStop Inline
check valve prevents water from rising out of the well and further into the property through the door.
This ensures that the property remains dry and protected from flooding.
SAFETY FIRST
When installing a WaStop Floor drain please ensure that all safety precautions are taken.
Wapro AB accepts no responsibility for incorrect installation or the improper use of this product.
Incorrect installation can cause injury, reduce the valve lifetime or damage other mating pipe products.
Please read the following information before installing the WaStop Floor drain. If you have any questions
regarding installation please call your local WaStop Floor drain reseller.
STORAGE
• The WaStop Floor drain valve should be stored in a cool dry location with good ventilation
• The WaStop Floor drain should not have anything inserted into either end touching the
membrane during storage
• TheWaStop Floor drain should be stored in a safe location where tampering cannot occur
• Avoid unnecessary exposure to light and chemicals
TERMINOLOGY
Membrane: The conical elastomer membrane inside the WaStop pipe
7

ENGLISH
WAPRO AB LIMITED WARRANTY
Wapro will remedy defects in material and/or workmanship in any new Wapro valve for a period of two
(2) years from the documented date of purchase so long as the valve has been used in accordance with
Wapro’s instructions and recommendations and under normal operating conditions. The warranty does
not cover damage to the valve caused by external mechanical forces, such as interference from humans,
animals or machines, nor is the warranty valid if the valve has been modified or altered in any way post-
production. Furthermore, the warranty is not valid (a) if the valve is damaged due to exposure to high
concentrations of chemical substances, (b) if the valve is damaged due to pressure surges and/or vacuum
within the valve, (c) the warranty is invalid if flow velocity exceeds 1,5m/s (12 l/s), and (d) if malfunctions are
caused by other equipment. To request warranty service, the buyer should contact the WaStop dealer
where the valve was purchased within a reasonable time after discovering any defects. The valve serial
number must be quoted in the case of a warranty claim. Wapro’s liability is limited to the replacement
or repair of the defective valve. Wapro will not assume costs incurred for removal of defective valves or
subsequent installation of replacement valves. Furthermore, Wapro will not assume transportation costs
of damaged valves or replacement valves. Wapro warrants that repaired or replaced valves are covered for
the greater of either the remainder of the original valve warranty or 90 days.
THE WARRANTY EXPRESSED ABOVE SHALL BE IN LIEU OF ANY OTHER WARRANTIES, EXPRESSED
OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT WHICH
ARE EXPRESSLY DISCLAIMED, AND IS IN LIEU OF ANY AND ALL OTHER OBLIGATIONS OR LIABILITY
ON WAPRO’S PART. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, UNDER NO
CIRCUMSTANCES WILL WAPRO BE LIABLE TO BUYER FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES (INCLUDING ANY DAMAGE FOR LOSS OF REVENUE OR PROFIT), OR
OTHERWISE ARISING OUT OF OR IN CONNECTION WITH FURNISHING OF THE VALVES, PARTS OR
SERVICE HEREUNDER, OR THE PERFORMANCE, USE OF, OR INABILITY TO USE ANY OF THE VALVES,
PARTS OR SERVICE, OR OTHERWISE, WHETHER BASED IN CONTRACT, WARRANTY, TORT, INCLUDING
WITHOUT LIMITATION, NEGLIGENCE OR ANY OTHER LEGAL OR EQUITABLE THEORY. TO THE MAXIMUM
EXTENT PERMITTED BY APPLICABLE LAW, THE REMEDIES SET FORTH IN THIS LIMITED WARRANTY
SHALL APPLY EVEN IF SUCH REMEDIES FAIL THEIR ESSENTIAL PURPOSE. FOR THE AVOIDANCE OF
DOUBT, NO EMPLOYEE, AGENT OR OTHER REPRESENTATIVE OF WAPRO IS AUTHORIZED TO EXTEND
OR OTHERWISE MODIFY THE WARRANTY SPECIFIED HEREIN.
8

HOLDING BACK
THE FLOOD
CONTACT WAPRO
[e-mail]
wapro.com
SE: [phone]
DK: [phone]
US: [phone]
UK: [phone]
DE: [phone]
Wapro solutions protect against stormwater and backflow flooding
Protecting people and property
®
Rev 1.0
