Warmup HTR-4ROPO User manual

1
IMPORTANT!
Please read this manual
before attempting to install
your Warmup product.
Complete and submit your
warranty form online at
www.warmup.co.uk
0345 345 2288
Technical Helpline
Installation Manual
Heated Towel Rails

2
Experience MyHeating™
Download now for iOS and Android
Easy to use
Simple and secure
set up with 24/7
support
Unique to Warmup:
Natural Language Programming™
Programming that speaks your language
Please scan the QR code
for more information
The world’s best-selling floor heating brand™
Over 2 million installations in
more than 60 countries
EasySwitch™
Always on the best
tari, automatically
SmartGeo™
Smarter geo-fencing.
Reduce energy usage
by up to 25%

3
Contents
WARNING!
Your Warmup® heated towel rail has been designed so that
installation is quick and straight forward, but as with all electrical
systems, certain procedures must be strictly followed. Warmup
plc, accepts no liability, expressed or implied, for any loss or
consequential damage suered as a result of installations which in
any way contravene the instructions that follow.
It is important that before, during and aer installation that all
requirements are met and understood. If the instructions are
followed, you should have no problems. If you require help at any
stage, please contact our helpline.
You may also find a copy of this manual and other helpful information
on our website:
www.warmup.co.uk
Components Required for Installation�������������������������������������4
Do’s & Don’ts ����������������������������������������������������������������������������5
Step 1 - Electrical Supply ��������������������������������������������������������6
Step 2 - Layout Planning ��������������������������������������������������������7
Step 3 - Mounting the Rails (Ladder) ��������������������������������������8
Mounting the Rails (Single bar) �������������������������������12
Step 4 - Make Electrical Connection �������������������������������������14
Troubleshooting���������������������������������������������������������������������15
How to test the Towel Rail������������������������������������������������������16
Warranty���������������������������������������������������������������������������������17
Control Card���������������������������������������������������������������������������18
Technical Specifications ��������������������������������������������������������19

4

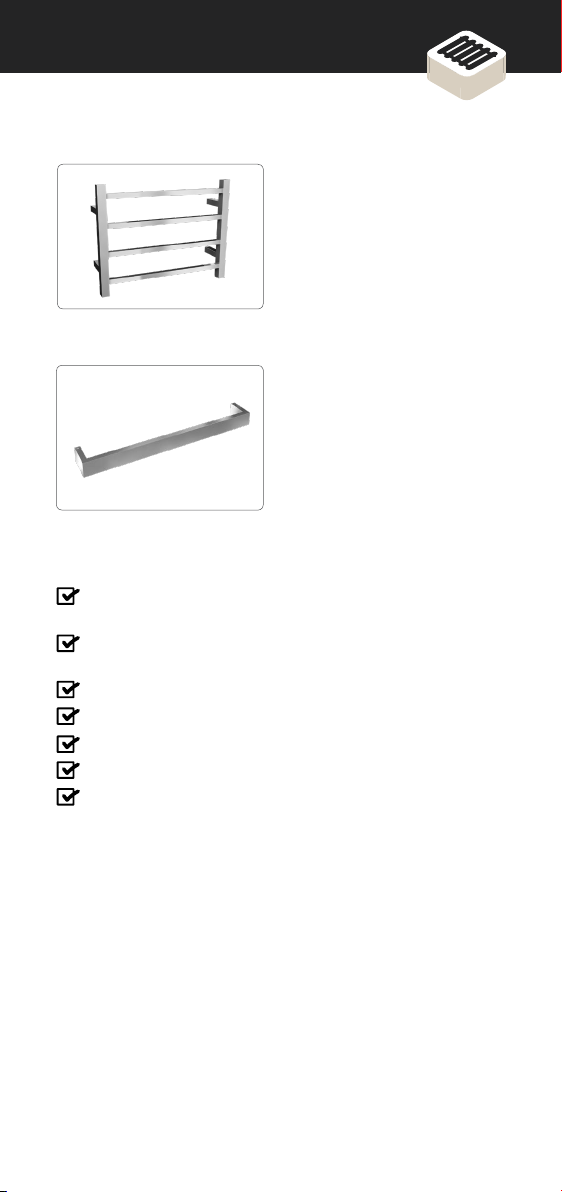

Components Required
for Installation
Components available from Warmup
Additional components needed as part of your Warmup heating
installation:
30 mA Residual Current Device (RCD), required as part of all
installations.
Digital Multi-meter required for testing the resistance of the
heated towel rails.
Measuring tape.
Electrical housing, back boxes and junction boxes.
Hammer.
Masking tape.
Spirit level.

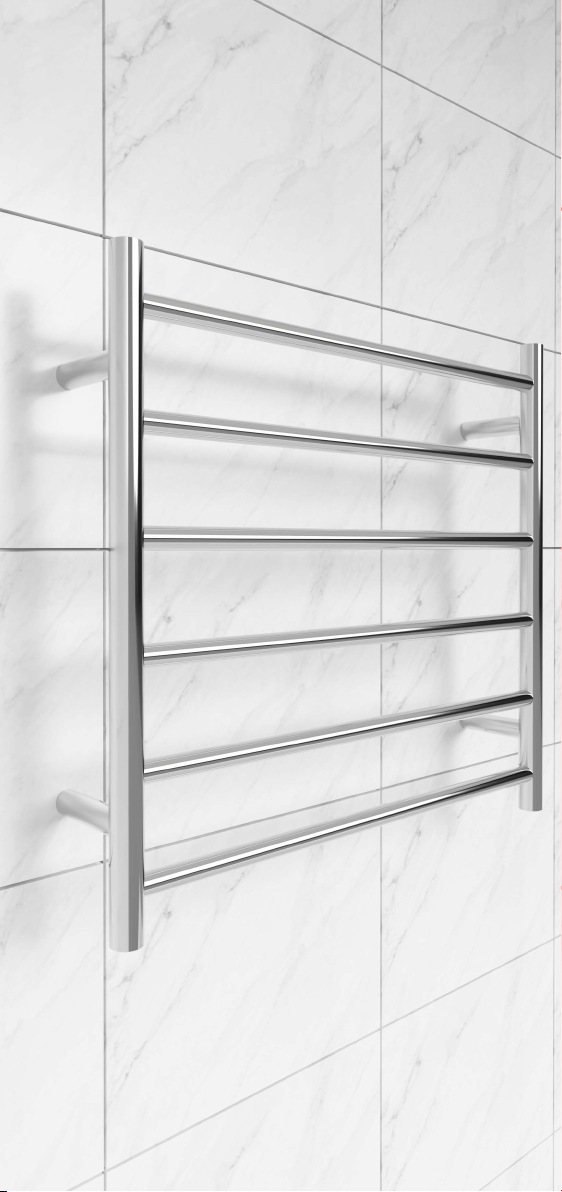

Warmup Heated Towel Rail
and Components
• HTR-4ROPO • HTR-4SQPO
• HTR-6ROPO • HTR-6SQPO
• HTR-8ROPO • HTR-8SQPO
Warmup Heated Towel Rail
and Components
• HTR-1ROPO • HTR-1SQPO
• HTR-1ROBR • HTR-1SQBR
• HTR-1ROBL • HTR-1SQBL
Ladder Rails
Single Bar Rails

5
Do’s & Don’ts
Install the Warmup Heated Towel Rails in line with these
instructions� The towel rail is designed to warm towels only
and not provide primary heating�
Ensure that the control card at the back of the manual is
completed and fixed at the consumer unit along with any
plans and electrical test records as per the current edition of
BS 7671�
Install the towel rail at least 600 mm above the floor in order
to avoid a hazard for very young children�
Ensure that all electrical connections conform to the current
BS 7671 Wiring Regulations� Final connections to the main
electricity supply MUST be completed by a Part P qualified
electrician�
Ensure that the power supply to the towel rail is isolated
before any installation or maintenance�
Attempt a DIY repair if you damage the heated towel rail,
contact Warmup for assistance�
Pull on the power supply cable as it may cause damage to the
towel rail�
Attempt cleaning the towel rails using abrasive or chemical
cleaners as these will damage the surface finish over time, use
a so clean cloth and a non abrasive cleaning agent�
DO
DON’T
WARNING: This appliance can be used by children aged from 8
years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved�
Children shall not play with the appliance� Cleaning and user
maintenance shall not be made by children without supervision�

6

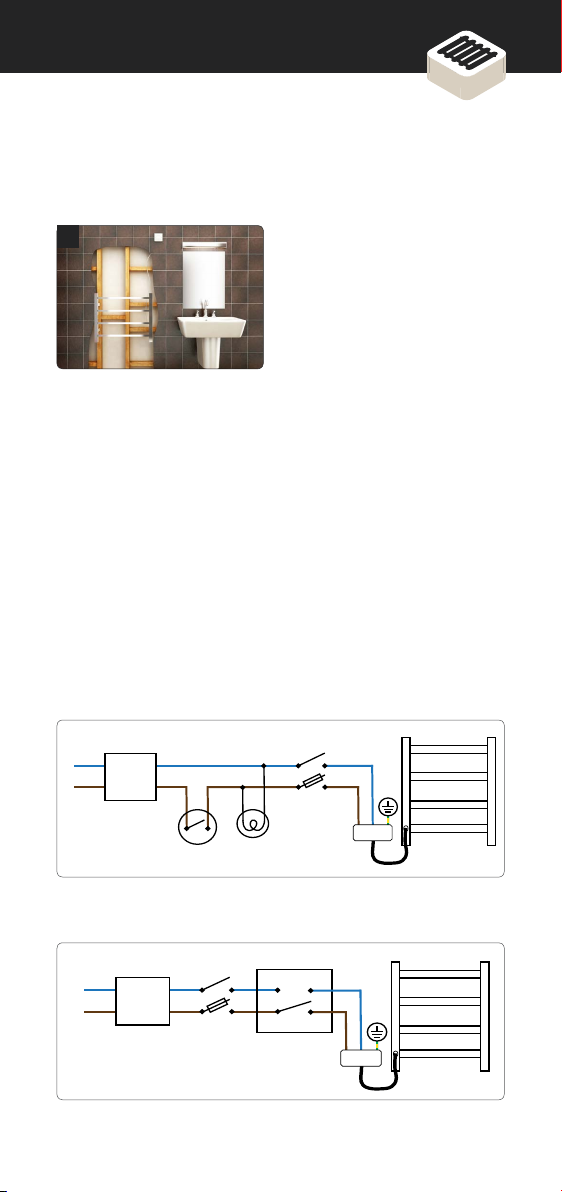

Step 1 -
Electrical Supply
ZONE 0
ZONE 2 ZONE 1
ZONE 2
Z
O
N
E
2
Z
ONE2
ZO
N
E 0
ZO
N
E1
2.2
5
m
2.2
5
m
0.6m
0.6
m
0.6
m
0
.6m
0.6m
0.6m
0.6m
Zone Chart
Install the RCD
Install a dedicated 30 mA RCD or use an existing RCD. No more than
7.5 kW of heating may be connected to each 30 milliamp RCD. For
larger loads, use multiple RCD’s.
NOTE: In the case of bathroom installations, electrical regulations
prohibit the installation of Mains Voltage products such as
thermostats, contactors, fused spurs, isolators or junction boxes,
within Zones 0 or 1.
Warmup Heated Towel Rails have an IP rating of IP55 and are suitable
for installation within Zone 1, Zone 2, Zone 3 or outside of any Zones.
All electrical connections must conform to the current BS 7671
Wiring Regulations. Final connections to the main electricity
supply MUST be completed by a Part P qualified electrician.

7
•Ensure that the wall you
intend to mount the rails onto
is strong enough to hold the
weight of the towel rail.
• When you intend to mount
the rails to stud walls, fixings
must be made into the studs
or noggins.
•When you intend to mount the
rails to masonry walls use the
wall plugs supplied.
•Cables back boxes etc.,
will have to be chased into
masonry walls.
IMPORTANT: DO NOT mount
towel rails to plasterboard alone
as they will not provide enough
support.
Before you begin
•Mains voltage cables installed
within a wall must be fixed
at least 50 mm from the
wall surface or occupy the
horizontal and vertical safe
zones in accordance with
BS 7671.
Step 2 -
Layout Planning
In order to avoid a hazard for very young children, heated towel rails
should be installed so that the lowest heated rail is at least 600 mm
above the floor.

8
1A
Normal
Leg
x 3
1B
Exposed
Wiring Leg
x 1
1C
Concealed
Wiring Leg
x 1
5
Mounting
Screws
x 4
6
Wall
Mount
x 3
7
Concealed Wiring
Wall Mount
x 1
8
Exposed Wiring
Wall Mount
x 1
2
M5 x 4
Grub screws
x 4
3
M5 x 6
Grub screws
x 4
4
Wall plugs
x 4
9
Hex key
x 1
10
Short screws
x 4
Step 3 - Mounting the Rail
Ladder Rails
• Using a long screwdriver,
screw the short screw (10)
though the leg (1A) securing it
to the towel rail body.
NOTE: The grub screw (3)
should face the floor when the
towel rail is mounted on the
wall.
Components List
Warmup’s Ladder Towel Rails can be installed with either
concealed or exposed wiring. The instructions below
concentrate on concealed wiring.
2
•Measure and record the
resistance of the towel rails
in the “Resistance Before”
column of the control card,
supplied as part of this
installation guide.
•Stop installation immediately
and contact Warmup if its
resistance falls outside the
values set out in the resistance
table.
1

9
Step 3 - Mounting the Rail
Ladder Rails
•Use a tape measure to
measure the centre to centre
distances between the wall
mounts (6) which are secured
in each leg and concealed
(7) or exposed wiring (8) wall
mounts.
•With all 4 legs secured to the
towel rail body, install the wall
mounts (6) into each leg using
the grub screws (3).
• Install the concealed wiring
wall mount (7) or exposed
wiring wall mount (8).
•Install the remaining 2 legs
(1A) to the towel rail body as
shown in Step 2.
•Mark the measurements taken
in the previous step on the
wall of your intended towel
rail location keeping in mind
that the lowest rail should be
at least 600 mm above the
floor level.
•Ensure the markings on the
wall are level.
•Attach the final leg (1B or
1C), for exposed or concealed
wiring, to the towel rail body
using the grub screws (2) as
shown.
65
3
7
4
•Drill 3 holes in the wall for
each of the 3 x wall mounts
(6).
NOTE: For exposed wiring drill
a 4th hole of equal size.
For masonry walls gently tap
wall plugs (4) into the holes
using a hammer.
8

10
•Remove the wall mounts
x 3 (6) from the legs (1A).
•Insert the mounting screws
(5) through the wall mounts
and secure to the wall as
shown ensuring that they sit
flush with the wall.
NOTE: For exposed wiring,
install exposed wiring wall
mount (8).
•Position the rail against the
wall and insert the power
supply cable through the
concealed wiring wall mount
(7).
•Place the rail onto the wall
mounts (6) and secure by
tightening the grub screws (3)
as shown.
9
12
Step 3 - Mounting the Rail
Ladder Rails
•Conduct another resistance
test before mounting the
towel rail to ensure it has not
been damaged and record in
the control card.
11
•Drill a larger 4th hole for the
concealed wiring leg.
•Remove the concealed wiring
wall mount (7) from the leg
(1C).
• Apply grab adhesive to the
wall mount thread and press
into the drilled hole until it sits
flush with the wall.
10

11

12
•Place the wall mounts (1A
or 1B) into the rail. Use a
tape measure to measure the
distance between the screw
holes on the wall mounts.
•Also measure the distance
between the screw and power
supply cable holes.
Components List
2
Step 3 - Mounting the Rail
Single Bar Rails
•Measure and record the
resistance of the towel rails
in the “Resistance Before”
column of the control card,
supplied as part of this
installation guide.
•Stop installation immediately
and contact Warmup if its
resistance falls outside the
values set out in the resistance
table.
1
4
Mounting
Screws
x 3
2
M5 x 8
Grub screws
x 2
3
Wall plugs
x 3
5
Hex key
x 1
1A
Wall mounts
(Round Rails)
x 2
1B
Wall mounts
(Square Rails)
x 2

13
• Mark the screw and power
supply cable hole positions on
the wall you intend to mount
the rail using measurements
taken in Step 2. Ensure the
markings are level.
NOTE: The supply cable
mount should be on the right
hand side.
•Drill three holes into the
previously marked positions,
two for the mounting screws
and one for the supply cable
NOTE: For masonry walls
gently tap wall plugs (3) into
the mounting holes using a
hammer.
3 4
• Insert the mounting screws (4)
through the wall mounts (1A
or B) and screw into the wall.
•Position the rail against the
wall and thread the power
supply cable through the wall
mount (1A or 1B).
•Secure the rail onto the wall
mounts by tightening the grub
screws (2) using the hex key
(5) as shown.
•Remove the wall mounts (1A
or 1B) from the towel rail by
unscrewing the grub screw (2)
located at the bottom of the
rail.
6
8
5
Step 3 - Mounting the Rail
Single Bar Rails
•Conduct another resistance
test before mounting the
towel rail to ensure it has not
been damaged and record in
the control card.
7

14
The Warmup Heated Towel Rails electrical connection
must conform to the current BS 7671 Wiring Regulations.
Final connections to the main electricity supply MUST be
completed by a Part P qualified electrician.
• The supply should be
on a circuit protected by
a maximum 5 amp fuse
or circuit breaker. It is
recommended that the
heated towel rails supply is
fitted with an in-line isolator
to allow it to be independently
isolated. Please see Page 6 for
correct zoning.
1
Step 4 -
Make Electrical Connection
L
30 mA
RCD or
RCBO
N
Max. 5A
Fused Isolator
Switch
LN E
L
30 mA
RCD or
RCBO
N
L
N
L
N
Controller
Max. 5A
Fused Isolator
Switch LN E
Warmup Heated Towel Rails can be connected into the rooms
lighting circuit, enabling the towel rail when the lights are
switched on.
Alternatively they can be controlled by an independent
controller that provides power on demand.

15
Troubleshooting
HEATING ISSUE 1 - The towel rail does not heat up.
Instructions which are shaded must completed by a qualified
electrician.
END USER ELECTRICIAN
With the towel
rail switched
on allow 3 - 5
minutes for the
towel rail to
heat up. Can
you feel heat
coming from
the towel rail?
Measure the
resistance of the
towel rail. Is the
resistance in line
with the values on
Page 19.
If you can feel heat
on the towel rails
surface then it is
working. Please see
the Performance
Troubleshooting
Guide.
Are the wiring
connections
from the towel
rail to the power
supply secure?
Rewire the
towel rail to the
power supply.
Towel Rail
has been
damaged and
may need
replacing.
NO NO
NO
YES
YES
YES
HEATING ISSUE 2 - The towel rail trips the RCD
ELECTRICIAN
Towel Rail has
been damaged
and may need
replacing.
Conduct a resistance test on
the towel rail. Do the figures
match the control card and/or
reference resistance bands?
Are the connections from towel
rail to power supply secure?
Rewire the towel rail
to the power supply.
Test RCD
NOYES
YESNO

16
The heated towel rails must be
tested before they are installed
and again before final connection
is made. The resistance (ohms) of
each heater should be measured.
You should carry out the following
tests and should expect the results
detailed below:

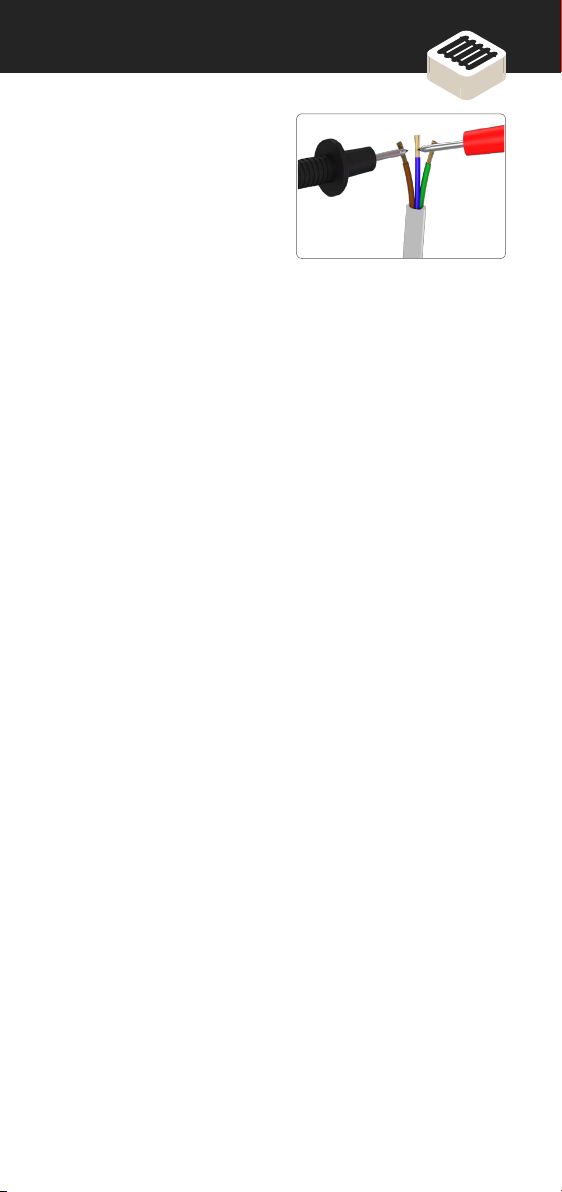

• Heated Towel Rail Resistance Test
Set a multimeter or ohmmeter to record resistance in the range of the
heated towel rail. Measure the resistance across the live (brown) and
neutral (blue) wires. Ensure the measured resistance is in line with
Resistance values for the rail being tested.
Record the readings on the control card in line with the installation
procedure.
• Earth Fault Check
Set a multimeter or ohmmeter to record resistance in the range of
1MΩ or greater if available. Measure the resistance across the live
(brown) and neutral (blue) wires to the earth (green/yellow) wire.
Ensure the measured resistance is showing as greater than 500MΩ or
infinite if the meter cannot read this high.
Insulation resistance test
Set an insulation resistance tester to 500VDC. Measure the resistance
across the live (brown) and neutral (blue) wires to the earth (green/
yellow) wire. Ensure the measured resistance is showing greater than
500MΩ to indicate a pass.
How to test the heated Towel Rail

17
Warranty
Warmup® Heated Towel Rails are guaranteed by Warmup
plc (“Warmup”) to be free from defects in materials and
workmanship under normal use and maintenance, and
is guaranteed to remain so subject to the limitations
and conditions described below� The Heated Towel
Rail is guaranteed for 5 years, except as provided below
(and your attention is drawn to the exclusions listed at the end of this
guarantee)�
This 5 year guarantee applies:
1. Only if the unit is registered with Warmup within 30 days aer purchase�
Registration can be completed online at www�warmup�co�uk� In the event
of a claim, proof of purchase is required, so keep your invoice and receipt
- such invoice and receipt should state the exact model that has been
purchased;
&
2. Only if the towel rail has been earthed and protected by a Residual
Current Device (RCD) at all times�
The guarantee period begins on the date of purchase� During the period
of the guarantee Warmup will arrange for the heater to be repaired or (at
its discretion) have parts replaced free of charge� The cost of the repair
or replacement is your only remedy under this guarantee which does not
aect your statutory rights�
Such cost does not extend to any cost other than direct cost of repair
or replacement by Warmup and does not extend to costs of refacing,
replacing or repairing any wall covering or walls� If the heater fails due
to damage caused during installation or through misuse, this guarantee
does not apply� It is therefore important to check that the heater is
working (as specified in the installation manual) prior to installing�
WARMUP PLC SHALL IN NO EVENT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO EXTRA
UTILITY EXPENSES OR DAMAGES TO PROPERTY�
WARMUP PLC is not responsible for:
1. Damage or repairs required as a consequence of faulty installation or
application�
2. Damage as a result of floods, fires, winds, lightening, accidents, corrosive
atmosphere or other conditions beyond the control of Warmup plc�
3. Use of components or accessories not compatible with this unit�
4. Products installed outside the United Kingdom�
5. Normal maintenance as described in the installation and operating
manual, such as cleaning�
6. Parts not supplied or designated by Warmup�
7. Damage or repairs required as a result of any improper use, maintenance,
operation or servicing�
8. Failure to start due to interruption and/or inadequate electrical service�
9. Any damage caused by frozen or broken water pipes in the event of
equipment failure�
10. Changes in the appearance of the product that does not aect its
performance�
Register your Warmup® warranty online at
www.warmup.co.uk

18
Control Card
WARNING
Heated Towel Rail wiring located
behind wall. Risk of electric shock!
DO NOT penetrate the wall with nails,
screws, or similar devices in this towel
rails location.
Heater Location
.............................
............................
Total Wattage
................................
Heated Towel Rail
Model
Resistance
Before
Resistance
Aer
Insulation
Resistance
Date Signed Company stamp/name
This form must be completed as part of the Warmup Guarantee.
Ensure that the values are as per the instruction manual.
This card must be situated close to the consumer unit in a visible
place.
Warmup Plc 702 & 704 Tudor Estate Abbey Road
London NW10 7UW
T: 0345 345 2288 F: 0345 345 2299 www.warmup.co.uk

19
Technical Specications
TECHNICAL SPECIFICATIONS - Heated Towel Rails
OPERATING VOLTAGE 230 V AC : 50 Hz
IP RATING IP55
ELECTRICAL CLASS Class I
CONNECTION 1�5 m LONG “COLDTAIL” CONNECTION
Ladder Rails
PRODUCT
CODE
SIZE
(mm)
POWER
(W)
LOAD
(A)
RESISTANCE
+/- 10 %
(Ω)
HTR-4ROPO 4 Bar Ladder - Round Polished
520(h) x 500(l) x 120(d) mm
52 0.23 1017
HTR-4SQPO 4 Bar Ladder - Square Polished
435(h) x 525(l) x 120(d) mm
52 0.23 1017
HTR-6ROPO 6 Bar Ladder - Round Polished
600(h) x 650(l) x 120(d) mm
90 0.39 588
HTR-6SQPO 6 Bar Ladder - Square Polished
600(h) x 650(l) x 120(d) mm
95 0.41 557
HTR-8ROPO 8 Bar Ladder - Round Polished
800(h) x 530(l) x 135(d) mm
100 0.43 529
HTR-8SQPO 8 Bar Ladder - Square Polished
912(h) x 620(l) x 120(d) mm
115 0.50 460
Single Bar Rails
PRODUCT
CODE
SIZE
(mm)
POWER
(W)
LOAD
(A)
RESISTANCE
+/- 10 %
(Ω)
HTR-1ROPO Single Bar - Round Polished
32(h) x 650(l) x 100(d) mm
19 0.08 2800
HTR-1SQPO Single Bar - Square Polished
40(h) x 650(l) x 100(d) mm
19 0.08 2800
HTR-1ROBR Single Bar - Round Brushed
32(h) x 650(l) x 100(d) mm
19 0.08 2800
HTR-1SQBR Single Bar - Square Brushed
40(h) x 650(l) x 100(d) mm
19 0.08 2800
HTR-1ROBL Single Bar - Round Black
32(h) x 650(l) x 100(d) mm
19 0.08 2800
HTR-1SQBL Single Bar - Square Black
40(h) x 650(l) x 100(d) mm
19 0.08 2800
Heated Towel Rail Size Guide

www.warmup.co.uk
Warmup plc
United Kingdom
702 & 704 Tudor Estate
Abbey Road, London
NW10 7UW
Web: www.warmup.co.uk
Email: [e-mail]
Tel: [phone]
Fax: [phone]
The WARMUP word and associated logos are trade marks.
© Warmup Plc. 2019 – Regd. TM Nos. 1257724, 4409934, 4409926,
5265707. E & OE.
Warmup - IM - HTR - V1.4 2019-06-11
Bathroom
Heating
