Warmup 6iE User manual

User Guide
WiFi Thermostat
TM
6iE
The smartest, most ecient way to control the world’s
best selling oor heating

2
x1 x1 x2 x1
Pack Contents
Contents
Safety Information............................................................................................ 3
Step 1 - Installation ........................................................................................... 3
Step 2 - Wiring Connections ............................................................................ 4
Table 1.0 - Thermostat use cases ................................................................... 5
Wiring Diagrams ............................................................................................... 6
Step 3 - Thermostat Mounting ........................................................................ 7
Step 4 - Initial Setup.......................................................................................... 7
Step 5 - Add Location and Room..................................................................... 7
Welcome to the 6iE........................................................................................... 8
Getting Started.................................................................................................. 8
How to quickly change the temperature ................................................................ 8
How to quickly change mode ................................................................................... 8
Heating............................................................................................................... 9
How to set a program................................................................................................ 9
Setback Temperature ................................................................................................ 9
How to set into Manual Mode................................................................................ 10
How to set into Vacation Mode.............................................................................. 11
 Howtoswitch“HeatingO” ................................................................................... 11
Energy Monitor................................................................................................ 12
SmartGeo......................................................................................................... 12
Settings............................................................................................................. 13
Advanced Settings .......................................................................................... 14
Troubleshooting.............................................................................................. 15
WiFi Troubleshooting ..................................................................................... 16
TechnicalSpecications ................................................................................. 17
Warranty .......................................................................................................... 18

3
Safety Information
Step 1 - Installation
The6iEmustbeinstalledbyaqualiedelectrician.Itrequiresa
permanent 110V - 240V AC, 60Hz supply. The 6iE contains a Class A
GFCI with 5mA trip level and wiring must conform to local electrical
code.
Isolate the 6iE from the mains supply throughout the installation
process.
Conduits are only required where it is mandated by state or
provincial code. Please refer to local electrical code for compliant
applications.
The 6iE and its packaging are not toys; do not allow children to
play with them. Small components and packaging present a risk of
chokingorsuocation.
q
q
q
q
The 6iE is suitable for indoor use only. It must not be exposed to
moisture, vibrations, mechanical loads or temperatures outside of its
rated values.
For safety and licensing reasons unauthorised change and/or
modicationofthe6iEisnotpermitted.
Ensure the distance from your router to the 6iE is not excessive.
This will ensure the wireless connection is not subject to range or
interference issues once installed.
Install the 6iE in an area with good ventilation. It should not be
beside a window/door, in direct sunlight or above another heat
generating device (e.g. radiator or TV).
q
q
q
q

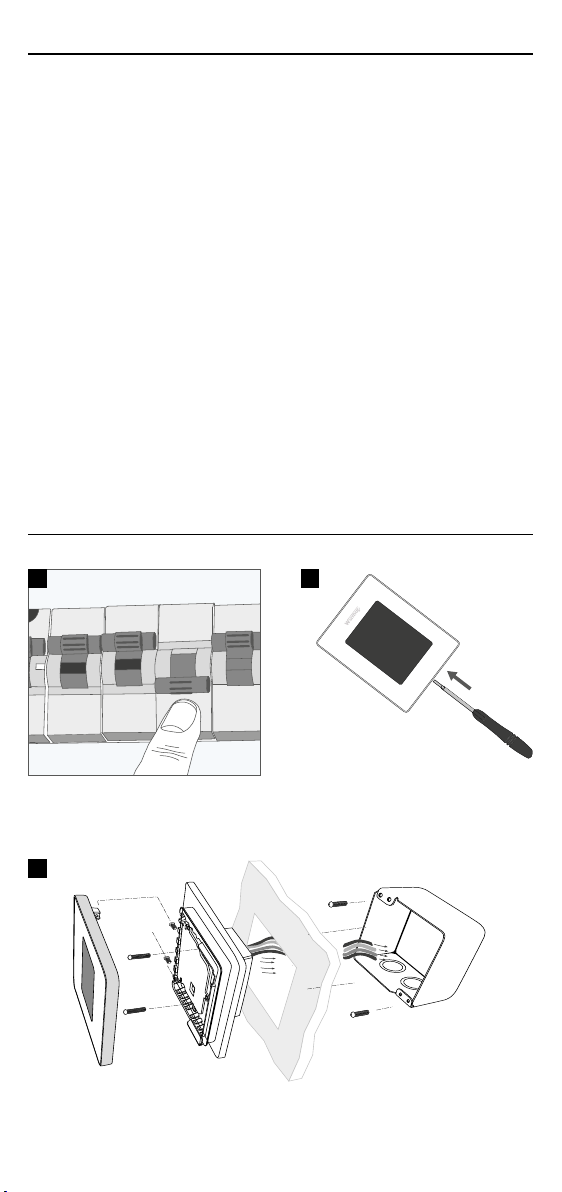

Isolate the 6iE and supply from
the mains supply.
Installa3-1/2”(89mm)deepsinglegangor2-gangboxwithmudring
in your preferred thermostat location. Pull wires (heater, supply and
sensor) through gang box and complete terminal wiring.
Unclip the display from the
power base and remove the
display
1
3
2

4
Step 2 - Wiring Connections
WARNING!
The6iEmustbeinstalledbyaqualiedelectricianin accordance with
National Electrical Code.

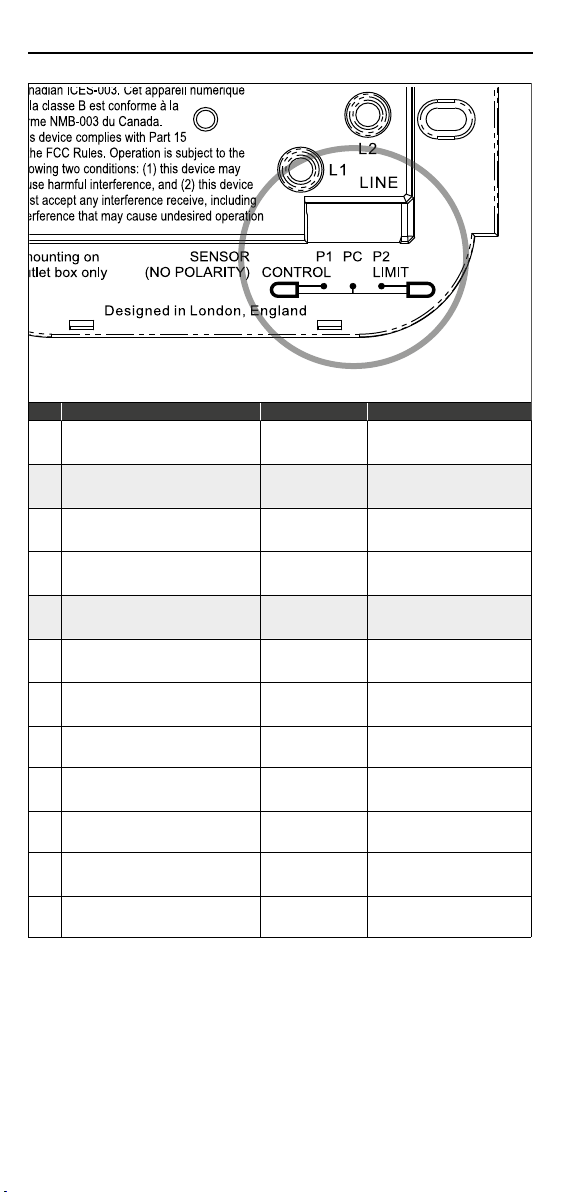

Wiring Connections
LOAD
L1 & L2 Heater Load Max.15A (1800W - 120V, 3600W - 240V)
LINE
L1 Supply Live (120 V)
LINE
L2 Supply Neutral (120 V) / Supply Live (240 V)
P1 & PC Probe 1 - Floor/Air Control Sensor (No Polarity)
Floor or air temperature reading for scheduled control
P2 & PC Probe 2 - Limit Sensor (No Polarity)
See Table 1.0 for thermostat use cases
NOTE: The function of Probe 1, Probe 2 from Control/Limit Sensor can be
swapped in Advanced Settings; Sensors & Application.

5
Table 1.0 - Thermostat use cases
# Use Case Control Limit Sensor
1
Thermostat IN room
Air temperature schedule
Nooorlimit
Internal
Air Sensor None
2*
Thermostat IN/OUT of room
Floor temperature schedule
Floor limit
P1 & PC
Floor Sensor None
3
Thermostat IN room
Floor temperature schedule
Air limit
P1 & PC
Floor Sensor
Internal
Air Sensor
4
Thermostat OUT of room
Air temperature schedule
Nooorlimit
P1 & PC
Air Sensor None
5**
Thermostat IN room
Air temperature schedule
Floor limit
Internal
Air Sensor
P2 & PC
Floor Limit
6
Thermostat IN/OUT of room
Floor temperature schedule
Floor limit
P1 & PC
Floor Sensor
P2 & PC
Floor Limit
7
Thermostat OUT of room
Air temperature schedule
Floor limit
P1 & PC
Air Sensor
P2 & PC
Floor Limit
8
Thermostat IN/OUT of room
Regulator schedule
No limit
Reg. None
9
Thermostat IN room
Regulator schedule
Air limit
Reg. Internal
Air Sensor
10
Thermostat IN/OUT of room
Regulator schedule
No limit
Reg. None
11
Thermostat IN/OUT of room
Regulator schedule
Floor limit
Reg. P2 & PC
Floor Limit
12
Thermostat IN/OUT of room
Regulator schedule
Floor limit
Reg. P2 & PC
Floor Limit
2*Recommended when thermostat is OUT of the heated room
5** Recommended when thermostat is IN the heated room
NOTE: For thermostat use cases 6 & 7 an additional sensor will be required.

6

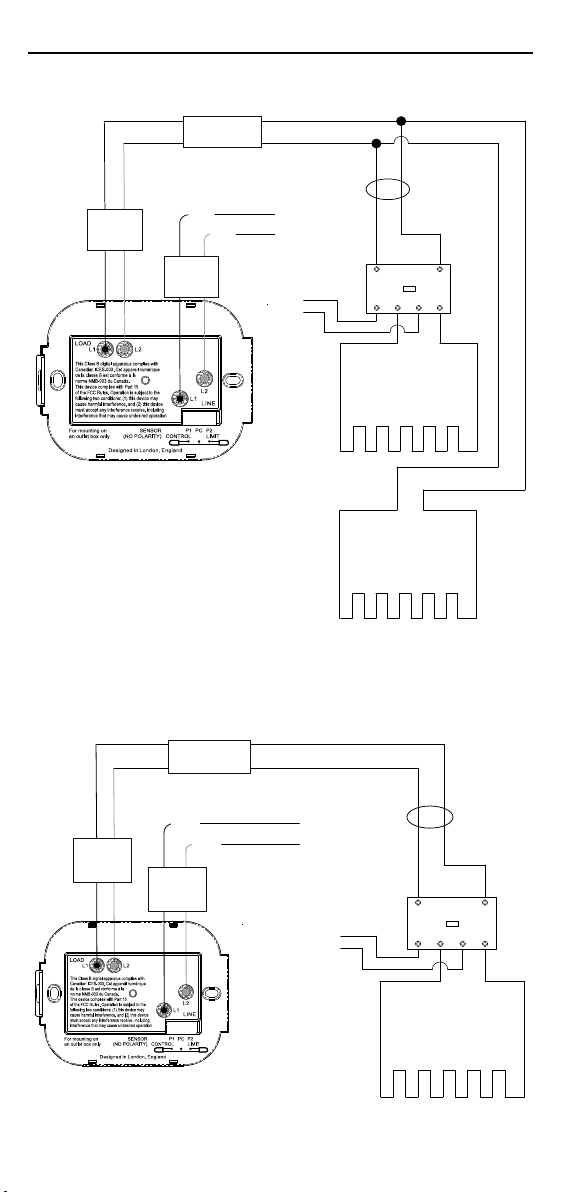

Wiring Diagrams
Heating Load connected to 6iE and Relay 25 - Max. 40 Amps
240V SUPPLY WITHOUT GFCI
PROTECTION
L2-LINE
Hot (240V)
Hot (240V)
L1-LINE
240V GFCI
PROTECTED SUPPLY
Hot (240V)
Hot (240V)
L1-LOAD-L2
HEATING
(MAX 3600W/
15 Amps)
L1-LINE-L2
POWER
SUPPLY
0 1
8642
Heater(s)
Max 25A
Heater(s)
Max 15A
240V
COIL SUPPLY
N.B. Heating loads connect to Relay-25
N.B. and 6iE:
Relay-25 Max load 25A
6iE Max load 15A
Total Max load 40A
Snubber
(contact suppressor)
Heating Load connected to Relay 25 - Max. 25 Amps
240V SUPPLY WITHOUT GFCI
PROTECTION
L2-LINE
Hot (240V)
Hot (240V)
L1-LINE
240V GFCI
PROTECTED
SUPPLY
240V
COIL SUPPLY
N.B. All heating loads connect to Relay-25
only, controlled by 6iE
L1-LINE-L2
POWER
SUPPLY
Hot (240V)
Hot (240V)
0 1
8642
Heater(s)
Max 25A
L1-LOAD-L2
HEATING
(MAX 3600W/
15 Amps)
Snubber
(contact suppressor)

7
Step 3 - Thermostat Mounting
Step 5 - Add Location and Room
Open the My Heating App and scan
the QR Code on the 6iE screen.
Follow the instructions in the App
to complete setup.
Re-attach the display to the power
base. You can now restore power
to the circuit and power up the 6iE.
Follow the on screen instructions
to set up the system. Once set up a
QR Code will appear.
Download the MyHeating App.
Language
English
‘MyHeating’
by Warmup
Network Setup
Open the MyHeating App
on your phone and scan
this code to proceed
Dismiss
The MyHeating App will guide you through the setup of your 6iE. You will
have to set up your house location and then the room within which your new
6iE is located.
Location
Alocationneedstobesetupbeforearoomcanbecongured
and the 6iE device registered. Creating a location is user friendly
and easy to follow, it is advised to have details of your current
energytariandpricingtohand,asthesewillberequiredifyou
wish to use the energy monitoring features.
Room Setup
With a location now setup, the next step is to register a room
in which your 6iE is located. This is the heating zone your
thermostat will control. Ensure you set the correct System Type
and Wattage of heaters connected.
NOTE: If an external relay or contactor relay has been installed please set
System Type as Electric + Relay.
1
12
Step 4 - Initial Setup
Insertxingscrewsthrough
mounting holes of the power base
and tighten.
2

8
Welcome to the 6iE
Getting Started
Thu 11 Mar 17:00
74.0° until 11:30
65.0° limit
Floor
+
70.0
72.0°
Thu 11 Mar 17:00
74.0° until 11:30
65.0° limit
Floor
+
70.0
72.0°
Thu 11 Mar 17:00
74.0° until 11:30
65.0° limit
Floor
+
70.0
72.0° Back
Menu
Mode
Program
Energy Monitor
Settings
Mode
Program
Manual
Heating Off
With Frost Protection
Vacation
Back
Heating Indicator
Displays when heating is active
Error Messages
See Troubleshooting Page

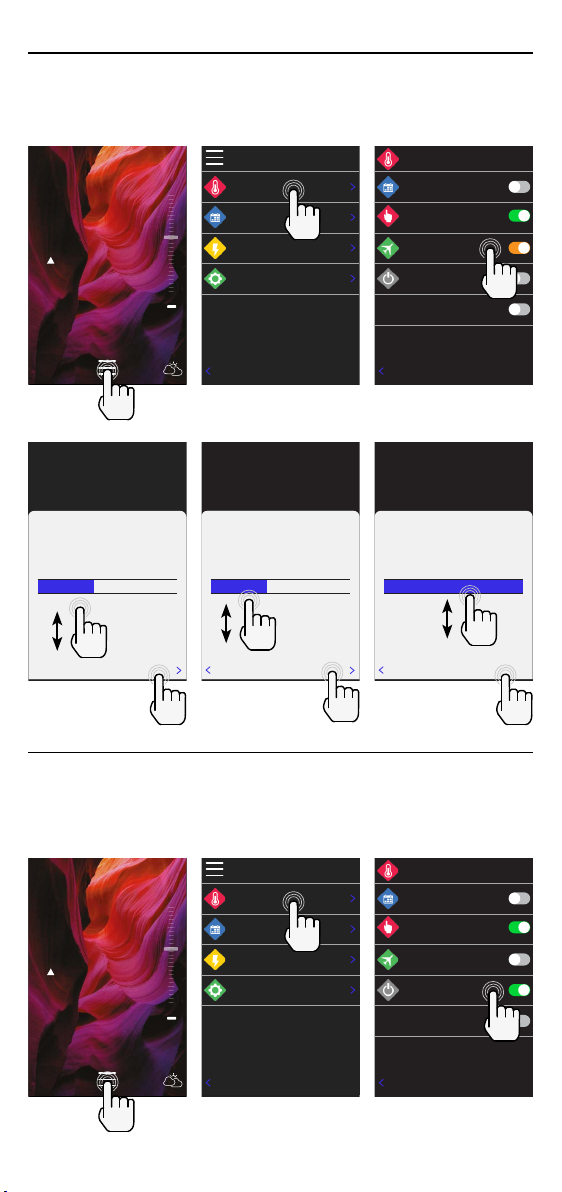

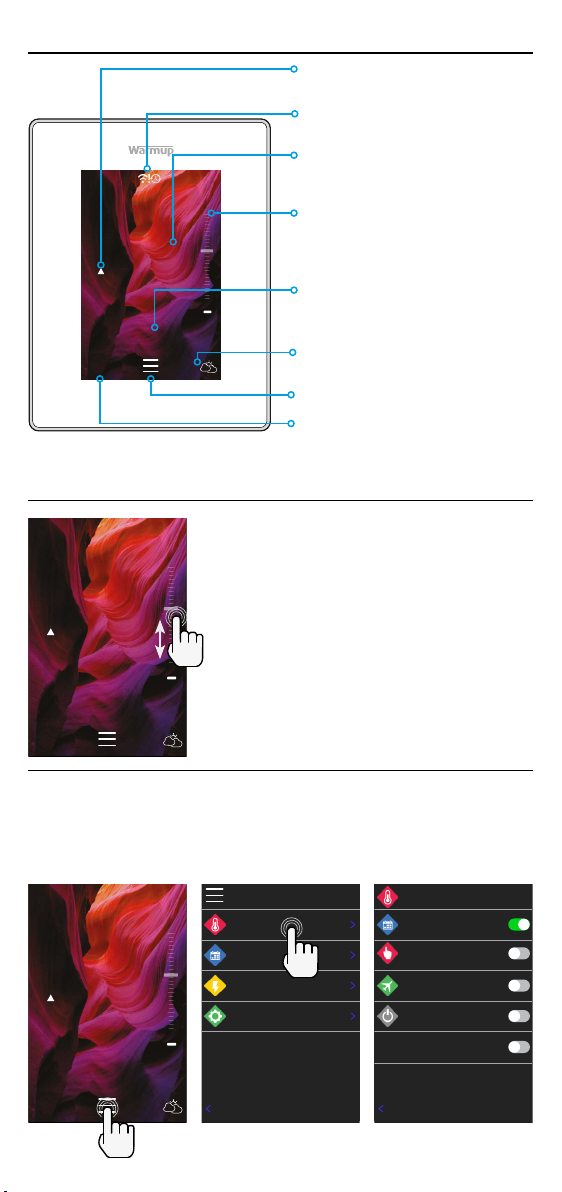

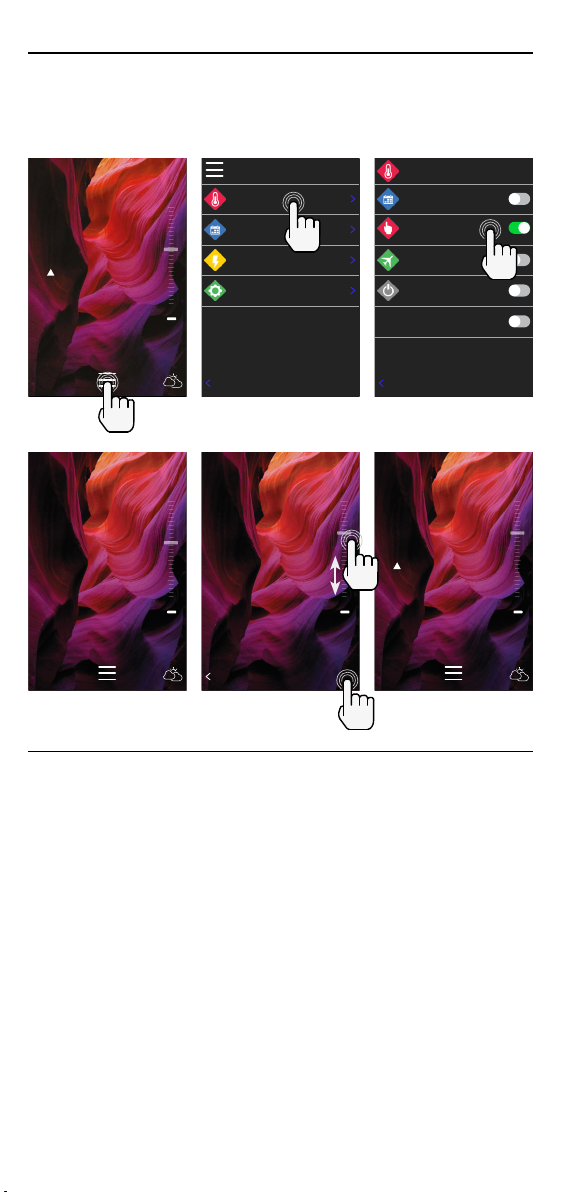

How to quickly change the temperature
How to quickly change mode
Current Floor/Air temperature
Floorwillbedisplayedifoor
sensor is installed and switched on
Temporary Override
Use the slider or press the +/- icons
to set a temporary override until
next heating period
Target Temperature
Temperature you wish the
thermostat to achieve
Weather
7-day forecast for your area
Menu
Air/Floor limit
Willonlybedisplayedwheninoor
mode and an air limit is set.
Use the slider or press the +/- icons to change
your target temperature.
If in “Program” mode this will set a temporary
override until your next heating period.
If in “Manual”modethiswillsetaxedtarget
temperature.
Once the target temperature is set above
current oor/airtemperaturetheheating
indicator will appear.
Mode select allows you to quickly change from program, manual or
vacation modes. You can also switch “Frost Protection” on or simply switch
the “Heating O”fromhere.Frostprotectionwillensurethattheoor/air
temperature does not drop below 44.0°F.

9
Heating

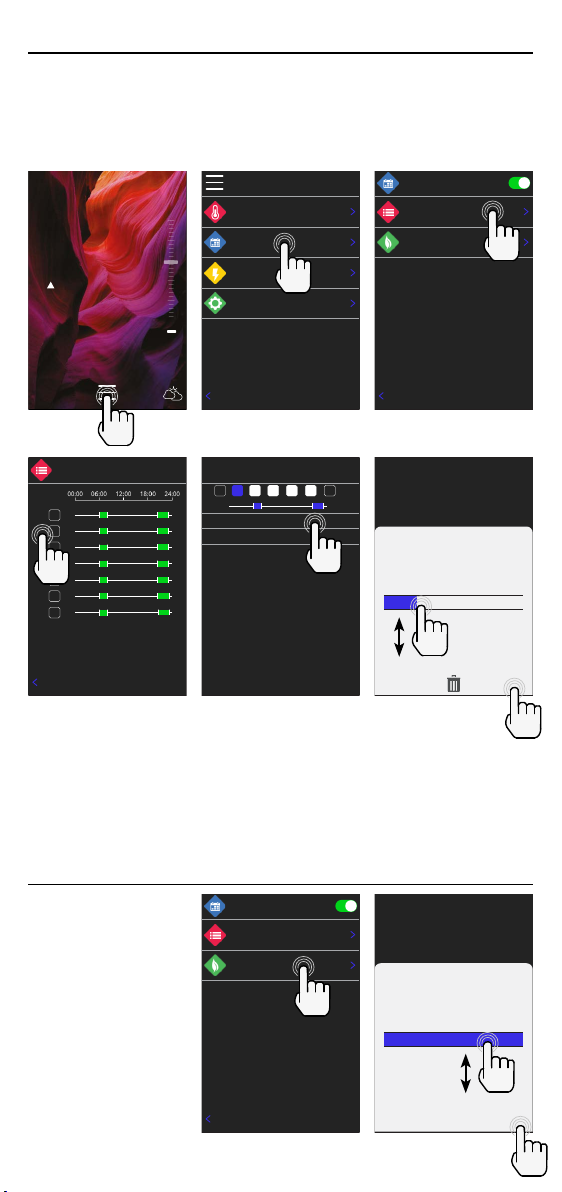

How to set a program
Thu 11 Mar 17:00
74.0° until 11:30
65.0° limit
Floor
+
70.0
72.0°
Weekly schedule ...
Back
S
M
T
W
T
F
S
Setting a “Program” allows you to set comfort temperatures at set times
throughout the day. Days can programmed individually, all days the same or
weekdays as a block and weekends as a block. The choice is yours.
To “Select additional days” press the days of the week and the squares
will be highlighted in white as shown and will follow the programmed
heating schedule.
Once you are happy press “Accept”tosavetheheatingschedule.Thiswill
return you to the previous screen to repeat as necessary.
NOTE:Fortailor-madepresetheatingschedulesfordierentroomtypes
press the three dots “...”ontheweeklyschedulepage.
Back
Menu
Mode
Program
Energy Monitor
Settings
Select additional days
06:00 - 08:00 70.0°
68.0°
Add Period
Dismiss Accept
20:00 - 23:00
SMTWTFS
Program
Weekly Schedule
Setback 61.0°
Back
Program
Weekly Schedule
Setback 61.0°
Back Dismiss Accept
Temperature
61.0°
Dismiss Accept
Edit Period
Start
06:00 08:00 70.0°
05:45 07:45 69.0°
06:15 08:15 71.0°
End Target
Setback Temperature
The “Setback”
temperature is a
lowerenergyecient
temperature when
outside of a heating
period.

10
Heating
How to set into Manual Mode
Setting into “Manual”modeallowsyoutosetaxedtargettemperaturefor
the thermostat to achieve. The thermostat will continue to maintain this
temperature until another operating mode or temperature is selected.
Thu 11 Mar 17:00
74.0° until 11:30
65.0° limit
Floor
+
70.0
72.0° Back
Menu
Mode
Program
Energy Monitor
Settings
Mode
Program
Manual
Heating Off
With Frost Protection
Vacation
Back
Thu 11 Mar 17:00
65.0° Fixed
Floor
+
70.0
72.0°
Thu 11 Mar 17:00
76.0° Fixed
Floor
+
70.0
72.0°
Thu 11 Mar 17:00
+
76.0
Back Accept
