Wascomat H7-55 User manual

User manual
Washer extractor
H7–55
Type W.55.H
Original instructions
438921593/EN
2019.06.13

Contents
Contents
1 Safety Precautions ..............................................................................................................................5
1.1 General safety information..........................................................................................................6
1.2 Commercial use only..................................................................................................................6
1.3 Symbols....................................................................................................................................6
2 Program description ............................................................................................................................7
2.1 General.....................................................................................................................................7
2.2 Program description...................................................................................................................7
3 Handling.............................................................................................................................................9
3.1 Load .........................................................................................................................................9
3.2 Detergent..................................................................................................................................9
3.3 How to start the machine ............................................................................................................9
3.3.1 General, OPL................................................................................................................10
3.3.2 Coin operated machines .................................................................................................10
3.4 Additional functions.................................................................................................................. 11
3.5 When program has ended ........................................................................................................12
4 Timer................................................................................................................................................13
5 Error codes.......................................................................................................................................14
6 Maintenance .....................................................................................................................................14
6.1 General...................................................................................................................................14
6.2 Time for maintenance...............................................................................................................14
6.3 Every day................................................................................................................................15
6.4 Detergent container .................................................................................................................15
6.4.1 Deliming ........................................................................................................................16
6.5 Drain.......................................................................................................................................16
6.6 Water inlet...............................................................................................................................18
6.7 Maintenance to be carried out by qualified service personnel ......................................................18
7 Disposal information..........................................................................................................................18
7.1 Disposal of appliance at end of life ............................................................................................18
7.2 Disposal of packing..................................................................................................................19
The manufacturer reserves the right to make changes to design and component specifications.

User manual 5
1 Safety Precautions
• Only use detergent intended for water-wash of textiles. Never use dry
cleaning agents.
• The machine shall be connected with new water hoses. Re-used
water hoses must not be used.
• The machine's door lock must under no circumstances be bypassed.
• If the machine develops a fault, this must be reported to the person in
charge as soon as possible. This is important both for your safety and
that of others.
• DO NOT MODIFY THIS APPLIANCE.
• Servicing shall be carried out only by authorized personnel.
• Only authorized spare parts, accessories and consumables shall be
used.
• When performing service or replacing parts, the power must be
disconnected.
• When the power is disconnected, the operator must see that the ma-
chine is disconnected (that the plug is removed and remains removed)
from any point to which he has access. If this is not possible, due to
the construction or installation of the machine, a disconnection with a
locking system in the isolated position shall be provided.
• In accordance with the wiring rules: mount a multi-pole switch prior to
the machine to facilitate installation and service operations.
• The openings in the base, shall not be obstructed by a carpet.
• Maximum mass of dry cloth: 6 kg.
• A-weighted emission sound pressure level at working stations:
– Wash: <70 dB(A).
– Extraction: <70 dB(A).
• Additional requirements for the following countries; AT, BE, BG, HR,
CY, CZ, DK, EE, FI, FR, DE, GR, HU, IS, IE, IT, LV, LT, LU, MT, NL,
NO, PL, PT, RO, SK, SI, ES, SE, CH, TR, UK:
– The appliance can be used in public areas.
– This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental capa-
bilities or lack of experience and knowledge if they have been given

6User manual
supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
• Additional requirements for other countries:
– This appliance is not intended for use by persons (including chil-
dren) with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been given super-
vision or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to en-
sure that they do not play with the appliance.
1.1 General safety information
The machine is only intended for water-wash use.
Do not hose down the machine with water.
In order to prevent damage to the electronics (and other parts) that may occur as the result of condensation, the ma-
chine should be placed in room temperature for 24 hours before being used for the first time.
1.2 Commercial use only
The machine/machines covered by this manual is/are made for commercial and industrial use only.
1.3 Symbols
Caution
Caution, high voltage
Read the instructions before using the machine

User manual 7
2 Program description
2.1 General
The machine is equipped with a number of programs adapted to the range of use to which the machine is intended
— different segments use different programs. The following program description is a short description of some exam-
ples of programs that can be used.
For a complete and detailed information about all the available wash programs, please refer to Wascomat web-site.
It is recommended to follow the care labelling of the garment as far as possible.
2.2 Program description
The following table shows some examples of available programs and a short description of those:
Program Description
NORMAL
1
Cotton and terry.
Different temperatures can be selected. 30°C - 95°C.
For an optimal result, full load is recommended.
Normal spin.
MILD
1
Synthetic (example of synthetic fabrics: polyester, polyamide, polyacrylic and elastan), viscose, poly-
cotton and delicate fabrics.
Different temperatures can be selected. 40°C - 60°C.
For an optimal result, half load is recommended.
Short spin.
DELICATE
1
Synthetic (example of synthetic fabrics: polyester, polyamide, polyacrylic and elastan), viscose, poly-
cotton and delicate fabrics.
30°C.
For an optimal result, only a few items is recommended.
Short spin.
HANDWASH Very delicate fabrics.
For an optimal result, only a few items is recommended.
WOOL Wool fabrics.
40°C.
For an optimal result, only a few items is recommended.
RINSE Used for rinse and extraction.
DRUM RINSE
1
Used for rinse the drum and all compartments.
Used with empty drum.
The following table shows some examples of different groups of programs that are hidden in the machine and used
for special markets such as hospitals, farms etc. and a short description of those:
Group of program Description
General Programs for normal household textiles and textiles in hotels and restaurants.
Facility Programs for mops.
Special mop program for microfibres.
Care Hygiene programs to meet the demands and recommendations of standards in different countries.
Farm Programs for udder towels.
Wet cleaning Programs for professional cleaning.
Programs for wool, silk and down for example.

8User manual
The following table shows some examples of available programs used on coin operated machines and a short de-
scription of those:
Program Description
COLD
1
Cotton and terry.
40°C.
For an optimal result, full load is recommended.
WARM
1
Cotton and terry.
60°C.
For an optimal result, full load is recommended.
HOT
1
Cotton and terry.
95°C.
For an optimal result, full load is recommended.
MILD
1
Synthetic (example of synthetic fabrics: polyester, polyamide, polyacrylic and elastan), viscose, poly-
cotton and delicate fabrics.
40°C.
For an optimal result, half load is recommended.
DELICATE
1
Delicate fabrics.
30°C.
For an optimal result, only a few items is recommended.

User manual 9
3 Handling
3.1 Load
Load the goods into the machine according to recommendations and close the door.
The maximum load is 6 kg.
3.2 Detergent
Add the correct amount of detergent and softener according to recommendations.
(Not valid if automatic detergent dosing is used).
fig.X00963
Softener, liquid.
Main wash for liquid detergent.
Alt. for mop machines, liquid mop chemicals in last rinse.
Pre-wash, powder or liquid detergent.
Programs with pre-wash, for example Normal heavy soil, Cotton 71°C, Synthetic 65°C and Disinfection programs.
Main wash for powder detergent.
3.3 How to start the machine
This manual cover different types of machine models. Check the panel on your machine and follow the description
for your type of machine.

10 User manual
3.3.1 General, OPL
Select program by turning the control knob.
Example of programs
NORMAL
1
Different temperatures can be selected.
30°C - 95°C.
MILD
1
Different temperatures can be selected.
40°C - 60°C.
Start the machine by pressing the control knob.
The machine will start by weighing the load with an extraction. The program will then adapt to the load to give an opti-
mal result. (Only on certain programs / machines).
3.3.2 Coin operated machines
Select program by turning the control knob.
Insert correct amount of coins to start the machine. (On some machines you also need to press the control knob to
start the machine).

User manual 11
3.4 Additional functions
There is a menu with additional functions available for selection after start. When pressing the control knob / start but-
ton (on machines without control knob) the menu will appear on the display.
Select from the menu by turning the control knob / pressing the temperature button/-s and press the control knob /
start button to activate.
Note!
Some of the functions may not be available or active on your machine.
Stop function
If the machine is programmed with this function, it is possible to stop the machine during program run by pressing the
control knob.
When pressing the control knob again the program will continue.
Pause
It is possible to pause an ongoing program.
Select PAUSE and activate.
When pressing the control knob / start button again the program will continue.
The door can be opened after a short while if the water level is not too high. Close the door and press the control
knob / start button to continue.
Changing a program after start
It is possible to change a program after start.
Select CHANGE PROGRAM and activate.
When pressing the control knob / start button the program menu will be displayed. Select a new program and start by
pressing the control knob / start button.
Rapid advance
Select RAPID ADVANCE and activate.
When pressing the control knob / start button a list with all program steps will be displayed. Select desired program
step from the list by turning the control knob / pressing the temperature button/-s and press the control knob / start
button to activate.
End a program
It is possible to end a program after start.
Select END PROGRAM and activate.
When pressing the control knob / start button the program will be ended. When the water is drained the door will be
unlocked.
Delayed start
If the machine has this function, it is possible to delay the start of a program.
After program selection, press the control knob / start button. A menu will appear on the display. Turn the control
knob / press the temperature button/-s to activate the function. Set the day and time for the delayed start with the
control knob / pressing the temperature button/-s.
Press the control knob / start button to confirm the settings.
Status
Select STATUS MENU and activate.
The status menu shows the status for water temperature, water level and drum speed for the machine.
Statistics
Select STATISTICS and activate.
The statistics menu shows total run hours and trip run hours for the machine.

12 User manual
Auto restarts
Select AUTO RESTARTS and activate.
Set the number of automatic restarts that the machine will perform of the selected program.
Press the control knob / start button to confirm the settings.
3.5 When program has ended
Leave the door open when ready and do not close the detergent container all the way in (it shall be a bit open). This
is to prevent that moisture stays in the machine and develop bacteria and mould.

User manual 13
4 Timer
The timer is used to start a part of the program (for example the last rinse of the udder cloth program) after pause on
a pre-set time. The time can be set for all days or for selected days.
To program the timer you need to activate the machines service mode.
The service mode is activated by a long press on the control knob.
SERVICE MENU
FUNCTION TEST
CONFIGURATION
PRICE PROGRAMMING
STATISTICS
PROGRAM PARAMETERS
SYSTEM
The following menus are activated by a short press on the control knob.
Activate the PROGRAM PARAMETERS menu.
SERVICE MENU
FUNCTION TEST
CONFIGURATION
PRICE PROGRAMMING
STATISTICS
PROGRAM PARAMETERS
SYSTEM
Activate the SET START AFTER PAUSE menu.
Activate the ADD NEW OCCASION menu.
The display will now show the following submenus:
•BACK
•TIME
•ENABLED
•ALL DAYS
•MONDAY
•TUESDAY
•WEDNESDAY
•THURSDAY
•FRIDAY
•SATURDAY
•SUNDAY
•REMOVE OCCASION
Activate the TIME menu to program the time. Set the time by turning the control knob and save when ready.
Select from the list and activate the day/days one by one by pressing the control knob. A filled square indicates that
the day is activated.
Press BACK to exit and save the changes by selecting YES.
Example:
The program is started the day before and will pause before the last rinse.
If the time is set to 04.00 and ALL DAYS is activated, this means that the last rinse on the program will be started at
04.00 all days of the week.
When saved, the programmed time — occasion, will be listed in the SET START AFTER PAUSE menu as a new row.
It is possible to program several times — occasions on the same day.
Up to 10 occasions can be saved in the list.
Press ENABLED to activate or deactivate the selected occasion.
Press REMOVE OCCASION to delete the selected occasion.

14 User manual
5 Error codes
A fault in the program or in the machine is indicated by an error code on the display.
Some of these error codes can be solved easily without contacting service personnel.
Error
code
Text Cause/Action
11:1 NO WATER Water level acknowledgement not reached in time.
Check that the water taps are open.
11:2 DOOR OPEN Door position acknowledgement not received during program.
Open and close the door.
11:3 DOOR LOCK FAIL Door position acknowledgement not received in time.
Open and close the door.
11:10 DRUM NOT DRAINED Water level above established level after drain.
Check that the drain is not blocked. Try to restart the machine.
For other error codes or repeated error codes, disconnect the power for 30 seconds. If the error code keeps coming
back, contact authorized service personnel.
6 Maintenance
6.1 General
It is the responsibility of the owner of the machine/the laundry manager to make sure that maintenance is periodically
performed.
Note!
Lack of maintenance may deteriorate the performance of the machine and may cause damage to
components.
6.2 Time for maintenance
When the display is showing the message TIME FOR MAINTENANCE — contact the owner of the machine/the laundry
manager to perform maintenance (if available, a telephone number and/or a tag will also be displayed).
The machine can be used meanwhile. However, the message will keep coming back until the service is performed.
The message will disappear after about 30 seconds or if the control knob or any button is pressed.

User manual 15
6.3 Every day
Check that the door is locked during a program. Make sure the door cannot be opened until after the program is
complete.
If the door can be opened before program end, the machine must be placed out of order until repairs are made.
Check that the door does not leak.
Clean the door, door glass and door gasket.
Clean the exterial parts.
fig.6993A
6.4 Detergent container
Clean the detergent container at regular basis to avaid that it is being clogged by detergent residue.
Remove the detergent container from the machine. Remove the siphons (A) and clean the detergent container and
siphons with hot water and for example a small brush. Also clean the plastic parts in the space where the detergent
container was placed in the machine.
A
fig.7212A

16 User manual
6.4.1 Deliming
When deliming is needed:
Use the special machine cleaning program. If it is not available, contact authorized service personnel to get access
to the program.
It is also possible to use a program with high temperature, 95°C, for deliming. Add a deliming agent, for example citric
acid.
6.5 Drain
If the machine is equipped with a drain pump, check the drain pump at regular basis. Clean if necessary.
Open the door to the drain pump and pull out the hose. Remove the plug (A) to empty the drain into for example a
baking plate or similar.
A
fig.7388
Pull the clamp upwards and pull out the filter parts. Clean the filter parts and the pump housing with for example a
small brush.
fig.7389

User manual 17
When remounting, place the cut on the filter part downwards when inserting it. Make sure the connections are tight.
!
!
At regular basis, check the drain connection, joints in the drain pipe etc and remove any lint and dust. Clean with for
example a small brush. When remounting, make sure the connections are tight.

18 User manual

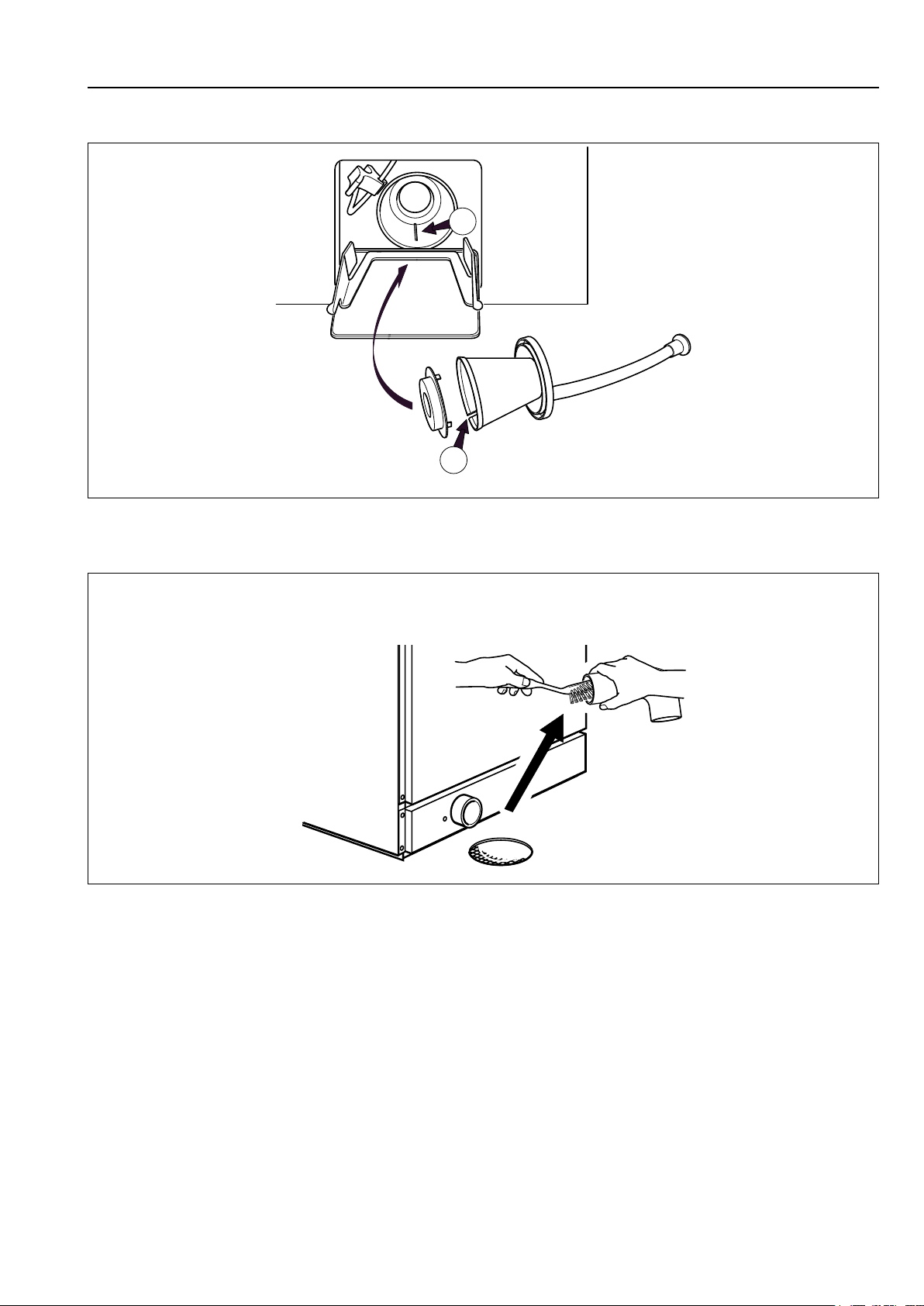

6.6 Water inlet
At regular basis, check the filter at the water inlet. Clean if necessary.
Demount the hose to the water inlet and pull out the filter (A).
When remounting, make sure the filter is in position and that the connections are tight.
A
6.7 Maintenance to be carried out by qualified service personnel
Contact qualified service personnel to perform the following maintenance:
Once a year:
• Inspect the interior of the machine during an actual wash cycle to ensure that no leaks are noticed.
7 Disposal information
7.1 Disposal of appliance at end of life
Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of
the structure that can give or break during scrapping.
The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g. met-
als, oils, greases, plastic, rubber, etc.).
Different regulations are in force in the various countries, therefore comply with the provisions of the laws and com-
petent bodies in the country where scrapping takes place.
In general, the appliance must be taken to a specialised collection/scrapping centre.
Dismantle the appliance, grouping the components according to their chemical characteristics, remembering that the
compressor contains lubricant oil and refrigerant fluid which can be recycled, and that the refrigerator and heat pump
components are special waste assimilable with urban waste.
The symbol on the product indicates that this product should not be treated as domestic waste, but must be correctly disposed
of in order to prevent any negative consequences for the environment and human health. For further information on the recy-
cling of this product, contact the local dealer or agent, the Customer Care service or the local body responsible for waste
disposal.
Note!
When scrapping the machine, any marking, this manual and other documents concerning the appliance
must be destroyed.

User manual 19
7.2 Disposal of packing
The packing must be disposed of in compliance with the current regulations in the country where the appliance is
used. All the packing materials are environmentally friendly.
They can be safely kept, recycled or burned in an appropriate waste incineration plant. Recyclable plastic parts are
marked as following examples.
PE
Polyethylene:
• Outer wrapping
• Instructions bag
PP
Polypropylene:
• Straps
PS
Polystyrene foam:
• Corner protectors

Electrolux Professional AB
341 80 Ljungby, Sweden
Share more of our thinking at www.wascomat.com
