Fimap MAXIMA 2017 PLUS User manual

ORIGINAL INSTRUCTIONS DOC. 10076893 - Ver. AA - 01-2018
PROFESSIONAL SCRUBBING MACHINES
USE AND MAINTENANCE MANUAL
MAXIMA
2017 PLUS


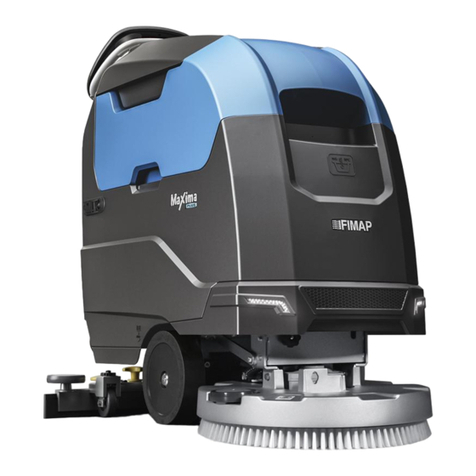

MAIN MACHINE COMPONENTS
The main machine components are the following:
1. Control handlebars.
2. Dead man's lever.
3. Reverse control button.
4. Power function control button.
5. Control display.
6. Cover for FFM “FIMAP FLEET MANAGEMENT” SOS button (Optional).
7. FFM “FIMAP FLEET MANAGEMENT” SOS button (Optional).
8. Main key switch.
9. Emergency button.
10. Spray gun control switch (optional).
11. Vacuum wand control switch (optional).
12. Support hook for recovery tank drainage tube.
13. Recovery tank drainage tube.
14. Support hook for spray gun.
15. Solution tank level indicator.
16. Built-in battery charger.
17. Solution tank drainage cap.
18. Squeegee body.
19. Squeegee body support.
20. Squeegee vacuum tube.
21. Water ow adjustment tap.
22. Vacuum accessory support.
23. Brush support.
24. Squeegee body support.
25. Headlights.
26. Brush head body.
27. Solution tank.
28. Solution tank ller cap/measuring inlet.
29. Solution tank ller tube cap.
30. Cover cap for FFF “FIMAP FAST FILL” quick coupling kit (optional).
31. Recovery tank.
32. Recovery tank lifting handle.
33. Machine serial number plate.
34. Recovery tank cover lifting handle.
35. Control handle for accessory compartment door.
36. Accessory compartment door.
37. Detergent solution lter.
38. Electric brake control lever.
3
1 4
5 7
6
2
10
5
11
23
15
24
19
17
20
18
21
23
34
31
35
32
36
27
12
14
9
13
25
29
23
30
38
22
28

CONTENTS
MAIN MACHINE COMPONENTS...............................................3
CONTENTS.................................................................................4
GENERAL SAFETY REGULATIONS.........................................5
RECHARGING THE BATTERIES .........................................................5
USING THE MACHINE .........................................................................6
DEACTIVATION OF THE MACHINE.....................................................8
MAINTENANCE ....................................................................................8
TRANSPORT ........................................................................................9
SYMBOLS USED IN THE MANUAL ........................................10
PURPOSE AND CONTENT OF THE MANUAL .......................10
TARGET GROUP......................................................................10
STORING THE USE AND MAINTENANCE MANUAL.............10
ON CONSIGNMENT OF THE MACHINE .................................10
INTRODUCTORY COMMENT ..................................................10
IDENTIFICATION DATA............................................................10
TECHNICAL DESCRIPTION ....................................................10
INTENDED USE........................................................................10
SAFETY ....................................................................................10
CONVENTIONS ........................................................................10
SERIAL NUMBER PLATE ........................................................10
TECHNICAL DATA ................................................................... 11
SYMBOLS USED ON THE MACHINE .....................................12
LABELS USED ON THE MACHINE.........................................12
SYMBOLS ON THE CONTROL DISPLAY ...............................12
MACHINE PREPARATION .......................................................13
HANDLING THE PACKAGED MACHINE ...........................................13
HOW TO UNPACK THE MACHINE ....................................................13
HOW TO MOVE THE MACHINE ........................................................13
MACHINE SAFETY MEASURES........................................................14
TYPE OF BATTERY TO BE USED .....................................................14
BATTERY MAINTENANCE AND DISPOSAL......................................14
INSERTING THE BATTERIES IN THE MACHINE..............................14
CONNECTING THE BATTERIES TO THE MACHINE SYSTEM........14
RECHARGING THE BATTERIES .......................................................14
ASSEMBLING THE BRUSH (50BT VERSIONS)................................15
ASSEMBLING THE BRUSH (60BT VERSIONS)................................15
ABRASIVE PAD (50BTO VERSIONS) ................................................15
ASSEMBLING THE BRUSH (50BT VERSIONS)................................15
ASSEMBLING THE SQUEEGEE BODY.............................................15
FILLING THE SOLUTION TANK WITH WATER .................................15
DETERGENT SOLUTION (VERSIONS WITHOUT FSS) ...................16
FILLING THE DETERGENT CANISTER (VERSIONS WITH FSS) ....16
PREPARING TO WORK ...........................................................16
STARTING WORK ....................................................................17
TRANSFER .........................................................................................17
SCRUBBING WITHOUT DRYING ......................................................18
DRYING...............................................................................................18
SCRUBBING WITH DRYING ..............................................................19
DS SELECTOR (DRIVE SELECT)......................................................19
HILLYARD ECO MODE.......................................................................19
MANUAL MODE..................................................................................20
PROGRAM ZONE MODE ..................................................................20
REVERSE GEAR ................................................................................20
EXTRA BRUSH HEAD PRESSURE ...................................................20
FIMAP SOLUTION SAVER SYSTEM (FSS).......................................20
FIMAP LONG RANGE (FLR) SYSTEM...............................................21
VACUUM WAND KIT...........................................................................21
SMART DRYING SYSTEM .................................................................21
HOUR METER ....................................................................................21
BATTERY CHARGE LEVEL INDICATOR .......................................... 21
EMERGENCY SWITCH ......................................................................22
TUTORIAL...........................................................................................22
SOLUTION TANK OVERFLOW ..........................................................22
ALARM SCREEN ................................................................................22
AT THE END OF THE WORK.................................................. 22
RECOMMENDED MAINTENANCE OPERATIONS .................23
EMPTYING THE RECOVERY TANK ..................................................23
CLEANING THE DEBRIS HOPPER (50BTS VERSION)....................23
CLEANING THE SQUEEGEE BODY .................................................23
CLEANING THE BRUSH HEAD BRUSH (50BT VERSIONS) ............24
CLEANING THE BRUSH HEAD BRUSH (60BT VERSIONS) ............25
CLEANING THE BRUSH HEAD BRUSH (50BT VERSIONS) ............25
CLEANING THE RECOVERY TANK FILTERS ...................................26
CLEANING THE RECOVERY TANK...................................................27
EMPTYING THE SOLUTION TANK....................................................27
CLEANING THE WATER SYSTEM FILTER .......................................27
CLEANING THE VACUUM TUBE.......................................................27
CLEANING THE SOLUTION TANK ...................................................28
EXTRAORDINARY MAINTENANCE OPERATIONS ...............28
REPLACING THE BRUSH HEAD BRUSH (50BT VERSIONS)..........28
CLEANING THE BRUSH HEAD BRUSH (60BT VERSIONS) ............28
CLEANING THE BRUSH HEAD BRUSH (50BT VERSIONS) ............28
REPLACING THE ABRASIVE PAD (50BTO VERSIONS) ..................29
REPLACING THE SQUEEGEE BODY RUBBER BLADES................29
ADJUSTMENT INTERVENTIONS............................................29
ADJUSTING THE SQUEEGEE BODY RUBBER BLADES ...............29
DISPOSAL ................................................................................29
CHOOSING AND USING THE BRUSHES ...............................30
EC DECLARATION OF CONFORMITY ...................................30
TROUBLESHOOTING..............................................................31
BROWSING COMMAND DISPLAY MENU ..............................33
CHANGING THE LANGUAGE OF THE GRAPHICS INTERFACE.....33
CHANGING THE TYPE OF HOUR METER DISPLAYED ..................33
RESETTING THE PARTIAL HOUR METER.......................................33
ACTIVATION OR DEACTIVATION OF THE WORK ZONES ..............33
ACTIVATION OR DEACTIVATION OF THE MANUAL FUNCTION ....34
CHANGING THE PROGRAM ZONE PARAMETERS.........................34
MONITOR FUNCTION........................................................................35
VIEWING THE LIST OF ALARMS ......................................................35
4

The following symbols are used to indicate any potentially hazardous situations. Always read this information carefully
and take the necessary precautions to protect any people and/or objects that may be present.
Operator cooperation is paramount for accident prevention. No accident prevention programme can be eective
without the full cooperation of the person directly responsible for operating the machine. The majority of occupational
accidents that happen either in the workplace or whilst moving are caused by failure to respect the most basic safety
rules. An attentive, careful operator is most eective guarantee against accidents and is fundamental in order to
implement any prevention programme.
DANGER: Indicates an imminent danger that could cause serious injury or death.
WARNING: Indicates a probable dangerous situation that could cause serious injury or death.
CAUTION: Indicates a probable dangerous situation that could cause minor injuries.
ATTENTION: Indicates a probable dangerous situation that could damage objects.
DANGER:
• If the battery charger power cable is damaged or broken, it should be replaced by the
manufacturer or authorised service personnel, or another qualied person, in order to protect
against hazards.
• The socket for the battery charger cable must have a prescribed earth connection.
• Keep sparks, ames, and incandescent materials at a safe distance from the batteries.
Explosive gases are emitted during normal use.
• Highly explosive hydrogen gas is generated while charging the batteries. Keep the recovery
tank unit in the maintenance position during the entire battery recharging cycle, and only
perform the procedure in well-ventilated areas at a safe distance from any open ames.
• Before charging, make sure the electric cable that connects the battery charger to the batteries
is not damaged. If it is, don't use it; contact technical assistance.
• Before starting to charge the batteries, check there is no stagnant water or humidity in the on-
board battery charger socket.
• Before charging, make sure the electric cable that connects the battery charger to the mains
is not damaged. If it is, don't use it; contact technical assistance.
• Do not disconnect the DC cable of the battery charger from the machine socket while the
battery charger is operating. This is necessary in order to avoid electric arcs forming. To
disconnect the battery charger when it is charging, rst disconnect the AC power cable.
WARNING:
• Do not use an incompatible battery charger as it could damage the batteries and potentially
cause a re.
• The batteries emit hydrogen gas. This gas can cause explosions or res. Keep a safe distance
from ames or sparks. Keep the covers open when charging the batteries.
• Before using the battery charger, make sure the frequency and voltage values indicated on
the machine data plate coincide with the network values.
GENERAL SAFETY REGULATIONS
RECHARGING THE BATTERIES
5

• Keep the battery charger cable at a safe distance from any hot surfaces.
• Never smoke in the vicinity of the machine while the batteries are charging.
• Before starting the charging operation, carefully read the user manual of the battery charger
that you want to use.
DANGER:
• In the event of danger, take prompt action by pressing the emergency button on the back of
the machine (near the control handlebars).
• Never collect gases, explosive/inammable liquids or powders, nor acids and solvents!
These include gasoline, paint thinners and fuel oil (which, when mixed with the vacuum air,
can form explosive vapours or mixtures), and also non-diluted acids and solvents, acetones,
aluminium and magnesium powders. These substances may also corrode the materials
used to construct the machine.
• If the machine is used in dangerous areas (e.g. petrol stations), the relative safety standards
must be observed. It is forbidden to use the machine in environments with a potentially
explosive atmosphere.
WARNING:
• Always use the machine in compliance with its intended use, taking into consideration local
conditions and looking out for the presence of others when working, especially children.
• The machine should only be used by people trained in its use and who have shown that
they know how to use the machine and have been expressly authorised to do so.
• This machine should not be used by persons (including children) with physical, sensorial
or mental impairments and by persons with little experience and/or little knowledge of the
machine itself.
• The machine must only be used by authorised, trained personnel.
• Do not use the machine on surfaces with a slope greater than the one indicated on the serial
number plate.
• The machine is not suitable for cleaning rough or uneven oors. Do not use the machine
on slopes.
• In the event of a re, use a powder extinguisher. Do not use water.
• Adapt the speed to the adhesion conditions.
• Do not use the machine if you do not have the requisite knowledge or authorisation.
• Do not use the machine if you have not read and understood the following user manual.
• Do not use the machine under the inuence of alcohol or drugs.
• Do not use the machine while using a mobile phone or other electronic devices.
• Do not use the machine if it is not working correctly.
• Do not use the machine in areas where there are inammable vapours or liquids or
combustible powders.
• Do not use the machine in areas where it is too dark to see the controls or operate the
machine safely, unless the work lights or the front headlights are on.
• To prevent the unauthorised use of the machine, the power supply must be disconnected:
switch the machine o using the main switch (by removing the key from the block) and
disconnect the battery connector from the electrical system connector.
USING THE MACHINE
6

CAUTION:
• Children must be supervised to ensure they do not play with the machine.
• During machine operation, pay attention to other people and especially to children.
• The machine must only be powered with a voltage equal to that shown on the serial
number plate.
• Read the labels on the machine carefully. Do not cover them for any reason, and replace
them immediately if they become damaged.
• The machine must only be used and stored in an enclosed or covered environment.
• The machine must not be used or stored outdoors in damp conditions or directly exposed to
rain.
• The machine does not cause harmful vibrations.
• Use the machine only in the way described in this manual.
• Do not pick up anything that is burning or smouldering, like cigarettes, matches or glowing
embers.
• Reduce speed on slopes and dangerous corners.
• Reduce speed before making a turn.
• Always follow the instructions for mixing, use and disposal on the containers of the chemical
substances.
ATTENTION:
• Always take appropriate measures to protect any individuals and/or objects that may be
present while using this machine.
• Be careful to avoid collisions with shelving or scaolding, above all if there is a risk of
objects falling from heights.
• Do not place any liquid containers on the machine.
• The machine must only be used under temperature conditions ranging from 0 °C to +40 °C.
• When using detergents to clean the ooring, always follow the instructions and respect the
warnings indicated on the container labels.
• Always use appropriate gloves and protective equipment when handling the detergents
used to clean the oor.
• Avoid working with the brushes when the machine is standing still, so as not to damage
the oor.
• In the event of a re, use a powder re extinguisher if possible, and avoid the use of water.
• Do not allow any objects to penetrate into the machine openings. Do not use the machine if
the openings are obstructed.
• Keep the machine openings free of dust, lint, hairs, or any other foreign materials that could
reduce the airow.
• Do not remove or alter any labels xed to the machine.
• Only use the brushes and pad holders that have been supplied with the machine, or those
specied in the Use and Maintenance Manual. The use of other brushes or felt pads may
compromise the machine safety conditions.
• Before starting to work, check there are no leaks.
• Before starting to work, check that all the safety devices have been installed and are
working correctly.
7

WARNING:
• Always protect the machine against sunlight, rain, and other atmospheric agents, both while
it is stationary and while it is functioning. Store the machine in a dry, sheltered place: this
machine is only designed for use under dry conditions, and must not be used or stored
outdoors in humid conditions.
• Do not park the machine near combustible materials, powders, gases or liquids.
• Stop the machine on a at surface.
• Make sure the electric brake is engaged, then switch o the machine via the main switch
(removing the key from the block) and disconnect the battery connector from the electrical
system connector.
• If the machine is left unattended, it must be protected from any accidental movements
ATTENTION:
• The machine must only be stored under temperature conditions ranging from 0 °C to +40 °C.
The humidity level must be between 30% and 95%.
DEACTIVATION OF THE MACHINE
DANGER:
• To avoid short-circuits when working in the vicinity of electrical components: avoid the use of
non-insulated tools; do not place or allow metallic objects to fall upon the electrically powered
components; remove rings, watches and/or clothing with metallic parts that might come into
contact with the electrically powered components.
• Do not work underneath the raised machine without adequate xed safety supports.
WARNING:
• Read all the relevant instructions carefully before performing any maintenance/repair
operations.
• If the machine does not work properly, check this is not caused by failure to carry out routine
maintenance. Otherwise, ask for the intervention of the authorised technical assistance centre.
• Restore all electrical connections after any maintenance interventions.
CAUTION:
• When doing maintenance work, switch o the machine using the main switch. Remove the
key from the block and disconnect the battery connector from the electrical system connector.
• Avoid contact with moving parts. Do not wear loose clothing or jewellery, and tie long hair
back.
• Block the wheels before lifting the machine.
• Lift the machine with equipment that can sustain the weight to be lifted.
ATTENTION:
• Never tamper with the machine protection devices for any reason. Always follow the supplied
routine maintenance instructions scrupulously.
MAINTENANCE
8

• If the machine needs to be pushed for maintenance purposes (batteries absent; discharged
batteries; etc.), never exceed 4 km/h.
• If there are any machine operation anomalies, check they are not due to a lack of proper
maintenance. Otherwise, request the intervention of authorised personnel or an authorised
service centre.
• If any parts need to be replaced, always request ORIGINAL spare parts from an authorised
dealer or retailer.
• To ensure machine safety and its proper functioning, always have the scheduled maintenance
interventions (specied in the appropriate section of this manual) performed by authorised
personnel or by an authorised service centre.
• Do not clean the machine with direct or pressurised jets of water, or with corrosive substances.
• If lead batteries (WET) have been installed on the machine, avoid tilting it beyond 30° in
relation to the horizontal plane, as this could cause the highly corrosive liquid to leak out of
the batteries.
• Avoid contact with the battery acid.
• Keep all metal objects away from the batteries.
• Use a non-conductive device to remove the battery.
• Use a hoist and suitable equipment when lifting the batteries.
• The battery must be installed by qualied personnel.
• Always observe the safety measures of the site regarding battery removal.
• If the machine needs to be tilted for maintenance procedures, remove the batteries.
• Have the machine checked by an authorised technical assistance centre every year.
• When disposing of consumable materials, observe the laws and regulations in force. Once
the machine has reached the end of its service life, the materials contained within it must be
disposed of in an appropriate manner, keeping in mind that the machine itself has been built
using fully recyclable materials.
• Only push or tow the machine when the seat is occupied by an operator able to control the
machine.
• Do not wash the machine with pressurised water, or wet it in the vicinity of electrical components.
• All repairs must be carried out by qualied personnel.
• Do not physically change the design characteristics of the machine.
• Use spare parts provided by authorised service centres.
• Wear personal protective equipment as required and as suggested in the manual.
WARNING:
• Drain both tanks before transport.
• Bring both the squeegee and the brushes to a working position before securing the machine
to the transport vehicle.
• Use a ramp, truck or trailer that can support the weight of the machine and the operator.
• The ramp gradient must not be such as to cause damage to the machine as it moves up onto
the vehicle.
• Make sure the electric brake is correctly engaged after loading the machine onto the transport
vehicle.
TRANSPORT
9

Warning symbol:
Carefully read the sections preceded by this symbol meticulously following the
instructions indicated for the safety of the operator and the device.
Covered place symbol:
The operations preceded by this symbol must always be carried out in a dry, covered area.
Danger symbol (moving carriages):
Indicates that the packed product should be handled with suitable carriages that
conform to legal requirements.
Disposal symbol:
Carefully read the sections marked with this symbol for disposing of the appliance.
Recycling symbol:
Tells the operator to carry out the operations in compliance with environmental
regulations in force in the place where the appliance is being used.
Symbol of the open book with i:
Indicates the need to consult the instruction manual.
The descriptions contained in this document are not binding. The company therefore reserves the
right to make any modications at any time to elements, details, or accessory supply, as considered
necessary for reasons of improvement or manufacturing/commercial requirements. The reproduction,
even partial, of the text and drawings contained in this document is prohibited by law.
The company reserves the right to make any technical and/or supply modications. The images
are shown as reference only and are not binding as to the actual design and/or equipment.
Symbol of the open book:
Tells the operator to read the user manual before using the device.
Symbol indicating the compulsory use of protective gloves:
Indicates that the operator should always wear protective gloves, to avoid the risk of
serious injury to his hands from sharp objects.
Mandatory room ventilation symbol:
Informs the operator that the room must be ventilated while the batteries are being
recharged.
Symbol indicating a treading ban:
Informs the operator that it is forbidden to tread on machine components, as this could
lead to serious injury.
Danger symbol (corrosive substances):
The operator should always wear protective gloves to avoid the risk of serious injury to
the hands caused by corrosive substances.
Danger symbol (battery acid leakage):
Indicates the danger of leaking acid or acid fumes from the batteries while they are
being recharged.
SYMBOLS USED IN THE MANUAL
Information symbol:
Indicates additional information for the operator, to improve the use of the device.
PURPOSE AND CONTENT OF THE MANUAL
TARGET GROUP
STORING THE USE AND MAINTENANCE MANUAL
ON CONSIGNMENT OF THE MACHINE
The aim of this manual is to provide customers with all the information needed to use the machine
in the safest, most appropriate and most autonomous way. This includes information concerning
technical aspects, safety, operation, downtime, maintenance, spare parts and scrapping. The operators
and qualied technicians must carefully read the instructions in this manual before carrying out any
operations on the machine. If in doubt about the correct interpretation of instructions, contact your
nearest Customer Service Centre to obtain the necessary clarications.
This manual is written both for operators and for qualied machine maintenance technicians. Operators
must not perform operations that should be carried out by qualied technicians. The manufacturer is not
liable for damages resulting from failure to comply with this veto.
The Use and Maintenance Manual must be stored in its special pouch close to the machine, protected
from liquids and anything else that could compromise its legibility.
When the machine is consigned to the customer, an immediate check must be performed to ensure all
the material mentioned in the shipping documents has been received, and also to check the machine
has not suered damage during transportation. If this is the case, the carrier must ascertain the extent
of the damage at once, informing our customer service oce. It is only by prompt action of this type that
the missing material can be obtained, and compensation for damage successfully claimed.
IDENTIFICATION DATA
For technical assistance or to request replacement parts, always give the model, the version and the
serial number (written on the relevant plate).
TECHNICAL DESCRIPTION
INTENDED USE
SAFETY
The TRIDENT T20SC PRO is a oor scrubbing machine that can work on various types of oor and dirt
thanks to the mechanical action of a brush and the chemical action of a water-detergent solution. As
it advances, it collects the dirt removed, along with the detergent solution not absorbed by the ooring
itself. The machine must only be used for this purpose.
This scrubbing machine was designed and built for the cleaning (scrubbing and drying) of smooth,
compact ooring in the commercial, residential and industrial sectors by a qualied operator in proven
safety conditions. The scrubbing machine is not suitable for cleaning rugs or carpet oors. It is only
suitable for use in closed (or at least covered) places.
ATTENTION: the machine is not suitable for use in the rain, or under water jets.
IT IS FORBIDDEN to use the machine for picking up dangerous dusts or inammable liquids in
places with an explosive atmosphere. In addition, it is not suitable as a means of transport for
people or objects.
Operator cooperation is paramount for accident prevention. No accident prevention programme can
be eective without the full cooperation of the person directly responsible for machine operation. The
majority of occupational accidents that happen either in the workplace or whilst moving are caused by
failure to respect the most basic safety rules. An attentive, careful operator is most eective guarantee
against accidents and is fundamental in order to implement any prevention programme.
INTRODUCTORY COMMENT
Any oor scrubbing machine can only work properly and eectively if used correctly and kept in full
working order by performing the maintenance operations described in the attached documentation. We
therefore suggest you read this instruction booklet carefully and read it again whenever diculties arise
while using the machine. If necessary, remember that our assistance service (organised in collaboration
with our dealers) is always available for advice or direct intervention.
SERIAL NUMBER PLATE
CONVENTIONS
The serial number plate (78) is located above the electric system panel, inside the machine. It shows
the general machine characteristics, in particular the serial number. The serial number is a very
important piece of information and should always be provided together with any request for assistance
or to purchase spare parts.
All references to forwards and backwards, front and rear, right and left indicated in this manual should
be understood as referring to the operator in the driving position, with his/her hands on the control
handlebars (1).
10
Design by FIMAP Verona(Italy)
Assembled in FIMAP Verona(Italy)
Via Invalidi del Lavoro, 1 S. Maria di Zevio - Verona- Italy

TECHNICAL DATA
Remarks:
(1) Machine weight: refers to the overall machine weight without the batteries, and with both tanks empty.
(2) Machine weight during transport: refers to the overall machine weight with the batteries, but with both tanks empty.
(3) Machine weight during work operations: refers to the overall machine weight with the batteries, with the solution tank full and the detergent canister full (valid for FSS versions), but with the recovery tank
empty.
11
TECHNICAL DATA
Unit of measurement
symbol
MAXIMA 2017
PLUS 50BT
MAXIMA 2017
PLUS 60BT
MAXIMA 2017
PLUS 50BTO
MAXIMA 2017
PLUS 50BTS
Rated machine power W 1075 1575 1255 1275
Working capacity up to sq.m. 1785 2118 1778 1771
Working width mm 510 605 508 506
Squeegee width mm 712 782 712 800
Brush head brush diameter (number - diameter) mm 1 - 510 2 - 300 - -
Dimensions of abrasive pad (width x depth) mm - - 508 x 355 -
Dimensions of cylindrical brush (diameter - length) mm - - - 150 - 506
Number of brush head brush rotations rpm 140 - 600
Number of pad oscillations rpm - - 2400 -
Brush head motor (voltage / nominal power) V / W 24 - 500 24 - 500 24 - 680 24-350
Maximum weight exerted on the brush head kg 36
Maximum possible gradient for uphill and downhill movement
(weight(2))% 10
Maximum slope during ascent and descent with the transport
program (weight(2))% 10
Maximum ambient temperature for machine operation °C +40
Minimum ambient temperature for using the machine's scrubbing
functions °C 0
Traction motor (voltage / rated power) V / W 24 - 150
Maximum forward speed in transport mode Km/h 3.5
Vacuum motor (voltage - nominal power rating) V / W 24 - 422
Vacuum on vacuum head mbar 120,62
Maximum solution tank capacity l 60
Maximum recovery tank capacity l 65
Machine dimensions (length - width - height) mm 1295 - 712 - 1095 1220 - 712 - 1095 1265 - 785 - 1095
Battery compartment dimensions (width - useful height - length) mm 485 - 253 - 351
Recommended battery V / AhC512 - 112
Maximum individual battery weight (recommended) kg 39
Machine weight(1) kg 112
Machine weight during transport(2) kg 190
Machine weight during work operations(3) kg 245
Sound pressure level (ISO 11201) - LpA dB (A) <70 <70 <70 <70
Uncertainty KpA dB (A) 1,5 1,5 1,5 1,5
Hand vibration level (ISO 5349) m/s2<2,5 <2,5 <2,5 <2,5
Vibration measurement uncertainty - - - -

SYMBOLS USED ON THE MACHINE
LABELS USED ON THE MACHINE
SYMBOLS ON THE CONTROL DISPLAY
Symbol of maximum temperature for lling the solution tank:
Located on the front of the solution tank, to indicate the maximum temperature
of the water for lling the solution tank safely.
Filter body position symbol:
Located on the right-hand side of the machine to indicate the position of the
detergent solution lter.
Label for detergent solution tap control:
Located on the right-hand side of the machine, to identify the control knob of
the detergent solution tap.
Label indicating the need to read the Use and Maintenance Manual:
Attached to the machine in order to warn the operator to read the user and
maintenance manual (this document) before using the machine for the rst time.
Battery recharge warning label:
Located inside the machine (above the electric system carter), to warn the
operator when it's necessary to recharge the batteries.
Daily care warning label:
Applied to the machine to remind the operator of the necessary procedures to
properly care for the machine itself.
Machine use warning label:
Located on the rear of the machine, to warn the operator which substances
cannot be removed with the machine.
Solution tank lter daily care warning label:
Applied to the machine to remind the operator to clean the solution tank after
each use.
Moving brush hazard label:
Used on the machine to warn the operator not to place his/her hands near the
moving brush.
Label warning about the risk of crushed hands:
Indicates danger to hands due to crushing between two surfaces.
Position symbol for the solution tank drainage cap:
Applied to the back of the machine to identify the solution tank drainage cap.
Position symbol for the recovery tank drainage tube:
Applied to the back of the machine to identify the recovery tank drainage tube.
Battery connection symbol:
Located on the front of the solution tank, to indicate how to connect the 12V
batteries in order to obtain a total voltage of 24V.
Main switch symbol:
Located near the control panel, to indicate the main key switch.
1. FFM symbol, if visible it shows that the “FIMAP FLEET MANAGEMENT” system is active.
2. FSS symbol, if visible it shows that the “FIMAP SOLUTION SAVER” system is active.
3. Hour meter.
4. Battery charge level percentage.
5. General alarm symbol.
6. Solution tank oat symbol. If visible, it shows that the recovery tank is empty and that to continue
you need to ll it.
7. Detergent solution level symbol.
8. Vacuum motor performance level symbol.
9. ECO-MODE “FIMAP ECO MODE” program button.
10. Drive Select selector.
11. Brush uncoupling button (single-brush version).
12. Menu screen activation button.
13. Text indicator.
14. Zone program selector button.
15. Brush head extra pressure level symbol.
16. Forward speed level symbol.
12
MANUAL
0000.00 100%
1 2 3 4 5
1416 1315
6
79 810
12 11

MACHINE PREPARATION
HANDLING THE PACKAGED MACHINE
The machine is contained in specic packaging, and since the
packaging elements (plastic bags, staples, etc.) are a potential source
of danger, they should not be left within the reach of children, disabled
persons, etc.
The overall machine weight including packaging is 000 lb.
The overall dimensions of the package are: A=30 in B=57.5 in C=50 in.
ATTENTION: it is recommended that all the packaging
components be kept for any future transportation of the
appliance.
ATTENTION: move the packaged product with handling
equipment that complies with legal requirements regarding size
and mass of the packaging.
HOW TO UNPACK THE MACHINE
The machine is shipped in specic packaging. To remove it, proceed as follows:
1. Place the lower part of the outer packaging in contact with the oor.
NB: use the pictograms printed on the box as a reference.
2. Remove the outer package.
WARNING: the machine is contained in specic packaging materials, whose elements (plastic
bags, staples, etc.) can pose potential hazards, and must not be left within reach of children,
disabled persons, etc.
3. Remove the boxes containing the disc brushes and squeegee body from the machine.
CAUTION: these operations must be carried out using protective gloves to avoid any possible
contact with the edges or tips of metal objects.
4. Insert a ramp in the rear part of the machine.
ATTENTION: the ramp gradient must not be such as to cause damage to the machine as it
comes down.
5. The machine is xed to the pallet with wedges (1) that block the wheels (Fig. 1). Remove these
wedges.
6. Check the main switch on the control panel is set to “0”. If this is not the case, turn the key (2) to
the left (Fig. 2). Remove the key from the main switch.
7. Grip the handle (3) and raise the recovery tank to the maintenance position (Fig. 3).
8. Connect the backup battery carriage connector to the main machine system connector (Fig. 4).
9. Grip the handle (3) and lower the recovery tank to its working position (Fig. 5).
10. Insert the key (1) in the main switch on the control panel. Set the main switch to “I” by making a
quarter turn of the key to the right (Fig. 6).
11. A few seconds after ignition, the password screen is displayed (Fig. 7).
12. Enter the password and press the Enter key (4) (Fig. 7).
NB: if you make a mistake, press Delete (5) (Fig. 7).
NB: it is possible to disable the password entry. Contact your nearest assistance centre.
NB: the password entered by the manufacturer is 0000.
13. By default, the machine is set to the transfer program (6) (Fig. 8).
NB: in transfer mode, both the brush head and the squeegee support are in the idle position
(raised from the pallet).
NB: on the DS selector, the symbol of the transport program (6) is green (Fig. 8).
NB: the grey symbols show working programs that are not active. the green symbols show
working programs that are active.
14. Press the “REVERSE ACTIVATION - DEACTIVATION” button (7) (Fig. 9) to engage the reverse
gear.
15. When you push the dead man's lever (8) (Fig. 10), the machine will begin to move.
16. Drive the machine down the ramp.
ATTENTION: during this operation, check there are no people or objects near the machine.
17. Set the main switch to “0”, turning the key (1) to the left (Fig. 2). Remove the key from the main
switch.
18. Grip the handle (2) and raise the recovery tank to the maintenance position (Fig. 3).
19. Disconnect the backup battery carriage connector from the main machine system connector
(Fig. 4).
20. Grip the handle (4) and lower the recovery tank to its working position (Fig. 5).
HOW TO MOVE THE MACHINE
To transport the machine safely, proceed as follows:
DANGER: before starting any task, make sure the current regulations concerning the safe
transport of dangerous substances are scrupulously observed.
1. Check the solution tank and recovery tank are empty. If they aren't, empty them (see
“EMPTYING THE SOLUTION TANK” and “EMPTYING THE RECOVERY TANK”).
2. Insert the key (1) in the main switch on the control panel. Set the main switch to “I” by turning the
key (1) to the right (Fig. 1).
3. Using the DS selector on the control display (Fig. 2), select the “transfer” program (2).
NB: with this working program, both the brush head and the squeegee support are in the idle
position (raised from the oor).
NB: on the DS selector, the symbol of the transport program (2) is green (Fig. 2).
NB: the grey symbols show working programs that are not active. the green symbols show
working programs that are active.
4. When you push the dead man's lever (3) (Fig. 3), the machine will begin to move.
5. Use a ramp to move the machine up onto the transport vehicle.
CAUTION: during this operation, check there are no people or objects near the machine.
NB: the ramp gradient must not be such as to cause damage to the machine as it goes up.
6. Once the machine is on the means of transport, set the main switch to “0” by turning the key (1)
to the left (Fig. 4). Remove the key from the main switch.
7. Get o the machine.
8. Grip the handle (4) and raise the recovery tank to the maintenance position (Fig. 5).
9. Disconnect the battery connector from the main machine system connector (Fig. 6).
10. Grip the handle (4) and lower the recovery tank to its working position (Fig. 7).
WARNING: secure the device according to the directives in force in the country of use, so that it
cannot slide or tip over.
13
2
4
1
5
5
Enter
Inserire codice
DRIVE
0000.00 100%
DRIVE
0000.00 100%
1
4
4
7
8
2
3
5
6
10
3
9
1
2
1
1
2
3
4
4
6
2
57
8
3

MACHINE SAFETY MEASURES
To ensure that work is carried out in the best safety conditions, proceed as follows:
1. Make sure the solution tank is empty. If it isn't, empty it (see “EMPTYING THE SOLUTION
TANK”).
2. Make sure the recovery tank is empty. If it isn't, empty it (see “EMPTYING THE RECOVERY
TANK”).
3. Using the DS selector on the control display (Fig. 1), select the “transfer” program” (1).
NB: with this working program, both the brush head and the squeegee support are in the idle
position (raised from the oor).
NB: on the DS selector, the symbol of the transport program (1) is green (Fig. 1).
NB: the grey symbols show working programs that are not active. the green symbols show
working programs that are active.
4. Set the main switch to “0” position by turning the key (2) to the left (Fig. 2). Remove the key from
the instrument panel.
5. Grip the handle (3) and raise the recovery tank to the maintenance position (Fig. 3).
6. Disconnect the battery connector from the main machine system connector (Fig. 4).
7. Grip the handle (3) and rotate the recovery tank to its working position (Fig. 5).
TYPE OF BATTERY TO BE USED
Power to the machine must be supplied by two sealed traction batteries with gas recombination or gel
technology. The batteries must meet the requirements laid out in the norms: CEI EN 60254-1:2005-12
(CEI 21-5) + CEI EN 60254-2:2008-06 (CEI 21-7). For the best work results, we suggest the use of
two 12V MFP 112 Ah/C5batteries.
BATTERY MAINTENANCE AND DISPOSAL
For battery maintenance and recharging, respect the instructions provided by the battery
manufacturer. When the batteries reach the end of their service life, they must be disconnected by
specialised and properly trained personnel, and must be subsequently removed from the battery
compartment using suitable lifting devices.
NB: dead batteries are classied as dangerous waste and as such must be delivered to an
authorised body for disposal.
INSERTING THE BATTERIES IN THE MACHINE
The batteries must be housed in the relative compartment beneath the recovery tank. They should be
handled using lifting equipment that is suitable in terms of both the weight and the coupling system.
DANGER: make sure you comply with the accident prevention regulations in force in the
country where you work or with DIN EN 50272-3 and DIN EN 50110-1, before any handling of
the batteries.
CAUTION: to prevent an accidental short circuit use insulated tools to connect the batteries,
and do not place or drop metal objects on the battery. Remove rings, watches and any clothing
with metal parts that may come into contact with the battery terminals.
The various phases for inserting the batteries in the battery compartment are as follows:
1. Make sure the machine is in a safe condition (see “MACHINE SAFETY MEASURES”).
2. Grip the handle (1) and raise the recovery tank to the maintenance position (Fig. 1).
3. House the batteries in the compartment, positioning the poles “+” and “-” opposite each other
(Fig. 2).
NB: for battery maintenance and daily recharging, you must fully respect the indications
provided by the manufacturer or retailer.
WARNING: all installation and maintenance operations must be carried out by specialised
personnel.
NB: before installing the battery, clean the battery compartment. Check that the connectors on
the cables supplied are functioning correctly.
WARNING: check that the characteristics of the battery that you are looking to use are
appropriate for the type of work to be performed. Check the battery charge and the condition of
the contacts on the battery.
NB: you are advised to only lift and move the batteries with lifting and transportation means
suitable for the specic weight and size
WARNING: the lifting hooks must not damage the blocks, connectors or cables.
WARNING: before inserting the batteries, remember to cover the terminals with a little grease
to protect them against external corrosion.
CONNECTING THE BATTERIES TO THE MACHINE SYSTEM
The batteries should be connected so as to obtain a
total voltage of 24V.
ATTENTION: it is recommended that all
installation and maintenance operations be
carried out by expert personnel, trained at the
specialised assistance centre.
CAUTION: to prevent an accidental short circuit
use insulated tools to connect the batteries, and
do not place or drop metal objects on the battery.
Remove rings, watches and any clothing with
metal parts that may come into contact with the
battery terminals.
The various phases for inserting the batteries in the battery compartment are as follows:
1. Using the supplied jumper cable (1), connect the batteries to the “+” and “-” poles in sequence.
2. Connect the battery connector cable (2) to the “+” and “-” poles to obtain a voltage of 24V at the
terminals.
3. Connect the electric system connector (3) to the battery connector (2).
RECHARGING THE BATTERIES
The batteries must be charged prior to rst use, and whenever they no longer provide sucient
power.
ATTENTION: to avoid any permanent damage to the batteries, it is essential to avoid their
complete discharge; begin recharging them within a few minutes of noting the “discharged
batteries” signal.
ATTENTION: never leave the batteries completely discharged, even if the device is not being
used.
1. Bring the appliance to the area where the batteries are charged.
2. Make sure the machine is in a safe condition (see “MACHINE SAFETY MEASURES”).
ATTENTION: park the machine in an enclosed place, on a at and level surface; near the
machine there must be no objects that could either damage it, or be damaged through contact
with it.
ATTENTION: the room used to recharge the batteries must be adequately ventilated to prevent
the accumulation of gases that leak from batteries.
3. Grip the handle (1) on the right-hand side of the recovery tank (Fig. 1) and turn the tank as far as
it will go, until it reaches the maintenance position.
ATTENTION: the following operations must be carried out by qualied personnel. An incorrect
connection of the connector may cause a malfunction of the device.
NB: carefully read the use and maintenance instructions of the battery charger used.
4. Go to the back of the machine and remove the cap (2) from the battery charger socket (Fig. 2).
5. Connect the battery charger power cable connector (3) to the battery charger socket (4) (Fig. 3).
CAUTION: before connecting the batteries to the battery charger, make sure it is suitable for
the batteries used.
WARNING: before inserting the connector (3) in the socket (4), make sure there is no
condensation or any other type of liquid.
NB: the battery charger power cable is delivered inside the bag containing this instruction
booklet.
6. Plug the battery charger cable into the mains socket.
CAUTION: keep the recovery tank open for the duration of the battery recharging cycle, to
allow gas fumes to escape.
NB: before connecting the battery charger to the mains socket, make sure the characteristics
of the mains supply correspond to those required by the battery charger. Read the battery
charger use and maintenance manual (included in the bag that contains this instruction
booklet).
7. When the recharge cycle is complete, disconnect the battery charger cable from the mains.
8. Disconnect the battery charger power cable from the socket on the battery charger itself.
9. Replace the cap (2) on the battery charger plug.
10. Grip the handle (1) on the right-hand side of the recovery tank and turn the tank as far as it will
go, until it reaches the maintenance position.
14
Back
0000.00 100%
12
2
1
3
3
54
2
1
2
2
3
1
2 31
1
2 4
3

ASSEMBLING THE BRUSH (50BT VERSIONS)
ASSEMBLING THE BRUSH (60BT VERSIONS)
ASSEMBLING THE BRUSH (50BT VERSIONS)
ABRASIVE PAD (50BTO VERSIONS)
For packaging reasons, the brushes are supplied disassembled from the machine. To assemble them
on the brush head body, proceed as follows:
1. Make sure the machine is in a safe condition (see “MACHINE SAFETY MEASURES”).
CAUTION: these operations must be carried out using protective gloves to avoid any possible
contact with the edges or tips of metal objects.
2. Go to the front of the appliance.
3. With the brush head up, insert the brush in the plate housing underneath the brush head, turning
it until the three buttons engage with the notches on the plate itself (Fig. 1).
4. Turn until the pin is pushed towards the coupling spring and is locked into place.
5. Grip the handle (1) on the right-hand side of the recovery tank and turn the tank as far as it will
go, until it reaches the maintenance position.
6. Connect the electrical system connector (2) to the battery connector (3) (Fig. 2).
ATTENTION: this process must be carried out by qualied personnel.
7. Grip the handle (1) on the right-hand side of the recovery tank and turn the tank as far as it will
go, until it reaches the work position.
For packaging reasons, the brushes are supplied disassembled from the machine. To assemble them
on the brush head body, proceed as follows:
1. Make sure the machine is in a safe condition (see “MACHINE SAFETY MEASURES”).
CAUTION: these operations must be carried out using protective gloves to avoid any possible
contact with the edges or tips of metal objects.
2. Go to the front of the appliance.
3. With the brush head in the raised position, press the brush-holder plate retainer (1) and
simultaneously rotate the brush in the direction shown in the image (Fig. 1).
ATTENTION: Fig. 1 shows the rotation direction of the left-hand brush, rotate in the opposite
direction for the right-hand brush.
4. When brush rotation is prevented, turn until the button on the brush is engaged in the coupling
spring on the brush-holder plate.
5. Repeat the operations completed for the right-hand front brush as well.
6. Grip the handle (2) on the right-hand side of the recovery tank (Fig. 2) and turn the tank as far as
it will go, until it reaches the maintenance position.
7. Connect the electrical system connector (3) to the battery connector (4) (Fig. 3).
ATTENTION: this process must be carried out by qualied personnel.
8. Grip the handle (2) on the right-hand side of the recovery tank and turn the tank as far as it will
go, until it reaches the work position.
For packaging reasons, the brushes are supplied disassembled from the machine. To assemble them
on the brush head body, proceed as follows:
1. Make sure the machine is in a safe condition (see “MACHINE SAFETY MEASURES”).
CAUTION: these operations must be carried out using protective gloves to avoid any possible
contact with the edges or tips of metal objects.
2. Go to the front of the appliance.
3. With the brush head raised from the oor, turn the knobs (1) that hold the left lateral carter (2) in
place anti-clockwise (Fig. 1).
4. Remove the left lateral carter (2) (Fig. 2).
5. Insert the brush into the tunnel (Fig. 3), taking care to make sure that the gearmotor's drive shaft
enters the slit in the brush itself.
For packaging reasons, the abrasive pad comes disassembled from the machine. To assemble it on
the brush head body, proceed as follows:
1. Make sure the machine is in a safe condition (see “MACHINE SAFETY MEASURES”).
CAUTION: these operations must be carried out using protective gloves to avoid any possible
contact with the edges or tips of metal objects.
2. Go to the front of the appliance.
3. With the brush head in the raised position, slide the abrasive pad into the housing under the
brush head, pressing it until it is rmly attached to it (Fig. 1).
4. Grip the handle (1) on the right-hand side of the recovery tank (Fig. 2) and turn the tank as far as
it will go, until it reaches the maintenance position.
5. Connect the electrical system connector (2) to the battery connector (3) (Fig. 3).
ATTENTION: this process must be carried out by qualied personnel.
6. Grip the handle (1) on the right-hand side of the recovery tank and turn the tank as far as it will
go, until it reaches the work position.
6. Repeat the previously described operations for the right-hand side as well.
N.B.: In order to be installed correctly, the brushes must form an X when viewed from above in
the forward direction of movement (Fig. 4).
7. Grip the handle (3) on the right-hand side of the recovery tank (Fig. 5) and turn the tank as far as
it will go, until it reaches the maintenance position.
8. Connect the electrical system connector (4) to the battery connector (5) (Fig. 6).
ATTENTION: this process must be carried out by qualied personnel.
9. Grip the handle (3) on the right-hand side of the recovery tank and turn the tank as far as it will
go, until it reaches the work position.
ASSEMBLING THE SQUEEGEE BODY
For packaging reasons, the squeegee body comes disassembled from the machine. To assemble it
on the squeegee support, proceed as follows:
1. Make sure the machine has been secured (see the section titled “SECURING THE MACHINE”).
CAUTION: these operations must be carried out using protective gloves to avoid any possible
contact with the edges or tips of metal objects.
2. Unscrew the knobs (1) in the squeegee body pre-assembly (Fig. 1).
3. First of all, insert the left-hand pin (2) on the squeegee body in the left slit (3) in the squeegee
support (Fig. 2), so that the bushing adheres to the walls of the slit.
4. Repeat the same operation for the right-hand pin.
5. Insert the vacuum tube (4) in the sleeve (5) in the squeegee body (Fig. 3).
NB: the squeegee has already been adjusted, but refer to “ADJUSTING THE SQUEEGEE
BODY RUBBER BLADES” if you need any information.
FILLING THE SOLUTION TANK WITH WATER
Before lling the solution tank, carry out the following steps:
1. Take the machine to the usual place for lling the solution tank.
2. Make sure the machine is in a safe condition (see “MACHINE SAFETY MEASURES”).
3. Check the solution tank drainage cap (1) (on the rear right-hand side of the machine) is tight. If it
isn't, turn it clockwise (Fig. 1).
4. Check the water lter cap (2) (on the rear right-hand side of the machine) is tight. If it isn't, turn it
clockwise (Fig. 2).
15
1 2
2
1
1
3
3
2
2
3
3
1
1
1 2
1 3
2 4
36
5
21
1 2
2
1
3
2
3
1
1 2 3
1
2
5
3
6
4
5
4

The solution tank can be lled with water in three dierent ways:
• Removing the cap/measuring device (3) (Fig. 3) and lling the solution tank by means of a rubber
tube or a bucket (Fig. 4).
• Using the ller tube (4) (Fig. 5), which supports the water tube on its own. In this case, remember
to remove the cap/measuring device (3) to ensure the air is properly vented.
• Using the optional system for automatic clean water top-up. This system has a oat for avoiding
any overow.
DETERGENT SOLUTION (VERSIONS WITHOUT FSS)
After lling the solution tank with clean water add the liquid detergent to the tank in the concentration
and manner indicated on the detergent manufacturer's label. To prevent the formation of an excessive
amount of foam that could damage the vacuum motor, use the minimum percentage of detergent
required.
CAUTION: protective gloves should always be worn before handling detergents or acidic or
alkaline solutions, to avoid serious injury to the hands.
CAUTION: always use detergents whose manufacturer's label indicates their suitability for
scrubbing machines. Do not use acid or alkaline products or solvents without this indication.
ATTENTION: acid or alkaline maintenance detergents can be used, as long as they have pH
values between 4 and 10, and do not contain: oxidising agents, chlorine or bromine,
formaldehyde, mineral solvents. The detergents used must be suitable for use with scrubbing
machines.
CAUTION: always use low-foam detergent. To avoid the production of foam, put a minimum
quantity of anti foam liquid in the recovery tank before starting to clean. Do not use pure acids.
NB: to make it easier to measure the detergent on the cap/measuring device, there are notches
indicating the detergent percentage quantities that can be used. The notches range from a
minimum of 0.1% to a maximum of 0.5%.
5. Fill with clean water, at a temperature no higher than 50°C and no lower than 0°C. The amount
inside the tank can be seen by means of the level tube (5) (Fig. 6) on the rear left-hand side of
the machine.
FILLING THE DETERGENT CANISTER (VERSIONS WITH FSS)
After lling the solution tank with clean water, you must ll the detergent canister. Before lling the
canister, carry out the following steps:
1. Take the machine to the usual place for lling the solution tank.
2. Make sure the machine is in a safe condition (see “MACHINE SAFETY MEASURES”).
3. Grip the handle (1) on the right-hand side of the recovery tank (Fig. 1) and turn the tank as far as
it will go, until it reaches the maintenance position.
4. Disconnect the male insert (2) from the female insert (3) on the cap (4) of the detergent canister
(5) (Fig. 2).
ATTENTION: before pulling on the male insert, push the lever on the female insert.
5. Grip the handle (6) on the detergent canister (5) to remove it from the compartment in the solution
tank (Fig. 3).
6. Remove the cap (4) from the detergent canister (Fig. 4).
7. Fill the canister with the required detergent, as indicated on the label supplied with the machine.
CAUTION: protective gloves should always be worn before handling detergents or acidic or
alkaline solutions, to avoid serious injury to the hands.
WARNING: always use low-foam detergent. To avoid the production of foam, put a minimum
quantity of anti foam liquid in the recovery tank before starting to clean. Do not use pure acids.
WARNING: always use detergents whose manufacturer's label indicates their suitability for
scrubbing machines. Do not use acid or alkaline products or solvents without this indication.
ATTENTION: the dosing system is suitable for frequent maintenance cleaning. acid or alkaline
maintenance detergents can be used, as long as they have pH values between 4 and 10, and
do not contain: oxidising agents, chlorine or bromine, formaldehyde, mineral solvents. The
detergents used must be suitable for use with scrubbing machines. Wash the circuit with water
after use if the system is not used daily. The system can be excluded. In case of sporadic use of
detergents with pH between 1-3 or 11-14, use the oor scrubbing machine in the traditional way
by adding the detergent in the clean water tank and excluding the dosing circuit.
8. Make sure you tighten the cap (4) properly to avoid any leakage of liquid while working. Make
sure the detergent suction lter (7) is correctly positioned on the bottom of the canister (Fig. 5).
9. Grip the canister handle (6) to replace the canister (5) in its compartment inside the solution tank.
10. Connect the male insert (2) to the female insert (3) in the cap (4) of the detergent canister (5).
11. Grip the handle (1) on the right-hand side of the recovery tank and turn the tank as far as it will go,
until it reaches the work position.
Before beginning to work, it is necessary to:
1. Make sure the recovery tank is empty. If it isn't, empty it (see “EMPTYING THE RECOVERY
TANK”).
2. Check that the amount of detergent solution in the solution tank is sucient for the type of work
to be performed. If it isn't, top up the solution tank (see “FILLING THE SOLUTION TANK WITH
WATER” and “DETERGENT SOLUTION”). Check the level tube (1) in the rear left-hand part of
the machine (Fig. 1).
3. Check the rubber squeegee blades are in good working condition. If they aren't, replace them
(see “REPLACING THE SQUEEGEE BODY RUBBER BLADES”).
4. Check the brush is in good working condition. If it isn't, replace it (see “REPLACING THE BRUSH
HEAD BRUSH”).
5. Check the machine is switched o. If it isn't, turn the main switch (2) to “0” by rotating the key a
quarter turn in the direction of the arrow (Fig. 2). Remove the key from the instrument panel.
6. Grip the handle (3) on the right-hand side of the recovery tank (Fig. 3) and turn the tank as far as
it will go, until it reaches the maintenance position.
PREPARING TO WORK
7. Connect the main system connector (4) to the battery connector (5) (Fig. 4).
ATTENTION: this process must be carried out by qualied personnel.
8. Grip the handle (3) on the right-hand side of the recovery tank and turn the tank until it reaches
the work position.
9. Make sure the electronic brake is engaged. If it isn't, turn the lever (6) in the direction of the
arrow. The traction gearmotor is located on the rear right-hand side of the machine (Fig. 5).
10. Check the water tap is fully open - the water adjustment knob (7) must be turned fully in the
direction shown by the arrow (Fig. 6).
11. Make sure the solution tank drainage cap (8) is closed. If it isn't, close it (Fig. 7).
12. Make sure the water lter cap (9) is closed. If it isn't, close it (Fig. 8).
13. Make sure the cap of the recovery tank drainage tube (10) is closed. If it isn't, close it (Fig. 9).
14. Make sure the vacuum tube (11) is correctly connected to the sleeve in the squeegee body. If it
isn't, connect it (Fig. 10).
15. Make sure the vacuum motor lter (12) is correctly connected and is clean (Fig. 11). If it isn't,
clean it (see “CLEANING THE RECOVERY TANK FILTERS”).
16. Make sure the lter basin (13) is correctly connected and is clean (Fig. 12). If it isn't, clean it (see
“CLEANING THE RECOVERY TANK FILTERS”).
17. Make sure the recovery tank cover is properly closed. If it isn't, close it.
16
43 5
3
4
6
5
2 31
1 2
6
4
3
5
54 4
7
1
1
2
2
3
3
5 6
6 7
4
4
5
8 97
8 9
10

STARTING WORK
The machine can be used in the following work modes:
• ECO-MODE, read the section “ECO-MODE”;
• MANUAL MODE, read the section “MANUAL MODE”,
• PROGRAM ZONE, read the section “PROGRAM ZONE MODE”.
As an example, we will look at the program mode. To begin working in this mode, proceed as follows:
1. Make all the checks listed in “PREPARING TO WORK”.
2. Sit on the driver’s seat.
3. Insert the key (1) in the main switch on the control panel. Set the main switch to “I” by making a
quarter turn of the key to the right ( Fig. 1)).
4. The rst and second screen displayed allow you to check the software versions of the functions
board and display board.
5. A few seconds after ignition, the password screen is displayed (Fig. 2).
6. Enter the password and press Enter (2) (Fig. 2).
NB: if you make a mistake, press Delete (3) (Fig. 2).
N.B.: the password entered by the manufacturer is 1000.
N.B.: it is possible to disable the password entry, contact the nearest FIMAP assistance centre.
N.B.: the password to be entered (selected by the manufacturer) is 1000.
7. If the password is correct, the “MAIN” screen will be displayed (Fig. 3).
NB: by default the machine is set to the transfer program (Fig. 3).
8. Select the required working program with the DS selector device (see “DS SELECTOR”).
9. Select the required work area and press the “ZONE” key (see “ZONE PROGRAM BUTTON”).
10. When you push the dead man's lever (4) (Fig. 4), the machine will begin to move.
If the program selected is “SCRUBBING WITH DRYING”, the squeegee and brush head will lower
until they touch the oor.
As soon as the drive pedal is pressed, the traction motor, brush head motor and vacuum motor will
start working. As a result, the solenoid valve will also be activated and detergent solution will be
dispensed onto the brushes.
During the rst few metres, check that there is sucient solution and that the squeegee is drying
correctly.
The appliance will now begin to work with full eciency until the battery is at or until the detergent
solution has nished.
TRANSFER
Selecting the program “TRANSFER”, the control display screen will appear as shown in the gure.
NB: with this working program, both the brush head and squeegee support are in the idle
position (raised o the oor) and the motors switch o with the respective switch-o delays
(even if the drive pedal is not pressed). When the dead man's lever is pressed, only the
traction motor is powered.
NB: on the DS selector, the symbol of the transport program (A) is green.
NB: the grey symbols show working programs that are not active. the green symbols show
working programs that are active.
The icons that may be visible are:
1. FFM symbol, if visible it shows that the “FIMAP FLEET MANAGEMENT” system operating.
2. FSS symbol, if visible it shows that the “FIMAP SOLUTION SAVER” system is operating.
3. General alarm symbol.
ATTENTION: if visible, stop the machine. To continue working, see “ALARM SCREEN”.
4. Solution tank empty oat symbol.
ATTENTION: if visible, it indicates that the detergent solution in the tank has a reached a level
beyond which the solenoid valve cannot deliver solution onto the brushes, so the tank needs to
be lled up before continuing the work (see “FILLING THE SOLUTION TANK”).
5. ECO-MODE button.
NB: if the Eco-Mode button (5) is pressed in transfer mode, the “scrubbing with drying”
program is activated in economic mode.
6. Menu button.
7. Zone button.
NB: if the Zone button (8) is pressed in transfer mode, the window for selecting the zone opens
(see “ZONE PROGRAM BUTTON”). Once you have selected an area, “scrubbing with drying”
is activated for the area selected.
8. Text indicator.
NB: the text indicator (8) shows which zone program has been selected, or whether the
machine is in transport mode if the word “DRIVE” is visible.
17
1110 12
11
12 13
4
1
1
Enter
Inserire codice
DRIVE
0000.00 100%
2
3
2
4
3
DRIVE
0000.00 100%
68
5
7
1 32 4

SCRUBBING WITHOUT DRYING
Selecting the program “SCRUBBING WITHOUT DRYING”, the control display screen will appear as
shown in the gure.
NB: with this working program, the pressing of the dead man's lever only brings the brush
head to the work position (in contact with the oor); the squeegee remains in the idle position
(raised from the oor). The brush head solenoid valve and the water system pump are
powered up (only if the detergent solution is other than zero). When the dead man's lever is
pressed, the brush head, solenoid valve, electric pump and traction motor are powered.
NB: on the DS selector, the symbol of the “scrubbing without drying” program (B) is green.
NB: the grey symbols show working programs that are not active. the green symbols show
working programs that are active.
NB: when the dead man's lever is released, the brush head motor stops with the relative delay.
After the “Reset Delay” time, the brush head is taken to its idle position (raised o the oor).
When the dead man's lever is pressed, work will resume with the same working program and
parameters used prior to the stop.
NB:if you reverse while this program is active, the brush head body will remain in contact with
the oor and the motor will continue working, but the solenoid valve will not deliver detergent
solution to the brushes.
The icons that may be visible are:
1. FFM symbol, if visible it shows that the “FIMAP FLEET MANAGEMENT” system operating.
2. FSS symbol, if visible it shows that the “FIMAP SOLUTION SAVER” system is operating.
3. General alarm symbol.
ATTENTION: if visible, stop the machine. To continue working, see “ALARM SCREEN”.
4. Solution tank empty oat symbol.
ATTENTION: if visible, it indicates that the detergent solution in the tank has a reached a level
beyond which the solenoid valve cannot deliver solution onto the brushes, so the tank needs to
be lled up before continuing the work (see “FILLING THE SOLUTION TANK”).
5. ECO-MODE button.
NB: if the Eco-Mode button (5) is pressed in transfer mode, the “scrubbing with drying”
program is activated in economic mode.
6. Menu button.
7. Zone button.
NB: if the Zone button (8) is pressed in transfer mode, the window for selecting the zone opens
(see “ZONE PROGRAM BUTTON”). Once you have selected an area, “scrubbing with drying”
is activated for the area selected.
8. Text indicator.
NB: the text indicator (8) shows which zone program has been selected, or whether the
machine is in transport mode if the word “DRIVE” is visible.
ATTENTION: never switch off the machine while the brush head is
in contact with the oor
DRYING
Selecting the program “DRYING”, the control display screen will appear as shown in the gure.
NB: with this working program, the pressing of the dead man's lever only brings the squeegee
to the work position (in contact with the oor); the brush head remains in the idle position
(raised from the oor). When the dead man's lever is pressed, both the vacuum motor and the
traction motor are powered.
NB: on the DS selector, the symbol of the drying program (C) is green.
NB: the grey symbols show working programs that are not active. the green symbols show
working programs that are active.
NB: when the dead man's lever is released, the vacuum motor stops with the relative delay.
After the “Reset Delay” time, the squeegee support is taken to its idle position (raised o the
oor). When the dead man's lever is pressed, work will resume with the same working program
and parameters used prior to the stop.
NB:if you reverse while this program is active, the squeegee support is taken to its idle
position (raised o the oor) and the vacuum motor is switched o with the relative delay.
The icons that may be visible are:
1. FFM symbol, if visible it shows that the “FIMAP FLEET MANAGEMENT” system operating.
2. FSS symbol, if visible it shows that the “FIMAP SOLUTION SAVER” system is operating.
3. General alarm symbol.
ATTENTION: if visible, stop the machine. To continue working, see “ALARM SCREEN”.
4. Solution tank empty oat symbol.
ATTENTION: if visible, it indicates that the detergent solution in the tank has a reached a level
beyond which the solenoid valve cannot deliver solution onto the brushes, so the tank needs to
be lled up before continuing the work (see “FILLING THE SOLUTION TANK”).
5. ECO-MODE button.
NB: if the Eco-Mode button (5) is pressed in transfer mode, the “scrubbing with drying”
program is activated in economic mode.
6. Menu button.
7. Zone button.
NB: if the Zone button (8) is pressed in transfer mode, the window for selecting the zone opens
(see “ZONE PROGRAM BUTTON”). Once you have selected an area, “scrubbing with drying”
is activated for the area selected.
8. Text indicator.
NB: the text indicator (8) shows which zone program has been selected, or whether the
machine is in transport mode if the word “DRIVE” is visible.
ATTENTION: never switch off the machine with the squeegee in
contact with the oor
ATTENTION: the drying without scrubbing operation should only be
carried out if the device was used beforehand to carry out a scrubbing
without drying operation.
18
OFFICE
0000.00 100%
6
5
7
8
1 32 4
OFFICE
0000.00 100%
1 32 4
68
7
5

SCRUBBING WITH DRYING
Selecting the program “SCRUBBING WITH DRYING”, the control display screen will appear as shown
in the gure.
NB: with this working program, the pressing of the dead man's lever brings both the brush
head and the squeegee to the work position (in contact with the oor). When the dead man's
lever is pressed, all the motors are powered. The brush head solenoid valve and the water
system pump are powered up (only if the detergent solution level is not at zero).
NB: on the DS selector, the symbol of the scrubbing with drying program (D) is green.
NB: the grey symbols show working programs that are not active. the green symbols show
working programs that are active.
NB: when the dead man's lever is released, the brush head motor and the vacuum motor stop
with the relative delays. After the “Reset Delay” time, the brush head and squeegee body are
taken to their idle position (raised o the oor). When the dead man's lever is pressed, work will
resume with the same working program and parameters used prior to the stop.
NB:if you reverse while this program is active, the brush head body will remain in contact with
the oor and the motor will continue working, but the solenoid valve will not deliver detergent
solution to the brushes. The squeegee support is taken to its idle position (raised o the oor)
and the vacuum motor is switched o with the relative delay.
The icons that may be visible are:
1. FFM symbol, if visible it shows that the “FIMAP FLEET MANAGEMENT” system operating.
2. FSS symbol, if visible it shows that the “FIMAP SOLUTION SAVER” system is operating.
3. General alarm symbol.
ATTENTION: if visible, stop the machine. To continue working, see “ALARM SCREEN”.
4. Solution tank empty oat symbol.
ATTENTION: if visible, it indicates that the detergent solution in the tank has a reached a level
beyond which the solenoid valve cannot deliver solution onto the brushes, so the tank needs to
be lled up before continuing the work (see “FILLING THE SOLUTION TANK”).
5. ECO-MODE button.
NB: if the Eco-Mode button (5) is pressed in transfer mode, the “scrubbing with drying”
program is activated in economic mode.
6. Menu button.
7. Zone button.
NB: if the Zone button (8) is pressed in transfer mode, the window for selecting the zone opens
(see “ZONE PROGRAM BUTTON”). Once you have selected an area, “scrubbing with drying”
is activated for the area selected.
8. Text indicator.
NB: the text indicator (8) shows which zone program has been selected, or whether the
machine is in transport mode if the word “DRIVE” is visible.
ATTENTION: never switch off the machine with the squeegee and/
or brush head in contact with the oor
DS SELECTOR (DRIVE SELECT)
The DS selector can be used to select one of the following working programs:
A. Transfer: movement of the machine without working.
B. Scrubbing only: using only the brushes in the brush head.
C. Drying: using the squeegee only.
D. Scrubbing with Drying: using both the brushes and the squeegee.
Pressing one of the symbols in the selector, you pass from the working screen (Fig. 1) to the program
selection screen (Fig. 2). On this screen it is possible to:
1. Conrm the selected program.
NB: to conrm the program, press the selected icon again.
NB: once the selection has been conrmed, you will return to the working screen (Fig. 1).
2. Cancel the selection and return to the working screen
NB: to cancel the selection, press the “back” button (1) (Fig. 2) to return to the working screen
without changing the current program.
NB: to cancel the selection, wait 5 seconds without selecting anything and you will return to the
working screen without changing the current program.
3. Select a mode other than the one highlighted.
ECO MODE
In the centre of the DS selector there is the ECO-MODE key (1). Press it to activate the “ECO-MODE”
program, which provides the best possible performance in terms of consumption and cleaning. To
activate the ECO-MODE program, proceed as follows:
1. Sit on the driver’s seat.
2. Insert the key (1) in the main switch on the control panel. Set the main switch to “I” by making a
quarter turn of the key to the right ( Fig. 1)).
3. Select the ECO-MODE working program with the button (2) at the centre of the DS selector
(Fig. 2).
NB: A grey ECO-MODE key means that economic mode is not active. A green ECO-MODE
key means that economic mode is active. In addition, when ECO-MODE is active, on the text
indicator row (3) on the display, the words “ECO mode” will appear (Fig. 2).
NB:pressing the button (2) on the DS selector (Fig. 2) will activate the SCRUBBING WITH
DRYING program. If you wish to use another working program, select it using the DS selector
(read the section “DS SELECTOR (DRIVE SELECT)”).
4. When you push the dead man's lever (4), the machine will begin to move (Fig. 3).
N.B.: if the button (2) is pressed when working in ECO-MODE, the machine will shift to
MANUAL MODE, leaving the program in use at the time active (Fig. 4).
N.B.: if the “ZONE” button (4) is pressed when working in ECO-MODE, the machine will shift to
PROGRAM ZONE mode (Fig. 2); as soon as button (4) is pressed, the screen enabling you to
select the working zone will appear on the display (Fig. 5).
19
MANUAL
0000.00 100%
Back
0000.00 100%
AB
DC
1
12
ECO mode
0000.00 100%
2
5 3
2
MANUAL
0000.00 100%
Warehouse
Canteen
Office
Reception
Exit
SELEZIONE ZONE
0000.00 100%
4
5
3
4
1
1
OFFICE
0000.00 100%
1 32 4
68
7
5

MANUAL MODE
To activate the MANUAL-MODE program, proceed as follows:
1. Sit on the driver’s seat.
2. Insert the key (1) in the main switch on the control panel. Set the main switch to “I” by making a
quarter turn of the key to the right ( Fig. 1)).
3. Using the DS selector (2), select the working program you want; see “DS SELECTOR (DRIVE
SELECT)” (Fig. 2).
NB:by selecting one of the three working programs on the DS selector, ECO-MODE will be
automatically activated.
4. Deactivate ECO-MODE by pressing the button (3) at the centre of the DS selector (Fig. 2);
the display will move from ECO-MODE (Fig. 2) to MANUAL MODE (Fig. 3).
N.B.: A grey ECO-MODE key means that economic mode is not active. A green ECO-MODE
key means that economic mode is active. In addition, when ECO-MODE is not active, on the
text indicator row (4) on the display, the word “MANUAL” will appear (Fig. 2).
5. When you push the dead man's lever (5), the machine will begin to move (Fig. 4).
NB:if the button (3) is pressed when working in MANUAL MODE, the machine will shift to
ECO-MODE, leaving the program in use at the time active (Fig. 2).
NB:if the “ZONE” button (6) is pressed when working in MANUAL MODE, the machine will
shift to PROGRAM ZONE mode; as soon as button (6) is pressed, the screen enabling you to
select the working zone will appear on the display (Fig. 5).
In manual mode, the visible buttons are:
A. Detergent solution adjustment.
B. Vacuum motor performance level.
C. Pressure exerted on the central brush head.
D. Maximum forward movement speed level.
NB: the four keys are always present, but can only be used depending on the working mode
selected. In particular:
• Transfer: the visible button will be that of maximum speed.
• Scrubbing without drying: the buttons visible will be those of maximum speed, detergent
solution adjustment and pressure exerted on the central brush head.
• Drying: the buttons visible will be those of maximum speed and vacuum motor
performance level.
• Scrubbing with Drying: the buttons visible will be those of maximum speed, detergent
solution adjustment, pressure exerted on the central brush head, and vacuum motor
performance level.
NB: the disabled buttons and the respective indicators are grey.
NB: every time one of the enabled keys is pressed, the relative level is cyclically increased.
Only the detergent solution adjustment can have a zero level.
PROGRAM ZONE MODE
The zone programs are programs saved in the machine memory. The following parameter levels:
• Pressure exerted on the brush head
• Forward speed
• Adjustment of the detergent solution ow
• Vacuum motor performance
are xed, and have been created based on the type of environment in which you want to work.
To select one of the zone programs, proceed as follows:
1. From any screen, press the “ZONE” button (1) (Fig. 1).
2. As soon as the button (1) is pressed, the “ZONE SELECTION” menu will be displayed (Fig. 2).
Select one of the programs.
NB: the name of the zone program selected is displayed in the text indicator (3) (Fig. 1).
NB: to quit the zone program:
• From the zone program menu, select the “EXIT” key
• Enable and then disable the ECO-MODE key.
NB: the light blue ZONE key shows that the selected zone is active. In this case, the
ECO-MODE button is not active.
REVERSE
This machine is equipped with electronic traction control. To reverse, proceed as follows:
1. Press the “REVERSE ACTIVATION - DEACTIVATION” button (1) on the control handlebars
(Fig. 1).
2. Press the dead man's lever (2) (Fig. 2) to start the machine moving in reverse.
CAUTION: reverse speed is lower than forward speed, to comply with current health and
safety standards.
NB: to disable reverse movement, press the button (1) on the control handlebars again
(Fig. 1).
NB: as soon as the button (1) is pressed, the buzzer will sound to indicate that reverse mode
has been activated.
NB: if reverse gear is engaged with the squeegee in its working position, the machine will
begin moving backwards as soon as the dead man's lever is pressed, and the squeegee body
will rise to its idle position.
NB: if reverse gear is engaged with the brush head in its working position, the machine will
begin moving backwards as soon as the dead man's lever is pressed, and the brush head
body will remain in its working position, but the solenoid valve will stop dispensing detergent
solution.
EXTRA BRUSH HEAD PRESSURE
This machine is capable of increasing the pressure exerted upon the brushes during the work cycle.
This can be done in the following manner:
1. Check that the brush head body is in contact with the oor. If it isn't, use the DS selector to select
“SCRUBBING WITH DRYING” or “SCRUBBING WITHOUT DRYING” (Fig. 1).
2. Press the “EXTRA PRESSURE ACTIVATION - DEACTIVATION” button (1) on the control
handlebars (Fig. 2).
3. Press the dead man's lever (2) (Fig. 3) to start the working cycle.
NB: as soon as the button (1) is pressed, the control display will show the “POWER” screen
(Fig. 4). In the middle of the screen there is a graphic symbol (3) and a numeric symbol (4)
that represent a countdown.
NB: when the extra-pressure function is activated, the countdown starts. During this time,
a pressure stronger than the standard pressure is exerted on the brush head body.
NB: at the end of the countdown, you return to the working screen that was previously used
and the pressure on the brush head goes back to standard.
FIMAP SOLUTION SAVER SYSTEM (FSS)
Upon request, the machine can be tted with the FIMAP SOLUTION SAVER (FSS) system, which
allows you to dose in a separated way the detergent with the water in the solution tank.
To activate it, proceed as follows.
1. With the machine on, press the menu button (1) on the working screen (Fig. 1).
2. Press the FSS system activation/deactivation button (2) (Fig. 2).
N.B.: if the symbol (2) is grey the FSS system is not active, if the symbol (2) is green the FSS
system is active.
NB: to quit the menu screen, wait a short time without pressing anything, or else press on any
point of the display (except one of the displayed buttons).
N.B.: the FSS system activates when the electric pump in the machine's water system starts.
20
ECO mode
0000.00 100%
3
2 4
6
2
1
1
MANUAL
0000.00 100%
34
5D A
C B
MANUAL
0000.00 100%
Warehouse
Canteen
Office
Reception
Exit
SELEZIONE ZONE
0000.00 100%
1 2
1
3
2
1
1
2
2
2
3
2
3
Back
0000.00 100%
POWER
0000.00 100%
1
4
Table of contents
Other Fimap Scrubber manuals

Fimap
Fimap FS50 H User manual

Fimap
Fimap Genie B User manual

Fimap
Fimap GMG B User manual

Fimap
Fimap MY50 User manual

Fimap
Fimap GL Pro User manual

Fimap
Fimap MAXIMA BASE BT 2017 User manual

Fimap
Fimap SMG120 B User manual

Fimap
Fimap MAXIMA User manual

Fimap
Fimap BMg Series User manual

Fimap
Fimap iMx 50BT User manual

Fimap
Fimap MMX 43B User manual

Fimap
Fimap MR65 B User manual

Fimap
Fimap FIMOP User manual

Fimap
Fimap MMg base User manual

Fimap
Fimap MxL Pro Series User manual

Fimap
Fimap MY 16 B User manual

Fimap
Fimap BMg Series User manual

Fimap
Fimap SMG120 B User manual

Fimap
Fimap GL Pro User manual

Fimap
Fimap Genie XS User manual
