Wasp WDT2200 Product information sheet

.
© 2003 Wasp Technologies, Inc.
-
0
-
WDT2200 User Reference Guide
Version 1.0

.
© 2003 Wasp Technologies, Inc.
-
1
-
NOTICE
This unit is equipped with a Li-ion battery pack. Battery power might be low due to
storage. Recharge the battery when required. For procedures on how to charge the
battery, please refer to page 5.

.
© 2003 Wasp Technologies, Inc.
-
2
-
Table of Contents
WDT2200 User Reference Guide ............................................................................................................................0
Version 1.0...............................................................................................................................................................0
NOTICE...................................................................................................................................................................1
Table of Content.......................................................................................................................................................2
Chapter 1: Introduction ............................................................................................................................................3
1.1 Overview ............................................................................................................................................3
1.2 Support...............................................................................................................................................3
1.3 Customized WDT2200.....................................................................................................................3
1.4 Technical Specifications ..................................................................................................................4
1.5 Quick Start .........................................................................................................................................5
1. 6 Interface Ports..................................................................................................................................2
1.7 Using the Keyboard ..........................................................................................................................2
1.8 Triggering Scanner Module...............................................................................................................4
1.9 Application Development Environment............................................................................................4
Chapter 2 Power System............................................................................................................................................5
2.1 Power System ...................................................................................................................................5
2.2 Power Low Indication .......................................................................................................................5
2.3 Battery Replacement........................................................................................................................6
2.4 Recharging the Battery Pack...........................................................................................................6
2.5 Storage and Safety Precautions .....................................................................................................7
Chapter 3 Operation .................................................................................................................................................8
3.1 Ready Mode.......................................................................................................................................8

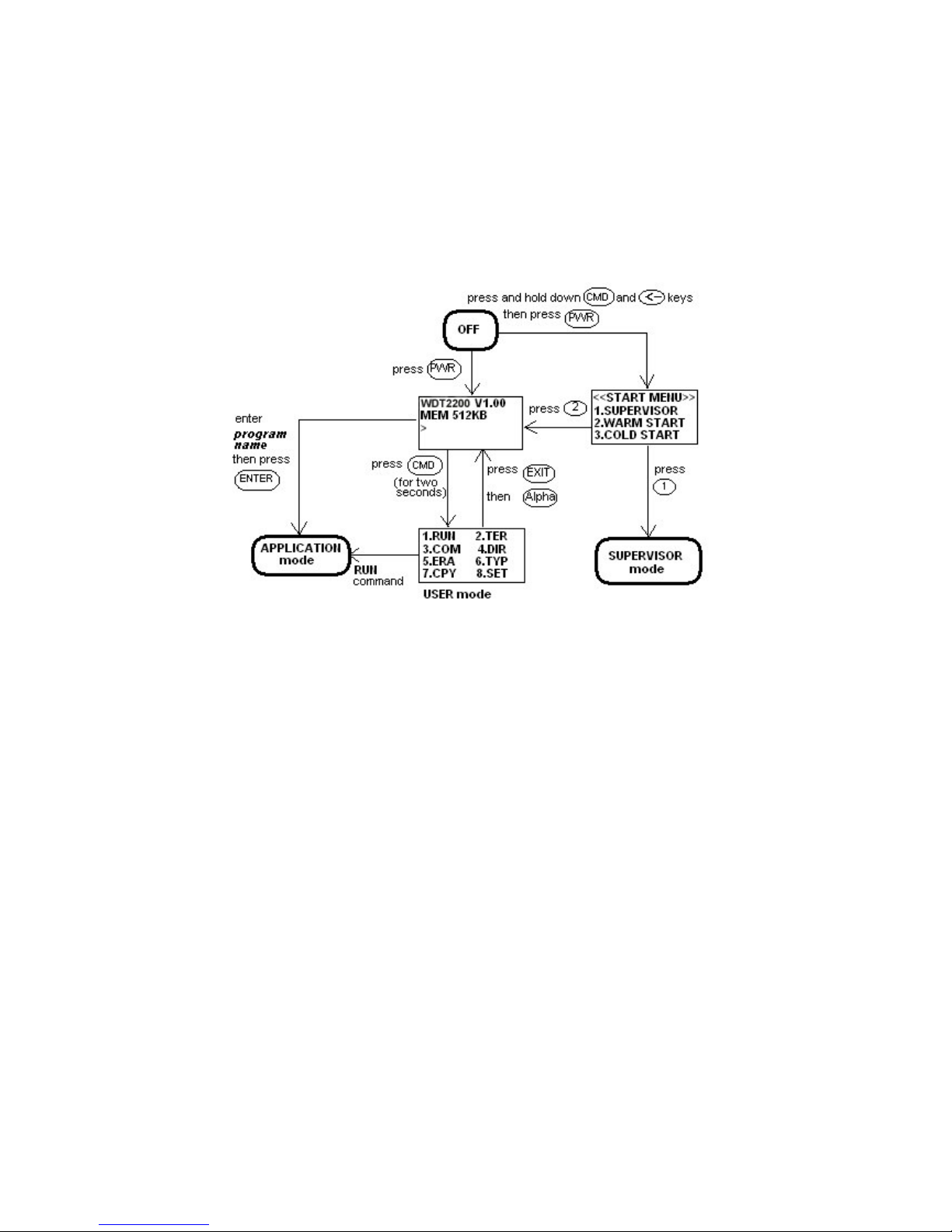

3.2 User Mode and System Commands ..............................................................................................8
3.3 Configuring the Terminal via the SET command..........................................................................10
3.3.1 DATE & TIME: .................................................................................................................10
3.3.2 SCANNER:.......................................................................................................................10
3.4 Upload/Download by ESC Command............................................................................................11
Chapter 4 Built-in Application: FormCaching .........................................................................................................12
4.1 Specification of FormCaching .........................................................................................................12
4.2 How to Configure FormCaching .....................................................................................................13
4.3 How to Run FormCaching ...............................................................................................................13
4.4 Default Setting of FormCaching......................................................................................................13

.
© 2003 Wasp Technologies, Inc.
-
3
-
Chapter 1: Introduction

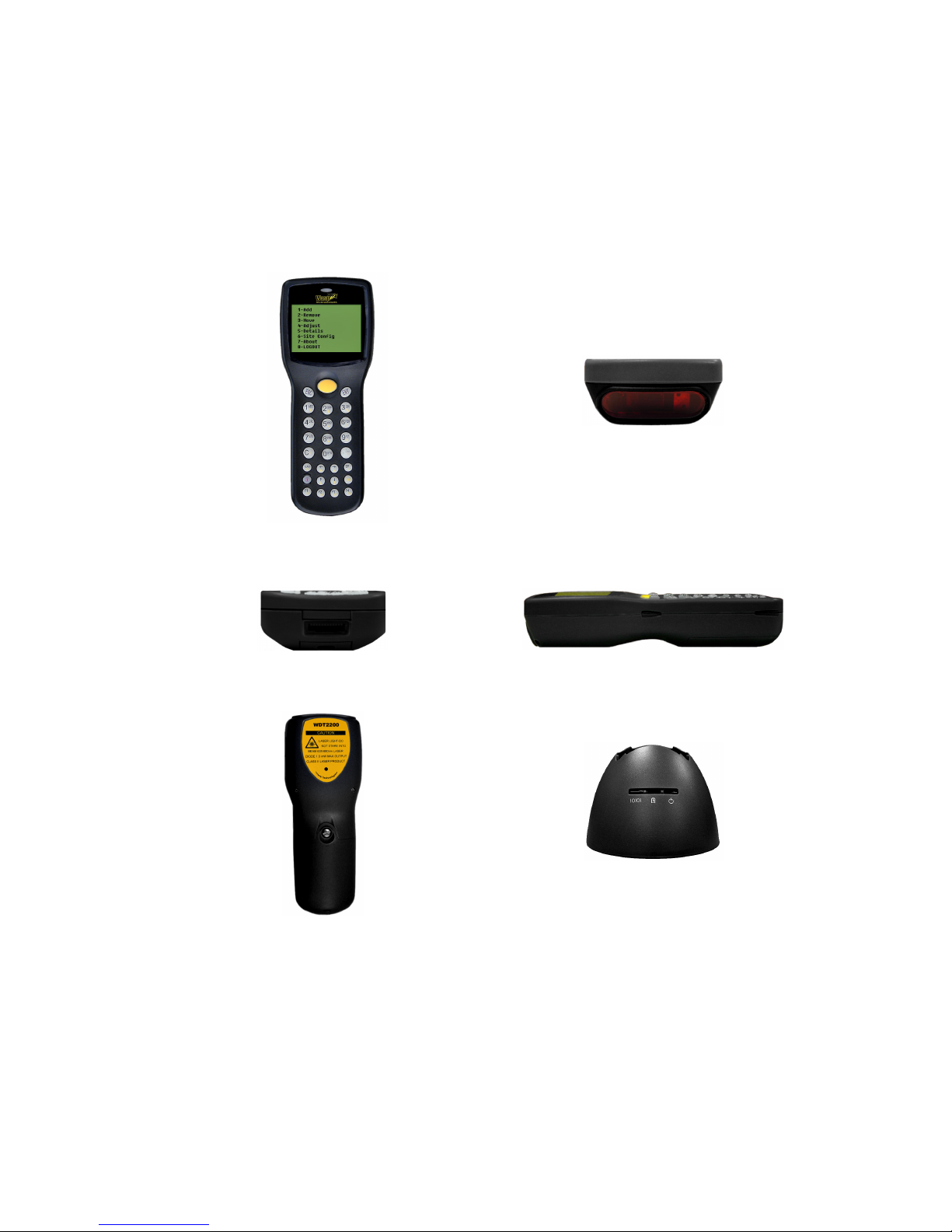

1.1 Overview
Thank you for choosing this product from Wasp Technologies, Inc. The WDT2200 portable data collection
terminal is one of the most versatile handheld computers available. It is DOS compatible, capable of running
programs developed with the C language. The WDT2200 has many pre-built in functions and is also user-
programmable. The WDT2200 is light, weights only 230 grams, has a large liquid crystal display (128 pixel X
64 pixel, capable of displaying 16*8 or 8*4 characters,) is rugged and water proof. It also capable of
withstanding multiple 1.5 meter drops. Depending on you’re the particular model you had purchased, your
terminal is equipped with 2.5MB Laser or CCD Scanner. The WDT2200 also has offers optional RS232
communication/charging cradled. Working with the WDT2200’s unique universal power adaptor, the cradles
will satisfy your WDT2200’s charging and communication needs.
1.2 Support
Contact Wasp Technologies Technical Support via http://support.waspbarcode.com
1.3 Customized WDT2200
It is highly likely when you receive this terminal; that a system integrator has already program your terminal
to meet your specific application. If this is the case, many operating procedures, mentioned in this manual,
may not apply. Please consult your system provider for more information regarding such customization.

.
© 2003 Wasp Technologies, Inc.
-
4
-
1.4 Technical Specifications
Physical
Physical Characteristics
Dimensions: 165mm x 60mm x 35mm
Weight: 230g
Drop Specification: 1.5M multiple free drop to concrete floor
Display: 128 x 64 pixel; 8 x16 characters or 4 x 12 characters.
Battery: (include
main and backup
battery)
One 3.7V/880mAH Li-ion battery; One Cr2032 3V/190mAH Lithium backup
battery
Environmental
Sealing: IP54
Operating
Temperature: -5C~50

C
Storage Temperature -20C~70

C
Humidity: 5% to 95% RH, ; not condensed
Electrostatic
Discharge (ESD) 4 KV for contact discharge 8 KV for air discharge
Back-Lit Display: Yes
Keypads: 26 alphanumeric keys + one scan trigger
Performance
Performance Characteristics
CPU: NEC V25 (16 bit); 80XX compatible
Operating System: DOS compatible
Memory: 2.5MB
Flash ROM 256KB
Application Development: C language, Turbo C, Visual C, AppGen (a Windows-based program
generator), FormCaching (a built in program generator)
Communication RS232 serial communication
Operating Time Over 12 hours at 3 bar code scans per sec
Symbologies UPC/EAN, Code 39, Interleave 2 of 5, CODABAR, MSI, Code 128,
Code 93, Code 32
Buzzer Yes, over 70 dB
One LED Dual color; Green for good; Red for bad
