Wassermann Wasi-Steam Classic II User manual

Steam Cleaner
Wasi-Steam Classic II
USER MANUAL

Dear customer,
Thank you for choosing a product from the Wassermann range. Wassermann Dental-
Maschinen incorporates the highest standards of quality and the latest technology.
In order to enjoy maximum performance and years of trouble-free operation, please read
this user manual carefully before you connect this unit and start work, and operate the unit
according to the recommended guidelines. The operation safety and the functionality of
this unit can only be guaranteed if you follow both the general safety guidelines and the
applying laws to prevent accidents as well as the precautions given in this user manual.
We are not liable for any damages which occur due to inappropriate usage or faulty
operation of this unit.
Make sure that anyone using this unit has read and understood this user
manual.
Keep this user manual in a safe place where it can be referred to as required at
any time.
The unit complies with the relevant EU guidelines.
The unit is subject to the EU guidelines 2012/19/EU (WEEE Directive).
Company address:
Wassermann Dental-Maschinen GmbH
Rudorffweg 15-17
21031 Hamburg, Germany
Phone : [phone]/ -24 Fax.: [phone]
[email protected]
www.wassermann.hamburg
www.facebook.com/WassermannDentalmaschinen
Erstellt: 26.03.20/ msc Version: 1 Auftrag: 174996 #166388 ff.
.

Contents
1 Features...........................................................................................................................4
2 Safety Symbols used in this Manual.................................................................................4
3 Safety Guidelines.............................................................................................................4
4 Responsibility for Operation or Damage...........................................................................6
4.1 Warranty.................................................................................................................6
5 Application........................................................................................................................6
6 Before Starting.................................................................................................................7
6.1 Transport................................................................................................................7
6.2 Installation..............................................................................................................7
6.3 Storage...................................................................................................................8
6.4 Mounting Instruction Fastening Set for Wall Mounting Wasi-Steam Classic..........8
7 Start-up/ Installation........................................................................................................12
8 Operation........................................................................................................................14
8.1 General Operating Instructions............................................................................14
8.1.1 Refill...........................................................................................................15
9 Troubleshooting..............................................................................................................16
10 Care and Maintenance.................................................................................................17
10.1 Cleaning.............................................................................................................17
10.2 Maintenance.......................................................................................................18
10.2.1 Decalcification..........................................................................................18
10.3 Repairs...............................................................................................................18
10.4 Spare Parts........................................................................................................19
10.5 Service Hotline [phone]/ -24......................................................19
10.6 Scope of Delivery/ Accessories..........................................................................19
11 Technical Data..............................................................................................................19
12 Disposing of the Unit....................................................................................................20
12.1 Information on Disposal for Countries within the EU..........................................20
13 EU Declaration of Conformity.......................................................................................21

1 Features
•Wasi-Steam Classic II: Perfect for use with limited space
•Manual filling so the location can be flexibly selected
•Operation with distilled / softened water is possible and is recommended
•Comfortable application through single-handed operation of the jet gun
•Variable working pressure, variable up to 5 bar
•Short heat-up phase through 1,200 Watt-special steel heating
•High safety because of protection against dry running / Thermo-safety switch with
manual reset
•Splash protection with basement made of stainless steel, available as accessory
•Wall mounting possible, a fastening set for wall mounting is available as accessory,
for further information please see 6.2 and 6.4 of this manual
2 Safety Symbols used in this Manual
Warning!
This is a warning of risk situations and dangers.
Failure to observe this warning could be life-threatening. These warnings has to
be observed.
Information!
This symbol draws your attention to specific features that has to be observed.
4

3 Safety Guidelines
Configuring and operating this equipment requires precise knowledge and observance
of the instructions in this user manual. The equipment is designed only for its intended
application.
WARNING:
Servicing and repairs should be carried out only by authorised specialists.
Disconnect the power plug before starting any maintenance work.
Make sure that the equipment is connected to the correct power source.
Never touch the steam gun directly at the nozzle – risk of scalding!
When refilling with water it is imperative to note point 8 (Operation) of this user
manual – risk of scalding!
Operation with distilled / softened water is possible and is recommended.
Never point the steam gun at people (living beings) – risk of injury!
The unit has several safety features:
•Pushbutton switch 5 bar,
•Thermo-safety switch with manual reset 165°C degrees Celsius
•Adjustable thermostat max. 185°C degrees Celsius
•Safety valve 7 bar
The unit can be filled manually, e.g. by means of a beaker, funnel, or the like.
The unit must not be filled with pressure and or be attached to a tap.
5

4 Responsibility for Operation or Damage
The responsibility for operating the unit lies exclusively with the owner or user if said unit is
incorrectly serviced, maintained or altered by persons not employed by an authorised
dealer or if the unit is used in a manner contrary to its specified purpose.
The unit has to be maintained and operated in accordance with this user manual.
Wassermann Dental-Maschinen GmbH is not responsible for damage arising from the
nonobservance of these instructions.
Warranty and responsibility provisions contained in the sales and supply conditions of
Wassermann Dental-Maschinen GmbH are not extended by these instructions.
4.1 Warranty
The warranty period for our equipment is 12 months. If faults occur within the
warranty period, contact your dental depot or get in touch directly with our service
department.
Your equipment should only be operated in perfect condition. If faults occur which
could harm operators or third parties, the unit should not be used until it has been
fixed.
This warranty does not cover damage caused by improper use, external mechanical
causes, transport damage or interference with the unit by unauthorized persons.
5 Application
Because of its variable work pressure of up to 5 bar it offers the user a gentle but quick
and thorough cleaning of all small parts in the dental laboratory.
Only use the unit Wasi-Steam Classic II for this type of application.
6

6 Before Starting
6.1 Transport
Before transporting the unit, ensure that it has been unplugged from the power socket.
Make sure that it is packed correctly in order to avoid accidental damage.
Be sure to check for any transport damage when unpacking the goods. Note
down any damage if found.
6.2 Installation
Open the box, remove the packing materials, and carefully lift out the unit and accessories.
Check the included accessories.
The unit must stand on a steady and even surface or may be mounted to a stable wall by
means of the mounting kit (available as accessory). If mounting the unit on the wall, make
sure that the wall is strong enough to take the weight. For further information please see
6.4 of this manual.
Install the unit in a place where it will not block the working area and the
functionality (take the dimensions into account).
Please see that the louvres are not set because air circulation (heat flow) is
absolutely necessary.
Do not install the unit outdoors or in places without proper ventilation.
Before start-up, be sure the unit reaches room temperature.
7

6.3 Storage
If the unit is to be stored for an extended period, protect it from moisture and dust.
The unit location is very important when it comes to workplace safety, even if it is only to
be set up there for a short period. The room should be dry, well ventilated and vibration-
free. An even temperature and wooden supports also help.
The unit should not be stored or set up outdoors.
6.4 Mounting Instruction Fastening Set for Wall Mounting Wasi-Steam Classic II
In case of wall mounting a fastening set is necessary.
Item.-no. 174358, available as accessory
Incl. in delivery item.-no. 174358 fastening set Wasi-Steam Classic II
Quantity Name
1 Securing bracket
1 Phillips head screw M 4x8
1 Washer D 4,3
1 Serrated washer D 4,3
1 Slotted screw 4 x 16
2 Slotted screw 6 x 50
2 Screw anchor S8
1 Screw anchor S5
8

Mounting instruction :
Please drill the holes as indicated in the following drilling template. Please make sure
before that the wall is really suitable for mounting a unit (aerated concrete walls and
drywall are problematic).
Drilling template
9
drilling
drilling

Secure the enclosed screw anchors as shown in Figure 1.
Screw the 6x50 screws into the two upper holes; keep a distance of 6-7 mm to the wall!
(Figure 2)
10
Screw
anchor S8
Srew 6 x 50
Screw
anchor S5
fig. 2
fig. 1

Screw the securing bracket to the Wasi-Steam Classic II as shown in Figure 3.
Do not yet fully tighten the Phillips head screw, however – you still need to be able to move
the securing bracket.
11
Securing bracket
Washer
Serrated washer
Phillips head screw
fig. 3

Carefully hook in the unit. Check, whether the unit hangs loosely (i.e. moving back and
forth on the screws). If this is the case tighten the 6x50 screws until the unit hangs
securely.

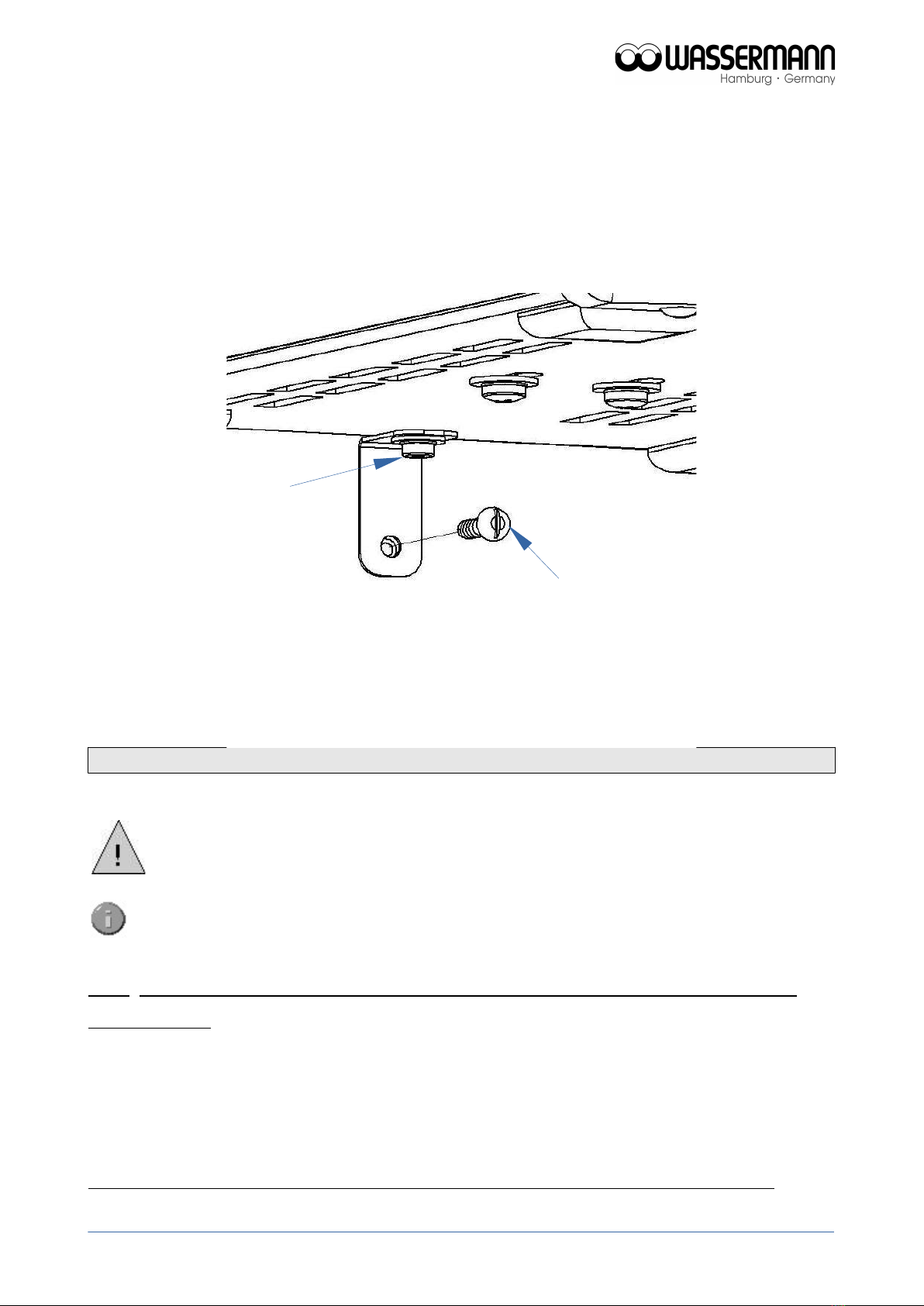

Finally tighten the securing bracket. First at the wall, then tighten the screw on the unit
itself. (Figure 4)
7 Start-up/ Installation
Before you use the steam cleaner, please put on heat-resistant gloves and wear
safety goggles.
Switch the unit off if it will not be used for an extended period.
Note: Optimal and fast pressurization is carried out only if the adjusting knob is in the
"max." position, since the heater with this is activated via a push button switch, i.e.
immediately at the start of every blasting action.
However in case of the pressure choice options “less than max.”, the heater is activated
via a thermostat, i.e. even in case of a massive decrease in pressure it may take several
minutes until the heater is activated due to residual heat of the container for example.
Therefore this setting “less than max.” is preferable only in case of occasional work.
12
tighten
Phillips head screw
in a final step
fig. 4
Screw 4 x 16

Please note the details on the equipment and equipment stickers!
1 = Light red (low water)
2 = Light green (heating operation)
3 = Controller steam quantity „0 – 5 bar“ (max. = 5 bar)
4 = Main switch (unit on / off)
5 = Srew top (pressing down to unscrew)
6 = Thermo-safety switch with manual reset (please see 8.1.1!)
7 = Fuse
13
2
1
3
7
4
6
5

•Open the screw top (5) of the container carefully while pressing down the screw top
•Fill with at most 2 litres of water
•Operation with distilled / softened water is possible and is recommended
•Tighten container screw top (5) sturdily again (hand-screwed)
•Connect power plug
•Switch on main switch (4)
•Choose pressure range from 0 – 5 (max. = 5 bar) with adjusting knob (3)
•Heat-up phase approx. 30 minutes (full container)
•Briefly deaerate the unit after approx. 15 minutes by operating the steam gun
•If the heating light (2) turns off, the unit is ready for use. Now steam blasting via the
gun is possible by operating the pushbutton until the temperature delimiter (6)
activates (button under black cap on the right side of the unit) and the red light (1)
lights up
•Then proceed by referring to point 8.1.1 "refill water"
8 Operation
8.1 General Operating Instructions
All instructions for using the unit, whether in verbal or written form, are based on our own
experience and experimentation and can only be regarded as guidelines.
To avoid an unintentional interruption of use (cooling down period
approx. 45 min.), the unit should be refilled every morning in a cold
state (take fill level into account, or else the container will be
overfilled).
Note: Do not refill more than 2 litres of water, if the red light (water
shortage) lights up (otherwise the container will be overfilled).
Operation with distilled / softened water is possible and is
recommended .
14

8.1.1 Refill the unit with water
●After the red light (1) lights up, wait approx. 45 min. (cooling down
period) until you refill again, or else there is a risk of scalding as long as
the temperature remains above 100°C
●Container must be pressureless; produce a pressure balance via the jet
nozzle by operating the steam gun
●Only now open the screw top (5) of the container carefully while pressing
down the screw top
●Refill water ( 2 litres at most )
●Operation with distilled / softened water is possible and is recommended
●Fully tighten the screw top (5) of the container again (hand-screwed)
●Switch on the temperature delimiter (6) (button under black cap on the
right side of unit) again as follows; first unscrew the black cap, then push
in the pushbutton, the red light (1) goes out and the unit heats up to the
adjusted pressure. Finally, screw the black cap back on
●Heat-up phase (see p. 14)
●Operational; i.e. steam blasting via the gun by operating the pushbutton is
possible until the temperature delimiter (6) activates again and the red
light (1) comes on
15

9 Troubleshooting
Fault Cause Solution
The red light (low
water) lights up and
the heating turns off
This is a safety
feature of the
steamer: Thermo-
safety switch
(temperature
delimiter 165°C) with
manual reset
Please see page 14/15.
No function, only the
main switch lights up
Devise fuse faulty Replace fuse and investigate cause; call
service if necessary.
Steam escapes from
unit
Safety valve has
opened because
pressure switch is
faulty
Turn off the unit immediately (unplug power
plug) and call service.
Hot water leaks from
the nozzle instead of
steam
Container is overfilled
with water
Operate gun until only steam escapes.
Lower amount of
steam than usual at
max. heating
Nozzle of the steam
gun is clogged or the
water level in the
container has
reached the minimum
level
Unscrew nozzle from gun and examine for
passage (caution risk of scalding!!) or refill
water (do not overfill!!).
Operation with distilled / softened water is
possible and is recommended.
Insufficient pressure
build-up
Tank seal is still loose
or O-ring is faulty
Check or replace tank seal.
No pressure in boiler Container empty but
red light or thermo
switch faulty or
container not empty
but heater or heating
regulator faulty
Check water level, refill if necessary and
check the thermo switch button. If still no
function, call service.
Operation with distilled / softened water is
possible and is recommended.
No steam when
operating the
pushbutton
Solenoid valve faulty
or clogged
When operating the gun's pushbutton, a
"clicking sound" is heard from the solenoid
valve. If this is the case the problem could be
resolved by cleaning the valve. Otherwise call
service.
If the above recommendations do not solve the problem, contact your dental depot
or our service department.
16

10 Care and Maintenance
10.1 Cleaning
Disconnect the power plug before starting any maintenance work.
The identification plate has always to be kept in easily legible condition and has
not to be removed.
Remove external dirt from time to time with some form of cold cleaner.
Use only cold cleaners to avoid damaging the paintwork or removing the lettering.
The equipment should be cleaned at regular intervals to ensure trouble-free
operation.
It requires only normal cleaning (sponge, damp cloth, mild detergent) and no further
chemical additives.
Please see 10.2.1 „Decalcification“
17

10.2 Maintenance
The Wasi-Steam Classic II should, depending on frequency of use, but at least twice a
year, be decalcified in accordance with the following instructions. Depending on water
hardness a more frequent decalcification could be required. Operation with distilled /
softened water is possible and is recommended. As a basic principle, the unit must always
be kept clean.
10.2.1 Decalcification
•Turn off the main switch and unplug the power plug
•Empty / pour out container in cold state
•Mix approx. 50 cc lime scale remover with 2 litres of water and fill into the unit
(depending on lime content, the ratio can be increased)
•Heating controller must be set just a little above 0 bar (heating on, but almost any
pressure)
•Close tank cap (hand-screwed)
•Switch on the unit and let it heat up briefly until the green light goes out
•Turn off the unit and allow the lime scale remover to react for approx 8 hours (lime
remover should not react longer than 12 hours)
•Pour out the solution and rinse with clear water (approx. 1 litre) at least two times by
shaking the unit
•Refill only maximal 2 litres of water (otherwise the tank could overfill)
•Operation with distilled / softened water is possible and is recommended
•The steam cleaner is now ready for operation
10.3 Repairs
Servicing or repairs to the unit has only to be carried out by qualified technicians.
Only original spare parts are to be used. Responsibility for the product is voided
if unauthorised persons alter it or if inappropriate components are installed.
18

10.4 Spare Parts
If necessary please contact our service hotline phone.
10.5 Service Hotline [phone]/ -24
10.6 Accessories for the item 174996 Wasi-Steam Classic II
Accessories Item no.
Splash protection (W 250 x H 262 x D 255 mm) 174460
Special spray nozzle Ø 2.5 mm 174352
Kalk-Ex, lime remover, 1000 ccm 655002
Fastening set for wall mounting 174358
11 Technical Data
Wasi-Steam Classic II Item no. 174996
Voltage 220-240 V / 50/60 Hz
Power consumption 5.3 A (6.3 A medium-blowing-fuse)
Output 1220 W
Dimensions W: 245 mm, H: 350 mm, D: 315 mm
Weight 12.5 kg
Working pressure max. 5 bar
Steam temperature approx. 151 °C
Boiler capacity 3.3 l
Safety class IP 22
Other voltages on request.
The noise level of the unit amounts to ≤ 70 dB (A).
Technical changes reserved.
19

12 Disposing of the Unit
The unit has to be disposed by an authorized recycling operation. The selected company
has to be informed of all possibly health-hazardous residues in the unit.
12.1 Information on Disposal for Countries within the EU
To conserve and protect the environment, prevent environmental pollution and
improve the recycling of raw materials, the European Commission adopted a
directive that requires the manufacturer to accept the return of electrical
and electronic units for proper disposal or recycling.
Within the European Union units with this symbol should not therefore be disposed of
in unsorted domestic waste.
For more information regarding proper disposal please apply at your local authoritie.
20
