Waterpik WF-13CD010 User manual

I
O
II
I

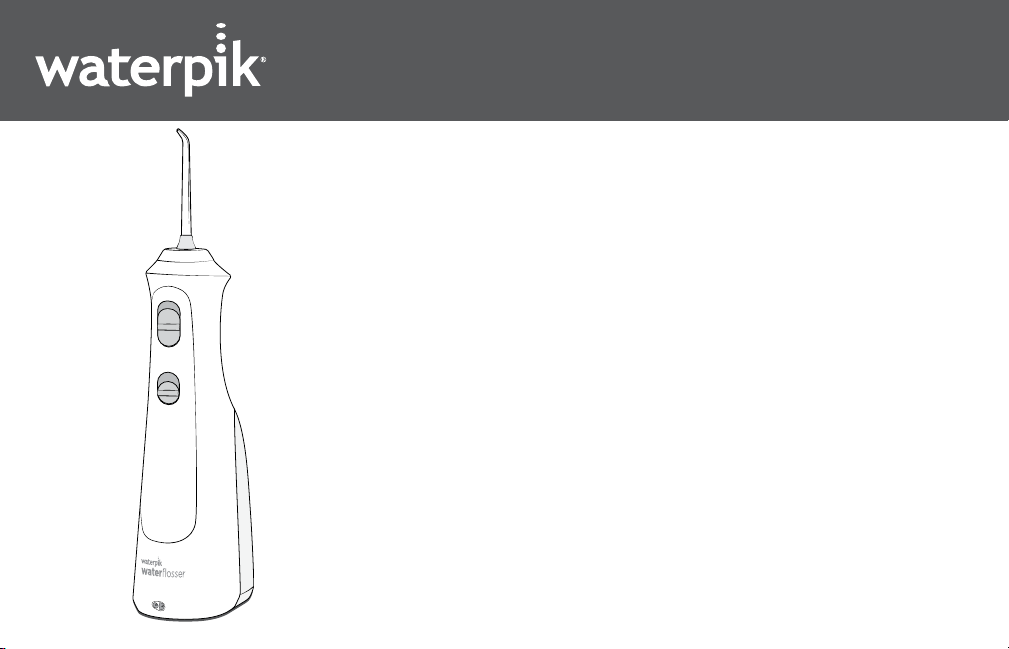

Waterpik®Water Flosser
Model WF-13CD
Hydropulseur WaterpikMD
Modèle WF-13CD
www.waterpik.com

IMPORTANT
SAFEGUARDS
• This product is for household use.
When using electrical products, especially when children are present,
basic safety precautions should always be followed, including
the following:
READ ALL INSTRUCTIONS BEFORE USING.
DANGER:
To reduce the risk of electrocution:
• Do not handle charger with wet hands.
• Do not place charger in or drop charger into water or other liquid.
• Check the charger cord for damage before the rst use and during
the life of the product.
IMPORTANT SAFEGUARDS
WARNING:
To reduce the risk of burns, electrocution, ire,
or injury to persons:
• Do not charge this unit with any charging devices other than the
one provided.
• Do not plug this device into a voltage system that is dierent from
the voltage system specied on the device or charger.
• Do not direct water under the tongue, into the ear, nose or other
delicate areas. This product is capable of producing pressures that
may cause serious damage in these areas.
• Do not direct water into the nose or ear. The potentially deadly
amoeba, Naegleria fowleri, may be present in some tap water
or unchlorinated well water and may be fatal if directed into
these areas.
• Use this product only as indicated in these instructions or as
recommended by your dental professional.
•
Only use tips and accessories that are recommended by
Water Pik, Inc.
• Do not drop or insert any foreign object into any opening on
the product.
2

• Keep charging unit and cord away from heated surfaces.
• Do not use this product outdoors or operate where aerosol (spray)
products are being used or where oxygen is being administered.
• Do not use iodine, bleach, or water insoluble concentrated essential
oils in this product. Use of these can reduce product performance and
will shorten the life of the product.
• Fill reservoir with water or other dental professional recommended
solution only.
• Remove any oral jewelry prior to use of this product.
• Do not use if you have an open wound on your tongue or in
your mouth.
• If your physician advised you to receive antibiotic premedication
before dental procedures, you should consult your dentist before
using this instrument or any other oral hygiene aid.
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
• Children should be supervised to ensure that they do not play with
the appliance.
• If the supply cord is damaged, it must be replaced by a special cord
or assembly available from the manufacturer or its service agent.
• Do not use this product if it has a damaged cord or plug, if it is not
working properly, if it has been dropped or damaged, or dropped
into water. Contact Water Pik, Inc. at 1-800-525-2774 or visit
www.waterpik.com for more information.
SAVE THESE
INSTRUCTIONS
ENGLISH
3

TABLE OF CONTENTS
Product Description 5
Getting Started 6
Cleaning and Troubleshooting Your Waterpik® Water Flosser 8
Battery Removal 9
Service and maintenance 10
Limited Two Year Warranty 11
4

1. Tip rotator
2. Power switch
3. Pressure control
4. Power handle
5. Charger inlet
6. Tip
7. Tip eject button
8. Flip top water inlet
9. Reservoir
I
O
II
I
Charger
Water Pik PN 20030574-1 (White)
Water Pik PN 20030574-2 (Black) TIPS
A. Orthodontic Tip*
- Braces/General Use
B. Pik Pocket™ Tip*
- Periodontal Pockets/
Furcations
C. Plaque Seeker™ Tip*
- Implants/Crowns/
Bridges/Retainers/
General Use
NOT ALL TIPS INCLUDED IN ALL MODELS
A
D
B
E
C
F
*Replace Every 3 months **Replace Every 6 months
Replacement tips/attachments may be purchased online
at www.waterpik.com or by phone from Water Pik, Inc.
at 1-800-525-2774. To nd detailed information about
tips, other accessories, and product usage please visit our
website at www.waterpik.com.
PRODUCT DESCRIPTION
D. Toothbrush Tip*
- General Use
E. Classic Jet Tip**
- General Use
F. Tongue Cleaner**
- Fresher Breath
1
5
7
8
9
6
4
3
2
ENGLISH
5

66
I
O
II
I
Insert
Important!
Turn Water Flosser o and charge for 24 hours before rst use. Plug the cord into any standard electrical outlet. Make sure you
push the switch into the OFF (O) position before charging. The unit will not charge if the switch is in the ON (|) position. See “Cleaning
and Troubleshooting Your Waterpik® Water Flosser” for guidance on how to look aer your battery. The Waterpik® Water Flosser will
stay charged for up to 2 weeks depending on use.
Filling the Reservoir
Li ip top on reservoir and ll the reservoir with lukewarm water.
Inserting and Removing Tips
Insert tip into the center of the knob at the top of the Water Flosser handle. The colored ring will be ush with the end of the knob if the
tip is correctly locked into place.
To remove the tip from the handle, press the tip eject button and pull tip from the handle.
Adjusting the Pressure Setting
You can adjust the pressure setting on your Water Flosser by simply sliding the pressure switch on the handle.
Recommended Technique
Lean low over sink and place the tip in mouth. Aim the tip toward teeth, and turn the unit ON (|).
For best results, start with the back teeth and work toward the front teeth. Glide tip along gumline and pause briey between teeth.
Continue until you have cleaned the inside and outside of both the upper and lower teeth.
Direct the jet stream at a 90-degree angle to your gumline. Slightly close lips to avoid splashing but allow water to ow freely from
mouth into the sink. Keep unit upright during use for best results.
When Finished
Turn the unit OFF (O). Empty any liquid le in the reservoir. If desired, the reservoir may be removed from the power handle by pulling
the reservoir release latch while sliding the reservoir down towards the base of the unit.
To replace the reservoir on the power handle, simply slide it up towards the top of the unit. The reservoir will snap into place when fully engaged.
Eject
Fill
I
O
II
I
Pressure
Setting
1.
2.
Remove
GETTING STARTED

7
ENGLISHENGLISH
7
NOTE: NOT ALL TIPS INCLUDED WITH ALL MODELS.
TIP USAGE
Pik Pocket™ Tip
The Pik Pocket™ tip is specically designed to deliver water or anti-bacterial solutions deep into periodontal pockets.
To use the Pik Pocket™ tip, set the unit to the lowest pressure setting. Place the so tip against a tooth at a 45-degree angle and gently
place the tip under the gumline, into the pocket.
Tongue Cleaner Tip
Set to lowest pressure setting, place tip in the center/middle of your tongue about half way back. Pull forward with light pressure.
Increase pressure as you prefer.
Orthodontic Tip
To use the orthodontic tip, gently glide tip along gumline, pausing briey to lightly brush area between teeth and all around orthodontic
bracket, before proceeding to the next tooth.
Toothbrush Tip
Place the toothbrush tip in mouth with the brush head on the tooth at the gumline. The toothbrush tip can be used with or
without toothpaste.
Using a light pressure (bristles should not bend) massage the brush back and forth with very short strokes – much like you would
with a manual toothbrush.
Plaque Seeker™ Tip
To use the Plaque Seeker™ tip, place the tip close to the teeth so that the bristles are gently touching the teeth. Gently glide tip along
gumline, pausing briey between teeth to gently brush and allow the water to ow between the teeth.

88
Using Mouthwash and Other Solutions
Your Waterpik® Water Flosser can be used to deliver mouthwash and antibacterial solutions. Aer using any special solution, rinse
unit to prevent clogging by partially lling reservoir with warm water and running unit with tip pointed into sink until unit is empty.
Cleaning
Never immerse unit in water. Before cleaning, unplug from the electrical outlet. Clean the product when necessary by using a so
cloth and mild non-abrasive cleanser to wipe exterior.
The water reservoir is removable for easy cleaning and is top rack dishwasher safe. It is recommended that the reservoir is removed
and cleaned weekly.
Removing Hard Water Deposits / General Cleaning
Hard water deposits may build up in your unit, depending on the mineral content of your water. If le unattended,
it can hinder performance.
Cleaning internal parts: add 1 tablespoon of white vinegar to a full reservoir of warm water. Point the handle and tip into sink.
Turn unit ON and run until reservoir is empty. Rinse by repeating with a full reservoir of clean warm water.
This process should be done every 1 to 3 months to ensure optimal performance.
Battery Care and Disposal
The unit will not charge if the switch is in the ON(|) position. If you use your Water Flosser once a day or less, it is recommended you
charge it overnight, once a week. If you use it twice a day or more, charge the unit more frequently. Do not run the batteries down
completely as this may shorten the lifespan of the batteries and will require charging the unit for 24 hours to obtain a full charge.
If the Water Flosser is to be stored for an extended period of time (six months or more), be sure to fully charge it prior to storage.
The unit contains a Nickel Metal Hydride battery.
CLEANING AND TROUBLESHOOTING YOUR WATERPIK® WATER FLOSSER

9
ENGLISHENGLISH
9
Battery Removal
The product contains battery and/or recyclable electronic waste. In order to protect the environment,
please do not dispose along with household waste. When battery life ends, please dispose or recycle
according to local administrative regulations.
Please contact local waste administrative department for any questions.
If you intend to dispose the battery on your own, for example, for WF-13 models, please discharge battery
fully before removal and follow below steps to remove battery:
1. Power o the device, pull the reservoir release latch and take out the reservoir.
2. Remove the rear cover by breaking the joints at the handle (both sides) and top cover.
3. Remove 6 screws to remove chassis from unit to gain access to battery.
4. Remove tip rotator by prying it o with a at blade screwdriver
5. Remove chassis from Unit.
6. Flip chassis over to expose battery. Remove two screws
7. Cut these two wires and pry battery out of chassis.
The removed battery should be disposed safely by special recycling center
WARNING: The battery of this product is not replaceable. Please do not disassemble the product
unless you want to dispose it. Otherwise the warranty service will be void..
1.
2.
3.
4.
5.
6.
7.
8.
1.
2.
3.
4.
5.
6.
7.
8.
cut

1010
Service Maintenance
Waterpik® Water Flossers have no consumer-serviceable electrical items and do not require routine service maintenance.
For all parts and accessories go to www.waterpik.com. You may also call our toll-free customer service number at
1-800-525-2774 (USA). Refer to the serial and model numbers in all correspondence. These numbers are located on the
bottom of your unit.
Still have questions? Go to www.waterpik.com.
Water Pik, Inc. warrants to the original consumer of this new product that it is free from defects in materials and workmanship
for 2 years from the date of purchase. Consumer will be required to submit the original purchase receipt as proof of purchase
date and if requested, the entire product, to support a warranty claim. Water Pik, Inc. will replace at its discretion the product,
which in its opinion is defective, provided the product has not been abused, misused, altered or damaged aer purchase, was
used according to instructions, and was used only with accessories or consumable parts approved by Water Pik, Inc. This limited
warranty excludes accessories or consumable parts such as tips, etc.
This warranty gives you specic legal rights. You may also have other rights that vary, depending on the law in your place
of residence.
WATER PIK, INC. DISCLAIMS ALL OTHER EXPRESS OR IMPLIED WARRANTIES TO THE EXTENT PERMITTED BY LAW
INCLUDING, BUT NOT LIMITED TO, ALL WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
ALL IMPLIED WARRANTIES ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY. SOME STATES OR PROVINCES
MAY NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE MAY NOT APPLY TO YOU.
SERVICE AND MAINTENANCE
