Wayne-Dalton TOROQUEMASTER PLUS Quick start guide

This Installation document is available at no charge from:
- Your local Wayne Dalton Sales Center, or
- Online at www.Wayne-Dalton.com, or
- By mailing to: Wayne Dalton, a division of Overhead Door Corporation, P.O. Box
67, Mt. Hope, OH., 44660
©Copyright 2020 REV20_08/10/2020Part Number
Table Of Contents
345574
PLEASE DO NOT RETURN THIS PRODUCT
TO THE STORE
If you need assistance, please call 1-866-
569-3799 (press Option 1) and follow the
prompts to contact a customer service
representative. They will be happy to handle
any questions that you may have.
Pre-Installation 2
Important Safety Instructions 2
Removing an Existing Door and Preparing the Opening 2
Package Contents 3
Door Section Identification 4
Tools Required 4
Breakdown Of Parts 5
Door Installation Instructions 6
Counterbalance Installation Instructions 9
Optional Installation 15
TorqueMaster®Plus Reset Instructions 15
Door Arm Hookup 15
Inside Lock 15
Pull Down Rope 16
Maintenance 17
Cleaning Your Garage Door 17
Maintaining The Finish On Your Garage Door 17
Operation And Maintenance 17
Warranty 18
Wayne Dalton, a division of Overhead Door Corporation
Model 9800
To r q u e Ma s T e r ®P l u s
InsTallaTIon InsTrucTIons and owner’s
Manual
resIdenTIal
sTandard lIfT
To avoid possible injury, read and fully understand the enclosed
instructions carefully before installing and operating the garage door. Pay
close attention to all warnings and notes. After installation is complete,
fasten this manual near garage door for easy reference.
IMPORTANT NOTICES!

Important Safety Instructions
DEFINITION OF KEY WORDS USED IN THIS MANUAL:
WARNING
INDICATES A POTENTIALLY HAZARDOUS SITUATION WHICH; IF NOT
AVOIDED, COULD RESULT IN SEVERE OR FATAL INJURY.
CAUTION
PROPERTY DAMAGE OR INJURY CAN RESULT FROM FAILURE TO FOLLOW
INSTRUCTIONS.
IMPORTANT: REQUIRED STEP FOR SAFE AND PROPER DOOR OPERATION.
NOTE: Information assuring proper installation of the door.
READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING INSTALLATION. IF
IN QUESTION ABOUT ANY OF THE PROCEDURES, DO NOT PERFORM THE WORK.
INSTEAD, HAVE A TRAINED DOOR SYSTEMS TECHNICIAN DO THE INSTALLATION OR
REPAIRS.
1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS.
2. Wear protective gloves during installation to avoid possible cuts from sharp metal
edges.
3. It is always recommended to wear eye protection when using tools, otherwise eye
injury could result.
4. Avoid installing your new door on windy days. Door could fall during the installation
causing severe or fatal injury.
5. Doors 12’-0” wide and over should be installed by two persons, to avoid possible
injury.
6. Operate door only when it is properly adjusted and free from obstructions.
7. If a door becomes hard to operate, inoperative or is damaged, immediately have
necessary adjustments and/ or repairs made by a trained door system technician using
proper tools and instructions.
8. DO NOT stand or walk under a moving door, or permit anybody to stand or walk under
an electrically operated door.
9. DO NOT place fingers or hands into open section joints when closing a door. Use lift
handles/ gripping points when operating door manually.
10. DO NOT permit children to operate garage door or door controls. Severe or fatal injury
could result should the child become entrapped between the door and the floor.
11. Due to constant extreme spring tension, do not attempt any adjustment, repair or
alteration to any part of the door, especially to springs, spring brackets, bottom corner
brackets, fasteners, counterbalance lift cables or supports. To avoid possible severe or
fatal injury, have any such work performed by a trained door systems technician using
proper tools and instructions.
12. On electrically operated doors, pull down ropes must be removed and locks must be
removed or made inoperative in the open (unlocked) position.
13. Top section of door may need to be reinforced when attaching an electric opener.
Check door and/ or opener manufacturer’s instructions.
14. Visually inspect door and hardware monthly for worn and or broken parts. Check to
ensure door operates freely.
15. Test electric opener’s safety features monthly, following opener manufacturer’s instruc-
tions.
16. NEVER hang tools, bicycles, hoses, clothing or anything else from horizontal tracks.
Track systems are not intended or designed to support extra weight.
17. This door may not meet the building code wind load requirements in your area. For
your safety, you will need to check with your local building official for wind load code
requirements and building permit information.
18. For windloaded doors, the wind performance is achieved via the entire door system
and component substitution is not authorized without express permission by Wayne
Dalton.
NOTE: It is recommended that 5/16” lag screws are pilot drilled using a 3/16” drill bit, prior
to fastening.
CAUTION
IF ANY PART OF THE DOOR IS TO BE INSTALLED ONTO PRESERVATIVE-
TREATED WOOD, PTFE-COATED OR STAINLESS STEEL FASTENERS MUST BE
OBTAINED AND USED. REPLACEMENT FASTENERS MUST BE OF AT LEAST
EQUAL STRENGTH AND SIZE AS ORIGINAL FASTENERS. IF THE ORIGINAL
FASTENER WAS RED-HEAD, THE REPLACEMENT FASTENER MUST BE RED-
HEAD ALSO. CONTACT WAYNE DALTON FOR FASTENER STRENGTH VALUES IF
NEEDED.
WARNING
IMPACT GUNS ARE NOT RECOMMENDED. WHEN INSTALLING 5/16” LAG
SCREWS USING AN ELECTRIC DRILL/ DRIVER, THE DRILL/ DRIVERS
CLUTCH MUST BE SET TO DELIVER NO MORE THAN 200 IN-LBS OF
TORQUE. FASTENER FAILURE COULD OCCUR AT HIGHER SETTINGS.
IMPORTANT: RIGHT AND LEFT HAND IS DETERMINED INSIDE THE BUILDING LOOKING OUT.
Potential Hazard Effect Prevention
Moving door
WARNING
Could result in Death or Serious
Injury
Keep people clear of opening
while Door is moving.
Do NOT allow children to play
with the Door Opener.
Do NOT operate a Door that
jams or one that has a broken
spring.
High tension spring
WARNING
Could result in Death or Serious
Injury
Do NOT try to remove, install,
repair or adjust springs or
anything to which door spring
parts are fastened, such as,
wood blocks, steel brackets,
cables or other like items.
Installations, repairs and
adjustments must be done by
a trained door system techni-
cian using proper tools and
instructions.
Removing an Existing Door
and Preparing the Opening
IMPORTANT: COUNTERBALANCE SPRING TENSION MUST ALWAYS BE RELEASED BEFORE
ANY ATTEMPT IS MADE TO START REMOVING AN EXISTING DOOR.
WARNING
A POWERFUL SPRING RELEASING ITS ENERGY SUDDENLY CAN CAUSE
SEVERE OR FATAL INJURY. TO AVOID INJURY, HAVE A TRAINED DOOR
SYSTEMS TECHNICIAN, USING PROPER TOOLS AND INSTRUCTIONS,
RELEASE THE SPRING TENSION.
To avoid possible injury and to insure proper installation, it's highly recommended that you
read and fully understand the complete instructions on removing an Existing Door & Prepar-
ing the Opening. These are available for download at www.Wayne-Dalton.com or at your
local Wayne Dalton Sales Center.
IMPORTANT: IF YOU JUST REMOVED YOUR EXISTING DOOR OR YOU ARE INSTALLING A
NEW DOOR, COMPLETE ALL STEPS IN PREPARING THE OPENING.
To ensure secure mounting of track brackets, side and center brackets, or steel angles to
new or retro-fit construction, it is recommended to follow the procedures outlined in DASMA
technical data sheets #156, #161 and #164 at www.dasma.com.
The inside perimeter of your garage door opening should be framed with wood jamb
and header material. The jambs and header must be securely fastened to sound framing
members. It is recommended that 2” x 6” lumber be used. The jambs must be plumb and
the header level. The jambs should extend a minimum of 12” (305 mm) above the top of
the opening for TorqueMaster®counterbalance systems. For low headroom applications, the
jambs should extend to the ceiling height. Minimum side clearance required, from the open-
ing to the wall, is 3-1/2” (89 mm).
IMPORTANT: CLOSELY INSPECT JAMBS, HEADER AND MOUNTING SURFACE. ANY WOOD
FOUND NOT TO BE SOUND, MUST BE REPLACED.
For TorqueMaster®counterbalance systems, a suitable mounting surface (2” x 6”) must be
firmly attached to the wall, above the header at the center of the opening.
2
Pre-Installation

NOTE: Drill a 3/16” pilot hole in the mounting surface to avoid splitting the lumber. Do not
attach the mounting surface with nails.
WEATHERSTRIPS (MAY NOT BE INCLUDED):
Depending on the size of your door, you may have to cut or trim the weatherstrips (if neces-
sary) to properly fit into the header and jambs.
NOTE: If nailing product at 40°F or below, pre-drilling is required.
NOTE: Do not permanently attach weatherstrips to the header and jambs at this time.
FOR QUICK INSTALL TRACK: For the header, align the weatherstrip with the inside edge
of the header and temporarily secure it to the header with equally spaced nails. Starting
at either side of the jamb, fit the weatherstrip up tight against the temporarily attached
weatherstrip in the header and flush with the inside edge of the jamb. Temporarily secure
the weatherstrip with equally spaced nails. Repeat for other side. This will keep the bottom
section from falling out of the opening during installation. Equally space nails approximately
12” to 18” apart.
FOR FULLY ADJUSTABLE TRACK: For the header, align the weatherstrip 1/8” to 1/4” inside
the header edge, and temporarily secure it to the header with equally spaced nails. Starting
at either side of the jamb, fit the weatherstrip up tight against the temporarily attached
weatherstrip in the header and 1/8” to 1/4” inside the jamb edge. Temporarily secure the
weatherstrip with equally spaced nails. Repeat for other side. This will keep the bottom sec-
tion from falling out of the opening during installation. Equally space nails approximately 12”
to 18” apart.
HEADROOM REQUIREMENT: Headroom is defined as the space needed above the top of
the door for tracks, springs, etc. to allow the door to open properly. If the door is to be motor
operated, 2-1/2” (64 mm) of additional headroom is required.
NOTE: 6” low headroom conversion kit is available for 12” radius only. Contact your local
Wayne Dalton dealer.
BACKROOM REQUIREMENT: Backroom is defined as the distance needed from the opening
back into the garage to allow the door to open fully.
BACKROOM REQUIREMENTS
DOOR HEIGHT TRACK MANUAL LIFT MOTOR OPERATED
6’0” to 7’0” 15” Radius 102” (2591 mm) 125” (3175 mm)
7’1” to 8’0” 15” Radius 114” (2896 mm) 137” (3480 mm)
HEADROOM REQUIREMENTS
TRACK TYPE SPACE NEEDED
15” Radius track 13-1/2” (343 mm)
Weatherstrips
Level header
Finished
Door width
Jambs
Backroom
Plumb
jambs
Finished
Door
Height
Nail
Headroom
Header board 2”x 6”
lumber preferred
Suitable mounting surface
2”x 6” lumber minimum
Min. Side
room
Clearance
is 3-1/2”
Min. Side
room
Clearance
is 3-1/2”
1/8” to 1/4”
1/8” to 1/4”
Other track systems
Weather
seal
Jamb
Door
Stop
Jamb
Door
Stop
Jamb
W
eather
seal
Jamb
Quick Install track
Package Contents
NOTE: Depending on the door model, some parts listed will not be supplied if not required.
Rear Back Hangs may not be included with your door.
Door sections (as required)
TorqueMaster®spring tube
Quick Install flag angles RH/LH (as required
)
(2) Horizontal track angles (as required)
Horizontal tracks RH/LH (as required)
Vertical tracks RH/LH (as required)
Riveted vertical track assemblies RH/LH (as required)
Fully Adjustable flag angles
RH/LH (as required)
Quick install jamb
brackets (as required)
Fully Adjustable jamb
brackets (as required)
Pull down
rope (if included) Weatherstrips & nails
(If included)
Door stop & nails
(If included)
(2) Top fixture base
s(2) Top fixture slides Drawbar operator
bracket (if included)
Track rollers
(as required)
Cable drum
assemblies RH/LH
Drum wraps
RH/LH (optional)
Idler bracket
(single spring only)
Center bracket
bushing assembly
(2) 3/8”- 16 Hex nuts 1/4”- 20 Flanged
hex nuts (as required)
(2) 5/16” Washers
(2) 5/16”-18 Hex nuts
Left hand end
bracket (as required)
RatchetPawl
ENGAGEDSIDEVIEW
NDERNEATHVIEW
Right hand
end bracket
(2) 5/16”-18 x 3/4”
Carriage bolts
(4) 1/4”-20 x 5/8”
Carriage bolts (as required)
3

5/16” x 1-5/8” Hex head lag screws
(as required) 1/4”-20 x 11/16” Self drilling screws (as required)
1/4”-14 x 5/8” Self tapping
screws (as required)
(2) 3/8”-16 x 3/4”
Truss head bolts
Cotter pin5/16” x 1-1/4” Clevis pin
1/4”-20 x 9/16”
Track bolts (as required)
Door Section Identification
Graduated end and center hinges are always pre-attached at the top of each section (except
top section) and the graduated end hinges are stamped for identification, #1, #2 and #3. The
stamp identifies the stacking sequence of the section. The sequence is always determined by
#1 being the bottom section to #2 or #3 being the highest intermediate section. If the stamp
on the graduated end hinge is illegible, refer to the section side view illustration. The section
side view illustration shows the graduated end hinge profile of all sections, and can also be
used to identify each section.
The BOTTOM SECTION can be identified by #1 graduated end hinges, the factory attached
bottom weather seal, the factory attached bottom corner brackets and by the bottom corner
bracket warning labels on each end stile.
The LOCK SECTION can be identified by #2 graduated end hinges on a 4 section high door
and by #3 graduated end hinges on a 3 section high door. Also, on a 3 section door, the lock
section will come with a warning label attached to the right or left endstile.
The INTERMEDIATE SECTION can be identified by #3 graduated end hinges (Only on a 4
section high door). The section will have a warning label attached to either the right or left
hand end stile.
The TOP SECTION can be identified with no pre-installed graduated end or center hinges.
Warning label
Warning label
Intermediate section
Lock section
Bottom corner bracket warning labels
Bottom section
Bottom weather seal
#3
#2
#1
Bottom corner
bracket
Bottom
weather seal
Section side view illustration
#2 Graduated
end hinge
1-1/8”
7/8”
1-3/8”
Typical
graduated end
hinge stamping
location
Top section
#1
Graduated
end hinge
#3 Graduated
end hinge
Tools Required
Power drill Socket driver: 7/16” Level
Drill bits: 1/8”, 3/16”,
9/32”, 7/16”, 1/2”
Ratchet wrench Tape measure Pliers / Wire cutters Flat tip screwdriver
Phillips head screwdrive
rWrenches: 3/8”, 7/16”,
1/2”, 9/16”, 5/8”
3” Ratchet
extension
Sockets: 7/16”,
1/2”, 9/16”, 5/8”
Vise clamps Hammer Step ladder PencilLeather gloves
Locking pliersSafety glasses Approved winding bars Saw horses
4

5
A. FLAG ANGLES (AS REQUIRED):
A1. Quick Install (Q.I.) Flag Angles
A2. Fully Adjustable (F.A.) Flag Angles
B. JAMB BRACKETS (AS REQUIRED):
B1. Quick Install (Q.I.) Jamb Brackets
B2. Fully Adjustable (F.A.) Jamb Brackets
C. TRACK ROLLERS (AS REQUIRED):
C1. Short Stem Track Rollers
C2. Long Stem Track Rollers
D. GRADUATED END HINGES:
D1. Single Graduated End Hinges (S.E.H.), Anti-Pinch
D2. Double Graduated End Hinges (D.E.H.), Anti-Pinch
E. STACKED SECTIONS:
E1. Top Section
E2. Intermediate(s) Section
E3. Lock Section
E4. Bottom Section
F. TOP FIXTURES (AS REQUIRED):
F1. Top Fixture Bases - (L - Shaped)
F2. Top Fixture Slides - (L - Shaped)
G. STRUT(S) (AS REQUIRED):
G1. Strut (U - shaped)
H. DRAWBAR OPERATOR BRACKET (FOR TROLLEY OPERATED DOORS):
H1. Drawbar Operator Bracket
I. TRACKS (AS REQUIRED):
I1. Left Hand Horizontal Track Assembly
I2. Right Hand Horizontal Track Assembly
I3. Left Hand Vertical Track
I4. Right Hand Vertical Track
I5. Left Hand Riveted Vertical Track Assembly
I6. Right Hand Riveted Vertical Track Assembly
J. TORQUEMASTER PLUS®SPRING ASSEMBLY:
J1. Center Bracket Bushing Assembly
J2. TorqueMaster®Spring Tube (Single Or Double Springs)
J3. Left Hand End Bracket (Double Springs Only)
J4. Right Hand End Bracket (Disconnect Cable Guide)
J5. Left Hand And Right Hand Cable Drum Assemblies
J6. Idler bracket (Single Spring Only)
J7. Left Hand And Right Hand Drum Wraps (Optional)
K. REAR BACK HANGS:
K1. Left Hand And Right Hand Rear Back Hang Assemblies
A1.
A1. A2.
B1.
B2.
B1.
B2.
C1.
C1.
C1.
C2.
D1.
D2.
E4.
E1.
E2.
E3.
F1.
G1.
H1.
I4.
I2.
I1.
I3.
K1.
K1.
J3.
J4.
J1.
J6.
J5.
J2.
Lower hole
of hole/
slot pattern
3rd
hole set
Top of vertical
track
B2. (Fully
Adjustable
Feature)
2nd
hole set
1st
hole set
B1. (Quick
Install
Feature)
3rd hole
set
Top of vertical
track
2nd
hole set
1st hole
set Middle
hole
Bottom
hole
Top
hole
NOTE: The illustrations shown on this page are general
representations of the door parts. Each specific door
models may have unique variations.
J5.
J7.
J7.
A2.
I6.
I5.
F2.
F1.
F2.
BREAKDOWN OF PARTS

DOOR INSTALLATION
INSTRUCTIONS
Before installing your door, be certain that you have read and followed all of the instruc-
tions covered in the pre-installation section of this manual. Failure to do so may result in an
improperly installed door.
NOTE: Reference TDS 160 for general garage door terminology at www.dasma.com.
IMPORTANT: IF THE DOOR WILL BE EXPOSED TO A SIGNIFICANT AMOUNT OF ROAD SALT,
PAINT THE BARE GALVANIZED BOTTOM WEATHER STEEL RETAINER TO INHIBIT RUSTING.
Attaching Flag Angles and Jamb Brackets To
Vertical Tracks
1
NOTE: If you have Riveted Track or Angle Mount Track, skip this step.
FOR DOORS WITH QUICK INSTALL TRACK: Place the lower Quick Install tab of the left
hand flag angle in the Quick Install feature of the left hand vertical track. Give the flag angle
1/4 turn to lock in place. Measure the length of the vertical tracks. Using the jamb bracket
schedule, determine the placement of the jamb brackets for your door height and track
length. To install the jamb brackets, align the Quick Install tab on the Quick Install jamb
bracket with the Quick Install feature in the vertical track and turn the bracket perpendicular
to the track so the mounting flange is toward the back (flat) leg of the track. Repeat the same
process for right hand side.
(9800 Non-Sonoma) Jamb Bracket Schedule
DOOR
HEIGHT
TRACK
LENGTH
1ST SET 2ND SET 3RD SET
JAMB
BKT
POSITION JAMB
BKT
POSITION JAMB
BKT
POSITION
6’0” 64.00” 5 M 6 B NA
6’6” -
6’8”
70.00” 3 M 5 B NA
6’10” -
7’0”
74.00” 3 B 5 B NA
7’3” -
7’9”
79.00” 3 B 5 B 6 B
8’0” (4
Sec)
88.00” 3 M 6 T 7 M
B= BOTTOM HOLE, M= MIDDLE HOLE, T= TOP HOLE
(9800 Sonoma) Jamb Bracket Schedule
DOOR
HEIGHT
TRACK
LENGTH
1ST SET 2ND SET 3RD SET
JAMB
BKT
POSITION JAMB
BKT
POSITION JAMB
BKT
POSITION
6’6” -
6’8”
70.00” 3 M 5 B NA
6’10” 74.00” 3 M 7 T NA
7’0” 76.00” 3 B 5 B NA
7’4” -
7’6”
80.00” 3 B 5 B 6 B
7’8” -
8’0” (4
Sec)
84.00” 3 M 6 T 7 M
B= BOTTOM HOLE, M= MIDDLE HOLE, T= TOP HOLE
1/4
Turn
Left hand
vertical
track
NOTE: Repeat the
same process for
the right hand side.
Left hand
flag angle
1/4
Turn
Left hand
jamb bracket
Left hand
jamb bracket
3rd
Set
1st
Set
2nd Set Bottom
hole
Top
hole Middle hole
FOR DOORS WITH FULLY ADJUSTABLE TRACK: Hand tighten the left hand flag angle to
the left hand vertical track using (2) 1/4” - 20 x 9/16” track bolts and (2) 1/4” - 20 flange
hex nuts.
NOTE: The bottom jamb bracket is always the shortest bracket, while the center jamb
bracket is the next tallest. If three jamb brackets per side are included with your door, you will
have received a top jamb bracket, which is the tallest.
To attach the bottom jamb bracket, locate lower hole of the hole/ slot pattern of the 1st hole
set on the vertical track. Align the slot in the jamb bracket with the lower hole of the hole/ slot
pattern. Hand tighten jamb bracket using (1) 1/4” - 20 x 9/16” track bolt and (1) 1/4” – 20
flange hex nut.
Place the center jamb bracket over the lower hole of the hole/ slot pattern that is centered
between the bottom jamb bracket and flag angle of the 2nd hole set. Hand tighten jamb
bracket using (1) 1/4” - 20 x 9/16” track bolt and (1) 1/4” - 20 flange hex nut.
If a top jamb bracket was included, hand tighten it to vertical track using the lower hole of the
hole/ slot pattern in the 3rd hole set and (1) 1/4” - 20 x 9/16” track bolt and (1) 1/4” - 20
flange hex nut.
(2) 1/4”- 20 x 9/16”
Track bolts
(2) 1/4”- 20
Flange hex nuts
12” Radius track15” Radius track
(2) 1/4”- 20 Flange hex nuts
Slot Slot
Left hand
flag angle
Left hand
flag angle
12” Or 15”
Radius
Horizontal
track
Left hand
vertical track
NOTE: Loosely fasten components
together. Repeat the same process for the
right hand side.
Left hand
flag angle
Left hand
jamb bracket
Left hand
jamb bracket
3rd
Set
1st
Set
2nd
Set
1/4”- 20 x 9/16”
Track bolt
1/4”- 20
Flange hex
nut
Attaching Horizontal Track Angles
2
NOTE: For larger doors, a full length horizontal track angle may not already be spot welded to
the horizontal track. If the horizontal track angle is not welded, the horizontal track angle will
be installed, as shown.
Position the left hand horizontal track angle, as shown. Place the Quick Install tabs of the
horizontal track angle in the key slot of the left hand horizontal track. Using a hammer, tap
the horizontal track angle towards the curved end of the track until the alignment hole in the
track and angle are aligned. Repeat for other side. Set tracks aside.
Left hand horizontal
track angle
Key slots
Left hand
horizontal track
Quick
Install tabs
Quick Install tabs
in place
Left hand horizontal
track
Left hand horizontal
track angle
Quick
Install tabs
NOTE:
Repeat the same
process for the right hand side.
Or
Attaching Counterbalance Lift Cables and
Track Rollers
3
NOTE: Refer to door section identification, located in the pre-installation section of this
manual or refer to Breakdown Of Parts.
NOTE: Cable drum assemblies are marked right and left hand.
6

WARNING
ENSURE TIGHT FIT OF CABLE LOOP OVER MILFORD PIN TO PREVENT
COUNTERBALANCE LIFT CABLE FROM COMING OFF THE PIN, WHICH
COULD ALLOW THE DOOR TO FALL AND RESULT IN SEVERE OR FATAL
INJURY.
Uncoil the counterbalance lift cables from the cable drum assemblies, making sure you
place the left hand cable loop on the left hand milford pin of the bottom corner bracket and
the right hand cable loop on the right hand milford pin of the bottom corner bracket. Insert
a short stem track roller into the bottom corner brackets and another into the #1 graduated
end hinges at the top of the bottom section.
NOTE: Larger doors will use long stem track rollers with double graduated end hinges.
NOTE: Verify bottom weather seal is aligned with bottom section. If there is more than 1/2”
excess weather seal on either side, trim weather seal even with bottom section.
Counterbalance
lift cable
Left hand cable
drum assembly
Counterbalance
lift cable
Bottom weather seal
Cable loop
Bottom section
Cable loop
Bottom corner
bracket warning label
Bottom corner
bracket warning label
Right hand cable drum assembly
Milford pin Milford pin
Long stem
track roller
Double graduated
end hinge
(Hinge tube)
Left hand cable
drum assembly
Bottom section
Counterbalance
lift cable
Short stem
track roller
Bottom
corner
bracket
warning
label
Bottom corner
bracket warning label
#1 Single
graduated
end hinge
(Hinge tube)
Bottom
weather
seal
Left hand cable
drum assembly
#1 Single
graduated end
hinge (Hinge tube)
Milford
pin
Cable
loop
Short stem
track roller
Bottom
section
Counterbalance
lift cable
Bottom
corner
bracket
Short
stem
track
roller
Positioning Bottom Section
4
Center the bottom section in the door opening. Level the section using wooden shims (if
necessary) under the bottom section. When the bottom section is leveled, temporarily hold it
in place by driving a nail into the jamb and bending it over the edge of the bottom section on
both sides.
Weather seal (If applicable)
Level
Bottom section
Wooden shims (If necessary)
Attaching Vertical Tracks To Jambs
5
IMPORTANT: IF YOUR DOOR IS TO BE INSTALLED PRIOR TO A FINISHING CONSTRUCTION
OF THE BUILDING’S FLOOR, THE VERTICAL TRACKS AND THE DOOR BOTTOM SECTION
ASSEMBLY SHOULD BE INSTALLED SUCH THAT WHEN THE FLOOR IS CONSTRUCTED, NO
DOOR OR TRACK PARTS ARE TRAPPED IN THE FLOOR CONSTRUCTION.
IMPORTANT: THE TOPS OF THE VERTICAL TRACKS MUST BE LEVEL FROM SIDE TO SIDE.
IF THE BOTTOM SECTION WAS SHIMMED TO LEVEL IT, THE VERTICAL TRACK ON THE
SHIMMED SIDE MUST BE RAISED THE HEIGHT OF THE SHIM.
NOTE: Make sure the counterbalance lift cable is located between the track rollers and the
door jamb.
Starting on the left hand side of the bottom section, remove the nail. Position the left hand
vertical track assembly over the track rollers of the bottom section and install, as shown. Drill
3/16” pilot holes into the door jamb for the lag screws.
Loosely fasten jamb brackets and flag angle to the jamb using 5/16” x 1-5/8” lag screws.
Tighten lag screws, securing the bottom jamb bracket to jamb, maintain 3/8” to 5/8” spac-
ing, between the bottom section and vertical track. Hang counterbalance lift cable over flag
angle. Repeat same process for other side.
Vertical
track
assembly
Jamb
bracket
Flag
angle
Flag angle lag screw locations
5/16” x 1-5/8”
Lag screws
Bottom
section
Track
rollers
3/8” to 5/8”
Spacing
Bottom section
15R QI12R QI
Floor Track roller
12R FA Or 15R FA
Vertical track
Stacking Sections
6
NOTE: The sections can be identified by the graduation of the factory installed graduated end
hinges. The smallest graduated end hinge on section should be stacked on top of the bottom
section, with each graduated end hinge increasing as the sections are stacked, see Door
Section Identification / Breakdown of Parts.
NOTE: Make sure graduated end and center hinges are flipped down, when stacking another
section on top.
NOTE: Larger doors will use long stem track rollers with double graduated end hinges.
Place track rollers into graduated end hinges of remaining sections.
With assistance, lift second section and guide the track rollers into the vertical tracks. Lower
7

section until it is seated against bottom section. Align vertical marks in the upper align-
ment sticker, with the lower alignment sticker on right hand side, on the back of door. Keep
sections aligned. Flip hinges up. Fasten center hinge(s) first; then end hinges last using 1/4”
- 14 x 5/8” self tapping screws.
NOTE: To prevent center hinge leaf(s) from rotating, first secure the top middle hole of the
center hinge leaf with one 1/4” - 14 x 5/8” self-tapping screw then secure the other two
holes.
NOTE: Larger doors with double graduated end hinges, fasten both hinges to connect the
sections using 1/4” - 14 x 5/8” self-tapping screws.
Repeat same process for other sections, except top section.
IMPORTANT: PUSH & HOLD THE HINGE LEAFS SECURELY AGAINST THE SECTIONS WHILE
SECURING WITH 1/4” - 14 X 5/8” SELF TAPPING SCREWS. THERE SHOULD BE NO GAP
BETWEEN THE HINGE LEAFS AND THE SECTIONS.
NOTE: Install lock at this time (sold separately). See optional installation step, Side Lock.
Intermediate
section
Lock
section
Bottom
section
Vertical
track Vertical track
Alignment
sticker
Alignment
sticker
Alignment
sticker
P/N#327985 NEW9-04-06P/N#327985 NEW9-04-06P/N#327985 NEW9-04-06 P/N#327985NEW9-04-06 P/N#327985 NEW9-04-06
Center
hinge(s)
Center
hinge(s)
Left graduated end hinge
with short stem track roller
Right graduated end hinge
with short stem track roller
1/4”-14 x 5/8” Self tapping screw locations
1/4”-14 x 5/8” Self tapping screw locations
Left double graduated
end hinge with long
stem track roller
Right double graduated
end hinge with long
stem track roller
Attaching Top Fixtures To Top Section
7
To install the top fixtures, align the top holes in the top fixture base with the second set of
holes in the end cap of the top section. Fasten to section using (4) 1/4” - 14 x 5/8” self tap-
ping screws. Secure the top fixture slide to the fixture base loosely using (2) 1/4” - 20 x 5/8”
carriage bolts and (2) 1/4” - 20 flange hex nuts. Insert short stem track roller into top fixture
slide. Repeat the same process for the right hand side.
NOTE: The top fixture slide will be tightened and adjusted later, in step, Adjusting Top Fixture.
NOTE: Ensure the top fixture slide is able to slide along the top fixture base. If needed, loosen
the 1/4” - 20 flange hex nuts.
1/4”- 14 x 5/8”
Self-tapping screws
Insert short stem
track roller
Top fixture
base
Top fixture
slide
(2) 1/4”- 20 Flange hex nuts
End
cap
(2) 1/4”- 20 x 5/8”
Carriage bolts
2nd
Set
Top section
Top fixture slide
Attaching Drawbar Operator Bracket
8
NOTE: If you’re installing a drawbar operator, the drawbar operator bracket must be mounted
and secured prior to installing top section.
IMPORTANT: TO AVOID POSSIBLE DAMAGE TO YOUR DOOR, WAYNE DALTON RECOM-
MENDS REINFORCING THE TOP SECTION WITH A STRUT.
IMPORTANT: WHEN CONNECTING A DRAWBAR OPERATOR TYPE GARAGE DOOR OPENER
TO THIS DOOR, A WAYNE DALTON OPERATOR/ DRAWBAR OPERATOR BRACKET MUST
BE SECURELY ATTACHED TO THE TOP SECTION OF THE DOOR, ALONG WITH ANY STRUT
PROVIDED WITH THE DOOR. THE INSTALLATION OF THE DRAWBAR OPERATOR MUST BE AC-
CORDING TO MANUFACTURER’S INSTRUCTIONS AND FORCE SETTINGS MUST BE ADJUSTED
PROPERLY.
Remove, but retain (4 - 6) 1/4” - 20 x 7/8” self drilling screws from the center of the strut,
allowing the drawbar operator bracket to slide between the section and the strut.
Locate the center of the top section and slide drawbar operator bracket under strut until the
drawbar operator bracket is seated against the strut flange.
NOTE: Prior to fastening drawbar operator bracket to top section, ensure the top edge of
drawbar operator bracket is aligned with the top edge of the section, as shown.
Attach the drawbar operator bracket using (8) 1/4” - 20 x 11/16” self drilling screws (as
shown). Finish re-attaching the strut using the self tapping screws removed previously.
=
Top section
Center line of
top section
Drawbar operator
bracket label
NOTE: For retro fit applications, the drawbar operator
bracket must be aligned with an existing drawbar operator.
(8) 1/4” - 20 x 11/16”
Self-drilling screws
Drawbar operator bracket
in place under strut
Top section
Strut Drawbar
operator bracket
Strut
Top section
1/4” - 20 x 7/8”
Self-drilling screws
Strut
Remove screws first, install operator bracket,
then finish re-attaching the strut using the
screws removed previously.
Stacking Top Section
9
Place the top section in the opening. Temporarily secure the top section by driving a nail in
the header near the center of the door and bending it over the top section. Now, flip up the
hinge leaves, hold tight against section, and fasten center hinges first and end hinges last
(refer to step, Stacking Sections). Vertical track alignment is critical. Position flag angle or wall
angle between 1-11/16” (43 mm) to 1-3/4” (44 mm) from the edge of the door; tighten the
bottom lag screw. Flag angles or wall angles must be parallel to the door sections. Repeat for
other side.
IMPORTANT: THE DIMENSION BETWEEN THE FLAG ANGLES OR WALL ANGLES MUST BE
8

DOOR WIDTH PLUS 3-3/8” (86MM) TO 3-1/2” (89 MM) FOR SMOOTH, SAFE DOOR OPERA-
TION.
FOR QUICK INSTALL TRACK: Complete the vertical track installation by securing the jamb
bracket(s) and tightening the other lag screws. Repeat for other side.
FOR FULLY ADJUSTABLE TRACK OR RIVETED TRACK: Complete the vertical track instal-
lation by securing the jamb bracket(s) and tightening the other lag screws. Push the vertical
track against the track rollers so that the track rollers are touching the deepest part of the
curved side of the track; tighten all the track bolts and nuts. Repeat for other side.
Top section
Top
section
Nail
Door width
+ 3-3/8” to 3-1/2”
1-11/16”
to 1-3/4”
Flag
angle
Vertical track
against track rollers
Flag angle
assembly
Top of flag
angle
Attaching Horizontal Tracks
10
NOTE: Depending on your door, you may have Quick Install Flag Angles, Fully Adjustable
Flag Angles or you may have Riveted Vertical Track Assemblies. Refer to Package Contents /
Breakdown of Parts, to determine which Flag Angles / Vertical Track Assemblies you have.
WARNING
DO NOT RAISE DOOR UNTIL HORIZONTAL TRACKS ARE SECURED AT
REAR, AS OUTLINED IN STEP, REAR BACK HANGS, OR DOOR COULD FALL
FROM OVERHEAD POSITION CAUSING SEVERE OR FATAL INJURY.
IF YOU HAVE QUICK INSTALL FLAG ANGLES: To install horizontal track, place the curved
end over the top track roller of the top section. Align key slot of the horizontal track with the
Quick Install tab of the flag angle. Push curved portion of horizontal track down to lock in
place.
3/8”-16
Hex nut
3/8”-16 x
3/4” Truss
head bolt
Quick
Install
tab
Key
slot
Quick
Install
tab in
place
Level
Horizontal track angle
Flag
angle
upper
slot
Flag
angle
Horizontal
track
FOR OTHER FLAG ANGLES: To install horizontal track, place the curved end over the top
track roller of the top section. Align the bottom of the horizontal track with the top of the verti-
cal track. Tighten the horizontal track to the flag angle with (2) 1/4” - 20 x 9/16” track bolts
and (2) 1/4” - 20 flange hex nuts.
3/8”-16
Hex nut
Horizontal
track angle
3/8”-16 x 3/4”
Truss head bolt
1/4”-20 x 9/16”
Track bolts
1/4”-20 Flange
hex nuts
Horizontal
track
Flag angle
upper slot
Level
1/4”-20 x 9/16”
Track bolts
1/4”-20 Flange
hex nuts
12” Radius
track
15” Radius track
Next level the horizontal track assembly and bolt the horizontal track angle to the first
encountered slot in the flag angle / angle mount using (1) 3/8” - 16 x 3/4” truss head bolt
and (1) 3/8” - 16 hex nut. Repeat for other side. Remove nail that was temporally holding the
top section in position.
IMPORTANT: FAILURE TO REMOVE NAIL BEFORE ATTEMPTING TO RAISE DOOR COULD
CAUSE PERMANENT DAMAGE TO TOP SECTION.
Horizontal
track
Level
Level
Horizontal
track angle
Horizontal
track angle
Horizontal
track
Adjusting Top Fixtures
11
With horizontal tracks installed, you can now adjust the top fixtures. Vertically align the top
section of the door with the lower sections. Once aligned, position the top fixture slide, out
against the horizontal track. Maintaining the slide’s position, tighten the (2) 1/4” - 20 flange
hex nuts to secure the top fixture slide to the top fixture base. Repeat for other side.
Top fixture
slide
Tighten the (2)
1/4”- 20
Flange hex nuts
Horizontal
track
Top section
Top fixture
base
Track roller
Top
section
Int.
section
COUNTERBALANCE
INSTALLATION INSTRUCTIONS
Preparing The TorqueMaster®Spring Tube
Assembly
12
NOTE: TorqueMaster®springs come lubricated and pre-assembled inside the TorqueMaster®
spring tube.
To prepare for install, lay the spring tube assembly on the floor, inside garage, in front of the
door, and with the labeled end to the left. Next, remove the shipping boots from the ends of
the TorqueMaster® spring tube.
Being cam shaped, the center bushing only fits one way. Slide the center bracket bushing as-
sembly towards the center of the TorqueMaster® spring tube, from the right side, as shown.
NOTE: Refer to Package Contents / Breakdown of Parts, to determine if you have drum
wraps (optional).
Drum wraps (optional) are marked right and left hand. Beginning with the left hand side, slide
the left hand drum wrap onto the TorqueMaster®spring tube. Repeat for the right hand side.
The drum wrap will be secured later, in Step, Securing Drum Wraps.
TorqueMaster®spring
tube
Remove shipping
boots and discard.
Label
Left hand drum
wrap (Optional) Right hand drum wrap
(Optional)
Label
Label
TorqueMaster®
spring tube
TorqueMaster®
spring tube
Center
bracket
NOTE: Orient profile of
spring tube and center
bracket hole for smooth fit.
9

Installing Cable Drum Assemblies
13
NOTE: Cable drum assemblies are marked right and left hand. Cable drums and TorqueMas-
ter®spring tube assembly are cam shaped to fit together only one way.
Shake the TorqueMaster®spring tube assembly gently to extend the winding shafts out about
5” on each side. For single spring applications, there will be no left hand spring in the
TorqueMaster®spring tube assembly. Lift the TorqueMaster®spring tube assembly and rest it
on top of the flag angles.
NOTE: Temporarily support the center of the TorqueMaster®spring tube assembly until the
center bracket is installed in Step Attaching Center Bracket to Wall.
5”
Center
bracket
Winding
shaft
Winding
shaft
Winding
shaft
Winding
shaft
TorqueMaster®
spring tube
Center
bracket
Label
Label
TorqueMaster®spring tube
TorqueMaster®
spring tube
NOTE: For single spring applications,
there will be no left hand spring in the
TorqueMaster®spring tube assembly.
NOTE: If winding shaft is not visible out
of the right hand side, gently shake the
TorqueMaster®spring tube until
winding shaft sticks out 5”.
NOTE: If both winding shafts are
not visible, gently shake the
TorqueMaster®spring tube until
both winding shaft sticks out 5”.
Left hand
cable
drum
assembly
Right hand cable
drum assembly
NOTE: Working with a partner as needed, lift
the TorqueMaster®spring tube assembly up
and rest it on top of the flag angles.
Flag angle
Flag
angle
Center
bracket
Label
NOTE: Cable drum assemblies are marked right and left hand. Cable drums and TorqueMas-
ter®spring tube assembly are cam shaped to fit together only one way.
Starting on the right hand side, pre-wrap the cable drum with the counterbalance lift cable
1/2 wrap, as shown. Position the TorqueMaster®spring tube assembly so the cam peak
is pointing straight up. Slide the cable drum over the winding shaft until the cable drum
seats against the TorqueMaster®spring tube assembly. The winding shaft must extend past
the cable drum far enough to expose the splines and the grooves. Align the winding shaft
grooves with the round notch in the flag angle.
Right hand
cable drum
Right
hand
cable
drum
TorqueMaster®
spring tube
assembly
Counterbalance
lift cable 1/2
wrap
Counterbalance
lift cable
Winding
shaft
Cam peak
straight up
Splines
Groove
Round notch
in flag angle
5” Winding
shaft
Cam
peak
straight
up
Insert winding
shaft into flag
angle
Bearing
FOR DOUBLE SPRING APPLICATIONS: Repeat for left hand side.
Left hand
cable drum
TorqueMaster®
spring tube
assembly
Counterbalance lift
cable 1/2 wrap
Counterbalance
lift cable
Winding
shaft
5”
Left hand
cable drum
Splines
Groove
Round notch
in flag angle
Winding
shaft
Cam
peak
straight
up
Insert winding
shaft into flag
angle
Bearing
FOR SINGLE SPRING APPLICATIONS: Insert the idler bracket into the left hand cable drum.
Lightly press the idler bracket into the cable drum until two distinct clicks are heard, or the
bracket is inserted all the way.
IMPORTANT: ENSURE THE SNAPS ON THE IDLER BRACKET (LEFT HAND SIDE) ARE EN-
GAGED INTO THE LEFT HAND CABLE DRUM, SO THAT IT DOES NOT COME BACK OUT.
NOTE: The idler bracket is designed for permanent assembly. Do not attempt to remove idler
bracket once inserted into the cable drum.
NOTE: The idler bracket must extend past the cable drum far enough to expose the groove.
Align the idler bracket groove with the round notch in the flag angle.
Left hand
cable drum
TorqueMaster®
spring tube
assembly
Counterbalance lift
cable 1/2 pre-wrap
Counterbalance
lift cable
Idler
bracket
Cam peak
straight up
Round
notch
Groove
Flag
angle
Snaps Idler
bracket
Flag
angle
Bearing
Idler
bracket Snaps
Groove
Left hand
cable drum
Idler
bracket Snaps
Groove
Left
hand
cable
drum
Attaching End Brackets To Flag Angles
14
IMPORTANT: WARNING TAGS MUST BE SECURELY ATTACHED TO END BRACKET(S).
IMPORTANT: FOR SINGLE SPRING DOORS, ENSURE THE LEFT HAND CABLE DRUM BEARING
IS ALL THE WAY TO THE LEFT AND UP AGAINST THE FLAG ANGLE. IF THE CABLE DRUM IS
PULLED AWAY FROM THE FLAG ANGLE, THEN THE IDLER BRACKET CAN RUB AGAINST THE
CABLE DRUM CAUSING NOISE.
NOTE: Drill 3/16” pilot holes into header for the lag screws.
Beginning with the right hand side, slide the end bracket onto the winding shaft so that the
splines in the ratchet wheel fit onto the winding shaft grooves. Attach the end bracket to the
flag angle using (1) 5/16” - 18 x 3/4” carriage bolt, (1) 5/16” washer and (1) 5/16” - 18 hex
nut. Then secure the end bracket to the jamb using (1) 5/16” x 1-5/8” lag screw.
NOTE: If ratchet wheel falls out of end bracket, refer to illustration for proper insertion
orientation.
FOR DOUBLE SPRING APPLICATIONS: Repeat same process for left hand end bracket.
10

Grooves
Warning
tag
Disconnect cable
guide hole
Splines
Winding
shaft
Right
hand
end
bracket
Flag
angle
TorqueMaster®
spring tube
assembly
Right hand
cable drum
Ratchet wheel
(oriented correctly)
FOR DOUBLE SPRING
APPLICATIONS:
Repeat
same process for left
hand end bracket.
5/16”
Washer
5/16”
Hex nut
Winding
shaft
5/16” -18 x 3/4”
Carriage bolt
TorqueMaster®
spring tube
assembly
Right hand
cable drum
5/16” x 1-5/8”
Lag screw
Right
hand end
bracket
Flag
angle
Flag
angle
FOR SINGLE SPRING APPLICATIONS: Secure the idler bracket to the flag angle using (1)
5/16” - 18 x 3/4” carriage bolt, (1) 5/16” washer and (1) 5/16” - 18 hex nut. Then secure
the idler bracket to the jamb using (1) 5/16” x 1-5/8” lag screw.
TorqueMaster®
spring tube
assembly
Left hand
cable drum
Idler bracket
Flag
angle
5/16” x 1-5/8”
Lag screw
5/16” -18 x 3/4”
Carriage bolt
5/16” Washer
5/16” Hex
nut
Flag
angle
Left hand
cable drum
Bearing
Attaching Center Bracket to Wall
15
IMPORTANT: TORQUEMASTER®SPRING TUBE MUST BE LEVEL BEFORE SECURING CENTER
BRACKET BUSHING ASSEMBLY TO HEADER.
NOTE: Drill 3/16” pilot holes into header for the lag screws.
To locate the center bracket bushing assembly, mark the header halfway between the flag
angles and level the TorqueMaster® spring tube. Fasten the center bracket bushing assem-
bly to the header using (2) 5/16” x 1-5/8” lag screws.
TorqueMaster® spring tube
Center bracket
bushing assembly
Level
(2) 5/16” x 1-5/8”
Lag screws
Securing Door For Winding Spring(s)
16
With the door in the fully closed position, place locking pliers onto both vertical tracks just
above the third track roller. This is to prevent the garage door from rising while winding
spring(s).
NOTE: Check the following before attempting to wind spring(s):
a. Counterbalance lift cables are secured at bottom corner brackets.
b. Counterbalance lift cables are routed unobstructed to cable drums.
c. Counterbalance lift cables are correctly installed and wound onto cable lift drums.
d. TorqueMaster®spring tube is installed correctly.
e. Review the label attached to the spring warning tag, to determine number of spring turns
required.
NOTE: Door MUST be closed and locked when winding or making any adjustments to the
spring(s).
WARNING
FAILURE TO PLACE LOCKING PLIERS ONTO VERTICAL TRACK CAN
ALLOW DOOR TO RAISE AND CAUSE SEVERE OR FATAL INJURY.
Locking pliers above
third track roller on
both sides of door
Bottom section
Lock
section
Locking pliers attached
to inner and outer rail
of vertical track
Intermediate section
Vertical
track
Vertical
track
Adjusting Counterbalance Lift Cable
17
Starting on the right side, adjust the cable drum assembly by rotating the drum until the set
screw faces directly away from the header. The position of the cam peak on the TorqueMas-
ter®spring tube should be pointing straight up.
Loosen the set screw no more than 1/2 turn. Ensure counterbalance lift cable is aligned and
seated in the first and second grooves of the cable drum. Pull on the end of the cable to
remove all cable slack.
Snug the set screw and then tighten an additional 1-1/2 turns. Measure approximately 6” of
cable and cut off excess cable. Insert end of the cable into the hole of cable drum. Repeat for
left hand cable drum assembly.
IMPORTANT: ENSURE THE COUNTERBALANCE LIFT CABLE IS SEATED IN THE FIRST
GROOVE OF THE CABLE DRUM PRIOR TO WINDING SPRINGS.
Cam peak
pointing straight up
Insert
cable here
6”
Cut cable here
Tighten
set screw
TorqueMaster®
spring tube
Counterbalance
lift cable
Insert
cable here
First
groove
NOTE: Illustration shows the right hand cable drum assembly. Repeat the same process for
the left hand side.
Winding Spring(s)
18
IMPORTANT: VERIFY THAT THERE ARE NO OBSTRUCTIONS IN THE TRAVEL PATH OF THE
DOOR SECTIONS OR COUNTERBALANCE LIFT CABLES.
IMPORTANT: INSPECT EACH COUNTERBALANCE LIFT CABLE MAKING SURE IT IS SEATED
PROPERLY ONTO THE CABLE DRUM AND THAT BOTH COUNTERBALANCE LIFT CABLES HAVE
EQUAL TENSION.
PRIOR TO WINDING SPRING(S), CHECK COUNTERBALANCE LIFT CABLES FOR EQUAL
TENSION:
1. Attach locking pliers to track above top roller.
11

2. Grasp cable at approximate mid-door height location.
3. Draw cable toward you about 1/2” to 1” and release, noting the response of the cable.
4. Repeat above steps for other cable.
5. Adjust cable tension as needed until right and left cables both respond the same.
WARNING
WINDING SPRING IS AN EXTREMELY DANGEROUS PROCEDURE
AND SHOULD BE PERFORMED ONLY BY A TRAINED DOOR SYSTEM
TECHNICIAN USING PROPER TOOLS AND INSTRUCTIONS.
WARNING
IT IS RECOMMENDED THAT LEATHER GLOVES BE WORN WHILE WINDING
SPRINGS. FAILURE TO WEAR GLOVES MAY CAUSE INJURY TO HANDS.
NOTE: A 3” ratchet extension is recommended for added clearance from the horizontal track
angle.
IMPORTANT: PAWL KNOB MUST BE IN UPPER POSITION TO ADD / REMOVE REQUIRED
NUMBER OF SPRING TURNS.
There are two methods for counting the spring turns as you wind. One method is to identify
the black tooth on the ratchet wheel inside of the end bracket. When the wheel makes one
revolution and the tooth returns to its starting point, one turn has been made. The other
method is to make a mark on the winding shaft (or socket) and end bracket, and count your
turns in this manner.
Check the label attached to the spring warning tag or the Winding Spring Turn Chart (below)
for the required number of complete turns to balance your door.
Starting on the right hand side, turn the pawl knob on the end bracket to the upper position.
Using a ratchet wrench with a 5/8” socket and a 3” ratchet extension, wind the spring by
rotating the winding shaft counter clockwise, while watching either the black tooth on the
ratchet wheel or the mark on the winding shaft. After 2 to 3 turns, remove the ratchet wrench
and adjust the counterbalance lift cable on the left side. Ensure counterbalance lift cables are
in the first groove of the cable drums, as shown in Step Adjusting Counterbalance Lift Cable.
NOTE: Single spring applications require no spring winding on the left hand side, but lift
cable tension needs to be adjusted.
FOR SINGLE SPRING APPLICATIONS: Return to the right hand end bracket and continue
winding the spring to the required number of turns for your door following the double spring
instructions below. Place pawl knob in lower position.
FOR DOUBLE SPRING APPLICATIONS: Either use the black tooth on the ratchet wheel for
winding reference or place a mark on the winding shaft and end bracket. Place the ratchet
wrench with 5/8” socket and a 3” ratchet extension onto the left hand winding shaft end.
To wind the spring, rotate the winding shaft clockwise, while watching the black tooth on
the ratchet wheel or the mark on the winding shaft. Rotate the winding shaft to the required
number of winding turns for your door. Then return to the right hand side and wind the right
hand spring to the required number of turns. Place pawl knob in lower position on both sides.
IMPORTANT: MARK THE NUMBER OF SPRING TURNS ONTO THE END BRACKET WARNING
TAG.
WINDING SPRING TURN CHART
DOOR HEIGHT SPRING TURNS
6’-0” 14
6’-3” 14-1/2
6’-5” - 6’-6” 15
6’-8” - 6’-9” 15-1/2
7’-0” 16
7’-3” 16-1/2
7’-6” 17
7’-9” 17-1/2
8’-0” 18
NOTE: Since total turns to balance door can deviate from winding spring turn chart values by
± 1 turn, adjustments to the recommended number of turns may be required after rear back
hangs are installed.
Counterbalance
lift cable
Right hand
end bracket
Pawl knob
in upper
position
5/8”
Socket
Ratchet
wrench
Winding
shaft
3” Ratchet
extension
Marks
Counterbalance
lift cable Left hand
end bracket
Pawl knob
in upper
position
5/8”
Socket
Ratchet
wrench
3”
Extension
Marks
Winding
shaft
Securing Drum Wraps (Optional)
19
NOTE: If you don’t have drum wraps, then skip this step. Refer to Package Contents / Parts
Breakdown, to determine if you have drum wraps.
Starting on the left hand side, position the left hand drum wrap, as shown. Slide the left hand
drum wrap over the cable drum assembly.
IMPORTANT: PULL THE COUNTERBALANCE LIFT CABLE AWAY FROM THE HEADER TO
CLEAR THE LATCH, WHILE SIMULTANEOUSLY SLIDING THE DRUM WRAP AGAINST THE LAST
RIB UNTIL THE THREE CATCHES ENGAGE THE 3RD RIB.
Secure the hinge latch by rotating upward until a distinct snap is felt. Confirm the catch is
fully engaged by lightly tugging on it. Repeat the same process for right hand side.
Left hand
drum wrap
Cable
drum
Re-engage
hinged latch
3rd rib
Counterbalance lift
cable. Pull to clear latch
Left hand
drum wrap
3
Catches
Left hand
drum wrap
Last
rib
NOTE: Repeat the same process for right
hand side.
Attaching Rear Back Hangs
20
IMPORTANT: HOLD THE DOOR DOWN TO PREVENT IT FROM RISING UNEXPECTEDLY IN THE
EVENT THE SPRING(S) WERE OVER-WOUND AND CAUTIOUSLY REMOVE LOCKING PLIERS
FROM VERTICAL TRACKS.
Raise the door until the top section and half of the next section are in the horizontal track
radius. Do not raise door any further since rear of horizontal tracks are not yet supported.
WARNING
RAISING DOOR INTO THE LOOSE HORIZONTAL TRACKS CAN RESULT IN
DOOR FALLING AND CAUSE SEVERE OR FATAL INJURY.
Clamp a pair of locking pliers onto the vertical tracks just above the second track roller on
one side, and just below the second track roller on the other side. This will prevent the door
from raising or lowering while installing the rear back hangs.
Using the chart below, select the appropriate perforated angle (may not be supplied). Fabri-
cate and install rear back hangs, as shown.
Perforated Angle Gauge Weight Limitations:
Perforated Angle Gauge Door Balance Weight
2” x 2” x 12 Gauge 800 lbs. to 1600 lbs.
1-1/4” x 1-1/4” x 13 Gauge 305 lbs. to 610 lbs.
1-1/4” x 1-1/4” x 15 Gauge 220 lbs. to 440 lbs.
1-1/4” x 1-1/4” x 16 Gauge 175 lbs. to 350 lbs.
NOTE: If an opener is installed, position horizontal tracks one hole above level when securing
them to the rear back hangs.
WARNING
KEEP HORIZONTAL TRACKS PARALLEL AND WITHIN 3/4” TO 7/8”
MAXIMUM OF DOOR EDGE, OTHERWISE DOOR COULD FALL, RESULTING
IN SEVERE OR FATAL INJURY.
12

WARNING
MAKE SURE BACK HANGS ARE BRACED SUFFICIENTLY TO RESIST ANY
MOTION DURING SPRING APPLICATION AND DOOR TRAVEL. IF BACK
HANGS PIVOT OR DEFLECT, ADD REINFORCEMENT UNTIL THEY REMAIN
FIRM AND STATIONARY. ANY BACK HANG THAT HAS BENT MUST BE
REPLACED.
IMPORTANT: DO NOT SUPPORT THE WEIGHT OF THE DOOR ON ANY PART OF THE REAR
BACK HANGS THAT CANTILEVERS 4” OR MORE BEYOND A SOUND FRAMING MEMBER.
NOTE: If rear back hangs are to be installed over drywall, use (2) 5/16” x 2” hex head lag
screws and make sure lag screws engage into solid structural lumber.
WARNING
FAILURE TO ASSEMBLE AND ATTACH REAR BACK HANGS PROPERLY
ACCORDING TO THE ABOVE INSTRUCTIONS MAY RESULT IN DOOR
FALLING WHEN RAISED, CAUSING SEVERE OR FATAL INJURY.
NOTE: Perforated angle must be attached to sound framing members and nails should not
be used.
90°
(3) 5/16”
Bolts and nuts
(3) 5/16” Bolts and
(3) 5/16” nuts
Perforated
angle
5/16” Hex nut
5/16”-18 x 1-1/4”
Hex bolt
Perforated angle bolted
using (2) 5/16” x 1-5/8”
hex head lag screws to
ceiling member and
parallel to door
Horizontal track
NOTE: Repeat the same
process for right hand side.
Horizontal tracks
Door edges
3/4” To 7/8”
3/4” To 7/8”
Attaching Weather Seal
21
Permanently attach the weatherstrips on both door jambs and header. The weatherstrips
were temporarily attached in Preparing the Opening, in the pre-installation section of this
manual.
NOTE: When permanently attaching the weatherstrips to the jambs, avoid pushing the weath-
erstrips too tightly against the face of door.
Weather seals
Nail
Weather
seal
Jamb Weather seal
installed
Jamb
Header
Jamb
Nail
NOTE: Door not shown for clarity.
Balancing Door
22
NOTE: Windows may cause the top section to be significantly heavier than the remaining
sections. Wayne Dalton attempts to balance the door at the top and bottom. To prevent any
sudden door acceleration between the top and bottom, we recommend motor operating all
doors with windows.
Remove any locking pliers. Lift the door and check its balance. Adjust spring(s) if door lifts by
itself (hard to pull down) or if door is difficult to lift (drifts down). Anytime spring adjustments
are made, ratchet pawl knob must be in the upper position. An unbalanced door can cause
TorqueMaster®Plus operation problems.
Close the door and place locking pliers onto both vertical tracks just above the third track
roller. This is to prevent the garage door from rising while adjusting the spring(s).
IMPORTANT: TO ADJUST SPRINGS, ONLY ADD OR REMOVE A MAXIMUM OF 3/10 OF
A TURN (THREE TEETH ON THE RATCHET WHEEL) AT A TIME. BOTH SIDES NEED TO BE
ADJUSTED EQUALLY ON DOUBLE SPRING DOORS.
WARNING
WINDING SPRINGS IS AN EXTREMELY DANGEROUS PROCEDURE
AND SHOULD BE PERFORMED ONLY BY A TRAINED DOOR SYSTEM
TECHNICIAN USING PROPER TOOLS AND INSTRUCTIONS.
ADD SPRING TENSION: The ratchet wheel is made of 10 teeth. To add spring tension,
tighten counter clockwise on the right hand side and clockwise on the left hand side. Place
pawl knob in upper position. Place the ratchet with 5/8” socket and 3” ratchet extension
onto the winding shaft, to add 3/10 of a turn. Watch as three teeth of the ratchet wheel pass
over the pawl, creating three “clicks”. Place pawl knob in lower position. For double spring
applications, repeat the same process for the other side.
REMOVE SPRING TENSION: To remove spring tension, place a regular 5/8” wrench onto the
winding shaft. Place pawl knob in upper position.
IMPORTANT: BE PREPARED TO HOLD THE FULL TENSION OF THE SPRING.
Pull down on the wrench to relieve pressure between the pawl and the ratchet wheel. Push in
on the pawl to allow the three ratchet wheel teeth to pass by the pawl, as you carefully allow
the wrench to be rotated upward by the spring tension, release the pawl to allow it to engage
with the ratchet wheel. Place pawl knob in lower position. For double spring applications,
repeat the same process for the other side.
IMPORTANT: DO NOT ADD OR REMOVE MORE THAN 1 SPRING TURN (1 SPRING TURN
EQUALS 10 TEETH ON RATCHET WHEEL) FROM THE RECOMMENDED NUMBER OF TURNS
SHOWN ON THE WINDING SPRING TURN CHART.
If the door still does not operate easily, lower the door into the closed position, unwind
spring(s) completely, and recheck the following items:
1.) Is the door level?
2.) Are the TorqueMaster®spring tube and flag angles level and plumb?
3.) Does the distance between the flag angles equal door width plus 3-3/8” to 3-1/2”?
4.) Do the counterbalance lift cables have equal tension? Adjust if necessary.
5.) Rewind the spring(s).
6.) Make sure door is not rubbing on jambs.
13

Ratchet
wrench
End bracket
Pawl
Winding
shaft
Ratchet wheel
Pawl knob in
lower position
Pawl knob in
upper position
Pawl
3”
Ratchet
extension
5/8” Socket
14

TorqueMaster®Plus Reset Instructions
IMPORTANT: THE DRAWBAR OPERATOR FORCE SETTINGS MUST BE ADJUSTED AC-
CORDING TO THE MANUFACTURER’S INSTRUCTIONS. SOME LIGHTER WEIGHT DOORS ARE
DESIGNED TO OPERATE WITH A SINGLE COUNTERBALANCE SPRING. IF THAT COUNTER-
BALANCE SPRING BREAKS AND THE DRAWBAR OPERATOR’S FORCE SETTINGS ARE NOT
ADJUSTED ACCORDING TO THE MANUFACTURER’S SPECIFICATIONS, THE DRAWBAR
OPERATOR MAY THEN HAVE THE CAPABILITY OF LIFTING THE DOOR TO THE OPEN POSI-
TION, DESPITE THE BROKEN COUNTERBALANCE SPRING. THIS SCENARIO WILL CAUSE
THE COUNTERBALANCE LIFT CABLES TO GO SLACK AND ENGAGE THE TORQUEMASTER®
PLUS SAFETY SYSTEM. IF A PERSON IS UNAWARE OF THE SLACK COUNTERBALANCE LIFT
CABLES AND THE ENGAGED TORQUEMASTER®PLUS SAFETY SYSTEM AND ACTIVATES THE
MISADJUSTED DRAWBAR OPERATOR, DAMAGE WILL LIKELY OCCUR TO THE DOOR AND
DRAWBAR OPERATOR. THE POTENTIAL ALSO EXISTS THAT THE PERSON ACTIVATING THE
DRAWBAR OPERATOR UNDER THIS SCENARIO COULD BE SEVERELY INJURED.
WARNING
READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO
RESET THE TORQUEMASTER® PLUS SYSTEM. IF IN QUESTION ABOUT
ANY OF THE PROCEDURES, DO NOT PERFORM THE WORK. INSTEAD,
HAVE A QUALIFIED DOOR SYSTEMS TECHNICIAN RESET THE SYSTEM.
WARNING
TO AVOID SEVERE OR FATAL INJURY, DO NOT STAND OR WALK UNDER
A MOVING DOOR, OR PERMIT ANYONE TO STAND OR WALK UNDER AN
ELECTRICALLY OPERATED DOOR.
This door is equipped with a TorqueMaster®plus system, a safety feature which prevents
the door from rapidly descending in case of spring failure or forceful manual operation. If the
system engages with the door in the open position, personal items that are left unattended in
the garage or home are at risk to theft. To ensure the safekeeping of these items, close the
garage door.
Typical signs of an engaged system.
Single spring system: Visually inspect the TorqueMaster®Plus right hand end bracket to
confirm that the system has engaged (see illustration). If the system is engaged, then the
door will not close. If the drawbar operator force settings were properly set during the initial
installation, the door will not open. If the drawbar operator can physically overcome the
weight of the door and lift it to the open position, then the counterbalance lift cables will be
slack. If the system is engaged, DO NOT attempt to make the repairs. Instead, have a trained
door system technician make the necessary repairs to counterbalance lift cables, spring
assemblies and other hardware.
Double spring system: Visually inspect the TorqueMaster®Plus end brackets to confirm
that the system has engaged (see illustration). Door makes a distinct “clicking” noise upon
being opened. If the system is engaged, carefully follow the reset instructions below or refer
to the reset tag (attached to right hand end bracket) to reset the TorqueMaster®Plus system.
Resetting an engaged TorqueMaster®Plus double spring system only:
1. First, locate and visually inspect the TorqueMaster®plus end bracket(s) to confirm that the
system has engaged (see illustration).
2. With the door in the fully closed position, place locking pliers onto both vertical tracks just
above the third track roller. Disengage the drawbar operator (if installed) by pulling or placing
the emergency disconnect in the manually operated position.
3. With assistance, carefully remove locking pliers and raise the door to the fully open posi-
tion.
4. Place locking pliers onto both vertical tracks just below the bottom track roller on both
sides.
5. Now is a good time to remove vehicles or personal items from garage to provide clear
access to end brackets.
6. For single spring applications: Flip the ratchet pawl knob on the right hand end bracket
to the upper position. For double spring applications: Flip the ratchet pawl knob on both
end brackets to the upper position (see illustration).
7. Raise door 2”-3” and then lower door. Repeat this process until the system resets (see
disengaged system illustrations).
IMPORTANT: BE PREPARED TO SUPPORT THE TOTAL WEIGHT OF THE DOOR.
8. Cautiously remove the locking pliers from the vertical tracks. With assistance lower door.
Checking springs for tension:
9. Starting on the right hand side, place a ratchet wrench, 5/8” socket and a 3” extension
on the TorqueMaster®Plus winding shaft (see illustration). Ensure ratchet is set so that it will
tighten counter clockwise on the right hand side, and clockwise on the left hand side. If ten-
sion is present, remove the ratchet and check the left hand side. If spring(s) have tension, the
door will need to be balanced; refer to step, Balancing Door, to do this. If no spring tension is
present, contact a qualified trained door system technician to replace the spring(s).
IMPORTANT: TO AVOID POSSIBLE INJURY, HAVE A TRAINED DOOR SYSTEMS TECHNICIAN
MAKE ADJUSTMENTS/ REPAIRS TO COUNTERBALANCE LIFT CABLES, SPRING ASSEMBLIES
AND OTHER HARDWARE.
No space between drum pawl and
cable drum indicates engagement Space between drum pawl and cable drum indicates non-engagement
Ratchet
pawl
Below
view
Side
view Drum
pawl Drum pawl
Cable
drum Cable drum
Drum wrap
(if applicable) Ratchet
wrench
End bracket
Pawl
Winding
shaft
Ratchet wheel
Pawl knob in
lower position
Pawl knob in
upper position
Pawl
3”
Ratchet
extension
5/8” socket
TorqueMaster®Plus
reset instructions tag
Door Arm Hookup
Align hole in the door arm with holes in drawbar operator bracket tabs, as shown. Insert
5/16” x 1-1/4” clevis pin, making sure hole in clevis pin is outside of second tab of drawbar
operator bracket. Insert hairpin cotter into clevis pin hole and spread hairpin cotter to secure
assembly, as shown.
Spread cotter pin
Clevis pin
Cotter
pin
Drawbar operator
bracket
Drawbar
operator
bracket tabs
5/16”x 1-1/4”
Clevis pin
Door arm
Inside Lock
Install the inside lock on the second section of the door. Secure the lock to the section with
(4) 1/4” - 20 x 11/16” self drilling screws. Square the lock assembly with the door section,
and align with the square hole in the vertical track. The inside lock should be spaced ap-
proximately 1/8” away from the section edge.
IMPORTANT: INSIDE LOCK(S) MUST BE REMOVED OR MADE INOPERATIVE IN THE UN-
LOCKED POSITION IF AN OPERATOR IS INSTALLED ON THIS DOOR.
15
Optional Installation

Second section 1/8”
Inside lock
End cap
(4) 1/4”-20 x 11/16”
Self drilling screws
Square hole in
vertical track
Pull Down Rope
WARNING
DO NOT INSTALL PULL DOWN ROPE ON DOORS WITH OPERATORS.
CHILDREN MAY BECOME ENTANGLED IN THE ROPE CAUSING SEVERE OR
FATAL INJURY.
Measure and mark the jamb approximately 48” to 50” (1220 to 1270 mm) from floor on the
right or left side of jamb. Drill 1/8” pilot hole for no. 6 screw eye. Tie the pull down rope to the
no. 6 screw eye and to the bottom corner bracket, as shown.
Bottom bracket
Pull rope
No. 6 Screw eye
Pull rope
48” to 50”
From floor
16

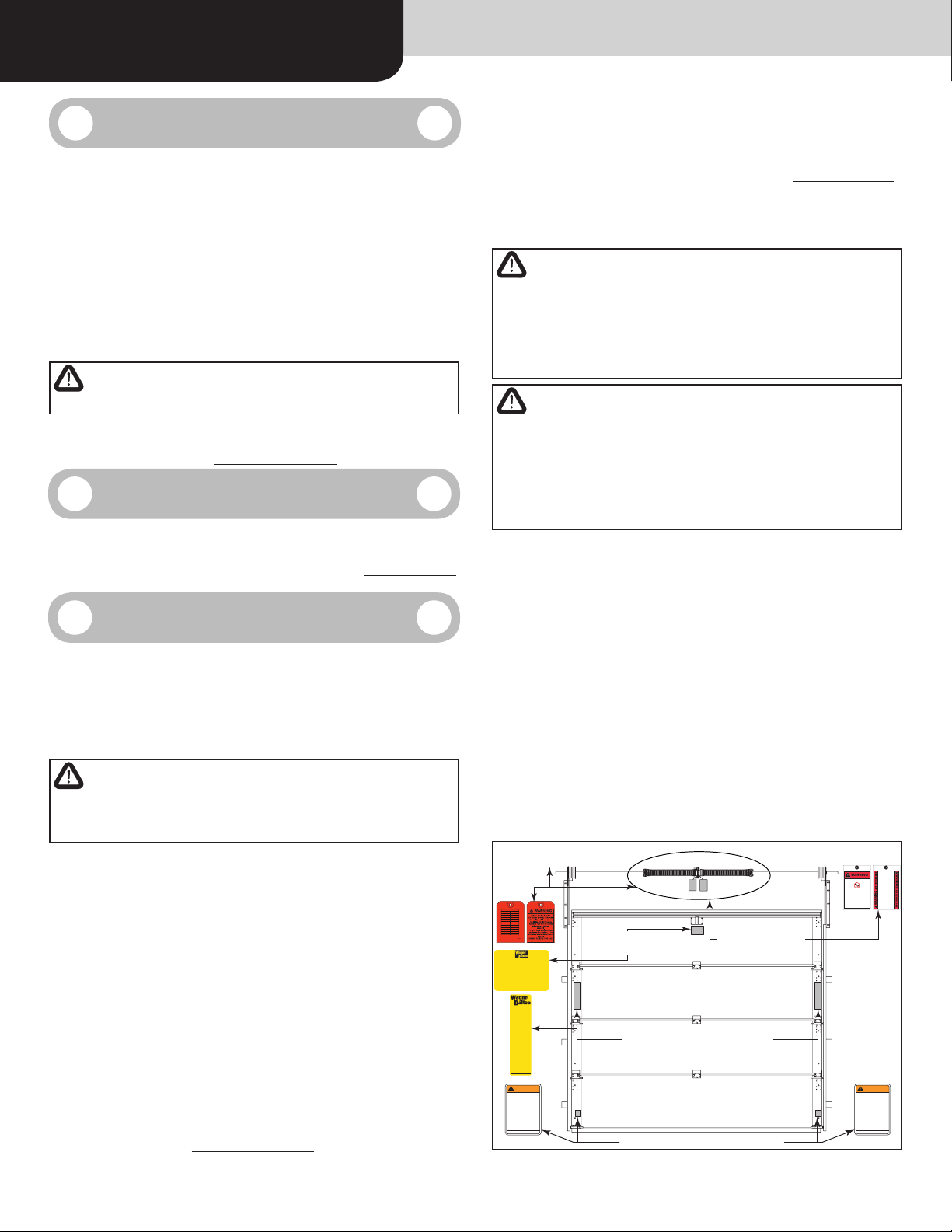

Cleaning Your Garage Door
IMPORTANT: DO NOT USE A PRESSURE WASHER ON YOUR GARAGE DOOR!
While factory-applied finishes on garage doors are durable, it is desirable to clean them on
a routine basis. Some discoloration of the finish may occur when a door has been exposed
to dirt-laden atmosphere for a period of time. Slight chalking may also occur as a result of
direct exposure to sunlight.
Cleaning the door will generally restore the appearance of the finish. To maintain an aestheti-
cally pleasing finish of the garage door, a periodic washing of the garage door is recom-
mended.
THE FOLLOWING CLEANING SOLUTION IS RECOMMENDED: A mild detergent solution
consisting of one cup detergent (with less than 0.5% phosphate) dissolved into five gallons of
warm water will aid in the removal of most dirt.
NOTE: The use of detergents containing greater than 0.5% phosphate is not recommended
for use in general cleaning of garage doors.
NOTE: Be sure to clean behind weatherstrips on both sides and top of door.
CAUTION
NEVER MIX CLEANSERS OR DETERGENTS WITH BLEACH.
NOTE: Do not use any window cleaning fluids, scouring compounds, gritty cloths or solvent-
based cleaners of any kind.
To clean polycarbonate windows, see www.Wayne-Dalton.com.
Maintaining The Finish
On Your Garage Door
NOTE: Fiberglass doors exposed to the sun’s UV rays for extended periods will result in the
factory top clear coat degrading and fading of the finish. Manufacturer recommends the door
be inspected regularly and given a fresh top clear coat every 12 to 18 months, or more often
in areas of extreme environmental exposure. Refer to Instruction Insert “Field Painting and
Finishing Fiberglass Or Steel Door Sections” at www.Wayne-Dalton.com.
Operation And Maintenance
OPERATING YOUR GARAGE DOOR: Before you begin, read all warning labels affixed to
the door and the installation instructions and owner’s manual. When correctly installed, your
Wayne Dalton door will operate smoothly. Always operate your door with controlled move-
ments. Do not slam your door or throw your door into the open position, this may cause dam-
age to the door or its components. If your door has an electric opener, refer to the owner’s
manual to disconnect the opener before performing manual door operation below.
MANUAL DOOR OPERATION: For additional information on manual garage door operations
go to www.dasma.com and reference TDS 165.
WARNING
DO NOT PLACE FINGERS OR HANDS INTO SECTION JOINTS WHEN
OPENING AND/OR CLOSING A DOOR. ALWAYS USE LIFT HANDLES /
SUITABLE GRIPPING POINTS WHEN OPERATING THE DOOR MANUALLY.
OPENING A DOOR: Make sure the lock(s) are in the unlocked position. Lift the door by using
the lift handles / suitable gripping points only. Door should open with little resistance.
CLOSING A DOOR: From inside the garage, pull door downward using lift handles / gripping
point only. If you are unable to reach the lift handles/ suitable gripping points only, use pull
down rope affixed to the side of door. Door should close completely with little resistance.
USING AN ELECTRIC OPERATOR:
IMPORTANT: PULL DOWN ROPES MUST BE REMOVED AND LOCKS MUST BE REMOVED OR
MADE INOPERATIVE IN THE UNLOCKED POSITION.
When connecting a drawbar (trolley type) garage door operator to this door, a drawbar opera-
tor bracket must be securely attached to the top section of the door, along with any struts
provided with the door. Always use the drawbar operator bracket supplied with the door. To
avoid possible damage to your door, Wayne Dalton recommends reinforcing the top section
with a strut (may or may not be supplied). The installation of the drawbar operator must be
according to manufacturer’s instructions and force settings must be adjusted properly. Refer
to the owner’s manual supplied with your drawbar operator for complete details on installa-
tion, operation, maintenance and testing of the operator.
MAINTAINING YOUR GARAGE DOOR: Before you begin, read all warning labels affixed to
the door and the installation instructions and owner’s manual. Perform routine maintenance
steps once a month, and have the door professionally inspected once a year. Review your
Installation Instructions and Owner’s Manual for the garage door. These instructions are
available at no charge from Wayne Dalton, a division of Overhead Door Corporation, P.O. Box
67, Mt. Hope, OH., 44660, or at www.Wayne-Dalton.com. For additional information on
garage door/operator maintenance go to www.dasma.com and reference TDS 151, 167
and 179.
Monthly Inspections:
1. Visual Inspection: Closely inspect jambs, header and mounting surface. Any material
found not to be structurally sound must be replaced. It may be necessary to uninstall part
or all of the door assembly in order to replace defective material. Refer to the supplemental
instructions “Removing an Existing Door / Preparing the Opening” at www.Wayne-Dalton.
com. Inspect the spring(s), counterbalance lift cables, track rollers, pulleys, rear back hangs
and other door hardware for signs of worn or broken parts. Tighten any loose screws and/or
bolts, except on bottom corner brackets or on the counterbalance assembly. Check exterior
surface of the door sections for any minor cracks. Verify door has not shifted right or left in
the opening. If you suspect problems, contact a trained door system technician.
WARNING
GARAGE DOOR SPRINGS, COUNTERBALANCE LIFT CABLES, BRACKETS,
AND OTHER HARDWARE ATTACHED TO THE SPRINGS ARE UNDER
EXTREME TENSION, AND IF HANDLED IMPROPERLY, CAN CAUSE
SEVERE OR FATAL INJURY. ONLY A TRAINED DOOR SYSTEMS
TECHNICIAN SHOULD ADJUST THEM, BY CAREFULLY FOLLOWING THE
MANUFACTURER’S INSTRUCTIONS.
WARNING
NEVER REMOVE, ADJUST, OR LOOSEN THE BOLTS, SCREWS AND/OR LAG
SCREWS ON THE COUNTERBALANCE (END BEARING BRACKETS, DRUMS
OR SPRING SYSTEM) OR BOTTOM CORNER BRACKETS OF THE DOOR.
THESE BRACKETS ARE CONNECTED TO THE SPRING(S) AND ARE UNDER
EXTREME TENSION. TO AVOID POSSIBLE SEVERE OR FATAL INJURY,
HAVE ANY SUCH WORK PERFORMED BY A TRAINED DOOR SYSTEMS
TECHNICIAN USING PROPER TOOLS AND INSTRUCTIONS.
TORQUEMASTER®PLUS SPRINGS: Pawl knob(s) (located on the TorqueMaster®end brack-
ets above the door) should be engaged to prevent the door from rapidly descending in case
of spring failure or forceful manual operation.
EXTENSION SPRINGS: A restraining cable or other device should be installed on the exten-
sion spring (located above the horizontal tracks) to help contain the spring if it breaks.
2. Door Balance: Periodically test the balance of your door. If you have a garage door
drawbar operator, use the release mechanism so you can operate the door by hand when
doing this test. Start with the door in the fully closed position. Using handles or suitable grip-
ping points, lift the door to check its balance. Adjust TorqueMaster® or Extension spring(s),
if door lifts by itself (hard to pull down) or if door is difficult to lift (easy to pull down). DO NOT
attempt to repair or adjust Torsion Springs yourself. To adjust TorqueMaster® or Extension
spring(s), refer to your installation instructions and owner’s manual. If in question about
any of the procedures, do not perform the work. Instead, have it adjusted by a trained door
systems technician.
3. Lubrication: The door should open and close smoothly. Ensure the door track rollers are
rotating freely when opening and closing the door. If track rollers do not rotate freely, clean
the door tracks, removing dirt and any foreign substances. Clean and lubricate (use a non-
silicon based lubricant) graduated end hinges, center hinges, steel track rollers, bearings and
torsion springs (torsion spring coil surfaces). DO NOT lubricate plastic idler bearings, nylon
track rollers, door track. DO NOT oil a cylinder lock, if actuation is difficult use a graphite dust
to lubricate.
CHECK FOR PRESENCE OF SAFETY LABELS:
The adjacent bottom corner
bracket and all cable
retention features including
milford pins, cotter pins, &
clevis pins are under HIGH
SPRING TENSION.
262484 REV1 01/08/10
WARNING
Repairs and adjustments
must be made by an
experienced door
professional or mechanic,
using proper tools and
instructions.
DO NOT REMOVE, COVER OR
PAINT THIS LABEL.
©Copyright 2010 Wayne-Dalton,
aDivision of Overhead Door Corp.
The adjacent bottom corner
bracket and all cable
retention features including
milford pins, cotter pins, &
clevis pins are under HIGH
SPRING TENSION.
262484 REV1 01/08/10
WARNING
Repairs and adjustments
must be made by an
experienced door
professional or mechanic,
using proper tools and
instructions.
DO NOT REMOVE, COVER OR
PAINT THIS LABEL.
©Copyright 2010 Wayne-Dalton,
aDivision of Overhead Door Corp.
WHEN CONNECTING A TROLLEY TYPE GARAGE DOOR
OPENER TO THIS DOOR, A WAYNE-DALTON
OPENER/TROLLEY BRACKET MUST BE SECURELY
ATTACHED TO THE TOP SECTION OF THE DOOR, ALONG
WITH ANY U-BARS PROVIDED WITH THE DOOR. THE
INSTALLATIONOF THE OPENER MUST BE ACCORDING TO
MANUFACTURER’S INSTRUCTIONS AND FORCE SETTINGS
MUST BE ADJUSTED PROPERLY.
323917 REV2 01/15/2010
IMPORTANT!
Copyright2010Wa yneDalton,a Division of Overhead Door Corp.
SpringTurns
DoorHeight Spring Turns
(6’- 0”)14
(6’- 3”) 14- 1/2
(6’- 5”)15
(6’- 6”)15
(6’- 8”) 15- 1/2
(6’- 9”) 15- 1/2
(7’- 0”)16
(7’- 3”) 16- 1/2
(7’- 6”)17
(7’- 9”) 17- 1/2
(8’- 0”)18
Numberof Installed Spring Turns
300547 REV2 01/15/2010
Copyright2010WayneDalton, a
DivisionofOverhead Door Corp.
HIGHSPRING TENSION CAN CA USE
SERIOUSINJURY OR DE ATH.
DONOTadjust, repair or remove springs or parts to
whichsprings are connected, such as steel brack-
ets,cables, wood blocks, fasteners or other parts of
thecounterbalance system.
Adjustmentsor repairs must ONLY be made by a
traineddoor systems technician using proper tools
andinstructions.
DONOTremove, cover or paint over this tag. Prod-
uctuser should inspect this tag periodically for
legibilityand should order a replacement tag from
thedoor manufacturer, as needed.
©Copyright2010Overhead Door Corporation 102081 REV2 06/24/2010
SAFETYINSTRUCTIONS
1. Operatedoor ONLY when it is properly
adjustedandfree of obstructions.
2. Ifa door becomes hard to operate,
inoperativeoris damaged, immediately
havenecessaryadjustments and/or repairs
madebya trained door system technician
usingpropertools and instructions.
3. DONOT stand or walk under a moving door,
orpermitanybody to stand or walk under
anelectricallyoperated door.
4. DONOT place fingers or hands into open
sectionjointswhen closing a door. Use lift
handles/grippingpointswhen operating
doormanually.
5. DONOT permit children to operate garage
doorordoor controls.
6. Dueto constant extreme spring tension,
DONOTattempt any adjustment, repair or
alterationtoany part of the door,
especiallytosprings, spring brackets,
bottomcornerbrackets, red colored
fasteners,cablesor supports. To avoid
possiblesevereor fatal injury, have any
suchworkperformed by a trained door
systemtechnicianusing proper tools and
instructions.
7. Onelectrically operated doors, pull down
ropesmustbe removed and locks must be
removedormade inoperative in the open
(unlocked)position.
8. Topsection of door may need to be
reinforcedwhenattaching an electric
opener. Check door and/or opener
manufacturer’s instructions.
9. VISUALLYinspect door and hardware
monthly for worn and/or broken parts.
Check to ensure door operates freely.
10.Te stelectric opener’s safety features
monthly, following opener manufacturer’s
instructions.
11.NEVER hang tools, bicycles, hoses, clothing
or anything else from horizontal tracks.
Track systems are not intended or designed
to support such extra weight.
Placelabel at a readable height on door. DO NOT
remove,cover or paint over this label. Product
usershould inspect this label periodically for
legibilityand should order a replacement label
fromthe door manufacturer as needed.
324100 REV7 09/16/2013
Qualitygarage doors since 1954
WayneDalton
2501S. State Hwy 121 Bus., Suite 200
Lewisville,TX 75067
Forservice, call [phone]
www.Wayne-Dalton.com
Copyright2013WayneDalton, a
DivisionofOverheadDoor Corp.
Residential warning label
The warning label will either be on
the right or the left end stile.
Drawbar operator
bracket label
Bottom corner bracket warning labels
Torsion spring tag(s)
(one per spring)
TorqueMaster®Plus tag(s)
(one per spring)
17
Maintenance

Warranty
Rev. 03.2019
Model 9800
Limited Warranty
Wayne Dalton, a division of Overhead Door Corporation ("Seller") warrants to the original purchaser of the
Model 9800
(“Product”),
subject to all of the terms and conditions hereof, that the Product and all components thereof will be free from defects in materials
and workmanship for the following period(s) of time, measured from the date of installation:
•
Limited Lifetime Warranty
* – Against the Product becoming inoperable due to rust-through of the steel skin backer, caused by
cracking, splitting or other deterioration of the steel skin, due to structural failure caused by separation or degradation of the foam
insulation, or due to failure of metal hardware components (excluding springs) or track.
•
Three (3) Years
– Three (3) Years - Against delamination of the fiberglass skin resulting from a defect in the fiberglass skin or
peeling or cracking of the original factory-applied coating. Repainting or refinishing of the Product, other than directed top clear coat
maintenance, will void this warranty.
Manufacturer recommends the door be inspected regularly and given a fresh top clear coat every 12 to 18 months, or more often in
areas of extreme environmental exposure. This will help to extend the life of the door and help preserve its original factory
appearance. Color fading is not considered a factory defect and is not covered by the door warranty as detailed in this document.
Refer to your care and maintenance instructions (Field Painting and Finishing Fiberglass or Steel Door Sections) for directions on
maintaining your top clear coat at www.Wayne-Dalton.com.
•
One (1) year
– All other components
* Limited Lifetime means for so long as the original purchaser owns the home in which the product was originally installed.
Seller’s obligation under this warranty is specifically limited to repairing or replacing, at its option, any part which is determined by
Seller to be defective during the applicable warranty period. Any labor charges are excluded and will be the responsibility of the
purchaser.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. This warranty is
made to the original purchaser of the Product only, and is not transferable or assignable. This warranty applies only to Product
installed in a residential or other non-commercial application. It does not cover any Product installed in commercial or industrial
building applications. This warranty does not apply to any unauthorized alteration or repair of the Product, or to any Product or
component which has been damaged or deteriorated due to misuse, neglect, accident, failure to provide necessary maintenance,
normal wear and tear, acts of God, or any other cause beyond the reasonable control of Seller or as a result of having been
exposed to toxic or abrasive environments, including blowing sand, salt water, salt spray and toxic chemicals and fumes.
ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN TIME TO THE
APPLICABLE WARRANTY PERIOD REFLECTED ABOVE. NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY
AFTER THE LIMITED WARRANTY PERIOD HAS EXPIRED. Some states do not allow limitations on how long an implied warranty
lasts, so the above limitation may not apply to you.
IN NO EVENT SHALL SELLER BE RESPONSIBLE FOR, OR LIABLE TO ANYONE FOR, SPECIAL, INDIRECT, COLLATERAL,
PUNITIVE, INCIDENTAL OR CONSEQUENTIAL DAMAGES, even if Seller has been advised of the possibility of such damages.
Such excluded damages include, but are not limited to, loss of use, cost of any substitute product, or other similar indirect financial
loss. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
Claims under this warranty must be made promptly after discovery, within the applicable warranty period, and in writing to the
authorized distributor or installer whose name and address appear below. The purchaser must allow Seller a reasonable
opportunity to inspect any Product claimed to be defective prior to removal or any alteration of its condition. Proof of the purchase
and/or installation date, and identification as the original purchaser, may be required. There are no established informal dispute
resolution procedures of the type described in the Magnuson-Moss Warranty Act.
SELLER:
SELLER’S ADDRESS:

If you need assistance, please call 1-866-569-3799 (press Option 1) and follow the prompts to
contact a customer service representative. They will be happy to handle any questions that you
may have.
Thank you for your purchase.
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE
After installation is complete, leave this Installation
Instructions And Owner’s Manual with the homeowner, or
fasten it near garage door for easy reference.
