FEATURES & BENEFITS
A contemporary take on a classic window covering, Verishade XT combines the versatility
of a vertical blind with the elegant appeal of a soft window furnishing.
Featuring the premium Edge Vertical Track system and soft Verishade XT fabric, the new
Verishade XT collection provides the perfect balance of style, durability and child safety
features to complement any home interior style and living needs.
FEATURE BENEFIT
Unique Design Individually curved fabric vanes feature an
alternating light filtering and room
darkening fabric panel. Simply turn the
fabric vanes for sheer light control or total
privacy.
Child Safe Designed with child safety in mind,
Verishade XT fabric has no connecting
bottom chains or weights, providing a
safer home environment for children and
pets.
Functional Living For seamless indoor-outdoor living,
conveniently walk through the individual
fabric vanes whether they are opened or
closed.
Easy Breezy Free from noisy connecting chains and
bottom weights, Verishade XT operates
quietly and softly settles back into position.
Two Operating Options Available with two operating options:
Chain and Cord or Traversing Wand,
Verishade XT fabric can be easily tilted
with option to stack to the left, right or split
stack for an unobstructed view.
Uniform Appearance Seamless colour coordination between
fabric and hardware for a cohesive interior
look. The modern headrail design is
available in 6 matching colours (anodised,
white, birch white, stoney beige, gunmetal
and black).
Total Light Control Take advantage of beautiful light control
with Verishade XT. The soft vertical fabric
provides daytime privacy whilst allowing a
soft view through. Easily adjust the level of
privacy and light to suit your requirements
by rotating the fabric vanes halfway. To
block light, close the shades completely.

3 | P a g e
Durable Qualities Made from 100% polyester, Verishade XT
fabric offers durable properties such as
fade resistance and Ultraviolet (UV)
protection to help preserve the fabric and
home furnishings from fading.
Easy Maintenance With dirt and dust resistant properties,
maintenance is made easy. Simply dust,
spot clean or gently detach Verishade XT
fabric vanes from the track to hand wash.
Opacity Options Featuring alternating opacity fabric folds:
light filtering when opened or room
darkening when closed.
Dirt Resistant Treated to effectively repel dust and grime
for easy maintenance.
Fade Resistant All colours meet Australian Standards for
colour fastness to resist fading
(AS2001.4.21).
UV Protection UV stabilised fabric material features an
Ultraviolet Protection Factor (UPF) of 50+.
5 Year Warranty Enjoy total piece of mind with a 5 year
warranty.

4 | P a g e
OPERATING OPTIONS
Featuring the Australian designed and developed Edge Vertical System, Verishade XT
offers a premium hardware and operating system for ultimate performance, durability and
smooth control.
Available with two operating options: Chain and Cord or Traversing Wand, Verishade XT
fabric can be easily tilted with option to stack to the left, right or split stack for an
unobstructed view.
CHAIN & CORD OPERATION
Featuring a heavy duty roller blind chain and cord (available in 4 colours white, ivory, grey
& black), the beaded chain allows you to rotate the fabric vanes to the desired position,
while the cord can be used to stack the shade.
Available in left, right and split stack.
TRAVERSING WAND OPERATION
For a cordless and enhanced child safe solution, opt for the Traversing Wand operation
(available in 4 colours: white, anodised, gunmetal and black). Using just one hand, simply
rotate the fabric blades and draw the vanes across.
Available in left and right stack only.
Available in 4 colours: White, Anodised, Black &
Gunmetal
Standard Length: 750mm & 1250mm
Cord Colour: White, Black, Grey & Magnolia
Chain Colour: White, Black, Grey & Magnolia (continuous
loops - refer to below for sizes)

5 | P a g e
BLIND DROP
CHAIN & CORD CONTROL
LENGTH
TRAVERSING WAND CONTROL
LENGTH
1001 –1200MM
750MM
750MM
1201 –1500MM
1000MM
750MM
1501 –1800MM
1250MM
750MM
1801 –2100MM
1500MM
1250MM
2101 –2400MM
1750MM
1250MM
2401 –2700MM
2000MM
1250MM
>2700MM
2000MM
1250MM
NOTE: Drops that require chain longer than 2000mm must be noted on the order form and
are only available in white. A chain and cord tensioner will be supplied with all chain and
cord Verishade XT.
CALCULATION FOR NUMBER OF FABRIC BLADES
Fabric Blades = [Width(mm)] / 102 (roundup)
CONTROL PLACEMENT - WAND/CHAIN & CORD
•Chain & Cord: Blades stack on same side for split stack, choose left or right control.
•Travelling Wand: blades stack on side opposite wand. (Single side stack only)
BLADE CLOSURE GAP
•Blades are designed to overlap 25mm for privacy.
•Light leakage may occur due to the closure gap,
which may increase with the length of the blade.
•The closure gap is most visible when viewed from
the side. It is a normal, inherent characteristic of
the product and should not be considered a
defect.
•Blade closure is tighter in one direction than the other when the blades are rotated
closed.
SPLIT STACK CENTRE GAP
•The gap distance between fabric panels of split stack
design when open is approximately 10-15mm.

6 | P a g e
MEASURING & LIMITATIONS
OPTIONS & LIMITATIONS
MINIMUM WIDTH
1000MM
MAXIMUM WIDTH
5950MM
MINIMUM DROP
1000MM
MAXIMUM DROP
3600MM
MAXIMUM AREA
21M²
REVEAL DEPTH (VANE END TO END)
200MM
REVEAL DEPTH (FRONT OF HEADRAIL
TO BACK OF VANE)
100MM
FULLY RECESSED BOX MOUNT
220MM
BRACKET SIZE ON FACE FIT
102MM
MINIMUM SURFACE MOUNT ON FACE
50MM
FABRIC OVERLAP
25MM
STACK CALCULATIONS
APPROX. 10% to 20% OF TRACK WIDTH
TRACK DIMENSIONS
HEIGHT
DEPTH
25MM
46MM
Available Wand Sizes: 750mm & 1250mm in White, Anodised, Black & Gunmetal

7 | P a g e

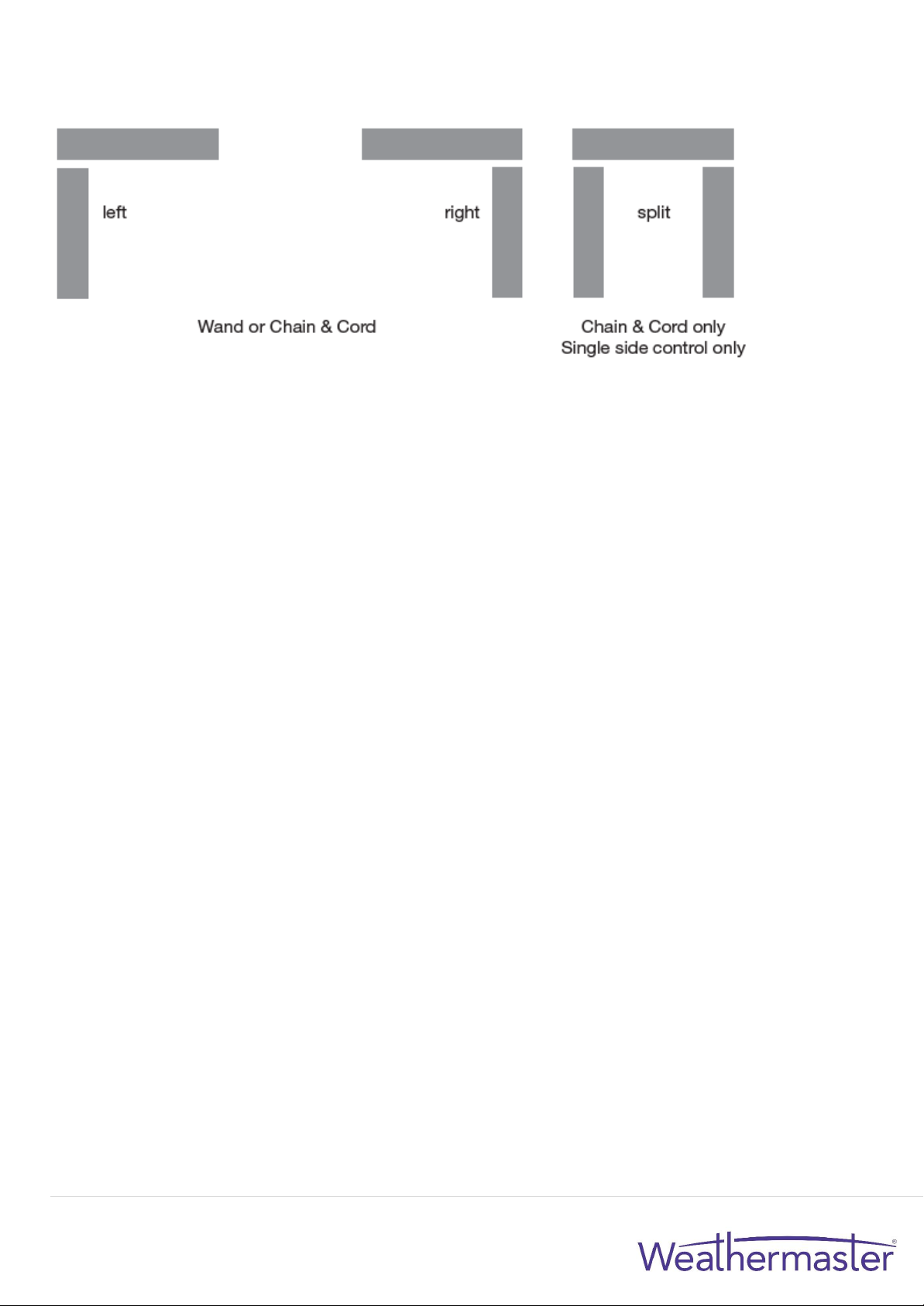

STACKING OPTIONS
Note: The wand will provide a smoother operation than the chain and cord due to the
fabric weight of this product.
STACKBACK INFORMATION
The stackback on a Verishade XT refers to the fabric when it is comes together in the open
position. The table below should be used as a guide to calculate the stackback based on the
width of the shade.
•0-2000mm: 20% of the shade width
•2001-4500mm: 15% of the shade width
•4500mm+: 10% of the shade width
Please note that the stackback is based on the Std Fabric Range and as with any textile
products, some variation can be expected based on fabric thickness.

8 | P a g e
MEASURING & DEDUCTIONS
When measuring for a Verishade XT, we recommend measuring as follows:
Face Fit Application
Width: Measure wood to wood and add 200mm to total width
Drop: Measure top to bottom and add 50mm to total drop
Reveal Fit Application
Width: Measure wood to wood
Drop: Measure top to bottom
Deductions
Deductions are made to ensure a snug fit of the Verishade XT product.
•3mm is deducted from the total width
•15mm is deducted from the drop supplied

9 | P a g e
PRODUCT CHARATERISTICS
When vanes are open the fabric provides a diffused view through.
Light colour fabrics will provide a soft glow effect when vanes are
closed.
Darker colour fabrics will have a more room darkening effect.
Note: Fabric is available in only one opacity
There will be a distance from the end of the track to the finish
position of the wand for the left & right stack of wand control.
The non-control end will finish short of the track due to vane
requirement for closing.
The gap for split stack is approximately 10-15mm when the vane is
open due to the finish fold of the end vane.
Due to the fabric’s elegant nature, the light gap will vary as you
go down the vane.

10 | P a g e

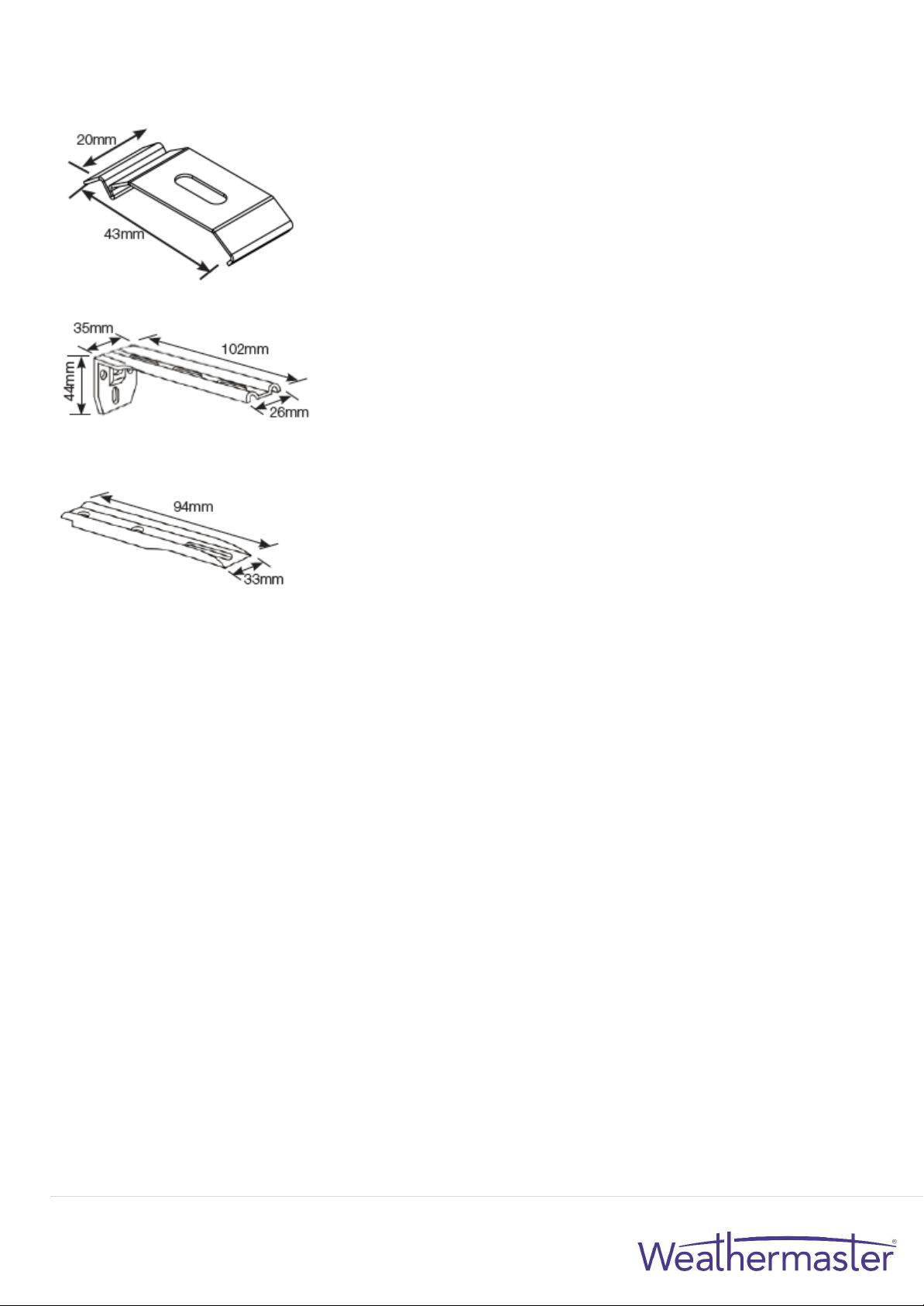

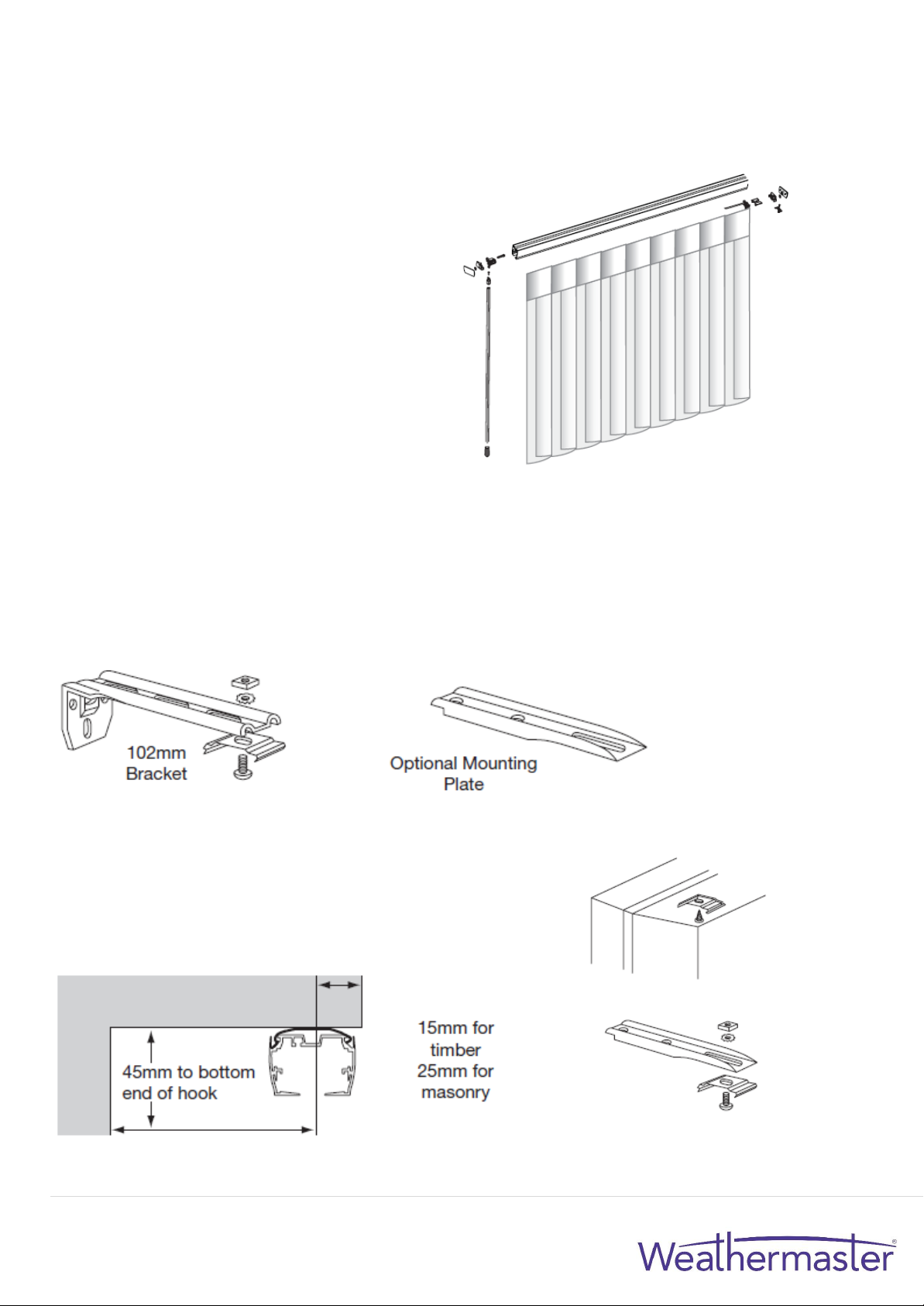

BRACKET OPTIONS MEASURING
28.669.063
Clip-In Mounting Bracket
28.682.XXX
102mm Face Fit Mounting Bracket
*Available in 6 colours, Zinc, Stoney beige, White Birch,
White, Gunmetal & Black.
28.685.XXX
Optional Mounting Plate Specify if required
*Available in 6 colours, Zinc, Stoney beige, White Birch,
White, Gunmetal & Black.
TRACK OPTIONS
COLOURS
Available in 6 colours, Anodised, White, Stoney Beige, White Birch, Black & Gunmetal.
NOTE:
•All Verishade XT are manufactured on the Edge vertical system.
•Verishade XT is setup to automatically default to the appropriate hardware colour
to match the fabric. Selecting your own headrail colour is also available. Hardware
will match the headrail.

11 | P a g e

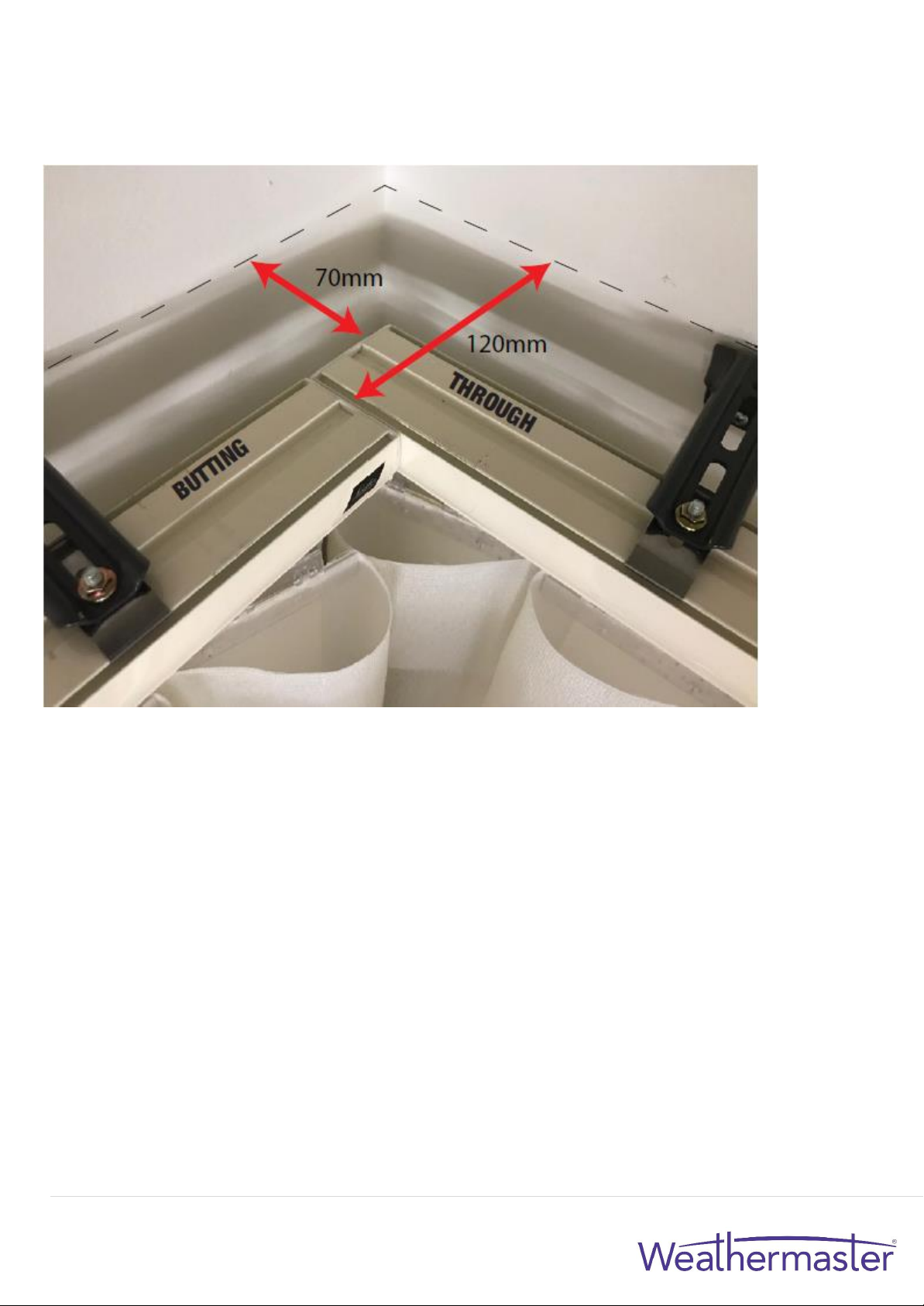

OPEN CORNER INSTALLATION OPTIMUM
POSITIONING
Based on installation with 102mm Face Fit bracket with total projection of 120mm

12 | P a g e
INSTALLATION INSTUCTIONS
IMPORTANT: Please read these instructions all the way through before installing. Materials &
Tools
Each Verishade XT ordered should include:
•Mounting clips (Number depends on
size)
•Mounting brackets (if face fixed)
•3 screws for each bracket (20mm x 6#
Panhead) (Face Fit)
•Cord tensioner and screw (If
cord/chain)
TOOLS REQUIRED
•Steel measuring tape
•Carpenter’s level
•Power or battery drill and bits
•Flat blade and Phillips head screwdrivers
The Verishade XT may be installed in Reveal (inside the window frame) or Face (outside
the window frame), this determines the type of brackets to be used.
The 102mm mounting bracket is used for all Verishade XT blinds. If required to extend the
Verishade XT out from the wall the optional mounting plate can also be used.
REVEAL FIT
The Verishade XT should be installed into the recess as far as
possible, while still allowing sufficient clearance for the vanes
to rotate freely.
Optional –Mounting plates may
be used to extend the position of the headrail mounting clips to a point outside of the
reveal where required (must be ordered).

13 | P a g e
BRACKET/CLIP SPACING
Mountings should be within 200mm of the ends of the head channel and not more than 1
metre apart.
For stacking side add an extra bracket for support.
FACE FIT
1. Measure the track and mark on the face or architrave of the
window where to attach the brackets.
2. Check the drop (length) of the Verishade XT and mark the height
on the wall or architrave, allowing for clearance.
3. Attach the brackets by using (20mm x 6# Panhead) screws
supplied.
Minimum 3 screws per bracket
BRICK OR RENDERED SURFACES
Warning: Ensure you drill no closer than 25mm from the edge of these
surfaces as you may chip or breakout the brick or render.
INSTALLING THE TRACK
Check to see what side the control is on before proceeding.
Hold track up to the brackets ensuring front edge lip of the track
engages into the lip of the bracket, twist up and backwards to snap
the track on to the bracket.
Note: Longer tracks will require you to snap each bracket in turn.
ATTACHING THE PANELS
Start with the track in closed position and ensure the hooks are in the open position.
Pick one fabric panel up individually and hang one side in the second hook.
Connect the next fabric panel to the former panel by clicking the clear plastic hangers
together, then repeat.

14 | P a g e
END PANELS
The left and right end panels will be supplied with only 1 clear plastic clip attached and
double sided tape applied on the opposite side.
FOLDING THE END PANEL
•The outside facing edge should be sheer fabric.
•Fold the fabric around the vanes.
•Line up the vane vertically and attach to the double
sided tape. Ensure the fabric vane opening faces the
back (window). Click the 2 clear plastic tabs together.
•Hang on last hook.
INSTALLING THE CORD & CHAIN TENSIONER
After the blind has been securely mounted to the window,
mount the cord tensioner to the reveal of the window
opening (inside mount) or to the face of the wall (outside
mount). Determine the correct mounting option as shown
below.
Important: Locate the tensioner as close to the window as
possible to minimise accessibility by children and pets.
Ensure the device is secured so that the cords are tensioned
while still allowing the blind to be operated.

15 | P a g e
CARE & CLEANING
DUSTING
Surface dust can be easily removed using a clean soft brush or feather duster.
SPOT CLEANING
To remove dirt and grime, simply wipe the fabric blades with a sponge soaked in
lukewarm water. If marks are still visible, add a little mild detergent and gently dry with a
clean cloth.
HAND WASH
Verishade XT fabric can be lightly hand washed and dried and can also be ironed with a
cool iron or steamed to remove creases. To remove Verishade XT fabric, gently unhook
the fabric blade by lifting up and out of the hook.
1. For the removal of dirt and grime, simply wipe fabric blades with a sponge soaked
in lukewarm water and a little mild detergent or occasional brushing with a soft
brush or feather duster is sufficient also.
2. There can be significant variations between fabrics used in Verishade XT, therefore
we recommend that you clean a small area as a test first.
3. Proper care and maintenance will increase the life of your investment.
•The surface of Verishade XT fabric and tracks will collect a layer of dust over time.
•Verishade XT fabric can be lightly hand washed and dried and can also be ironed
with a cool iron or steamed to remove creases.
•Verishade XT tracks can be cleaned with a feather duster, or a slightly damp
microfibre cloth to ensure the components are also dust free.
CAUTION: Never use harsh cloths, harsh abrasives, chlorine or ammonia based chemicals
or cleaners on any Verishade XT surface as they may affect the appearance, longevity
and warranty of the product.
On the stack side of your blinds the end attachment can be unhooked in order to stack
back the fabric to clean the window.

16 | P a g e
OPERATION
Verishade XT blinds operate as per
Weathermaster Vertical Edge Blinds.
The Chain Controls the tilting of the Verishade
XT and should be tilted several times to ensure it
opens and closes correctly.
The Cord Traverses the vanes clear of the
window allowing access for opening a window
or cleaning.
The Wand Controls the tilting of the Verishade
XT and traverses the vanes clear of the window allowing access for opening & closing or
cleaning.
Before traversing the vanes ensure they are tilted
(opened) to the window.

17 | P a g e
CHILD SAFETY
Please be aware that blind cords or chains pose a strangulation hazard for children. To
reduce the risk of strangulation, this internal window covering must be installed in such a
way that a loose cord cannot form a loop 220mm or longer at a height of less than
1600mm above floor level. If your shade is provided with cord operation, it is essential that
the following installation instructions are adhered to:
•The cord may be installed lower than 1600mm above floor level if the cord is
sufficiently secured or tensioned to prevent a loop of 220mm or longer being
formed;
•If a cord is installed lower than 1600mm above floor level it must be fitted to prevent
a child from being able to remove the cords.
If your blind is provided with a cord cleat, it is essential that the following installation
instructions are adhered to:
•If a cleat is used to secure the cord, it must be at least 1600mm above floor level to
prevent children from unwinding the cord from the cleat.
SAFETY DEVICES
This pack includes the following child safety devices for control options that use chain and
cord.
•Cord Tension Device –28.237.850
•Cord Tension Hardware –415459000
These safety devices are suitable for installation onto the following surfaces:
•Timber
•Aluminium
•Gyproc (Spring Toggle)
•Brick (Wall Plug)
Note: The Spring Toggle and Wall Plug are not included in this pack.
CHILD SAFETY INSTALLATION INSTRUCTIONS
Be aware that it is possible for children to strangle in
window covering cords and chains. To reduce the
possibility of such an accident, all cords and chains must
be kept out of reach of children, including infants. Cord
and chain tensioners are an effective w ay you implement
this essential precaution.
