weBoost Drive Reach Fleet User manual

Installation Guide
PROFESSIONAL VEHICLE CELL SIGNAL BOOSTER KIT
DRIVE REACH FLEET
A WILSON ELECTRONICS BRAND
NEED HELP?
®
855.846.2654
SignalBooster.com

______
Index
Package Contents 1
STEP 1-A: Drill Cable Entry Hole Into Your Vehicle 2
STEP 1-B: Insert & Route Cable 4
STEP 1-C: Mount NMO Outside Antenna 5
STEP 2: Mount 4G In-Vehicle Antenna 6
STEP 3: Wiring The Power Supply To The Vehicle Battery 7
STEP 4: Connect Coax Cables To Booster 8
STEP 5: Connect Power Supply To Booster 9
Light Patterns 10
Troubleshooting 11
Safety Guidelines 12
Specifications 13
Warranty Back Cover

DRIVE REACH FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT 1
________
Package
Contents
Drive Reach
Booster
& Bracket
Outside NMO
Antenna +
Connector
Mounting Cable
4G In-Vehicle
Antenna
Power
Supply
Optional Antenna
Extension Cable
Protective Tape
For Installation
O-Ring Lubricant
Packet

2PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE REACH FLEET
______
Step 1-A: Drill Cable Entry
Hole Into Your Vehicle
Identify a location for NMO Outside Antenna on the
top of your vehicle that is:
 Near the center of the roof
 At least 12 inches away from any other antennas
 At least 6 inches away from any windows
(for best performance install on top of vehicle)
Do a ‘soft install’ before drilling the hole for the
cable entry.
 Set up the system by routing the cable through
an open door or window, completing the setup
instructions, verifying the system works as desired,
and then drilling the hole.
6 in. away from windows
(including sunroofs)
Good NMO Outside
Antenna Placement

DRIVE REACH FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT 3

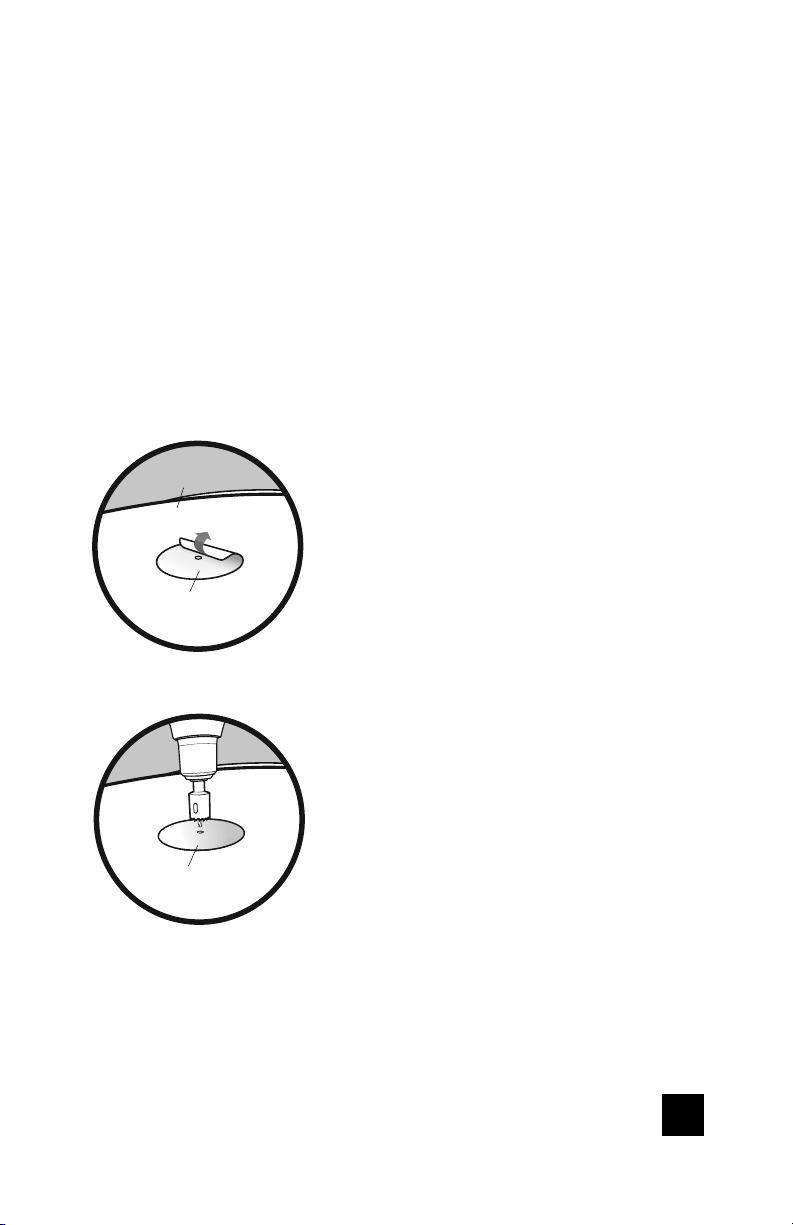

Place the protective tape on the
vehicle in the desired location.
Using a 3/4” hole saw, drill a
hole in the center of the
protective tape.
______
(STEP 1-A cont.)
After completing the ‘soft install’ and identifying NMO
Outside Antenna location:
protective tape
vehicle surface
protective tape
3/4” bit

4PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE REACH FLEET
apply silicone grease
After hole has been drilled, insert NMO Mounting Cable
through (connector end first) and remove collar.
Position threads of the cable mount above vehicle surface.
Apply included silicone grease to the o-ring on the collar
then screw the collar to the base mount. Ensure the mount is
centered in the hole and tighten with wrench.
screw collar
to base mount
For a professional installation, we recommend routing the cable
under the headliner and down through the side trim panel to
the desired booster location on the floor of the vehicle.
side trim panel
headliner
r
u
n
c
a
b
l
e
f
r
o
m
N
M
O
O
u
t
s
i
d
e
A
n
t
e
n
n
a
t
o
b
o
o
s
t
e
r
______
Step 1-B: Insert & Route Cable
remove
collar
insert through hole

DRIVE REACH FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT 5
Before attaching the antenna, apply a thin layer of silicone
grease only onto the threads of the NMO mount and onto
the o-ring on the antenna. Screw the antenna onto the NMO
mount and hand tighten into place.
hand tighten and make sure
gasket is touching vehicle
surface
screw on
NMO Antenna
______
Step 1-C: Mount NMO
Outside Antenna
apply silicone grease
NOTE: DO NOT apply silicone grease to the antenna pin contact surface.

6PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE REACH FLEET

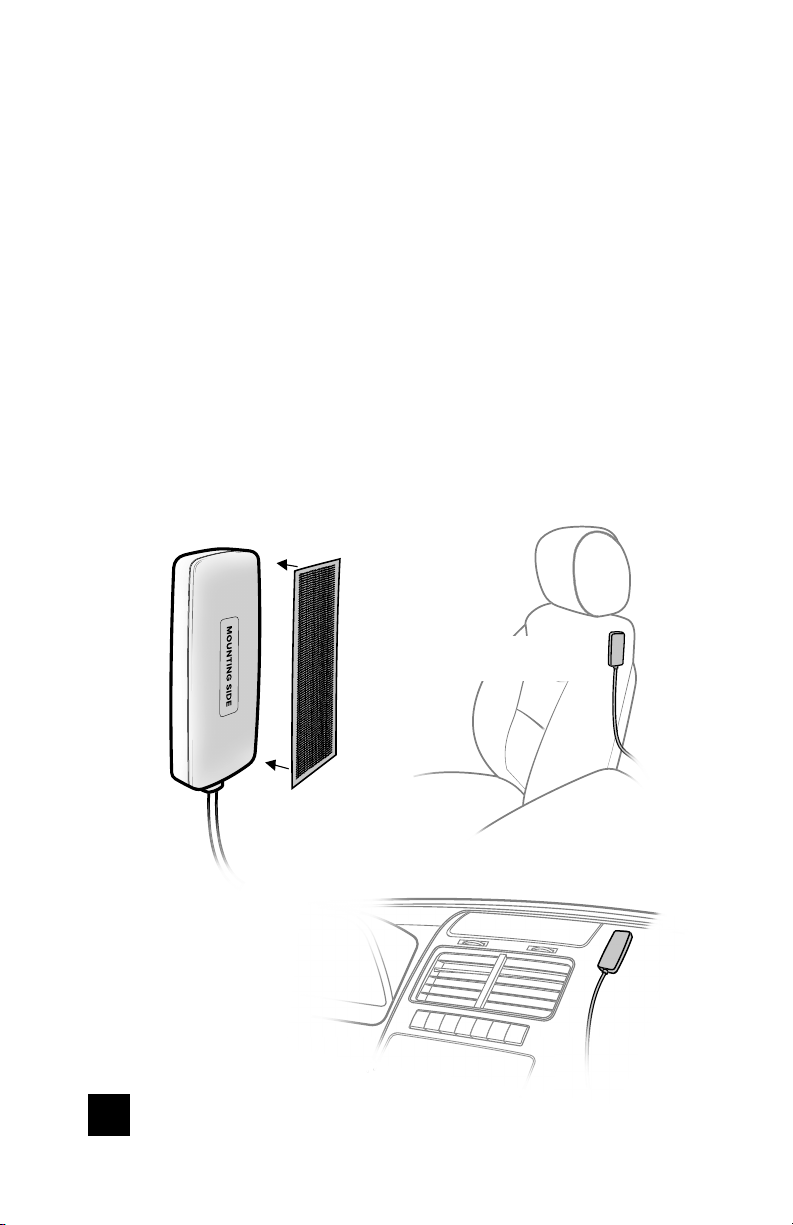

The location should be at least 18 inches but no more than 36
inches from where the cellular device will be used. Use the
Velcro® adhesive strip or the 2-sided adhesive strip provided
and attach to the side of the antenna labeled “MOUNTING
SIDE”. Then mount to the desired location.
Identify a place to mount the 4G In-Vehicle Antenna, either
on the side of the seat or on the dash and mount.
______
Step 2: Mount 4G In-Vehicle
Antenna
In-Vehicle Antenna
Dash Mount
Velcro® strip
In-Vehicle Antenna
Seat Mount

DRIVE REACH FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT 7
Before connecting the power supply, disconnect the vehicle battery
leads to avoid any electrical shocks during installation.
Locate a place where cables are already running through the firewall
(rear wall of engine bay) to the inside of the cabin.
Locate the same firewall hole from inside of the vehicle cabin.
Route the power cables of the power supply from the inside of the
vehicle cabin out through firewall hole.
Note: The cables must be routed inside to outside since the power
supply brick won’t fit through the firewall holes. The power supply
brick should remain inside the vehicle cabin.
Connect the positive lead of the power supply (lead with red tape)
to the disconnected positive (+) lead of the battery (not the positive
terminal on the battery itself).
Connect the negative lead of the power supply (lead without tape)
to the disconnected negative (-) lead of the battery (not the negative
terminal on the battery itself).
Connect the positive (+) lead back to the vehicle battery.
Connect the negative (-) lead back to the vehicle battery.
Use steps below as a draft/template of the general install of
the power supply.
______
Step 3: Wiring The Power
Supply To The Vehicle Battery
1
2
3
4
5
6
7
8
NOTE: Having the power supply directly connected to the battery may
drain the battery’s life. Please review the vehicle’s owner’s manual for more
information. Adding a “fuse tap” may be another solution. A “fuse tap” is an
electrical part that functions as a power splitter and is meant to be installed
in the car’s fuse box, making the amp shut o when the vehicle’s ignition
switch is turned o.

8PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE REACH FLEET
______

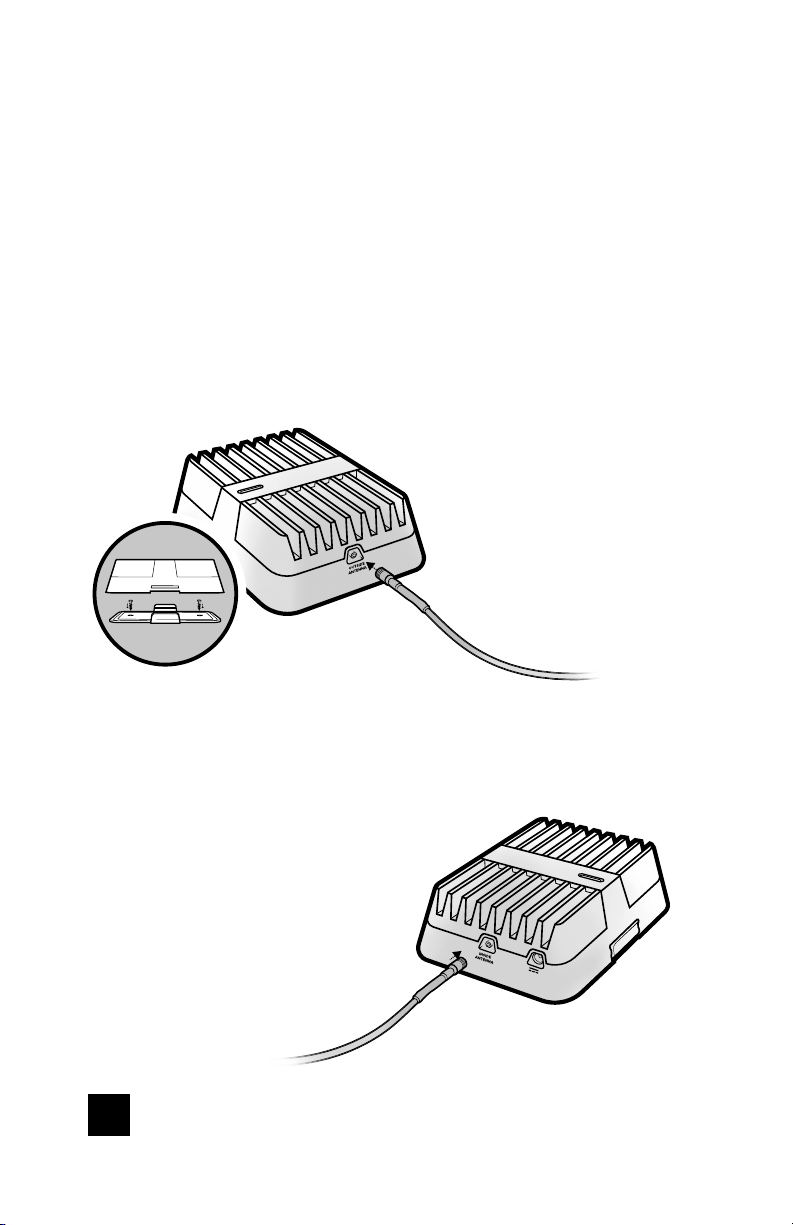

Step 4: Connect Coax Cables
To Booster
Connect the cable from the Outside NMO Antenna to the port
labeled “Outside Antenna” on the booster.
Connect the cable from the 4G In-Vehicle Antenna to the port
labeled “Inside Antenna” on the booster.
from Outside NMO Antenna
from Inside Antenna
NOTE: Bracket can be used to fasten booster in a specific location if desired.
The Velcro® strip on the bottom of the bracket can also be used to keep
booster from sliding around.
bracket
Drive Reach

DRIVE REACH FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT 9
______
Step 5: Connect Power
Supply To Booster
Connect the power supply cord to the end of the booster,
labeled “ .” Congratulations! Once your booster is running
please allow some time for your phone to adjust to your
new signal.
NOTE: Do NOT connect the power to the Signal Booster until you have
connected both the Inside and Outside Antennas.
Power Supply
from Outside Antenna
from Inside Antenna

10 PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE REACH FLEET
______
Light Patterns
NEED HELP?
Solid Green
This indicates that your booster is functioning properly and there are no issues with
installation.
Blinking Red, Then Solid Green
This indicates that one or more of the booster bands has reduced power due
to a feedback loop condition called oscillation. This is a built in safety feature
to prevent harmful interference with a nearby cell tower. If you are already
experiencing the desired signal boost, then no further adjustments are necessary.
If you are not experiencing the desired boost in coverage then refer to the
Troubleshooting section.
Solid Red
This is due to a feedback loop condition called oscillation. This is a built in safety
feature that causes a band to shut off to prevent harmful interference with a nearby
cell tower. Refer to Troubleshooting section.
Light O
If the Drive Reach Signal Booster’s light is off, verify your power supply has power.
NOTE: The Signal Booster can be reset by disconnecting and reconnecting
the power supply.
After troubleshooting you must initiate a new power cycle by disconnecting and
then reconnecting power to the Booster.
855.846.2654
SignalBooster.com

DRIVE REACH FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT 11
FREQUENTLY ASKED QUESTIONS
What hours can I contact customer support?
Customer Support can be reached monday thru friday by calling
Why do I need to create distance between the booster and the antenna?
Antennas connected to a booster create spheres of signal. When these spheres
overlap, a condition called oscillation occurs. Oscillation can be thought of as noise,
which causes the booster to scale down it’s power or shut down to prevent damage.
The best way to keep these spheres of signal from overlapping is to maximize
separation between the inside and outside antennas.
______
Troubleshooting
FIXING BLINKING OR SOLID RED ISSUES
This section is only applicable if the booster is red or blinking red and you are not
experiencing the desired signal boost.
1
2
3
Unplug the Booster’s power supply.
Relocate the inside and outside antenna further from each other. The objective
is to increase the separation distance between them, so that they will not
create this feedback condition discussed before.
Plug power supply back in.
Monitor the indicator light on your booster. If, after a few seconds of ‘power
on’, a solid or blinking red light appears, repeat steps 1 through 3. Increase the
separation distance until the condition is corrected and/or desired coverage
area is achieved. Note: Horizontal separation of the two antennas typically
requires a shorter separation distance than perpendicular separation.
If you are having any diculties while testing or installing your booster, contact
our Customer Support team for assistance (855.846.2654).
4
5

12 PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT DRIVE REACH FLEET
______
Safety Guidelines
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your
provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers
may not consent to the use of this device on their network. If you are unsure, contact your provider.
You MUST operate this device with approved antennas and cables as specified by the
manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.
You MUST cease operating this device immediately if requested by the FCC or licensed wireless
service provider.
WARNING. E911 location information may not be provided or may be inaccurate for calls served by
using this device.
Use only the power supply provided in this package. Use of a non-weBoost product may damage
your equipment.
All inside antennas must have at least 1.5’ separation distance from all active users.
Connecting the Signal Booster directly to the cell phone with use of an adapter will damage the
cell phone.
RF Safety Warning: Any antenna used with this device must be located at least 8 inches from
all persons.

DRIVE REACH FLEET PROFESSIONAL VEHICLE SIGNAL BOOSTER KIT 13
______
Specifications
NEED HELP?
Drive Reach
Model Number 4
60054
FCC ID: PWO4
60054
IC:
4
726A-4
60054
Co
nnectors
S
MB-
Jack
Antenna Impedanc
e
50
O
hms
Frequency698-716 MHz, 728-756 MHz, 777-787 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755
/
2110-2155 MHz
Ma
ximum Power
Power output for single cell
phone (Uplink)dB
m
7
00
MHz
Band 12/1
7
2
7.
3
7
00
MHz
Band 1
3
2
7.1
800
MHz
Band
5
2
7.
0
17
00
MHz
Band 4
28
.4
1
9
00 MHz
Band 2/2
5
2
7.7
Power output
f
or single cell
phone
(
Downlink
)
dB
m
7
00
MHz
Band 12
/
1
7
5.
0
7
00
MHz
Band 1
3
5.
2
800
MHz
B
an
d
5
5.
2
2
1
00
MHz
Ba
n
d
4
5
1
9
00 MHz
Band 2
/
2
5
5
.
1
Noise Figure
5
dB
nomin
al
Isolation >
90
dB
Power Requirement
s
5
V 4.
5
A
Each Signal Booster is individually tested and factory set to ensure FCC compliance. The Signal Booster cannot be adjusted without
factory reprogramming or disabling the hardware. The Signal Booster will amplify, but not alter incoming and outgoing signals in order
to increase coverage of authorized frequency bands only. If the Signal Booster is not in use for five minutes, it will reduce gain until a
signal is detected. If a detected signal is too high in a frequency band, or if the Signal Booster detects an oscillation, the Signal Booster
will automatically turn the power o on that band. For a detected oscillation the Signal Booster will automatically resume normal
operation after a minimum of 1 minute. After 5 (five) such automatic restarts, any problematic bands are permanently shut o until the
Signal Booster has been manually restarted by momentarily removing power from the Signal Booster. Noise power, gain, and linearity
are maintained by the Signal Booster’s microprocessor.
This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment.
855.846.2654
SignalBooster.com

2 YEAR WARRANTY
weBoost Signal Boosters are warranted for two (2) years against defects in
workmanship and/or materials. Warranty cases may be resolved by returning the
product directly to the reseller with a dated proof of purchase.
Signal Boosters may also be returned directly to the manufacturer at the
consumer’s expense, with a dated proof of purchase and a Returned Material
Authorization (RMA) number supplied by weoost. weBoost shall, at its option,
either repair or replace the product.
This warranty does not apply to any Signal Boosters determined by weBoost
to have been subjected to misuse, abuse, neglect, or mishandling that alters or
damages physical or electronic properties.
Replacement products may include refurbished weBoost products that have been
recertified to conform with product specifications.
RMA numbers may be obtained by contacting Customer Support
DISCLAIMER: The information provided by weBoost is believed to be complete
and accurate. However, no responsibility is assumed by weBoost for any business
or personal losses arising from its use, or for any infringements of patents or other
rights of third parties that may result from its use.
NOT AFFILIATED WITH WILSON ANTENNA GDE000164_Rev01_04.10.19
855.846.2654 www.signalbooster.com [e-mail]
@
