Home 3G
Cellular Signal Booster
463105
™
Need help? www.weBoost.com Customer Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
PROTOTYPE

2Need help? www.weBoost.com Customer Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
ENGLISH

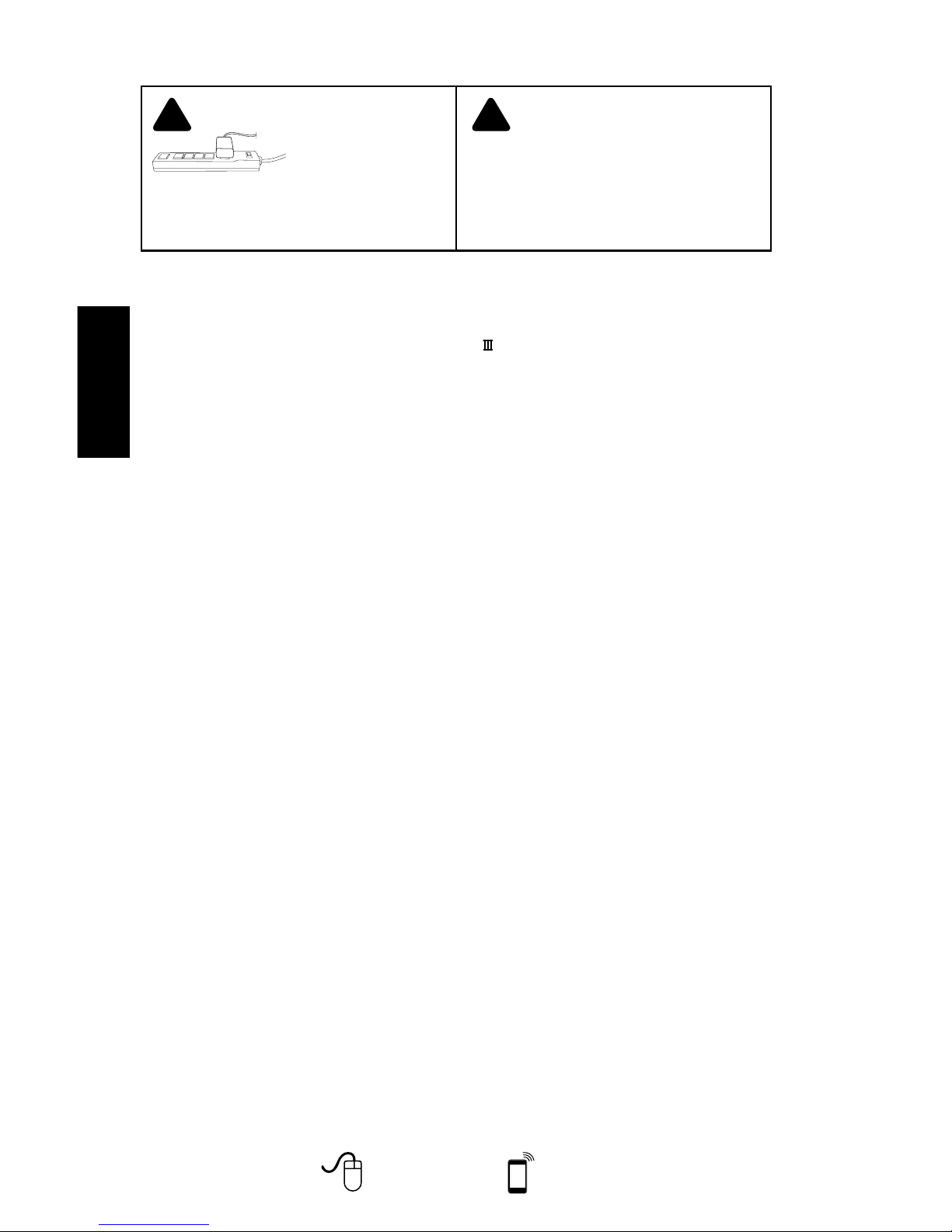

IT IS VERY IMPORTANT
TO POWER YOUR SIGNAL
BOOSTER USING A SURGE
PROTECTED AC POWER
STRIP WITH AT LEAST A 1000
JOULE RATING.
FAILURE TO DO THIS WILL VOID YOUR WARRANTY
IN THE EVENT OF A POWER SURGE OR LIGHTNING
STRIKE.
! ! THE SIGNAL BOOSTER UNIT IS DESIGNED
FOR USE IN AN INDOOR, TEMPERATURE-
CONTROLLED ENVIRONMENT (LESS
THAN 150 DEGREES FAHRENHEIT). IT IS
NOT INTENDED FOR USE IN ATTICS OR SIMILAR
LOCATIONS SUBJECT TO TEMPERATURES IN
EXCESS OF 150°F.
Contents
Package Contents ......................................................3
Optional Accessories ...................................................3
Before Getting Started ..................................................3
Find the Strongest Signal................................................4
Quick Install - Inside Window Mount Option ................................5
Installation Options.....................................................6
Outside Pole Mount (Best Option) ......................................6
Rafter Mount .......................................................7
Additional Considerations ...............................................7
Home 3G and Desktop Antenna Placement .................................8
Troubleshooting & Understanding Lights...................................9
Additional FAQ........................................................10
Signal Booster Specifications ...........................................12
Safety Guidelines .....................................................13
Guarantee and Warranty................................................14
Installation Instructions for the Following weBoost Signal Booster:
Home 3G™ Adjustable Gain In-Building Wireless 800/1900 MHz
SmarTech
™ Signal Booster
Model # 473005 FCC ID: PWO460005 IC: 4726A-460005
The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met.

Need help? www.weBoost.com Customer Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST 3
ENGLISH
Before Getting Started
Before you install your Home 3G and start
enjoying improved cellular reception in your
home or ofce, please do the following:
1. Read through all the installation
steps. This will help you know what to
expect from start to nish.
2. Watch the YouTube video
demonstrating the Home 3G Signal
Boost installation at: weboost.com/us/
home3Gvideo.
3. Determine the best installation option
for your needs.
– Inside Window Mount Option - pg.5
– Outside Pole Mount Option - pg.6
(Best Option)
– Rafter Mount Option - pg.7
4. Familiarize yourself with all materials
in your product package. This will
allow you to know which pieces are
referenced in the instructions.
5. Identify the location of your best
available cellular signal. See page 4.
6. Plan where to mount your antenna.
AC Power Supply
6V / 2.5A
(Not included with some models)
(859912)
2. Wall Mount
(Packet B)
1. Pole Mount
(Packet A)
Tools Required for Installation
Depending on your particular installation, you will need the following tools:
1. Pole mount - 10 mm open-end wrench or adjustable wrench
2. Wall mount or Rafter mount - Drill and 3/16 inch bit, Phillips-head screwdriver
3. Window Mount
(Packet C)
Accessories packaged may not exactly match the below photos due to different kit options
Appearance of device and accessories may vary.
Kit 991171 Includes

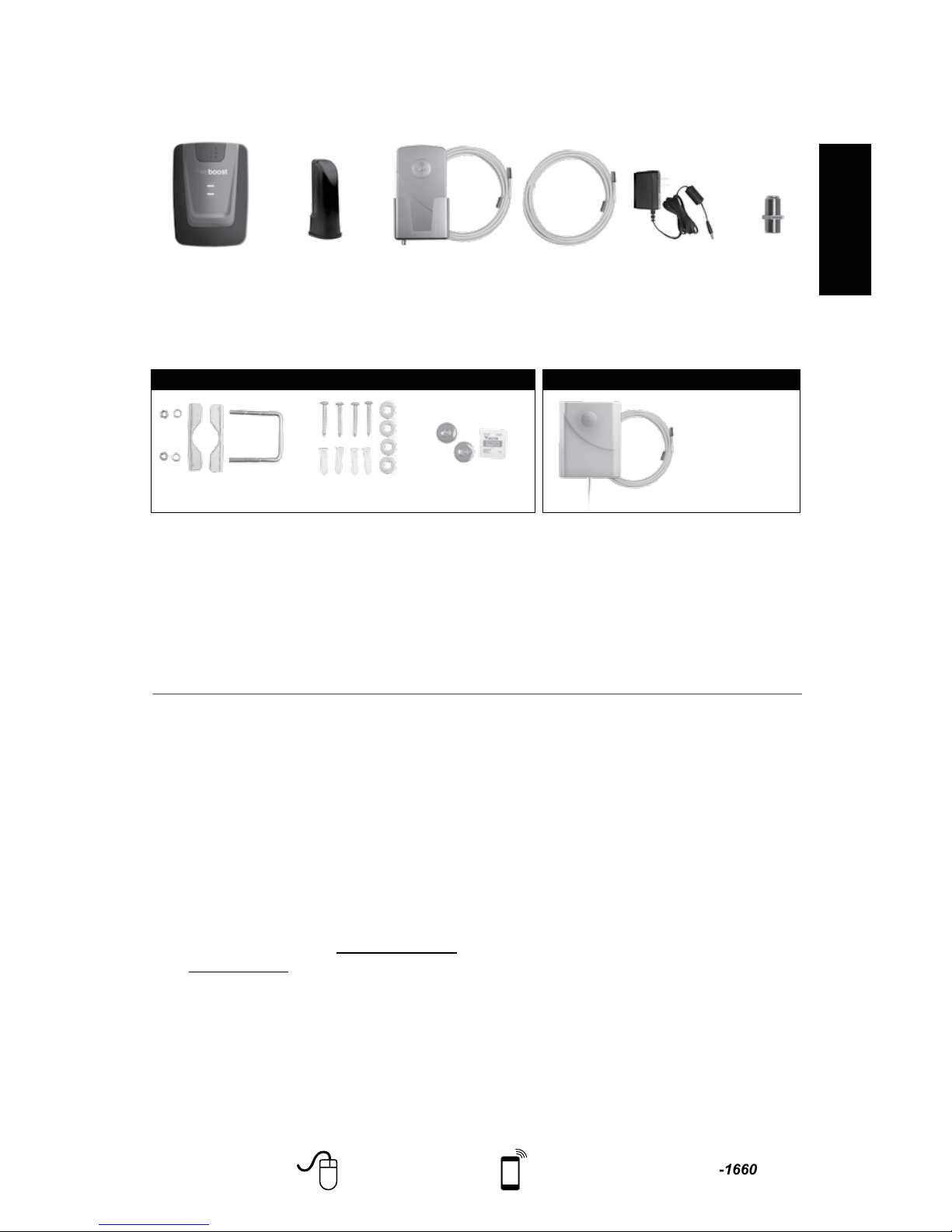

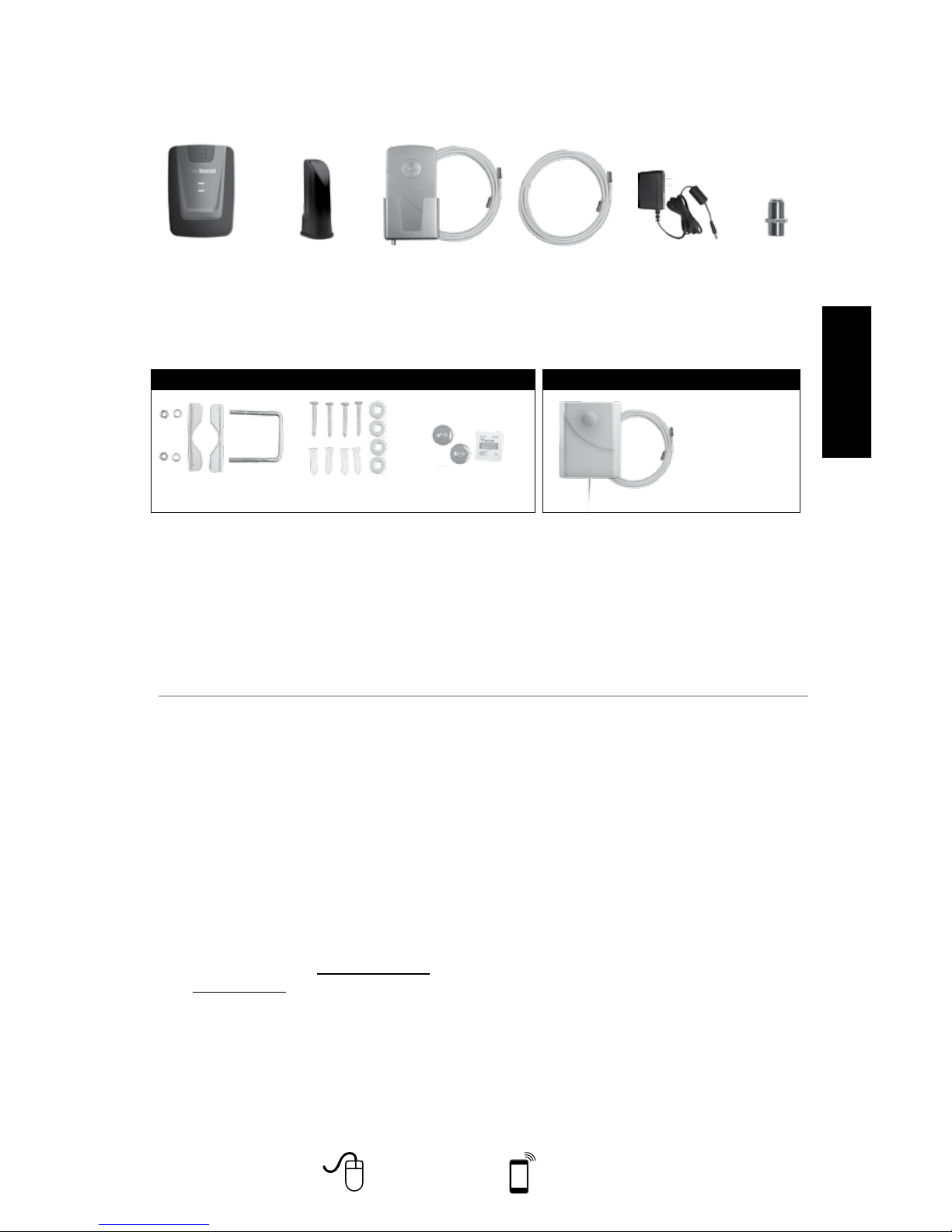

Package Contents
314473-0640
Included Accessories Optional Outside Antenna Kit
Home 3GTM Cradle Antenna Kit
Cradle Antenna
20’ RG6 coax cable
(311141-0620)
Coax Cable
(30’ 950630)
Cable
Connector
(971129)
Desktop Antenna
(301211)
Panel Antenna
40’ RG6 cable

4Need help? www.weBoost.com Customer Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
ENGLISH

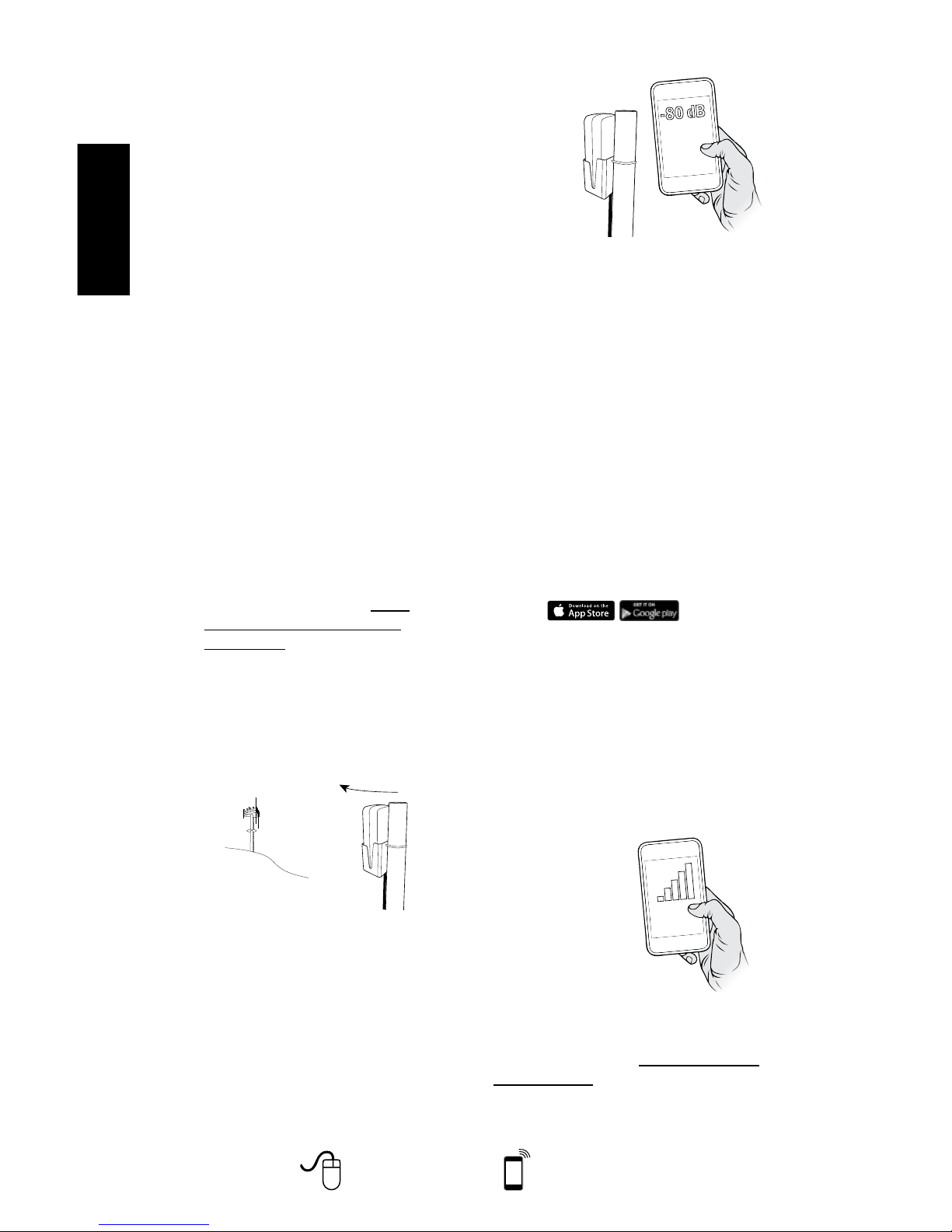

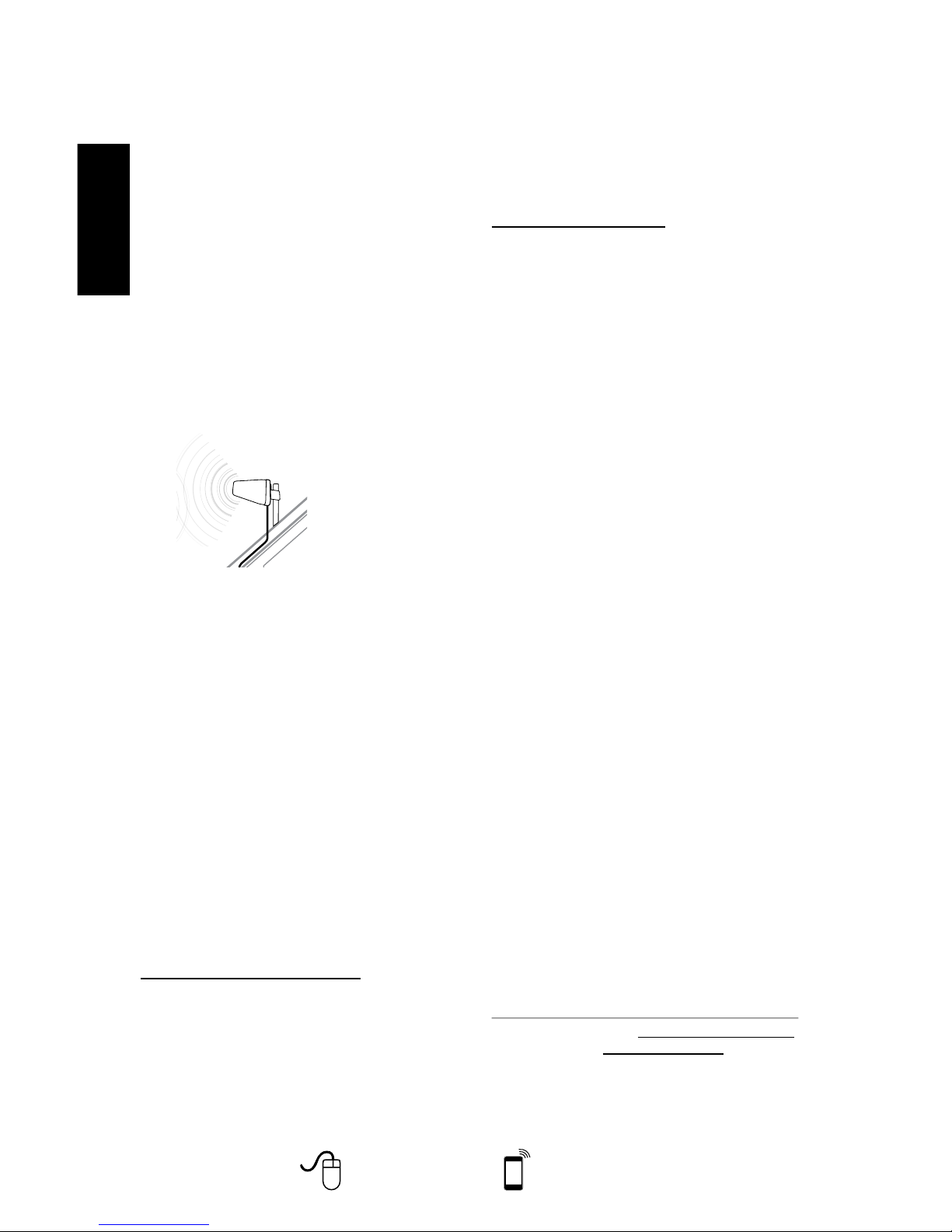

Find the Strongest Cellular Signal
Before you install your Home 3G signal
booster, you must determine the location of
the best available cellular signal. This will
affect the location of your Outside Antenna
and will help you get the best performance
from your Home 3G. You can nd the
strongest signal outside your building,
typically at the highest point available, using
any of the following methods:
1. Best method:
Connect the Outside Antenna to the
Home 3G signal booster, and the Home
3G to the Desktop Antenna. Have one
person outside (on the roof for best
results) rotate the Outside Antenna with
a second person inside the building
near the Desktop Antenna watching the
signal strength on a phone. This allows
you to read the signal strength from
nearby cell towers.
a. The person inside should have
the phone in test mode so the
numerical signal strength can be
read. This is more accurate than
the bar indicator. Go to www.
weboost.com/us/test-mode-
instructions for help in nding the
test mode for your phone.
b. The person on the roof should turn
the Outside Antenna 45 degrees
at a time. Allow 30 seconds for the
phone to register with each turn.
Rotate in small
increments
c. The person inside should note the
readings on the phone with each
turn. Signal readings usually appear
as a negative number. The closer the
number gets to zero, the stronger the
signal (for example, -86 dB would be
a moderately good reading while -55
dB would be an excellent reading,
and -110 dB would be a weak, or
unusable signal).
Rotate in small
increments
d. Once you have determined which
direction provides the strongest
outside signal, you can install the
Outside Antenna in that general
direction.
2. Good methods:
a. Place calls from several locations
outside your building. As you move
to different locations, note where
you get the best reception.
b. If you have a smart phone, you
can download apps that help you
identify locations of cell phone
towers or the strongest signal. Go
to the App Store and search for
“cell signal” to nd available apps
for your device.
3. Acceptable method: Check the bar
indicator on your cell phone display
and note where the signal appears
the strongest. (Note: cell phone bars
are only an approximation of signal
strength and vary from phone to
phone.) Phones can take up to 30
seconds to reset to a new reading. Be
patient and repeat your signal check
several times.
For additional instructions on nding
the strongest cellular signal, watch the
installation video at: weboost.com/us/
home3Gvideo.
WAIT 30
SECONDS

Need help? www.weBoost.com Customer Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST 5
ENGLISH
4. Insert the Outside Antenna into the
cradle.
5. Connect the supplied coax cable to
the antenna lead cable on the Outside
Antenna.
6. Route the cable as desired to the
location of the Home 3G. If you need
to connect both coax cables, use the
Cable Connector provided.
7. Connect the coax cable to the Home
3G. Connect the Desktop Antenna to the
Home 3G.

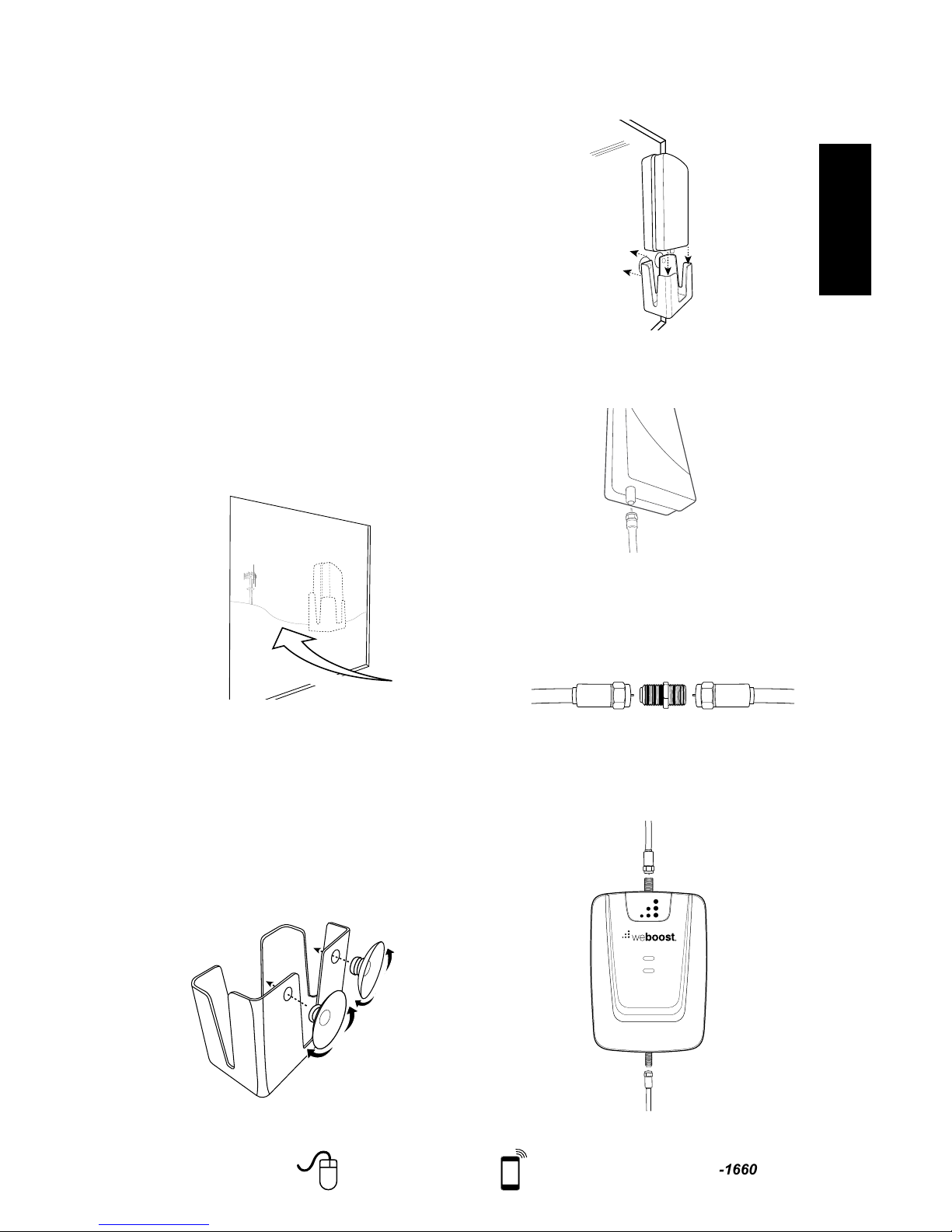

Quick Install - Inside Window
Mount Option
Additional installation options on pg. 6-9
Find the Strongest Cellular Signal
(See page 4 for suggested methods.)
Ready to Install
Inside Window Mount
1. Select a location on the inside of a
window as high as possible and at
least 20 feet from where the Home
3G will be located. Note that this
distance typically requires the window
mount to be in a different room from
where you will locate the Home 3G
and Desktop Antenna. The window
should face roughly in the direction
of the strongest cellular signal (see
section headed “Find the Strongest
Cellular Signal” on page 4).
Cradle Antenna
placement
W
i
n
d
o
w
f
a
c
e
s
g
e
n
e
r
a
l
d
i
r
e
c
t
i
o
n
o
f
c
e
l
l
t
o
w
e
r
2. Clean the area on the glass with the
alcohol prep pad included in Packet C.
3. Insert the suction cups included in
Packet C into the holes on the Outside
Antenna cradle using a twisting
motion. Press the suction cups onto
the window in the desired location.
twist through
twist through

6Need help? www.weBoost.com Customer Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
ENGLISH
8. Connect the Home 3G to a surge
protected AC power strip with at least a
1000 Joule rating. If your Home 3G is
working correctly, the lights will be green.
If the lights are orange or red, see
the “Troubleshooting” section on
page 9.
NOTE:
Modern energy efcient dual-
pane windows with coatings will
weaken the cellular signals as
they pass through because of a
metal oxide lm applied during
manufacturing. If you have dual-
pane windows with energy efcient
coatings, we recommend one
of the other mounting options if
your performance is not to your
satisfaction.
Installation Options
Outside Pole Mount
(Best Option)
1. Select a location on the roof where the
Outside Antenna can be mounted on
a pole maintaining at least 20 feet of
vertical or horizontal separation from the
inside Desktop Antenna.
2. Find an existing pole or obtain a
pole of 1 to 2 inches in diameter.
Mounting hardware to attach the pole
to the roof can be purchased from a
hardware store or you can purchase a
weBoost’s pole mount accessory kit,
part #901117. Install the pole in the
desired location.
3. Using the hardware in Packet A,
insert the U-bolt through the holes in
the Outside Antenna. Slide one half of
the bracket assembly onto the U-bolt.
4. Fit the assembly onto the pole in your
desired location by sliding the second
half of the bracket onto the U-bolt and
securing it with the lock washers and
nuts provided. Be sure the cradle is at
the desired height and rotated toward
the strongest cellular signal before
tightening the nuts. Do not over tighten.
Rotate in small
increments
Place the desktop signal
antenna directly beneath the
placement of the Outside
Antenna location
At least 20 feet of vertical
or horizontal separation
from the desktop antenna
is needed

Need help? www.weBoost.com Customer Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST 7
ENGLISH
5. Connect the supplied coax cable to
the antenna lead cable on the Outside
Antenna.
6. Route the cable as desired to the
location of the Home 3G. If you need to
connect both coax cables, use the Cable
Connector provided. Secure the cable
with ties as needed (ties not provided).
Rafter Mount
1. Select a location in the building’s rafters
where the Outside Antenna can be
mounted directly above the Desktop
Antenna with at least 20 feet vertical
or horizontal separation. The location
should allow you to mount the Outside
Antenna roughly in the direction of the
strongest cellular signal.
2. Mount the cradle antenna bracket to
the rafter using the four screws and
four washers provided in Packet B
(pre-drill if necessary.)
3. Connect the supplied coax cable to
the antenna lead cable on the Outside
Antenna.
4. Route the cable as desired to the
location of the Home 3G. If you need
to connect both coax cables, use the
Cable Connector provided.
Additional Considerations
Whichever installation you choose,
keep the following guidelines in mind to
maximize your signal strength:
1. Always turn the Outside Antenna so the
weBoost logo is toward the strongest
cellular signal. The strength of the
signal at the Desktop Antenna (and
therefore, how far it will transmit a signal)
is dependent upon the signal strength
at the Outside Antenna. Be sure to
maximize the strength at the Outside
Antenna.
Rotate in small
increments
2. Maintain a distance of at least 20 feet
from the Outside Antenna to the Home
3G unit.
Mount in the general
direction of the strongest
cellular signal
Mount at least
20 feet apart
Minimum separation
of 20 feet

8Need help? www.weBoost.com Customer Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
ENGLISH
If possible, place the Desktop
Signal Antenna directly beneath the
placement of the Outside Antenna
location. This creates a maximized
signal zone within the room where the
Desktop Antenna remains.
3. Keep the Home 3G and the Desktop
Antenna at least 18 inches away
from each other with the weBoost
logo on the Desktop Antenna facing
away from the Home 3G.
4. Do not face the Outside Antenna and
the Desktop Antenna toward each
other. This can cause the Home 3G
to show red lights and shut down,
preventing oscillation or feedback
(see troubleshooting on pg. 9). In
other words, the weBoost logos
on the Outside Antenna and the
Desktop Antenna should always be
facing away from each other.
Place the desktop signal
antenna directly beneath the
placement of the Outside
Antenna location
At least 20 feet of vertical
or horizontal separation
from the desktop antenna
is needed
DO NOT
face the Outside Antenna and
the Desktop Antenna toward
each other
Minimum separation
of 18 inches
5. If you do not know how to mount
hardware or run coax cable through
walls, ceilings and oors, get help from
one of weBoosts certied installers
at www.weboost.com/us/installers
or from a qualied contractor or
electrician. You can also try the Inside
Window Mount option (pg.5), which
may be sufcient for your needs.
Recommended: Lightning Surge
Protector (Sold Separately, part #859992)
We recommend you install the Lightning
Surge Protector (LSP) close to the Home
3G. Attach the cable from the Outside
Antenna to the surge protector and
ground the surge protector. The LSP is
sold separately (refer to page 13).
Ground
Wire
Home 3G and Desktop Antenna
Placement
Important notice: Connect your Home
3G AC Power Supply to a surge protected
AC power strip with at least a 1000 Joule
rating. Failure to do this will void your
warranty in the event of a power surge or
lightning strike.
1. Select a location for the Home 3G
that is away from excessive heat,
direct sunlight, and moisture and has
proper ventilation. Recommended
locations include on a shelf, in a
closet, on a desk or behind it. Be sure
the location is near a power outlet. To
ensure proper ventilation, keep other
objects at least six (6) inches away.
2. Attach the coax cable from the
Outside Antenna to the Home 3G
at the connector labeled “Outside
Antenna.”
!

Need help? www.weBoost.com Customer Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST 9
ENGLISH
Note
Face Inside Antenna
away from Home 3G
and Outside Antenna
3. Attach the Inside Antenna to the
connector labeled “Inside Antenna.”
4. Ensure the Inside Antenna is facing
away from both the Home 3G and the
Outside Antenna.
5. Plug in the power supply to the Home
3G at the input marked “Power” (next
to the “Outside Antenna” connector).
Plug the power supply into a surge
protected AC power strip with at least
a 1000 Joule rating.
6. Check the lights on top of the Home
3G. Two green lights mean you
have good signal. If you do not
have green lights, see the following
Troubleshooting Tips.
Troubleshooting &
Understanding Lights
The Home 3G includes two indicator lights,
one for each band (see FAQ for explanation
of MHz bands). Each indicator light will
either be green, orange or red.
Band 5
Band 2
Green indicates that the booster is
powered and operating at maximum
gain.
Solid Red indicates that the booster
has shut off on the associated
frequencies to prevent oscillation
(feedback).
Solid Orange indicates that the
booster has shut off on the associated
frequencies due to close proximity of
a cell tower.
Green/Orange Blinking indicates
that the booster is operating at a
reduced gain due to close proximity of
a cell tower.
Green/Red Blinking indicates that
the booster is operating at a reduced
gain to prevent oscillation (feedback).
Note: All red light issues must be resolved
before orange light issues.
Fixing Red Light Issues
If one or more lights on the Signal Boost
are red:
1. Make sure all connections are tight.
2. Increase the distance between the
outside antenna and the inside
antenna, by moving them horizontally
and/or vertically farther apart until the
light(s) change to green.
Increase horizontal
and/or vertical
distance

10 Need help? www.weBoost.com Customer Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
ENGLISH
3. Follow the same steps for a green/
red blinking light until the light goes
solid green.
4. If more separation is not possible
and the coverage of the booster is
too small with a green/red blinking
light indicating reduced gain, contact
the weBoost Customer Support
Team for assistance: 866-294-1660.
Fixing Orange Light Issues
If one or more lights on the Signal Booster
are orange:
1. Move the Outside Antenna away
from the strongest cellular signal in
small increments until the light turns
green or green/orange blinking.
Inside area needing increased signalInside area needing increased signal
Move the outside antenna
away from the strongest
cellular signal in small
increments
2. If the light remains orange, or if the
green/orange blinking light indicating
reduced gain is not providing
enough coverage area, contact the
weBoost Customer Support Team for
assistance: 866-294-1660.
Lights Off
If one or more of the lights on the Signal
Booster are off verify power to your surge
protected power strip.
NOTE: The Signal Booster can be reset
by disconnecting and reconnecting the
power supply.
For additional descriptions on
troubleshooting, see the install video at
weboost.com/us/home3Gvideo.
Additional FAQ:
What hours can I contact customer
support?
Customer Support can be reached from
7:00am to 6:00pm MST, by calling (866-
294-1660), or by email, at
[email protected].
How does weather affect the
performance of my Outside Antenna?
Water vapor (e.g. rain, fog, snow or
other precipitation) creates an effective
lter to cellular signal. In times of
heavy precipitation, you may see less
performance.
What’s the difference between the 800
MHz and the 1900 MHz bands? How do
I know which MHz band my cell phone
uses?
The Home 3G works with all major North
American cellular providers on the 800
& 1900 MHz frequencies. Traditionally,
800/1900MHz are associated with
voice and 3G data; while 700MHz and
1700/2100MHz are associated with 4G
data.
Why do I need to maintain at least 20
feet of separation, but no more than 50
feet? OR Why do I need to create so
much distance between the antennas?
Antennas connected to a booster create
a sphere of signal. When these sphere’s
overlap, a condition called oscillation
occurs. This oscillation can be thought of
as noise, which causes the booster to shut
down to prevent damage from occurring.
The best way to keep these spheres of
signal from creating noise is to maintain
separation between your inside and
Outside Antennas. However – as any cable
has loss, we recommend that you try to
minimize the total separation to keep within
the range of 20-50 feet.
Carrier Frequency Use
We recommend visiting www.wirelessadvisor.com
(United States) or http://bit.ly/1mQf2Gl (Canada)
for information regarding the frequency band
used by your cell service provider in a specic
geographical location.

Need help? www.weBoost.com Customer Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST 11
ENGLISH
Notes:
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________

12 Need help? www.weBoost.com Customer Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
ENGLISH
Signal Booster Specifications
Home 3G™
Model Number 473005
Connectors F-Female / SMA-Female
Antenna Impedance (inside / outside) 50 Ohms / 75 Ohms
Frequency 824-894 MHz / 1850-1990 MHz
Passband Gain (nominal) 800 MHz, Band 5
60.3
1900 MHz, Band 2
60.4
20 dB BandwiHome 3Gh (MHz) 800 MHz, Band 5 1900 MHz, Band 2
Typical
Maximum
40.8
41.1
74.7
75.0
Power output for single cell phone (dBm) 800 MHz, Band 5 1900 MHz, Band 2
Uplink
Downlink
24.9
-2.2
22.5
-2.1
Power output for multiple received channels
(Uplink) dBm
No. Tones
800 MHz
Band 5
1900 MHz
Band 2
224.8 20.2
321.3 16.7
418.8 14.2
516.9 12.3
615.3 10.7
Power output for multiple received channels
(Downlink) dBm
No. Tones
800 MHz
Band 5
1900 MHz
Band 2
21.3 3.5
3-2.2 -0.1
4-4.7 -2.6
5-6.6 -4.5
6-8.2 -6.1
Noise Figure (typical downlink/uplink) 3 dB nominal / 6 dB nominal
Isolation > 90 dB
Power Requirements AC / DC 6V, 2.5A, w/2.5x5.5mm Jack
The Manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are present, the rating
would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can cause interference to adjacent band users. This power
reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the device.

Need help? www.weBoost.com Customer Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST 13
ENGLISH
Safety Guidelines
WARNING: To uphold compliance with network protection standards, all active cellular devices must maintain
at least 6 feet of separation distance from Panel and Dome antennas and 4 feet of separation
distance from Desktop antennas.
WARNING: Connecting the Signal Booster directly to the cell phone with use of an adapter will damage the
cell phone.
WARNING: Use only the power supply provided in this package. Use of a non-weBoost product may damage
your equipment.
WARNING: The Signal Booster unit is designed for use in an indoor, temperature-controlled environment
(less than 150 degrees Fahrenheit). It is not intended for use in attics or similar locations subject
to temperatures in excess of that range.
WARNING: Take care to ensure that neither you nor the pole comes near any power lines during installation.
RF SAFETY WARNING: Any antenna used with this device must be located at least 8 inches from all persons.
Lightning
Surge Protector
(sold separately)
To Outside
Antenna
To Signal Booster
Ground Wire
(not included)
!RECOMMENDED: INSTALLING THE LIGHTNING SURGE PROTECTOR
(SOLD SEPARATELY)
INSTALL THE LIGHTNING SURGE PROTECTOR (LSP) CLOSE TO THE SIGNAL
BOOSTER. ATTACH THE CABLE FROM THE OUTSIDE ANTENNA TO THE
SURGE PROTECTOR. ENSURE THE LSP IS PROPERLY GROUNDED.
#859992-75 OHM MAY BE PURCHASED AT WWW.WEBOOST.COM OR BY
CALLING 800-204-4104.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider
and have your provider’s consent. Most wireless providers consent to the use of
signal boosters. Some providers may not consent to the use of this device on their
network. If you are unsure, contact your provider.
You MUST operate this device with approved antennas and cables as specified by
the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any
person.
You MUST cease operating this device immediately if requested by the FCC or a
licensed wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate
for calls served by using this device.
This is a CONSUMER device.
This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation. Changes or modifications not expressly approved by weBoost could void the authority to operate this
equipment.
Each Signal Booster is individually tested and factory set to ensure FCC compliance. The Signal Booster cannot be
adjusted without factory reprogramming or disabling the hardware. The Signal Booster will amplify, but not alter incoming
and outgoing signals in order to increase coverage of authorized frequency bands only. If the Signal Booster is not in use
for five minutes, it will reduce gain until a signal is detected. If a detected signal is too high in a frequency band, or if the
Signal Booster detects an oscillation, the Signal Booster will automatically turn the power off on that band. For a detected
oscillation the Signal Booster will automatically resume normal operation after a minimum of 1 minute. After 5 (five) such
automatic restarts, any problematic bands are permanently shut off until the Signal Booster has been manually restarted
by momentarily removing power from the Signal Booster. Noise power, gain, and linearity are maintained by the Signal
Booster’s microprocessor.

ENGLISH
3301 East Deseret Drive, St. George, UT 84790
web: www.weBoost.com email: [email protected]
phone: [phone] local: 435-673-5021 fax: [phone]
Disclaimer:The information provided by weBoost, LLC is believed to be complete and accurate. However, no responsibility
is assumed by weBoost, LLC for any business or personal losses arising from its use, or for any infringements of
patents or other rights of third parties that may result from its use.
Copyright © 2014 weBoost, LLC All rights reserved.
U.S. Patent Nos.– 7,221,967; 7,729,669; 7,486,929; 7,409,186; 7,783,318; 8,583,033; 8,583,034
Patents Pending
2-Year Warranty
Weboost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials.
Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of
purchase.
Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated
proof of purchase and a Returned Material Authorization (RMA) number supplied by weboost. Weboost
shall, at its option, either repair or replace the product.
This warranty does not apply to any Signal Boosters determined by weboost to have been subjected to
misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties.
Failure to use a surge protected AC Power Strip with at least a 1000 Joule rating will void your warranty.
RMA numbers may be obtained by contacting Customer Support at 1-866-294-1660.

FRANÇAIS
Amplificateur de signal cellulaire
™
Home 3G
Vous avez besoin
d’aide?
www.weBoost.com Support client 866-294-1660
Lun.- Ven. Horaires: 7:00-18:00 Heure normale
des Rocheuses
PROTOTYPE

2Vous avez besoin
d’aide?
www.weBoost.com Support client 866-294-1660
Lun.- Ven. Horaires: 7:00-18:00 Heure normale
des Rocheuses
FRANÇAIS
IL EST TRÈS IMPORTANT
DE BRANCHER VOTRE
AMPLIFICATEUR À L’AIDE
D’UNE MULTIPRISE C.A.
PROTÉGÉE CONTRE LES
SURTENSIONS D’AU MOINS
1000 JOULES.
SI VOUS NE RESPECTEZ PAS CETTE INSTRUCTION,
VOTRE GARANTIE EST ANNULÉE DANS LE CAS D’UNE
SURTENSION OU D’UN COUP DE FOUDRE.
! ! L’AMPLIFICATEUR DE SIGNAL EST CONÇU
POUR UN ENVIRONNEMENT INTÉRIEUR
ÀTEMPÉRATURE CONTROLÉE (MOINS DE
150 DEGRÉS FAHRENHEIT). IL N’EST PAS
CONÇU POUR UNE UTLISATION DANS UN GRENIER
OU TOUT AUTRE EMPLACEMENT SIMILAIRE SUJET À
DES TEMPÉRATURES DE PLUS DE 150°F.
Table des matières
Contenu de l’emballage .................................................3
Accessoires optionnels .................................................3
Avant de commencer ...................................................3
Trouver le signal le plus fort. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Installation rapide - Option de montage sur fenêtre intérieure..................5
Options d’installation ...................................................6
Montage sur pôle extérieur (Méthode recommandée) .......................6
Montage sur chevron.................................................7
Autres considérations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Emplacement de l’amplificateur Home 3G™ et de l’antenne de bureau ..........8
Résolution des problèmes et fonctionnement des voyants ....................9
Faits supplémentaires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Caractéristiques de l’amplificateur de signal ...............................12
Consignes de sécurité .................................................13
Garanties .........................................................Verso
Instructions d’installation pour l’amplificateur de signal weBoost suivant:
Amplificateur de signal cellulaire SignalBoost Home 3G™ à gain ajustable
pour bâtiment 800/1900 MHz SmarTech ™
Modèle nº 473005 IC 4726A-460005
Le sigle IC situé avant le numéro d’accréditation de radiodiffusion signifie seulement que les caractéristiques
techniques sont conformes aux exigences d’Industrie Canada.

3
Vous avez besoin
d’aide?
www.weBoost.com Support client 866-294-1660
Lun.- Ven. Horaires: 7:00-18:00 Heure normale
des Rocheuses
FRANÇAIS
Avant de commencer
Avant d’installer votre amplicateur de
signal Home 3G et de pouvoir proter d’une
meilleure réception de votre signal cellulaire
au bureau ou à votre domicile, suivez les
étapes suivantes:
1. Lisez toutes les étapes d’installation.
Vous saurez ainsi à quoi vous attendre
lors de l’installation du début à la n.
2. Regardez la vidéo sur YouTube sur
l’installation de l’amplicateur de
signal Home 3G à weboost.com/us/
home3Gvideo.
3. Déterminez la meilleure option
d’installation qui correspond à votre
application.
– Montage sur fenêtre intérieure - p 5
– Montage sur pôle extérieur - p 6
(Option recommandée)
– Montage sur chevron - p 7
4. Familiarisez-vous avec toutes les pièces
contenues dans votre emballage. Vous
saurez ainsi à quelle pièce il est fait
référence dans les instructions.
5. Identiez l’emplacement de votre
meilleur signal cellulaire. Voir à la page 4.
6. Déterminez où monter votre antenne.
Bloc d’alimentation C.A.
6V / 2.5A
(n’est pas inclus avec certains
modèles)
(859912)
2. Montage sur mur
(Emballage B)
1. Montage sur pôle
(Emballage A)
Outils nécessaires à l’installation
En fonction de votre installation, vous aurez besoin des outils suivants:
1. Montage sur pôle - clé plate de 10 mm ou clé réglable
2. Montage sur mur ou sur chevron - Perceuse et mèche de 4,8 mm (3/16”), tournevis cruciforme
3. Montage sur fenêtre
(Packet C)
Les accessoires contenus dans l’emballage peuvent être différents de ceux indiqués sur les photos ci-dessous en fonction des options du kit
L’apparence du dispositif et des accessoires peut être différente en fonction du kit.
Le kit 991171 comprend
Contenu de l’emballage
314473-0640
Accessoires inclus Kit antenne extérieure optionnel
HOME 3GTM Kit d’antenne berceau
Antenne berceau
Câble coaxial RG6 6 m (20 pi)
(311141-0620)
Câble coaxial
(30’ 950630)
Câble
Connecteur
(971129)
Antenne de bureau
(301211)
Antenne pour
panneau
Câble coaxial RG6
12 m (40 pi)

4Vous avez besoin
d’aide?
www.weBoost.com Support client 866-294-1660
Lun.- Ven. Horaires: 7:00-18:00 Heure normale
des Rocheuses
FRANÇAIS
4
Trouvez le signal cellulaire le
plus fort
Avant d’installer votre amplicateur de
signal Home 3G, vous devez déterminer
l’emplacement où le signal cellulaire est
le plus fort. Cela affectera l’emplacement
de votre antenne extérieure et vous aidera
à obtenir les meilleures performances
de votre amplicateur Home 3G. Vous
trouverez le signal le plus fort à l’extérieur
de votre bâtiment, en général à l’endroit le
plus élevé, en utilisant l’une des méthodes
suivantes:
1. Méthode recommandée: Connectez
l’antenne extérieure à l’amplicateur
de signal Home 3G, et l’amplicateur
Home 3G à l’antenne de bureau.
Désignez une personne à l’extérieur
(sur le toit si possible) pour pivoter
l’antenne extérieure, et une autre
personne à l’intérieur du bâtiment près
de l’antenne de bureau pour surveiller
la force du signal sur un téléphone.
Cela vous permet de lire la force du
signal provenant des bases cellulaires
avoisinantes.
a. La personne à l’intérieur doit mettre
le téléphone en mode test pour
pouvoir lire la force numérique du
signal, qui est plus précise que
l’indicateur de barres. Reportez-
vous au site www.weboost.com/
us/test-mode-instructions pour plus
de détails sur le mode test de votre
téléphone.
b. La personne sur le toit peut tourner
l’antenne extérieure de 45 degrés
à n’importe quel moment. Attendez
30 secondes chaque fois pour que
le téléphone se réinitialise.
Pivotez l'antenne par
petits incréments.
c. La personne à l’intérieur prend
note de la force du signal chaque
fois que l’antenne est tournée. Le
chiffre afché est en général négatif.
Plus il est proche de zéro, plus le
signal est fort (par exemple, -86 dB
indique un signal relativement bon,
-55 dB indique un très bon signal, et
-110 dB indique un signal faible ou
inutilisable).
Rotate in small
increments
d. Une fois que vous avez déterminé
quelle direction offre le meilleur
signal extérieur, vous pouvez
installer l’antenne extérieure dans
cette direction.
2. Bonnes méthodes:
a. Placez des appels depuis plusieurs
endroits à l’extérieur de votre
bâtiment. Prenez note de l’endroit
où vous obtenez la meilleure
réception.
b. Si vous avez un smart phone,
vous pouvez télécharger des
applications qui vous permettent
d’identier l’emplacement de bases
cellulaires ou du signal le plus fort.
Ouvrez l’App Store et recherchez
«signal cellulaire» pour trouver les
applications disponibles pour votre
système.
3. Méthode acceptable: Vériez
le nombre de barres sur votre
téléphone cellulaire et prenez note
de l’endroit où le signal est le plus
fort. (Remarque: Les barres ne sont
qu’une approximation de la force
du signal et varient d’un téléphone
à l’autre.) Les téléphones peuvent
prendre jusqu’à 30 secondes pour
se réinitialiser entre chaque lecture.
Soyez patient et répétez la procédure
plusieurs fois.
Pour plus d’instructions sur la manière
de procéder pour trouver le meilleur
signal cellulaire, regardez la vidéo
d’installation disponible à weboost.com/us/
home3Gvideo.

5
Vous avez besoin
d’aide?
www.weBoost.com Support client 866-294-1660
Lun.- Ven. Horaires: 7:00-18:00 Heure normale
des Rocheuses
FRANÇAIS
4. Insérez l’antenne extérieure dans le
berceau.
5. Connectez le câble coaxial fourni
au câble de l’antenne sur l’antenne
extérieure.
6. Acheminez le câble vers
l’emplacement de l’amplicateur Home
3G. Si vous devez connecter les deux
câbles coaxiaux, utilisez le connecteur
fourni.
7. Connectez le câble coaxial à
l’amplicateur Home 3G. Connectez
l’antenne de bureau à l’amplicateur
Home 3G.
Installation rapide -Montage sur
fenêtre intérieure
Options d’installation supplémentaires
aux pages 6-9
Trouver le signal cellulaire le plus fort
(Voir à la page 4 pour les méthodes
conseillées)
Prêt à l’installation Montage sur fenêtre
intérieure
1. Sélectionnez un emplacement à
l’intérieur d’une fenêtre le plus haut
possible et à au moins 6 m (20 pi) de
l’emplacement de l’amplicateur Home
3G. Veuillez noter que cette distance
en général exige que le montage
soit dans une pièce différente de
l’amplicateur Home 3G et de l’antenne
de bureau. La fenêtre doit être dirigée
dans la direction du signal cellulaire
le plus fort (voir la section «Trouver le
signal cellulaire le plus fort» à la page
4).
Emplacement de l'antenne
pour berceau
L
a
f
e
n
ê
t
r
e
e
n
g
é
n
é
r
a
l
e
s
t
d
i
r
i
g
é
e
v
e
r
s
l
a
b
a
s
e
c
e
l
l
u
l
a
i
r
e
.
2. Nettoyez l’emplacement sur la vitre
avec le tampon d’alcool fourni dans
l’emballage C.
3. Insérez les ventouses comprises
dans l’emballage C dans les trous du
berceau de l’antenne extérieure en
les faisant tourner. Appuyez sur les
ventouses sur la fenêtre à l’endroit
voulu.
tourner
tourner

6Vous avez besoin
d’aide?
www.weBoost.com Support client 866-294-1660
Lun.- Ven. Horaires: 7:00-18:00 Heure normale
des Rocheuses
FRANÇAIS
8. Connectez l’amplicateur Home 3G
à une multiprise C.A. de protection
contre les surtensions d’au moins 1000
joules. Si l’amplicateur fonctionne
correctement, les voyants sont verts.
Si les voyants sont oranges ou
rouges, reportez-vous à la section
«Résolution des problèmes» à la
page 9.
REMARQUE:
Les fenêtres modernes
écoénergétiques à double vitrage
qui ont un revêtement peuvent
affaiblir les signaux cellulaires
à cause d’un lm d’oxyde
métallique appliqué lors de leur
fabrication. Si vous avez des
fenêtres écoénergétiques à double
vitrage avec un revêtement, il
est recommandé d’utiliser une
autre option de montage si les
performances de votre système ne
sont pas satisfaisantes.
Options d’installation
Montage sur pôle extérieur
(Option recommandée)
1. Sélectionnez un emplacement sur le toit
où l’antenne extérieure peut être montée
sur un pôle en maintenant au moins
6 m (20 pi) de séparation verticale ou
horizontale avec l’antenne de bureau
intérieure.
2. Trouvez un pôle existant ou procurez-
vous un pôle de 2, 5 cm à 5 cm (1
à 2 po) de diamètre. Vous pouvez
vous procurer le matériel nécessaire
pour attacher le pôle sur le toit dans
une quincaillerie ou vous pouvez
acheter le kit weBoost d’accessoires
pour montage sur pôle, n° 901117.
Installez le pôle à l’emplacement
voulu.
3. À l’aide du matériel fourni dans
l’emballage A, insérez le boulon
U dans les trous de l’antenne
extérieure. Faites-glisser la moitié du
support dans le boulon U.
4. Fixez le montage sur le pôle à l’endroit
voulu en faisant glisser l’autre moitié du
support dans le boulon U et en utilisant
les rondelles de blocage et les écrous
fournis. Assurez-vous que le berceau
est à la bonne hauteur et orienté vers
le signal cellulaire le plus fort avant de
serrer les écrous. Veillez à ne pas trop
serrer.
Placez l’antenne de bureau
directement sous l’emplacement
de l’antenne extérieure.
Il est nécessaire de conserver
un minimum de 6 m (20 pi)
horizontalement ou verticalement
avec l’antenne de bureau.
