weBoost Home 4G User manual

TM
Cellular Signal Booster
460101
Need help? www.WilsonElectronics.com Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
ENGLISH FRANÇAIS
Package Contents
Quick Install Diagram
Home 4G Signal Booster
Desktop Antenna
Cradle Antenna Kit
AC Power Supply
Coax Cable
Cable Connector
Finding Signal / ttInstall Inside Window Mount Cradle
Insert the Outside Antenna into the Cradle
Connect Coax Cable to Outside Antenna
Connect Cables to Home 4G
Connect Power Supply
NEED ASSISTANCE? WE CAN HELP!
Contact our U.S.-BASED TECH SUPPORT:
n Contact our U.S.-based tech support team at 1-866-294-1660
or email at [email protected]
n Go online for how to resolve the most common issues at
www.weboost.com/us/support
n Find a weBoost Certied Installer on our web site at
www.weboost.com/installers
Installation is simple, but we’re here to make it even easier.
Modern energy efcient dual-pane windows with coatings will
weaken the cellular signals as they pass through because of a
metal oxide lm applied during manufacturing. If you have dual-
pane windows with energy efcient coatings, we recommend
one of the other mounting options if your performance is not to
your satisfaction.
Your cell phone is an essential part of your life. weBoost is here to
ensure you have seamless connections on all your cellular devices.
The Home 4G cellular signal booster is a effective solution to all
those times you’ve had to walk into another room, or even outside,
to nd a stronger, more reliable cell signal. Installation is simple and
can be completed with minimal tools.

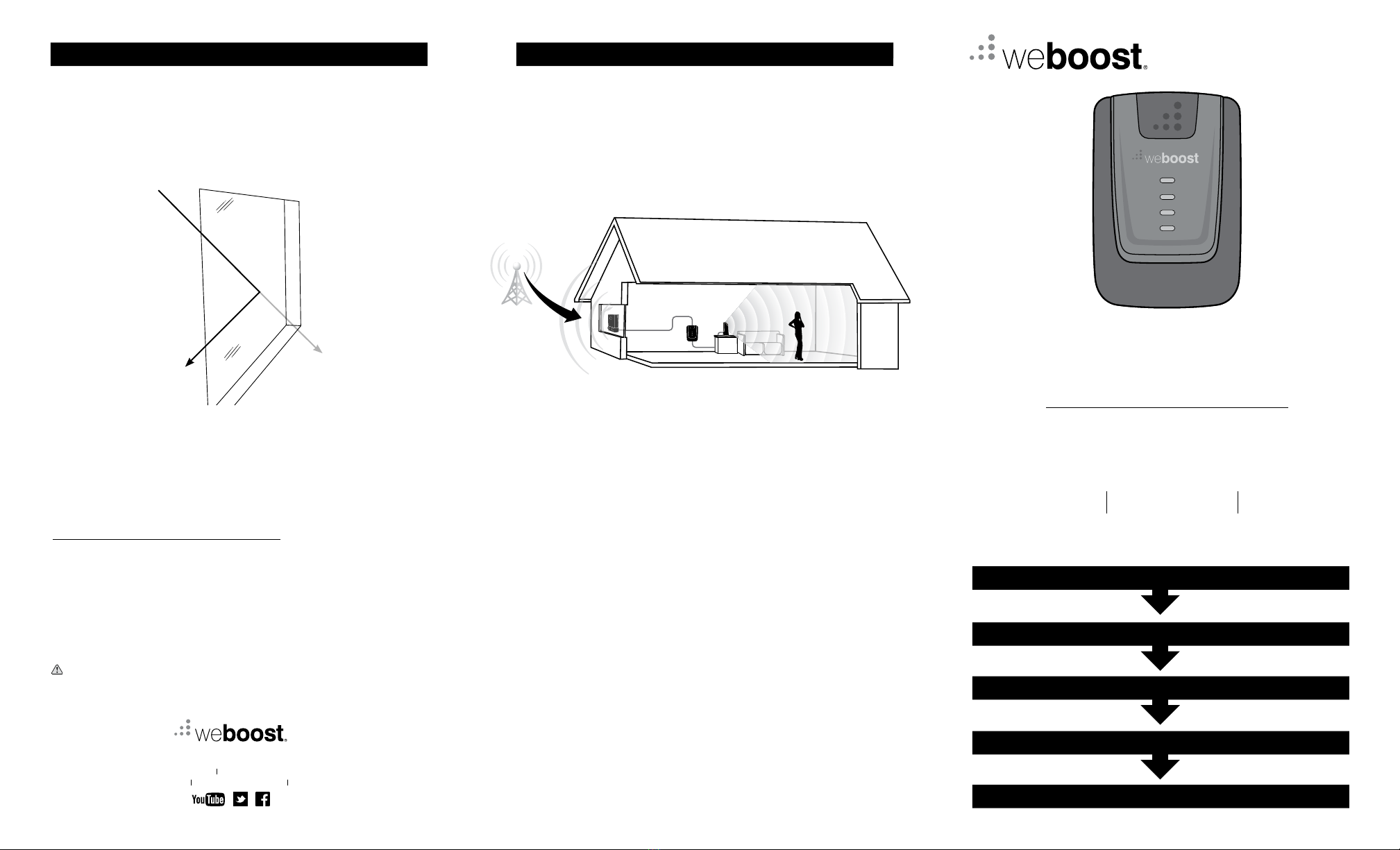

Note: How It Works
3301 East Deseret Drive, St. George, UT 84790
web: www.weboost.com email: [email protected]
phone: [phone] local: 435-673-5021 fax: [phone]
Home 4G
Signal Received
and Transmitted
See install guide for additional mounting options.
Panel
Antenna
Desktop
Antenna
For more information refer to full Install Guide at:
www.weboost.com/us/installguide/home4G
Home 4G
Quick Install Guide
Product Registration
Thank you for purchasing this weBoost product. Please take time to
register your new product at our website:
www.weboost.com/us/productregistration
Registering is quick and easy, it only takes 2-3 minutes to complete.
Your information is secure, we don’t share or sell your information
to other third parties.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
RF Safety: Any antenna used with this device must be located at least 8 inches from all persons.
TM
Cellular Signal Booster
460101
Need help? www.WilsonElectronics.com Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
ENGLISH FRANÇAIS

Find the Strongest Signal Install Inside Window Mount Cradle Insert the Outside Antenna into the Cradle
Connect Coax Cable to Outside Antenna Connect Cables to Home 4G Connect to Power Supply
Select a location on the inside of a window as high as possible and
at least 20 feet from where the DT4G will be located. Note that this
distance typically requires the window mount to be in a different
room from where you will locate the DT4G and Desktop Antenna.
The window should face roughly in the direction of the strongest
cellular signal.
Clean the area on the glass with the alcohol prep pad (included).
Press the suction cups onto the window in the desired location.
Insert the Outside Antenna into the cradle.
Connect the supplied coax cable to the antenna lead cable on the
Outside Antenna. Route the cable as desired to the location of the
Home 4G. If you need to connect both coax cables, use the Cable
Connector provided.
Connect the coax cable to the Home 4G. Connect the Desktop
Antenna to the Home 4G.
Connect the AC Power Supply to the Home 4G then to a surge
protected AC power strip with at least a 1000 Joule rating. If your
Home 4G is working correctly, the lights will be green.
1 2 3
4 5 6
window faces general
direction of cell tower
Full diagram on opposite side
Power Supply
Surge Protected
Power Strip
Outside Panel Antenna
Press Cradle onto
window
Cable Connector
Home 4G
Desktop Antenna
