USER’S MANUAL
Model No. WESY9635C.3
Serial No.
Write the serial number in the space
above for reference.
Serial Number Decal (under seat)
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
QUESTIONS?
As a manufacturer,we are
committed to providing com-
plete customer satisfaction. If
you have questions, or if
there are missing parts,
please call:
1-888-936-4266
Mon.–Fri. 8:00 until 17:00
EST (excluding holidays).
www.proform.com
Visit our website at
www.weiderfitness.com
Visit our website at
www.nordictrack.com
Visit our website at
www.healthrider.com
Visit our website at
Visit our website at

2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE WEIGHT SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
WEIGHT RESISTANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
TROUBLESHOOTING AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
CABLE DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached to the center of
this manual. Remove the PART IDENTIFICATION CHART and the PART LIST/EXPLODED DRAWING before
beginning assembly.
WEIDER is a registered trademark of ICON IP
,Inc.
WARNING DECAL PLACEMENT
The decals shown here have been placed on the weight system. If a decal is missing or illegible,
please call the toll-free telephone number on the front cover of this manual and order a free
replacement decal. Apply the decal in the location shown.
Part #
152138

3
1. Read all instructions in this manual and in
the accompanying literature, and all warn-
ings on the weight system, before using the
weight system.
2. It is the responsibility of the owner to ensure
that all users of the weight system are ade-
quately informed of all precautions.
3. The weight system is intended for home use
only. Do not use the weight system in any
commercial, rental, or institutional setting.
4. Keep the weight system indoors, away from
moisture and dust. Place the weight system
on a level surface, with a mat beneath it to
protect the floor or carpet. Make sure that
there is enough clearance around the weight
system to mount, dismount, and use the
weight system.
5. Inspect and properly tighten all parts regular-
ly.Replace any worn parts immediately.
6. Keep children under 12 and pets away from
the weight system at all times.
7. Never release the press arm, butterfly arms,
military press arm, leg lever,leg press plate,
lat bar or nylon strap while weights are
raised. The weights will fall with great force.
8. Keep hands and feet away from moving parts.
9. The weight system is designed to support a
maximum user weight of 136 kg (300 lbs).
10. Always wear athletic shoes for foot protec-
tion.
11. Always stand on a foot plate when perform-
ing an exercise that could cause the weight
system to tip.
12. Keep your hands away from the leg press
upright when the military press arm is being
used. Your hand could become pinched
between the leg press upright and military
press arm.
13. Make sure that the cables remain on the pul-
leys at all times. If the cables bind while you
are exercising, stop immediately and make
sure that the cables are on all of the pulleys.
Replace all cables at least every two years.
14. Always disconnect the lat bar from the
weight system when performing an exercise
that does not use the lat bar.
15. The weight system is designed to be used
only with the included weight. Do not use the
weight system with dumbbells or any other
type of weight to increase the resistance.
16. Do not use the VKR station when either
weight stack is in use.
17. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cool-
ing down.
WARNING: Toreduce the risk of serious injury, read the following important precautions
before using the weight system.
IMPORTANT PRECAUTIONS
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.

4
BEFORE YOU BEGIN
Foot Plate
Low Pulley
Station
High Pulley Station
Lat Bar
Leg Lever
Butterfly Arms
Military Press Arm
Press Arm
Weight Stacks
Backrests
VKR Arms
Leg Press
Plate
Thank you for selecting the versatile WEIDER®PRO
9635 weight system. The weight system offers a selec-
tion of weight stations designed to develop every
major muscle group of the body. Whether your goal is
totone your body, build dramatic muscle size and
strength, or improve your cardiovascular system, the
weight system will help you to achieve the specific
results you want.
For your benefit, read this manual carefully before
using the weight system. If you have questions after
reading this manual, see the front cover of this manu-
al. To help us assist you, please note the product
model number and serial number before calling. The
model number is WESY9635C.3. The serial number
can be found on a decal attached to the weight system
(see the front cover of this manual).

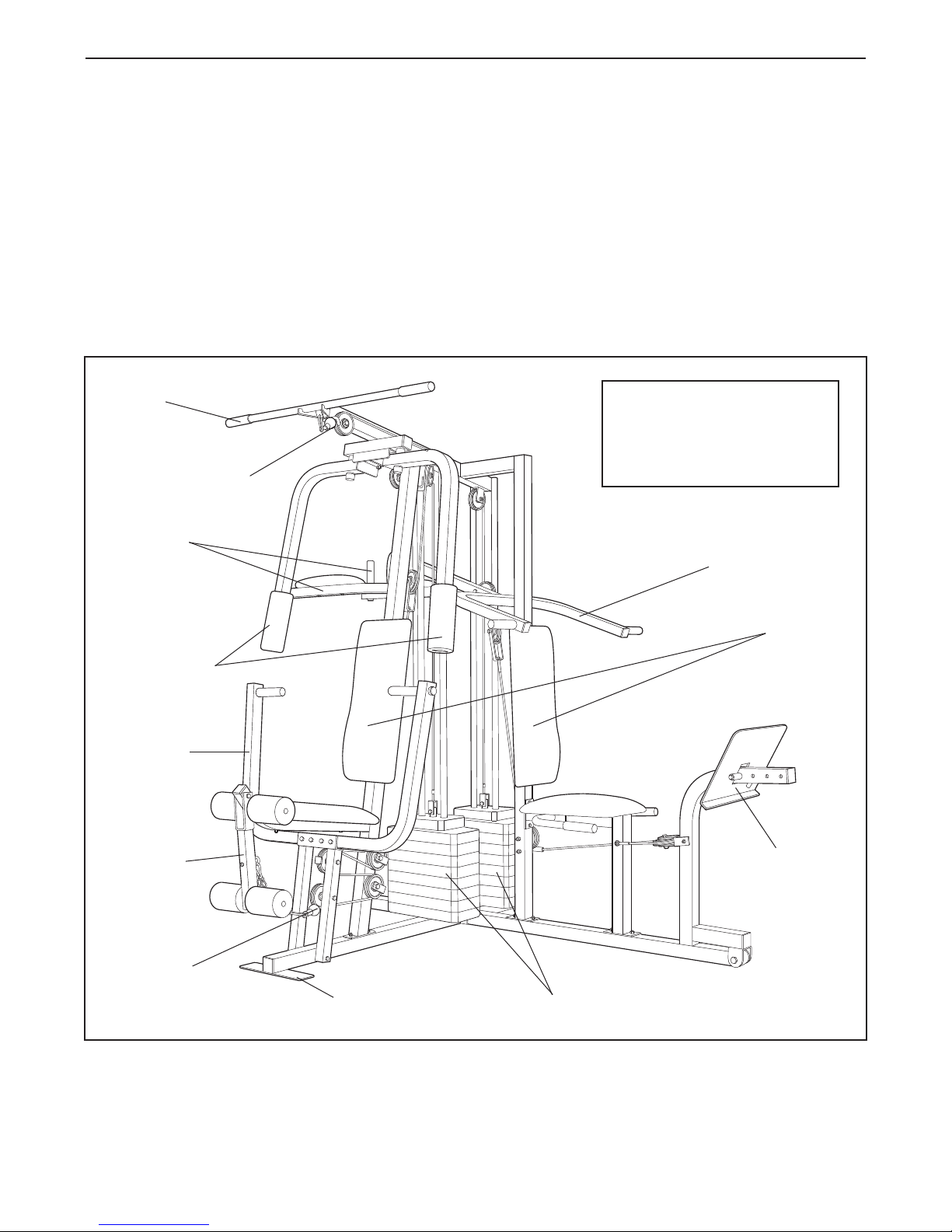

Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
ASSEMBLED DIMENSIONS:
Height: 193 cm / 76 in.
Width: 226 cm / 89 in.
Depth: 163 cm / 64 in.

5
ASSEMBLY
1
8
8
11
1
4
3
3
1
5

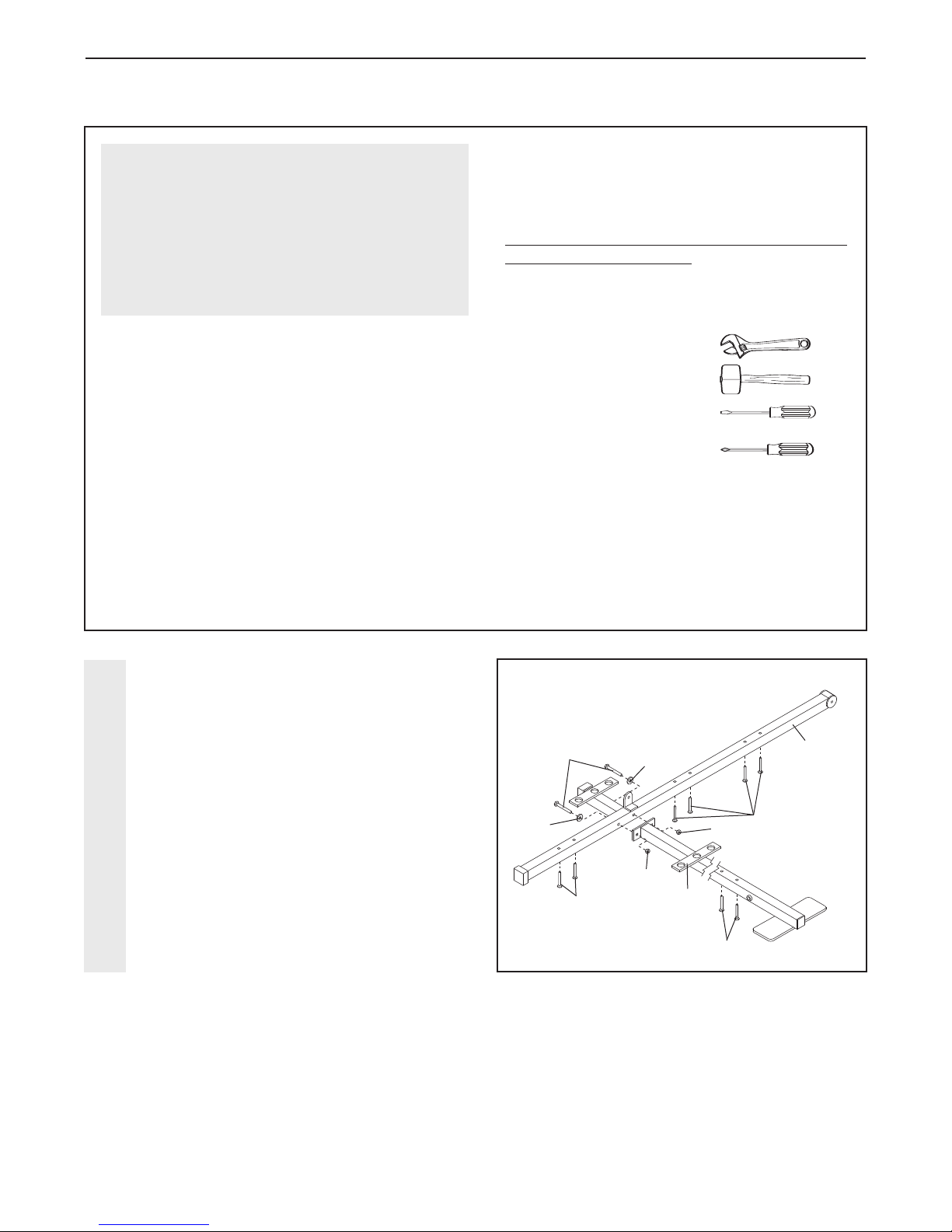

1. Before beginning assembly, make sure
that you have read and understand the
information in the box above.
Locate and open the parts packet labeled
“FRAME ASSEMBLY.”
Insert six M8 x 62mm Carriage Bolts (1) up
through the Stabilizer (5). Insert two M8 x
62mm Carriage Bolts up through the Base
(4).
Attach the Base (4) to the Stabilizer (5) with
two M8 x 67mm Bolts (11), two M8 Washers
(8), and two M8 Nylon Locknuts (3). Do not
tighten the Locknuts yet.
FRAME ASSEMBLY
1
Before beginning assembly, carefully read the
following information and instructions:
•Because of its weight and size, the weight sys-
tem should be assembled in the location where it
will be used. Make sure that there is enough
clearance to walk around the weight system as
you assemble it.
•Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
•Tighten all parts as you assemble them, unless
instructed to do otherwise.
•As you assemble the weight system, make sure
all parts are oriented as shown in the drawings.
•Assembly requires two people.
• For help identifying small parts, use the PART
IDENTIFICATION CHART.
The included grease, and the following tools
(not included) may be required for assembly:
• Two adjustable wrenches
• One rubber mallet
•One standard screwdriver
• One Phillips screwdriver
• Clear tape or masking tape, and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Make Things Easier for Yourself
Everything in this manual is designed to ensure
that the weight system can be assembled suc-
cessfully by almost anyone. However, the weight
system has many parts and the assembly
process will take time. By setting aside plenty of
time, assembly will go smoothly.

6

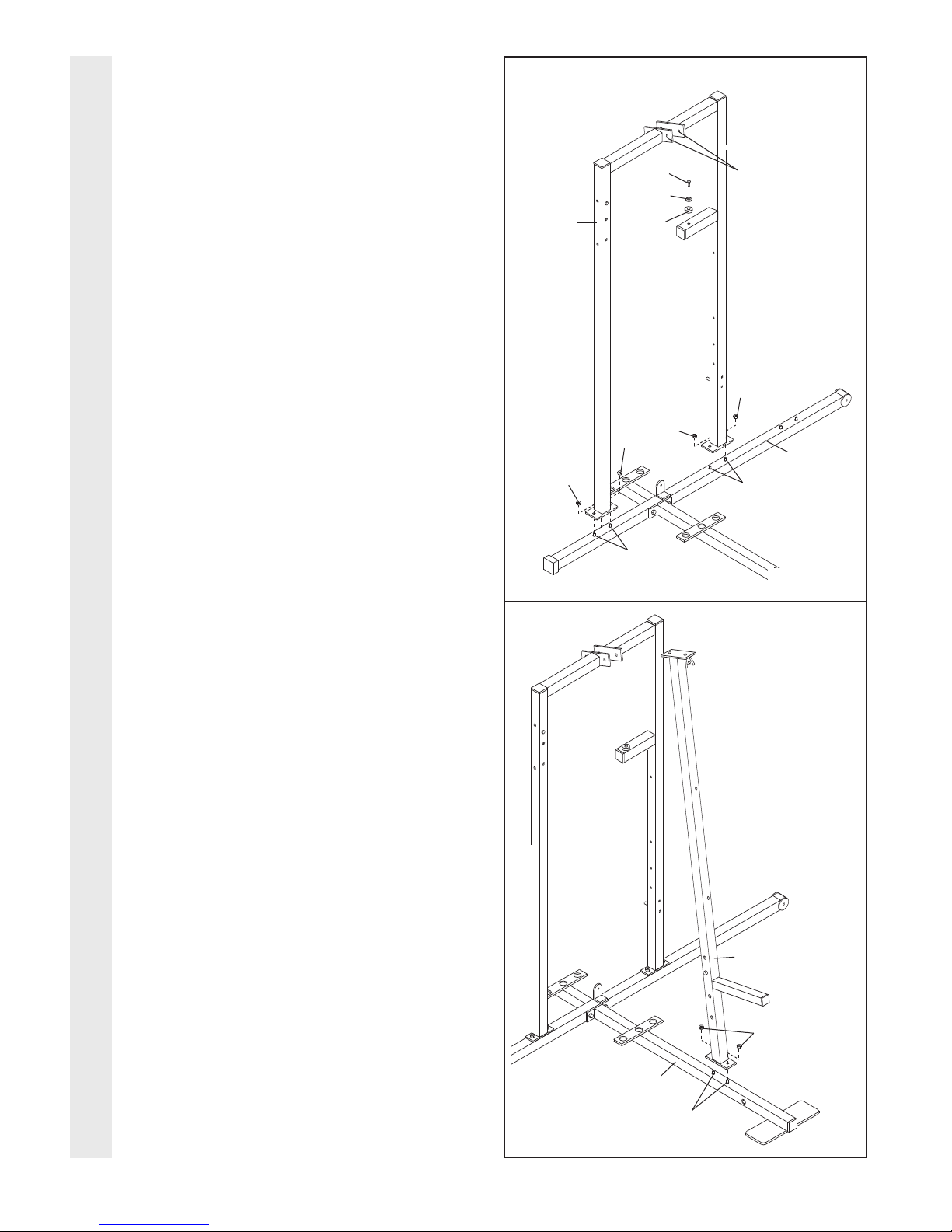

2. Slide the VKR Upright (74) and the Leg Press
Upright (56) onto the indicated M8 x 62mm
Carriage Bolts (1) in the Stabilizer (5). The
high side of the brackets on the VKR
Upright and Leg Press Upright should be
on the side shown. Hand-tighten four M8
Nylon Locknuts (3) onto the Carriage Bolts.
Do not tighten the Locknuts yet.
Attach the Rubber Bumper (91) to the Leg
Press Upright (56) with the M4 x 13mm Self-
tapping Screw (87) and an M4 Washer (76).
3. Slide the Front Upright (42) onto the M8 x
62mm Carriage Bolts (1) in the Base (4).
Handtighten an M8 Nylon Locknut (3) onto
each Carriage Bolt. Do not tighten the
Locknuts yet.
2
1
1
56
74
3
3
3
3
5
High Sides
of Brackets
3
FRAME ASSEMBLY
42
4
1
3
87
91
76

7
4. Attach the Top Frame (55) to the VKR Upright
(74) and the Leg Press Upright (56) with two
M8x67mm Bolts (11) and two M8 Nylon
Locknuts (3).
Attach the Top Frame (55) to the Front
Upright (42) with two M8 x 67mm Bolts (11),
two M8 Washers (8), and two M8 Nylon
Locknuts (3).
5. Slide the Rear Seat Frame (100) onto the
indicated M8 x 62mm Carriage Bolts (1) in the
Stabilizer (5). Hand-tighten two M8 Nylon
Locknuts (3) onto the Carriage Bolts.
Attach the other end of the Rear Seat Frame
(100) to the Leg Press Upright (56) with two
M8 x 67mm Bolts (11), two M8 Washers (8),
and two M8 Nylon Locknuts (3).
Attach the Handle (82) to the Rear Seat
Frame (100) with two M8 x 62mm Carriage
Bolts (1) and two M8 Nylon Locknuts (3).
Tighten all M8 Nylon Locknuts (3) used in
steps 1–5.
6. Set two Weight Bumpers (19) on the bracket
on the Base (4) as shown. Set two Weight
Bumpers (19) on the bracket on the Stabilizer
(5).
Stack eight Weights (25) onto each set of
Weight Bumpers (19). Make sure that the
pin grooves are all on the same side of
each stack of Weights.
Be careful not to tip either stack of
Weights (25) until step 8 is complete.
4
55
3
3
8
11
11
11
56 42
51
1
11
82
100
5
56
8
3
3
3
25
25
19
19
Bracket
Bracket
FRAME ASSEMBLY
74
Pin
Grooves
6Pin
Grooves
5
4

8

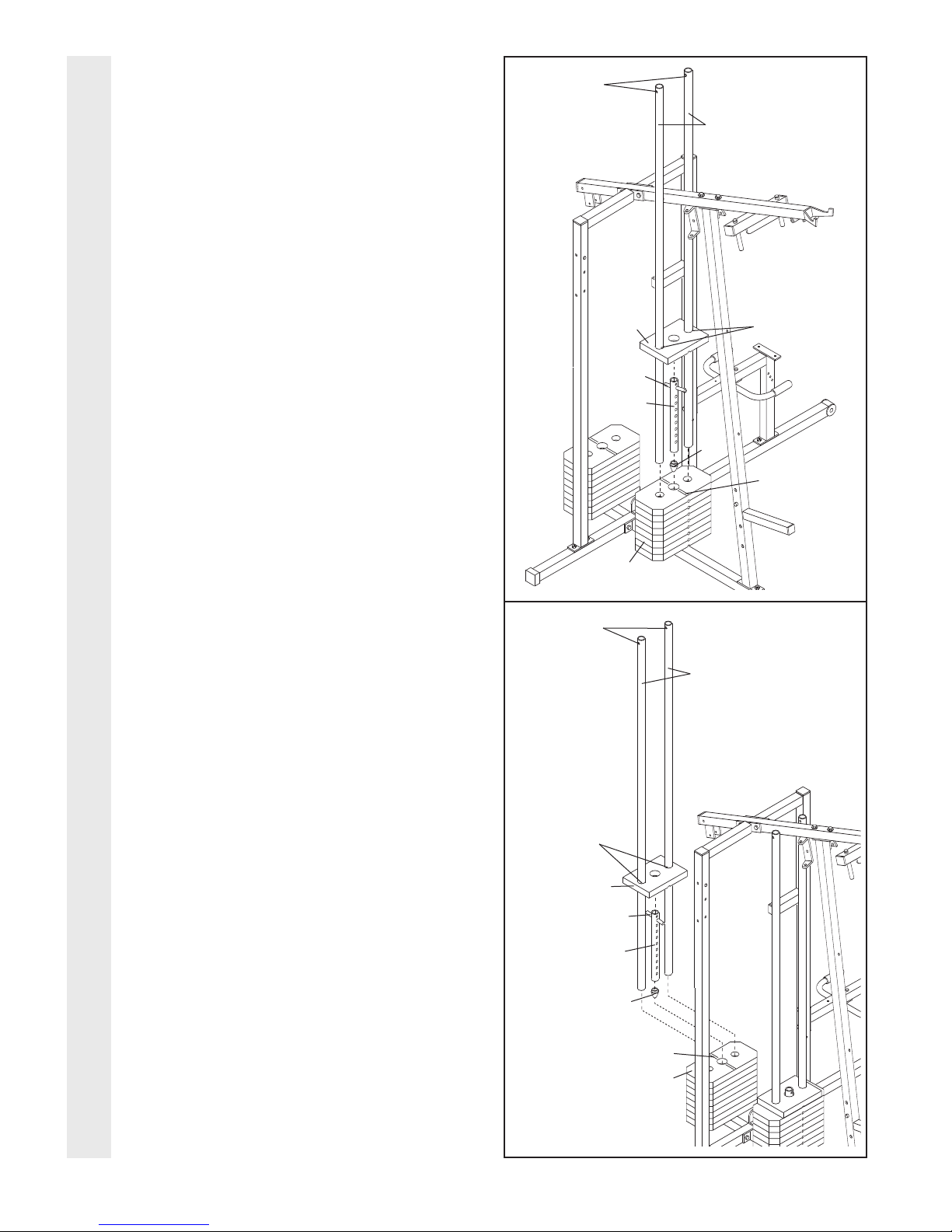

7. Press a Weight Tube Bumper (64) into the
end of a Weight Tube (63). Insert the Weight
Tube into the front stack of Weights (25).
Make sure that the pin on the Weight Tube
issitting in the pin groove in the top
Weight.
Lubricate the inside of the holes in a Top
Weight (65). Set the Top Weight onto the front
stack of Weights (25). Insert both Long
Weight Guides (62) into the stack of Weights.
Make sure that the holes in the Weight
Guides are at the top, as shown.
8. Press a Weight Tube Bumper (64) into the
end of the other Weight Tube (63). Insert the
Weight Tube into the rear stack of Weights
(25). Make sure that the pin on the Weight
Tube is sitting in the pin groove in the top
Weight.
Lubricate the inside of the holes in the other
Top Weight (65). Set the Top Weight onto the
rear stack of Weights (25). Insert both Short
Weight Guides (73) into the stack of Weights.
Make sure that the holes in the Weight
Guides are at the top, as shown.
7Holes
Lubricate
62
65
Pin
63
64
Pin Groove
Holes
Lubricate
73
65
Pin
63
64
Pin Groove
25
25
8
FRAME ASSEMBLY

9
9. Attach the upper ends of the Short Weight
Guides (73) to the Top Frame (55) with an M8 x
150mm Bolt (60), two 13mm x 19mm Spacers
(61), and an M8 Nylon Locknut (3).
Attach the upper ends of the Long Weight
Guides (62) to the Top Frame (55) with an M8 x
150mm Bolt (60), two 13mm x 19mm Spacers
(61), and an M8 Nylon Locknut (3).
10. Locate and open the parts packet labeled
“ARM ASSEMBLY.”
Lubricate an M10 x 83mm Bolt (67). Attach the
Leg Press Arm (96) to the Stabilizer (5) with the
Bolt and an M10 Nylon Locknut (21). Do not
overtighten the Locknut; the Leg Press Arm
must be able to pivot freely.
Align the welded tubes on the Leg Press Plate
(95) with a set of holes in the Leg Press Arm
(96). Attach the Leg Press Plate to the Leg
Press Arm with the Press Pin (97).
11. Press a 25mm x 22mm Plastic Bushing (90)
onto each welded spacer on the Press Frame
(17). Slide the Press Frame into place onto the
Base (4). Note: This will be a tight fit. The
Plastic Bushings should fit on each end of
the indicated tube in the Base. Make sure
that the holes are on the side shown.
Lubricate the M10 x 196mm Bolt (59). Attach
the Press Frame (17) to the Base (4) with the
Bolt and an M10 Nylon Locknut (21).
11
17 Holes must
be on this
side
59
Lubricate
Welded Spacers
21
4
Tube 90
9
10
FRAME ASSEMBLYARM ASSEMBLY
61 61
3
3
60
73
73
62
55
Welded
Tube
96 21
67—Lubricate
97
5
95
60

10
12. Attach the Press Arm (46) to one side of the
Press Frame (17) with two M8 x 63mm Bolts
(22) and two M8 Nylon Locknuts (3).
Assemble the other Press Arm (46) in the
same manner.
13. Identify the Right Arm (48) and the Left Arm
(47). Note the position of the welded bracket
on each Arm. Arm identification is very
important for step 14.
Attach a “V”-pulley (50) and a Long Cable
Trap (31) to the Right Arm (48) with an M10 x
57mm Bolt (86) and an M10 Nylon Locknut
(21). Do not tighten the Locknut yet.
Attach a “V”-pulley (50) and a Long Cable
Trap (31) to the Left Arm (47) in the same
manner.
14. Lubricate both axles on the Top Frame (55).
Slide the Right Arm (48) onto the right axle.
Note: Be careful not to confuse the Right
Arm with the Left Arm (47); refer to step 13
to identify the Right Arm. Make sure that
the upper end of the Right Arm is behind
the indicated bracket on the Top Frame
(55).
Tap two 25mm Retainers (69) and a 25mm
Round Cover Cap (70) onto the axle. Make
sure that the teeth on the Retainers bend
toward the Round Cover Cap, as shown in
the inset drawing.
Attach the Left Arm (47) in the same way.
Wet the lower end of the Right and Left Arms
(47, 48) with soapy water. Slide a 254mm Pad
(45) onto the lower end of each Arm.
12
13 86
31
31
50
50
21
Welded
Brackets
48
47
ARM ASSEMBLY
46
46
17
22
3
55 Bracket
Lubricate
Axle
47
69
70
45
14
69
70
Axle
48
45

11
15. See the inset drawing. Attach the Military
Press Arm (84) to the Pivot Arm (101) with
two M8 x 57mm Bolts (33) and two M8 Nylon
Locknuts (3).
Attach the Pivot Arm (101) to the VKR Upright
(74) with an M10 x 83mm Bolt (67) and an
M10 Nylon Locknut (21).
16. Locate and open the parts packets labeled
“CABLE ASSEMBLY” and “PULLEYS.”
During steps 16 through 35, refer to the
CABLE DIAGRAMS on pages 26–27 of this
manual to verify proper cable routing. Before
beginning this section, fully unwind the four
Cables. Identify the four Cables by comparing
the lengths and ends of the Cables. The
approximate length of each Cable is listed
after the key number in the drawing.
IMPORTANT: While assembling the cables,
do not overtighten the bolts and nuts
attaching the pulleys. The pulleys must be
able to turn freely.
17. Locate the High Cable (58). Wrap the High
Cable over a 90mm Pulley (15). Attach the
Pulley to the Top Frame (55) with an M10 x
92mm Bolt (88) and an M10 Nylon Locknut
(21). Make sure that the end of the Cable
with the ball is on the indicated side of the
Pulley and that the Cable is between the
Pulley and the hook.
17
55
21 58
Ball Hook
15
84
84
101
101
21
67
5674
33
33
3
16
23—79 in.
(2 m)
58—147 in.
(3.73 m)
72—194 in.
(4.93 m)
99—63 in.
(1.6 m)
ARM ASSEMBLYCABLE ASSEMBLY
15 88

12
18. Wrap the High Cable (58) around a “V”-pulley
(50). Attach the “V”-pulley and a Long Cable
Trap (31) to the indicated bracket on the Front
Upright (42) with an M10 x 57mm Bolt (86)
and an M10 Nylon Locknut (21). Make sure
that the Long Cable Trap is positioned to
hold the Cable in place.
19. Route the High Cable (58) around the “V”-pul-
ley (50) on the Left Arm (47). Make sure that
the Cable is in the groove of the Pulley
and that the Long Cable Trap (31) is posi-
tioned to hold the Cable in place. Tighten
the M10 x 57mm Bolt (86) and the M10 Nylon
Locknut (not shown).
20. Route the High Cable (58) around the “V”-pul-
ley (50) on the Right Arm (48). Make sure
that the Cable is in the groove of the “V”-
pulley and that the Long Cable Trap (31) is
turned to hold the Cable in place. Tighten
the M10 x 57mm Bolt (86) and the M10 Nylon
Locknut (not shown).
21. Attach the Pulley Bracket (20) to the Top
Frame (55) with the M8 x 120mm Bolt (68)
and an M8 Nylon Locknut (3). Do not over-
tighten the Locknut; the Pulley Bracket
must be able to move freely.
See the inset drawing. Route the High Cable
(58) over the 90mm Pulley (15) attached to
the Pulley Bracket (20). Tighten the M10 x
47mm Bolt (not shown) and an M10 Nylon
Locknut (21). Make sure that the Cable is in
the groove of the Pulley and that the Cable
Trap (66) is turned to hold the Cable in
place.
21
18
86
86
31
31
50
50
21
58
58
19
20
CABLE ASSEMBLY
42
47
86
31
50
58
20
68
3
55
48
Bracket
58
15
66
21

13

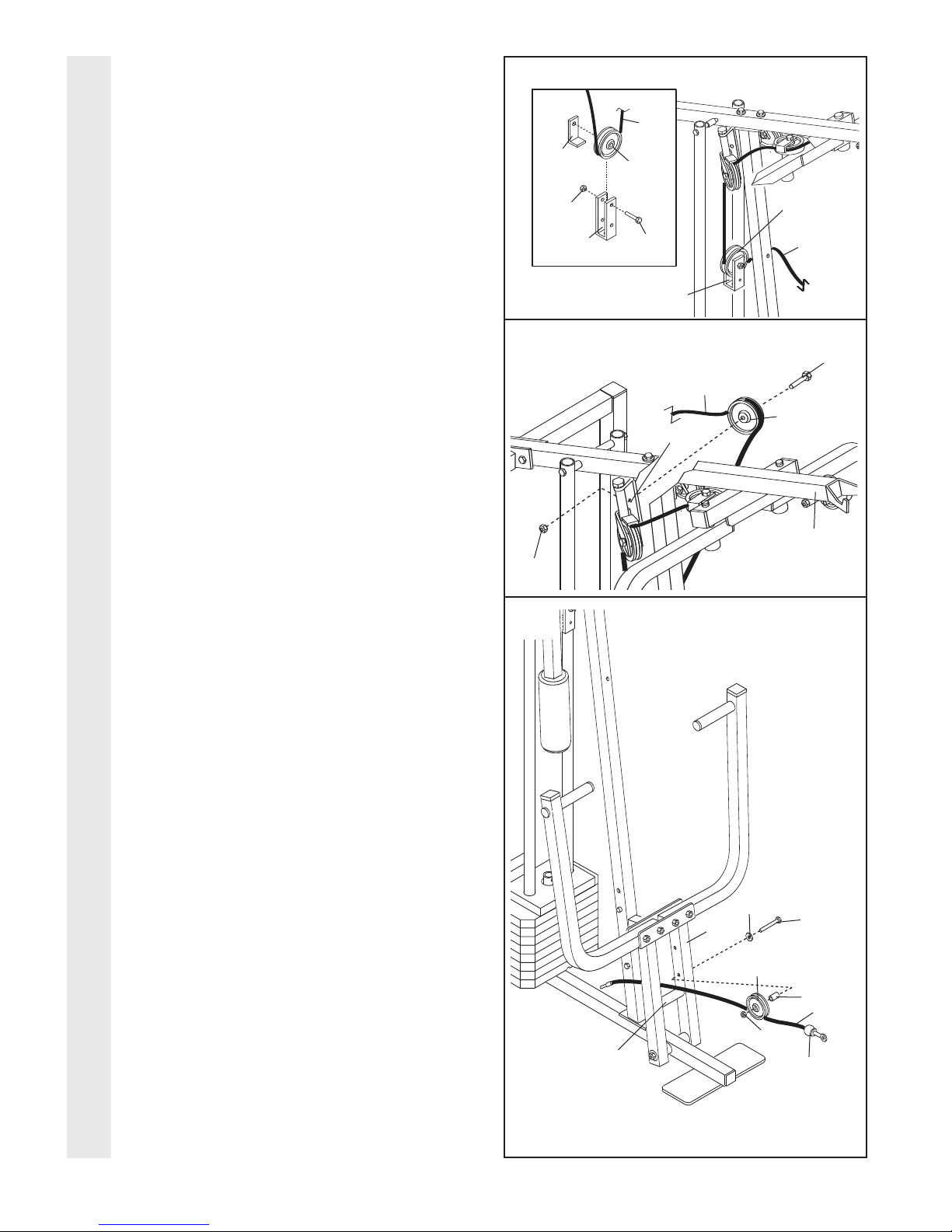

22. See the inset drawing. Route the High Cable
(58) under a 90mm Pulley (15). Attach the
Pulley and a Cable Trap (66) to the upper hole
in a Long “U”-bracket (57) with an M10 x
47mm Bolt (12) and an M10 Nylon Locknut
(21). Make sure that the Cable is in the
groove of the Pulley and that the Cable and
Pulley move smoothly.
23. Wrap the High Cable (58) over a 90mm Pulley
(15). Attach the Pulley to the bracket on the
Top Frame (55) with an M10 x 47mm Bolt (12)
and an M10 Nylon Locknut (21). Make sure
that the Cable is in the groove of the Pulley
and that the Cable and Pulley move
smoothly.
24. Locate the Low Cable (23). Route the Low
Cable under the 90mm Reinforced Pulley
(106). Attach the Pulley and the 16mm x 14mm
Spacer (7) to the lower hole in the Press
Frame (17) with an M10 x 92mm Bolt (88), an
M10 Washer (9), and an M10 Nylon Locknut
(21). Make sure that the parts are assem-
bled in the order shown, that the end of the
Cable with the ball is on the indicated side
of the Press Frame, and that the Cable is
between the Pulley and the crossbar on the
Press Frame.
22
58
15
15
66
21
12
57
Bracket
55
21
12
15
58
23
24
CABLE ASSEMBLY
58
57
21
17
106
7
9
88
23
Ball
Crossbar

14
25. Route the Low Cable (23) under a 90mm
Pulley (15). Attach the Pulley and a Cable
Trap (66) to the lower hole in the Front
Upright (42) with an M10 x 92mm Bolt (88),
anM10 Washer (9), and an M10 Nylon
Locknut (21). Make sure that the Cable Trap
is turned to hold the Cable in place.
26. Route the Low Cable (23) under the 90mm
Pulley (15). Attach the Pulley and a Cable
Trap (66) to the upper hole in the Press
Frame (17) with an M10 x 83mm Bolt (67), an
M10 Washer (9), and an M10 Nylon Locknut
(21). Make sure that the Cable Trap is
turned to hold the Cable in the groove of
the Pulley.
27. Route the Low Cable (23) under a 90mm
Pulley (15). Attach the Pulley and a Cable
Trap (66) to the upper hole in the Front
Upright (42) with an M10 x 92mm Bolt (88),
an M10 Washer (9), and an M10 Nylon
Locknut (21). Make sure that the Cable Trap
(66) is turned to hold the Cable in place
27
25
26
CABLE ASSEMBLY
88
23
9
21
15
42
66
21
88
23
15 66
42
9
23
17
9
66
15
67
21

15
28. Attach the end of the Low Cable (23) to the
Long “U”-bracket (57) with an M8 Nylon
Locknut (3) and an M8 Washer (8). Donot
completely tighten the Locknut. It should
bethreaded onto the end of the Cable so
that only two threads are showing past the
Locknut, as shown in the inset drawing.
29. Attach the High Cable (58) to a Small “U”-
bracket (71) with an M8 Nylon Locknut (3)
and an M8 Washer (8). Do not completely
tighten the Locknut. It should be threaded
onto the end of the Cable so that only two
threads are showing past the Locknut, as
shown in the inset drawing.
Attach the Small “U”-bracket (71) to the indi-
cated Weight Tube (63) with an M8 x 45mm
Bolt (24) and an M8 Nylon Locknut (3).
30. Locate the Military Press Cable (72). Attach
the Military Press Cable to the other Small
“U”-bracket (71) with an M8 Nylon Locknut (3)
and an M8 Washer (8). Do not completely
tighten the Locknut. It should be threaded
onto the end of the Cable so that only two
threads are showing past the Locknut, as
shown in the inset drawing.
Attach the Small “U”-bracket (71) to the indi-
cated Weight Tube (63) with an M8 x 45mm
Bolt (24) and an M8 Nylon Locknut (3).
30
28
8
58
24
63
71
8
3
29
CABLE ASSEMBLY
57
23
3
24
63
71
8
3
3
72
3
3
57
23
58
8
3
71
72
8
3
71

16

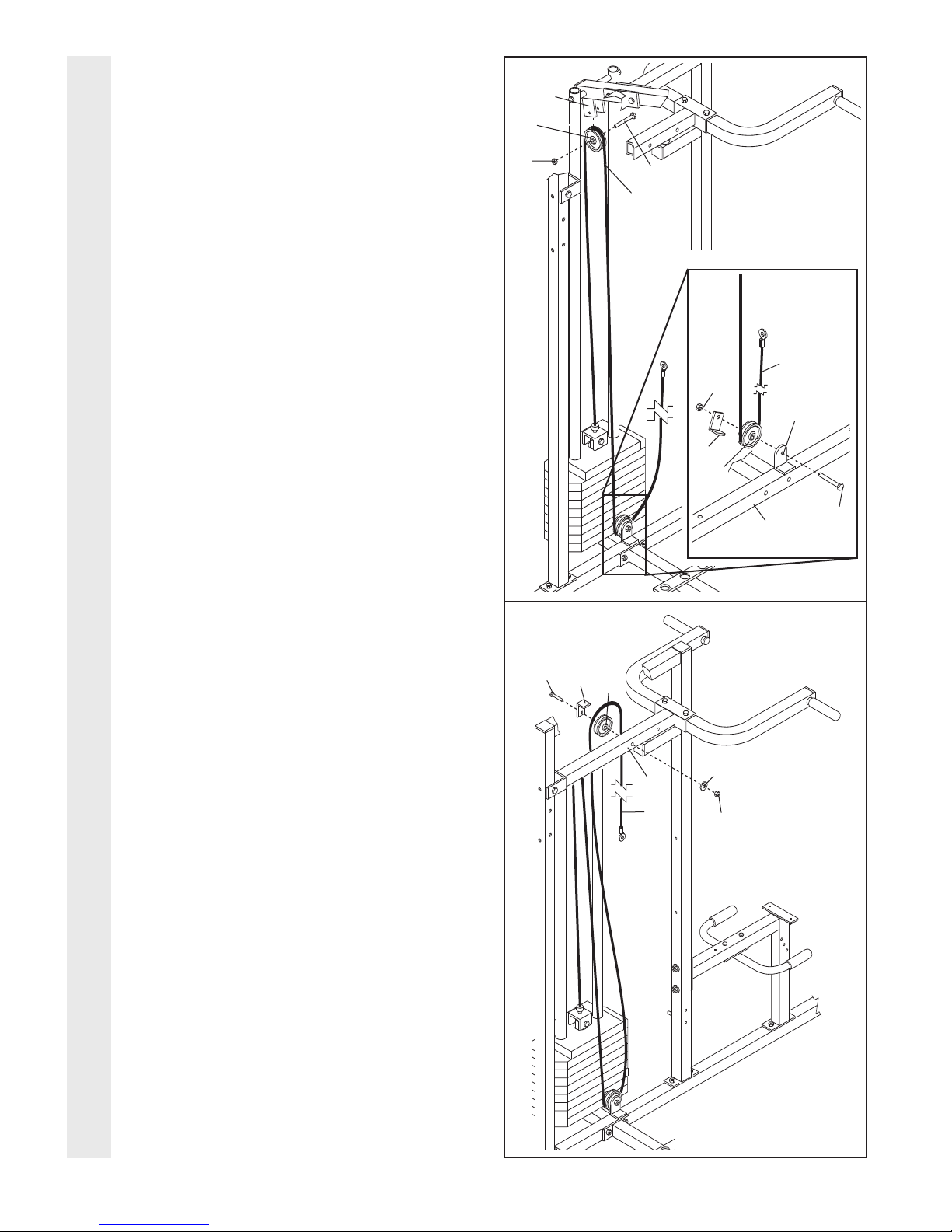

31. Wrap the Military Press Cable (72) over a
90mm Pulley (15). Attach the Pulley to the
Top Frame (55) with an M10 x 47mm Bolt
(12) and an M10 Nylon Locknut (21).
See the inset drawing.Wrap the Military
Press Cable (72) under a 90mm Pulley (15).
Attach the Pulley and a Cable Trap (66) to the
bracket on the Stabilizer (5) with an M10 x
47mm Bolt (12) and an M10 Nylon Locknut
(21). Make sure that the Cable Trap is
turned to hold the Cable in place.
32. Wrap the Military Press Cable (72) over a
90mm Pulley (15). Attach the Pulley and a
Cable Trap (66) to the Pivot Arm (101) with an
M10 x 92mm Bolt (88), an M10 Washer (9),
and an M10 Nylon Locknut (21). Make sure
that the Locknut is on the side shown and
that the Cable Trap is positioned to hold
the Cable in place.
31
32
CABLE ASSEMBLY
5
88
72 21
66
101
15
Bracket
9
66
12
72
15
15
21
21
55
12
72

17
33. See inset drawing A. Route the Military
Press Cable (72) under a 90mm Pulley (15).
Attach the Pulley and a Cable Trap (66) to the
upper hole in the Long “U”-bracket (57) with
anM10 x 47mm Bolt (12) and an M10 Nylon
Locknut (21). Make sure that the Cable is in
the groove of the Pulley and that the Cable
and Pulley move smoothly.
See inset drawing B. Slide an M10 Washer
(9) onto an M8 x 74mm Shoulder Bolt (103).
Insert the Bolt through the Pivot Arm (101)
from the indicated side. Slide a 13mm x 6mm
Spacer (104) and the end of the Military Press
Cable (72) onto the end of the Bolt. Thread
an M8 Nylon Locknut (3) onto the Bolt. Make
sure that the end of the Cable can pivot
easily.
34. Locate the Leg Press Cable (99). Attach the
end of the Leg Press Cable to the Long “U”-
bracket (57) with an M8 Nylon Locknut (3)
and an M8 Washer (8). Do not completely
tighten the Locknut. It should be threaded
onto the end of the Cable so that only two
threads are showing past the Locknut, as
shown in the inset drawing.
Wrap the Leg Press Cable (99) under a
90mm Pulley (15). Attach the Pulley to the
Leg Press Upright (56) with the M10 x 90mm
Bolt (16), an M10 Washer (9), and an M10
Nylon Locknut (21). The ball on the Cable
must be on the indicated side of the
Pulley.Make sure that the Cable and
Pulley move smoothly and that the Cable
is between the Pulley and the welded rod.
33
34
CABLE ASSEMBLY
56
Ball
9
21
15
3
8
16
72
15
21
57
A
B
12
101
9
15
66
57
3
104
3
57
57
99
99
Welded
Rod
72
103
72

18
35. Attach the Press Bracket (94) to the Leg
Press Arm (96) with an M10 x 78mm Bolt
(105) and an M10 Nylon Locknut (21).
Wrap the Leg Press Cable (99) around a
90mm Pulley (15). Attach the Pulley to the
Press Bracket (94) with the M10 x 47mm Bolt
(12) and an M10 Nylon Locknut (21).
Slide an M10 Washer (9) onto an M8 x 74mm
Shoulder Bolt (103). Insert the Bolt through
the Rear Seat Frame (100) from the indicated
side. Slide a 13mm x 6mm Spacer (104) and
the end of the Leg Press Cable (99) onto the
end of the Bolt. Thread an M8 Nylon Locknut
(3) onto the Bolt. Make sure that the end of
the Cable can pivot easily.
36. Locate and open the parts packet labeled
“SEAT ASSEMBLY.”
Insert an M6 x 63mm Carriage Bolt (92)
through the center hole in a Seat Plate (37).
Attach the Seat Plate to the Rear Backrest
(85) with two M6 x 16mm Screws (18).
Insert the M6 x 63mm Carriage Bolt (92)
through the indicated hole in the Leg Press
Upright (56). Tighten an M6 Nylon Locknut (2)
with an M6 Washer (10) onto the Carriage
Bolt. Attach the top of the Rear Backrest (85)
to the Leg Press Upright with an M6 x 63mm
Screw (43) and an M6 Washer (10).
37. Attach one end of a Seat (13) to the Rear
Seat Frame (100) with two M6 x 16mm
Screws (18). Attach the other end of the Seat
to the Rear Seat Frame with an M6 Washer
(10) and an M6 x 63mm Screw (43).
37
35
36
CABLE ASSEMBLYSEATASSEMBLY
103
105
96
94
12
21
100 104
3
85
56
92
18
18
43
2
10 100
43
13
9
21
99
10
37
15

19
38. Orient the Front Backrest (41) as shown.
Attach the Backrest to the Front Upright (42)
with two M6 x 63mm Screws (43) and two M6
Washers (10).
39. Insert an M6 x 50mm Carriage Bolt (38)
through the center hole in the Seat Plate (37).
Attach the Seat Plate to the Seat (13) with
two M6 x 16mm Screws (18).
Insert the M6 x 50mm Carriage Bolt (38)
through the indicated hole in the Front Seat
Frame (36). Tighten an M6 Nylon Locknut (2)
with an M6 Washer (10) onto the Carriage
Bolt.
Attach the other end of the Seat (13) to the
Front Seat Frame (36) with an M6 Washer
(10) and an M6 x 50mm Screw (81).
40. Lubricate the M8 x 57mm Bolt (33). Attach the
Leg Lever (29) to the Front Seat Frame (36)
with the Bolt and an M8 Nylon Locknut (3).
Do not overtighten the Locknut; the Leg
Lever must be able to pivot easily.
Insert the Eyebolt (35) into the Leg Lever (29)
from the direction shown. Tighten an M10
Nylon Locknut (21) with an M10 Washer (9)
onto the Eyebolt.
41. Rest the Front Seat Frame (36) on the indi-
cated pin in the Front Upright (42). Attach the
Front Seat Frame to the Front Upright with an
M8 x 70mm Carriage Bolt (14) and the Seat
Knob (40).
41
38
41
Thick
End
42
39
40
SEATASSEMBLY
10
13
38
36
10
81
37
2
3
9
21
29
33
35
18
43
36
36
42
40
14
Pin

20
42. Insert a Pad Tube (28) into the Front Seat
Frame (36). Slide a Foam Pad (30) onto each
end of the Pad Tube.
Insert the other Pad Tube (28) into the Leg
Lever (29). Slide a Foam Pad (30) onto each
end of the Pad Tube.
43. Locate and open the parts packet labeled
“VKR ASSEMBLY.”
Attach the Left VKR Arm (79) and the Right
VKR Arm (80) to the VKR Upright (74) with
two M8 x 70mm Bolts (75) and two M8 Nylon
Locknuts (3).
44. Attach the VKR Backrest (77) to the VKR
Upright (74) with two M6 x 63mm Screws (43)
and two M6 Washers (10).
Attach a VKR Armrest (78) to the Right VKR
Arm (80) with two M6 x 50mm Screws (81)
and two M6 Washers (10).
Attach a VKR Armrest (78) to the Left VKR
Arm (79) in the same manner.
42
43
79
80
75
74
3
81
44
SEATASSEMBLYVKR ASSEMBLY
79
30
30
28
36 29
78
74
78
43
10
10
80
77
