1 easyStart at a glance
1.1 Working with the easyStart: what you need to know as store manager
About this easyStart user manual
These operating instructions for easyStart are a supplement to the user manual of the combi oven. It
serves the following purposes:
■This section provides you an overview of how to work with the easyStart.
■It describes the layout of the touchscreen pages. Use this description to explain the touchscreen to
your employees.
■It explains each step of the tasks your employees must perform using the easyStart. Use these in‐
structions to train your employees.
This section will refer you to additional instructions in the user manual of the combi oven.
Safety requirements
Instruct your employees how to work safely with the combi oven. In addition, follow the instructions
from the chapter 'For your safety' in the user manual of the combi oven.
easyStart features
Convotherm easyStart allows you to work with preset cooking profiles that can be selected on the
touchscreen. The cooking profiles cannot be modified.
Tested and reliable cooking profiles can be found in this operating instruction in the chapter on Preset
cooking profiles in easyStart.
You can cook products with different cooking profiles at the same time on several shelf levels. The
system monitors all the cooking processes and automatically notifies you when a particular product
can be removed.
Access to easyStart can be password-protected; see The Settings section in the chapter Layout of the
touchscreen pages of the User manual.
Requirements for achieving custom results with easyStart
Your combi oven must be set up as follows before your employees can work with the appliance:
Requirements How to do it:
See user manual
All of your cooking profiles must be entered and labelled with a
symbol.
■Create cooking profiles
All cooking profiles that you wish to use to produce products si‐
multaneously must be combined in a product group.
These cooking profiles must match in terms of temperature and
cooking type.
■Create a new product group
■Save / remove cooking profiles
to / from a product group
1 easyStart at a glance
Operating instructions 4

Basic cooking operation using easyStart
The easyStart makes cooking very simple and only involves these 7 steps:
Step Action How to do it:
1Switch on the combi oven.
If you were previously working in the easy‐
Start mode and then switched the combi
oven off, the combi oven will then start in
the easyStart mode.
See instructions in user manual:
■Turning the combi oven on and off
2Select the product group and your cooking
profile.
■Cooking one product on page 10
■Cooking - starting several products at once
on page 12
■Cooking - starting several products one af‐
ter the other on page 15
3Select the shelf levels that you want to
place food on.
4Open the appliance door. See instructions in user manual:
■Opening and closing the appliance door
safely
5Place food on the shelf levels. See instructions in user manual:
■Loading and removing food
6Close the appliance door. The cooking pro‐
gram starts automatically.
■Cooking one product on page 10
■Cooking - starting several products at once
on page 12
■Cooking - starting several products one af‐
ter the other on page 15
7As soon as the signal sounds, open the ap‐
pliance door and remove your finished
product.
See instructions in user manual:
■Opening and closing the appliance door
safely
■Loading and removing food
Simultaneous cooking of multiple product batches
You can cook multiple product batches simultaneously. These batches can either contain the same
product or different products from a product group (see Cooking - starting several products at once on
page 12, see Cooking - starting several products one after the other on page 15). Here, the follow‐
ing rules apply:
■As soon as you open the appliance door in order to load the cooking chamber with a new batch,
the cooking program currently in progress is paused. The cooking programs resume as soon as
you close the appliance door again. The energy loss which results from opening the appliance door
is compensated.
■You can stop the cooking program for one or more product batches before it has finished, without
affecting the remaining cooking programs (see Stopping cooking programs before they have finish‐
ed on page 18).
Cleaning and servicing the combi oven
For cleaning and servicing the combi oven, see the cleaning and servicing schedule in the user man‐
ual. Give your employees instructions accordingly.
For instructions on cleaning with easyStart, see
■Cold cooking chamber, semi-automatic cleaning on page 19
■Hot cooking chamber, semi-automatic cleaning on page 22
■Using the ConvoClean system to clean the cooking chamber when cool on page 25
■Cleaning the hot cooking chamber using the ConvoClean system on page 27
1 easyStart at a glance
Operating instructions 5

Options you can change
To make it even safer to work with Convotherm easyStart, you can enable the following functions via
the easyTouch Service level:
■SteamProtect:
This function is used to remove moisture from the cooking chamber. As a result, far less hot steam/
vapour escapes when the appliance door is opened. This function is available before placing a new
batch of food into the cooking chamber, for instance when several products are started in succes‐
sion, and at the end of a cooking operation.
■SafeCoolDown:
This function allows the appliance door to stay closed while the cooking chamber cools down be‐
fore food is placed inside or cleaning is carried out, reducing the risk of scalding when opening the
appliance door.
1 easyStart at a glance
Operating instructions 6

1.2 Layout of the touchscreen pages
Start page: The 'Product group' page
The buttons in the start page have the following meanings and functions:
Button Meaning Function Illustration
Product group Selection of a product group,
e.g. Baking
Cancel Disabled on this page
Clean Opens the 'Clean' page.
Close page Switches to easyTouch
Down Scrolls down
Up Scrolls up
The 'Cooking profiles' page
The buttons on the 'Cooking profiles' page have the following meanings and functions:
Button Meaning Function Illustration
Cooking profile Selection of the cooking pro‐
file, e.g. Muffins
Cancel Disabled on this page
Clean Disabled on this page
Close page Goes back one page
Down Scrolls down
Up Scrolls up
1 easyStart at a glance
Operating instructions 7

The Shelf levels selection page
The buttons on the 'Shelf levels selection' page have the following meanings and functions:
Button Meaning Function Illustration
Cooking profile Cooking profile, e.g. 'Baguette
rolls' is selected.
Additional cooking pro‐
file
Select another cooking profile.
Cancel Disabled on this page
Clean Disabled on this page
Close page Cancel selection and go back
one page
Grey shelf: shelf level
unoccupied
Shelf level is available for se‐
lection
Shelf level selected,
shown yellow
Shelf level is selected.
Shelf level occupied,
shown red
Shelf level is occupied and
cooking process is in pro‐
gress.
Remove product from
shelf level, shown
green
The cooking process is finish‐
ed.
Load tray(s), close ap‐
pliance door
Shows user information or
prompt
The Cooking workflow page
The buttons on the 'Cooking workflow' page have the following meanings and functions:
Button Meaning Function Illustration
Cooking profile in pro‐
gress
■Display of the cooking proc‐
ess in profile, e.g. Muffins
■Display of the occupied
shelf levels
■Displays time remaining
Cooking profile Additional cooking profiles
available for selection
Cancel Inactive; available when cook‐
ing profile to be stopped is se‐
lected
Clean Disabled on this page
Down Scrolls down
Up Scrolls up
1 easyStart at a glance
Operating instructions 8

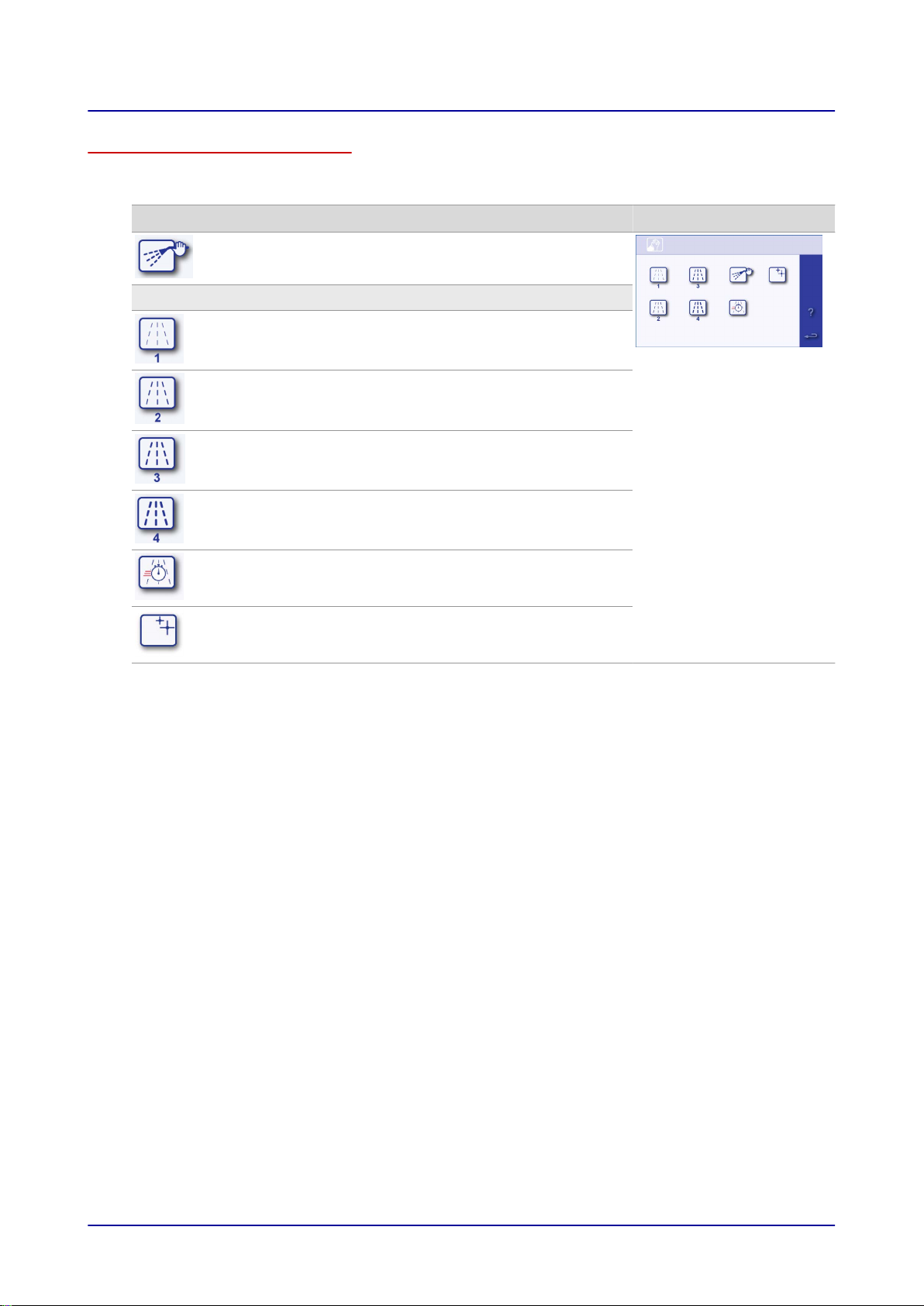

The Clean page
The buttons on the 'Clean' page have the following meanings and functions:
Button Meaning Function Illustration
Semi-automatic clean‐
ing
Starts semi-automatic clean‐
ing.
ConvoClean system Fully automatic cleaning
Cleaning level 1:
light soiling
Starts fully automatic clean‐
ing.
Cleaning level 2:
Moderate soiling
Starts fully automatic clean‐
ing.
Cleaning level 3:
Heavy soiling
Starts fully automatic clean‐
ing.
Cleaning level 4:
Heavy soiling with
Shine+
Starts fully automatic clean‐
ing.
Express cleaning:
Very little soiling
Starts a 10 minute fully auto‐
matic cleaning program.
CareStep:
Interim cleaning
Starts fully automatic cleaning
using ConvoCare rinse aid.
1 easyStart at a glance
Operating instructions 9

2 Cooking using easyStart
2.1 Cooking one product
Hot steam / vapour
Risk of scalding from hot steam and vapour
Escaping hot steam and vapour can cause scalding to face, hands, feet and legs.
Open the appliance door as specified in the instructions for safe opening. Never put
your head inside the cooking chamber.
Your objective
You want your product to cook simultaneously in three shelf levels.
Cooking one product
Proceed as follows:
Step What do you want to do? What does your combi oven do?
1
Select your product group. The 'Cooking profiles' page is
displayed.
2
Select your cooking profile. The cooking chamber is prehea‐
ted or cooled as needed.
3
Please wait. The 'Shelf levels selection' page
is displayed.
4
2 Cooking using easyStart
Operating instructions 10

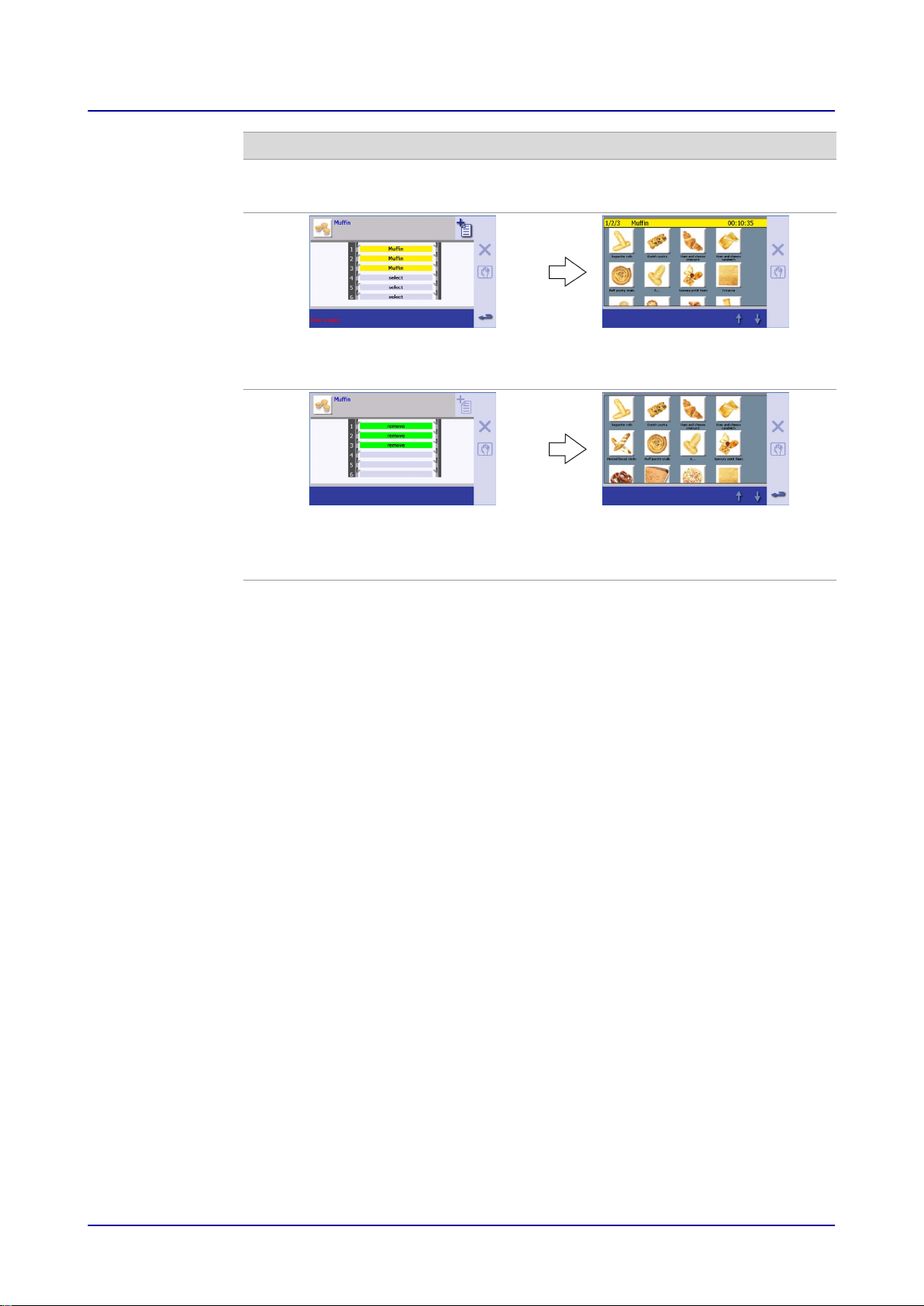

Step What do you want to do? What does your combi oven do?
Select the shelf levels that you
wish to load with the selected
cooking profile.
The shelf levels are selected
and the prompt to load is dis‐
played.
5
Load the selected shelf levels
and close the appliance door.
The cooking starts.
After the cooking program is
complete, a signal will sound.
6
Open the appliance door, re‐
move the finished product and
close the appliance door once
again.
The 'Cooking profiles' page is
displayed.
2 Cooking using easyStart
Operating instructions 11

2.2 Cooking - starting several products at once
Hot steam / vapour
Risk of scalding from hot steam and vapour
Escaping hot steam and vapour can cause scalding to face, hands, feet and legs.
Open the appliance door as specified in the instructions for safe opening. Never put
your head inside the cooking chamber.
Your objective
You want to start and cook one product on three shelf levels as well as an additional product on two
different levels at the same time.
Cooking - starting several products at once
Proceed as follows:
Step What do you want to do? What does your combi oven do?
1
Select your product group. The 'Cooking profiles' page is
displayed.
2
Select your cooking profile. The cooking chamber is prehea‐
ted or cooled as needed.
3
Please wait. The 'Shelf levels selection' page
is displayed.
4
Select the shelf levels that you
wish to load with the selected
cooking profile.
The selected shelf levels are
highlighted in yellow.
2 Cooking using easyStart
Operating instructions 12

Step What do you want to do? What does your combi oven do?
5
Select the 'Additional cooking
profiles' button.
The cooking profiles are dis‐
played for selection.
6
Select your cooking profile. The 'Shelf levels selection' page
is displayed. Shelf levels that
have already been selected are
highlighted in yellow.
7
Select the additional shelf lev‐
els that you wish to load with
the selected cooking profile.
The newly selected shelf levels
are highlighted in yellow and the
prompt to load them is dis‐
played.
8
Place the respective products
on the shelf levels you have se‐
lected and close the appliance
door.
The cooking starts.
A signal will sound after the
shortest cooking program is
complete.
9
Open the appliance door, re‐
move the finished product. The
signal will sound until the appli‐
ance door is closed again.
Close the appliance door.
The cooking continues.
After the next cooking program
is complete, a signal will sound.
2 Cooking using easyStart
Operating instructions 13

Step What do you want to do? What does your combi oven do?
10
Open the appliance door, re‐
move the finished product. The
signal will sound until the appli‐
ance door is closed again.
Close the appliance door.
The 'Cooking profiles' page is
displayed.
2 Cooking using easyStart
Operating instructions 14

2.3 Cooking - starting several products one after the other
Hot steam / vapour
Risk of scalding from hot steam and vapour
Escaping hot steam and vapour can cause scalding to face, hands, feet and legs.
Open the appliance door as specified in the instructions for safe opening. Never put
your head inside the cooking chamber.
Your objective
You want to sequentially start and cook one product on three shelf levels and then additionally another
product on other shelf levels.
Cooking - starting several products one after the other
Proceed as follows:
Step What do you want to do? What does your combi oven do?
1
Select your product group. The 'Cooking profiles' page is
displayed.
2
Select your cooking profile. The cooking chamber is prehea‐
ted or cooled as needed.
3
Please wait. The 'Shelf levels selection' page
is displayed.
4
Select the shelf levels that you
wish to load with the selected
cooking profile.
The selected shelf levels are
highlighted in yellow.
2 Cooking using easyStart
Operating instructions 15

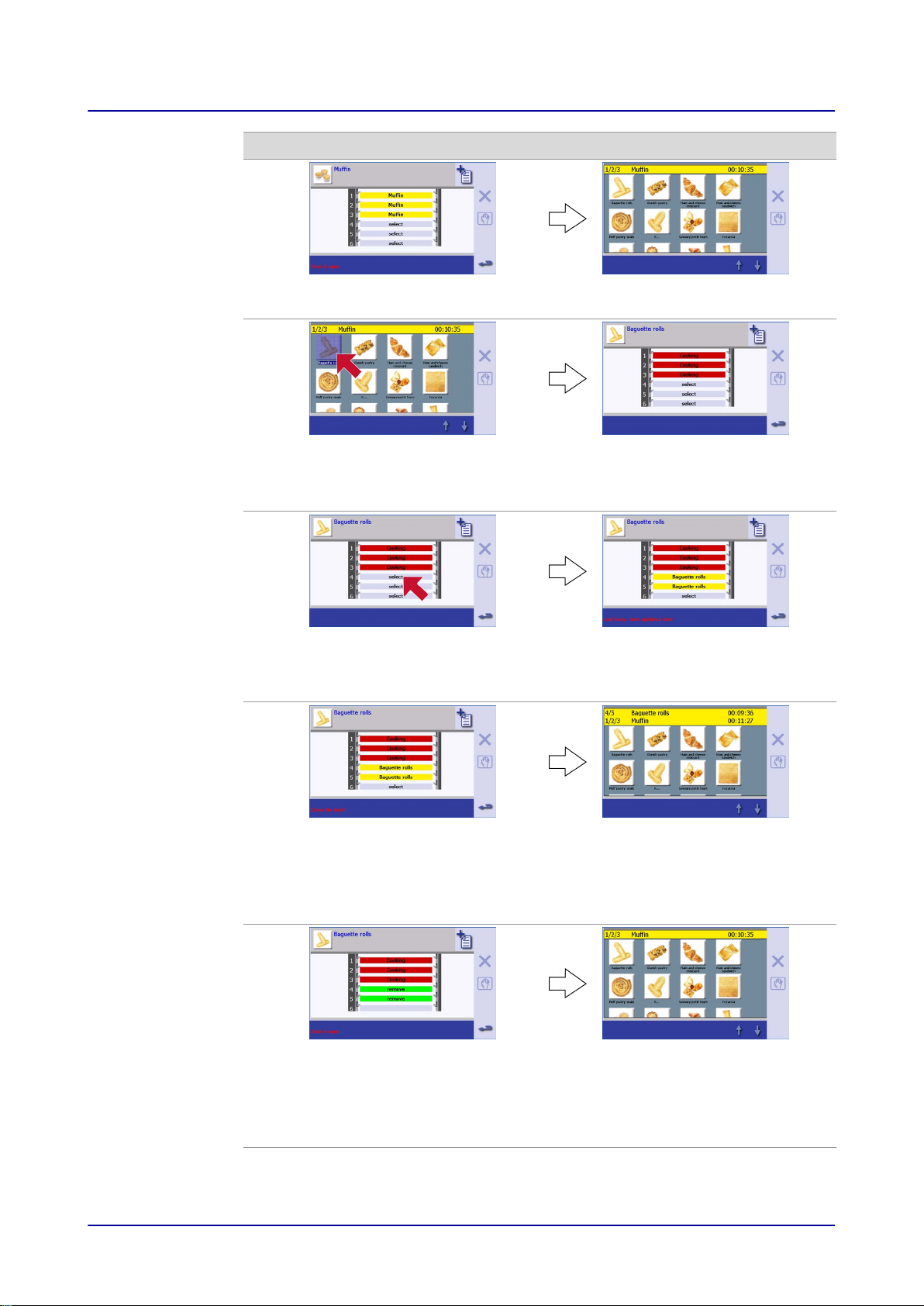

Step What do you want to do? What does your combi oven do?
5
Load the selected shelf levels
and close the appliance door.
The cooking starts. The first
cooking program runs.
6
Select an additional cooking
profile that you wish to use for
food placed on other shelf lev‐
els.
The 'Shelf levels selection' page
is displayed.
Shelf levels that are already oc‐
cupied are highlighted in red.
7
Select the shelf levels that you
wish to load with the selected
cooking profile.
The newly selected shelf levels
are highlighted in yellow and the
prompt to load them is dis‐
played.
8
Load the selected shelf levels
and close the appliance door.
The cooking of the 1st cooking
program continues. The cooking
of the 2nd cooking program
starts. After the 1st cooking pro‐
gram is complete, a signal will
sound.
9
Open the appliance door and
remove the first finished prod‐
uct. The signal will sound until
the appliance door is closed
again.
Close the appliance door.
The second cooking program
continues running.
After the 2nd cooking program is
complete, a signal will sound.
2 Cooking using easyStart
Operating instructions 16

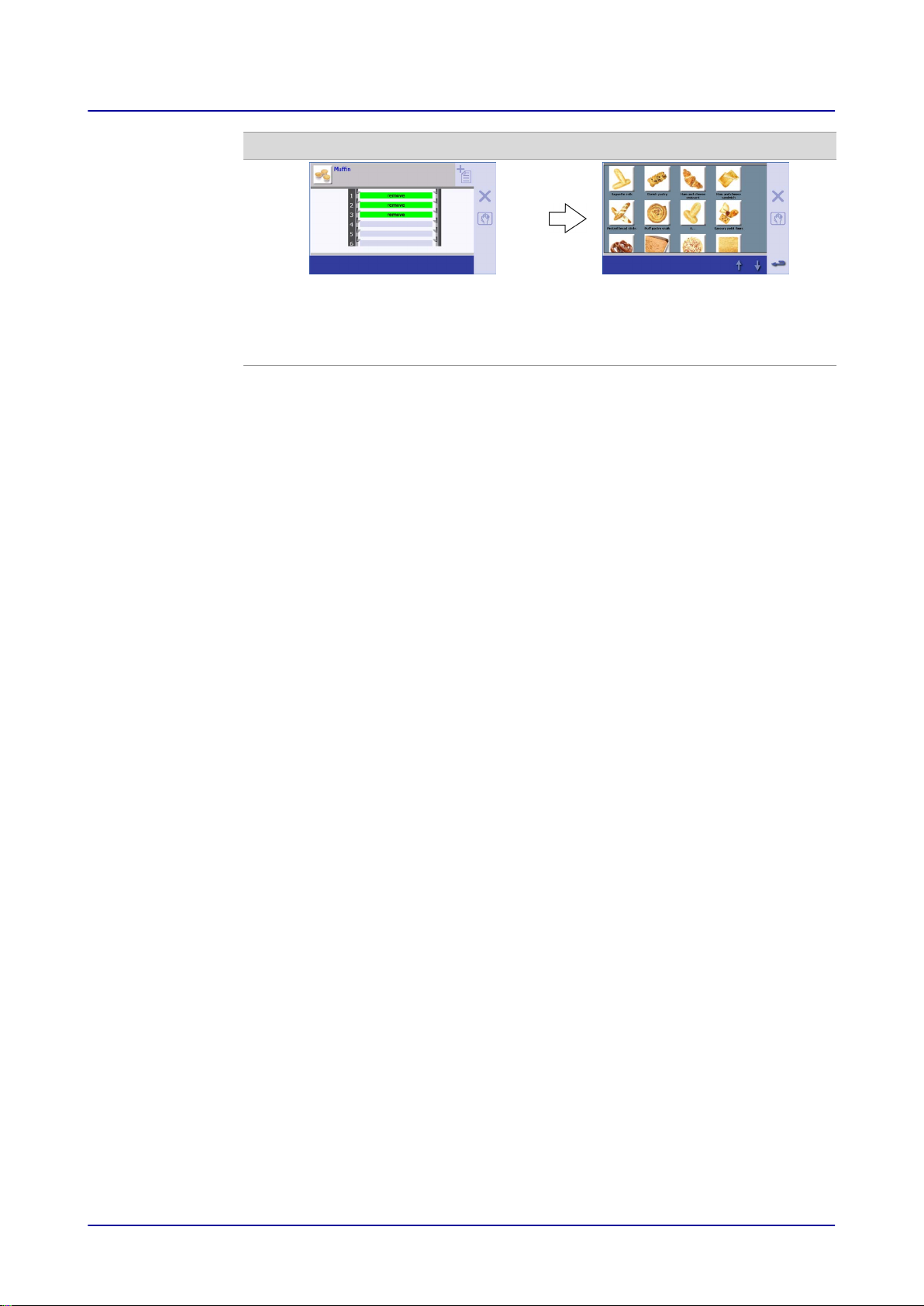

Step What do you want to do? What does your combi oven do?
10
Open the appliance door, re‐
move the finished product. The
signal will sound until the appli‐
ance door is closed again.
Close the appliance door.
The 'Cooking profiles' page is
displayed.
2 Cooking using easyStart
Operating instructions 17

2.4 Stopping cooking programs before they have finished
Your objective
You want to stop the cooking program for shelf levels 4 and 5 before it has finished.
Stopping cooking programs before they have finished
Proceed as follows:
Step What do you want to do? What does your combi oven do?
1
Select the product for which
you wish to stop the cooking
program.
The cooking program you have
selected is highlighted in blue.
2
Press the 'Delete' button within
5 seconds.
You will be prompted whether
you really want to stop the cook‐
ing program.
3
Confirm that you wish to stop
the cooking program.
The remaining cooking pro‐
grams continue, unaffected.
2 Cooking using easyStart
Operating instructions 18

3 Cleaning using easyStart
3.1 Cold cooking chamber, semi-automatic cleaning
Contact with cleaning agents
Risk of chemical burns or irritation to skin, eyes and respiratory system.
Direct contact with the ConvoClean new cleaning agent or ConvoCare rinse aid will irritate the skin,
eyes and respiratory system. Direct contact with the ConvoClean forte cleaning agent will result in
chemical burns to the skin, eyes and respiratory organs.
Do not inhale the vapours or spray mist from the cleaning agent and rinse aid.
Do not let the cleaning agent or rinse aid come into contact with skin, eyes or mucous membranes.
Do not spray cleaning agent or rinse aid into a cooking chamber that is at a temperature of higher
than 60 °C, because this will increase the caustic and irritating vapours given off by the cleaning
fluid.
Wear personal protective equipment.
Requirements
Check that the following requirements have been met:
■The cooking chamber has cooled down to <60 °C after its last use.
■No food has been left in the cooking chamber.
■All containers, baking trays and shelf grills and any other accessories have been removed from the
cooking chamber.
■Any larger residues of food have been removed from the cooking chamber.
■The appliance door is closed.
Materials required
You will need the following materials:
■ConvoClean new or ConvoClean forte in the spray bottle
Using the spray bottle
Please follow this guidance when using the spray bottle:
■Never leave the spray bottle unused under pressure for prolonged periods. Open the pump head
slowly to release the pressurized air.
■Rinse out the spray bottle weekly.
■Rinse out the nozzle, nozzle extension and nozzle pipe after each use.

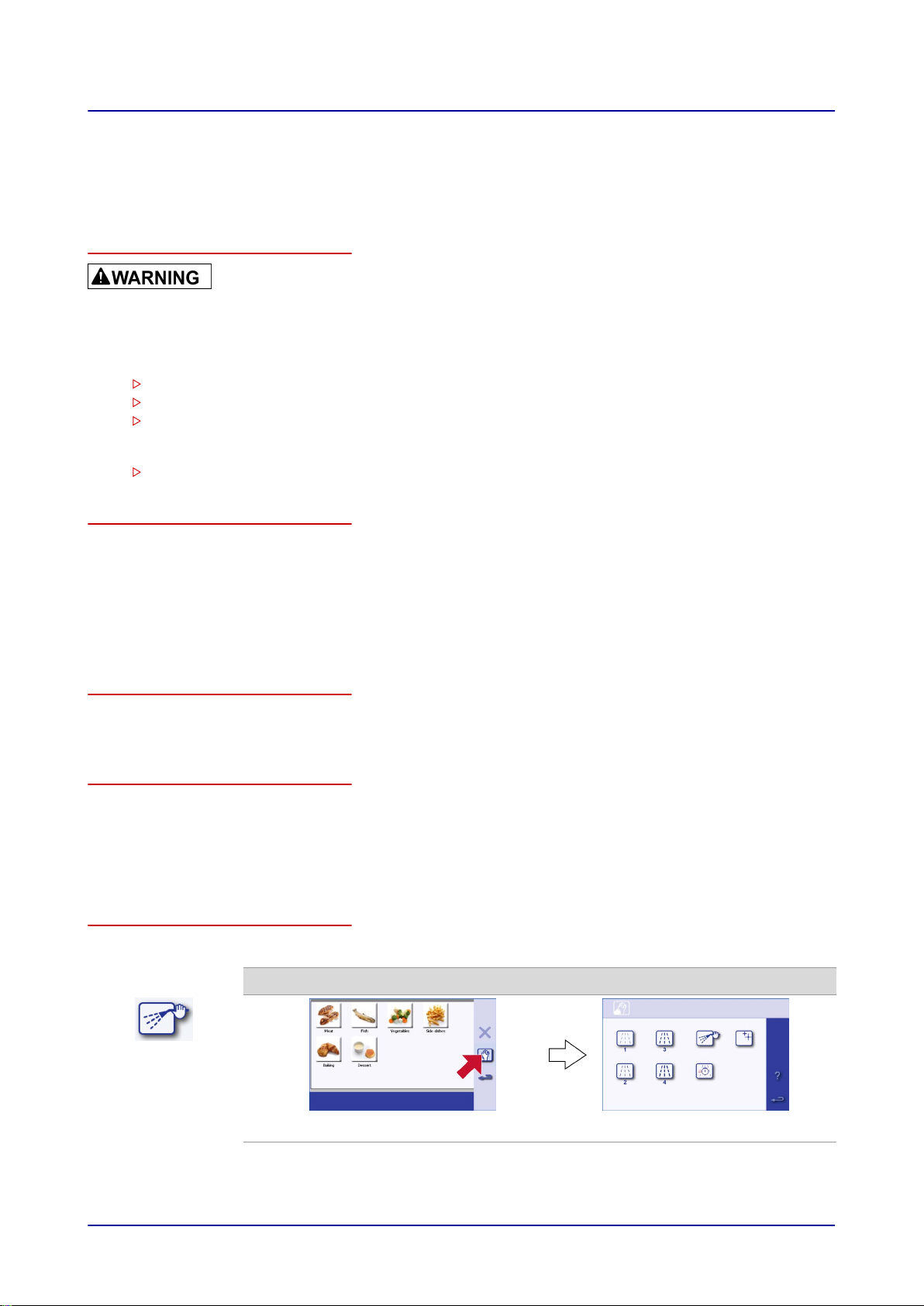

Cold cooking chamber, semi-automatic cleaning
Proceed as follows:
Step What do you want to do? What does your combi oven do?
1
Select the 'Clean' page. The 'Clean' page is displayed.
3 Cleaning using easyStart
Operating instructions 19

Step What do you want to do? What does your combi oven do?
2
Start the semi-automatic clean‐
ing program.
Cleaning starts.
3
Please wait. An audible signal is given. You
are prompted to use the spray
bottle to spray inside the cooking
chamber and then to close the
appliance door again.
4Open the appliance door and
spray the cooking chamber, the
suction panel and the area be‐
hind it, the rack and the drain in
the floor with ConvoClean new
or ConvoClean forte contained
in the spray bottle.
5
Close the appliance door. The program continues running
automatically.
6
Please wait. An audible signal is given. You
are prompted to rinse off the
heaters and to close the appli‐
ance door again.
7
3 Cleaning using easyStart
Operating instructions 20
