Welch Allyn Kreativ Mach 5.0 User manual

990008 Rev. H
Mach 5.0 and Mach 5.0 PLUS
Air Abrasion Units
Instructions for Use
Please read this manual thoroughly
prior to first use
CAUTION: This device must only be
purchased by, or sold to, a licensed dentist.
Copyright Notice:
Copyright © 1999, Kreativ, Inc. All rights reserved. No part of this manual may be
reproduced without written permission fromKreativ, Inc.
Manufactured by
Kreativ, Inc. (USA)
7360 Carroll Road
San Diego, CA 92121
European Authorized Representative
Welch Allyn LTD.
Navan, Co. Meath
Republic of Ireland
Ph: 353-46-79060
Kreativ Menu
Manuals
Service Manual

Page 2990008 Rev. H
TABLE OF CONTENTS
1. INTRODUCTION AND GENERAL INFORMATION 4
SPECIFICATIONS 6
2. SAFETY 8
WARNINGS 8
CAUTIONS 8
SAFETY MARKINGS ON LABELS 10
3. CONTROLS AND CONNECTORS 11
ITEM DESCRIPTIONS 11
CONTROL PANEL 12

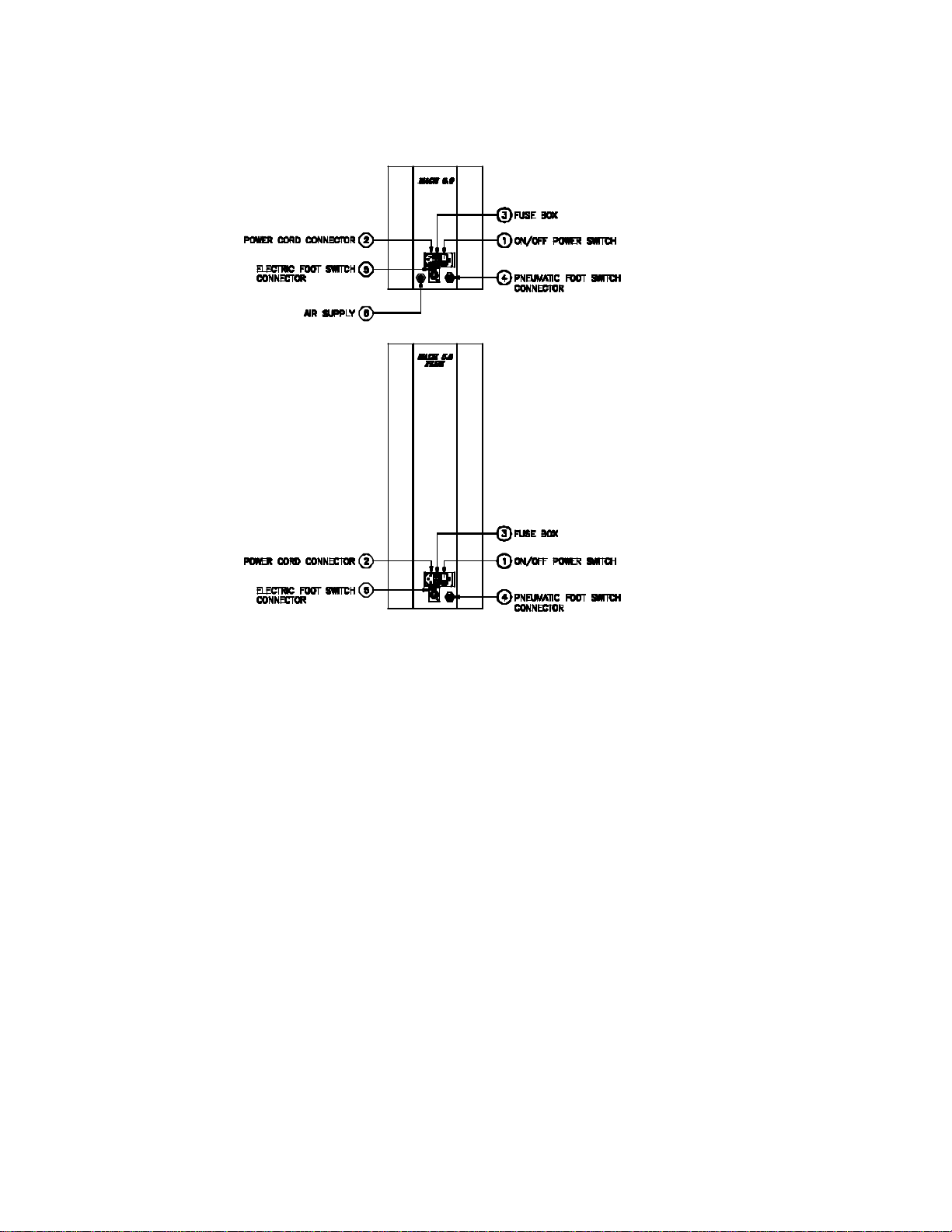

DRAWINGS OF CONTROLS 13
FUNCTIONAL DESCRIPTION 15
4. UNPACKING AND SETUP 17
GENERAL INFORMATION 17
UNPACKING AND SETUP 17
AIR SUPPLY REQUIREMENTS (MACH 5.0 ONLY)18
ELECTRICAL REQUIREMENTS 18
MACH 5.0/D ENTAL CHAIR PNEUMATIC INTEGRATION 18
5. INSTALLATION AND UNIT CHECKOUT 20
PRE-INSTALLATION REQUIREMENTS 20
UNIT CHECKOUT 20
FILLINGTHE MIXTURE CHAMBER 21
OPERATIONAL CHECKOUT 22
FOOTSWITCH OPERATION 22
UNIT SHUTDOWN 22
MIXING CHAMBER POWDER UNLOADING 22
6. STERILIZATION PROCEDURES 24
HANDPIECE 24
HANDPIECE CRADLE 24
ACCESSORIES 24
POWDER 25
7. ROUTINE MAINTENANCE 26
DAILY REQUIREMENTS 26
WEEKLY REQUIREMENTS 26
MONTHLY REQUIREMENTS 27
8. TROUBLESHOOTING 28
TROUBLESHOOTING TIPS 28

Page 3990008 Rev. H
ERROR CODES 30
9. HANDPIECES/NOZZLES AND ABRASIVES 31
STANDARD NOZZLES 31
SUPERSONIC TURBO (SST) TIPPED HANDPIECE ASSEMBLIES 31
ABRASIVES, GAMMAPURE®(GAMMA TREATED)31
ORDERING INFORMATION 32
10. RECYCLING 34
RECYCLING INSTRUCTIONS FOR DEVICE, ACCESSORIES AND PACKAGING 34
ENVIRONMENTALLY RELEVANT MATERIAL 34
11. WARRANTY, RETURNS AND ADJUSTMENTS 36
RETURNS AND ADJUSTMENTS 36
LIMITED WARRANTY 36
STORAGE AND SHIPMENT 37

Page 4990008 Rev. H
1. Introduction and General Information
Introduction
The Kreativ Mach 5.0 and Mach 5.0 PLUS systems are compact, highly reliable, state-
of-the-art instruments designed for Air Abrasive MicroDentistry. They are designed as
a means of removing tooth structure and other materials to prepare teeth for restoration,
and as an adjunct to the high speed dental handpiece and bur. These instruments were
developed after extensive consultation with dentists in order to provide the optimum
performance, taking into consideration patient comfort and the time constraints faced by
today’s 21st Century dental office.
Note: Clinical use of the Kreativ Mach 5.0 and Mach 5.0 PLUS air abrasion systems
for procedures not included or suggested in this instruction guide is not advised.
Similarly, the Kreativ Mach 5.0 and Mach 5.0 PLUS systems should be only used by
dental professionals who have practiced on extracted teeth and who are thoroughly
familiar with this manual.
Purpose of this Manual
This manual should be thoroughly studied before installing and using the equipment.
Please call your nearest authorized Welch Allyn / Kreativ service representative if you
need additional information regarding installation, operation, or service of the instrument.
Information essential to the installation, operation, and routine maintenance of the Mach
5.0 and the Mach 5.0 PLUS devices manufactured by Kreativ, Inc., is included in this
manual. The instructions are written specifically for personnel who have been trained in
restorative and preventive dentistry.
A full selection of abrasive powders and nozzle sizes are available from your nearest
Welch Allyn / Kreativ sales representative. See the listing of supplies in Chapter 8.
All serviced components, such as control valves and hose connections, can be easily
accessed through the side doors of the instrument. A footswitch is provided to start the
powder flow. The instrument features a mixing chamber which can be quickly unloaded
in order to facilitate service, changing abrasive powders, or cleanup of the unit after use.
Chapter
1

Page 5990008 Rev. H
General Information and Features
The Kreativ Mach 5.0 and Mach 5.0 PLUS systems are designed to provide controlled
flow of an abrasive powder and air mixture through a very precise nozzle. Applications
include amalgam removal, cutting, abrading, deburring, peening and etching of tooth
structures and other materials. Features of the Mach 5.0 and the Mach 5.0 PLUS air
abrasion systems include:
Operating Modes
• PowerPulse™ - optimized to remove amalgam
• MicroPulse™ - for removal of tooth structure
• Continuous - for microetching procedures
Remote Control
• Continuously Variable levels controlled by the user:
• Particle Energy (minimum is 30, maximum is 120), see Table 1 for psi-
to-kPa conversion in Chapter 3
• Beam Intensity (minimum powder is 0, maximum is powder 10)
• Remote Control module can be attached to dental units via an extension cable
• Easy to read LED display
• Visual and audible indicators
• Diagnostic/maintenance reminders
• Replace pinch tube in Pinch Valve #1
• Service Needed
• Powder Low
• Replace pinch tube in Pinch Valve #2
• Empty Exhaust Bottle
• Input Error
• Handpiece holder (bracket with sensor)
Interfaces with Dental Unit
• Remote Control offers movement of the control panel to the location of the
dentist’s choice, usually near other handpieces
• Keeps all controls at your fingertips
• Seamless integration of air abrasion with traditional dental instruments

Page 6990008 Rev. H
Full Diagnostic
• At start-up
• Continuous monitoring
Additional Features
• Quickly detachable handpiece for easy sterilization
• Double doors for simplifying preventive maintenance
• Exhaust bottle container
• Easy pinch tube replacement
• Easy access to powder canister
• Accessory drawer for nozzles, handpieces, etc.
• Full range of operation from 30 psi to 120 psi
• Convenient handles
• Mobility
• Wide range of nozzles in sizes/angles and cutting capabilities
• Locked doors to prevent unauthorized access
Specifications
• Power Requirements: Domestic
Mach 5.0 100-127 V~, 60 Hz, 400 mA
Mach 5.0 PLUS 100-127 V~, 60 Hz, 6.5 A
International
Mach 5.0 220-240 V~, 50 Hz, 170 mA
Mach 5.0 PLUS 220-240 V~, 50 Hz, 3.5 A
NOTE: Verify unit has correct voltage for your
application.
• Air Requirements: Mach 5.0, 80 to125 psi (550 to 860 kPa) with
at least 1.5 cfm (42.5 l/min) recommended; the
supply pressure must be at least 5 psi (35 kPa)
greater than the selected operating pressure.
The Mach 5.0 PLUS incorporates a built-in
compressor which has an automatic thermal

Page 7990008 Rev. H
cut-out if the head reaches approx. 212° F
(100° C), and a thermal cut-in when the
temperature drops to 140° F (60° C).
• Approximate Size: Mach 5.0, 12” x 18” x 8.5”
(30.4 x 45.7 x 21.5 cm)
Mach 5.0 PLUS, 25” x 18” x 8.5”
(63.5 x 45.7 x 21.5 cm)
• Approximate Weight: Mach 5.0, 30 lbs. (15.9 kg)
Mach 5.0 PLUS, 85 lbs. (38.6 kg)
• Environment Limitations: Operational Requirements:
Temperature: 50°F to 95°F (+10°C to 35°C)
Humidity: 30 % to 75 %
Atmospheric pressure range: 10.15 psia ( 70 kPa) to
15.37 psia (106 kPa)
Transport and Storage Requirements:
Temperature: 14°F to 122°F (-10°C to 50°C)
Humidity: 10 % to 90 %
Atmospheric pressure range: 7.25 psia ( 50 kPa)
to 15.37 psia (106 kPa)
• Equipment Classification: The Mach 5.0 and Mach 5.0 PLUS systems are
Class I devices requiring an electrical earth ground.
These devices are classified as ordinary with regard
to protection against water ingress.
• Electrical Fuses: Littelfuse, SlowBlow
Model Fuse Mfr Mfr P/N Kreativ P/N Fuse Rating
Mach 5 115V Littelfuse Type 326-001 600089 1A, 250Vac
Mach 5+ 115V Littelfuse Type 326-010 600071 10A, 250Vac
or Bussmann Type MDA-10 600071 10A, 250Vac
Mach 5 230V Littelfuse Type 218-01.6 600096 1.6A, 250Vac
Mach 5+ 230V Littelfuse Type 218-06.3 600112 6.3A, 250Vac
• UL Canadian Classification Marking:
Air Abrasive Micro Dentistry Device, Model 9000-XX
(where XX can be any alphanumeric character)
WITH RESPECT TO ELECTRIC SHOCK, FIRE, MECHANICAL

Page 8990008 Rev. H
AND OTHER SPECIFIED HAZARDS ONLY
IN ACCORDANCE WITH CAN/CSA C22.2 NO. 601.1
21ZJ
2. Safety
The Kreativ Mach 5.0 and Mach 5.0 PLUS systems are designed for use only by and
on the order of a dentist.
Warnings
Always wear protective eye equipment in order to avoid corneal abrasion or irritation if
particles are deflected into the eye. This applies to the dentist, staff, and patient.
A rubber dam is recommended in order to avoid injury to gingiva or other soft tissue,
and for interproximal preparations to protect adjacent tooth surfaces.
Never direct the handpiece to an open pulp chamber or at pulpal exposures. Also
never place the handpiece in direct contact with the gingiva when the air pressure is
activated. While the abrasive stream will not cut the gingival tissue, it may irritate it.
All Kreativ Mach 5.0 and Mach 5.0 PLUS accessories which come into contact with
the patient should be sterilized prior to each use. Always disinfect the handpiece cradle
in the remote control unit before each patient use.
Always use your high volume evacuation system when using the handpiece of the
Kreativ Mach 5.0 or Mach 5.0 PLUS.Have the dental assistant place the high volume
evacuation system in close proximity to the operative site.
Make sure that the Kreativ Mach 5.0 and Mach 5.0 PLUS systems are connected to a
properly grounded electrical outlet.
Always replace fuses with fuses of the proper rating, as indicated in the Chapter 1.
Cautions
For dental cleaning (prophylaxis) procedures, be absolutely sure that the
chamber and hose have been completely cleared of all abrasive powders and use
only bicarbonate in the chamber.
Chapter
2

Page 9990008 Rev. H
The handpiece should be directed precisely at surfaces and tooth structures which are
to be modified or removed. The nozzle tip should be placed a few millimeters from the
tooth and angled toward the area to be removed or modified. Unlike the high speed
handpiece, the Mach 5.0 nozzle cuts only directly from the end; there is no side cutting.
Do not attempt to service the unit beyond those items described in the maintenance
section. Call your nearest Welch Allyn / Kreativ service representative for instructions.
Practice on extracted teeth prior to utilizing the Mach 5.0 and Mach 5.0 PLUS on
patients. Begin with the 27.5 micron aluminum oxide powder. Use only short bursts,
carefully monitoring your progress. Most users prefer the 27.5 micron powder at a
Particle Energy setting of 50 to 80 psi due to improved patient acceptance.
Do not substitute non-Kreativ, Inc., materials or accessories. Use of materials or
accessories supplied by other manufacturers may result in damage to the unit and will
void the factory warranty.
Use only clean dry air.Make sure that your air compressor system utilizes air dryer
filter systems and that they are fully operational. Any moisture or oil in the air supply
will adversely affect the performance of your Mach 5.0 or Mach 5.0 PLUS.
When using the Mach 5.0, check to be sure that your air system produces at least the
minimum pressure and flow rate indicated in the Air Requirements section of the
Specifications in Chapter 1.
Sound clinical judgment, good common sense and proper training are essential to the
successful use of the unit in order to provide safe and efficient patient care.
Always follow “standard of care” protocols in performing dental operative procedures.
The handle on the top of the Mach 5.0 PLUS units is intended to be used to pull the
units and is not meant for picking up the units.
Caution: Connecting the instrument’s input air supply line to a water outlet will
lead to damage to the instrument which is not covered under the limited
warranty. Repairs for such damage are at the customer’s expense.

Page 10 990008 Rev. H

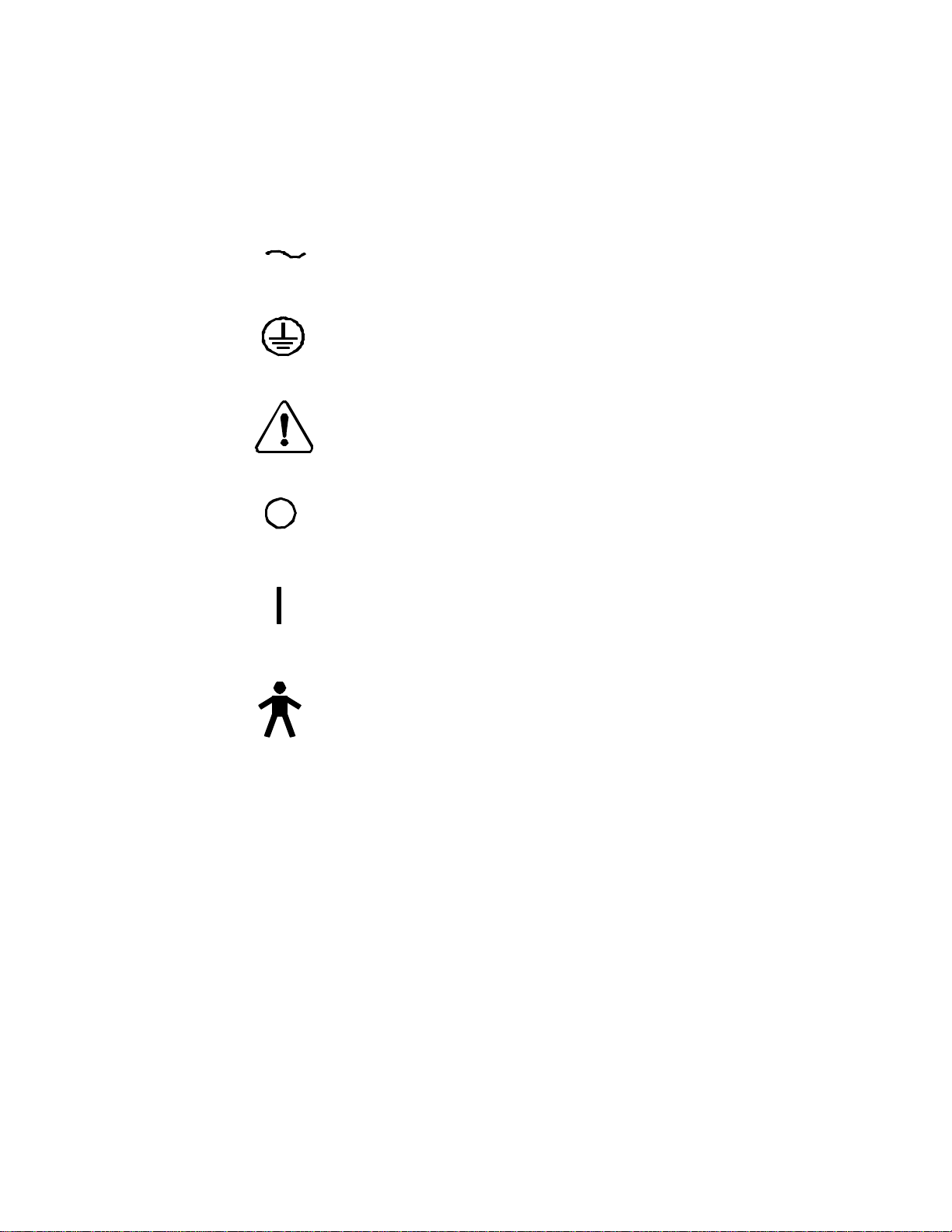

Safety Markings on Labels
Alternating current
Protective earth (ground)
Attention, consult accompanying documents
Off (power: disconnection from the mains)
On (power: connection to the mains)
Type B equipment (defines the degree of protection against
electrical shock)

Page 11 990008 Rev. H
3. Controls and Connectors
The diagrams on the following pages illustrate the external controls, indicators, and
connectors for the Kreativ Mach 5.0 and Mach 5.0 PLUS instruments.
In both the Mach 5.0 and the Mach 5.0 PLUS, the handpiece hose connects to a
connector located under the Control Module.
The Control Module is removable from the front of the Mach 5.0 and the Mach 5.0
PLUS and can be attached to the Dental unit, as follows:
1. The Control Module is held to the front of the instrument by spring tension on the
interconnecting cable. With the handpiece mounted in the cradle on top of the
Control Module, the hose and the provided extension cable allow the Control
Module to be remotely located up to 10 feet from the main unit. The connector to
the air supply is located on the rear of the instrument.
2. A mounting plate with clamp is supplied with the Mach 5.0 and the Mach 5.0
PLUS, to be mounted on the dental unit.
3. The Control Module will attach to the mounting plate for use at the dental unit,
remotely from the main instrument.
Item Descriptions
Refer to the Drawings in this section for the following items.
(1) On/Off Power Switch: turns power on or off to the entire instrument
(2) Power Cord Connector: connection point for the power cord.
(3) Fuse Box: the location of the instrument fuses. Always replace with the same
type of fuse with the same rating, indicated in Chapter 1.
(4) Pneumatic Footswitch Connector: connection point for the dental chair
pneumatic footswitch.
(5) Electric Footswitch Connector: connection point for the electrical foot-switch
Chapter
3

Page 12 990008 Rev. H
(6) Air Supply: connection point for the office air supply to the instrument (Mach
5.0 only)
Control Panel
Air Indicator: indicates the status of the air pressure as “On” or “Standby”
Mode: indicates the operating mode of the instrument as “PowerPulse,”
“MicroPulse,” or “Continuous.” The power up default is PowerPulse
Beam Intensity: indicates the relative amount of abrasive powder that is being
delivered to the handpiece nozzle
Warning Indicators: indicate the type of problem when operational problems occur
Particle Energy: indicates the pressure with which the abrasive powder is being
delivered. Numbers in the display indicate Pounds per Square Inch (PSI).
Conversion Table of PSI to kPa
PSI kPa PSI kPa
30 210 90 620
35 240 95 655
40 275 100 690
45 310 105 725
50 345 110 760
55 380 115 795
60 415 120 825
65 450 125 860
70 485 130 895
75 515 135 930
80 550 140 965
85 585
Table 1

Page 13 990008 Rev. H
Drawings of Controls
Figure 1

Page 14 990008 Rev. H
Figure 2

Page 15 990008 Rev. H
Functional Description
When the unit is initially turned on, all lights on the Control Module will light and the
Beam Intensity and Particle Energy windows will show “8.8.8.” until the diagnostics are
complete (indicating the unit is ready to operate). The values shown will be the previous
settings used.
Kreativ Mach 5.0 and Mach 5.0 PLUS systems provide a controlled mixture of
powder particles in a dry air stream and delivers this mixture through a nozzle.
Three primary paths are provided for the air supply within the unit. One is to the
Exhaust Control Valve, another to the Abrasive Control Valve, and the third is through
the Mixing Chamber and the Abrasive Control Valve Tube to the nozzle. In the mixing
chamber, the stream of dry air is mixed with powder particles.
When the Air switch is set to “On”, the On/Off Air Valve Switch allows the air to flow
to the Mixing Chamber. With the footswitch depressed, the Abrasive Control Valve is
opened. This opens the path for the stream of powder particles from the Mixing
Chamber to the nozzle. The Beam Intensity and Particle Energy can be adjusted to
provide optimum powder flow.
The air stream combined with abrasive powder has the ability to cut and etch tooth
structure and ceramic. The abrasive powder/air stream is directed through a light,
flexible hose to the handpiece for precise cutting. Various nozzles and handpieces are
offered with different orifice sizes and angles to enable the practitioner to accomplish
specific tasks. In addition, a selection of abrasive powder is available. Nozzle and
abrasive powder types are listed in Chapter 9.
CAUTION: The unit should only be powered down with the Air control in
“Standby” mode.
NOTE: The unit will automatically go into “Standby” if left unattended for approximately
10 minutes.
When the Power switch is set to Off, the unit automatically bleeds off the internal air
pressure.
WARNING: Do not attempt to open the doors of the unit with power turned on!

Page 16 990008 Rev. H

Page 17 990008 Rev. H
4. Unpacking and Setup
General Information
SAVE THE CARTON!
The Mach 5.0 and Mach 5.0 PLUS and all accessories are shipped in a single
container. When unpacking, check items against the packing list included with the unit.
The shipping container and packing materials should be retained in the
unlikely event that the instrument has to be returned to the factory for service
or repair.
To operate the Mach 5.0, the unit requires an external source of either clean, dry,
compressed air, or nitrogen together with a properly adjusted pressure regulator. For
additional information consult your Kreativ, Inc. dealer.
The Mach 5.0 PLUS instrument has a built-in air compressor, thus eliminating the need
for connection to an external air supply.
It is necessary to connect to a properly grounded electrical outlet.
Unpacking and Setup
Remove the Mach 5.0 or the Mach 5.0 PLUS unit from the shipping container and
proceed as follows:
• Unlock and open the left side door gently.
• Remove the foam packing (2 pieces) which prevents the vibrator from moving
during shipping. Retain the foam with the shipping box and packing materials. If the
unit is to be shipped again, the vibrator support foam packing should be reinstalled
to prevent possible damage to the vibrator and its mounts.
CAUTION: Failure to remove the foam packing will result in improper vibrator
operation and powder flow.
Chapter
4

Page 18 990008 Rev. H
• On Mach 5.0 PLUS only, remove the black plug from the air inlet on top of the
compressor module, and replace with the included filter.
CAUTION: Failure to replace the black plug with the filter will result in low air
condition, and damage to the compressor unit.
Air Supply Requirements (Mach 5.0 only)
For the Mach 5.0 only, be sure that the supplied air pressure and air flow volume to the
unit meet the minimum Air Requirements indicated in the Specifications section in
Chapter 1. Moisture filters must be used since compressed air lines may be
contaminated with moisture, oil or dirt, which are detrimental to the performance and
operation of the unit. Kreativ can supply a product (the Klean Pak) to assure a dry air
supply.
Caution: Connecting the instrument’s input air supply line to a water outlet will
lead to damage to the instrument which is not covered under the limited
warranty. Repairs for such damage are at the customer’s expense.
Electrical Requirements
Reference the Specifications section of Chapter 1 of this manual for the power
requirements of the unit. The power requirements of your instrument are located on the
system label on the back cover of the instrument. Verify the unit is set up correctly for
your electrical supply. When replacing fuses, only use fuses supplied by Kreativ in your
customer kit. If your requirements are different, consult Kreativ, Inc., or your dealer
before operating this instrument.
Mach 5.0/Dental Chair Pneumatic Integration
Please refer to Figure 3.
1. Depress chair foot switch while holding foot switch air line. The tube you feel
pulsing is the “foot switch return” line, mark it for later reference (step 5).
2. Close valve from office compressor to dental chair/unit and bleed pressure from
line.
3. Install “Tee 1” on line from compressor to dental unit before the regulator.
WARNING: The use of compressed oxygen as a gas supply for the unit
presents the possibility of having a gas that supports flammability. Under
NO circumstances should oxygen be used.

Page 19 990008 Rev. H
4. Route line from “Tee 1” to Mach 5.0. Install female quick disconnect to end and
connect to Mach 5.0 “Air In” port.
5. Install “Tee 2” on return line from foot switch.
6. Route line from “Tee 2” to Mach 5.0. Install male quick disconnect to end and
connect to Mach 5.0 “Foot Switch” port.
7. Open valve from compressor to restore pressure to the Dental chair/unit.
8. Check new connections for leaks.
Caution: When used in this manner, it is important to return the handpiece to
the holder prior to using other devices.
*Not required for the Mach 5.0 PLUS with compressor.
Figure 3 - Dental Chair Pneumatic Integration Diagram

Page 20 990008 Rev. H
5. Installation and Unit Checkout
After completing the instructions in Chapter 4 you are now ready to install your Kreativ
Mach 5.0 or Mach 5.0 PLUS. Refer to the drawings and descriptions in Chapter 3 for
the identification of the external controls and connections.
Pre-Installation Requirements
• Adequate Air Supply, Mach 5.0 only. The most convenient set up will be to
integrate the Mach 5.0 into your Dental unit as explained in the previous section. If
you choose to hook up to your in-office air do the following:
1. Ensure that you have at least the minimum air pressure and air flow volume of
clean, dry air (see Chapters 1 and 4 for Air Supply Requirements). Refer to the
Site Preparation information supplied by Kreativ. Ideally, air for the Mach 5.0
will be obtained by placing a "Tee" fitting prior to the final regulator at the
operatory, but after the dryer, traps and various filters.
2. If clean, dry air of adequate pressure and volume is not available, Kreativ
recommends using compressed Nitrogen with a regulator (Follow integration
instructions).
• Power supply/earth grounding. Note: route the power cord safely out of the way
and do not use an extension cord.
Unit Checkout
• Set the Power Switch on the back of the instrument to OFF.
• On the Mach 5.0, connect the end of the air supply hose with the quick disconnect
to the external air supply.
• Plug the power supply cord into a properly grounded receptacle.
• Set the Power Switch on the back of the instrument to ON. The Control Module
should now be illuminated.
Chapter
5
