Welch Allyn 9600 Plus User manual

9600 Plus Calibration Tester

© 2017 Welch Allyn. All rights are reserved. To support the intended use
of the product described in this publication, the purchaser of the product
is permitted to copy this publication, for internal distribution only, from
the media provided by Welch Allyn. No other use, reproduction, or
distribution of the publication, or any part of it, is permitted without
written permission from Welch Allyn.
Welch Allyn assumes no responsibility for any injury to anyone, or for any
illegal or improper use of the product, that may result from failure to use
this product in accordance with the instructions, cautions, warnings, or
statement of intended use published in this manual.
Welch Allyn is a registered trademark of Welch Allyn. Braun ThermoScan
is a registered trademarks of Braun Corporation.
Printed in Mexico
DIR 80020333 Ver A
Revised: 2017-06

i
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Symbols and Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Unpacking the 9600 Plus Calibration Tester . . . . . . . . . . . . . 4
Controls and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . 5
LCD Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Power On Sequence. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Front of the 9600 Plus Calibration Tester . . . . . . . . . . . . . . . 7
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
9600 Plus Calibration Tester Setup. . . . . . . . . . . . . . . . . . . 11
Changing the Calibration Set Point Temperature . . . . . . . . 11
Welch Allyn SureTemp and SureTemp Plus Thermometers 13
Braun ThermoScan Pro 4000 Model. . . . . . . . . . . . . . . . . . 15
Braun ThermoScan Pro 6000 model. . . . . . . . . . . . . . . . . . 18
Braun ThermoScan Pro 3000 Model. . . . . . . . . . . . . . . . . . 23
Troubleshooting inaccurate readings . . . . . . . . . . . . . . . . . 25
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Problem Solving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Electromagnetic Compatibility . . . . . . . . . . . . . . . . . . . . . . 32

ii
Warranty and Service . . . . . . . . . . . . . . . . . . . . . . . . . 33
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Symboles et descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Mises en garde. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Déballage du testeur d’étalonnage 9600 Plus . . . . . . . . . . . 4
Commandes et indicateurs . . . . . . . . . . . . . . . . . . . . . . 5
Affichage ACL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Séquence de mise en marche . . . . . . . . . . . . . . . . . . . . . . . 7
Avant du testeur d’étalonnage 9600 Plus. . . . . . . . . . . . . . . 7
Fonctionnement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Installation du testeur d’étalonnage 9600 Plus. . . . . . . . . . 11
Modification de la température du point d'étalonnage. . . . 11
Thermomètres Welch Allyn SureTemp et SureTemp Plus . 13
Modèle Braun ThermoScan Pro 4000. . . . . . . . . . . . . . . . . 15
Modèle Braun ThermoScan Pro 6000. . . . . . . . . . . . . . . . . 19
Modèle Braun ThermoScan Pro 3000. . . . . . . . . . . . . . . . . 24
Résolution des problèmes de relevés incorrects . . . . . . . . 26
Entretien . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Nettoyage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Dépannage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Spécifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Compatibilité électromagnétique . . . . . . . . . . . . . . . . . . . . 32

Directions for Use Contents iii
Garantie et entretien . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Garantie limitée. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Entretien . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Einführung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Symbole und Beschreibungen . . . . . . . . . . . . . . . . . . . . . . . 2
Vorsicht . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Auspacken des Kalibriertesters 9600 Plus . . . . . . . . . . . . . . 4
Bedienelemente und Anzeigen . . . . . . . . . . . . . . . . . . . 5
Flüssigkristallanzeige . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Einschaltreihenfolge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Vorderseite des Kalibriertesters 9600 Plus . . . . . . . . . . . . . . 7
Betrieb. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Konfiguration des Kalibriertesters 9600 Plus . . . . . . . . . . . 11
Ändern der Kalibrier-Sollwerttemperatur. . . . . . . . . . . . . . . 11
Die Thermometer SureTemp und SureTemp Plus von
Welch Allyn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Das Modell ThermoScan Pro 4000 von Braun . . . . . . . . . . 15
Modell Braun ThermoScan Pro 6000 . . . . . . . . . . . . . . . . . 18
Das Modell ThermoScan Pro 3000 von Braun . . . . . . . . . . 23
Fehlerbehebung bei ungenauen Werten . . . . . . . . . . . . . . 25
Wartung. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Reinigung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Fehlerbehebung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Technische Daten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Elektromagnetische Verträglichkeit. . . . . . . . . . . . . . . . . . . 32
Gewährleistung und Service . . . . . . . . . . . . . . . . . . . . 33
Beschränkte Gewährleistung . . . . . . . . . . . . . . . . . . . . . . . 33
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

iv

1
1
Introduction
The 9600 Plus Calibration Tester verifies calibration of the
following thermometers:
• Welch Allyn SureTemp®models (678, 678 OEM, 679 and
986)
• Welch Allyn SureTemp®Plus models (690, 692 and 692
OEM)
• Braun ThermoScan®Pro 3000, Pro 4000, and Pro 6000
The 9600 Plus Calibration Tester provides a tightly regulated
temperature source that eliminates the setup, precision
calibration, and maintenance requirements of water baths and
other general purpose calibration equipment. The user takes
the “temperature” of the 9600 Plus Calibration Tester with the
knowledge and assurance that precise readings are obtained
because the unit is factory calibrated to National Institute of
Standards and Technology (NIST) or equivalent devices.User
adjustments are not required or recommended.
The “blackbody” of the 9600 Plus Calibration System acts as
a heat reservoir for the thermistor probe and as a heat
radiator for the infrared ear thermometers.
The unit contains solid-state circuitry for long-term stability
with minimal maintenance. Welch Allyn uses only precision
components in the construction of the 9600 Plus Calibration
Tester. To maintain traceability to NIST or equivalent, return
the 9600 Plus Calibration Tester to the factory for annual
calibration.

2Chapter 1 Introduction Welch Allyn 9600 Plus Calibration Tester

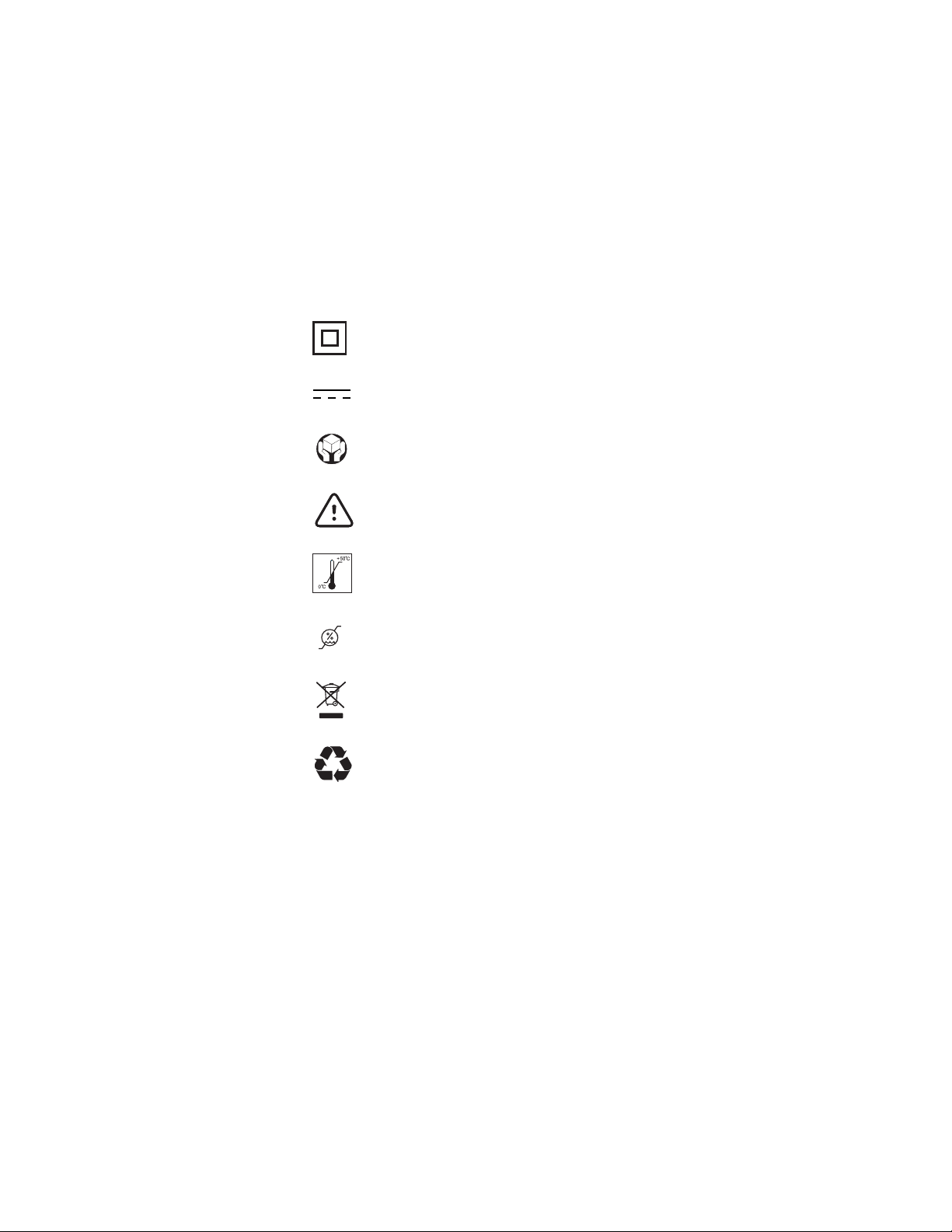

Symbols and Descriptions
Double Insulation.
Direct Current.
Handle with Care.
Attention! Caution; Consult Directions for Use for more
information.
Transport/Storage Temperature
Relative Humidity
Separate collection for electronic equipment
Recyclable
95%
15%

Directions for Use Chapter 1 Introduction 3
Cautions
A caution statement in this manual identifies a condition or
practice which, if not corrected or discontinued immediately,
could lead to equipment failure, equipment damage, or data loss.
Caution Do not immerse or soak the 9600 Plus
Calibration Tester in any type of fluid.
Caution Only trained Biomedical personnel should
operate the 9600 Plus Calibration Tester and conduct
calibration verification of thermometers.
Caution When not using the Thermistor or Ear Device
Ports, keep them covered with the Dust Cover.
Caution Store thermometers for testing in the same
room as the 9600 Plus Calibration Tester for
approximately 30 minutes prior to testing to allow the
thermometer to reach ambient room temperature.
Caution Do not clean the Thermistor or Ear Device
Ports. Doing so may damage the surface. Only a Welch
Allyn authorized Service Center should clean the Device
Ports.

4Chapter 1 Introduction Welch Allyn 9600 Plus Calibration Tester
Unpacking the 9600 Plus Calibration Tester
Unpack the 9600 Plus Calibration Tester and inspect for missing
items. Retain the shipping materials to return the device to
Welch Allyn for recalibration.
The following items are enclosed:
• A 9600 Plus Calibration Tester

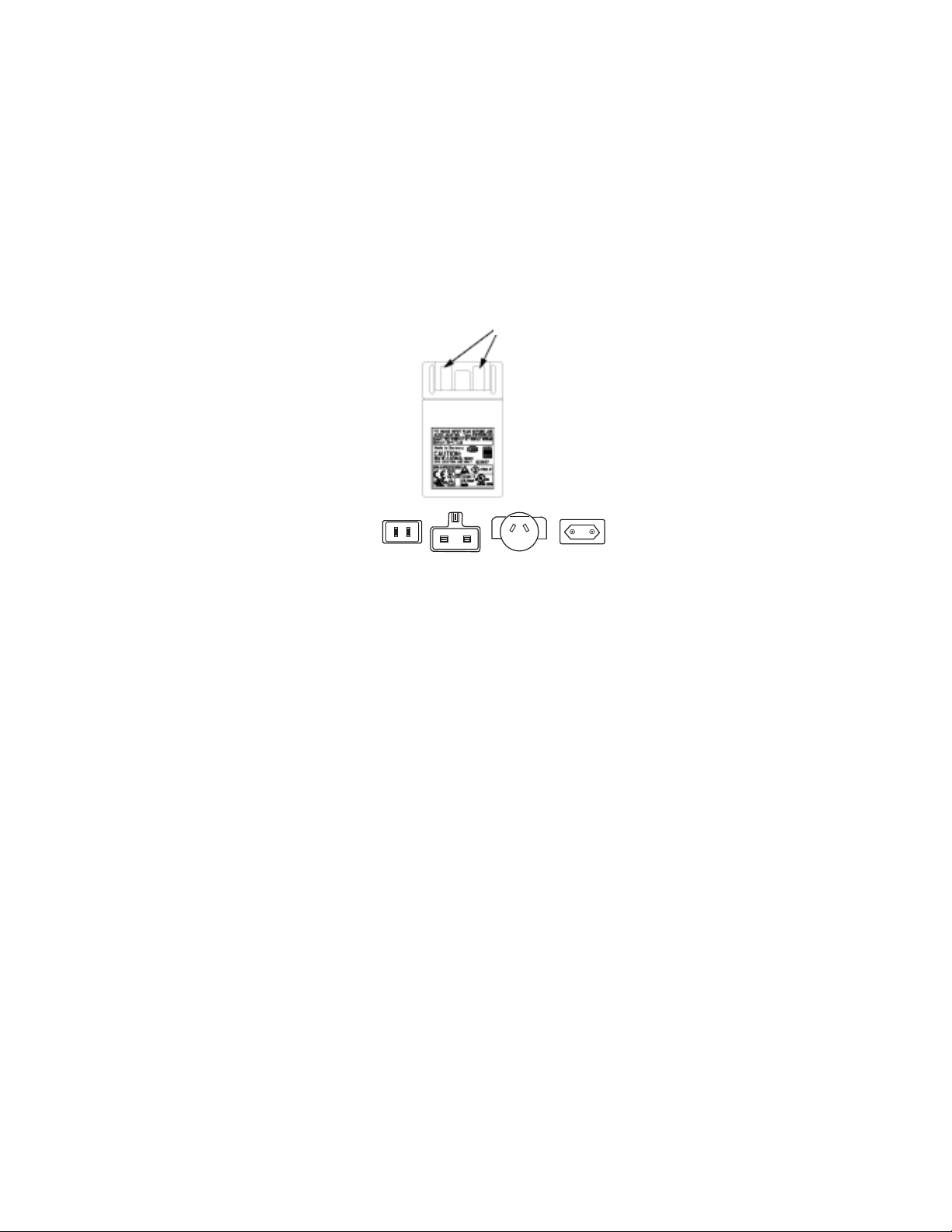

• A package containing a power supply and four mains plug
inserts
• The Directions for Use
• A Carrying Case
If any of these items are missing after opening, please contact
Welch Allyn Customer Service at the number provided on
page 34.

5
2
Controls and Indicators
LCD Display
Figure 1. LCD Display and Front Buttons
Calibration Set Point Temperature
There are three Calibration Set Point temperatures used to
test the calibration of the thermometer. The three
temperatures are 36° C (96.8° F), 38.5° C (101.3° F), and 41°
Current Cavity
Temperature
Temperature
Units
Calibration Set
Point Temperature
Set Point
Mode
Celsius/Fahrenheit
Selection Button
Temperature
Selection
Button

6Chapter 2 Controls and Indicators Welch Allyn 9600 Plus Calibration Tester
C (105.8° F). The LCD displays the current Calibration Set Point
Temperature in the upper left corner of the LCD.
Current Cavity Temperature
The current temperature of the 9600 Plus Calibration Tester is
indicated by the large numbers in the center of the display
(Figure 1).
As the device is transitioning to the current Calibration Set Point
Temperature, the actual temperature flashes on the display.
When the device reaches the Calibration Set Point Temperature,
the temperature in the center of the display stops flashing.
Temperature Units
The 9600 Plus Calibration Tester is capable of displaying the
temperature in degrees Fahrenheit or Celsius.
Set Point Mode
The LCD will display either a "D" (Default) or "L" (Last Used) in the
upper left hand corner (Figure 1). The 9600 Plus Calibration
Tester has two set point modes of operation. The Default mode
(from the factory) causes the 9600 Plus Calibration Tester to heat
up to the lowest set point (36.0°C / 96.8°F) upon startup. The Last
Used mode causes the 9600 Plus Calibration Tester to heat up to
the last temperature setting that was used.
To change the Set Point Mode, press and hold the C/F and Arrow
buttons below the LCD display simultaneously until a single audio
beep is heard. A “D” or an “L” will appear in the upper left corner
of the display for the new mode.

Directions for Use Chapter 2 Controls and Indicators 7
Power On Sequence
The 9600 Plus Calibration Tester receives power from a wall-
mount power pack that plugs into the back of the unit. There is
no ON/OFF switch. On power up, the 9600 Plus Calibration
Tester performs internal self-checks, displays an all-segments
test pattern, beeps and displays the device’s current
temperature. The 9600 Plus Calibration Tester immediately
applies heat, if needed, to reach the selected Calibration Set
Point Temperature.
Front of the 9600 Plus Calibration Tester
Temperature Selection Button
This button allows the user to select one of three set point
temperatures: 36.0°C (96.8°F), 38.5°C (101.3°F), or 41.0°C
(105.8°F).
To scroll from one set point to the next, press and hold the
Temperature Selection button until a beep is heard. The newly
selected set point appears in the upper left corner of the LCD
display. The device’s current temperature is displayed, will start
to flash, and continue flashing until the cavity reaches the
equilibrium at the new set point.
Celsius/Fahrenheit Selection Button
This button allows the user to select degrees Celsius or degrees
Fahrenheit. To change the temperature units, press and hold the
C/F button until a beep is heard. The temperatures will appear in
either “°C” or “°F”, see (Figure 1).

8Chapter 2 Controls and Indicators Welch Allyn 9600 Plus Calibration Tester

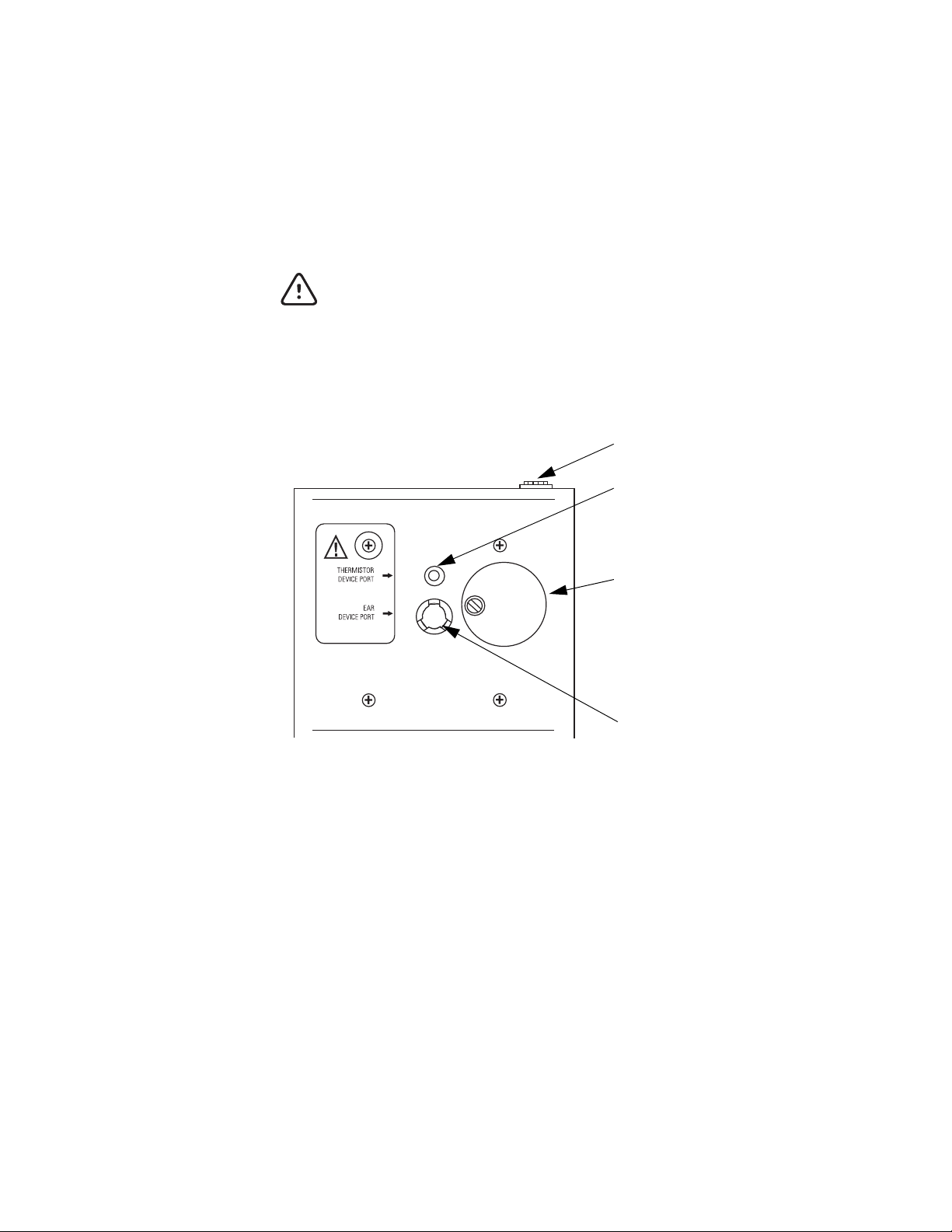

Figure 2. Front of the 9600 Plus Calibration Tester
Caution Verify the thermometer being tested and the
9600 Plus are set to use the same temperature scale
before running a test. Reference the thermometers
directions for use to change its temperature scale
Thermistor
Device Port
Ear Device
Port
Dust Cover
Power Jack

Directions for Use Chapter 2 Controls and Indicators 9
Dust Cover
This black, plastic cover keeps dust from entering the Thermistor
and Ear Device Ports. To expose the Thermistor and Ear Device
Ports, rotate the Dust Cover counter clockwise. To cover the
ports, rotate the Dust Cover clockwise.
Thermistor and Ear Device Ports
The Ear Device Port is the larger of the two ports located under
the dust cover and is for the Braun ThermoScan Pro 3000 and
Pro 4000 ear thermometers (Figure 2).
The Thermistor Device Port is the smaller port located under the
dust cover and is for the SureTemp and SureTemp Plus
thermometers.
The surface texture inside the Ear Device Port is painted with a
special dull, black paint to enable Ear device readings. You can
only see its surface under bright light. The Thermistor Device
Port is not painted black. Keep both clean and dry.
The coating in the device ports of the unit is fragile, so please
follow the cleaning instructions carefully. Do not touch the
surface, and do not allow any foreign objects to be inserted into
the ports. Avoid spilling liquids onto the unit. If liquid or other
contaminants enter the unit, Welch Allyn can not assure proper
calibration and you must return the unit to Welch Allyn for
recalibration.
Caution When not using the Thermistor or Ear Device
Ports, keep them covered with the Dust Cover.

10 Chapter 2 Controls and Indicators Welch Allyn 9600 Plus Calibration Tester

11
3
Operation
9600 Plus Calibration Tester Setup
Place the 9600 Plus Calibration Tester on a level surface away
from sunlight, drafts, and other sources of heat or cold. The
9600 Plus Calibration Tester takes approximately 20 minutes
to heat to the lowest setting. When testing several
thermometers at all three temperatures, it is recommended
to test all probes at one Calibration Set Point Temperature
before proceeding to the next Calibration Set Point
Temperature. To further expedite testing start at the lowest
Calibration Set Point Temperature. The 9600 Plus Calibration
Tester does not have an internal fan, causing the cool down
time to be greater than the time it takes to heat up.
Changing the Calibration Set Point
Temperature
To scroll from one set point to the next, press and hold the
Temperature Selection button until a beep is heard. The
newly selected set point appears in the upper left corner of
the LCD display. The device’s current temperature is
displayed, starts to flash, and continues flashing until the
cavity reaches the equilibrium at the new set point.

12 Chapter 3 Operation Welch Allyn 9600 Plus Calibration Tester
Figure 3. Power Adapter and Mains Plug Inserts
For the setup:
1. Choose the proper mains plug insert and slide it over the two
prongs in the power converter (Figure 3).
2. Plug the power adapter into the 9600 Plus Calibration Tester
(Figure 2) and the opposite end into a wall outlet.
3. Observe the Set Point Mode in the upper left hand corner of
the LCD display (Figure 1). If the unit displays a “D”, it is in
Default Mode and will heat to the lowest Set Point
Temperature. If you do not want to conduct testing at this Set
Point Temperature, press and hold the Temperature Selection
button to select the desired setting. The temperature display
will flash before staying on continuously to indicate the 9600
Plus Calibration Tester has stabilized and is ready for use.
UKUS EUAUS
Two prongs in the
power adapter

Directions for Use Chapter 3 Operation 13
Welch Allyn SureTemp and SureTemp Plus
Thermometers
Figure 4. 9600 Plus Calibration Tester with the Welch Allyn SureTemp
Plus Thermometer
To begin calibration verification of the thermometers:
1. Remove the probe from the probe well and clean it with either
a 70% isopropyl alcohol solution, a 10% chlorine bleach
Caution Store thermometers for testing in the same
room as the 9600 Plus Calibration Tester for
approximately 30 minutes prior to testing to allow the
thermometer to reach ambient room temperature.
Note
Prior to testing visually inspect the probe for any physical
damage. Damaged probes must be replaced.

14 Chapter 3 Operation Welch Allyn 9600 Plus Calibration Tester
solution, or a non-staining disinfectant. Let the probe air dry.
Do not apply a probe cover.
2. Place the thermometer in Monitor Mode, refer to the
thermometer’s Operator's Manual.
3. Insert the probe into the Thermistor Device Port (Figure 4).
4. Wait for approximately one minute or until temperature on the
thermometer is stable for ten seconds. Compare the
thermometer's temperature reading to the 9600 Plus'
Calibration Set Point Temperature. If the temperatures are
within ±0.1° C (±0.2° F), the thermometer is within
calibration.
5. Test all available thermometers for calibration verification at
the current Calibration Set Point Temperature. Proceed to the
next Calibration Set Point Temperature, see "Changing the
Calibration Set Point Temperature" (page 11).
