1. Introduction
1.1. Welcome
Thank you for buying your Well Straler gas heater! We are glad to have you as a customer. With this quality product
you will enjoy the cosy warmth and unique flame dance for many years.
Before using the heater, please read the instructions carefully and keep them in a safe place.
Installation must be carried out by a suitably qualified gas technician in accordance with the gas safety regulations
that are currently in effect. Make sure that you get informed by your technician about how to use, operate and
maintain your appliance. Every appliance has been tested, carefully adjusted and sealed in the factory in accordance
with I2H or I3B/P category. The warranty will only be valid if the service has been completed by a competent person
(according the gas safety regulations in force). Failure to install the fire correctly could lead to prosecution.
The appliance is covered with a heat-resistant surface coating. During the first few hours of use, it is absolutely
normal that a harmless temporary odor is produced. This disappears after a short period. We advise you to let the
appliance work for a few hours in a well ventilated room.
1.2. Warranty
This product has a 2 year warranty counting from the date of installation, and this for manufacturing defects
only. The warranty is limited to a simple exchange of parts that are recognized as defective by our technical
department, and not giving cause by any means to further liability. Shipping costs and labor are not part of the
warranty and have to be paid by the user. Warranty will be invalidated if the appliance has been poorly
maintained, used in a wrong way, has been damaged in an accident or catastrophe of which the origin has no
connection with the appliance itself, or if service has been done by an unauthorized person. Delicate parts in
contact with fire like glass etc. are not covered by warranty. Complaints are only accepted when made through
a recognized dealer.
1.3. Security
1.3.1. Built-in safeties in the control system
The system operates on radio frequency signals that are sent by the transmitter (remote) to the receiver in the
appliance. We recommend that the transmitter always be located within the operating range (± 6 m).
To avoid unpleasant situations, the system has several built-in safety measures that alert the user when action is
needed.
1.3.2. Communication safety – transmitter/receiver
The transmitter has a communication safety function built into its software. It provides an extra margin of safety
when the appliance is in the THERMO or PROGRAM mode.
The communication safety is activated when the transmitter is moved beyond the maximum recommended
operating range, which is ± 6 m. It is also activated when batteries become weak or are removed from the
transmitter. The communication safety operates in the following manner (only in THERMO or PROGRAM mode):
The room temperature is measured every 2 minutes by the transmitter and compared against the SET temperature.
In addition to check these temperatures, the transmitter sends an RF signal to the receiver, signaling that the
transmitter is still in the operating range. Should the receiver NOT receive a transmitter signal every 2 minutes, the
IC software in the receiver will begin a 45 minutes countdown timing function (thermo-safety function).
If the receiver does not receive a signal from the transmitter during this 45 minutes period, the system will shut
down the appliance. The receiver will produce a series of rapid beeps for a period of 10 seconds, followed by a
single beep every 4 seconds until a transmitter signal is again received and the system is RESET.
To RESET the receiver: press the RESET button.

4
1.3.3. Thermo-safety – receiver
The system has a thermo-safety feature that is built into the receiver. This feature is temperature-activated
and it provides an extra margin of safety in case the receiver should be placed where ambient temperatures
exceed 65°C. At 65°C the thermistor will automatically shut down the fireplace and the receiver will begin
emitting a series of 4 beeps every 2 seconds. When the ambient temperature near the receiver drops under
50°C, you can reactivate the appliance by pushing MODE on the transmitter. The system resets itself.
1.3.4. Child Protection (CP)
The system includes a child-proof ‘lock-out’ feature that allows the user to ”lock-out’operation of the
appliance from the transmitter.
REMARK: If the appliance is already operating in ON, THERMO or PROGRAM modes, engaging the ”lock-out”
will not cancel the operating mode. It only prevents the manual operation of the transmitter. If the appliance
is operating in AUTO mode (thermo and/or program operation) it will continue working normally. To totally
”lock-out” the operation of the transmitter’s operating signals, the transmitter’s mode must be set to OFF.
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
1. To activate the ”LOCK-OUT‘, press and hold
the TIMER and FAN buttons together for
5 seconds. The letters CP will appear in the
TEMP frame on the LCD-screen.
2. To disengage the ”LOCK OUT,‘ again press and
hold the TIMER and FAN buttons together for
at least 5 seconds.
1.4. Appliances with ventilator
To prevent cold air to flow out of the cooled-down appliance, the ventilator begins working after the appliance
has warmed up (± 5 minutes warming up at the maximum rate). After extinction of the burner the ventilator
keeps working for 15 minutes, in order to use the residual warmth.

5
2. Commands of your appliance
Some advantages of the Well Straler new product generation:
Automatic ignition without steady pilot;
Precise digital temperature control in a range of ± 6 m from the heater;
Wireless RF remote control of all the functions of your heater in a range of
± 6m;
Four different operation modes: (ON/OFF – THERMOSTAT – WEEKLY
PROGRAM – COUNTDOWN TIMER);
Full automatic pre-programmed weekly program with 4 independent
temperature ranges each day, seven days a week.
Manual setting of the flame height at the receiver;
Flame height gradually adjustable.
IMPORTANT For the device to work properly, the emitter and receiver must be well tuned to each other (cfr.
LEARN, p.14). If the range is lower than 6 m, the antenna of the receiver (black wire on the side) must be moved.
If the receiver is in safety mode (one beep every 20 seconds), it has to be reset. Push RESET on the transmitter (if
the receiver is in the ON-position), or push RESET on the receiver.
2.1. Transmitter
The transmitter operates on 2 AAA-size 1,5V batteries. We recommend the use of ALKALINE BATTERIES for
maximum operation performance. Insert batteries into the battery compartment on the back of the transmitter,
positioning the (+) and (-) ends of the batteries as indicated. Once batteries are inserted, the temperature will
display. If this is not the case please check that batteries are inserted properly (check polarity).
2.2. LCD-screen
1. PROGRAM FOR: Displays when programming days of week
and periods of day. In normal state only current DAY (2) and
single PERIOD (3) are displayed, when in PROGRAM mode.
2. DAY: Current day of week.
3. PERIOD: Current period of day.
4. MODE: Indicates operation mode of system
ON (Indicates system is on, manually or thermostatically)
OFF (Indicates system is turned off)
THERMO (Indicates the system will automatically cycle,
depending on the programmed SET temperature)
PROGRAM (Indicates the system is operating with
programmed settings).
5. START AT: Appears while programming the time to turn the
system on.
6. SET: Indicates desired SET room temperature, when in
THERMO or PROGRAM mode.
7. F°/C°: Temperature, in Fahrenheit or Celsius.
8. TIME/TEMP: Displays current room temperature. In the same
frame, the current time will display in AM or PM. Press TIMER
to display current time.
9. LOW: Battery power is LOW. Replace batteries within two
weeks.
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
10. TIMER: When displayed, indicates countdown timer in operation.
11. OVERRIDE: Displays when the set temperature is overridden.
12. FLAME: Single or double flame symbol indicates burner is operational in LOW/HI mode.
13. CP: Displays when CHILD PROOF—LOCK OUT“ is engaged. Pressing TIMER and FAN buttons together for more
than 5 seconds, engages or disengages CP.
14. FAN: indicates the FAN is operating in normal speed LOW,MED or HI speed (when fan blade is displayed).
15. AUTO: random function of the flam height (see 2.5.4.)
16. TRANSMIT: Lights up whenever a signal is send from the transmitter to the receiver.

6
2.3. Initial set-up programming of transmitter
Follow the procedure below before first use:
Temperature setting (°C of °F) preset for °F;
Current day of week SU-MO-TU-WE-TH-FR-SA;
Current time of day hours and minutes.
To program settings, remove the battery cover on the back of the trans-
mitter. If you haven’t already installed the 2 AAA batteries, this is the time
to do so. Note the small button at the top of the battery compartment.
This button is used to perform the initial transmitter programming.
2.3.1. Changing temperature scale (°C - °F)
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
1. Press button on back of transmitter ONCE.
°C symbol will begin flashing on the LCD-
screen.
2. To change °C to °F, press the +or -button
on the front of the transmitter.
3. After setting/confirming the preferred
temperature scale, press SET.
REMARK: If you choose to keep the set
temperature (°C), push SET after step 1.
2.3.2. Setting the current day of the week
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
4. Following step 3 above, the SU symbol will
begin flashing on the LCD-screen.
5. To change to the current day of the week,
press the AHEAD or BACK button.
6. After setting/confirming the current day of
the week, press SET.
2.3.3. Setting of the current hour and minutes
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
7. Following step 6 above, the hour digits will
begin flashing in the TIME frame.
8. To set the current hour, press +or -, setting
the hour for the corresponding AM/PM-
period.
9. After setting the current hour, press SET
and the minute digits will begin flashing.
10. To set the minutes, press +/-.
11. After setting hours and minutes press SET
to confirm your settings.
THE INITIAL SET-UP/PROGRAMMING OF THE TRANSMITTER IS NOW COMPLETE. BE SURE THE SLIDE-ON
BATTERY COVER IS REINSTALLED. THE LCD-SCREEN IS NOW IN ITS NORMAL STATE.

7
2.4. Program operation of remote control
The transmitter has a factory program built-in standard program. Each day has been broken into four periods
and each period has its own starting time and temperature. A chart of the built-in programs is pictured below
You may change any of the factory settings by following the procedures below. Should you wish to return to
the factory program, follow the procedure under heading 2.4.3 Program cancellation.
2.4.1. Programming day/period of day/temperature
CUSTOM PROGRAM:
DAY
Morning
Day
Evening
Night
Hour
Temp
Hour
Temp
Hour
Temp
Hour
Temp
SU
MO
TU
WE
TH
FR
SAT
You may change the built-in time and temperature programs to suit your personal schedule (see 2.4. week
programming). Each day is divided into four periods: MORNING, DAY, EVENING and NIGHT. A blank
programming chart is provided above to record your customized time and temperature settings If desired, you
may change a single day or all seven days that have the built-in factory program. To change one or all seven
days, complete the following steps.
NOTE: If the initial SET-UP and settings were not previously completed and you go into programming mode,
the LCD-screen will display SU, MORN, TIME and SET temperature digits. You must go back and perform the
initial set-up procedure or the remote will not operate properly in the PROGRAM MODE.
DAY
PERIOD
hour / temperature
Every day of the week
MORN
6:00 am
21°C
DAY
8:30 am
16°C
EVE
3:00 pm
21°C
NIGHT
11:00 pm
18°C

8
To make changes in the standard program:
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
1. Press PROG for 4 sec. The shaded boxes on
the LCD-screen with the words PROGRAM
FOR and START AT will begin to flash. The
current day, period, time and set temperature
of the built-in factory program will also be
displayed.
2. To program the day and period of day, press
AHEAD or BACK to display the DAY and
PERIOD you wish to program.
3. Press PROG to confirm, and TIME will flash on
the LCD-screen.
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
4. Press +or -to program the start time.
Programmed start time settings are in
15 min.-segments. The new start time will
display on the LCD-screen.
5. Press PROG to confirm: SET TEMP will flash on
the LCD-screen.
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
6. Press +or -to program the SET temperature.
7. When the desired SET TEMP displays, press
PROG to confirm.
8. After pressing the PROG button in step 7, the
next period of the same day or next day will
display on the LCD-screen.
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
9. To program the next period, follow steps 3, 4,
5, 6 and 7.
10. Continue to follow steps 3, 4, 5, 6 and 7 until
all 7 days and the 4 time periods in each day
are programmed.
11. Once all the programming has been
completed, press SET. The programming data
that has been entered will now over-ride the
factory built-in program and operate your
remote control system.
NOTE: Once you are in the programming process and you want to advance the programming procedure, you
may bypass some of the DAYS or PERIODS OF DAY, by pushing the AHEAD or BACK buttons. This allows you to
eliminate the need to enter the TIME and TEMP for each DAY/PERIOD, speeding up the programming process
by skipping some of the ‘software prompts‘. Once the DAY/PERIOD you want to reprogram is displayed by the
LCD-screen, press PROG and follow the programming steps outlined above.

9
2.4.2. Program overview
If you want to review the settings for either the
factory program and/or your customized
program, you may do so by (in OFF-mode)
pressing the PROG button for 1 second. By
pushing this button repeatedly you can review
the complete program.
If you press the PROG button for 4 seconds then
you enter the programming process.
Press the SET button should you hold the PROG
button too long.
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
-
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
2.4.3. Program cancellation – return to factory settings
To cancel the customized program that you have entered and to return to the factory settings:
In OFF-mode, press and hold PROG and at the same time press AHEAD for a period of ± 4 sec. The customized
program will be cancelled when the display icons/numbers flash with some icons disappearing. The LCD-screen will
begin flashing. This confirms that the customized program has been cancelled. Press SET to return the LCD-screen to
normal state, or wait approximately 10 seconds and the LCD-screen will return to its normal state automatically.
2.5. Operating your appliance
2.5.1. Manual (ON/OFF)
Push the UP- and +buttons simultaneously until the LCD-screen displays ON. Together with ON the LCD-screen will
display FLAME and 2 flame symbols.
At this point the spark electrode will begin sparking to ignite the pilot for a period of maximum 60 seconds. As soon
as a flame is detected the sparking will stop, and after a few seconds the main burner will ignite. The flame height at
this stage will be LO. The appliance will burn as long as it is not turned off manually, regardless of the room
temperature.
REMARK: In case of a new installation, it is possible that the pilot does not ignite after 60 seconds, due to air in the
gas pipes. In this case the appliance will shut down and turn to secure mode (red alert LED is lit). Before you can use
the appliance again it has to be reset. To reset the appliance press OFF on the transmitter, or RESET on the receiver.
To re-ignite: press the UP- and +buttons until the LCD-screen displays ON. Repeat this procedure until there is no
more air in the gas pipes, and the pilot ignites.
Once the pilot is on and the main burner is burning low, it is possible to change the flame height and the speed of
the fan with the FLAME-/+ and FANtoggle keys:
Flame height (gradually adjustable): push UP/DOWN
Speed of the ventilator: push FAN (LO-MED-HI)
To switch off the device, push OFF (OFF appears). The pilot as well as the main burner will be quenched.
After this, the fan will still turn for about 15 minutes, until the remaining heat is fully utilized.
*only for devices equipped with a fan

10
2.5.2. Thermo operation (ON/OFF BASED ON SET TEMP SETTING)
The system can control your appliance thermostatically when operating in THERMO mode.
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
NOTE: To prevent repeated thermo-cycling of the gas
appliance, changes in temperature are only recorded every
2 minutes.

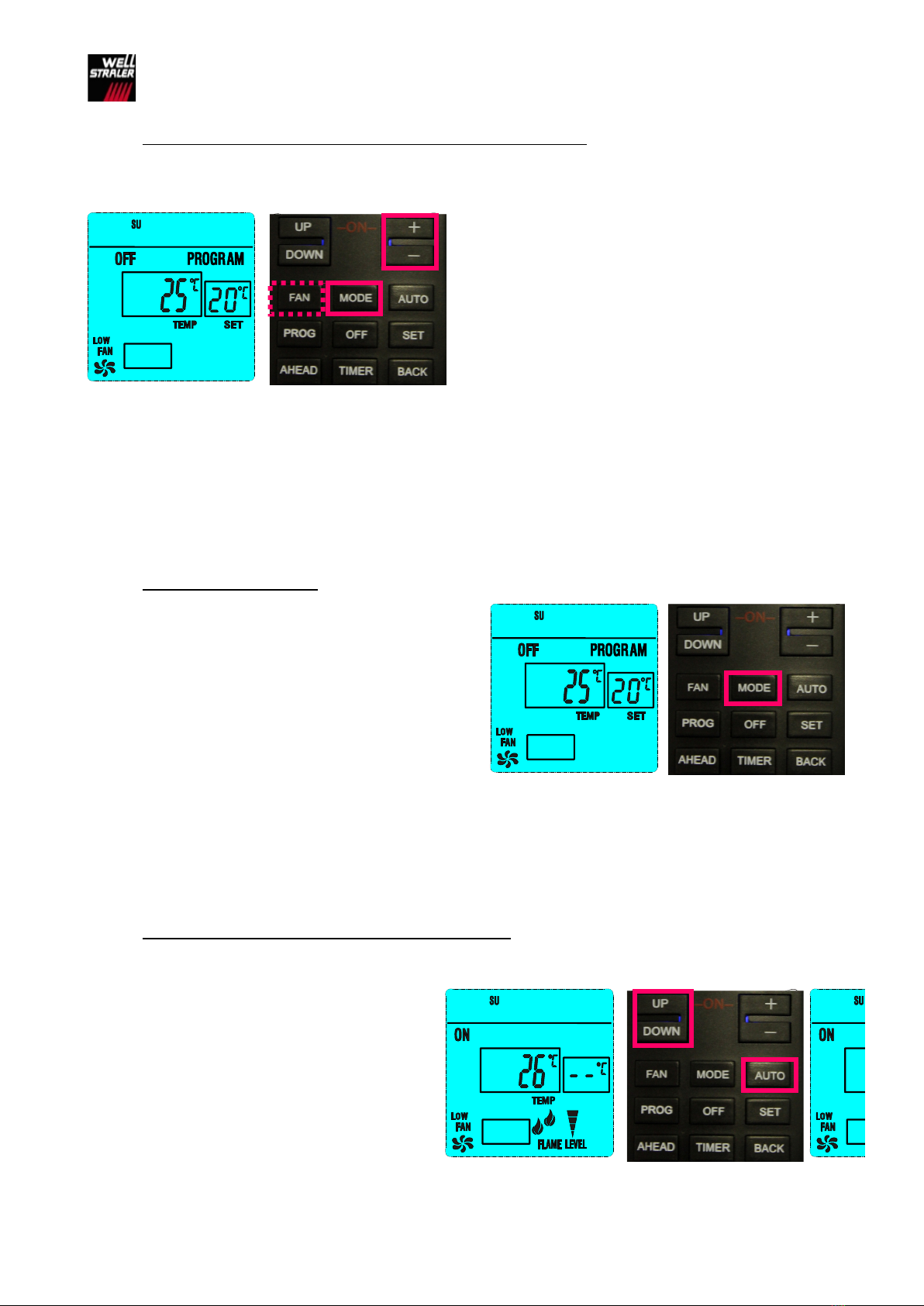

1. Starting in OFF mode, press MODE for
3 seconds until the LCD-screen displays
THERMO.
2. Press +/- to set the desired room temperature.
The highest SET temperature is 32°C (99°F), the
lowest SET temperature is 6°C (45°F). The
transmitter will measure the room
temperature every 2 minutes, automatically
turning the appliance ON or OFF
thermostatically, according to the SET
temperature. The flame height is managed
automatically.
3. Press FAN (only for appliances equipped with a
fan) to modify the ventilator speed (see
chapter 2.5.5. Changing FAN speed). Unless
you change the operating mode, the fan will
keep functioning at this speed.
2.5.3. Automatic (PROGRAM)
In OFF mode, press MODE for 3 seconds until OFF
THERMO is displayed on the LCD-screen. Push MODE
again (ON or OFF PROGRAM). The following is displayed
on the LCD-screen:
Current period of the day (MORN/DAY/EVE/NITE),
depending on the set program;
ON/OFF to mark if the appliance is turned on or not;
Room temperature (TEMP).
Desired temperature for this period (SET);
FLAME/FLAME HI to indicate whether the appliance
functions or will function with normal/high flames;
FAN LOW/MED/HI indicates the fan speed.
The appliance will operate automatically depending on
the pre-programmed weekly program and changes in
temperature.
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
2.5.4. Adjusting the flame height (UP/DOWN en AUTO)
This setting is possible in the ON-mode.
To adjust the flame height of the main burner:
push UP to decrease the flame height
push DOWN to increase the flame height.
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
You can also use the AUTO-function, in which the flame height will evolve automatically following a random
pattern. Put the transmitter in the ‘ON’-position and push the AUTO-button. Press AUTO once more to stop using
this function.

11
2.5.5. Adjusting FAN speed*
The speed of the FAN can be adjusted only in the following modes: ON -THERMO –PROGRAM.
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
The FAN operates automatically in LOW
speed (FAN LOW) whenever the fire is on for
5 minutes and stays on for approximately 15
minutes after the burner is turned off. Press
FAN to change the FAN speed to MED or HI.
This symbol is displayed when the burner is
on:
If the burner is OFF only FAN appears.
The transmitter always remembers the last setting of the FAN speed, and this for the entire mode of operation
(ON -THERMO and PROGRAM mode). Only when you change mode the setting will return to its standard
setting (FAN LOW).
*Remark: Only for appliances equipped with a fan.
2.5.6. Temperature OVERRIDE (operates only in PROGRAM mode)
You can change the current SET temperature without changing the programs stored in the transmitter‘s
memory. The OVERRIDE feature will be automatically cancelled at the start of the next PROGRAM PERIOD.
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
1. Press +/- to change the SET temperature.
Setting will be cancelled automatically
when next program period begins). The
word OVERRIDE will appear over the SET
frame on the LCD-screen.
2. To cancel temperature OVERRIDE, press
SET.
2.5.7. Time of day display
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
1. To check the current TIME of day, press
TIMER on the transmitter for less than
1 second. The current TIME of day will
appear in the TIME/TEMP frame
replacing the temperature reading.
2. The temperature will reappear
automatically in 15 seconds, or you can
press SET to cancel the display of TIME
immediately.

12
2.5.8. Setting the countdown timer
This system can operate with a built-in COUNTDOWN timer when the transmitter is in the ON or THERMO mode
(THERMO or ON must be displayed on the LCD-screen).
When the set time period has elapsed, the device will automatically switch off.
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
NOTE: When the timer is used in THERMO mode, the THERMO
operation will discontinue only when the countdown time’ has
expired.
1. Press TIMER on the transmitter for more
than 5 seconds. The word TIMER and 0:15
flash on the LCD-screen.
2. Press +/- to begin advancing through each of
the countdown time options. Available
countdown times are 15 min. / 30 min. /
45 min./… up to 9hrs.
3. To set the TIMER press SET. If the system is
ON, it will remain on until the timer time has
expired. If the system is in the THERMO
mode, it will cycle ON and OFF as the room
temperature requires.
4. To cancel the TIMER function, press the
TIMER button for at least 5 seconds (until the
timer time disappears).
2.5.9. Low battery indicator
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
OFF
MODE
RETURN
ON
RESET
FLAME+FLAME-
REVIEW
BACKTIMER
AHEAD
AUTOMODE
FAN
-
+
The word LOW outlined by the shape of a battery on the left side of the LCD-
screen will appear when the batteries need to be replaced. At this time,
approximately two weeks of battery power remains until the transmitter
experiences partial or complete loss of functions. The batteries should be
replaced as soon as possible.
(REMARK: Wrong positioning of the batteries will also result in the apparition of
LOW on the screen.)
Here’s how to replace the batteries:
1. Push the MODE-button until OFF appears on the screen;
2. Wait for 2 minutes (the system closes the current operational mode completely);
3. Remove the batteries one by one;
4. Place new batteries, minding their polarity.
Replacing the batteries in an operational mode (ON – THERMO – PROGRAM) can damage the microprocessor!
2.5.10.Location of the remote control system
Seen the transmitter is also the thermostat of your appliance, it is preferable to locate the bracket on an inside wall,
sufficiently far away from direct sources of heat such as a fireplace, incandescent lighting or sunlight, in order for it
to detect actual ambient room temperatures, and not a single heat source. Before fixing the bracket to the wall,
check if the transmitter is not outside the operating range of the receiver! Normal operating range is ± 6 m, but can
vary.
The system operates on RF-signals. The place of the antenna (black thread on the side of the receiver) determines
the operating range of the system. In order to get the system to function as good as it may, the antenna must be
free in the appliance.
Be careful: Transmitter and receiver must be placed at at least 1 meter from electromagnetic fields (such as
TV, radio, PC, microwave oven,…). Repeated exposure to magnetic fields reduces the operating capacity of
the appliances.

13
2.6. Receiver
The receiver is built-in in your appliance and has a 3-position slide button:
LEFT:REMOTE (the system only operates if the receiver receives commands from the transmitter)
MIDDLE:ON (the system remains ON in low flame, and ventilator –if present- stays in normal mode)
RIGHT: OFF (the system is OFF)
We advise you to put the slide switch in the OFF position if you will be away from your home for an extended
period of time or during summer. This will enhance the lifespan of the controls!
There’s 4 additional buttons:
LEARN: (see 2.6.2)
FLAME- & FLAME+: manual control of the flame height (see 2.6.1.)
RESET: (see 2.5.1.)
2.6.1. Manual control
In case the transmitter shouldn’t function, you can control your heater manually. Place the slide button on the
receiver in the ON-position, and next push the FLAME- and FLAME+ buttons simultaneously during 3 seconds to
ignite the heater. With these same buttons you can control the flame height manually.
To switch of the heater again, push the FLAME- and FLAME+ buttons simultaneously during 3 seconds.
2.6.2. Matching security codes (LEARN)
Each transmitter can use one of the 1.048.576 security codes. It may be necessary to program the remote receiver
to LEARN the security code of the transmitter, upon initial use, if batteries are replaced or if a replacement
transmitter is purchased.
When matching security codes, be sure the slide button on the RECEIVER is in the REMOTE position: the code will
not LEARN if the slide switch is in the ON or OFF position. Also make sure the transmitter is switched OFF.
Program the remote RECEIVER to LEARN a new security code by pushing in the LEARN-button on the RECEIVER for
3 seconds, until you hear a beep. Then, within 10 seconds, press FLAME- and FLAME+ simultaneously on the
TRANSMITTER. The TRANSMITTER will automatically be switched ON, and the RECEIVER will emit a series of 4 rapid
beeps indicating the transmitter‘s code has been programmed into the receiver.

14
2.6.3. Connecting the receiver
EXTREMELY IMPORTANT: MAKE SURE THE WIRES ARE CONNECTED IN THE RIGHT WAY!!
Ventilator
230V connection

15
It is possible to connect an (optional) ventilator to our gas inserts with convection. The maximum power the
receiver can control is 33W. All connections have been provided to connect this ventilator. This picture shows the
tripolar connector.
2.7. Problem solver
PROBLEM
CAUSE
SOLUTION
The appliance does not
react when the MODE-
button is pressed.
The receiver is in ‘OFF’ position
Place the receiver button in ‘REMOTE’
position
The receiver does not match to
the transmitter.
Execute the ‘LEARN’ procedure
The transmitter does not
react after the ‘LEARN’-
procedure.
The transmitter is too far from
the receiver.
Move the antenna to a free space (the
outside of the appliance is the maximum
range area) so that the operating range is
wider
The receiver emits a beep
The transmitter is positioned out
of range of the receiver for more
than 1 hour.
Place the transmitter closer to the
receiver, or move the antenna of the
receiver
The receiver beeps
repeatedly in a quick
tempo and the transmitter
is within the receiver’s
operating range
The receiver got overheated
The receiver has to cool down, as it will
only operate again when the temperature
inside the receiver drops beneath 50°C
The receiver beeps in slow
tempo and the transmitter
is within the receiver’s
operating range
The transmitter is positioned on a
radio-wave reflecting surface
Place transmitter on a soft, non-reflecting
surface, or place it in an upright position
The transmitter is broken
Replace transmitter
Grounding
Ventilator connection

16
