Wellcare WE-167CSHD User manual

Snuggly Heating Cushion
Standard | Large
Instruction Manual
WE-167CSHD
WE-167CMHD
Kuscheliges
Gepolstertes Heizkissen
Standard | Groß
Gebrauchsanleitung
Verwarmend
Knuelkussen
Standaard | Groot
Gebruiksaanwijzing
Coussin Chauant
Douillet
Standard | Grand
Mode d’emploi

2
MODEL: WE-167CSHD / WE-167CMHD
GB Snuggly Heating Cushion ………………… 03
Standard | Large
Instruction Manual
DE Kuscheliges Gepolstertes Heizkissen ………………… 19
Standard | Groß
Gebrauchsanleitung
NL Verwarmend Knuelkussen ………………… 37
Standaard | Groot
Gebruiksaanwijzing
FR Coussin Chauant Douillet ………………… 55
Standard | Grand
Mode d’emploi
WELLCARE CO., LTD.
16F, No. 738, Jhong Zheng Rd., Jhong He District, New Taipei City 235, Taiwan
Tel. [phone] Fax. [phone]
www.wellcare-global.com
CONTENT
B803.101_ L0625

3
Explanation of symbols
Read instructions
Do not use when folded or creased
Do not pierce with needles
Not to be used by very young children
(0-3 years)
Do not dry clean
30°C extra gentle washing program
Do not bleach
Do not tumble dry
Do not iron
GB

4
Thank you for purchasing the Snuggly
Heating Cushion from Wellcare.
To enjoy the most comfortable
experience and the greatest satisfaction,
please take a few minutes to read this
instruction carefully before using this
heating cushion.
IMPORTANT SAFETY INSTRUCTIONS
RETAIN FOR FUTURE USE
KEEP CAREFULLY IN CASE IT IS NEEDED!
This heating cushion is designed to be used
for many years if it is properly used. Read the
instruction carefully to prevent damage or danger
caused by incorrect use. Keep this instruction
manual at an easy-to-access location so you can
refer back when necessary.
If you let somebody else use this product, please
pass on this instruction manual as well and make
sure the user has read it before using.
GB

5
GB
B
C
7
61
34
2
9
A
8
5
PAD
PILLOW

6
4D DWF® Technology (please see fig. C)
This heating cushion utilizes WELLCARE’s recent and the most innovative
technology – 4D DWF®. While this technology pioneers in the flexible
heating industry, its production process is also the state of the art.
Our physical living environment consists of three dimensions, width,
length, and depth; hence, the term “3D”. As Wellcare introduces to you
the 4D DWF® technology, the “temperature” brought to you by dynamic
flow of warmth is the definition of the fourth dimension. 4D DWF®
employs concepts of breathing system which creates full-body heat
circulation for heat to disperse evenly, thoroughly, and quickly. The heat
is generated by heating elements, builds up and gathers around several
hundred uniquely designed circular holes. Through these holes, the heat
flows bi-directionally to create a gentle heat flow and the thermal energy
can flow rapidly to warm up human bodies.
There are many benefits of this innovative technology :
• Better breathability
• Rapid heating
• Higher temperature
• Uniquely designed holes to provide 360° warmth circulation
• Greater heat distributing area
• Eective heat transmission
• Strands of warmth flow retain air moisture
• Warmth kept at a constant temperature
• Energy saving
GB

7
This heating cushion is not intended for medical
use in hospitals.
• Please read carefully and follow the instructions.
• Examine the heating cushion frequently for signs
of wear or damage. If there are such signs or if
the heating cushion has been misused or does
not work, return it to the supplier before
switching it on again.
• Do not use this heating cushion if there is visible
damage.
• Use the appliance only as described in this
instruction manual.
• Do not treat the heating cushion as a sheet or
tuck it in the mattress.
• Before connecting the device to your power
supply, please ensure that the supply voltage
stated on the rating plate is compatible with
your mains supply.
• The heating cushion must not be used when
folded or crumpled.
• Do not use the heating cushion for persons who
cannot move without help, small children,
persons who cannot feel heat, or animals.
Persons who can feel heat to some extent may
only use the appliance with supervision.
• This heating cushion must not be used by
persons insensitive to heat and other very
vulnerable persons who are unable to react to
overheating.
• If the cable is damaged, it must be replaced by
the manufacturer or qualified persons to
prevent hazards.
GB

8
• Do not pierce the appliance with needles, pins
or other sharp objects.
• Do not tug, twist or make sharp bends to the
cables.
• Do not carry or unplug the appliance by pulling
its mains cable.
• Do not expose the controller or the mains cable
to moisture or liquids.
• Do not use the heating cushion when wet and
only use it in dry environments.
• Avoid sharp bending or bundling of the heating
cushion.
• The cable and control unit of the appliance can
give rise to risks of entanglement, strangulation,
tripping or treading if not correctly arranged.
The user shall make sure that excess ties and
electric cords shall be arranged in a safe way.
• While the heating cushion is switched on,
- Do not place any large or heavy objects on it
such as suitcases, etc.
- Do not place any sources of heat on it such
as hot water bottles, heating pads or suchlike.
- Due to the components in the controller will
make it slightly warm, never let the controller
to be covered or placed on the heating pad,
pillows and the like or lie on the electric
mattress heater.
• Do not fold the heating cushion when it is hot.
• This appliance is only designed to warm up
the human body. Do not use it on pets or
other animals.
GB

9
• Caution! Never fall asleep while the appliance is
in operation.
• When the appliance will be used for an
extended period (falling asleep), the
temperature setting should be adjusted to the
lowest level (setting 1) for continuous use to
avoid overheating on the same body part,
which may lead to burns to the skin.
• Prolonged use can cause burns to the skin.
• Children should be supervised to ensure that
they do not play with the heating cushion.
• Children below the age of three (0 ~ 3 years old)
are not allowed to use this appliance because
they are not able to react to overheating.
• The appliance can be used by children older
than 3 years and younger than 8 years under
supervision and with the control always set to
minimum temperature value.
• This device may not be used by young children
over the age of three (3) unless the control
unit has been pre-set by a parent or guardian
and unless the child has been adequately
instructed on how to operate the control unit
safely.
• This appliance may be used by children over the
age of eight (8), and persons with reduced
physical, sensory or mental capabilities or
lack of experience or knowledge if they have
been supervised or instructed concerning use
of the appliance in a safe way and understand
the hazards involved.
• Cleaning and user maintenance shall not be
made by children without supervision.
GB

10
• If you have any concerns about health issues,
please consult with your doctor before using
the heating cushion.
• Do not use the heating cushion on parts of the
body that are swollen, injured or inflamed.
• If you experience any pain or discomfort while
using the unit, stop using it immediately.
• If you use a pacemaker, please consult your
doctor and the manufacturer of the pacemaker
before using this product due to the EMF
(electromagnetic fields) emanated from this
electric product may interfere with functions of
your pacemaker under certain circumstances.
• When the heating cushion is not in use :
- Set the slide switch on the controller to
setting “0” (OFF)
- The plug should be removed from the wall
socket and the heating cushion should be
stored in a dry place, without additional
weight on it.
- The plug-in connector should be removed
from the heating cushion to avoid damages
caused by twist or bend of the cable.
• When the appliance will not be used for a
period of time, we recommend that you store it
in the original packaging.
- Allow it to cool down before folding and the
storage.
- Do not crease the heating cushion by
placing items on top of it during storage.
- Store it in a dry place away from any liquids
or sources of heat.
GB

11
• This heating cushion must be used with the
type of the controller that is marked on the
rating label only.
ITEMS INCLUDED IN THE PACKAGE
1 Heating Cushion
1 Inner Pillow
1 Controller with Cable and Plug-in Connector
1 Instruction Manual
1 Service Instruction
1 Membership Card
DESCRIPTION OF THE DEVICE AND
CONTROLLER (please see fig.A)
1. Mains cable with plug
2. Controller
3. APS (Active Protection System) with 3-colored
LED display (on both sides)
4. Slide switch for ON, OFF and temperature
settings (1, 2, 3, 4)
5. Type of the controller
6. Detachable plug-in connector
7. Connection box
8. Heating cushion
9. Inner pillow
GB

12
MULTI-FUNCTIONAL
• Works as a heating cushion : with inner pillow
inside. The appliance has been especially
designed as a warm cushion; do not use it as a
sleep pillow.
• Works as a heating pad : without the inner pillow.
PREPARING FOR USE
(please see fig.B for demonstration)
1. Always make sure the heating cushion (8) is
without any folds, creases or ruck-up.
2. Insert the inner pillow (9) to work as a heating
cushion. If you want to use it as a heating pad,
just simply take out the inner pillow (9).
3. Join the detachable plug-in connector (6) to
the connection box (7).
4. Make sure the controller (2) is not covered by
the sheet, pillow or any objects.
5. Plug the mains cable (1) to the wall socket.
6. Unplug the appliance from the wall socket
when it is no longer in use.
SWITCHING ON
Before each time you use the heating cushion
(8), please make sure it is not bundled, folded or
creased before it is switched on.
Connect the heating cushion (8) only to 230 VAC.
Switch it on by using the hand-operated slide
switch (4) and there will be 3 times of beep sound
(beep–beep–beep) to ensure the product has been
GB

13
operated correctly. The warm-up time for this
heating is 7 - 10 minutes approximately.
In order to warm up the heating cushion faster, it
is recommended to initially set the product at the
highest temperature setting.
Temperature settings :
4
= maximum warmth
2-3 = moderate warmth
1
= minimum warmth
0
= OFF
APS (Active Protection System) – 3-Color LED
This heating cushion is equipped with APS
(Active Protection System) (3) technology which
detects errors on the operation or component
failures. By the 3-color LEDs (3) which can be
seen from both sides of the controller (2) and the
beep sound, APS can help you to operate the
heating cushion easily and safely.
• Green – Your heating cushion has reached the
desired temperature level
• Orange – Your heating cushion is heating up to
reach the desired temperature level
Due to the temperature variation in dierent
environments (room, bed, etc.), an orange light
may be lit on APS display to indicate continuous
heating during the heating cushion is in use. That
said, the 3-color LED may change from green
to orange to heat up. Under this circumstance,
please note the product is functioning properly
GB

14
when the orange light is indicated.
• Red light and Beep Sound – Possible
malfunction or overheating, switch o the
appliance immediately.
In the following situations, the red light and beep
sound will come on to indicate warning :
• When the power is on but detachable plug-in
connector (6) is not connected : There will
be beep sound every second with the red light
turned on. Please connect the detachable
plug-in connector (6) to the connection box
(7) and switch on the controller again.
• When the critical components are damaged :
There will be continuous beep sound with the
red light turned on. Please disconnect the
mains cable from wall outlet immediately.
• When the heating wires or other components
are broken and the device cannot work
anymore : There will be beep sound every
second with the red light turned on.
• When the heating cushion (8) is folded or
covered by objects, e.g., pillow or blanket : the
device reaches higher temperature and there
will be beep sound every 2 seconds. Please
switch the heating pad o, make sure the pad
is not bunched up or remove the object that
covers the pad. Once the heating pad cools
down, you can switch it on again.
The warnings mentioned above cannot cover all
defective situations as the damages on some
components will not lead to red light or beep
sound.
GB

15

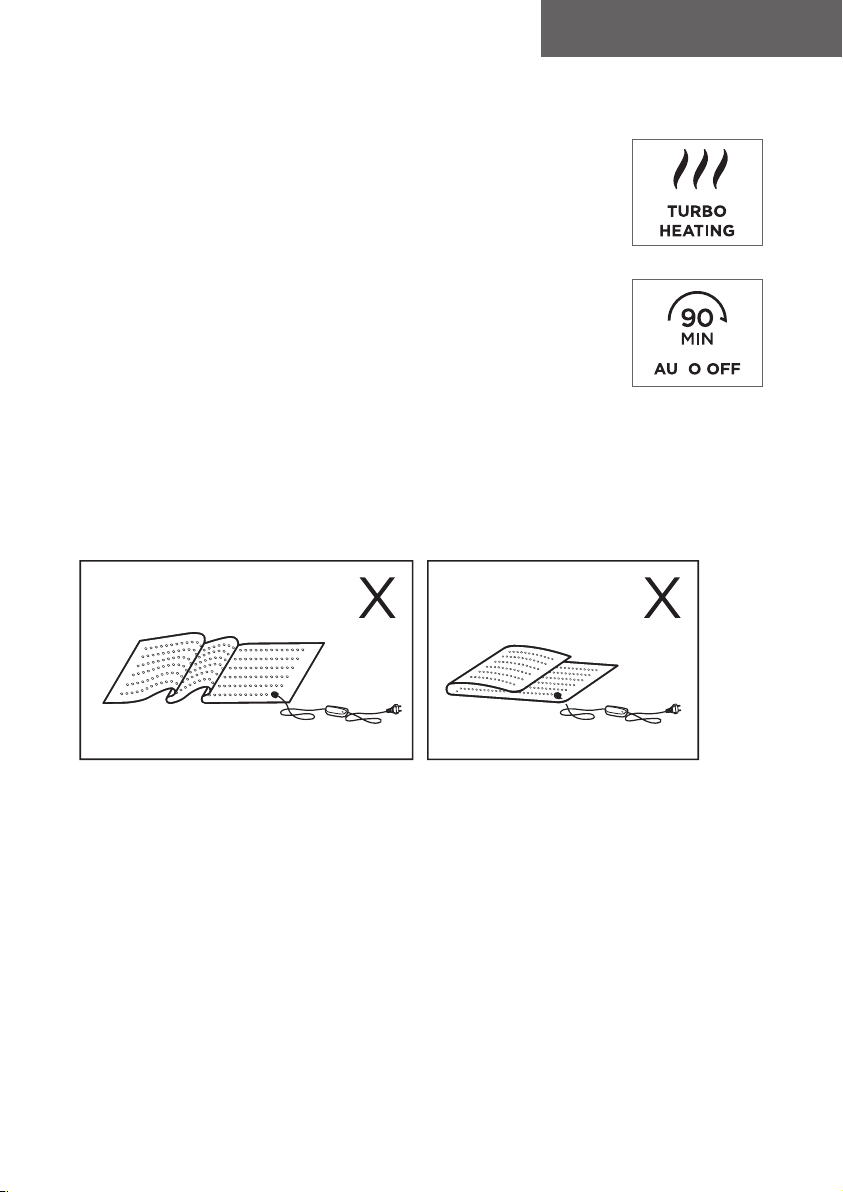

TURBO HEATING
The heating cushion is with a turbo heating function
for user to feel warmth within 7-10 minutes after it is
switched on.
TIMER FUNCTION
Now you can enjoy the pleasant warmth. This heating
cushion will be switched o automatically after about
90 minutes. In order to put the heating cushion into
operation again you must set the slide switch (4) to
setting ‘0’ first. After about 5 seconds, you can
switch on the heating cushion again.
CAUTION
Do not use the appliance when it is folded, creased, tucked in or drawn
together or it may lead to overheating or shutdown.
The electronic components inside the controller may cause the controller
slightly warm when the heating cushion is in use. Therefore, the controller
must not be covered or placed on top of any heating sources when it is in
operation.
You should not gauge the heating cushion’s temperature by hands
because the skin on your body is more sensitive than hands. The
temperature may feel lukewarm by hand but could be unpleasantly hot to
your body.
The repairs to the heating cushion may only be undertaken by qualified
persons by using original replacement parts. Repairs carried
out by unqualified persons may cause substantial risk to the user.
GB
T

16
CLEANING AND CARE
Except the inner pillow, this heating cushion is machine
washable.
• Before cleaning the heating cushion (8), always
remove the main plug from the wall socket first.
Take out the inner pillow (9) and wait for the
heating pad to cool.
• Disconnect the plug-in connector (6) from the connection box (7).
Put the cable and the controller (2) to a dry place where will not
contact with water or other liquids.
• To clean the controller(s), use a dry, lint-free cloth. Do not use any
chemical or abrasive cleaning detergents.
• Please note that the heating pad should not be dry-cleaned, wrung
out, machine-dried, pressed or ironed.
• Small marks on the heating cushion can be removed with a damp
cloth.
• Set washing machine to a gentle washing cycle at 30 °C, the heating
pad should only be washed together with other textiles. Use a mild
washing detergent for delicate fabrics and dose it according to the
manufacturer’s instructions.
• Always use a laundry bag for better protection of the holes and fabric.
• For dark color products, always wash separately.
• After washing, reshape the heating cushion to its original dimensions
while it is still damp, and lay them flat on a moisture-absorbent towel,
mat or clothes horse to dry it.
• Do not use pegs or similar items to attach the heating cushion to the
clothes horse, they may damage the appliance.
• Please note that excessive washing will wear out the heating pad. For
this reason, the appliance should only be washed a maximum of 10
times throughout its entire life.
• Only use the heating cushion when it is complete dry.
• Never switch on the appliance to dry it.
GB

17
DISPOSAL
This appliance must not be disposed together with
domestic waste but at a suitable local collection or
recycling point. Please dispose of the appliance in
accordance with Directive on Waste Electrical and
Electronic Equipment (WEEE). If there is any
question, please contact the municipal authority
for more information about disposal in your area.
WARRANTY
Please note Wellcare provides two-year limited warranty for this
product. Wellcare warrants that this product will be free from defects in
materials and workmanship for a period of two years beginning on the
date of purchase.
During the two-year period beginning on the date of purchase,
Wellcare will replace defective products covered under this limited
warranty. Please note a clear copy of the purchase receipt for the
product is required. To request limited warranty service, please return
the defective product to the store where you purchased it with the
clear copy of purchase receipt within the limited warranty period. The
replacement product will assume the remaining limited warranty of the
original product.We advise you to call our helpdesk for any problems
regarding the product before returning it to the store where you
purchased it.
However, please note that our limited warranty does not cover
any damage due to shipment of the products to you and external
causes, including accident, abuse, misuse, problems with electrical
power, usage not in accordance with product instructions, failure
STORAGE
If the heating cushion will not be used for a long time, we highly
recommend :
• Remove the plug-in connector from the connection box.
• Always let the appliance to cool down first before folding and
storing it.
• Store it in the original packaging and put it in a dry place.
• Do not put any object on the top of the appliance.
GB

18
to perform reasonable maintenance, problems caused by use of parts
and components not supplied by Wellcare, and problems caused by
unauthorized repair of Wellcare’s product. Furthermore, our limited
warranty does not cover any damage due to the defects known to exist by
you when you purchase the product.
This limited warranty gives you specific legal rights, and you may also
have other rights that vary from country to country (or jurisdiction to
jurisdiction). Wellcare’s responsibility for malfunctions and defects in
product is limited to replacement as set forth in this limited warranty
statement. All express and implied warranties for the product,
including but not limited to any implied warranties of an conditions of
merchantability and fitness for a particular purpose, are limited in duration
to the limited warranty period set forth above and no warranties, whether
express or implied, will apply after such period. Wellcare does not accept
liability beyond the remedies set forth in this limited warranty statement
or liability for indirect, incidental or consequential damages.
Model : WE-167CSHD
Size : 35 x 46 CM
Voltage : 230V~50Hz
Watts : 100W
Model : WE-167CMHD
Size : 45 x 45 CM
Voltage : 230V~50Hz
Watts : 100W
TECHNICAL DATA
GB

19
Zeichenerklärung
Lesen Sie die Anweisungen
Nicht benutzen, wenn gefaltet oder
zerknittert
Nicht mit Nadeln durchbohren
Nicht bei jungen Kinder einsetzen (0-3
Jahre)
Nicht chemisch reinigen
Extra Schonwasch-gang mit 30°C
Nicht bleichen
Nicht im Trockner trocknen
Nicht bügeln
DE

20
Vielen Dank für den Kauf des kuschelig
gepolsterten Heizkissens von Wellcare.
Damit Sie unser Produkt optimal nutzen
können und langfristig Freude daran
haben, lesen Sie sich vor dem ersten
Gebrauch bitte sorgfältig die folgenden
Anweisungen durch.
WICHTIGE SICHERHEITSANWEISUNGEN
BEWAHREN SIE DIESE ANWEISUNGEN
ZWECKS SPÄTERER NUTZUNG AUF
HALTEN SIE DIESE ANWEISUNGEN GRIFFBEREIT !
Die Lebensdauer des Heizkissens ist bei
sorgfältigem Umgang damit auf viele Jahre
ausgelegt. Lesen Sie die Anweisungen sorgfältig
durch, um Schäden oder Gefahren durch
fehlerhaften Gebrauch zu vermeiden. Bewahren
Sie die Bedienungsanleitung an einem leicht
zugänglichen Ort für ein späteres Nachlesen auf.
Wenn Sie die Verwendung des Produkts anderen
Personen überlassen, stellen Sie immer auch die
Bedienungsanleitung bereit und achten darauf,
dass sie vor Gebrauch des Produktes gelesen wird.
DE
