Dimension
Choose a suitable place to install the shower panel, adjust the shower
panel’s vertical position based on the user’s height and your sanitary
room. Usually, install the panels at the distance of 210cm from the top
to the ground, but youcan assemble according to your preference.
Note!
The height can be altered to suidt individual requirements.
The dimensions are for reference only.

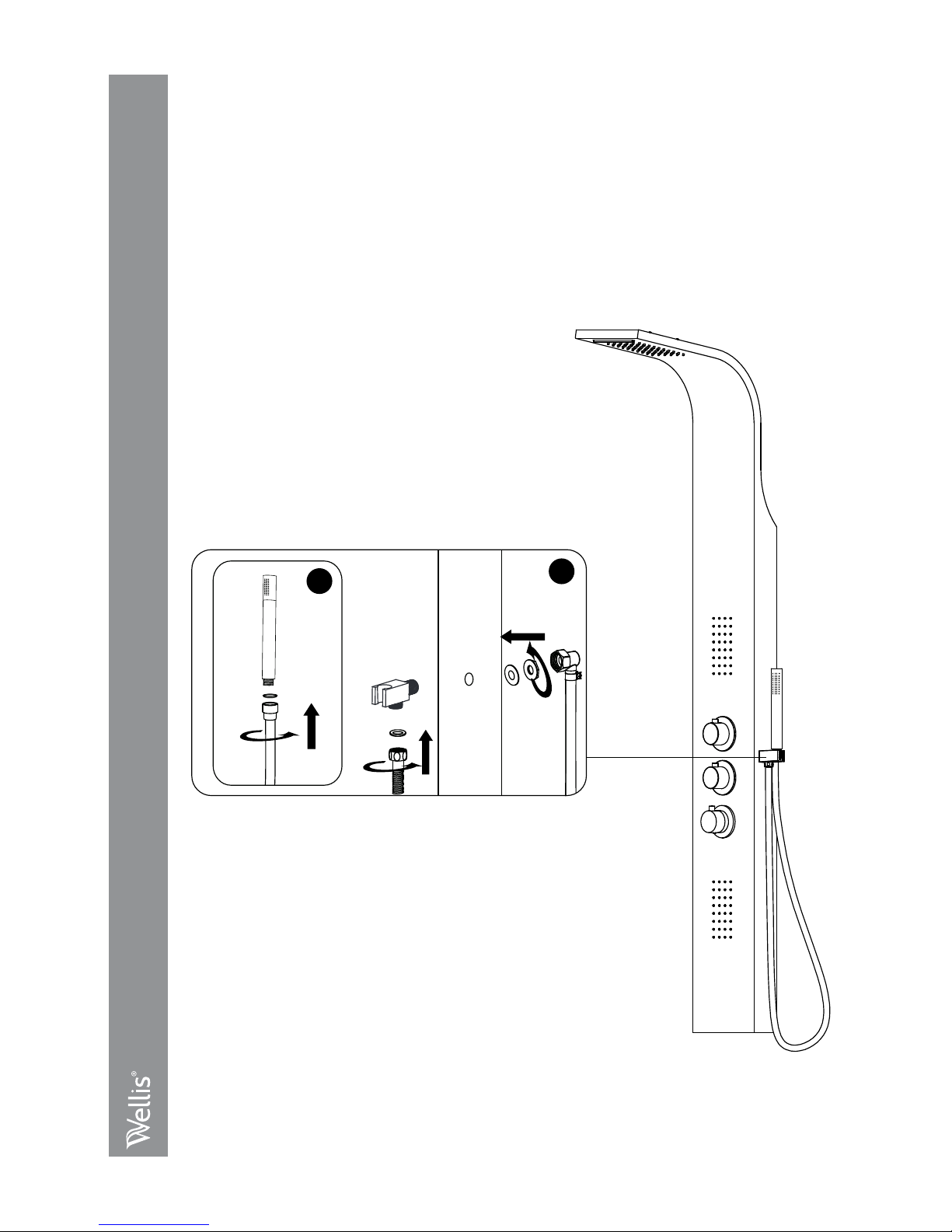

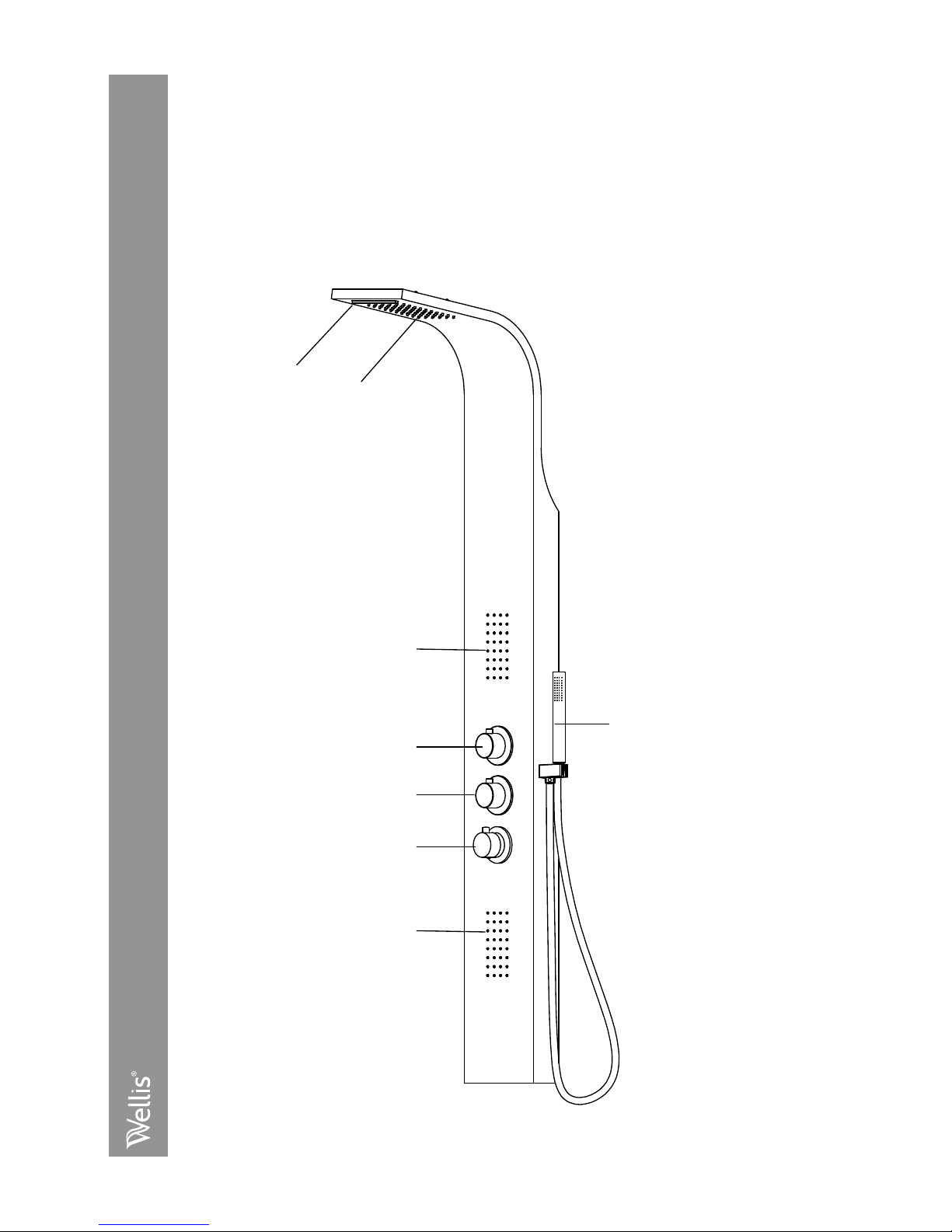

Select the shower function
required by rotating the
control knobs.
Temperature control
Volume control
EN
Select the shower function
Volume control
required by rotating the control knobs.
Temperature control
175cm
160cm
45cm

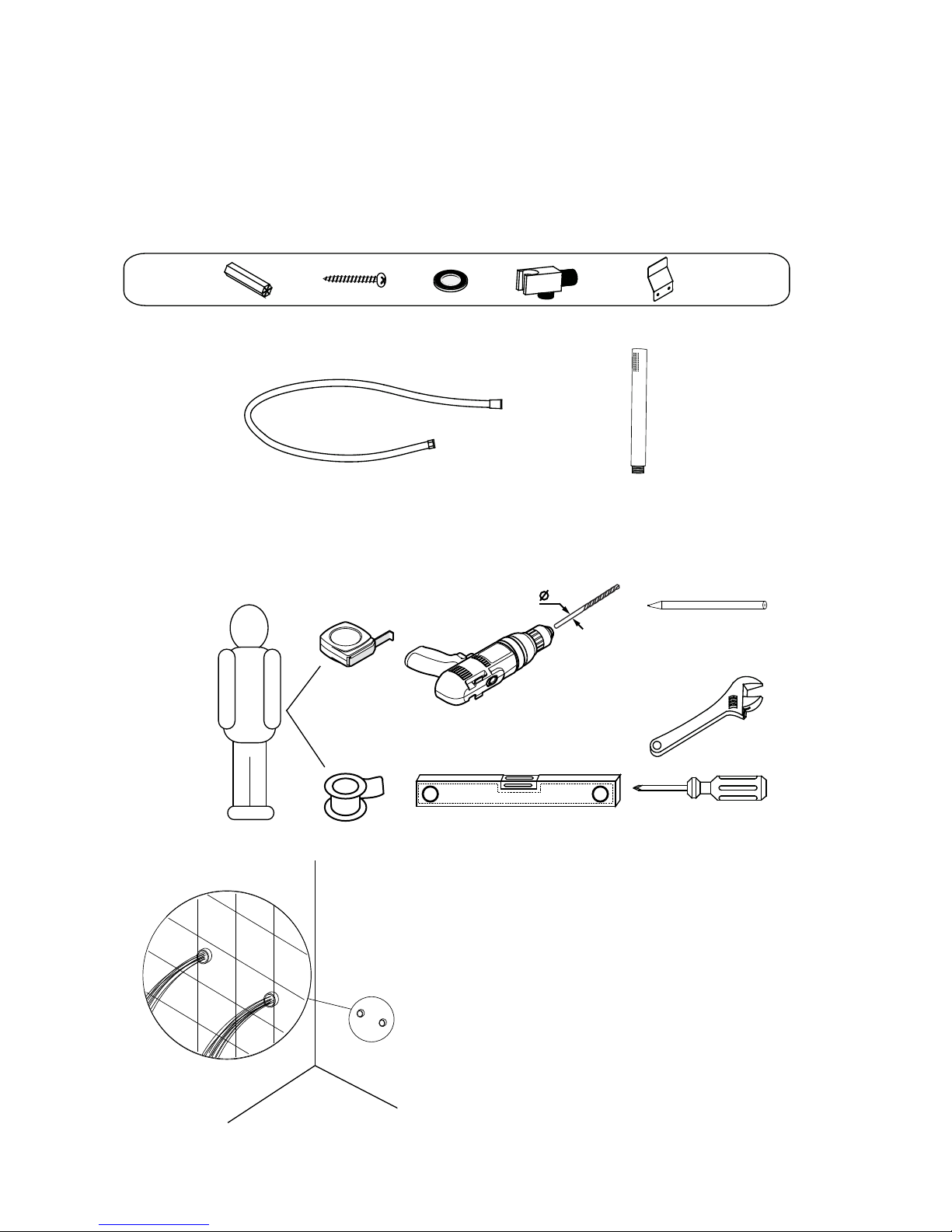

N o t e ! Before drilling any holes for fixing your shower panel ensure that
there are no hidden cables or pipework within the wall.
COLD
HOT

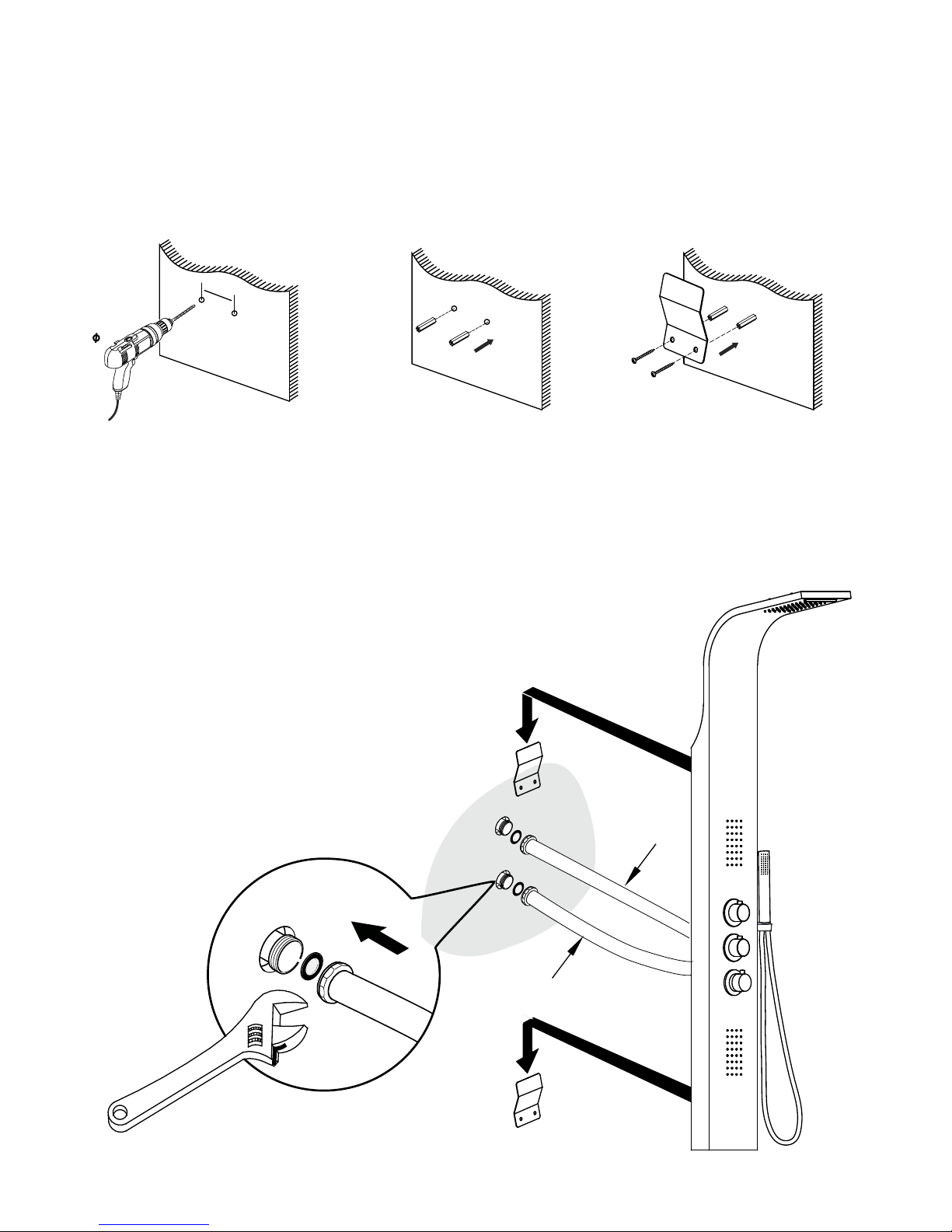

Wall-mounting
Insert the wall plugs inside
the holes Tighten the screws to the wall
with wall mounting brackets
Note!
The height can be altered to suit individual requirements.
The dimensions are for reference only.
123
wall
Drill the holes in the wall
Hang the shower panel on the mounting bracket
wall wall
6mm Drill
25mm

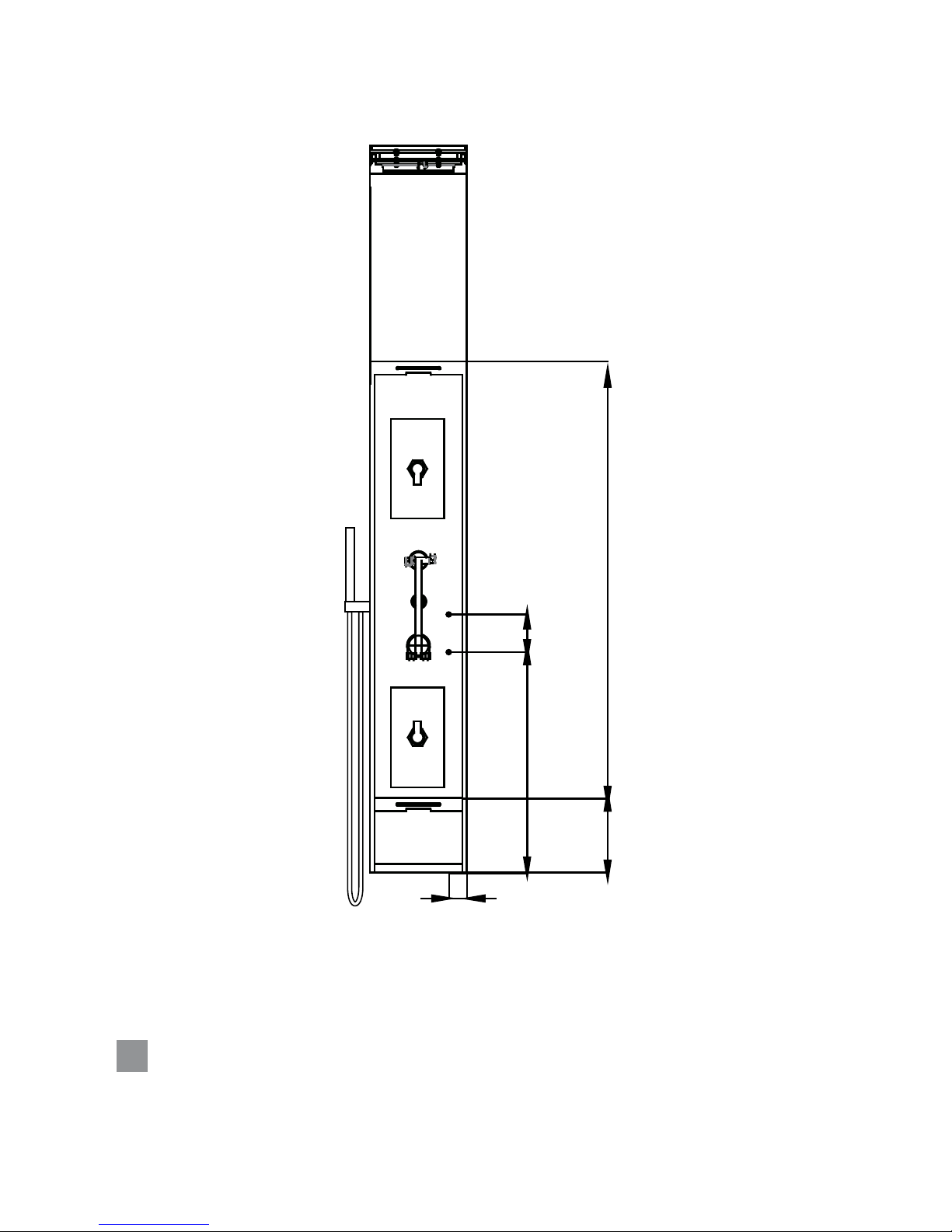

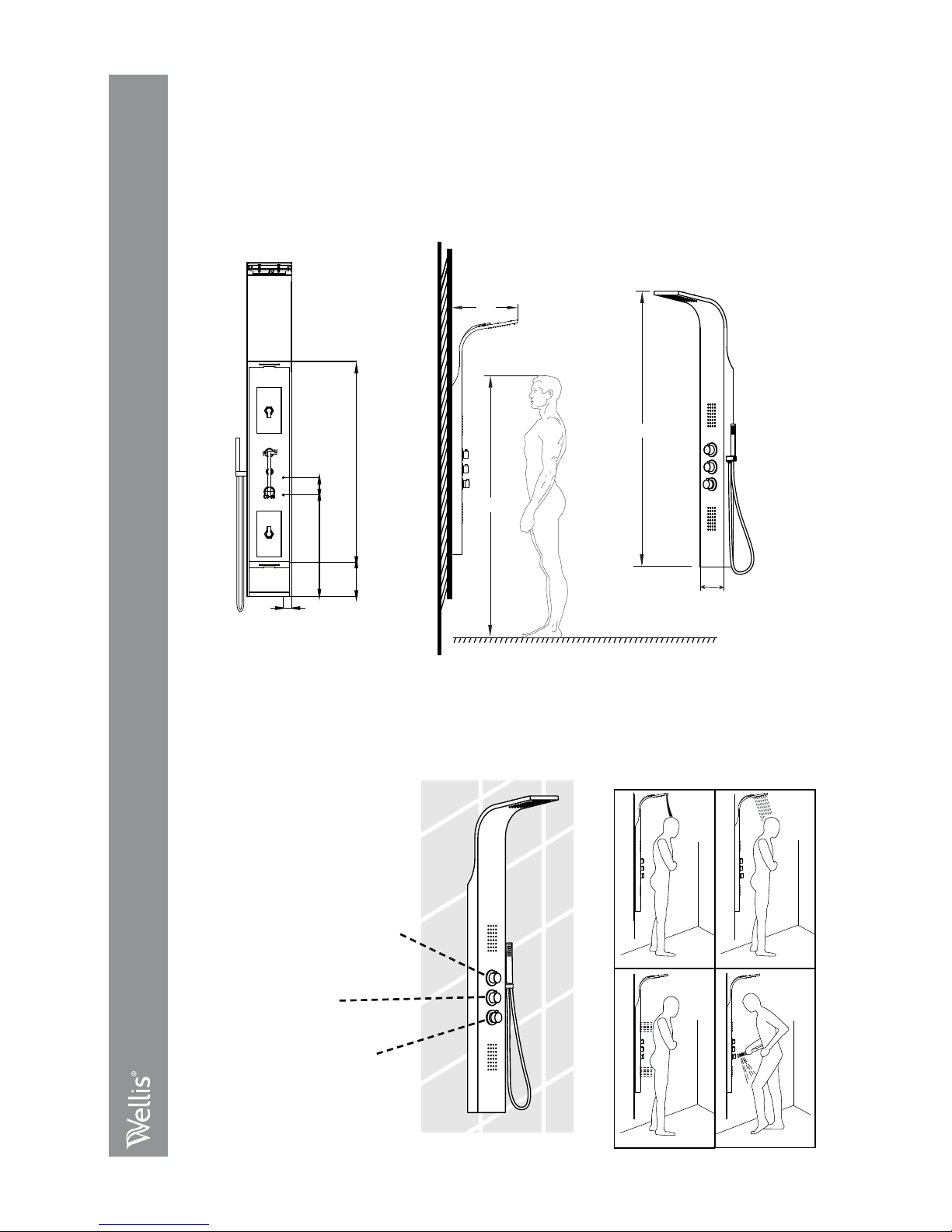

Dimensions
Choose a suitable place to install the shower panel, adjust the shower panel’s
vertical position based on the user’s height and your sanitary room. Usually,
install the panels at the distance of 210cm from the top to the ground, but you
can assemble according to your preference.
20cm
21cm 89cm
Select the shower function
Volume control
required by rotating the control knobs.
Temperature control
175cm
160cm
45cm
Note!
The height can be altered to suit individual requirements.
The dimensions are for reference only.
Dimensions
Choose a suitable place to install the shower panel, adjust the shower panel’s
vertical position based on the user’s height and your sanitary room. Usually,
install the panels at the distance of 210cm from the top to the ground, but you
can assemble according to your preference.
20cm
Select the shower function
Volume control
required by rotating the control knobs.
Temperature control
N o t e ! Before drilling any holes for fixing your shower panel ensure that
there are no hidden cables or pipework within the wall.
COLD
HOT

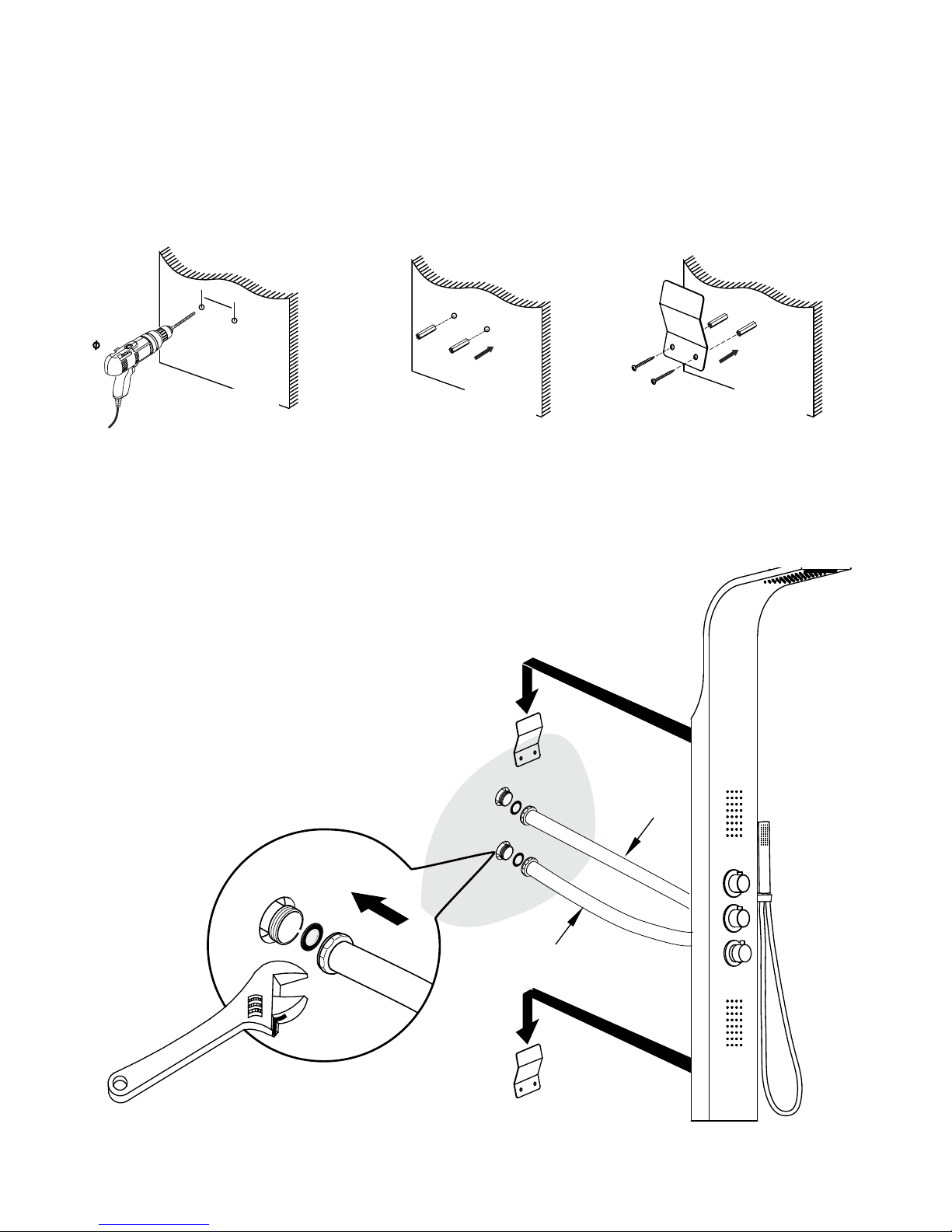

Wall-mounting
Insert the wall plugs inside
the holes Tighten the screws to the wall
with wall mounting brackets
Note!
The height can be altered to suit individual requirements.
The dimensions are for reference only.
123
wall
Drill the holes in the wall
Hang the shower panel on the mounting bracket
wall wall
6mm Drill
25mm
Dimensions
Choose a suitable place to install the shower panel, adjust the shower panel’s
vertical position based on the user’s height and your sanitary room. Usually,
install the panels at the distance of 210cm from the top to the ground, but you
can assemble according to your preference.
