Wenglor CP08MHT80 User manual

CP08MHT80 OCP801H0180
CP24MHT80 OCP162H0180
CP35MHT80 OCP352H0180
High-Performance Distance Sensor
Operating Instructions
EN
Translation of the Original Operating Instruction
Subject to change without notice
Available as PDF version only
Status: 24.03.2021
www.wenglor.com

2
Index
1. Proper Use 3
2. Safety Precautions 3
2.1. Safety Precautions 3
2.2. Laser/LED warning 3
2.3. Approvals and IP Protection 4
3. Technical Data 5
3.1. Complementary Products (see catalog) 7
3.2. Connection Diagram 7
3.3. Housing Dimensions 7
3.4. Control Panel 8
4. Installation Instructions 8
5. Initial Operation 8
6. Function 8
7. Adjustment 9
7.1. Manual Adjustments 9
7.2. Special Settings 12
7.3. Settings and Queries via the RS-232 interface 13
8. Maintenance Instructions 19
9. Proper Disposal 19
10. EU Declaration of Conformity 19

High-Performance Distance Sensor 3
1. Proper Use
High performance distance sensors which use the principle of angle measurement determine the distance be-
tween the sensor and the object. These sensors have small working ranges (under 1 m) and recognize objects
with high precision. Some sensors use a high-resolution CMOS line array and DSP signal processing. The color,
shape and texture of the objects to be recognized does not affect the sensors’ measurements. Even dark objects
can be reliably detected against a bright background. They can be operated with very high speeds or very high
resolutions. The measured value can be output as an analog value or via the interfaces. Furthermore, Teach-In,
filter functions for adjusting a switching output, and an error output are available. The measuring range can be
selected individually within the working range.
2. Safety Precautions
2.1. Safety Precautions
• This operating instruction is part of the product and must be kept during its entire service life.
• Read this operating instruction carefully before using the product.
• Installation, start-up and maintenance of this product has only to be carried out by trained personnel.
• Tampering with or modifying the product is not permissible.
• Protect the product against contamination during start-up.
• Not a safety component in accordance with the EU Machinery Directive.
2.2. Laser/LED warning
Class Laser 1 (EN 60825-1)
Observe all applicable standards and safety precautions.
Class Laser 2 (EN 60825-1)
Observe all applicable standards and safety precautions.
The enclosed laser warning labels must be attached and
visible at all time. Do not stare into beam.
CAUTION!
Observe all applicable standards and safety precau-
tions. The enclosed laser warning labels must be at-
tached and visible at all time. Do not stare into beam.
LASER CLASS 1
EN 60825-1:2014
EN60825-1: 2014
Pp< 1.0 mW, t< 2000 µs, λ= 620-690 nm
LASER
2
LASER RADIATION -
DO NOT STARE INTO BEAM
620 - 690 nm < 1mW
CLASS 2 LASER PRODUCT
CAUTION

Safety Precautions
4
2.3. Approvals and IP Protection
RoHS

High-Performance Distance Sensor 5
3. Technical Data
CP08MHT80 CP24MHT80 CP35MHT80
Optical Data
Working Range 30…80 mm 40...160 mm 50...350 mm
Measuring Range 50 mm 120 mm 300 mm
Resolution < 8 µm < 20 µm < 50 µm
Resolution (Speed-Mode) < 12 µm < 30 µm < 80 µm
Linearity 0,1 % 0,1 % 0,15 %
Linearity (Speed-Mode) 0,2 % 0,2 % 0,2 %
Light Source Laser (red) Laser (red) Laser (red)
Wave Length 660 nm 660 nm 660 nm
Laser Class 2 2 2
Service Life (25 °C) 100000 h 100000 h 100000 h
max. Ambient Light 10000 Lux 10000 Lux 10000 Lux
Electrical Data
Supply Voltage 18…30 V DC 18…30 V DC 18…30 V DC
Light Spot Size at begin working range 0,5×1 mm 0,5×1,2 mm 0,6×1,5 mm
Light Spot Size at end working range 1×2 mm 1×2,5 mm 1,5×4 mm
Current Consumption (Ub = 24 V) < 80 mA < 80 mA < 80 mA
Measuring rate 1500/s 1500/s 800/s
Response Time 660 µs 660 µs 1250 µs
Response Time (Resolution-Mode) 1660 µs 1660 µs 2500 µs
Temperature Drift < 5 µm/°C < 10 µm/°C < 25 µm/°C
Temperature Range –25...50 °C –25...50 °C –25...50 °C
Analog Output 0…10 V 0…10 V 0…10 V
Current Output Load Resistance < 1 mA < 1 mA < 1 mA
Analog Output 4…20 mA 4…20 mA 4…20 mA
Current Output Load Resistance < 500 Ohm < 500 Ohm < 500 Ohm
Voltagedrop PNP-Error Output < 2,5 V < 2,5 V < 2,5 V
Switching Current PNP-Error Output < 200 mA < 200 mA < 200 mA
Short-Circuit Protection yes yes yes
Reverse Polarity Protection yes yes yes
Interface RS-232 RS-232 RS-232
Baud Rate 38400 Bd 38400 Bd 38400 Bd
Protocol 8 N 1 8 N 1 8 N 1
Mechanical Data
Adjustment Teach-In Teach-In Teach-In
Housing Plastic Plastic Plastic
Protection Mode IP67 IP67 IP67
Connection M12×1 M12×1 M12×1
Protection Class III III III
FDA Accession Number 0820588-000 0820589-000 0820590-000
Reference material: Kodak white 90 % remission

Technical Data
6
OCP801H0180 OCP162H0180 OCP352H0180
Optical Data
Working Range 30…80 mm 40...160 mm 50...350 mm
Measuring Range 50 mm 120 mm 300 mm
Resolution < 8 µm < 20 µm < 50 µm
Resolution (Speed-Mode) < 12 µm < 30 µm < 80 µm
Linearity 0,1 % 0,1 % 0,15 %
Linearity (Speed-Mode) 0,2 % 0,2 % 0,2 %
Light Source Laser (red) Laser (red) Laser (red)
Wave Length 660 nm 660 nm 660 nm
Laser Class 1 1 1
Service Life (25 °C) 100000 h 100000 h 100000 h
max. Ambient Light 10000 Lux 10000 Lux 10000 Lux
Electrical Data
Supply Voltage 18…30 V DC 18…30 V DC 18…30 V DC
Light Spot Size at begin working range 0,5×1 mm 0,5×1,2 mm 0,6×1,5 mm
Light Spot Size at end working range 1×2 mm 1×2,5 mm 1,5×4 mm
Current Consumption (Ub = 24 V) < 80 mA < 80 mA < 80 mA
Measuring rate 1000/s 1000/s 500/s
Response Time 1000 µs 1000 µs 2000 µs
Response Time (Resolution-Mode) 2000 µs 2000 µs 4000 µs
Temperature Drift < 5 µm/°C < 10 µm/°C < 25 µm/°C
Temperature Range –25...50 °C –25...50 °C –25...50 °C
Analog Output 0…10 V 0…10 V 0…10 V
Current Output Load Resistance < 1 mA < 1 mA < 1 mA
Analog Output 4…20 mA 4…20 mA 4…20 mA
Current Output Load Resistance < 500 Ohm < 500 Ohm < 500 Ohm
Voltagedrop PNP-Error Output < 2,5 V < 2,5 V < 2,5 V
Switching Current PNP-Error Output < 200 mA < 200 mA < 200 mA
Short-Circuit Protection yes yes yes
Reverse Polarity Protection yes yes yes
Interface RS-232 RS-232 RS-232
Baud Rate 38400 Bd 38400 Bd 38400 Bd
Protocol 8 N 1 8 N 1 8 N 1
Mechanical Data
Adjustment Teach-In Teach-In Teach-In
Housing Plastic Plastic Plastic
Protection Mode IP67 IP67 IP67
Connection M12×1 M12×1 M12×1
Protection Class III III III
FDA Accession Number 1120734-000 1120717-000 1120723-000
Reference material: Kodak white 90 % remission

High-Performance Distance Sensor 7
3.1. Complementary Products (see catalog)
wenglor offers Connection Technology for field wiring.
Suiting Connection Technology No.
80
S01
Suiting Mounting Technology No.
380
Analog Evaluation Unit AW02
Feldbus Gateways ZAGxxxN01
Interface Cable S232W3
Protection Housing Set ZSP-NN-02
Protection Housing ZSV-0x-01
3.2. Connection Diagram
+ Supply Voltage +
V Contamination/Error output (NO)
RxD/La RS-232 Receive Line/Emitted light disengageable
TxD RS-232 Transmit Line
O Analogue output
O – Ground for the analogue output
– Supply Voltage 0 V
S Shielding
3.3. Housing Dimensions
= Transmitter Diode
= Receiver Diode
Screw M4 = 0,5 Nm
529

Installation Instructions
8

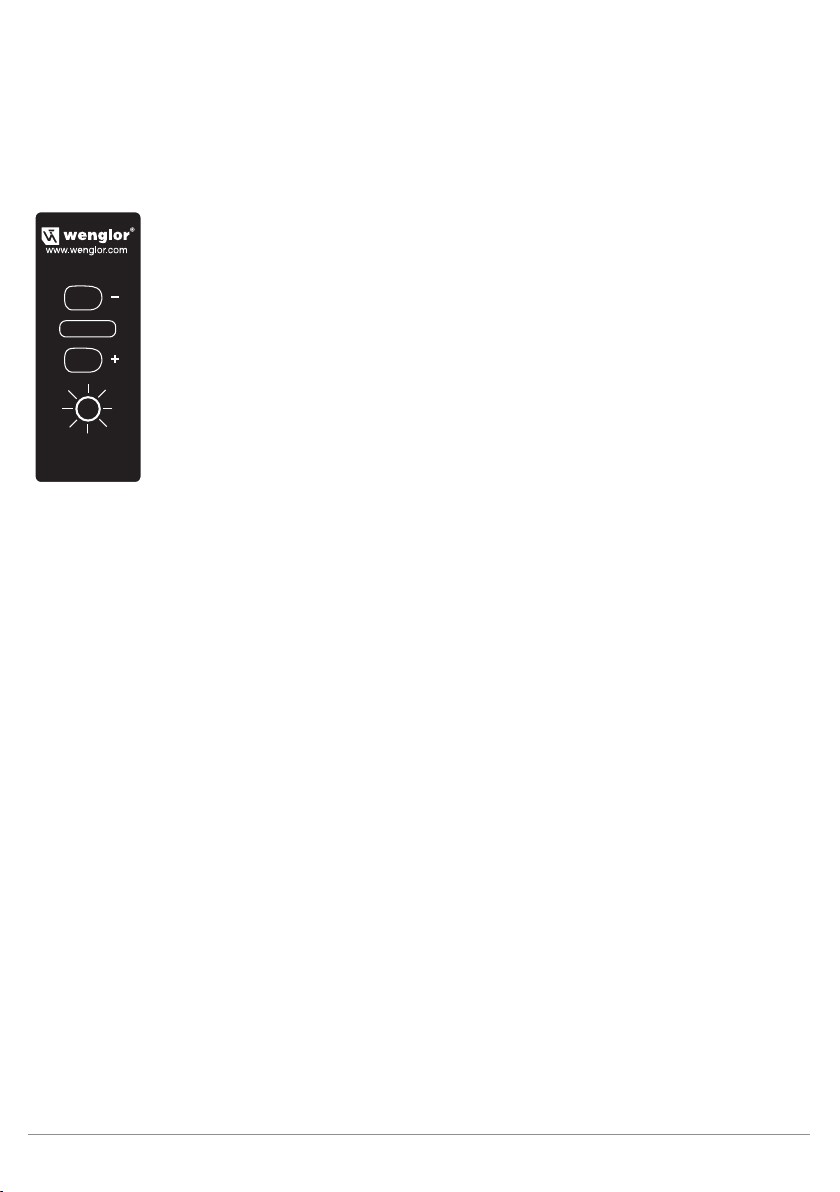

3.4. Control Panel
On the control panel you find the Plus key and the Minus key, several LEDs and the rotary selector switch.
The rotary selector switch is used for choosing the setting- and operation functions.
= Minus key (with LED)
= Plus key (with LED)
I-LED (yellow) = Current output
U-LED (yellow) = Voltage Output. Brightness is proportional to the output voltage
F-LED (rot) = Error Output
Ý= Rotary selector switch
RUN = Sensor operation
TEACH = Teach measurement range
FILTER ADJUST = Filter adjustment
DCM/SCM/LCM = Switching Default Capture Mode/Short Capture Mode/Long
Capture Mode
RES./SPEED-MODE = Switch Resolution/Speed
RxD/La Mode = Switching RS-232 Interface/Emitted Light can be switched off
U/I Mode = Switching 0…10 V/4…20 mA
RESET = Reset
4. Installation Instructions
During use of the sensors, applicable electrical and mechanical regulations, standards and safety precautions
must be adhered to. The sensor has to be protected against mechanical influences.
In case of very glossy surfaces the sensor has to be mounted slightly inclined and has to be mounted on a
plane surface (approx. 5°), to inhibit a direct reflection of the laser beam into the optics.
5. Initial Operation
Please control the proper connection of all conductors.
Impress a supply voltage of 18…30 V DC with ripple of < 10 % (within the indicated voltage range).
The settings can be operated either with the RS-232 interface or manually.
6. Function
The sensor uses a high-resolution CMOS line array and DSP technology, virtually eliminating material, color
and brightness related measurement value differences. Alternatively high speed (Speed-Mode) or high
resolution (Resolution-Mode) are adjustable. Integrated analogue output can be configured for voltage
0…10 V or current 4…20 mA, error output and RS-232 interface, Teach-In, Error Output and filter functions.
DCM
LCM
SCM
FILTER
ADJUST
TEACH
RUN
RESET
U/I MODE
RxD
La MODE
RES./SPEED MODE
I U F


High-Performance Distance Sensor 9
Outputs

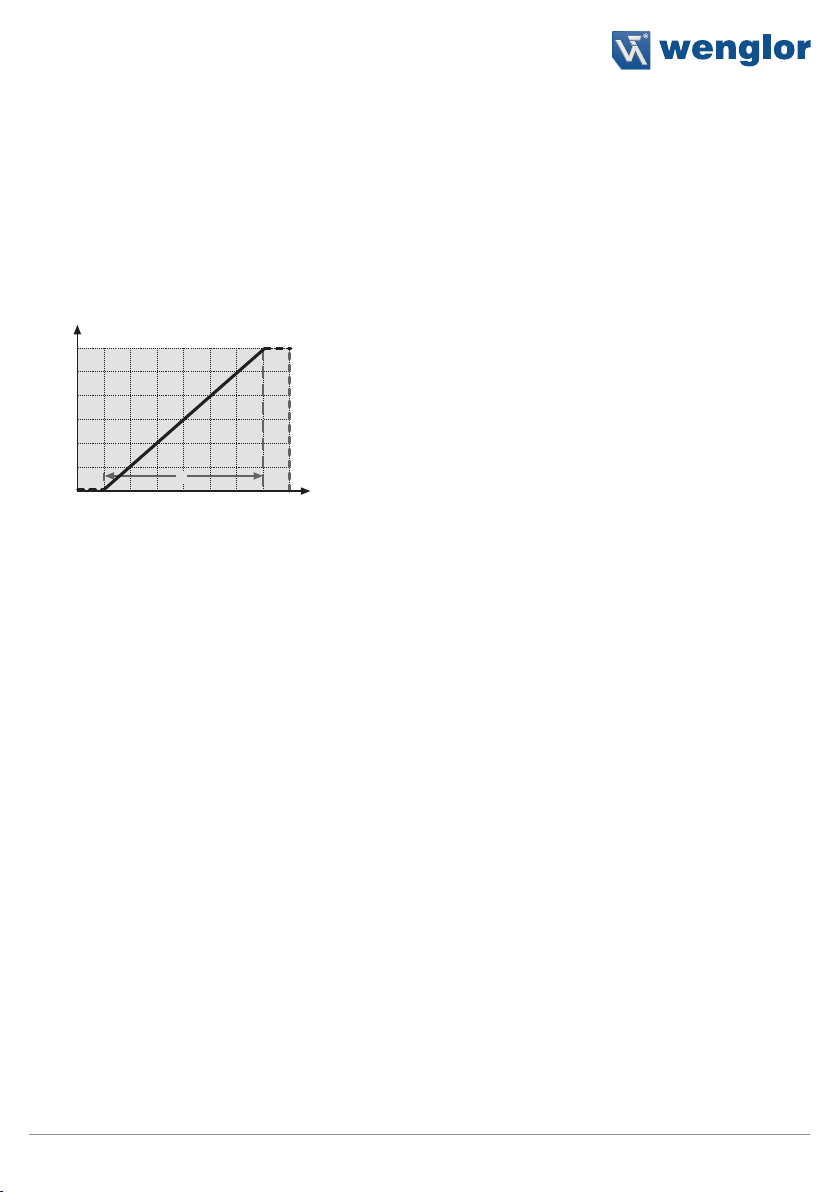

Analogue Output
The analogue output is connected to analogue earth. The analogue output can be configured as a current
output or a voltage output. If you have the choice we recommend the use of the voltage output (reduced cur-
rent consumption).
The analogue output reads out a standard signal of 0...10 V when configured as a voltage output (see settings).
The analogue output reads out a standard signal of 4...20 mA when configured as a current output (see settings).










Error Outputs
The PNP error output is switched to positive if no object is detected within the selected working range, or if an
error has occurred (e.g. an interrupted conductor at the current output). The red F LED lights up to indicate that
the error output has been activated.
RS-232 interface
This sensor is equipped with an RS-232 interface for communication with a device such as PC or a controller.
Sensor functions can be activated, and scanning results can be acquired via the RS-232 interface.
7. Adjustment
7.1. Manual Adjustments
Reset:
• Set the rotary selector switch Ýto RESET
• Briefly press the minus-key or the plus-key 
èred F-LED lights up
èDelivery status restored (RES. MODE, rising characteristic function, full measuring range, filter func-
tion off.) The adjusted transmission speed (Baud rate) and the setting Current or Voltage Output is not
changed by the RESET.
• Set the rotary selector switch Ýto RUN

Adjustment
10
Set Input
The Input can be used as RS-232 Receive Line (RxD), Emitted Light can be switched off at 24 V (La) or Emitted
Light can be switched off at 0 V (La) .
• Rotary Selector Switch Ýto RxD/La Mode
èThe U-LED and I-LED indicate the current configuration. RxD is preset in the delivery status. By pressing
the Plus or the Minus key, the configuration can be changed.
RxD U-LED: OFF
I-LED: OFF
*
RxD U-LED: OFF
I-LED: OFF

La U-LED: ON
I-LED: OFF
U-LED: OFF
I-LED: ON
La





* Presetting
= Minus Button / LED
= Plus Button / LED
RxD = RS-232 Receive Line
La = Emitted Light can be switched off at 24 V
La = Emitted Light can be switched off at 0 V
• Set the rotary selector switch Ýto RUN
Adjustment of the Output
Configuring the analogue output as a voltage output:
• Set the rotary selector switch Ýto U / I MODE
èThe red F-LED lights up
èIf the yellow U-LED lights up: Analogue output presently set to 0...10 V
èIf the yellow I-LED lights up: Analogue output presently set to 4...20 mA
• Briefly press the plus-key 
èThe Yellow U-LED lights up: Analogue output reconfigured to 0...10 V (voltage output)
• Set the rotary selector switch Ýto RUN
Configuring the analogue output as a current output:
• Set the rotary selector switch Ýto U / I MODE
èThe red F-LED lights up
èIf the yellow U-LED lights up: Analogue output presently set to 0...10 V
èIf the yellow I-LED lights up: Analogue output presently set to 4...20 mA
• Briefly press the minus-key 
èThe yellow I-LED lights up: Analogue output reconfigured to 4...20 mA (current output)
• Set the rotary selector switch Ýto RUN
Operate the sensor with high resolution (Resolution-Mode)
• Set the rotary selector switch Ýto RES. / SPEED-MODE
èThe red F-LED lights up
èThe yellow U-LED lights up: Sensor presently set to high speed
èThe yellow I-LED lights up: Sensor presently set to high Resolution
• Briefly press the minus-key 
The yellow I-LED lights up: Sensor now operates with high resolution.
• Set the rotary selector switch Ýto RUN

High-Performance Distance Sensor 11
Operate the sensor with high speed (Speed-Mode)
• Set the rotary selector switch Ýto RES. / SPEED-MODE
èThe red F-LED lights up
èThe yellow U-LED lights up: Sensor presently set to high speed
èThe yellow I-LED lights up: Sensor presently set to high Resolution
• Briefly press the plus-key 
The yellow U-LED lights up: Sensor now operates with high speed.
• Set the rotary selector switch Ýto RUN
Adjustment of Measuring Range
You can either adjust the zero point (begin of working range) of the rising characteristic function (vide point A) or
you can set the Measuring Range individually by means of the zoom function (vide points B and C). The zoom
function is possible for rising and falling characteristic functions. You can restore the the full Measuring Range
with Reset.
A) Adjust zero point of the Measuring Range:
• Set the rotary selector switch Ýto TEACH
• Press and holt the minus-key until the yellow LEDs blink
èyellow LEDs blink
èCharacteristic curve is now rising with slope over the full measuring range and the selected zero point
• Set the rotary selector switch Ýto RUN
B) Setting the measuring range for a rising characteristic function (Zoom function):
• Set the rotary selector switch Ýto TEACH
èred F-LED lights up
• Place the object at the most distant point of the desired working range
• Briefly press the plus-key 
èyellow I-LED lights up
• Place the object at the nearest point of the desired working range
• Briefly press the minus-key 
èyellow LEDs light up: The two points have now been taught in
èyellow LEDs do not light up: Teach-In must be repeated because the two points are too close to each
other, or they are outside of the measuring range
• Set the rotary selector switch Ýto RUN
C) Setting the measuring range for a falling characteristic function (Zoom function):
• Set the rotary selector switch Ýto TEACH
èred F-LED lights up
• Place the object at the most distant point of the desired working range
• Briefly press the minus-key 
èyellow U-LED lights up
• Place the object at the nearest point of the desired working range
• Briefly press the plus-key 
èyellow LEDs light up: The two points have now been taught in
èyellow LEDs do not light up: Teach-In must be repeated because the two points are too close to each
other, or they are outside of the measuring range
• Set the rotary selector switch Ýto RUN

Adjustment
12
7.2. Special Settings
Adjusting the filter function:
• Set the rotary selector switch Ýto FILTER ADJUST
èThe red F-LED lights up
èThe yellow LEDs are off: Filter function is presently disabled
èYellow LEDs blink once followed by a pause: filter currently set to level 1 (1/4 cut-off frequency)
èYellow LEDs blink twice followed by a pause: filter currently set to level 2 (1/16 cut-off frequency)
èYellow LEDs blink three times followed by a pause: filter currently set to level 3 (1/64 cut-off frequency)
• Briefly press the minus-key 1 to 3 times
èThe filter level is reduced by one each time the key is pressed
èThe blinking pattern of the yellow LEDs indicates the newly selected filter level
• Briefly press the plus-key 1 to 3 times
èThe filter level is increased by one each time the key is pressed
èThe blinking pattern of the yellow LEDs indicates the newly selected filter level
• Set the rotary selector switch Ýto RUN
Via the interface other filter levels are adjustable.
Optimize the exposure time
The exposure time is adapted automatically by the sensor. In the presetted DCM (Default Capture Mode) the
Sensor has a fixed maximal possible Exposure Time. It can be adjusted manually in addition in case of difficult
applications.
By means of the LCM (Long Capture Mode) the Exposure Time of the sensor can be elongated for dark or
highly glossy objects (e.g. black lack) in order to achieve a more exact measurement.
By means of the SCM (Short Capture Mode) the Exposure Time of the sensor can be reduced for dark or highly
glossy objects (e.g. black lack) in order to achieve a reduction of the drop down of the Measurement Rate.
The shining of the U-LED and the I-LED the current setting is indicated. DCM is preset in delivery status. By
pressing of the Plus respectively Minus key the current setting can be changed.
• Set the rotary selector switch Ýto DCM/LCM/SCM
DCM U-LED: OFF
I-LED: OFF
*
DCM U-LED: OFF
I-LED: OFF

LCM U-LED: ON
I-LED: OFF
U-LED: OFF
I-LED: ON
SCM





* Presetting
= Minus Button/ LED
= Plus Button / LED
DCM = Default Capture Mode
SCM = Short Capture Mode
LCM = Long Capture Mode
• Set the rotary selector switch Ýto RUN

High-Performance Distance Sensor 13
7.3. Settings and Queries via the RS-232 interface
The interface utilises a software handshake procedure (see protocol specification below). All sensor settings
can be selected digitally with a PC, and all values generated by the sensor can be read out at a PC.
The RS-232 interface connections RxD (connection 5, grey) and TxD (connection 4, yellow) correspond to mi-
nus (connection 3, green) and can be connected to the appropriate connections of the communication partner.
Software Tools:
Software for the interface of the CP08 is available. Download address: www.wenglor.com
Interface configuration:
Baud rate: 38.400 baud, 8 data bits, no parity, 1 stop bit
Plug connectors of the wenglor®Plug Adapter S232W3:
• 8-pin M12 plug connector for connecting the power supply and the outputs
• 8-pin M12 socket connector for direct sensor connection
• 9-pin M12 sub-miniature socket connector for direct connection to the RS-232 interface at the PC, or the
utilised controller
1) Connect the sensor over the wenglor®Plug Adapter S232W3 with PC, controller etc.
Installing the wenglor®Plug Adapter S232W3:
• Set the rotary selector switch Ýto RUN
• Disconnect the 8-conductor connector cable (S80-xx) from the sensor
• Connect the S232W3 plug adapter directly to the sensor
• Connect the 8-conductor connector cable (S80-xx) to the plug adapter
• Connect the 9-pin sub-miniature socket connector to the serial interface at the PC
• Switch the power supply on
Sensor Power Supply
Outputs
S232W3
PC, Controller
RS-232
Connecting the wenglor®sensor
to a PC or a controller
2) Procedure of the interface operation:
• Set the rotary selector switch Ýto RUN
• To enter or query the sensor settings use the interface commands according to the protocol. Every interface
command and every answer of the sensor starts with “/” (ASCII 47) and ends with “.”. (ASCII 46) In case of
an incorrect communication, the sensor emits a Negative Acknowledge character (ASCII 21). If a command
is not closed with “.”, the sensor remains in wait state and does not give an answer or error message.
• Even with continuous query it should be adhered to a pause of 10 ms between two interface commands.
• Because of the protocol a maximum of 100 measurement values per second can be emitted. In the case
of faster applications use the analog output.

Adjustment
14
Protocol for Communications via the RS-232 Interface
Frame Layout for Data Transmission
Transmitting Partner Characters (ASCII) Receiving Partner Frame Segment
Start character / (ASCII 47) => Connect Frame header
Length information 2 Byte => Connect Frame header
Command bytes 2 Byte => Frame header
1st data byte 2 Byte => Data information User data
2nd data byte 2 Byte => User data
.. .. => Data information User data
nth Data byte .. => Data information User data
Checksum (BCC) 2 Byte => Frame end
Stop bit . (ASCII 46) => Disconnected Frame end
Calculating the Checksum BCC (Block Check Character)
The Checksum is generated from an EXOR frame operation.
Start Character Length Command Data Checksum Stop character
/ 02 0D 00 59 .
2FH 30H 32H 30H 44H 30H 30H 35H 39H 2EH
Data used to calculate the checksum
Calculating Example: Program Example:
/ 2FH = 0010 1111
0 30H = 0011 0000
XOR = 0001 1111
2 32H = 0011 0010
XOR = 0010 1101
0 30H = 0011 0000
XOR = 0001 1101
D 44H = 0100 0100
XOR = 0101 1001
0 30H = 0011 0000
XOR = 0110 1001
0 30H = 0011 0000
XOR = 0101 1001 => Checksum = 59H
Start
Transmitting Frame = “/020D0059.” (Example)
Transmitting Frame Length=10 (in this example);
checksum = 0; n = 1;
as long as: n < (Transmitting Frame Lenght - 3)
Checksum = Checksum EXOR Transmitting
Frame charakter (n)
n = n +1
End

High-Performance Distance Sensor 15
Adjustments about RS-232 Interface
In the following commands is: x = place holder for entered and emitted values
qq = place holder for the Checksum
Sensor Settings
Reset
Function Send Frame to the
Sensor
Response Frame from
the Sensor
Reset /000R4D. /030R0127D.
Configure Output
Function Send Frame to the
Sensor
Response Frame from
the Sensor
Configure as voltage output (0...10 V) /020Q004C. /030MQ0000.
Configure as current output (4 mA...20 mA) /020Q014D. /030MQ0101.
Choose Resolution/Speed-Mode
Function Send Frame to the
Sensor
Response Frame from
the Sensor
Operate sensor with high speed (Speed-Mode) /020er13B. /030Mer177.
Operate sensor with high resolution (Resolution-Mode) /020er238. /030Mer274.
Adjustment Measuring range
Function Send Frame to the
Sensor
Response Frame from
the Sensor
Teach-In zero point (0 V, 4 mA) /020T0049. /030MT00qq.
Function Send Frame to the
Sensor
Response Frame from
the Sensor
Teach-In measuring range initial point (10 V, 20 mA) /020T0148. /030MTx1qq.
x = 0: Teach-In measuring range: both points acquired
x = 1: Teach-In measuring range: one point still required

Adjustment
16
Function Send Frame to the
Sensor
Response Frame from
the Sensor
Teach-In measuring range initial point (0 V, 4 mA) /020T024B. /030MTx2qq.
x = 0: Teach-In measuring range: both points acquired
x = 1: Teach-In measuring range: one point still required
Function Send Frame to the
Sensor
Response Frame from
the Sensor
Set zero point (0 V, 4 mA) /060pzxxxxxqq. /070Mpzxxxxxqq.
xxxxx: zero point distance based on working range start in 1/100 mm
Function Send Frame to the
Sensor
Response Frame from
the Sensor
Set measuring range initial point (0 V, 4 mA) /060pbxxxxxqq. /070Mpbxxxxxqq.
xxxxx: initial point 1/100 mm
Function Send Frame to the
Sensor
Response Frame from
the Sensor
Set measuring range end point (10 V, 20 mA) /060pexxxxxqq. /070Mpexxxxxqq.
xxxxx: end point 1/100 mm
Special Settings
Set filter function
Function Send Frame to the
Sensor
Response Frame from
the Sensor
Set filter /030FSxxqq. /030MFxxqq.
xx: Number of measurement values for average calculation
xx = 00: no filter
Optimize the exposure time
Function Send Frame to the
Sensor
Response Frame from
the Sensor
Set DCM-Mode /020eCD7F. /030MeCD33.
Set LCM-Mode /020eCL77. /030MeCL3B.
Set SCM-Mode /020eCS68. /030MeCS24.
Switch Laser Light ON/OFF
Function Send Frame to the
Sensor
Response Frame from
the Sensor
Activate Laser Light /020L0150. /020L0150.
Deactivate Laser Light /020L0051. /020L0051.

High-Performance Distance Sensor 17
Set Delay Time of Contamination Output
Function Send Frame to the
Sensor
Response Frame from
the Sensor
Set Delay Time of Contamination Output /030fgxxqq. /030fgxxqq.
xx = 00...99 for 1 to 99 measurements until the Error Output reacts in case of errors. The default value is 20.
Attention: The duration of cycles of the number of measurements depends on the exposure time, but the delay
time cannot be allocated.
Change baud rate
The baud rate of the sensor is standardized with 38400 baud. If you want to change the baud rate, proceed as
follows.
Open your hyper terminal and take the following settings: Baud rate: 38400, Data bit: 8, Stop bit: 1, Parity: none,
Flow control: none.
In order to change the baud rate, enter the following commands corresponding your desired baud rate.
Function Send Frame to the
Sensor
Response Frame from
the Sensor
Baud rate to 9600 baud /030?BR201. /030Ade2qq.
Baud rate to 19200 baud /030?BR300. /030Ade3qq.
Baud rate to 38400 baud /030?BR407. /030Ade4qq.
Baud rate to 57600 baud /030?BR506. /030Ade5qq.
Baud rate to 115200 baud /030?BR605. /030Ade6qq.
The new baud rate is activated after the supply voltage is applied anew.
Query Sensor values
Function Send Frame to the
Sensor
Response Frame from
the Sensor
Single Emission of object distance values /020D0059. /0B0D00+xxxxxxumqq.
xxxxxx: Distance value in µm
Function Send Frame to the
Sensor
Response Frame from
the Sensor
Activate Permanent Emisson of object distance values /020D0p19. /040D0P:134.
Emission format like Single Emission.
Function Send Frame to the
Sensor
Response Frame from
the Sensor
Deactivate Permanent Emission of object distance
values
/020D0a08. /040D0P:035.

Adjustment
18
Function Send Frame to the
Sensor
Response Frame from
the Sensor
Query sensor status for Output, Teach Mode,
Filter level and Error status
/000W48. /050Wgtffeqq.
g = 0: output status for voltage output
g = 1: output status for current output
t = 0: teach mode zero point
t = 1: teach mode measuring range: one point still required
t = 2: teach mode measuring range: both points still acquired
ff = 0: Filter adjustment
e = 0: error status: no errors
e > 0: error status: error
Function Send Frame to the
Sensor
Response Frame from
the Sensor
Query taught in values for initial point, if Teach Mode =
measuring range
/020Wb31B. /090Wbxxxxxxumqq.
xxxxxx: Saved position for 0 V resp. 4 mA in µm
Function Send Frame to the
Sensor
Response Frame from
the Sensor
Query taught in values for end point, if Teach Mode =
measuring range
/020We31C. /090Wexxxxxxumqq.
xxxxxx: Saved position for 10 V resp. 20 mA in µm
Function Send Frame to the
Sensor
Response Frame from
the Sensor
Query taught in values for zero point, if Teach Mode =
zero point
/020Wn317. /090Wnxxxxxxumqq.
xxxxxx: Saved position for 0 V resp. 4 mA in µm
Function Send Frame to the
Sensor
Response Frame from
the Sensor
Query Sensor status Resolution/Speed-Mode /020Wrc5B. /030Wrcxqq.
x = 1: Speed-Mode activated
x = 2: Resolution-Mode activated
Function Send Frame to the
Sensor
Response Frame from
the Sensor
Query number measurement values for continuous
average filter
/020WF33F /040WF0xxqq.
xx: Number of measurement values for Average Calculation

High-Performance Distance Sensor 19
Function Send Frame to the
Sensor
Response Frame from
the Sensor
Query Sensor Version /000V49. /070V8a:bbccqq.
a: software version. a = 3
bb: sensor group (2 characters) z. B. bb = 0D
cc: sensor type (2 characters) z. B. cc = 01
Special queries
Query object distance binary
Differing from the usual query of sensor values via the protocol it is also possible to query the object distance
faster through binary data.
Send a “#” sign to the sensor, then the currentjy measured distance value is emitted in a binary form.
Function Send Frame to the
Sensor
Response Frame from
the Sensor
Emit object distance in binary form (Output value in
1/100 mm)
# #, 16 bit binary value,
e.g. #©J (means 7,69 mm
object distance)
8. Maintenance Instructions
• This wenglor sensor is maintenance-free.
• It is advisable to clean the lens and the display, and to check the plug connections at regular intervals.
• Do not clean with solvents or cleansers which could damage the device.
9. Proper Disposal
wenglor sensoric gmbh does not accept the return of unusable or irreparable products. Respectively valid
national waste disposal regulations apply to product disposal.
10. EU Declaration of Conformity
The EU declaration of conformity can be found on our website at www.wenglor.com in download area.
