Western Digital Ultrastar Serv60 Plus 8 H4060-S User manual

Installation
Guide
Ultrastar Serv60+8
Regulatory Model H4060-S
Document D018-000252-000
Revision 01
September 2021

Installation Guide Table of Contents
Table of Contents
Revision History.....................................................................................................................................iii
Notices....................................................................................................................................................v
Points of Contact..................................................................................................................................vi
Product Label Information............................................................................................................. vi
Chapter 1. Overview.........................................................................................................1
Ultrastar Serv60+8 Description........................................................................................................... 2
Ultrastar Serv60+8 Layout................................................................................................................... 3
Environmental Specifications.............................................................................................................. 5
Electrical Specifications.......................................................................................................................5
Mechanical Specifications....................................................................................................................6
Performance Specifications................................................................................................................. 6
Ultrastar Serv60+8 Rack Requirements.............................................................................................. 7
Compatible Rack Hardware Configuration.................................................................................8
List of Compatible Drives.................................................................................................................. 10
Chapter 2. Disclaimers.................................................................................................. 30
Restricted Access Location............................................................................................................... 31
Safety Compliance..............................................................................................................................31
Electromagnetic Compatibility (EMC) Class A Compliance............................................................ 31
Country Certifications........................................................................................................................ 32
Chapter 3. Safety........................................................................................................... 33
Safety Warnings and Cautions..........................................................................................................34
Electrostatic Discharge...................................................................................................................... 34
Optimizing Location...........................................................................................................................34
Power Connections............................................................................................................................35
Power Cords.......................................................................................................................................35
Rackmountable Systems....................................................................................................................35
i

Installation Guide Table of Contents
Safety and Service............................................................................................................................. 36
Chapter 4. Packaging.................................................................................................... 37
Ultrastar Serv60+8 Packaging Overview.......................................................................................... 38
Ultrastar Serv60+8 Unpacking Procedure.........................................................................................41
Chapter 5. Installation...................................................................................................44
Installation Overview..........................................................................................................................45
Rails Installation.................................................................................................................................. 46
Chassis Installation............................................................................................................................. 57
CMA Installation..................................................................................................................................60
Cable Installation................................................................................................................................62
Cabling for CMA Standard and CMA Lite.................................................................................65
Top Cover Installation and Extension Test.......................................................................................66
Drive Installation................................................................................................................................. 68
Operating the 2.5" Drive Carrier................................................................................................ 71
Shipping Screws Installation..............................................................................................................73
Enclosure Power On...........................................................................................................................74
ii

Installation Guide Revision History
Revision History
Date Revision Comment
June 2018 1.0 Initial release
August 2018 1.1 Updated the following sections:
•List of Customer Replaceable Units (CRUs) (topic removed)
December 2018 1.2 Updated the following section:
•List of Compatible Drives (page 10)
March 2019 1.3 Updated the following sections:
•Installation (page 44)
July 2019 1.4 •Updated servicing image to correct length values and rail servicing
extension in Ultrastar Serv60+8 Rack Requirements (page 7)
section.
•Updated the Installation Overview (page 45) section to include
cable management options.
•Updated Installation (page 44) section to combine instructions
for CMA Standard and CMA Lite where applicable.
•Updated Cable Configuration for CMA Lite (page 66) section.
•Updated revision history to remove broken links to topics no longer
in this document.
November 2019 1.5 Updated images of chassis cover screws throughout
December 2019 1.6 Rebranded document to WD design
April 2020 1.7 •Replaced references to He12 drives with Ultrastrar DC HC520 in List
of Compatible Drives (page 10)
•Updated images of chassis cover screws throughout
•Updated drive installation order in the Installation (page 44)
•Added note about minimum time between removing and
reapplying power in Power Connections (page 35)
December 2020 1.8 Added UK Import Representation Contact
April 2021 1.9 •Added Ultrastar DC HC650 drives to List of Compatible Drives
(page 10)
•Updated Installation (page 44) to include instructions for screw
plate
•Removed Mexico from Country Certifications (page 32)
August 2021 1.10 •Added table of enclosure LED behaviors during initial power-up to
Installation (page 44)
iii

Installation Guide Revision History
Date Revision Comment
•Separated installation procedure into individual tasks by component
in Installation (page 44)
September 2021 01 Changed document number from 1ET1114 to D018-000252-000
iv

Installation Guide Notices
Notices
Western Digital Technologies, Inc. or its affiliates' (collectively “Western Digital”) general policy does not
recommend the use of its products in life support applications wherein a failure or malfunction of the product
may directly threaten life or injury. Per Western Digital Terms and Conditions of Sale, the user of Western
Digital products in life support applications assumes all risk of such use and indemnifies Western Digital
against all damages.
This document is for information use only and is subject to change without prior notice. Western Digital
assumes no responsibility for any errors that may appear in this document, nor for incidental or consequential
damages resulting from the furnishing, performance or use of this material.
Absent a written agreement signed by Western Digital or its authorized representative to the contrary,
Western Digital explicitly disclaims any express and implied warranties and indemnities of any kind that may,
or could, be associated with this document and related material, and any user of this document or related
material agrees to such disclaimer as a precondition to receipt and usage hereof.
Each user of this document or any product referred to herein expressly waives all guaranties and warranties
of any kind associated with this document any related materials or such product, whether expressed or
implied, including without limitation, any implied warranty of merchantability or fitness for a particular
purpose or non-infringement. Each user of this document or any product referred to herein also expressly
agrees Western Digital shall not be liable for any incidental, punitive, indirect, special, or consequential
damages, including without limitation physical injury or death, property damage, lost data, loss of profits or
costs of procurement of substitute goods, technology, or services, arising out of or related to this document,
any related materials or any product referred to herein, regardless of whether such damages are based on
tort, warranty, contract, or any other legal theory, even if advised of the possibility of such damages.
This document and its contents, including diagrams, schematics, methodology, work product, and
intellectual property rights described in, associated with, or implied by this document, are the sole and
exclusive property of Western Digital. No intellectual property license, express or implied, is granted by
Western Digital associated with the document recipient's receipt, access and/or use of this document or the
products referred to herein; Western Digital retains all rights hereto.
Western Digital, the Western Digital logo, and Ultrastar are registered trademarks or trademarks of Western
Digital Corporation or its affiliates in the US and/or other countries. All other marks are the property of their
respective owners. Product specifications subject to change without notice. Pictures shown may vary from
actual products. Not all products are available in all regions of the world.
Western Digital
5601 Great Oaks Parkway
San Jose, CA 95119
© 2021 Western Digital Corporation or its affiliates. All Rights Reserved.
v

Installation Guide Points of Contact
Points of Contact
For further assistance with a Western Digital product, contact Western Digital Datacenter Platforms technical
support. Please be prepared to provide the following information: part number (P/N), serial number (S/N),
product name and/or model number, and a brief description of the issue.
Email:
[e-mail]
Website:
https://portal.wdc.com/Support/s/
UK Import Representation Contact
Western Digital UK Limited Hamilton House, Regent Park, Kingston Road Leatherhead, Surrey KT22 7PL, GB,
United Kingdom
Telephone: [phone]
1.1 Product Label Information
The following product information is required for technical support requests:
•Part Number (P/N)
•Serial Number (S/N)
•Product Name and/or Model Number (MODEL)
This information may be found on the product label, which is affixed to an exterior, non-removable surface of
the chassis. The following is an example label with the applicable information fields highlighted:
vi

Western Digital
Overview
This section provides a high level overview of the features of the
Ultrastar Serv60+8 .
In This Chapter:
- Ultrastar Serv60+8 Description.....................2
- Ultrastar Serv60+8 Layout.............................3
- Environmental Specifications........................5
- Electrical Specifications................................ 5
- Mechanical Specifications............................. 6
- Performance Specifications...........................6
- Ultrastar Serv60+8 Rack Requirements........7
- List of Compatible Drives............................ 10
1

Installation Guide 1. Overview
1.1 Ultrastar Serv60+8 Description
1.1 Ultrastar Serv60+8 Description

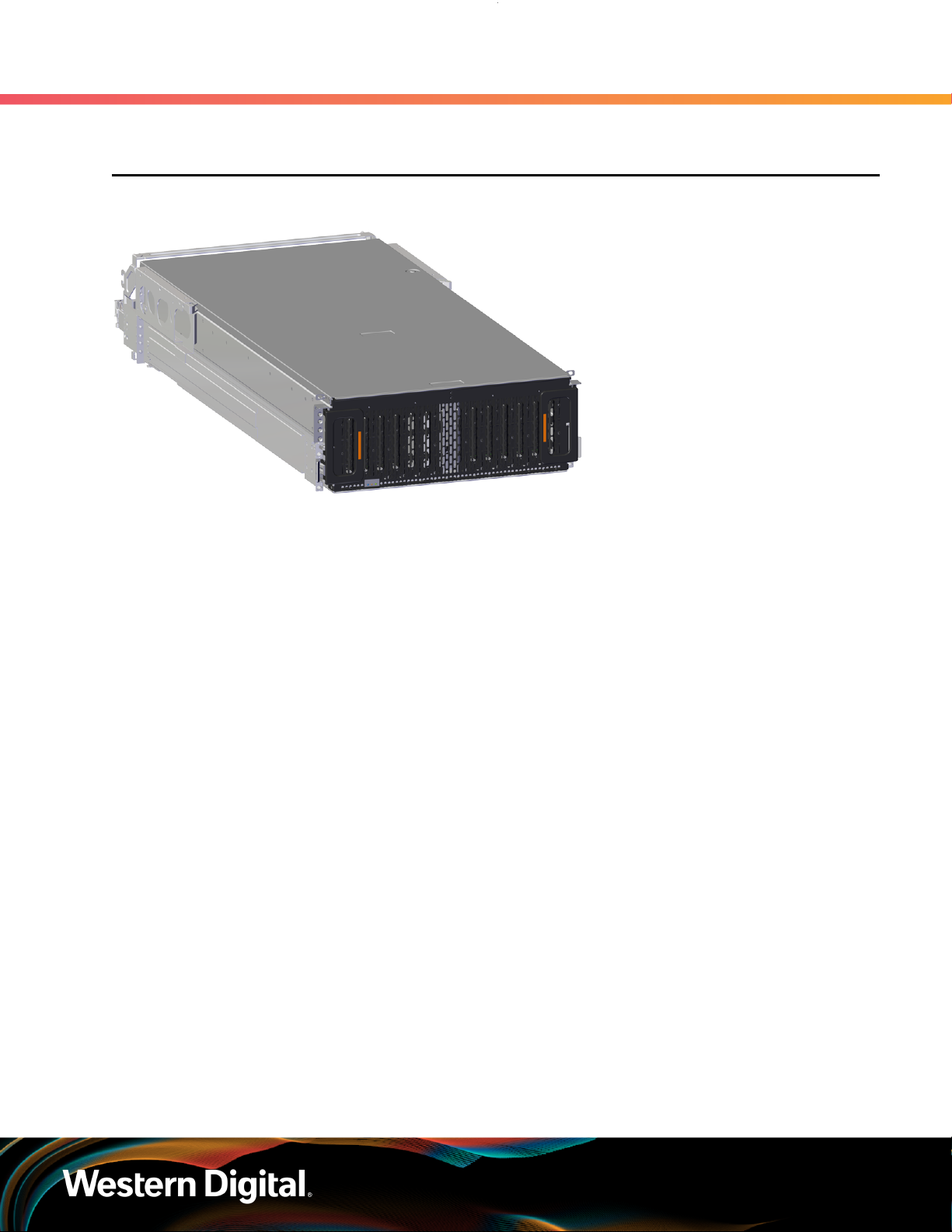

Figure 2: Ultrastar Serv60+8
The Ultrastar Serv60+8 is a 4U form factor, high density, rack-mounted storage enclosure that is capable of
hosting up to 60 HDD SAS or SATA drives. The maximum data storage capacity of the Ultrastar Serv60+8
is 901TB using 14TB Ultrastar® HC530 drives plus an additional 61.44TB using Ultrastar® SS300 SSDs in the
system SSD slots. (For a full list of compatible drives and total storage capacities, see the List of Compatible
Drives (page 10).) The Ultrastar Serv60+8 also integrates an Intel Skylake or Cascade Lake based
server front end. The server is built around an Intel Sawtooth Pass S2600ST motherboard and supports
2 LGA3647-0 (Socket P) processor sockets CPUs, 16 (8 per CPU) slots of DDR4 ECC DIMM memory, and
leverages an AST2500 BMC for out-of-band management of the server subsystem. The enclosure runs on
an input voltage of 200 - 240 VAC and consumes ~1800W of power under typical conditions. It requires a
maximum of ~2000W at full load.
The system contains three externally facing Half-Height, Half-Length (HHHL) PCIe x16 slots, and 3 externally
facing HHHL PCIe x8 slots.
It is designed to fit within a 4U rack space and requires 1200 mm (47.24in.) of usable rack space, frame to
frame. A fully loaded system will add 95.25 kg / 210 lbs. of static load when fully loaded with drives.
•4U Storage Server
•Supports up to 60 HDD Drives
•Can support 3.5” drives and 2.5” SSD drives (2.5" requires an adapter) in the 60 available drive bays.
Supports an additional 8 2.5" drives in the system SSD slots located in the center channel
•Up to 12W per drive slot for the 60 HDD data storage drives (Cannot exceed 85A on the 5V rail) and
25W per slot for the 8 system SSD slots
•House and control six (6) N+1 redundant 80mm fans
•Supports High Line (220-240 VAC) Input Power
•Powered by two (2) redundant 2000W PSUs (High Line only)
•Toolless replacement of all Customer Replaceable Units (CRUs)
•Fits within a standard EIA-310 rack including all necessary cable management (see Compatible Rack
Hardware Configuration (page 8))
•Dual Skylake LGA3647 Socket Processors
•16 DDR4 ECC DIMM slots
2

Installation Guide 1. Overview
1.2 Ultrastar Serv60+8 Layout
•ASPEED AST2500 BMC
•Lewisburg PCH C624 Chipset
1.2 Ultrastar Serv60+8 Layout
Figure 3: Front and Rear Product Layout
Table 1: Front and Rear Component Identification
Number Component
1 Enclosure Handles
2 CMA
3 PSUs (Delta PSUs shown)
4 Rear IO Ports
5 Chassis Cover
6 Rails (includes rear cover alignment brackets)
The following is an image of the layout of the major system components inside the Ultrastar Serv60+8 .
3

Installation Guide 1. Overview
1.2 Ultrastar Serv60+8 Layout

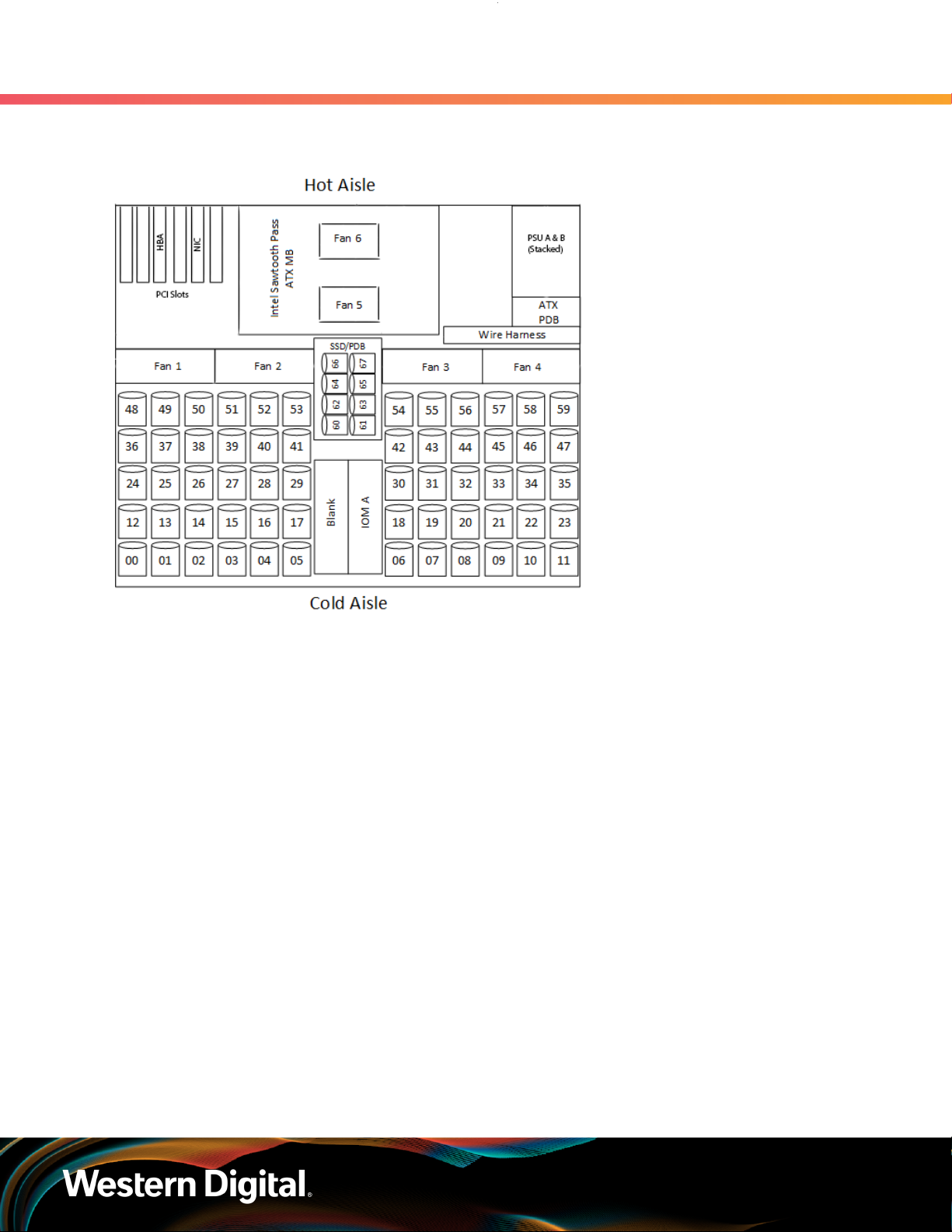

Figure 4: Component Layout
4

Installation Guide 1. Overview
1.3 Environmental Specifications
Figure 5: Rear IO Ports
1.3 Environmental Specifications
Table 2: Environmental Specification Summary
Specification Non-Operational Operational
Temperature -40°C to 70°C 5°C to 35°C
Temperature Gradient 30°C per hour maximum 20°C per hour maximum
Temperature De-rating 1°C per 300m above 3000m 1°C per 300m above 900m
Relative Humidity 8-90% Non-Condensing 8-90% Non-Condensing
Relative Humidity Gradient 30% per hour maximum 30% per hour maximum
Altitude -300m to 12,000m /
-984 ft. to 39,370 ft
-300m to 3048m /
-984 ft. to 10,000 ft.
1.4 Electrical Specifications
Table 3: Electrical Specifications
Specification Value
Max Power Consumption ~2000W
5

Installation Guide 1. Overview
1.5 Mechanical Specifications
Specification Value
Typical Power Consumption1~1800W
Input Voltage 200 - 240 VAC
PSU Connector Type C14
PSU Efficiency 80 PLUS Platinum
Inrush Current Maximum (per
PSU)
AC line inrush current shall not exceed 35A peak
measured per IPC-9592B(L) Appendix C-4.1.
Inrush Current Typical (per PSU) 15A
Caution: The Ultrastar Serv60+8 can only be plugged into high line (200 - 240 VAC) power. If
the unit is plugged into low line (110-127 VAC), the PSU will report a "Critical" state when status
pages are queried using SES. In this case, the enclosure will power up, but the drives will not.
1.5 Mechanical Specifications
Table 4: Mechanical Specifications
Specification Non-Operational Operational
Shock 10G, 0 - peak,11ms half sine;
3 positive and 3 negative
pulses in each axis shock
5G, 0 - peak, 11ms half sine; 3 positive
and 3 negative pulses in each axis-
minimum 6 seconds between shocks
to allow for write/read recovery
Vibration 0.75G, 0 - peak swept sine;
5 -500Hz; 1 complete sweep
@ 1/2 octave per minute
0.10G,0 - peak swept sine; 5 -500Hz;
1 complete sweep @ 1/2octave per
minute
Weight 95.25 kg / 210 lbs.
Enclosure Dimensions W: 447mm x L: 1030mm x H: 175mm / W: 17.6in. x L: 40.6in. x H: 6.89in.
CMA Standard: 1182mm / 46.5in.Length of Enclosure w/
CMA CMA Lite: 1148mm / 45.2in.
Required Rack Width 450mm (17.72in.) minimum width with 465mm (18.31in.) ± 1.5mm nominal
hole spacing and W1 is 492mm minimum. See EIA-310 Rack Standard
Required Rack Depth 1200 mm (47.24in.) of usable rack space, frame to frame
Rack Units (U) 4U
Vertical Rack Rail
Spacing
812.8mm - 914.4mm / 32 in. - 36 in.
1.6 Performance Specifications
1. Max and typical power consumption values represent the output power to the system. Input power will vary depending
on the PSU efficiency and load sharing between PSUs.
6

Installation Guide 1. Overview
1.7 Ultrastar Serv60+8 Rack Requirements
Table 5: Performance Specifications
Specification Value
Mother Board Intel Sawtooth Pass S2600ST
Processor Type Intel Skylake or Cascade Lake
Socket LGA3647-0 (Socket P) processor sockets
Number of Processors 2
Chipset Lewisburg PCH C624 Chipset
Memory Type DDR4 ECC DIMM
Number of Memory Slots 16 (8 per CPU)
Graphics Integrated
Server BMC Chip AST2500
Number of Drive Slots 60 HDD / 8 SSD
Data Transfer Rates 12Gbps SAS / 6Gbps SATA
Max Raw Data Storage Capacity 901TB using 14TB Ultrastar® HC530 drives
/ 61.44TB using Ultrastar® SS300 SSDs
1.7 Ultrastar Serv60+8 Rack Requirements
The Ultrastar Serv60+8 is designed to be installed into a rack that meets the EIA-310 standard at a minimum
1200 mm (47.24in.) of usable rack space, frame to frame. The vertical rack rails must be set between
812.8mm - 914.4mm / 32 in. - 36 in. to support the enclosure. It requires 4U of rack space, and it should be
installed into the rack at the lowest possible U height to keep the load on the rack balanced.
Table 6: Required Rack Specifications
Parameter Requirement
Rack Depth 1200 mm (47.24in.) of usable rack space, frame to frame
Rack Width 450mm (17.72in.) minimum width with 465mm (18.31in.) ± 1.5mm nominal
hole spacing and W1 is 492mm minimum. See EIA-310 Rack Standard
Rack Units (U) 4U
Vertical Rack Rail Spacing 812.8mm - 914.4mm / 32 in. - 36 in.
Static Load Rating 1360.7 kg. / 3000 lbs.
Dynamic Load Rating 1020.5 kg. / 2250 lbs.
Warning: When extended out of the rack on the rail system, the Ultrastar Serv60+8 will be
~950 mm / 37.4in. extended outward. This may be a potential tipping hazard depending on
the configuration of the rack. Ensure that leveling feet, anti-tilt, and any other safety features
recommended by the specific rack manufacturers have been deployed before servicing.
7

Installation Guide 1. Overview
1.7 Ultrastar Serv60+8 Rack Requirements
The following section provides specific information necessary to install, service, and remove the Ultrastar
Serv60+8 . The installation of the Ultrastar Serv60+8 requires two people and a space of 1524mm / 60in.
in front of the installation space. The servicing of the enclosure requires one person and a minimum of
1219.2mm / 48in. of space in front of the installation space. The removal of the enclosure requires two
people, 1371mm / 54in. of space in front of the installation space, and 24in. on either side of the enclosure
for two people to remove the enclosure.
Warning: The handles on the front of the chassis are not intended to be used to support the
weight of the Ultrastar Serv60+8 . Lifting the unit by the chassis handles or trying to support
the unit on the handles can cause them to fail. This can cause serious damage to the unit or
serious bodily harm to those handling the unit. Always team lift the chassis by gripping the
underside of the unit, and never try to lift a chassis that is filled with drives.
Figure 6: Installation, Servicing, and Removal
Attention: Do not install or remove the enclosure while it is populated with drives. The fully
populated enclosure exceeds the amount of weight that a team of two should lift.
1.7.1 Compatible Rack Hardware Configuration
The following table(s) list the approved rack hardware configurations for the Ultrastar Serv60+8 :
Table 7: Compatible Hardware Configuration 1
Parameter Rack PDU (Vertical) PDU Mounting
Bracket
Additional Mounting
Bracket Hardware
Vendor CRENLO/EMCOR Server Technology Server Technology Various
Part
Number
AS-160099-03
(Drawing
Number EMCOR
526121 Rev 5)
412-0761-11_STV-4501
412-0761-20_STV-4502
412-0761-23_STV-4503
KIT-MBVPT-1B
(one kit per PDU) 4 x M6 x 16 Hex
Cap Screws
8 x M6 Fender
Washers
8

Installation Guide 1. Overview
1.7 Ultrastar Serv60+8 Rack Requirements
Parameter Rack PDU (Vertical) PDU Mounting
Bracket
Additional Mounting
Bracket Hardware
4 x M6 Hex Nut
with Nylon Lock
Quantity 1 2 2 Varies
Table 8: Compatible Hardware Configuration 2
Parameter Rack PDU (Vertical) PDU Mounting
Bracket
Additional Mounting
Bracket Hardware
Vendor AFCO/Legrand Server Technology Server Technology Various
Part
Number
Options:
42RU –
WEDIT605
45RU –
WEDIT604
48RU –
WEDIT603
51RU –
WEDIT606
412-0761-11_STV-4501
412-0761-20_STV-4502
412-0761-23_STV-4503
KIT-MB-40 None
Quantity 1 rack 2 1 N/A
Table 9: Compatible Hardware Configuration 3
Parameter Rack PDU (Vertical) PDU Mounting
Bracket
Additional Mounting
Bracket Hardware
Vendor TRIPP LITE Server Technology Server Technology Various
Part
Number
Options:
SR42UBDP (Rack)
SREXTENDER
25U (Rack
Extension)
SREXTENDER
42U (Rack
Extension)
SREXTENDER
48U (Rack
Extension)
412-0761-11_STV-4501
412-0761-20_STV-4502
412-0761-23_STV-4503
KIT-MBVPT-1B None
Quantity 1 rack 2 1 N/A
9

Installation Guide 1. Overview
1.8 List of Compatible Drives
Table 10: Compatible Hardware Configuration 4
Parameter Rack PDU (Vertical) PDU Mounting
Bracket
Additional Mounting
Bracket Hardware
Vendor APC/Schneider Server Technology Server Technology Various
Part
Number
AR3300W 412-0761-11_STV-4501
412-0761-20_STV-4502
412-0761-23_STV-4503
KIT-MBVPT-1B
(one kit per PDU) 4 x M6 x 16 Hex
Cap Screws
8 x M6 Fender
Washers
4 x M6 Hex Nut
with Nylon Lock
Quantity 1 rack 2 2 Varies
1.8 List of Compatible Drives
HDD with 3.5-inch Drive Carrier
Table 11: Western Digital Ultrastar DC HC310
Drive Type Interface Sector
Size Encryption Volume Part Number
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SE 6TB 1EX1189
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e TCG 6TB 1EX1188
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn SE 6TB 1EX1187
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn TCG 6TB 1EX1186
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e SE 6TB 1EX1185
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG 6TB 1EX1184
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG-FIPS 6TB 1EX1853
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn SE 6TB 1EX1183
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG 6TB 1EX1182
Ultrastar DC HC310
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG-FIPS 6TB 1EX1852
10

Installation Guide 1. Overview
1.8 List of Compatible Drives
Table 12: Western Digital Ultrastar DC HC320
Drive Type Interface Sector
Size Encryption Volume Part Number
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SE 8TB 1EX1227
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SED 8TB 1EX1226
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn SE 8TB 1EX1225
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn TCG 8TB 1EX1224
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e SE 8TB 1EX1223
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG 8TB 1EX1222
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG-FIPS 8TB 1EX1343
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn SE 8TB 1EX1221
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG 8TB 1EX1220
Ultrastar DC HC320
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG-FIPS 8TB 1EX1342
Table 13: Western Digital Ultrastar DC HC510
Drive Type Interface Sector
Size Encryption Volume Part Number
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SE 10TB 1EX0499
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e ISE 10TB 1EX0497
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SED 10TB 1EX0498
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn SE 10TB 1EX0496
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn ISE 10TB 1EX0494
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn SED 10TB 1EX0495
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e SE 10TB 1EX0487
Ultrastar DC HC510 HDD SAS 12Gb/s 512e ISE 10TB 1EX0485
11

Installation Guide 1. Overview
1.8 List of Compatible Drives
Drive Type Interface Sector
Size Encryption Volume Part Number
w/ 3.5 in. drive carrier
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG 10TB 1EX0486
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG-FIPS 10TB 1EX1341
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn SE 10TB 1EX0484
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn ISE 10TB 1EX0482
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG 10TB 1EX0483
Ultrastar DC HC510
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG-FIPS 10TB 1EX1340
Table 14: Western Digital Ultrastar DC HC520
Drive Type Interface Sector
Size Encryption Volume Part Number
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SE 12TB 1EX1015
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e ISE 12TB 1EX1013
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SED 12TB 1EX1014
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn SE 12TB 1EX1012
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn ISE 12TB 1EX1010
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn SED 12TB 1EX1011
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e SE 12TB 1EX1009
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e ISE 12TB 1EX1007
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG 12TB 1EX1008
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG-FIPS 12TB 1EX1338
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn SE 12TB 1EX1006
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn ISE 12TB 1EX1004
12

Installation Guide 1. Overview
1.8 List of Compatible Drives
Drive Type Interface Sector
Size Encryption Volume Part Number
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG 12TB 1EX1005
Ultrastar DC HC520
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG-FIPS 12TB 1EX1339
Table 15: Western Digital Ultrastar DC HC530
Drive Type Interface Sector
Size Encryption Volume Part Number
Ultrastar DC HC530
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SE 14TB 1EX1793
Ultrastar DC HC530
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SED 14TB 1EX1794
Ultrastar DC HC530
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 4Kn SE 14TB 1EX1790
Ultrastar DC HC530
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e SE 14TB 1EX1791
Ultrastar DC HC530
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e ISE 14TB 1EX1583
Ultrastar DC HC530
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG 14TB 1EX1792
Ultrastar DC HC530
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG-FIPS 14TB 1EX1855
Ultrastar DC HC530
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn SE 14TB 1EX1788
Ultrastar DC HC530
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG 14TB 1EX1789
Ultrastar DC HC530
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 4Kn TCG-FIPS 14TB 1EX1854
Table 16: Western Digital Ultrastar DC HC550
Drive Type Interface Sector
Size Encryption Volume Part Number
Ultrastar DC HC550
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SE 16TB 1EX2476
Ultrastar DC HC550
w/ 3.5 in. drive carrier HDD SATA 6Gb/s 512e SED 16TB 1EX2477
Ultrastar DC HC550
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e SE 16TB 1EX2473
Ultrastar DC HC550
w/ 3.5 in. drive carrier HDD SAS 12Gb/s 512e TCG 16TB 1EX2474
Ultrastar DC HC550 HDD SAS 12Gb/s 512e TCG-FIPS 16TB 1EX2475
13
