Dual Fuel Pizza Oven with Rotating Stone
WBGLGBGO12AR
Rev.05/23
Assembly,CareAndUseInstructionsReadCarefully
Important:RetainTheseInstructionsForFutureReference.
ThisapplianceisforHouseholduseonly.Thisisnotacommercialappliance.

INTENDEDUSE......................................................................................... 3
SAFETYINFORMATION............................................................................ 3
PACKAGECONTENTS .............................................................................. 7
PREPARATION.......................................................................................... 8
ASSEMBLYINSTRUCTIONS..................................................................... 9
8.1 USEWOODPELLET..........................................................................13
8.2 USEGAS.........................................................................................14
OPERATIONINSTRUCTIONS.................................................................... 16
CONNECTINGTHELPTANK...................................................................17
CHECKINGFORLEAKS...........................................................................18
PERFORMLEAKTEST............................................................................18
TROUBLESHOOTING................................................................................ 19
FIRSTTIMEOPERATION........................................................................... 20
USINGTHEGASOVEN...........................................................................20
TOLIGHTWITHAMATCH......................................................................21
USINGTHEPELLETOVEN......................................................................... 21
CAREANDMAINTENANCE ...................................................................... 22
OtherCareandMaintenance...............................................................23
DISPOSAL................................................................................................ 24
INFORMATIONANDSERVICE................................................................... 24
CONTENT

3
EN
INTENDEDUSE
Usethedeviceonlyforthepurposeintended.Anyotherusemayresultindamageto
thedeviceorinjuries.
SAFETYINFORMATION
Assembler/Installer
Thisinstructionmanualcontainsimportantinformationnecessaryfortheproper
assemblyandsafeuseofthisappliance.Readandfollowallwarningsandinstructions
beforeassemblingandusingthisappliance.
Leavetheseinstructionswiththeconsumer.
Consumer/User
Followallwarningsandinstructionswhenusingthisappliance.Keepthese
instructionsforfuturereference.
Warnings
Ifyousmellgas:
• Shutogastotheappliance
• Extinguishanyopenflame
• Ifodorcontinues,keepawayfromtheapplianceandimmediatelycallyourgas
supplieroryourfiredepartment.
• Failuretofollowtheseinstructionscouldresultinfire,explosionorburnhazard
whichcouldcausepropertydamage,personalinjuryordeath.
Warnings
• DONOTstoreorusegasolineorotherflammableliquideorvaporsinthevicinityof
thisoranyotherappliance.
• ALPcylindernotconnectedforuseshalnotbestoredinthevicinityofthisorany
otherappliance.l
• ThisgrillisFOROUTDOORUSEonlyandshallnotbeusedinabuilding,garage,under
overhangsoranyotherenclosedarea.
• DONOTleavealitgrillunattended.Keepchildrenandpetsawayfromthegrillatall
times.
PROP65WARNING:
ThisproductcanexposeyoutochemicalsincludingChromium(hexavalent
compounds),whichareknowntotheStateofCaliforniatocausecancerandbirth
defectsorotherreproductiveharm.Formoreinformationvisitwww.P65Warnings.
ca.gov.

4
EN
IMPORTANTSAFETY
Pleasereadthismanualcarefullyandbeforeinstallingorusingyourgasgrilltoensure
Thismanualshouldberetainedforyourinformation.
LOCATIONOFGRILL
Rememberthatyourgrillisanoutdoorappliance.Ensureyourgrillispositionedsafely
awaygaragesoranyotherenclosedarea.Thisoutdoorcookinggasapplianceisnot
approvedtobeinstalledinoronanyrecreationalgrillsareintendedforsingle-family/
residentialuseonly.
Minimumclearancefromsidesandbackofunittocombustibleconstruction,36
inchesfrombackandsides.
Whendeterminingasuitablelocation,takeintoaccountconcernssuchasexposure
towind,proximitytoProperlocationanduseisalsoessentialtoensuresafeand
continuedtrouble-freeoperation.Anynon-approvedalterationsmadetothegrillwill
voiditswarranty.
INSTALLATIONWARNINGS
Pleasereadallinstallation,operating,andmaintenanceinstructionsthoroughlybefore
installingorservicingthisequipment.
Safeoperationofgasgrilldependsuponproperinstallation.Allgasinstallationsand
gasadjustment,alternation,service,ormaintenancemaycausepropertydamage,
injuryordeath.
AlwayschecktheRatingPlateonthegrilltomakesurethegassupplyyouare
connectingtoisthegastypetheapplianceismanufacturedfor.Donotkinkthegasline
wheninstalling.
Warnings
Thisgasgrillmustbeinstalledinaccordancewithalllocalcodes.Ifinstallationis
plannedinanareawithnolocalcodes,yourgasgrillmustbeinstalledinaccordwith
theNationalFuelGasCodewiththeNationalFuelGasCodeANSIZ223.1,andstorage
andhandlingofCSAB149.2propaneinstallationcode.
Thisgrillisforoutdooruseonly.Themanufacturercannotbeheldresponsiblefor
damageorinjurycausedbyimproperuseofthisappliance.
Theinstallationmustconformwithlocalcodesorintheabsenceoflocalcodes,with
CAN/CGA-B149.2,PropaneInstallationCode.ThisgrillCANNOTbeconvertedtonatural
gas.DONOTattempttoconvertthisgrillwithadierentgastype.
FUELCONCERNS&EXPLOSIONHAZARDS
Donotstoreorusegasolineorotherflammablevaporsandliquids(thatarenot
connectedforuse)inthevicinityofthisoranyotherappliance.Keeptheareaclearand
freefromcombustiblematerials,gasoline,andotherflammablevaporsandliquids,
Failuretodosocanresultindeath,explosionorfire.

5
EN
KeepanABCfireextinguisheraccessibleatalltimes,andneverattempttoextinguisha
greasefirewithwaterorotherliquids.Donotattempttoheatunopenedcontainerson
thegrill.Pressuremaybuildupandcausethecontainertoexplode.Neverusecharcoal
oranyothersolidfuelinthegrill.
PROPERUSE
This grillisNOTintendedforcommercialuse.Donotoperatethegrillinabuilding,
garage, oranyotherenclosedareas.Thiscouldresultincarbonmonoxidebuildup,
whichmaycauseinjuryordeath. Grillsarenotdesignedorintendedforinstalltionnear
awindoworventthatfeedsintothehouse.
soap-and-watersolutionsinthe“CheckingforGasLeaks”sectiononPage18.
Forproperoperation,burnermustbealignedwiththevalveorificeandseatedin
thebracketslot.Thisisaccomplishedbyfirstplacingtheburnertube'sshutterhole
securelyoverthevalveorifice,andensuringthemalepostontherearoftheburner
restsintheopeninginthegrillchassis.Failuretodosocouldresultinafireand/or
injury.
ConsulttheAHJ(AuthorityHavingJurisdiction)oracontractorinyourareaifyouhave
anyuncertainty regardinglocalcodes.
LPCYLINDERCARE&STORAGE
Beforeeachuse,visuallyinspectthegassupplyhoseforcracks,cuts,orexcessive
wear.Replacethehoseifnecessary.CheckforgasleaksasoutlinedonPage18before
eachuse.
Ensurethegassupplyhosedoesnotcomeincontactwithhotsurfacesorsharpor
roughedgesofthegrilloroutdoorkitchenconstruction.
Donottwistthegassupplyhose.
NeverstoreanLPcylinderortankindoors,orwithinthereachofchildren.
Pleasealwayskeepthegasbottleinuprightposition.
Warnings
Theself-containedLPsystemapplianceisdesign-certifiedtobeusedwithastandard
20-Ib.,121/4"-diameter,18"-tallcylinderwithright-handedconnectionthreads.This
isthemaximumsizeLPtanktobeusedwiththisgrill.Thecylindermustbemarked
inaccordancewiththelatestU.S.DepartmentofTransportationspecificationsforLP
gascylinders.(DOT.CFR49orNationalStandardsofCanadaCAN/CSA-B359Cylinders,
SpheresandTubesfortheTransportationofDangerousGoods).
UseonlyLPtankswithanOPD(OverfillPreventionDevice).
IFYOUSMELLGAS
• Shutogastothegrill.
• Extinguishanyopenflames.
• Iftheodorpersists,immediatelycallyourlocalgassupplierorfiredepartment.

6
EN
BEWAREOFSPIDERS
BURNERTUBEMUSTBEINSPECTEDANDCLEANEDBEFOREEACHUSE.
Spidersandsmallinsectsoccasionallyspinwebsormakenestsintheburnertubeof
gasgrill.Thesewebscanleadtoagasflowobstruction,whichcouldresultinafirein
andaroundtheburnertube.Thistypeoffireisknownas"flash-back"andcancause
seriousdamagetoyourapplianceandcreateanunsafeoperatingconditionforthe
user.Althoughanobstructedburnertubeisnottheonlycauseof«flash-back,"itisthe
mostcommoncause-makingnecessaryfrequentinspectionandcleaningoftheburner
tube.
GENERALWARNING
• Allgasgrillgethotduringuse.Useextremecautionwhenoperation.
• Donottouchhotsurfaces.
• Use insulatedovenmittswhenoperatingthegrill.
• Neverleanoverthecookingsurfacewhenlightingoroperatingthegrill.
• Neverlighttheappliance withoutbeingcertainthattheburnerispositionedand
seatedoverthegasvalveandontheburnersupport.
• Closesupervisionisnecessarywhenthisoranygrillisusednearchildren.Keep
childrenawayfromthegrillduringoperationanduntilithascooledo.
• Neveroperatethisgrillwhileundertheinfluenceofalcoholordrugs.
• Donotstoreanythinginthegrill.Makesurefoodisnotforgotteninthegrillbody;
forgottenitemscouldmeltorcatchfirewhenthegrillisturnedon.
NeverusethegrillinWINDYconditions.Iflocatedinaconsistentlywindyarea
(oceanfront,mountaintop,etc.),awindbreakwillberequired.Windsblowingintothe
backcanresultinpoorperformanceand/orcausethecontrolpanelandknobstoget
dangerouslyhot.
Topreventinjuries,donotuseaccessoriesthatarenotrecommendedbythe
manufacturer.Theuseofaccessories,regulators,orcomponentsnotrecommended
bytheappliancemanufacturermaycauseinjuriesandwillvoidwarranty.

7
EN
PACKAGECONTENTS
1. BodyX1
2. ChimneyX1
3. ChimneycapX1
4. DoorX1
5. PelletinletX1
6. BodyhandleX1
7. GasburnerkitX1
8. PizzastoneX1
9. DoorhandleX2
10. PelletboxX1
11. Pelletboxgrate X1
12. PelletshovelX1
13. PelletinlethandleX1
14. HandleX1
15. SpoonX1
16. PelletinlethandleX1

8
EN
Sparepart
PREPARATION
Beforebeginningassemblyofproduct,makesureallpartsarepresent.Compareparts
withpackagecontentslistonpreviouspageandhardwarecontentsbelow.Ifanypart
ismissingordamaged,donotattempttoassembletheproduct.Contactcustomer
serviceforreplacementparts.
ToolsRequiredforAssemblyandLeakTesting(notincluded):Phillipsscrewdriver,Spray
bottle,Adjustablewrench.
CAUTION:
Somepartsmaycontainsharpedges.Wearprotectiveglovesifnecessary.Read
andfollowallsafetystatements,warnings,assemblyinstructionsanduseandcare
instructionsbeforeattemptingtoassembleanduse.
A. M5*12MMX12
B. M5NutX4
C. M5NutX3
D. MovableScrewsforgasturnerX2
E. M4*6MMX3

9
EN
ASSEMBLYINSTRUCTIONS
1.Installtherotatinghandle
Thescrewhasbeenpre-installedintherotatinghandle.Unscrew&reinstalltoattached
-rotatingpiece.
A M5*12MM2PCS
2.Unfoldlegs

10
EN
3.Installthechimney
Thescrewhasbeenpre-installedonthechimney.Unscrew&reinstalltoattached
chimneypiece.
A M5*12MM1PCS
4.Installthepizzaovenhandle
Thescrewsandnutshavebeenpre-installedontheovenhandle.Unscrew&reinstallto
theoven.
A M5*12MM3PCS

11
EN
5.Installthechimney
6.Installthepelletinletparts
Thescrewsandnutshavebeenpre-installedonthebody.Unscrew&reinstalltothe
pizzaoven.
A M5*12MM2PCS

12
EN
Thereisahandletoopenandclosethecoverwhenyouaddpellet.
7.Installthedoor
Thescrewsandnutshavebeenpre-installedonthehandles.Unscrew&reinstalltothe
door.
A M5*12MM2PCS
B M5Nut2PC

13
EN
8.1 USEWOODPELLET

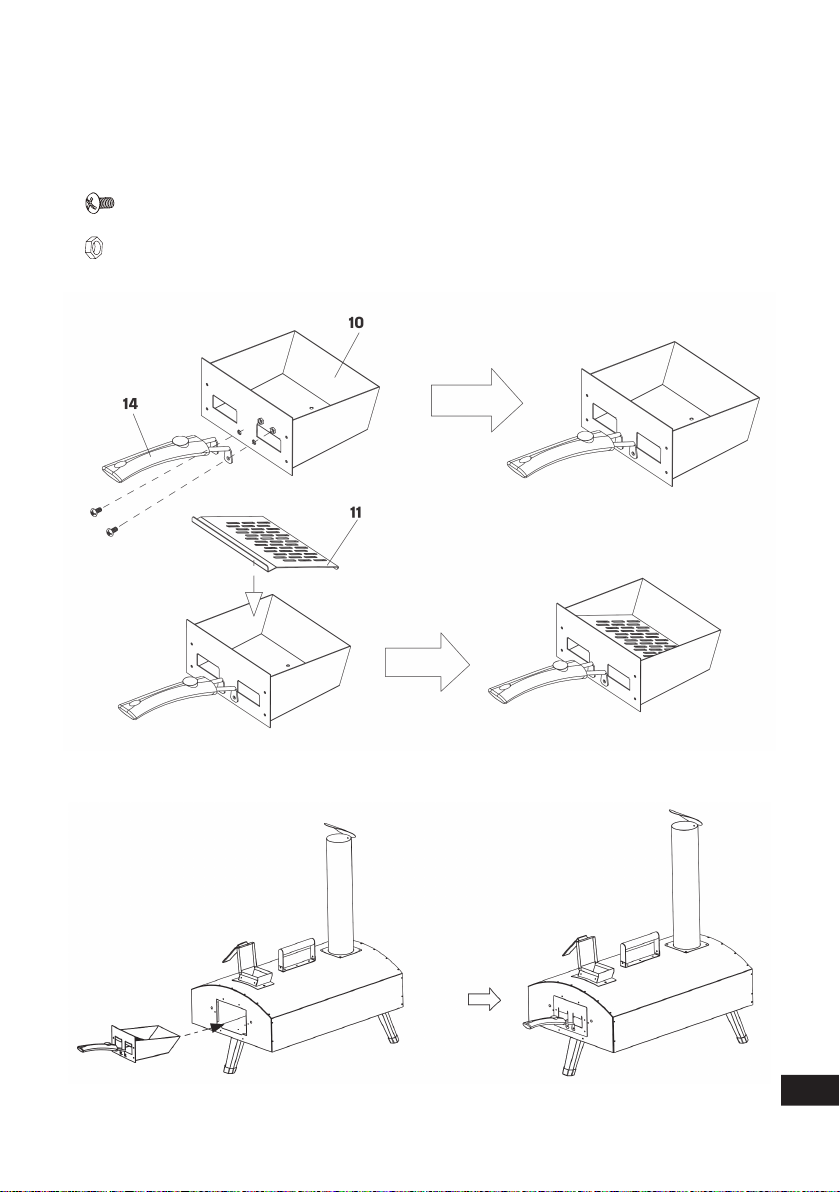

8.1.1Installthepelletbox
Thescrewsandnutshavebeenpre-installedonthehandles.Unscrew&reinstalltothe
pelletbasket.
A M5*12MM2PCS
B M5Nut2PCS
8.1.2Putthepelletboxintothepizzaoven.

14
EN
8.2 USEGAS
8.2.1Installtheburner
Thescrewsandnutshavebeenpre-installedontheburner.Unscrew&reinstalltothe
pizzaoven.
D MovableScrewsforgasturner2PCS
9. Installthepizzastone.

15
EN
10. Attachthedoor.
11.Installthepizzashovel.
E M4*6MM3PCS
C M5Nut3PC

16
EN
OPERATIONINSTRUCTIONS
CONNECTINGGASCYLINDER
Thepropanegassupplycylindertobeusedmustbeconstructedandmarkedin
accordancewiththeStandardofCanada,CAN/CSA-B339,Cylinders,Spheresand
TubesforTransportationofDangerousGoods;andCommission,asapplicable;and
providedwithalistedoverfillingpreventiondevice.
Useonly20-poundcylinder(height:18.11inches,tankdiameter:9.84inches,foot
diameter:8.03inches)equippedwithacylinderconnectiondevicecompatiblewiththe
connectionforoutdoorcookingappliances.
Thecylindermustincludeacollartoprotectthecylindervalve.Thegascylindershould
notbedroppedorhandledroughly!
Iftheapplianceisnotinuse,thegascylindermustbeturnedo.Storageofan
applianceindoorsispermissibleONLYifthecylinderisdisconnectedandremovedfrom
theappliance.Cylindersmustbestoredoutdoorsoutofthereachofchildrenandcan
notbestoredinabuilding,garageoranyotherenclosedarea.Yourcylindermustnever
bestoredwheretemperaturescanreachover125°F.
Placedustcaponcylindervalveoutletwheneverthecylinderisnotinuse.Onlyinstall
thetypeofdustcaponthecylindervalveoutletthatisprovidedwiththecylindervalve.
Othertypesofcapsorplugsmayresultinleakageofpropane.
Beforeconnection,besurethatthereisnodebriscaughtintheoutletofthegas
cylinder,outletoftheregulatorvalveorintheoutletoftheburnerandburnerports.
Connectregulatorvalveandhand-tightenvalvewhenthegrillisnotinuse.
DONOTobstructthefollowofcombustionairandventilationairtothegrill.The
propanecylindermustbearrangedforvaporwithdrawalandequippedwithalisted
overfillingpreventiondevice.Pleaseusethepropercylinderorientationtoprovide
vaporwithdrawal.NOTE:Thecylindermustbefullyuprightforthecylindertohave
vaporwithdrawalonly.
CAUTION:
a.DonotstoreaspareLP-gascylinderunderornearthisappliance.
b.Neverfillthecylinderbeyond80percentfull
c.lftheinformationin(a)or(b)isnotfollowedexactly,afirecausingdeathorserious
injurymayoccur.
NOTE:Othercylindersmaybeacceptableforusewiththisapplianceiftheyare
Vapor
Liquid
Correct Wrong Wrong
Liquid Liquid
Vapor Vapor

17
EN
compatiblewiththeappliancenestingholeandretentionmeans.RefertoPage10-11of
theAssemblyInstructionsforcorrectcylindertocylinderholderconnection.
Warnings
ALLINSTRUCTIONSANDSAFEGUARDSONTHISPAGEMUSTBEFOLLOWEDTOPREVENT
FIRE,DAMAGEAND/ORINJURY.
CONNECTINGTHELPTANK
1. TheknobontheLPtankmustbeclosed.Makesurethattheknobisturned
clockwisetoafullstop.Thecylindersupplysystemmustbearrangedforvapor
withdrawal.
2. Checkthatthecontrolknobonthecontrolunitisturnedo
3. RemovetheprotectivecapfromtheLPtankvalveandcouplingnut.
4. Holdtheregulatorinonehandandinsertthenippleintothevalveoutlet.Besurethe
nippleiscenteredinthevalveoutlet.Thecouplingnutconnectstothelargeoutside
threadsonthevalveoutlet.Usecaredonotcrossthreadtheconnection.
5. Hand-tightenthecouplingnut clockwiseuntilitcomestoafullstop.Firmly
tightenbyhandonly.Donotusetools.ToDisconnect:Fullyclosethetankvalve
byturning clockwise.Turnthecouplingnut counterclockwiseuntilthe
regulatorassemblydetaches.
Warnings
Intheconnectionprocess,makesure:
• Theregulatorinletconnectormateswiththecylindervalveoutletproperly,safely
andfirmly.
• TheLPgashosedoesnotcomeincontactorremainincontactwiththegrillmain
body.

18
EN
CHECKINGFORLEAKS
Afterallconnectionaremade,checkallconnectionsandfittingsontheLPgastank
valve,gashoseandregulatorforleakswithawaterandsoapsolution.
Topreventfireorexplosionwhiletestingforaleak:
• Alwaysperformleaktestpriortolightingthegrill.
• Donotsmokewhiletestingforaleak.
• Alwaysperformleaktestsoutdoorsinawell-ventilatedarea.
• Donotusethegrilluntilanyandallleaksarecorrected.
• Donotuseanysourceofflamewhiletestingforleaks.
• Ifyouareunabletocorrectaleak,disconnectthepropanesupplyandcallagas
applianceservicedealer.
Leakdetectingagent:
Youcanlocateanyleaksinthegassystemusingaleakdetectionagent.These
areavailableatDIYshopsorfromliquidgassuppliers.Pleasefollowtheoperating
instructionsoftheleakdetectionagent.
PERFORMLEAKTEST
• Prepareleaktestsolutionby50/50ratioofliquiddishsoapandwater.
• Totalsolutionrequiredisapproximately2-3ounces(70-90ml).
• Putleaktestsolutioninaspraybottle.
• EnsurecontrolknobisintheOFFposition.
• Connectthegashosetothegassupply.
• OpentheLPgastankvalve.
• Sprayleaktestsolutiononallgascarryingconnectionsanofappliedtestsolution
indicatesagasleak.Ifleaksaredetectedoryousmellorheargas,shutothegas
supplyvalveimmediatelyandrepairorreplacethedefectivepart.Donotusethe
grilluntilallleaksarecorrected.
CAUTION:
Onlyusetheregulatorandhoseassemblyprovided! Ifareplacementisnecessary,
pleasecallourcustomerservicecenter.Donotusereplacementpartsthatarenot
intendedforthisgrill.
Warnings
ALLINSTRUCTIONSANDSAFEGUARDSONTHISPAGEMUSTBEFOLLOWEDTOPREVENT
FIRE,DAMAGEAND/ORINJURY.

19
EN
TROUBLESHOOTING
Problem PossibleCause Prevention/Solution
Burnerwillnotlight 1. Nogasflow
2.Couplingnutand
regulatornotfully
connected
3.Obstructionofgasflow
4.Disengagementof
burnertovalve
5.Incorrectassembly
1. Checktoseeifpropane
tankisempty.
2.Turnthecouplingnut
aboutone-halftothree
quartersadditionalturn
untilsolidstop.Tightenby
handonly-donotusetools.
3.Clearburnertube.
4.Reengageburnerand
valve.
5.Checkstepsin
assemblyinstructions.
Suddendropingasflowor
lowflame 1.Outofgas 1.Checkforgasin propanetank.
2.Turnogascontrol
knob,wait30seconds
andlightoven.Ifflames
arestilllow,turnogas
controlknobandpropane
tankvalve.Disconnect
regulator.Reconnect
regulatorandleaktest.
Turnonpropanetank
valve,wait30secondsand
thenlightoven.
Flamesblowout 1. Highorgustingwinds
2.Lowonpropanegas 1. Turnfrontofovenaway fromwind.
2.Refillpropanetank.
3.RefertoSuddendropin
gasflowabove.
Flare-up 1. Greasebuildup
2.Excessivefatinmeat
3.Excessivecooking
temperature
4.Excessflouronthe
cookingsurface
1. Cleanoven.
2.Trimfatsfrommeat
beforecooking.
3.Adjust(lower)
temperatureaccordingly.
4.Brushremnatflourfrom
cookingsurface.

20
EN
Flashback(fireinburner
tube,roaringsoundfrom
burner)
1. Burnerand/orburner
tubesareblocked
2.Pressuredropduring
ingition
1. Turngascontrolknob
o.Cleanburnerand/or
burnertubes.
2.Turnooven,ensurethe
tankvalveisfullyopen(if
applicable)andrelight.
Iftheabovesolutionsdonotsolveyourproblem,oryouneedtoreplacethe
accessories,pleasecontactourCustomerService.
FIRSTTIMEOPERATION
Priortousingyourgasgrill,verifythatallofthefollowingistrue:
• Theburnertubeisfreeofanydebrisorobstruction.
• Thepropergastype,gasconnection,andregulatorsettingshavebeeninstalled.
• You'vecheckedforgasleaks.
• Allpackaginghasbeenremoved.
• Allpartsandcomponentsareproperlyinplace.
• Aninstaller-suppliedmanualgasshutovalveisfullyaccessible.
USINGTHEGASOVEN
Tobegin:
Makesuretheovenhasbeenleaktestedandproperlyplaced.
Removeanyremainingpackingmaterial.
LighttheburnerusingtheLIGHTINGINSTRUCTIONSbelow.
Therearenormaltohavewhitesmokewhentheyareusedforthefirstandsecond
time,astherotatingfunctionpartsareprotectedbyprotectiveoil.
LightingtheAppliance
1. MakesurethecontrolknobisinOFFposition,andthenturntheliquidpropane
cylindervalveONbyslowlyturningcounterclockwise.
2. Pushinandslowlyturnthecontrolknobanticlockwiseuntilyouhearaclickandthe
burnerignites.
3. Ifburnerdoesn'tlight,turntheknobOFF,wait5minutesandrepeatthelighting.
